    Ignition Spark Plug Quick Tester with Adjustable Double Hole Detector Ignition Plug Analyzer

    • Item No.  Z155-1
    • History: 46  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  177
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 2 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

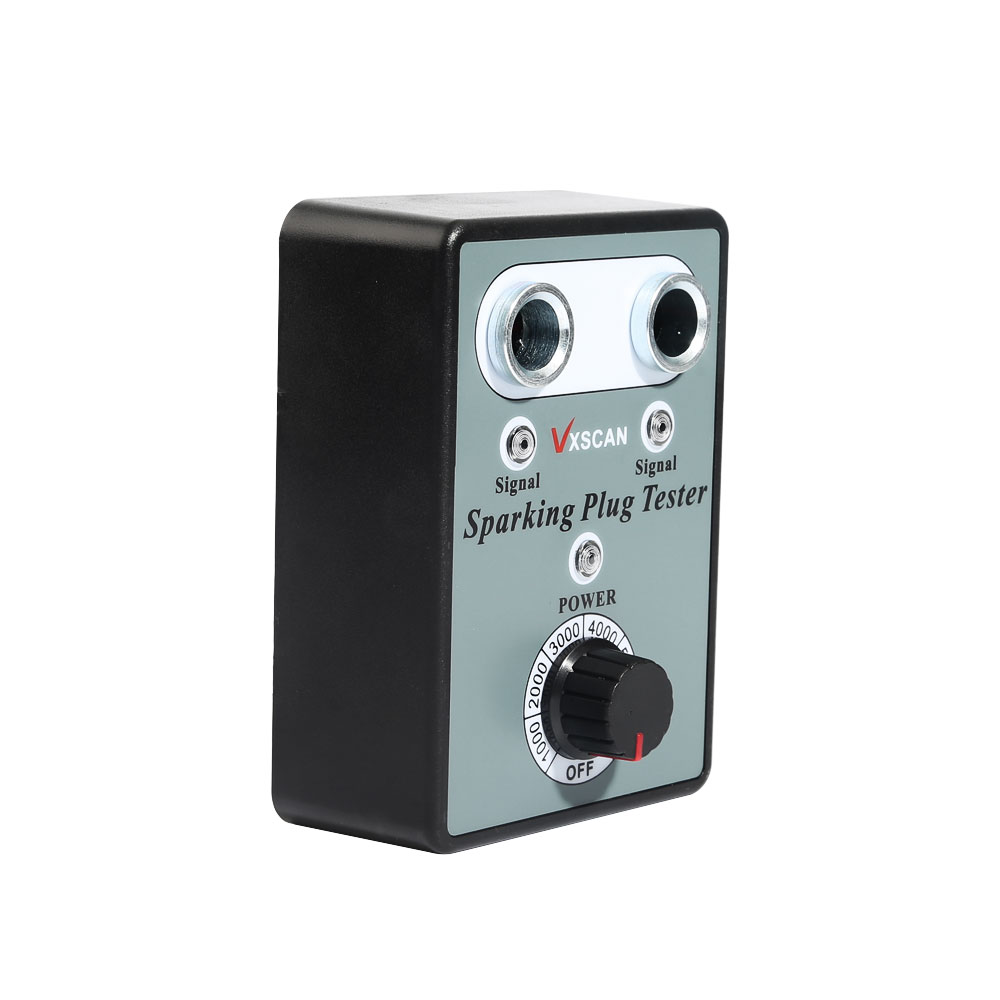

    Ignition Spark Plug Quick Tester with Adjustable Double Hole Detector Ignition Plug Analyzer



    Adjustable double hole car spark plug tester detector Ignition Plug Analyzer Diagnostic Tool

    Ignition Spark Plug Quick Tester Detector with Dual Hole Advantage:
    Dual Hole Car Spark Plug Tester Detector have two testing holes, you can test two spark plugs meanwhile and and if you suspect any spark plug works improperly you could compare and test to make accurate judgment.

    Usage: Test spark plug performance and ignition strength

    Application Range: 12V Gasoline vehicles car spark plugs

    Car Spark Plug Test principle:
    In automobile ignition system, the high-voltage ignition coil generates a high-voltage (10000 volts or more), and the spark plug diverts it form
    high -tension ignition coil into the cylinder engine, spark between the spark plug electrodes will ignite the mixture. The Detector could tell the good spark plugs from the bad by the strength of the spark.

    Ignition Spark Plug Quick Tester Using Note:
    1. Please Turn Off Power before you place spark plug
    2. The Spark Plug Tester is a high-voltage detector, so do not touch spark plug with hand at work to avoid danger.

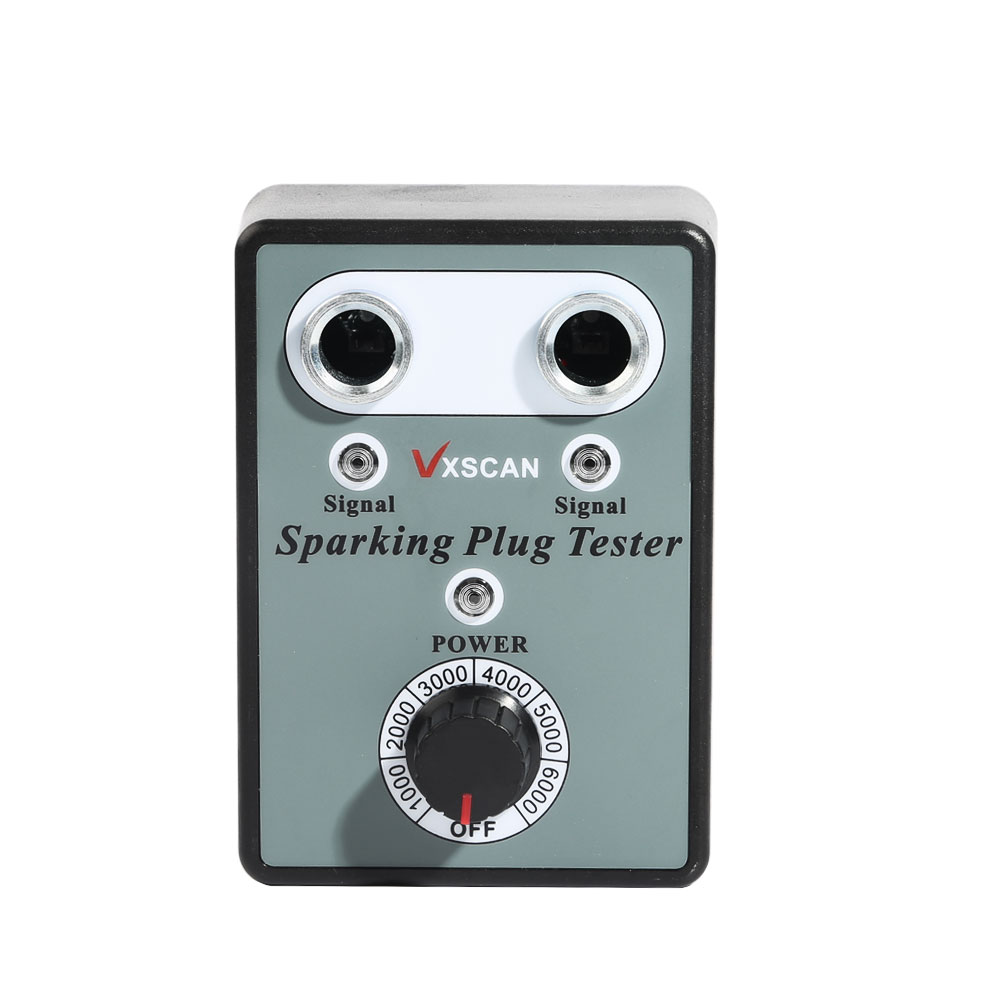

    Ignition Spark Plug Quick Tester User Manual:
    1.Place the Spark Plug into tester hole 1 or 2; If you want to compare the new spark plug and old one, place new spark plug into hole 1 and the old on into hole 2
    2.Connect to power supply
    3.Turn the key switch 4 clockwise to turn on tester, indicator 3 will light up, tester is now working at 1000rpm/min.

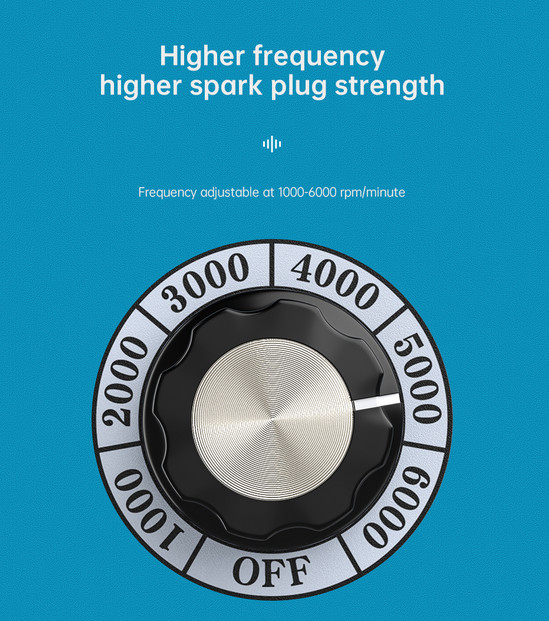

    4. Again turn the key switch 4 clockwise,you can adjust the working frequency between 1000rpm to 5000rpm/min.
    The higher the frequency, the stronger the spark strength.

    Gasoline Car Spark Plug Tester Product Parameters:
    Main Unit Size:145*85*60mm
    Main Unit Weight:220G( Not including Power Adapter)
    Power Adapter: Input 100-240V AC /  Output 12V 1A DC

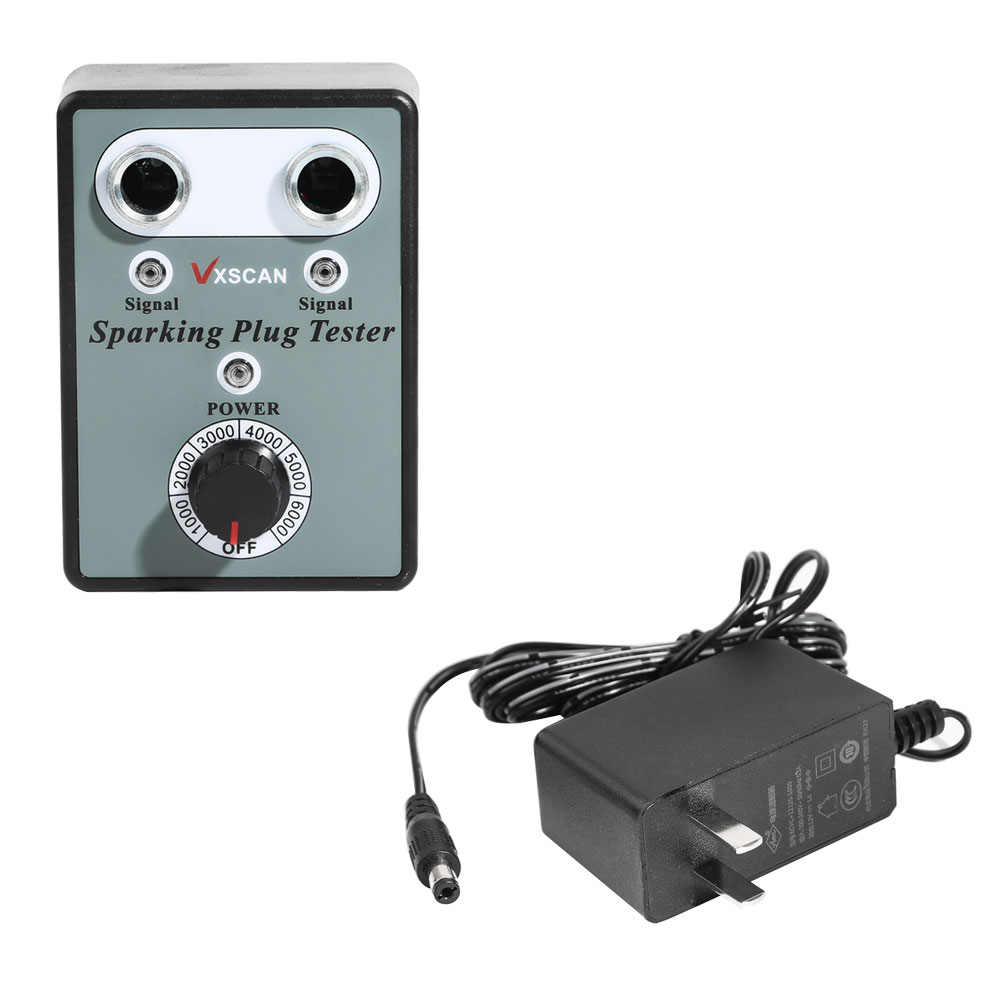

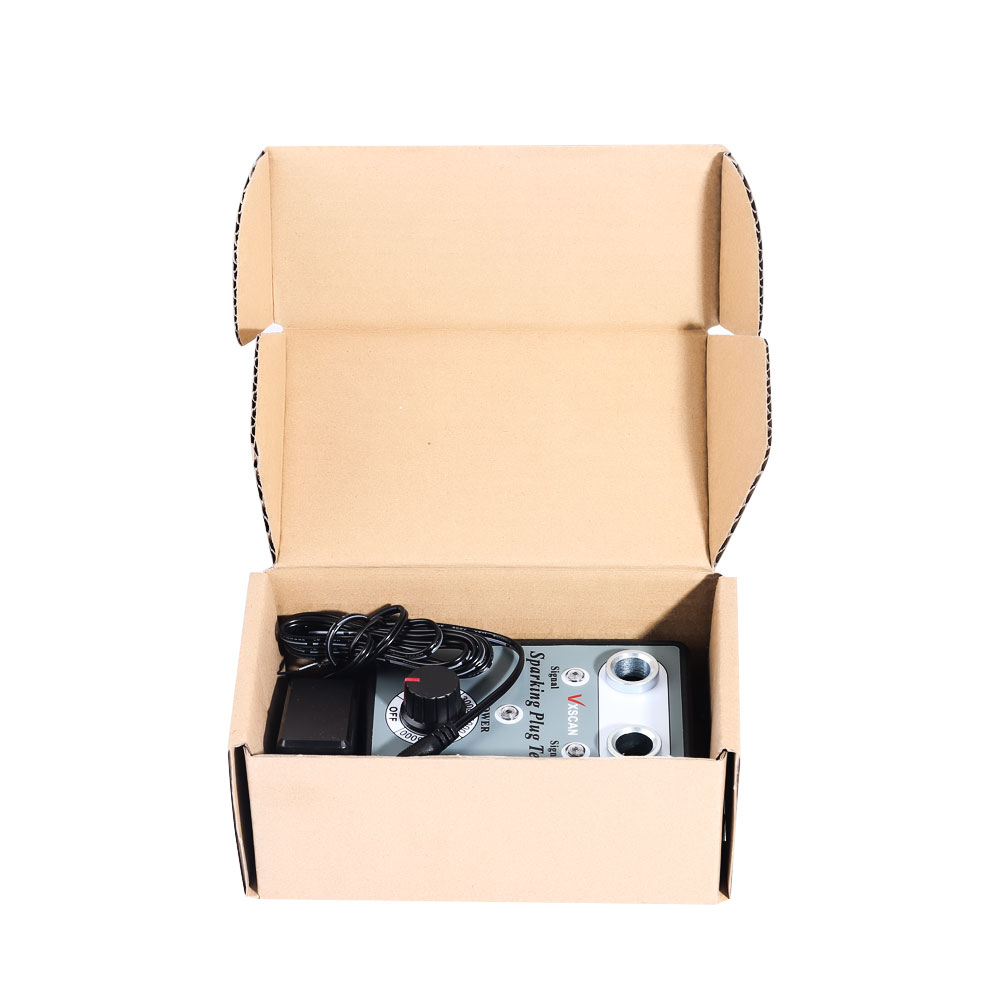

    Ignition Spark Plug Quick Tester Package Includes:
    1pc x Spark plug tester
    1pc x Power Adapter

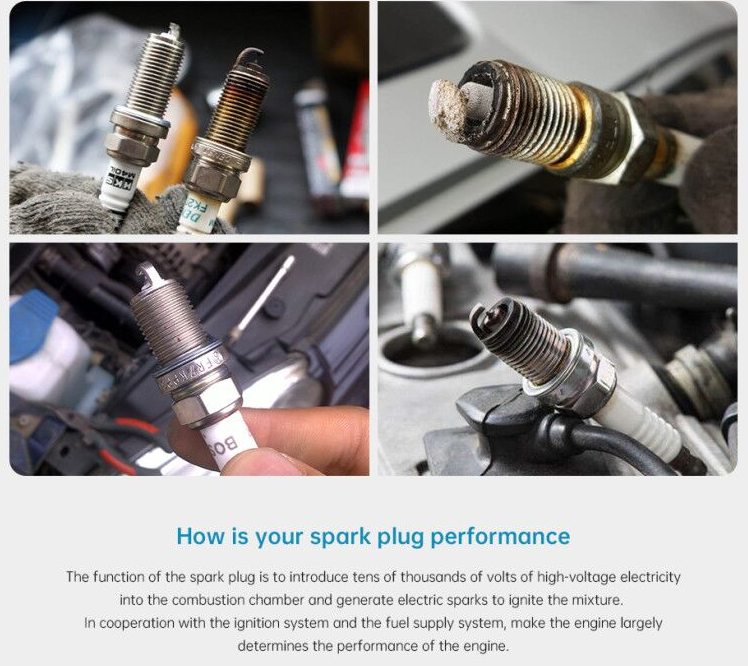

    How is your spark plug performance?

    The function of the spark plug is to introduce tens of thousands of volts of high-voltage electricity into the combustion chamber and generate electric sparks to ignite the mixture.


    In cooperation with the ignition system and the fuel supply system, make the engine largely determines the performance of the engine.



    So now,you need A Spark Plug Tester for test!!

    Four Advantages Of The Car Spark Plug Tester

    1.Adjustable&Double Holes

    2.Insert Now And Use Now

    3.Convenient Power

    4.Easy For Use

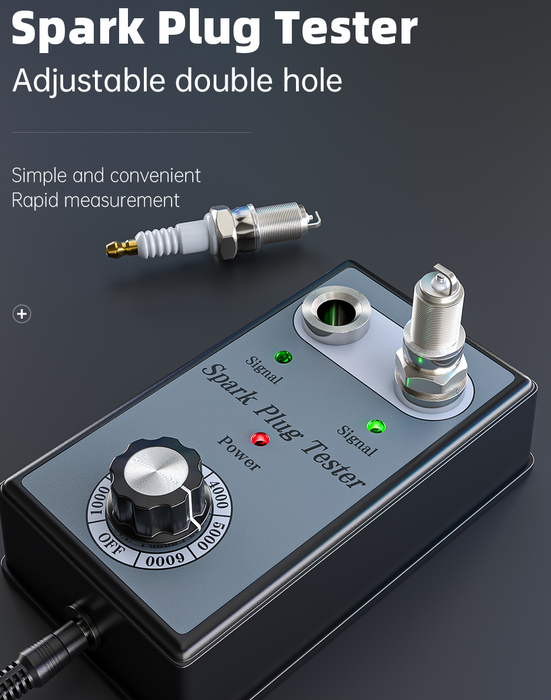

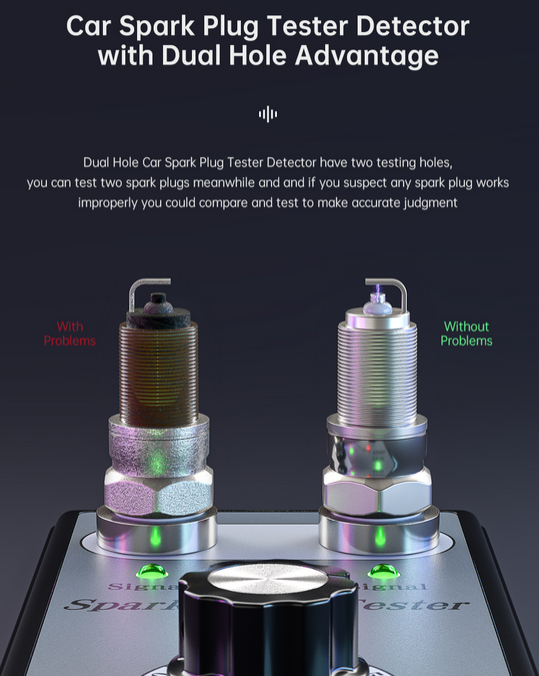

    Car Spark Plug Tester Detector with Dual Hole Advantage


    Dual Hole Car Spark Plug Tester Detector have two testing holes, you can test two spark plugs meanwhile and and if you suspect any spark plug works improperly you could compare and test to make accurate judgment.
