    DSP 3 + Immo full package

    • Item No.  G119
    • History: 80  sold
    • Market Price: US$5,016.00
      Shop Price: US$4,180.00You save US$836.00
    • Quantity:  300
    • Weight:  9.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy




    Technical Support


    DSP 3 + Immo full package

    use manual.pdf

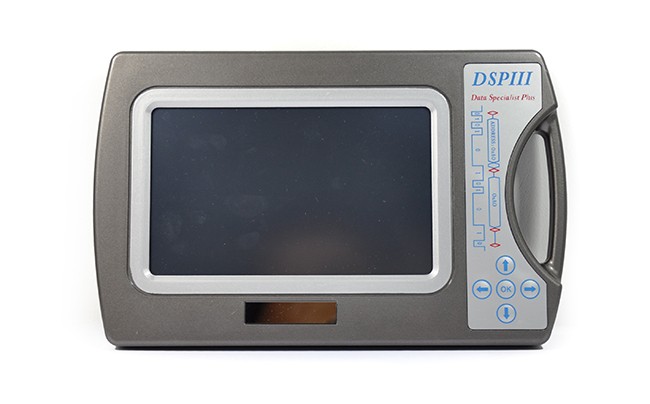

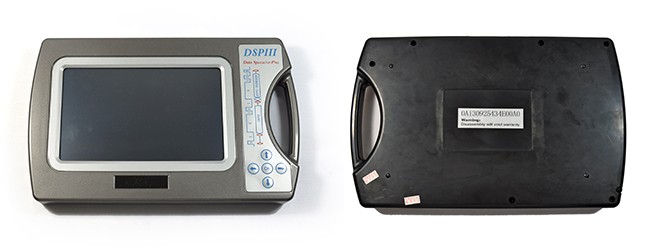

    DSP III+ is the most complete programming device for digital odometers, airbag modules, car radios, car immobilizers.
    It is a high-quality embeded system, which offers a maximum of flexibility and working comfort.

    Technical reference

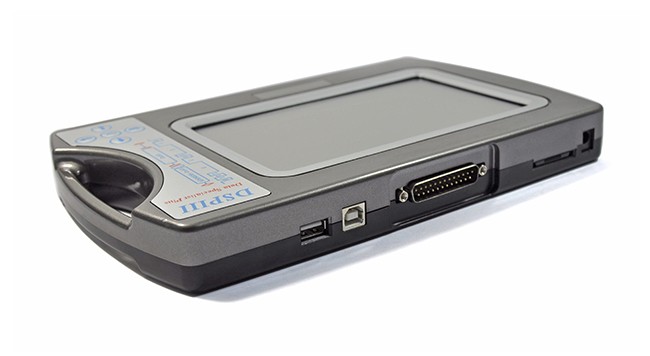

    Power by ARM 10 TDI and CORTEX ARM cores, speeds up to 600MHZ, 800*480 TFT LCD and touch screen(7.0".16:9).
    Convenient keyset. USB host and USB device. SD card interface. 128MB NandFlash, 128MB SDRAM.

    Self-check function integrated in system.
    Enhanced OBD functions, including CAN-BUS / J1850 / CCD-BUS / ISO9141 / SPI protocols.
    Intuitive operability by full menu and picture guidance. All data can be edited, stored and loaded.
    Color connection picture is on the screen whenever you need.
    The stored data can be transferred to a PC by USB port or SD card, and also can be transfer to wherever you want directly
    by internet.

    Update directly from internet.

    Immo full package (include all software and hardware)

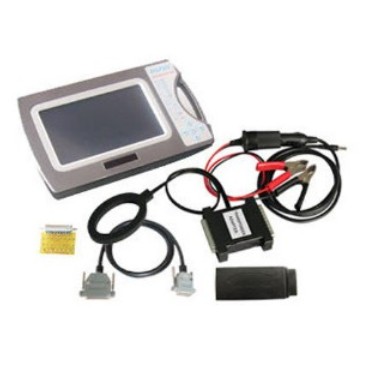

    Immo full package:

    Main hardware, Transponder adapter, OBD cables, USB cable, Power cables, with full soft.Software:
    OBD functions for Immo are all active.

    Ford / Mazda:
    Key learning by OBD2 (not need code) for CAN-BUS cars.

    4th Generation of VW Immo:

    1. Make dealer keys by Megamos48 chip (using transponder adapter).
    2. Key learning by OBD2 (not need code , not need online).
    3. Cover all VW / SKADA / SEAT cars that use NEC or Micronas or 9s12xhz512(1M80F) MCU in dashboard.

    4th Generation of AUDI Immo:
    1. A6 / Q7
    2. A3 / TT / R8 07-UP

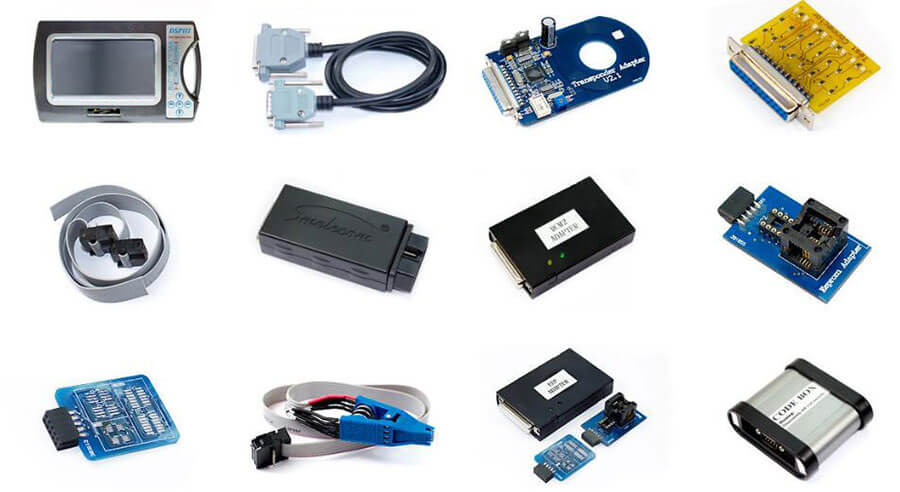

    Accessories and Adapter
