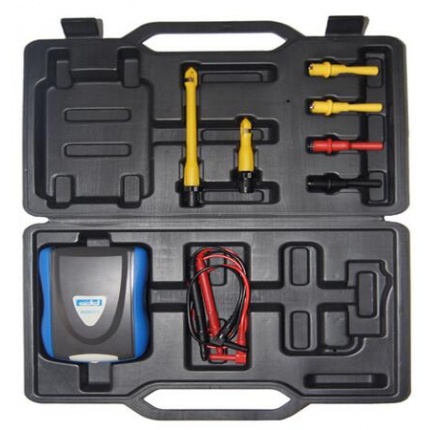

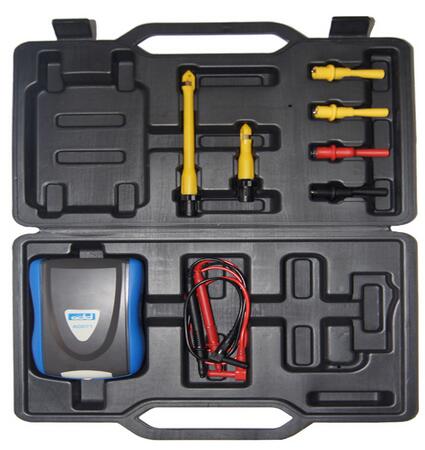

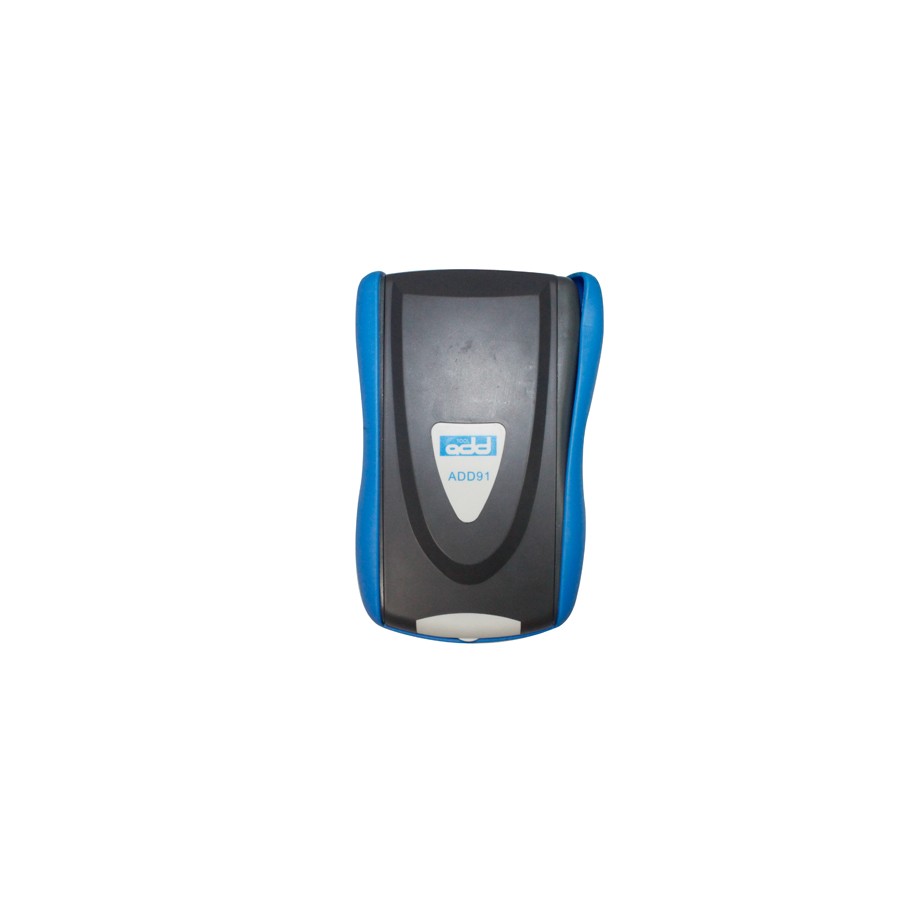

    Automotive Professional Multimeter ADD91

    • Item No.  Z159
    • History: 155  sold
    • Market Price: US$234.00
      Shop Price: US$195.00You save US$39.00
      Quantity
      Total
    • Quantity:  98
    • Weight:  2.1KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

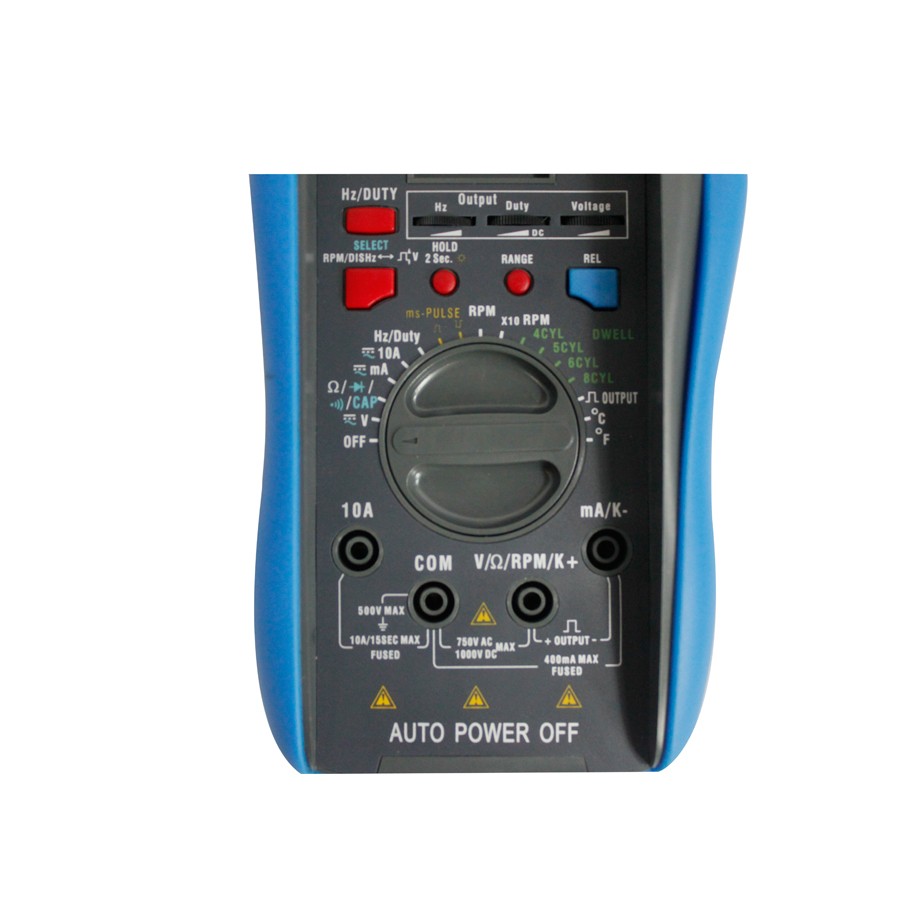

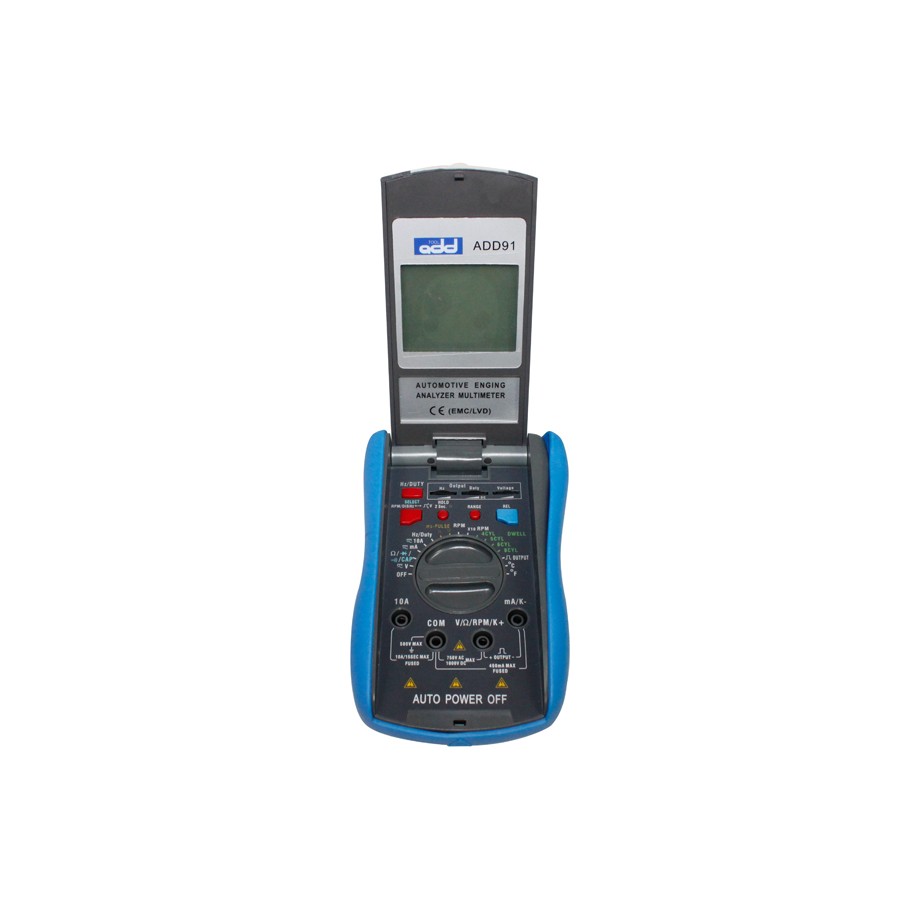

    Automotive Professional Multimeter ADD91

    Description

    Display:3 3/4 digits LCD with a maxreading of 3999
    Back light / hold key
    Safety: According to EN61010-1 protection class

    over voltage category(CAT
    600V)
    Power supply : 2×1.5VAA batteries
    Size: 145(H)×74(W)×40(D) mm
    Weight: Approx. 500g(including battery and holster)
    Quadratic signal output(reference are changeable)
    Size:36cm*29cm*8.2cm
    Weight:2.15kg


    Features

    DC/AC Voltage,Resistance,DC/ AC Current,Capacitance,Frequency and Duty cycle
    Temperature,Diode\ Continuity test
    Tachometer, Dwell,ms-PULSE
    Sensor Simulator

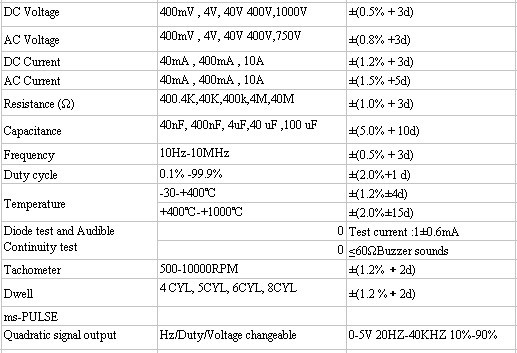

    Specifications


    Applications

    Automotive sensor simulator
    Measure output in sensors like Oxygen (O2)
    Coolant Temperature, Throttle Position (TPS)
    Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc
    Check grounds, Voltage drops and continuity across Connectors
    Wires, Cables, Relays Contacts, Lamps, Switches, etc
    Check components like Alternator
    Diodes, Relays Coils
    Condensers, Ignition Coils, Spark Plug Wires
    Magnetic Pick-ups, Motors, Switches, Fuses, etc
