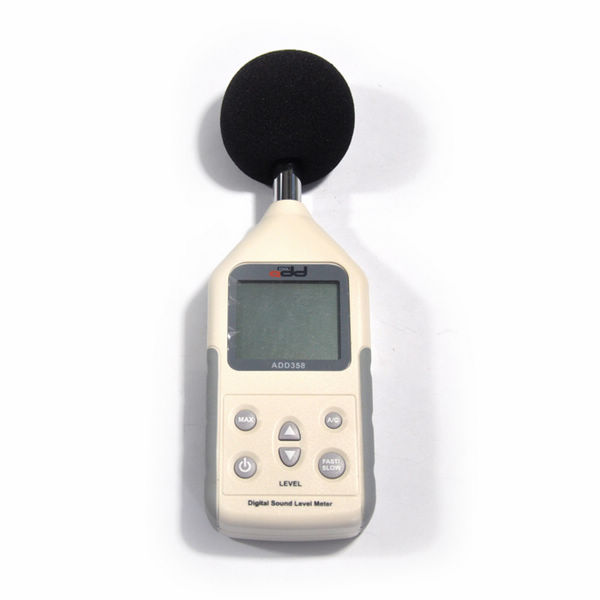

    ADD358 Digital Sound Level Meter

    • Item No.  Z192
    • History: 161  sold
    • Market Price: US$150.00
      Shop Price: US$125.00You save US$25.00
    • Quantity:  200
    • Weight:  800.0gram
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy




    Technical Support


    ADD358 Digital Sound Level Meter

    This handheld sound level meter is very easy to use, just switch it on, set the range and start measuring. The wide 40-130dB range (120dB is pain threshold!) makes it useful for many situations including noise pollution monitoring, home theatre setup, health and safety compliance, vehicle noise testing etc.

    In particular it meets the LTSA requirements for the 'Noise Quick Check' (when combined with the sound meter calibrator). It comes in a foam lined plastic case with compartments for the windscreen sponge and spare battery.

    The meter is supplied ready calibrated. If you need to verify the meter readings it can be done (and re-calibrated if necessary) with the Sound Level Meter Calibrator 94dB SC941.

    Measurement range 40-130dB
    Accuracy ± 1.5dB (reference conditions)
    Frequency range 31.5Hz - 8.5kHz
    Readout resolution 0.1dB
    Sampling rate 50 miliseconds
    Microphone 12mm (1/2 inch) electret condenser
    Bargraph ranges 40-80dB, 50-100dB, 60-110dB, 80-130dB
    AC out 0.707Vrms F.S. & DC out 10mV/dB
    Conforms to IEC651 type 2 for sound level meters
    Conforms to ANSI S1.4 type 2 for sound level meters
    Powered by 9V battery supplied

    Fast setting tests normal noise
    Slow setting averages fluctuating noise
    A weighting for normal frequency noise
    C weighting for low frequency noise
    AC/DC sound analyser outputs
    Under and over range indicators
    Maximum reading level button
    Tripod mounting point
    Self test at power on
    Long battery life 30 hours
    Low battery warning
    DC 9V input socket

    12 Months Warranty
