    Best quality For GM MDI Scan tool with WIFI V2017.02

    • Item No.  A194-2
    • History: 128  sold
    • Hard Disk for Selection:

    • Market Price: US$285.59
      Shop Price: US$238.00You save US$47.59
    • Quantity:  197
    • Weight:  3.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    Best quality GM MDI Scan tool with WIFI V2017.02

    Highlights of MDI:
    1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose
    2.Can do cars from 1990-2016.12 Year

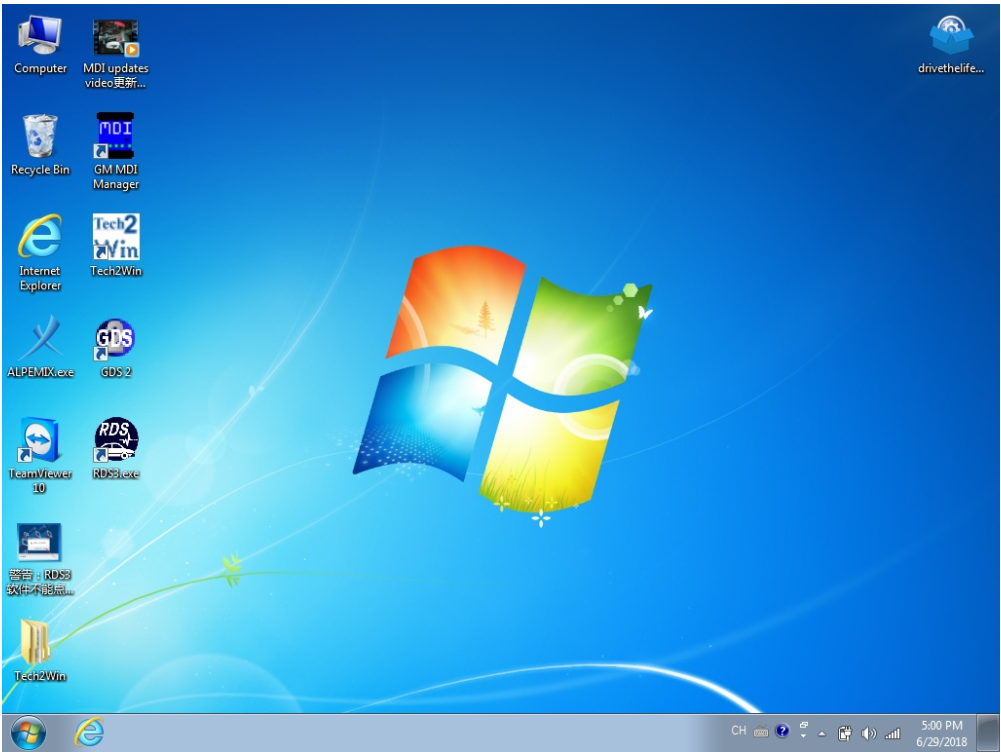

      you can select the package with HDD( software ) or not ,  we already  installed the GM MDI software into 500G SATA interface laptop HDD,   the HDD can be used after 2008 year SATA  hard disk interface laptop
    4.Support 2010-2016 year new cars

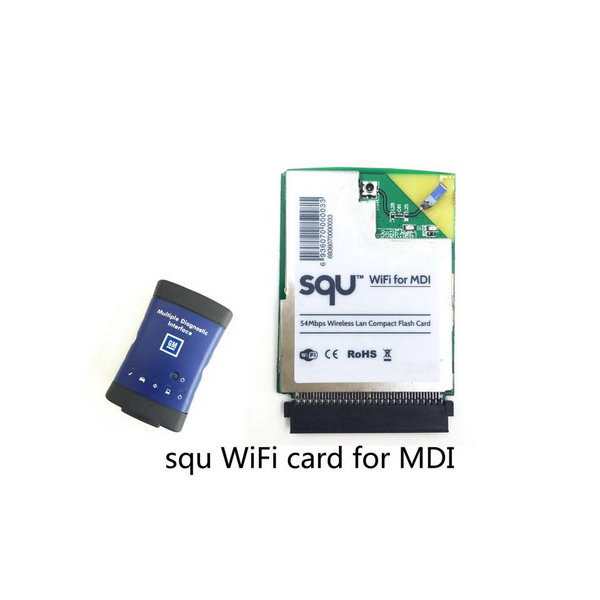

    5.Support WIFI


    If you need programming online,  you must have a account.

    Newest features for MDI:
    1. With opel Global tis global diagnostic system
    2. With GDS2 diagnostic system
    3. Tech2win diagnostic software support adding latest software
    4. support programming online
    5. support cable communication
    6. support original factory latest software
    7. With European Chevetl Global tis, Supports European Chevet

    General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
    Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

    MDI and GDS Background

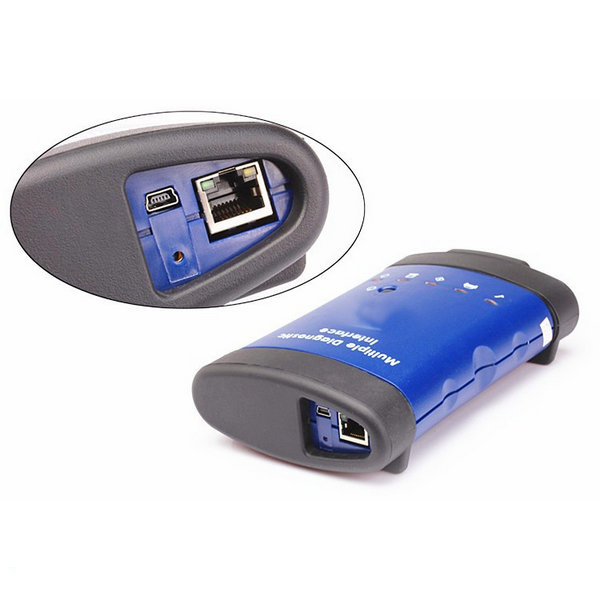

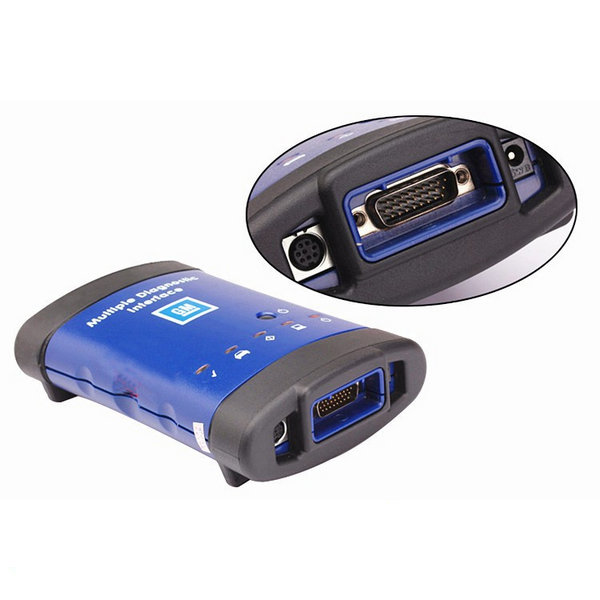

    MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
    Required for diagnostics on new SGM Global A Electrical Architecture Vehicles

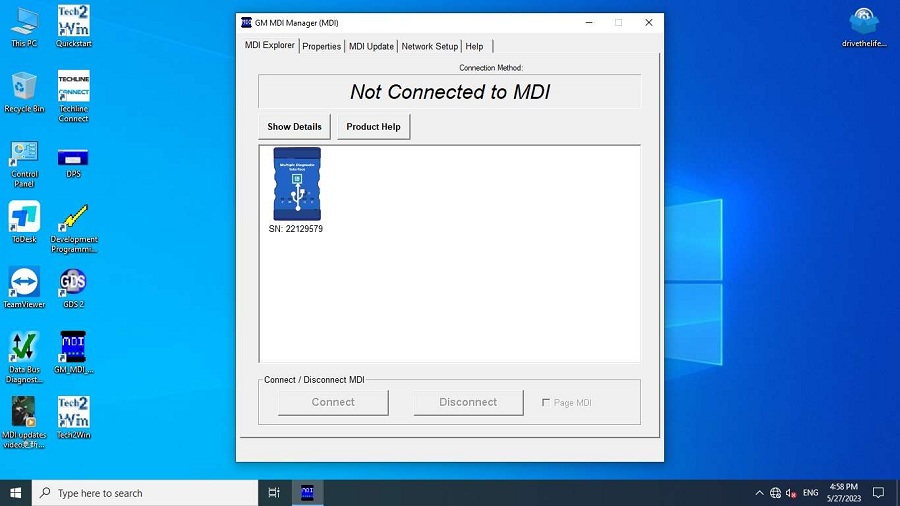

    Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software

    Allows for GDS diagnostic

    Display For GM MDI Language:

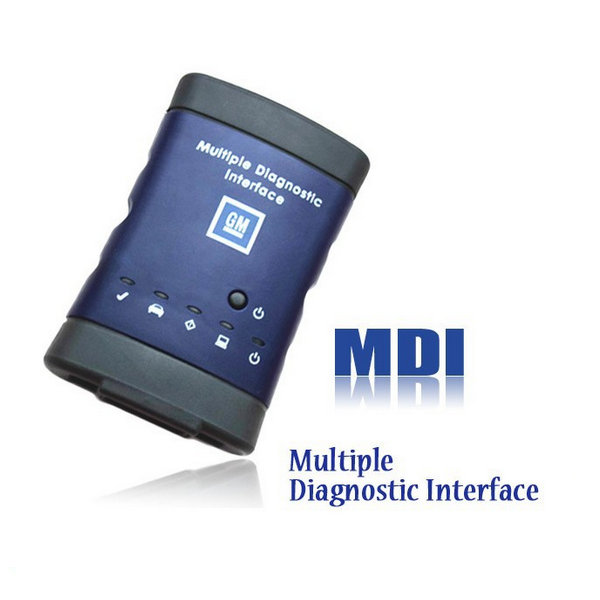

    GM Multiple Diagnostic Interface (MDI)
    All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
    Needed for Global A architechture vehicles
    Supports Service Programming System (SPS)
    Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
    Includes Flight Recorder Mode
    New Diagnostic Application Software required for Global A Vehicles
    Global Diagnostic System (GDS)
    PC-based software diagnsotics
    DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
    GDS is software which runs on a specific PC. Updates received via TIS2Web.
    Multiple display options. More space for diagnsotics. Session management for multiple us.

    What protocols does the MDI support?

    For immediate use — At present, vehicles have two buses on the 16 pin connector
    (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
    - UART
    - Class 2
    - KWP2000
    - GMLAN (CAN)

    The Future of the Tech 2

    The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.


    The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008

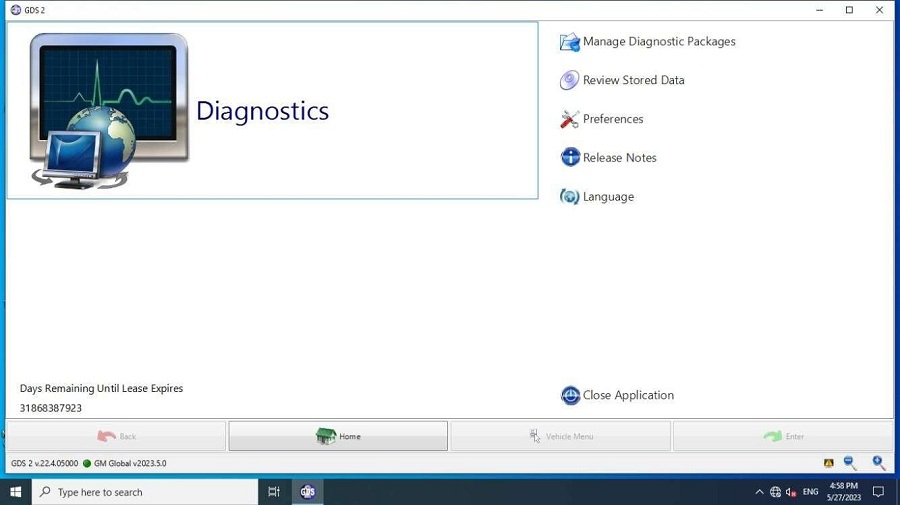

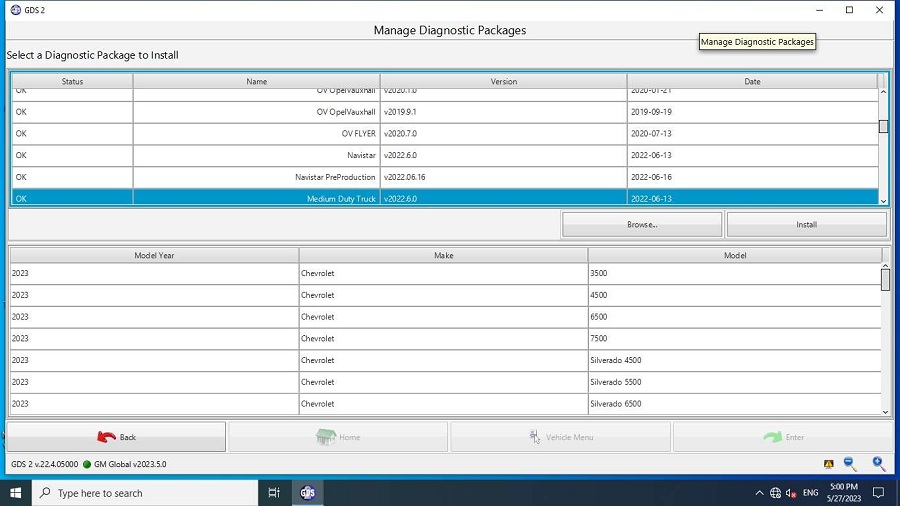

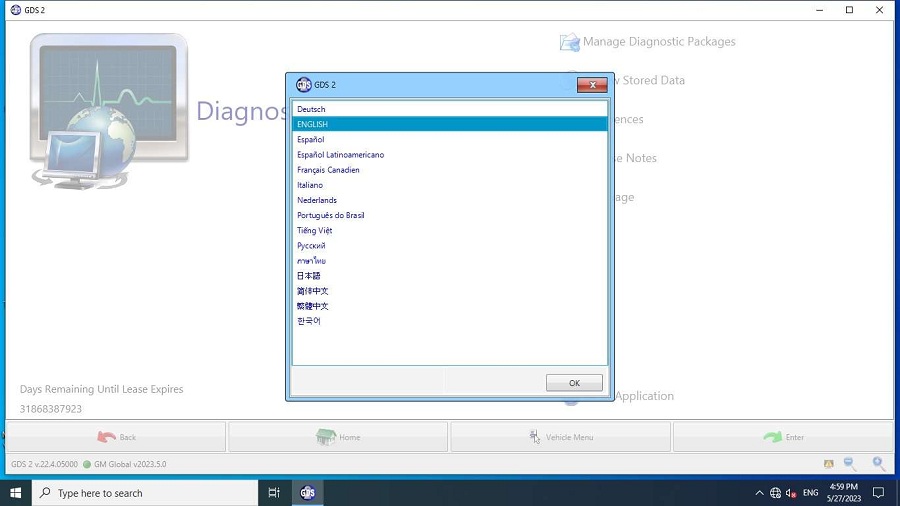

    When you test after 2010 year gm car, you can use gm gds2 software:

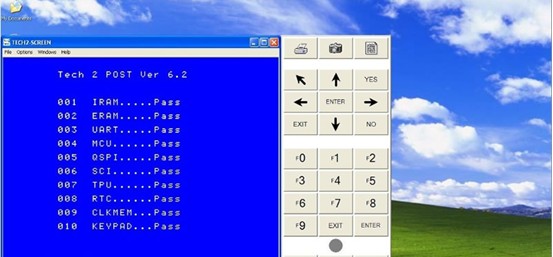

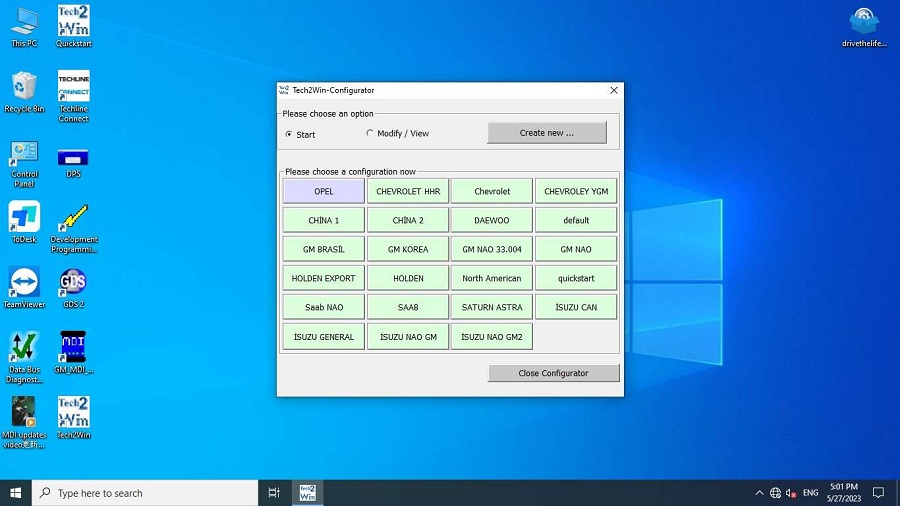

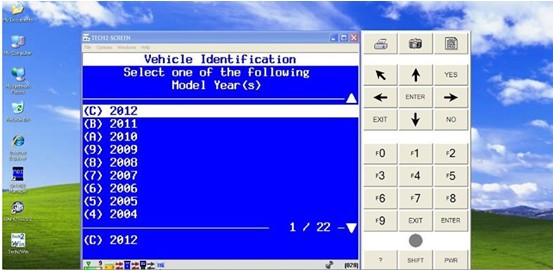

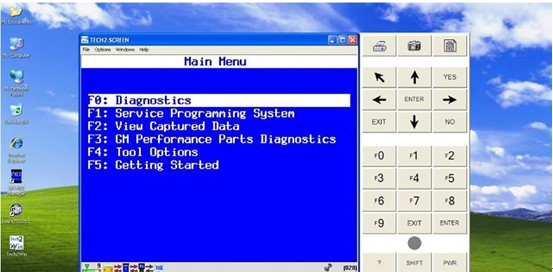

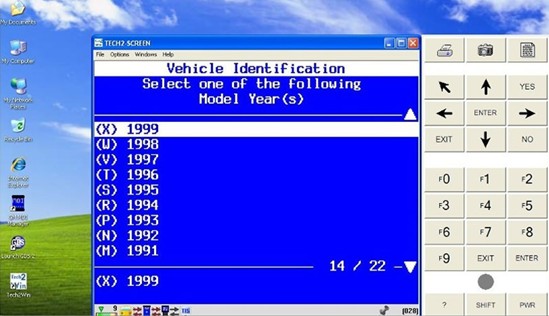

    When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:

    Test steps:
    1: finish update lease step, connect with Car OBD, click diagnostic icon on the interface. Choose brand and click “input” on lower right corner, car information will be read automatically, or you can choose manual input VIN
    2:choose test what you want, like module diagnostic—engine control modual—identifying information ( picture22-27)

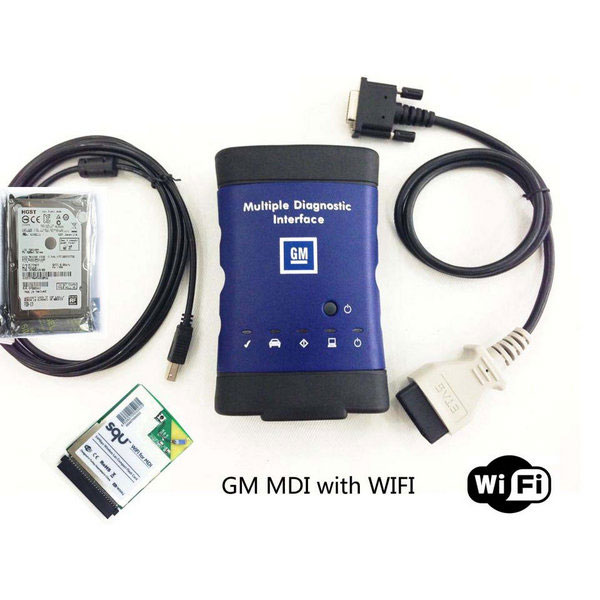

    MDI Scan Tool Package List:
    1pc x MDI Main unit

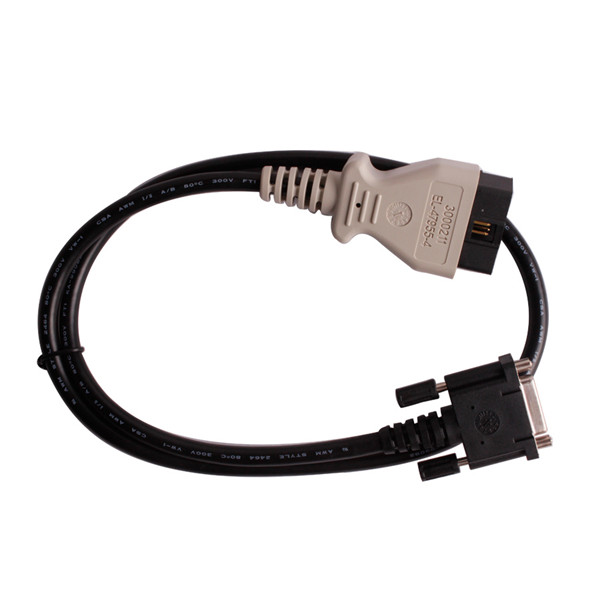

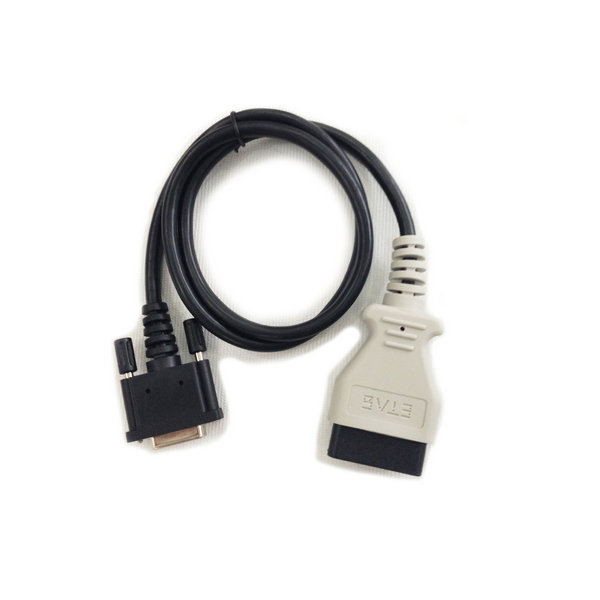

    1pc x OBD2 Cable

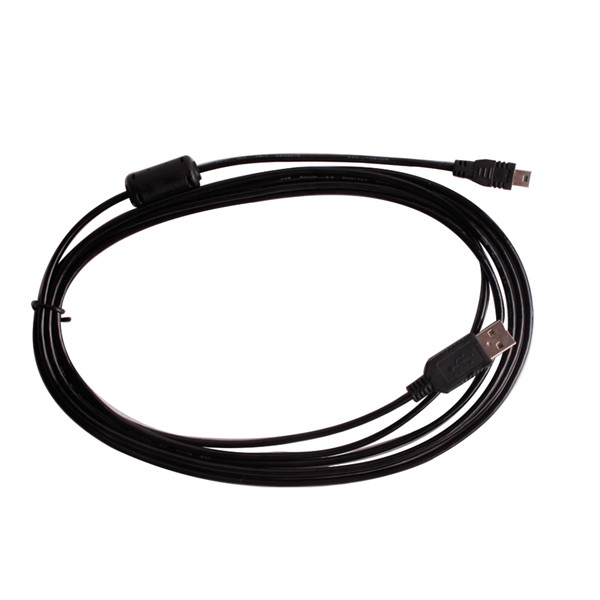

    1pc x USB Cable
    1pc x AC Adapter

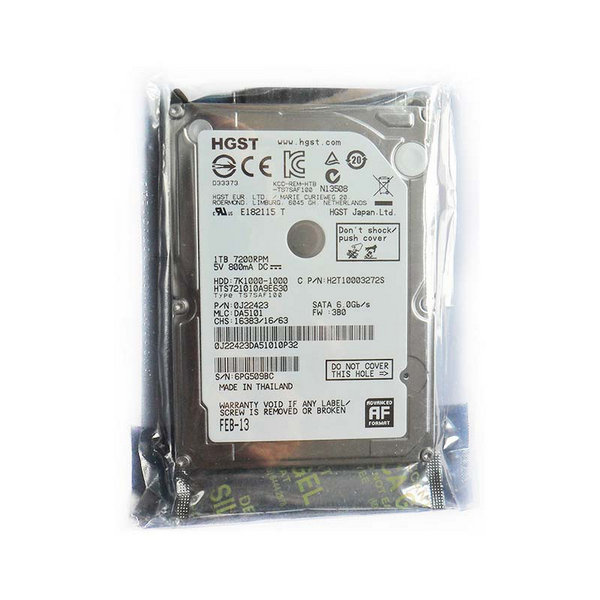

    1pc x HDD 500G  (option)

    User Comment(Total 5 User Comment Num)

    • by Brian seymour,Mar 21,2017

      Êà÷åñòâî çàâîäñêîå, ïàéêà èäåàëüíàÿ, Âàé Ôàé ðàáîòàåò! Ðåêîìåíäóþ!!!

      Reply #1 by OBD2TOOL Mar 21,2017
      Thank you so much for your feedback. We are looking forward to do business with you again.


    • by alen sinanovic,Nov 08,2016

      Its inexpensive and works 100%
      I was very sceptical ordering this mdi with the not so great reviews. It took 3 about three weeks to show up(expected) it looks exactly like the OE Gm mdi, when setting it up with gm s mdi manager it worked exactly like it should, I proceded to test it on several vehicles on gds2 with 0 issues, I then programmed several different vehicles with no issues both with usb and wireless, then I set up tech2win and launched it on a few vehicles with no issues. The only thing I cannot comment on is firmware updates. I will update this when I know for sure if it works or not. Over all it appears to work exactly like it should on USA model Chevrolet,cadillac,Gmc,Buick etc

      Reply #1 by OBD2TOOL Nov 08,2016
      Thank you for your feedback


    • by ryan,Jul 11,2016

      Works Great and was a good deal !!! Works perfect when you know what you are doing

      Reply #1 by OBD2TOOL Jul 11,2016
      thank you very much your feedback, hope more orders from you


    • by ODUKA EDMOND,Feb 09,2015

      Will it work on Chevrolet Silverado 2500HD 6.6L Diesel 2014?

      Reply #1 by OBD2TOOL Feb 09,2015
      Hello,thanks for your inquiry.
      Do you have the gm mdi software,if you have,you can use this.


    • by Alan Watt,Jan 20,2015

      Hello,can i use your gm mdi with factory connections?

      Reply #1 by OBD2TOOL Jan 20,2015
      Hi,dear friend
      Thanks very much for your support.
      Yes,it can support.
