Autoboss PC max Wireless VCI for Asian, European and USA Cars update by email
Please kindy note:
Upgrade:By email or CD

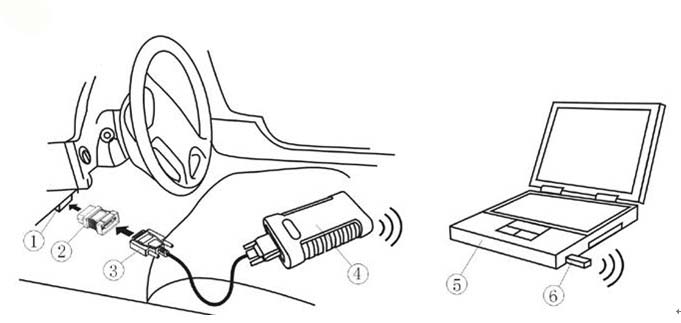

1. Diagnostic socket 2. Adaptor 3. Main cable 4. PC-MAX main unit 5. PC 6. Wireless adaptor

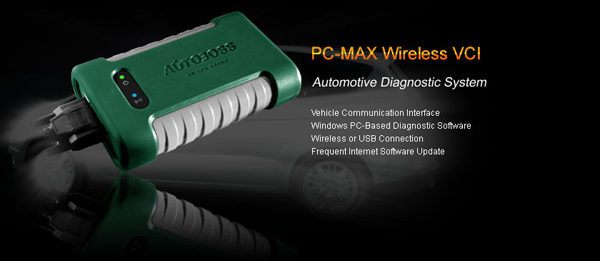

Autoboss PC-MAX is a vehicle communication interface with Windows PC-Based Diagnostic Software Wireless or USB Connection and CD Update for free. Cover Asian, European and USA cars. It can recode a real-time data stream up to 160 frams during a drive cycle,function as Fault codes,Live Data,Component & System level actuations,Service Resets & Initialization,Vehicle Adjustments,Coding & Programming,Self-learn Function,Record 160 Frames of Live Data etc.Feature:1.Covers more than 50 makes, 1000 vehicle systems
2.Reliable USB connection ensures its stability in complex electromagnetism
3.Uses most advanced 2.4GHz wireless communication technique
4.SAE J2534 “pass-thru” ECU reprogramming
5.Quick test function to diagnose entire vehicle
Advantage:Free to test cars within 50-100m
Function:1.Access to powertrain, chassis, body systems
2.Quick test function to diagnose entire vehicles
3.Fault code, data stream and service reset
4.Actuations, adaptations, control model coding
5.All CANBUS function supported
7.Testing report saving function
8.Volkswagen immobilizer III
9.Nissan idle self learning function
10.Multi-language for international market
Fault codesNow you can bring down the service costs associated with fault codes. Easily read & clear vehicle specific information - manufacturer specific codes, factory codes, and generic fault codes on a particular electrical circuit. Our Recommendation: Don't forget to print it out in real time.
Quick Test & Quick Delete (select software) .
Provides a bird's-eye view of all control modules in the vehicle system. The Quick Test feature allows you to quickly scan all systems in the vehicle, identify controllers with faults and provides immediate access to those systems without having to navigate through multiple menus. Our Recommendation: Don't forget to print it out in real time.
Live DataThe basics of electronic diagnostics begin with fault codes & live data. Experience high-speed response rate of 8-10 frames per second w/ real-time troubleshooting of up to 4 graphs. Diagnose signals for rich or lean conditions with live data retrieval and viewing of modules in digital and analog format. Our Recommendation: Don't forget to print it out in real time.
Component & System level actuationsPerform verification tests to validate the functionality of a particular electrical circuit. This function will bypass time-consuming labor to check the workmanship of electronic components such as switches, sensors, relays, & actuators. Use the PC-MAX to actuate control modules and see what needs replacement without removing panels and testing without the usage of a multimeter. (e.g. cylinder power balance test, EVAP system leak, EGR valve, solenoids, power windows, winshield wiper activation, etc.)
Service Resets & InitializationWhen components are replaced within a module (e.g. injectors, switches, mass air flow sensor, cooling temp sensor, etc.), a vehicle will run very rough. Initialization immediately re-adapts all the values, so the components will be recognized by the vehicle system. (e.g. To reset the service indicator for the vehicle such as "oil service", "service reminder light", "steering angle sensor*", etc.
Vehicle Adjustments:Ability to adjust performance parameters. (e.g. idle RPM, idle speed adjustment, ignition timing, vehicle w/ immobilizer, set fuel synchronization, throttle-body relearn, DME Alignment, etc.)
Coding & Programming.Read & change coding has now become highly important for any new retrofit control unit in the vehicle. Contact an Diagtronics Dealer for more information.
Other functions:Self-learn Function
Create a personalized database system to record ideal conditions of the actual values in the vehicle system.Record 160 Frames of Live Data
Record a real-time data stream up to 160 frames during a drive cycle. More complicated diagnosis of an intermittent problem will require the use of this function to evaluate data stream during a controlled drive cycle.FAQ:Q: What is the difference between Autoboss V30 and Autoboss PC-MAX?A: 1.the autoboss pc-max and autoboss v30 are two separated products,but they have almost the same functions.The autoboss v30 can do,the pc-max also can do.
2.Just the operating method is different for them.When the autoboss works,it should connect with the computer,and the diagnostic data are all shown on the computer,and the printer also should connect by the computer.But autoboss v30 works with main unit itself,the diagnostic data are all showed on the main unit directly,and the printer also can work directly connecting with the main unit,don't need to connect with the computer.
3.In short,the main difference for them is that autoboss v30 is more convenient than pc-max,the autoboss has its own operating system on the main unit,but pc-max don't have,it has to connect with computer so that it can work.
Q: What is the language version of this scanner?A: The scanner only have english version.No other language available now.
Q:Can you tell me pc-max and x431 diagun,which is better?A:For function,they are almost same,they both have bluetooth.But x431 diagun has screen,more esay use than pc-max.
