    MaxiDiag Elite MD802 For All System

    • Item No.  F202
    • History: 64  sold
    • Market Price: US$359.94
      Shop Price: US$299.95You save US$59.99
    • Quantity:  300
    • Weight:  3.0KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    Original Autel MaxiDiag Elite MD802 ALL System

    Top 3 Reasons to Get Original Autel MaxiDiag Elite MD802

    1. Original from Autel, One Year Free Update Online, After One Year, Will Cost USD130 Per Year
    2. MaxiDiag Elite MD802 Includs MD701, MD702, MD703 and MD704

    3. Support European, Asian and USA car models from 1996 year.

    What is DS model?

    Autel Maxidiag Elite MD802 for all System+data stream function.

    Autel' new MaxiDiag Elite Series, the most advanced and multifunctional scan tools powered by its exclusive technology, are designed for technicians to troubleshoot either the basic four systems or all the systems for most of major vehicles on the road today. This new diagnostic platform delivers fast and easy diagnostics at the right price.
    Vehicle Coverage: Include MD701, MD702, MD703, MD704.

    MaxiDiag Elite MD802 Feature & Functions:
    1. One tool can do it all-reads and clears trouble codes on full system.
    2. Reads live datastream and freeze frame
    3. Turns off warning lights
    4. Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
    5. Enhanced OBD II Mode 6
    6. OBD II code tips guide technicians to the root cause of trouble code faster
    7. Data graphing
    8. One year free software upgrade
    9. Prints data via PC

    MaxiDiag Elite MD802 Specification:
    Display: TFT color display (320 x 240 dpi)
    Operating Temperature: 0 to 60°C (32 to 140 °F)
    Storage Temperature: -20 to 70°C (-4 to 158 °F)
    External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter
    Length\Width\Height: 212 mm (8.35”)\110.5 mm (4.35”)\37.5 mm (1.48”)
    Main Unit Weight: 0.28kg(without wire) 0.484kg(with wire)

    MaxiDiag Elite MD802 Package List:
    1pc x MD802 Main Unit
    1pc x SD Card
    1pc x OBDII Cable
    1pc x USB Cable
    1pc x User's Manual
    1pc x CD
    1pc x Carry Case

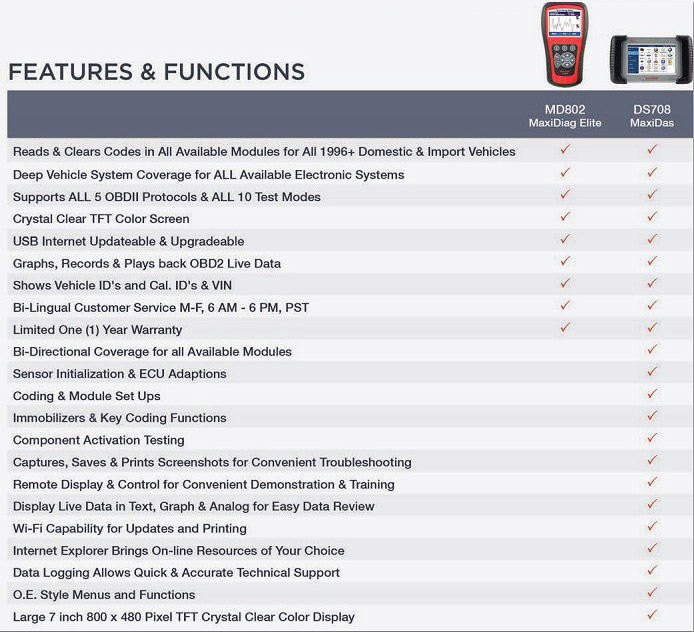

    MD802 Compared to Autel Maxidas DS708:
