    Avdi ABRITES Commander for VAG - VW,Audi, Seat, Skoda V21.0 +Tag V5.8+Toyota V6.0+H&K V5.0

    • Item No.  A267
    • History: 195  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  299
    • Weight:  1.5KG
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    ABRITES Commander for VAG - VW,Audi, Seat, Skoda V21.0 +Tag V5.8+Toyota V6.0+H&K V5.0


    Highlights:
    1. Software Version: 21
    2. Languages: English, Germany, Spanish, French, Russian, Italian, Danish, Czech, Chinese, Bulgarian
    3. Update: Before update, you need advise the AVDI ID first, we will check if the ID is in the update list which can be update by email, if not in the list, can not do it yourself. you need send back the multiplexer to us for updating. and you need pay for the shipping cost of it
    4. Buy This VAG VW AVDI, you can get Hyundai/Kia/Tag Key Tool software and VVDI ImmoPlus V13.6 Free


    Top 8 Reasons To Get VAG AVDI Commander:
    1. Reading Pin code by OBDII
    2. Programming keys by OBDII. Preparation of dealer's keys.
    3. Mileage recalibration by OBDII
    4. Clearing crash data DTCs by OBDII
    5. Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
    6. Exchange speed limit of MMI-TV system
    7. Coding calculator - supported short/long coding
    8. Synchronization/Adaptation KESSY and ELV

    AVDI Commander for VAG Standard Diagnostic Functions:
    1. Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
    2. For all electronic control units reading identification data
    3. For all electronic control units read error (DTCs)
    4. For all electronic control units clear error (DTCs)
    5. Output tests
    6. Control unit coding
    7. Scan all units
    8. Broadcast requests
    9. Measured values
    10. Adaptation

    AVDI Commander for VAG Special functions:
    Instrument CAN
        - Mileage recalibration by OBDII - VW Golf 6, VW Multivan 2009+, VW EOS 2009+, VW Caddy 2009+, VW Scirocco, VW Polo 2009+, VW Bora 2010+, VW Jetta 2010+, VW Passat CC, VW Amarok, Skoda Octavia II 2009+, Skoda Superb 2009+, Skoda Fabia 2009+, Skoda Yeti 2009+, Seat Leon 2009+, Seat Altea 2009+, Seat Exeo 2009+, Seat Ibiza 2009+, ...
        - Added support for VDO Instrument Cluster 2006+
        - Read/Program memory of instrument cluster immobilizer
        - Reading security access code of the IMMOBILIZER
        - Reading security code (PIN) and component protection by OBDII - VW CRAFTER
        - Read/Write immobilizer data in VDO dashboards with NEC microcontroller (2009+) by OBDII
        - Read/Write immobilizer related data
      EZS - Kessy (Q7/A6/Allroad)
        - With this function you can prepare dealer key/learn dealer key
        - Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)

    Instrument K-Line
        - With this function you can establish disgnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
        - You can Read/Change odometer value
        - Read PIN code
        - Read/Write eeprom
        - Read ROM/Flash from the Instrument cluster
        - Automatic removing of "DEF error" for Audi A4

    Instrument cluster BOSCH RB8
      Engine Control Unit
        - Read EDC17/MED17 flash memory
        - Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flash memory via OBDII (K and CAN). Calculation of
        checksums while programming, ME7.1.1, MED9.x, ME7.5)
        - Read/Write flash counters (EDC16)
        - Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
        - Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
        - Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
        - Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
        - Mileage recalibration (EDC15, EDC16)

    Component Protection Manager
        - Component Protection Manager - adaptation of spare part (used electronic control units) and programming component protection of Audi A6/Q7/Allroad/A4/A5/Q5

    ECU adaptation by OBDII
        - ECU adaptation by OBDII - EDC16, EDC17, MED17, MED9, Simos petrol, SIMOS PPD Diesel, ME7.5.20, ME 7.5.30

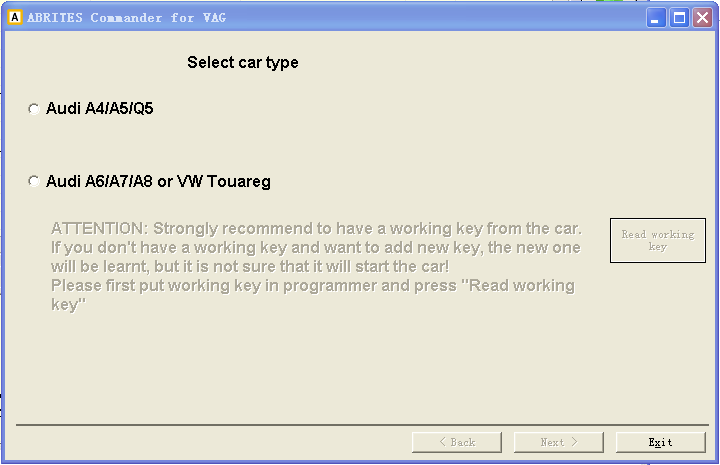

    BCM2 - Audi A4/A5/Q5 2007+ key programming
        - The special function makes possible to learn keys for A4/A5/Q5 2007+ vehicles with the BCM2 immobilizer

    Steering Lock adaptation
        - The window "Steering lock adaptation" can be used for adaptation of steering lock control module to the VW Touareg/VW Phaeton/Porsche Cayenne/Bentley Continental/Audi A8.
    This adaptation can be by CAN TP2.0 or K-KWP2000

    TV activation ED1/ED2
        - Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF

    Key programming/adaptation

        - Programming keys by OBDII (VAG with 16 bytes Component Security) - VW Crafter, Audi R8, VW Golf 6, VW Multivan 2009+, VW EOS 2009+, VW Caddy 2009+, VW Scirocco,
        VW Polo 2009+, VW Bora 2010+, VW Jetta 2010+, Skoda Octavia II 2009+, Skoda Superb 2009+, Skoda Fabia 2009+, Skoda Yeti 2009+, Seat Leon 2009+, Seat Altea 2009+,
        Seat Exeo 2009+, Seat Ibiza 2009+, ... Free for owners of AN024+AN026

      - UNLIMITED production of TP22/TP23/TP24/TP25 transponders from a Megamos 48. Free for all owners of AN024, ZN001

     - No more precoded transponders (TA2/TA3/TA4/TA5) are used for the key-learning. Instead any Megamos 48 Crypto transponder can be used. Free for all owners of ZN001
     - Extracting of the 7th byte Component Security from a working key of the car (Megamos, Hitag2). Free for all owners of AN024, ZN001
     - LAMBORGHINI GALLARDO
      - With this function you can learn key/transponder to the vehicle

    Dump Tool
        - With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit

    Airbag
        - Read/Write complete EEPROM of airbag control units Siemens (CAN bus - ISO15765). Audi A6/Q7/Allroad, VW Golf5..., Skoda Octavia II ..., Seat Altea ...
        - With this special function you can Read/Write EEPROM memory of the airbag module
        - Clear the crash data of the airbag module

    Custom Read/Write
        - Using this application you can read/program memory in some electronic control unit

    PIN Convertor

    Service interval
        - Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options
        - Service intervals reset for the models with UDS diagnostics

    Remote control adaptation
        - Using this application, you can learn remote controls

    Navigation
        - Using this application, you can enable/disable the "Eject" button of the "Navigation" system
      Cruise control system
        - Using this application, you can activate/deactivate a cruise control system and change the related
        steering wheel electronics( SWE) configuration if SWE unit is available

    Brake Pads Change
        - Using this application, you can "Open rear parking brake for pad change", "Close rear parking
        brake", perform "Parking brake function test"

    Technical Specification:
    1. K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
    2. ISO14230 compliant
    3. Single wire CAN bus multiplexed to different pins of diagnostic connector
    4. Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
    5. Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
    6. CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
    7. USB interface to the PC
    8. Supply voltage 8..30V DC
    9. OBDII cable
    10. Updatable firmware
    11.Commander for VAG - VW, Audi, Seat, Skoda Supported languages: English, German, Spanish, French, Russian, Italian, Danish, Czech, Chinese, Bulgarian.

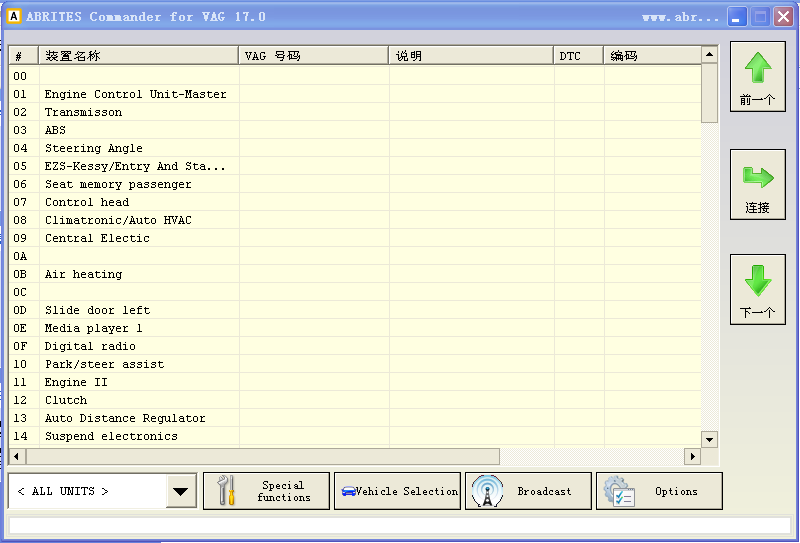

    Software Display




    ABRITES Commander Language:
    1. ABRITES Commander for VAG - VW, Audi, Seat, Skoda
    Supported languages: English, Germany, Spanish, French, Russian, Italian, Danish, Czech, Chinese, Bulgarian.

    2. ABRITES Commander for Mercedes/Smart/Maybach
    Supported languages: English, Germany, Spanish, French, Italian, Danish, Romanian, Czech, Bulgarian.

    3. ABRITES Commander for BMW
    Supported languages: English.

    4. ABRITES Commander for OPEL/VAUXHALL
    Supported languages: English.

    5. ABRITES Commander for Peugeot/Citroen
    Supported languages: English, French, Turkish.

    6. ABRITES Commander for Fiat/Alfa/Lancia
    Supported languages: English, Brazilian, Germany, Spanish, French, Russian, Italian, Danish, Czech, Bulgarian, Croatian, Greek,
    Hungarian, Polish, Portuguese, Romanian, Slovenian, Swedish, Turkish.

    7. Abrites Commander for Renault
    Supported languages: English.

    8. Abrites Commander for Toyota/Lexus
    Supported languages: English.

    9. Abrites Commander for Hyundai/KIA
    Supported languages: English, Czech, Spanish, French, Italian, Russian, Romanian, Bulgarian.

    10. ABRITES Commander for Porsche
    Supported languages: English.

    11. ABRITES Commander for Nissan/Infiniti
    Supported languages: English.

    12. ABRITES Commander for Tag
    Supported languages: English.

    13. ABRITES Commander for Chrysler
    Supported languages: Brazilian ,Bulgarian ,Croation ,Czech, Danish ,Greek,  Hungarian,  Italian ,Polish, Portuguese , Romanian
    ,Russian ,Slovenian, Spanish ,Swedish ,Turkish.

    14. ABRITES Commander for Mitsubishi
    Supported languages: Brazilian ,Bulgarian ,Croation ,Czech, Danish ,Dutch, English , German, French , Greek,  Hungarian,  Italian
    ,Polish, Portuguese , Romanian ,Russian ,Slovenian, Spanish ,Swedish ,Turkish.

    15.ABRITES Commander for Ford
    Supported languages: English , German, French , Italian , Spanish ,  Dutch, Swedish , Finnish , Danish , Norwegian , Portuguese ,
    Portuguese (Brazilian), Greek,   Turkish, Hungarian, Czech, Slovenian, Polish,  Russian, Chinese , Japanese, Thai , Chinese
    Simplified , Romanian

    16.ABRITES Commander for volvo
    Supported languages: English , German, French , Italian , Spanish ,  Dutch, Swedish , Finnish , Danish , Norwegian , Portuguese ,
    Portuguese (Brazilian), Greek,   Turkish, Hungarian, Czech, Slovenian, Polish,  Russian, Chinese , Japanese, Thai , Chinese
    Simplified , Romanian

    17.ABRITES Commander for DAF
    Supported languages: Bulgarian , chinese(Simplified) , Chinese(Traditional) , Croation , Czech , Danish , Dutch , English , Finish
    , German , Greek , Hungarian , Indonesian , Italian , Japanese , Korean , Norwegian , Polish

    18.ABRITES Commander for Bikes
    Supported languages: Finnish ,French ,German ,Greek ,Hungarian , Indonesian ,Italian , Japanese ,Korean ,Norwegian ,Polish
    ,Romanian ,Russian ,Slovenian, Spanish ,Swedish ,Thai ,Turkish
