Original Launch X431 Auto Diag Scanner for IPAD and iPhone
Top Reasons to Get Launch X431 Auto Diag:
1. No Ipad in package, picture just for display.
2. Update: Online Update
3. Languages: English, French, Russian, Japanese, German, Spanish, Italian, Portuguese, Chinese
4. X431 iDiag IOS Requirements: X431 iDiag works with iphone ipad ipod touch with iOS 5.0 or above iOS 5.0.
With this Launch X431 Auto Diag, your iPhone or IPAD will turn to be a powerful diagnostic scanner!
5. Launch X431 Auto Diag scanner will not come with software in the package, only hardware. You need to buy diagnostic software directly from Launch Official Website
X431 iDiag Function:
1. OBDII full diagnose function
2. OBDII DTCs search and help, display data stream graph
3.Record and playback the tested data stream
4. Basic diagnostic function for all systems of one single vehicle model
5. Basic diagnostic function for all systems of multiple vehicle models
6. Basic diagnostic function for all systems of all vehicle models
7. Creates maintenance database
8. "My space" functions
9. Establishes public and private maintenance social circle
10. Provides instant information
11. Online update
Pls pay attention:
When using the X431 auto diag scanner for IPAD and Iphone (SC154). You should use IPAD to register, which will not need dealer code. It can not be registered by pc computer or laptop.
1: login in www.dbscar.com register a CC number
2: login in CC , choose adapter register
3: use the user name and password to enter the website and purchasing the software
X431 Auot Diag iOS requirements:
X431 Auot Diag works with iphone ipad ipod touch with iOS 5.0 or above iOS 5.0.
Price for different cars:X431 Auot Diag update
Asia car software bundle: 699usd Total 42 car models
Asia car software bundle list: Acura, Changan, ChangCheng, Daewoo, Daihatsu, Flyer, Australia Ford, Hafei, HaoQing, Holden, Honda, HuaChen, Hyundai, Infiniti, Isuzu, Jacty, Jiao, JinLong, JPIsuzu, Kia, Lexus, Luwei_TY, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Qirui_TY, SSANGYONG, Subaru, Suzuki, Tata, TLIsuzu, Toyota, Xiali, ZhongShun, ZhongTai and ZhongXing.
European and USA car software bundle: 799USD Total 31 car models
European and USA car software bundle list: Benz, BMW, VW, Peugeot, Renault, Citroen, Opel, Audi, Smart, EURO Ford, Fiat, Landrover, Seat, Skoda, Rover, Saab, Jaguar, Lancia, Romeo, Dacia, Mini, GMSA, VAZ, Volvo, GM, BXGM, Chrysler, GAZ, Porsche, Sprinter and USAFORD.
Update online at Launch website: http://www.dbscar.com/.
Launch X431 Auto Diag Package including:
1pc x X431 Auto Diag Scanner main unit
1pc x OBD2 cable
1pc x iPad Case(only case)
1pc x Password Paper
Q: What is X431 Auto Diag Scanner for IPAD and iPhone dealer code?
A: When you register as a member in the Launch official website with your local IP address, the dealer code will appear. And when you buy the software, the default language is confirmed according to your IP address.
Q: I follow your instruction, and the dealer code is error. What can I do?
A: iphone ipad ipod touch operation system requirements: iOS 5.0 and above iOS 5.0.
Do not register in the desktop and laptop.
Q: Would you please help me register?
A: yeah, please send me your serial number, the old password and one Email address. After I successfully register, I send you by email the CC number, with the CC number, you login in your own machine, we cannot help you pay the software, because the language will be confirmed according to the machine IP address.
About how to register, how to pay the software and how to download the software, go on reading the next paragraph.
How to use X431 Auot Diag on iphone Ipad Ipod touch?
Step 1: Install Terminal Software
Let me show how to install X431 Auto diag software on Iphone.

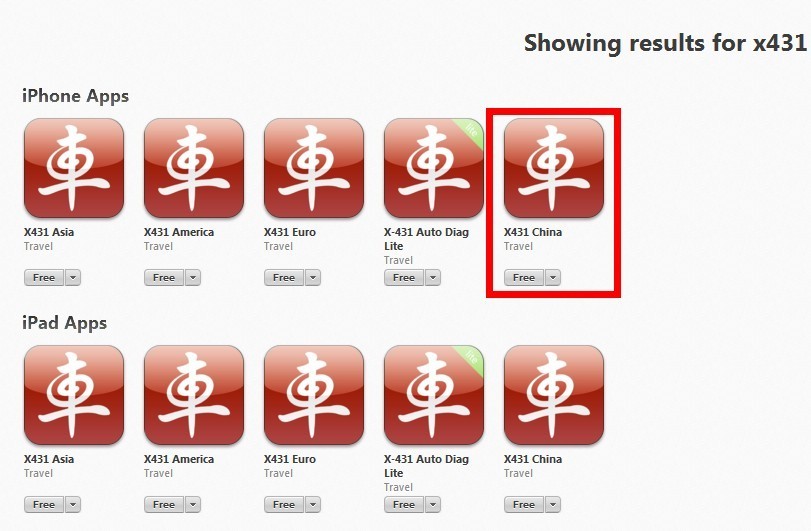

Firstly, open Appstore on your Iphone, and then search X431, in the search result click one area to install, like X431 china, about which area you select, it depends on your location.
Step 2: Connect X431 Auto Diag diagnostic connector with car and iphone ipad ipod touch
a. Connect X431 Auto Diag diagnostic connector with car
Plug DBscar interface near the steering wheel as the following picture shows. And then open X431 Auto Diag ,
turn on the ignition of the car.
b: Connect X431 Auto Diag diagnostic connector with iphone ipad ipod touch
Open the Bluetooth of Iphone to search the device, the name of device Bluetooth is diagnostic connector serial number;
matching Bluetooth does not need password.
Step 3: Register CC number
After connect well the diagnostic connector, open the diagnostic software installed in your iphone (ipad ipod touch),

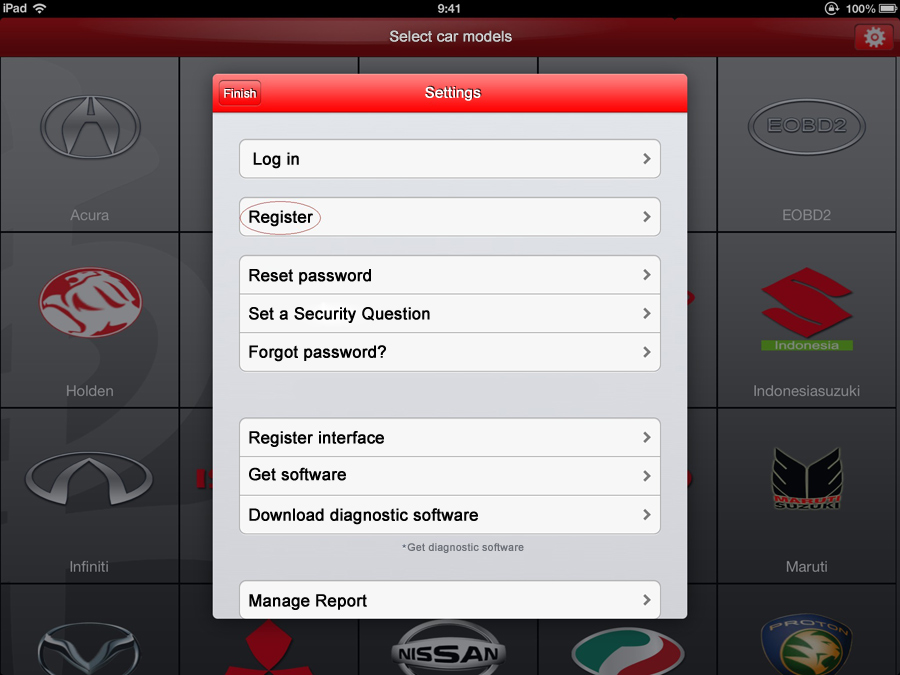

click "settings" on the upper right corner to enter and register CC number as the following picture shows,
Note: you could enter your email address as your user name, also you could register at http://www.dbscar.com/
Step 4: Connector Registration
After login, click "connector registration" in the "settings", (register X431 Auto Diag diagnostic connector into CC account).

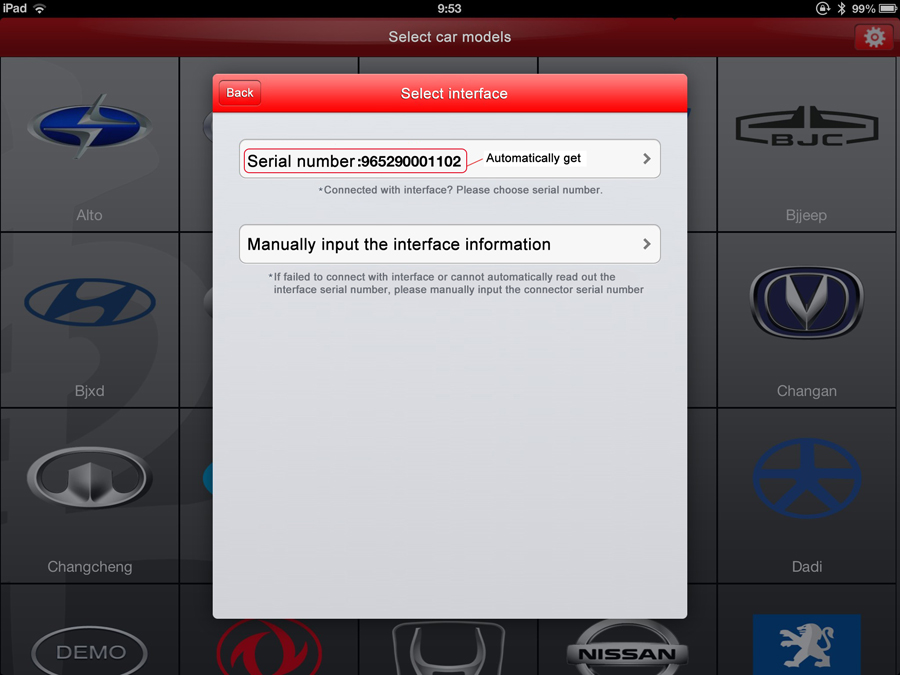

The diagnostic connector serial number will automatically get, if not, please exist the software and enter again or manually input the
connector serial number ( the SN is marked on the DBScar connector).

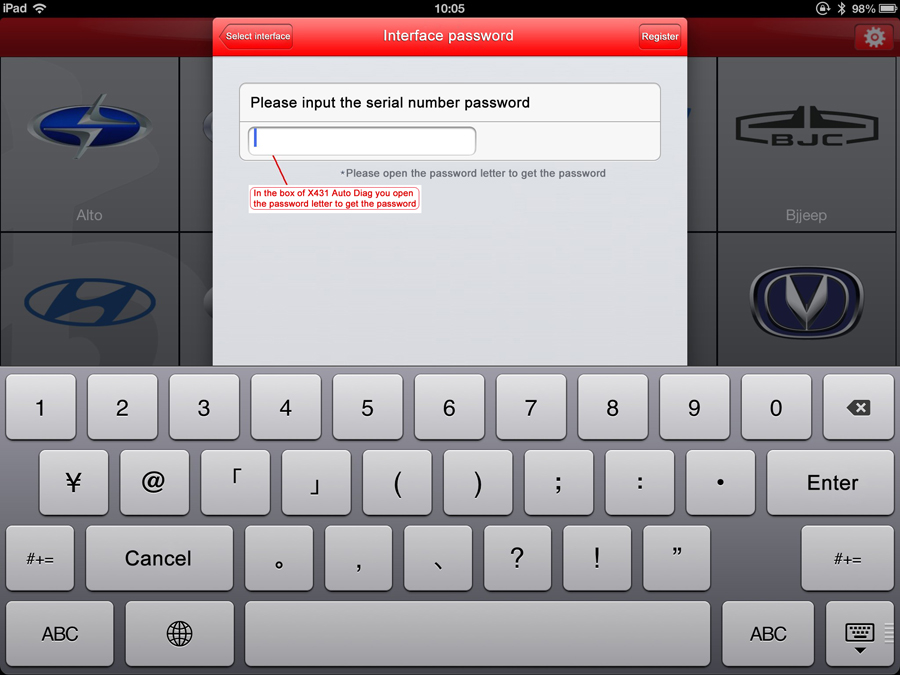

Click serial number and in the box of X431 Auto Diag you open the password letter to get the password.
Finish registration as the following pictures shows.
Step 5: Pay the software (you are allowed to pay on the PC)

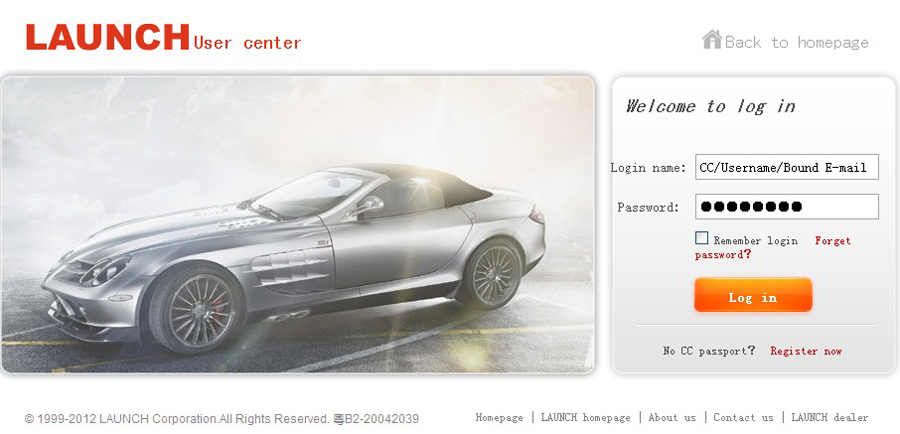

After finish registering x431 Auto diag, please click "get the software" (browse http://www.dbscar.com/), log in with the CC number and password.
Then go to the page for ordering the software, select the software according to the car model, you are available to buy multiple software as you want.
Step 6: Download the software

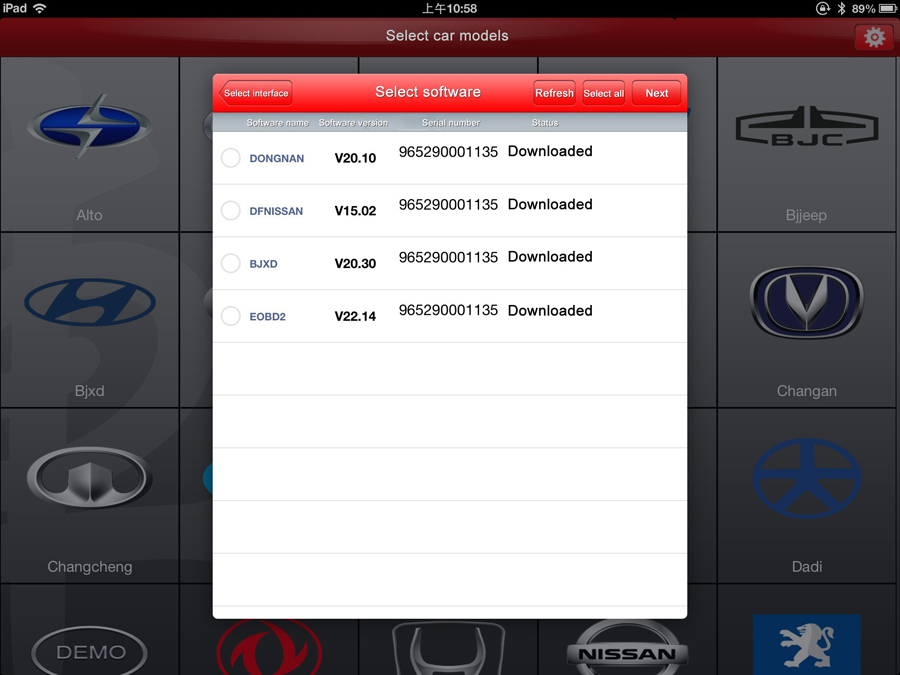

Click the diagnostic software to download, download the paid software and the free software (The OBDII software is free of charge).
Step 7: Now you are ready to use Launch Auto Diag to diagnose car models
Back to the page of car models selection and click the car model icon you paid. You are ready to diagnose.
The following pictures show how deal with the southeastern cars.
Note: when the PLC program releases the newest version, the terminal will give priority to the update of the PLC program.
