    Autophix OBDMate OM500 JOBD/OBDII/EOBD Code Reader

    • Item No.  F236
    • History: 39  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  299
    • Weight:  500.0gram
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 1 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

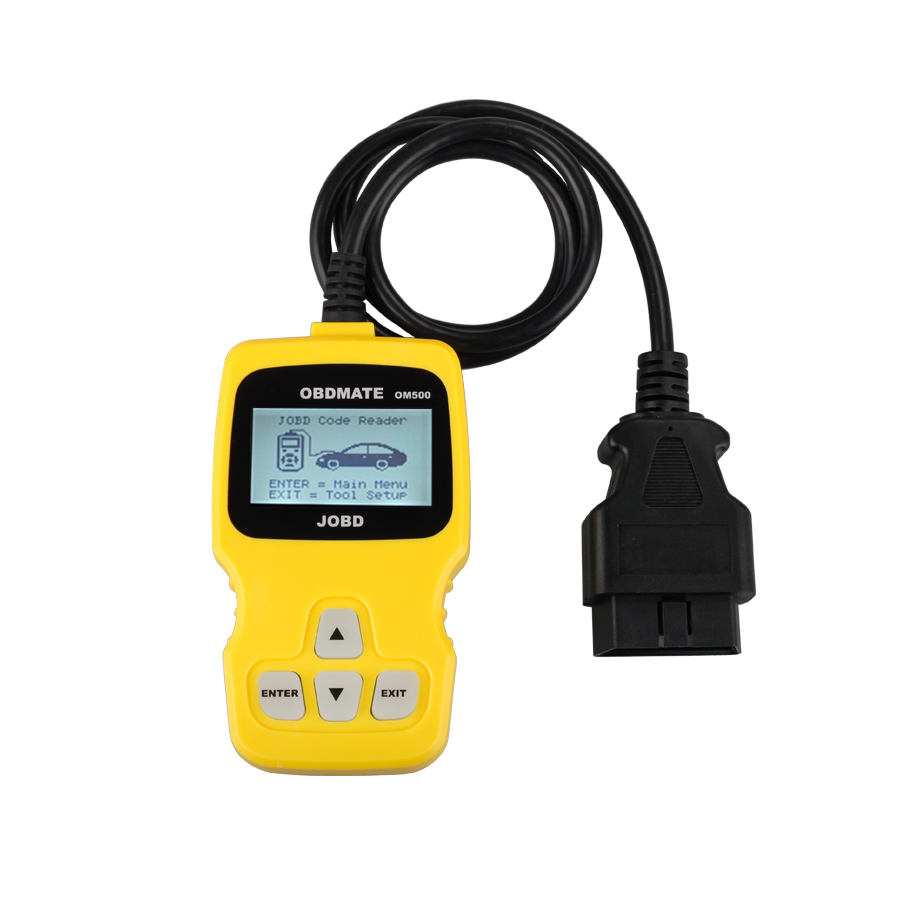

    Autophix OBDMate OM500 JOBD/OBDII/EOBD Code Reader


    The AUTOPHIX OBDMATE OM500 Code Reader is designed to work on all 1996 and later OBDII compliant vehicles, especially on Japanese vehicles. It has an advantage on Japanese vehicle:TOYOTA\HONDA\DAIHATSU\M ITSUBISHI\MAZDA\NISSAN\SUZUKI\SUBARU.It is easy to use, and enables the users quick to read and clear trouble codes.

    Autophix OM500 Main Features & Functions:
    1. Works on all after 1996 OBD II compliant US, European and Asian vehicles
    2. Easily determines the cause of the Check Engine Light ( MIL)
    3. Turns off Check Engine Light (MIL) and clears codes
    4. Views freeze frame data
    5. Compliant with OBDII 16PIN TOYOTA\HONDA\DAIHATSU\MITSUBISHI\MAZDA\NISSAN\SUZUKI\SUBARU
    6. Software upgradeable via internet
    7. Supports CAN (Controller Area Network), all other current JOBD and OBDII/EOBD protocols and with reading and clearing DTC
    8. We have CE, FCC, RoHS certifications (click here to view certificates)
    9.One year warranty

    OBDMATE OM500 Other Features & Benefits:
    1. Smart 8 Line Display 128 x 64 easy-to-read backlit LCD display with adjustable contrast
    2. Easy to use four-button operation (UP,DOWN,ENTER,EXIT)
    3. CE, FCC, RoHS certification
    4. One Year Warranty

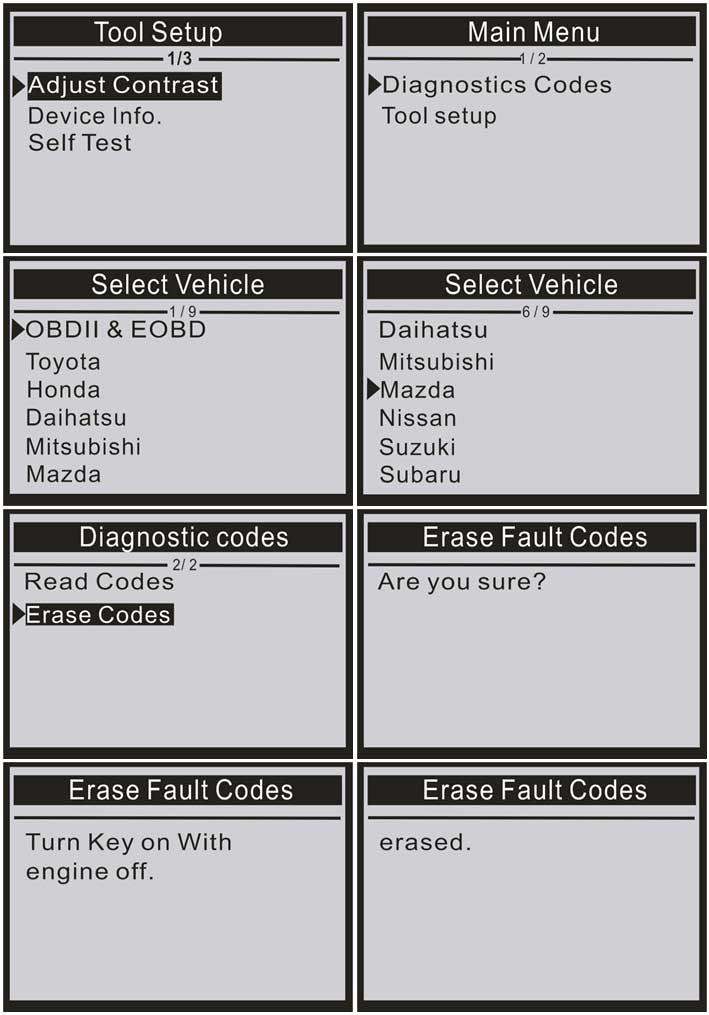

    OM500 screenshot displayed effects:



    Specifications:
    Display: Back-lit, 128 × 64 pixel display with contrast adjustment
    Operating Temperature: 0 to 60°C (32 to 140 F°)
    Storage Temperature: -20 to 70°C (-4 to 158 F°)
    External Power: 8.0 to 18.0 V power provided via vehicle battery
    Dimensions:
      Length Width Height
    125 mm (5.00") 70 mm (2.80") 22 mm (0.90")
    Weight NW: 0.23kg (0.51lb), GW: 0.32kg (0.74lb)

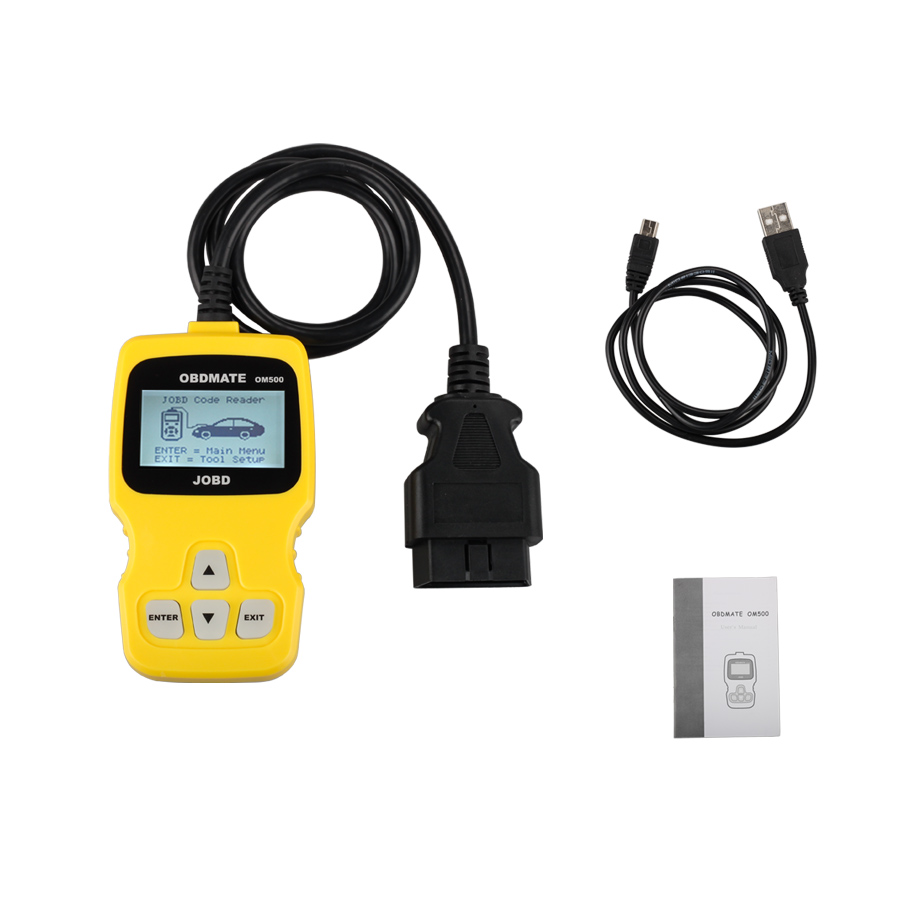

    OBDMATE OM500 Package List:
    - 1pc x AUTOPHIX OBDMATE OM500 JOBD Code Reader main unit
    - 1pc x User's Manual

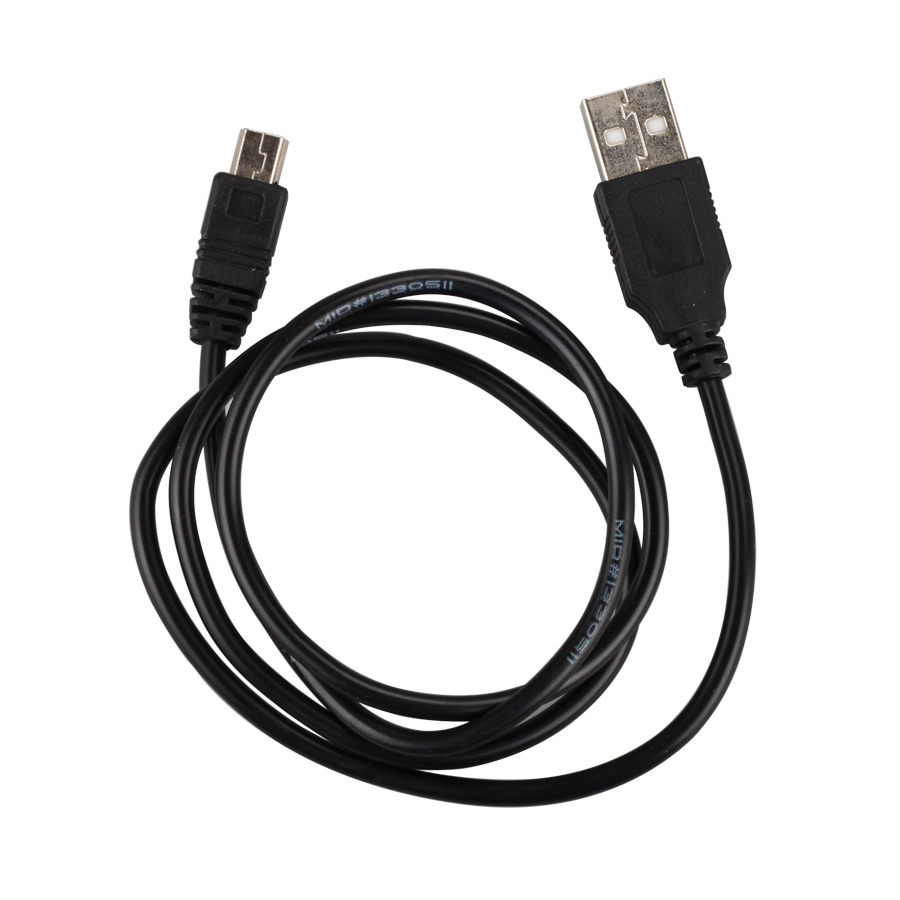

    - 1pc x USB update cable
    - 1pc x Carry case
