    YD409 TPMS Sensor Trigger Tool for Activate and Decode TPMS Sensor

    • Item No.  S136
    • History: 2  sold
    • Market Price: US$417.59
      Shop Price: US$348.00You save US$69.59
    • Quantity:  300
    • Weight:  1.5KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy




    Technical Support



    YD409 TPMS Sensor Trigger Tool

    YD409 TPMS Sensor Trigger Tool Features:
    1) Triggers all currently known TPMS sensors, activates ALL magnetic, frequency and tire deflation triggered sensors on all vehicles sold worldwide. Including 2014 Models on selected vehicles
    * Make-Model-Year selection ensures correct activation and avoids crosstalk.
    * Receives both 315MHz and 433MHz signals.
    * Reads sensor ID, tire pressure , temperature, battery condition, OE part number, relearn information. Prints health report through computer.
    * Provides visual and audible responses to confirm sensors are working properly. Warns of a wrong sensor installed, missing or faulty sensor, duplicate ID, and incorrect sensor mode.
    2) Checks RF Remote Keyless Entry (key FOB)
    * Provide navigation and step-by-step instruction on the screen, Even the newest recruited technician can use the YD409.
    * Built-in rechargeable Li-polymer battery. Automatic power-off. Two options to charge the tool, wall plug or by connecting to the compute.
    * Proper LF signal to prevent being fooled by other RF signals.
    * Saves up to 10 TPMS records for future data review.
    3) Support multi- language--- English, French, Spanish and more
    4) 1 year free online update
    YD409 TPMS Sensor Trigger Tool Specification:
    Display: Backlit, 128*64 pixel display with contrast adjustment

    Operating Temperature: 0 to 60°C (32 to 140°F)

    Storage Temperature: -20 to 70°C (-4 to 158°F)

    Power: 3.7V Li-polymer battery

    Radio reception: 315 MHz and 433.92 MHz

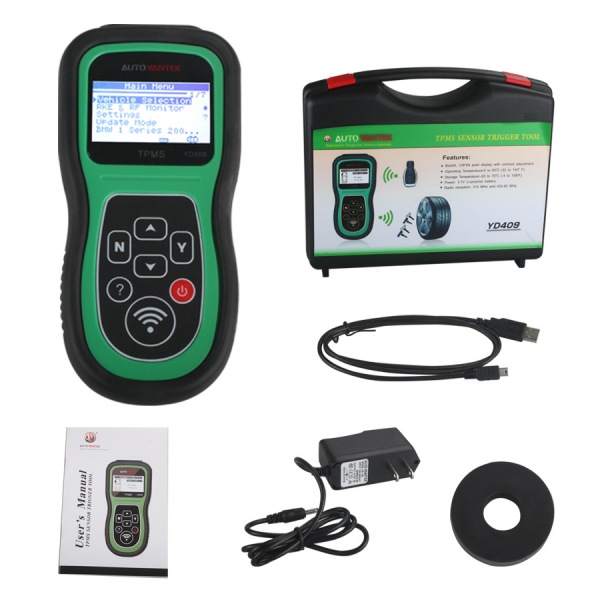

    Packing list:
    1pc x YD409 TPMS Trigger Tool
    1pc x User’s guide

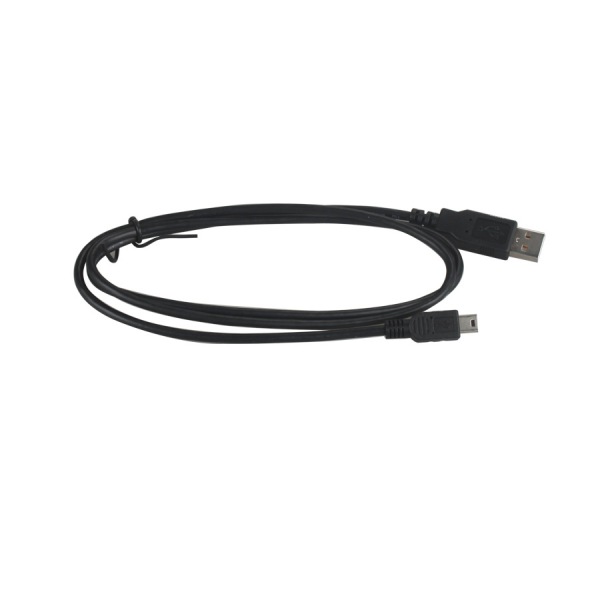

    1pc x USB cable
    1pc x Software CD
    1pc x Magnet

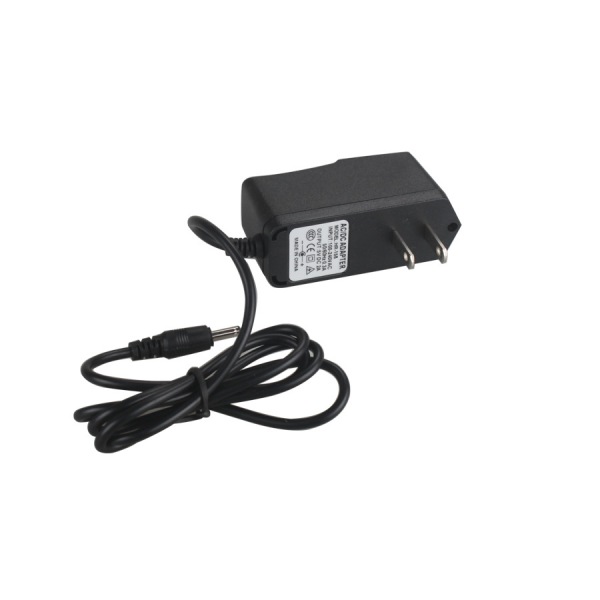

    1pc x Battery Charger

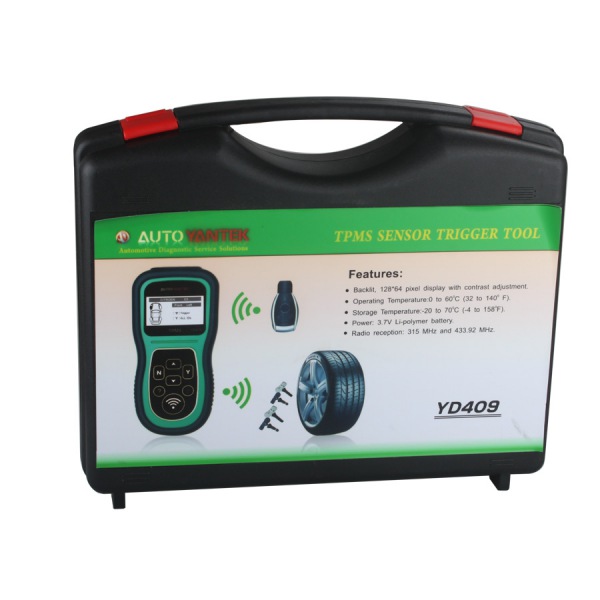

    1pc x Blow molding case
