    Multifunction Automotive Circuit Test Lead Kit

    • Item No.  Z287
    • History: 4  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  300
    • Weight:  4.0KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 1 customer reviews
    • Following the purchase of goods to reach the number that you can enjoy a range of preferential price:
      QTY Unit Price
      10 US$85.00
      100 US$65.00
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Multifunction Automotive Circuit Test Lead Kit Contains 92 pieces of essential test aids


    Features:
    1. A perfect wiring circuit checking tool.
    2. Can be used quickly for adjustment and assists technician in checking the car problems accurately.
    3.Its variable Resistors can be used to simulate coolant temperature sensor signals, throttle valve sensor signals to vehicle ECU to
     avoid unnecessary new parts replacement.
    4. Equipped with 2 sets of LED lights; it can be used to monitor Hall Effect, photoelectric signals, nozzles, electromagnetic valve of
     transmission shift gears and control signals.
    5.SRS connector provided can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.
    6.Complete set of various wires in the case that are suitable for most European, American and Japanese made terminals.

    Specification:

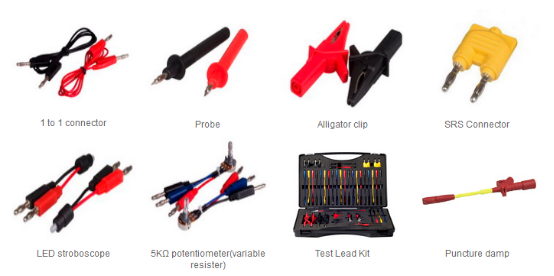

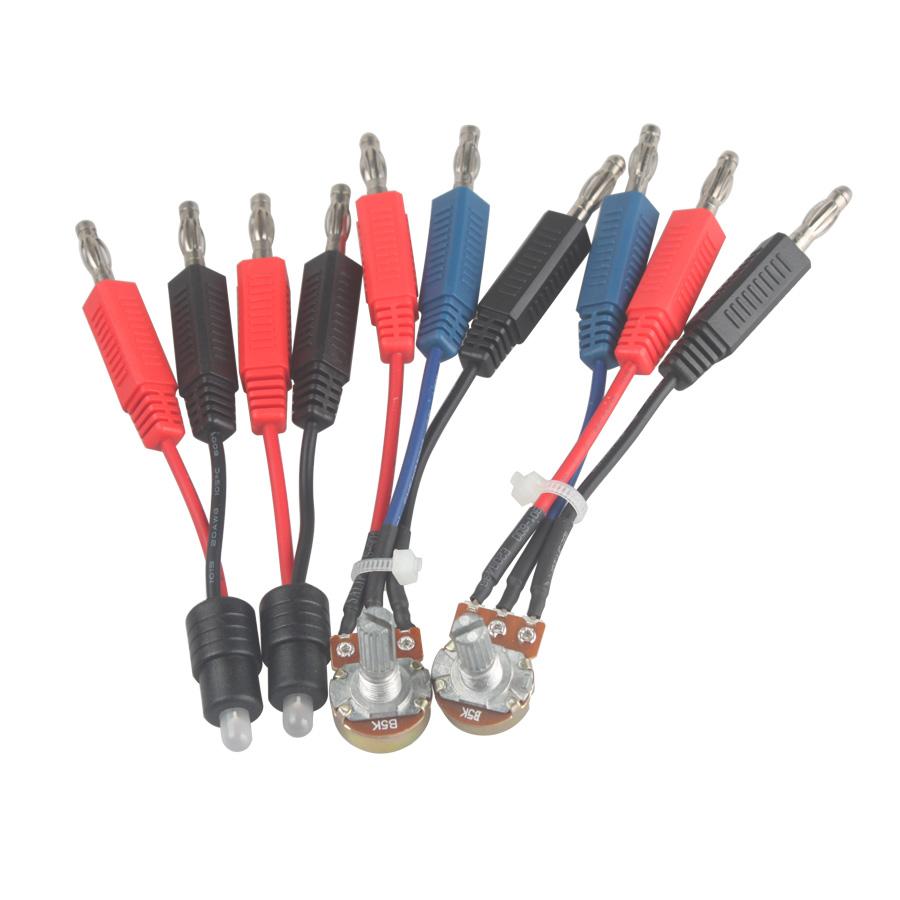

    1. 5KΩPotentiometer (Variable Resister)  2pcs
    2. LEDStroboscope  2pcs

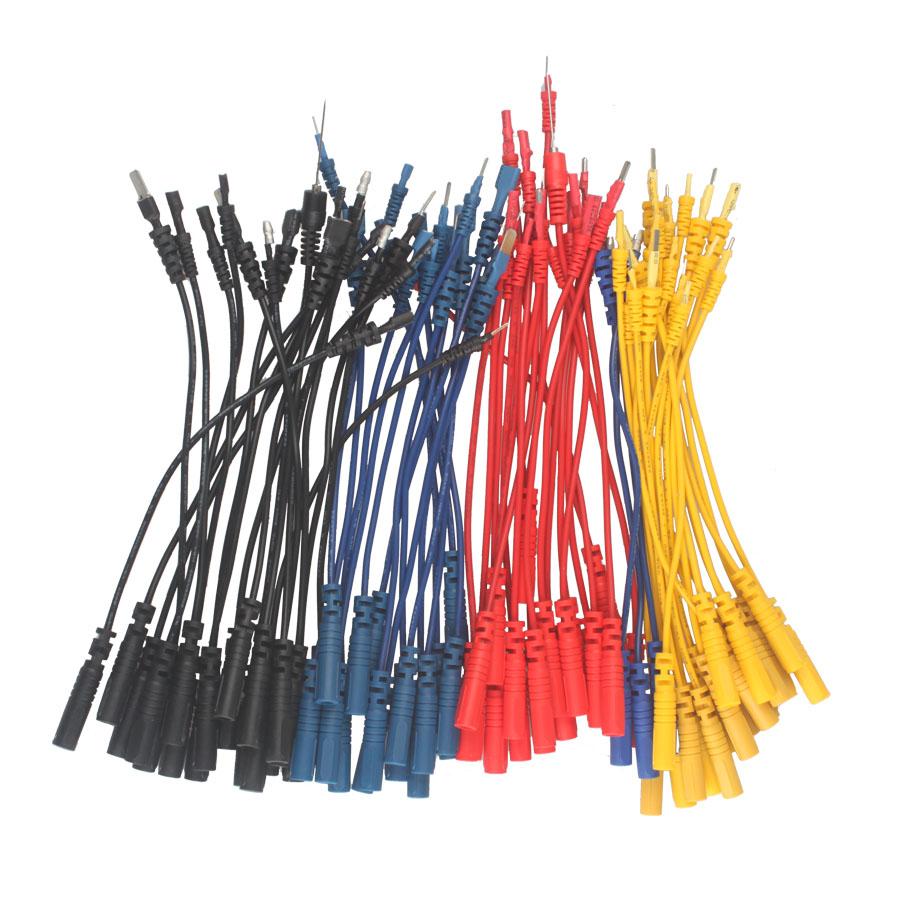

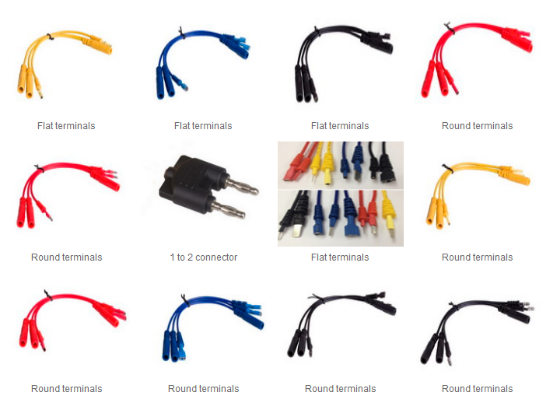

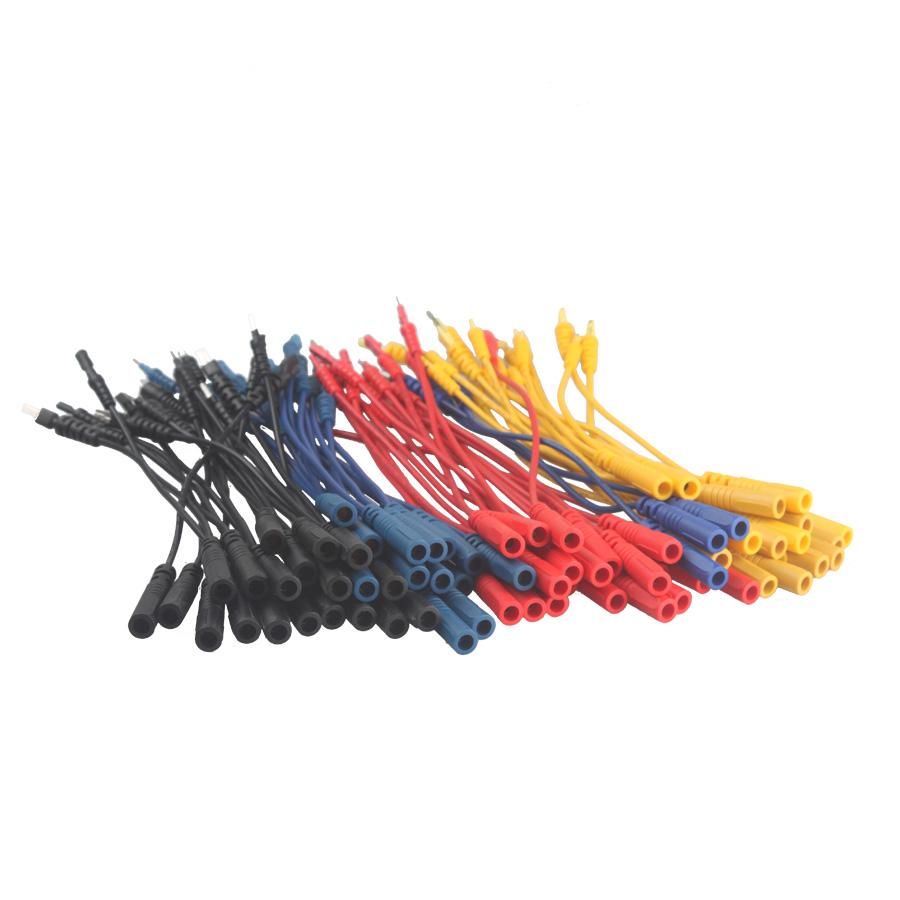

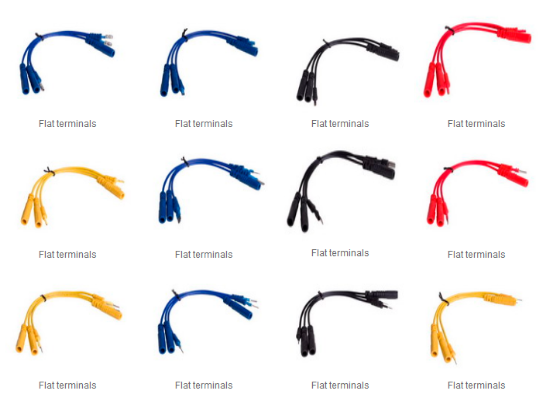

    3. Various automotive flat terminals  48pcs
    4. Acicular Probe  4pcs
    5. Various automotive circular terminals  24pcs

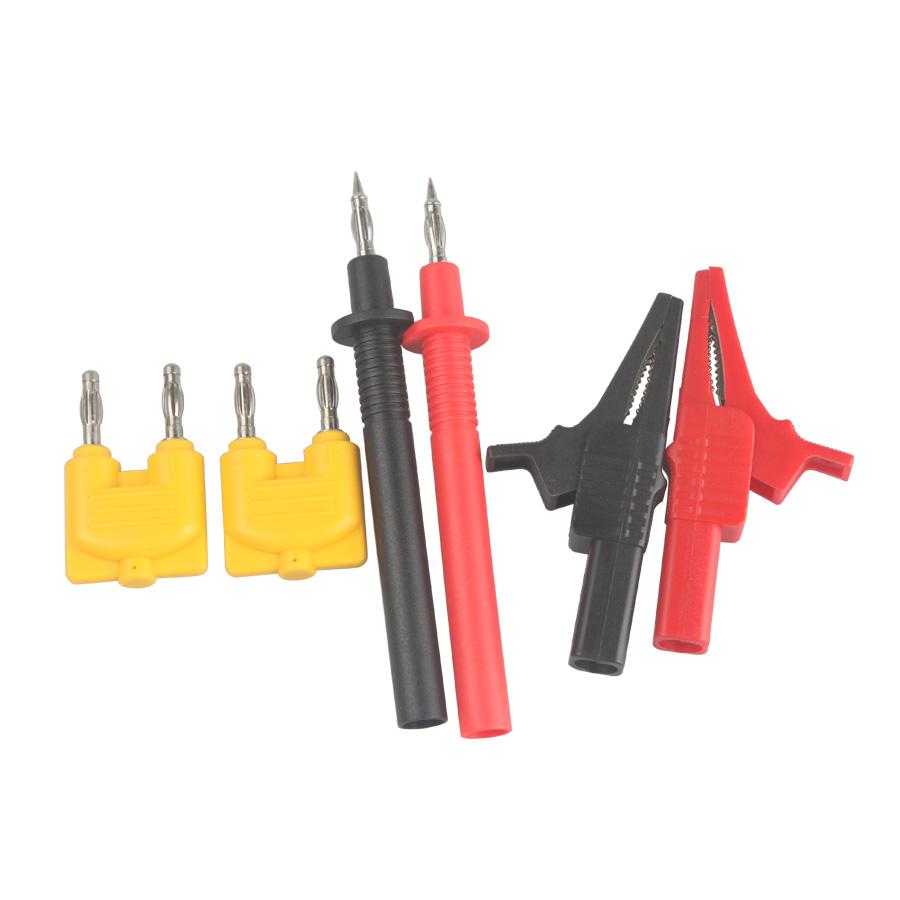

    6. Probe  2pcs
    7. 1 to 2 connector  2pcs
    8. Alligator clip  2pcs

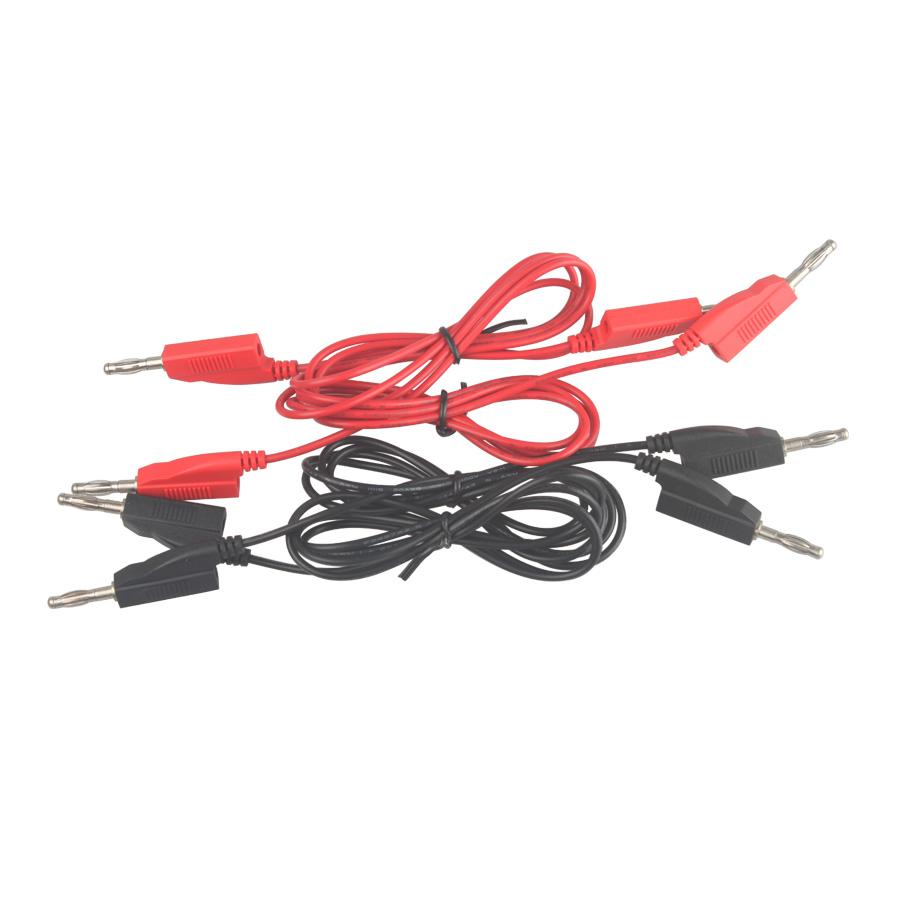

    9. 1 to 1 connector  4pcs
    10.SRS connector  2pcs


    1. When checking the parts, it could connect the back of terminal directly, would not to damage the circuit, reduce the circuit rust
     and avoid to adding impedance.
    2. Apply to any Automotive Multimeter, the extended line of probe for oscilloscope. More convenient connection and checking
     rapidly.
    3. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires.
    4. Variable Resister can simulate the pretend signal of coolant temperature sensor, throttle valve sensor and send the pretend
    signal to computer. It would avoid risk to change the new parts again.
    5. Equip 2 sets LED light. It can supervise hall effect, photoelectric signal, nozzle, electromagnetic valve, electromagnetic valve of transmission shift gear....and control signals.
    6. SRS Connector can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.
    7. Various wires in this box, it is suitable for the Europe, America and Japan terminal. High common use and convenience

    A smart and comprehensive test lead kit enables technicians to turn their testing/measurement tools into more powerful and time-saving diagnostic tools.

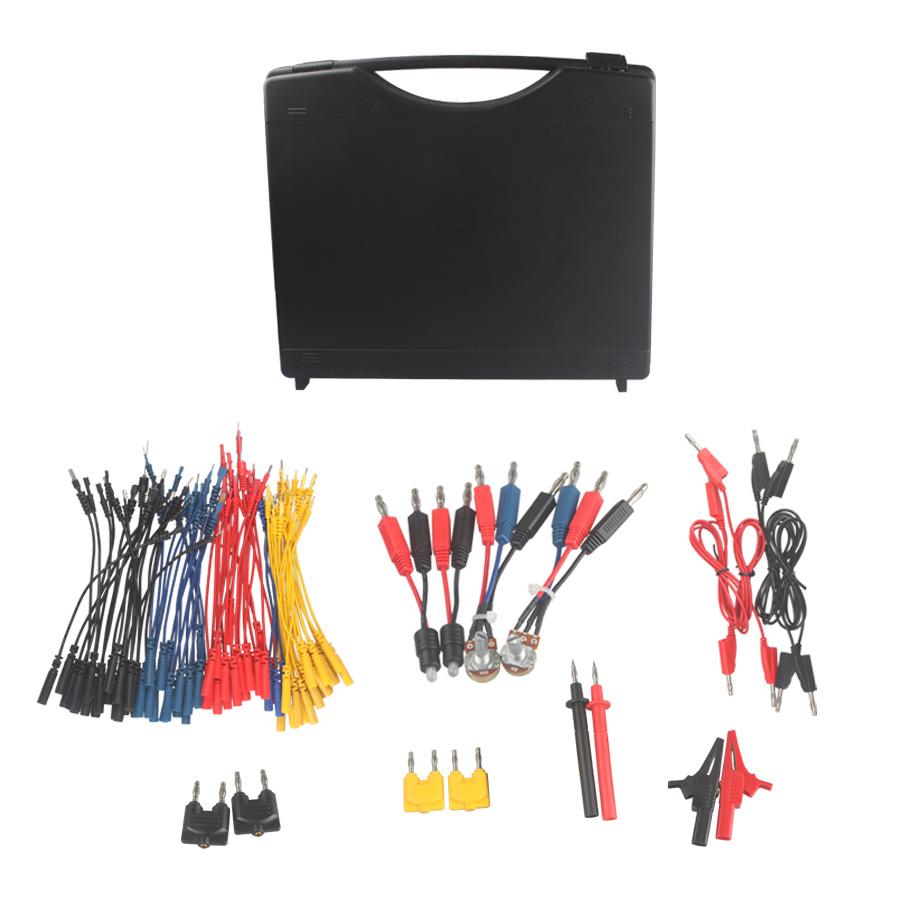

    The set contains 92 commonly used leads and connectors in a convenient carrying and storage case. This complete kit turns testing and measuring devices into powerful automotive diagnostic tools for fault-finding on the increasing number of sensors, actuators, and electronic circuits found on today's vehicles. The light-weight case allows the leads to be sorted and stored conveniently. The aids are for tracing, checking, capturing, or fixing complex vehicle circuitry. It's an indispensable test aid for car diagnostics!
