    XTOOL EZ500 HD Heavy Duty Diagnosis System with Special Function Same Function with Xtool PS80

    • Item No.  A174-1
    • History: 12  sold
    • Market Price: US$1,860.00
      Shop Price: US$1,550.00You save US$310.00
      Quantity
      Total
    • Quantity:  300
    • Weight:  10.0KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

    Top Reasons to Buy XTOOL EZ500 HD:
    Easy registration with EZ500 HD connected to WIFI
    One-click software update via WIFI
    Remote access
    Diagnosis reports in PDF file
    Record and playback live data
    8.0 inch multi-touch screen
    On-board battery
    Extensive vehicle coverage for most US, Asian and European vehicle makes

    Layout of EZ500 HD

    Top View of EZ500 HD Tablet

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 1

    ① DC Charging Interface: Battery charge, DC 12V.
    ② DB15 Interface: Directly connect with truck to establish wire connection.
    ③ USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
    ④ Power Button

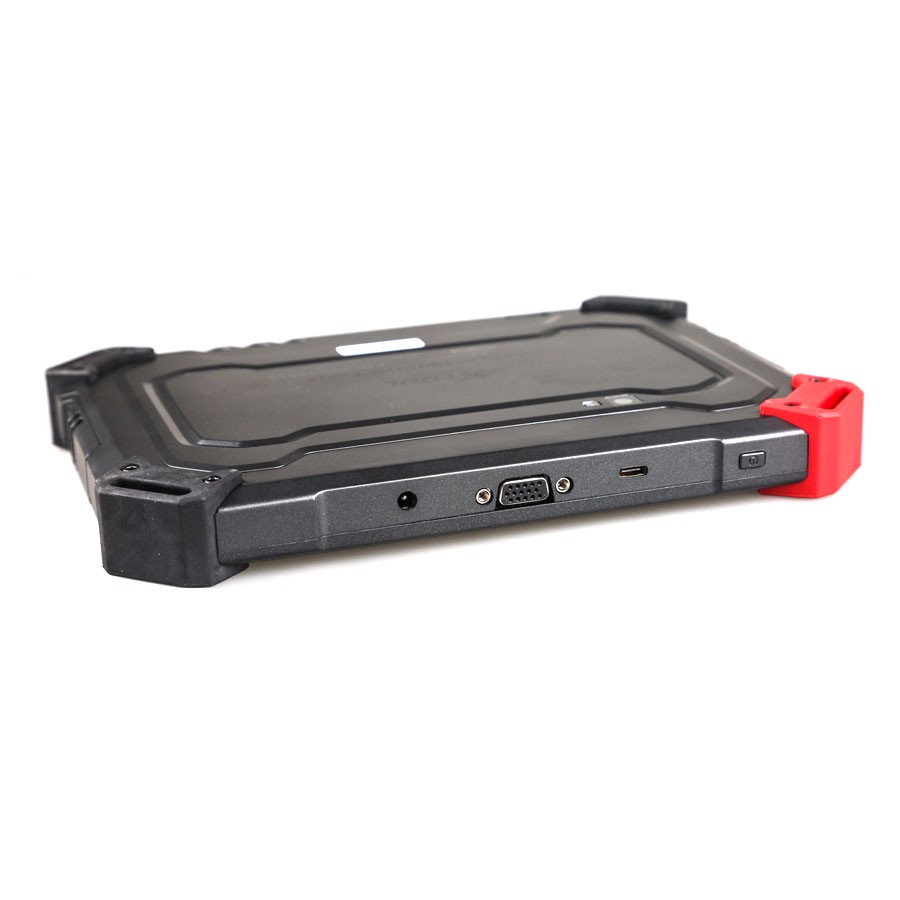

    Side View of EZ500 HD Tablet

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 2

    ① Headphone Jack
    ② TF Card Slot
    ③ Mini HDMI Port

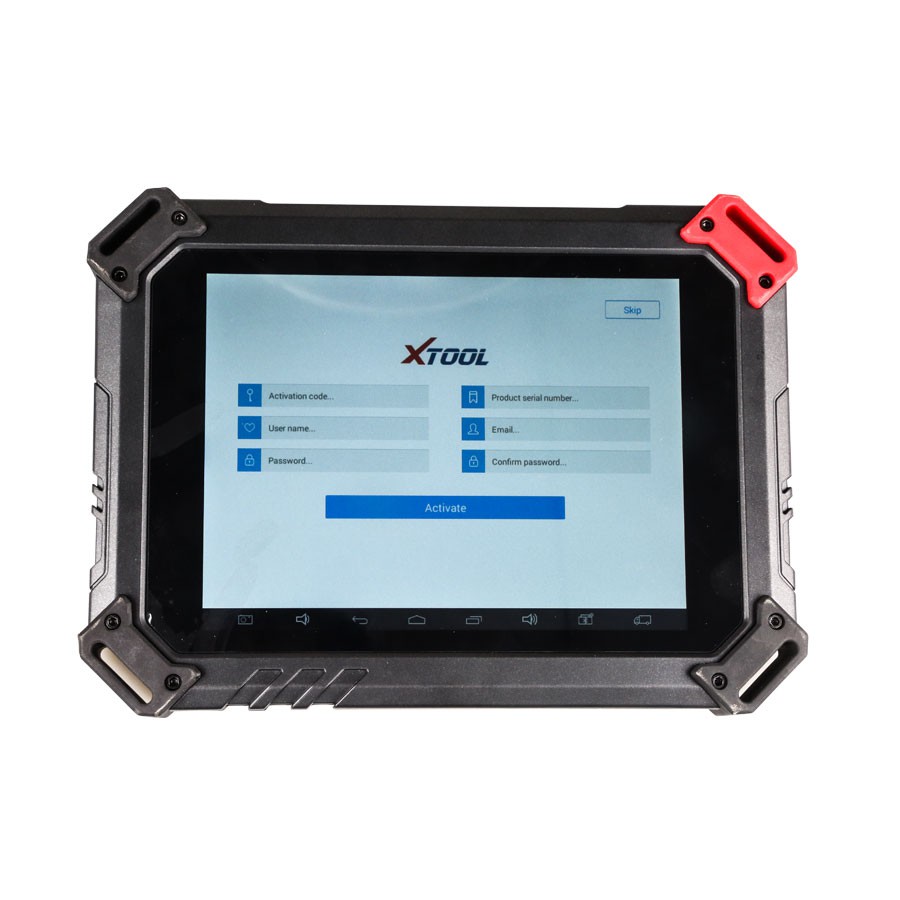

    Front View of EZ500 HD Tablet

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 3

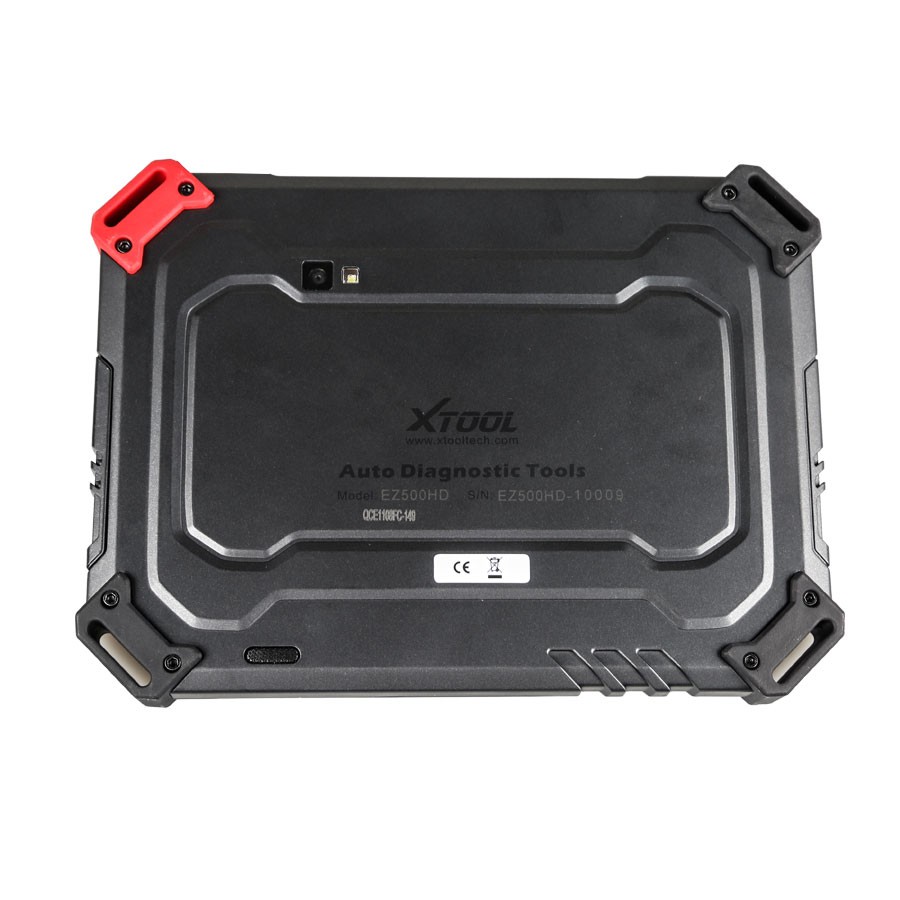

    Back View of EZ500 HD Tablet

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 4

    EZ500 HD Exploded Diagram

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 5

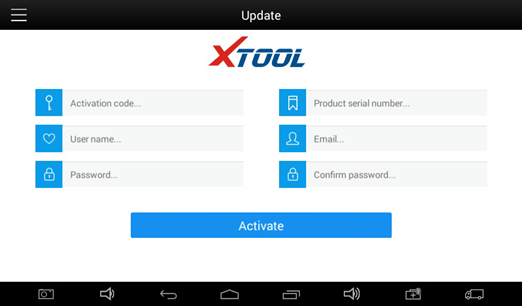

    Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration
    .
    XTOOL EZ500 HD Heavy Duty Diagnosis Display 6

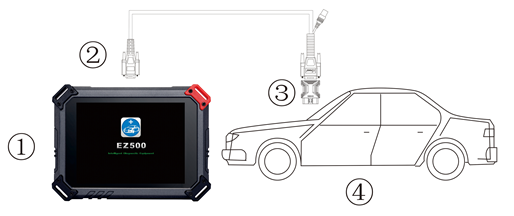

    Connect to the vehicle directly with cable

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 7

    ① EZ500 HD Mainframe
    ② Main Test Cable
    ③ OBD2 16pin Connector
    ④ OBD 6+9 Pin Connector or other connectors
    ⑤ Vehicle

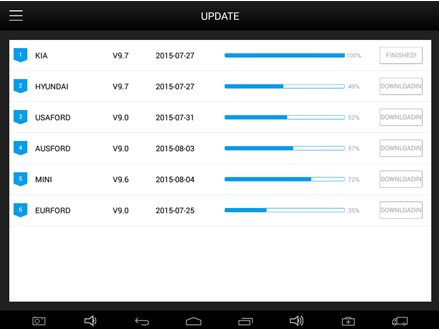

    One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 8

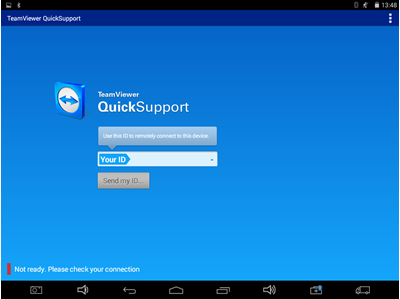

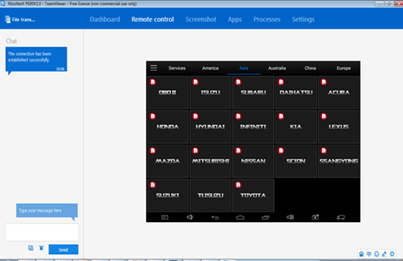

    Remote access, which is perfect for training, demonstration and even remote diagnosis.

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 9

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 10

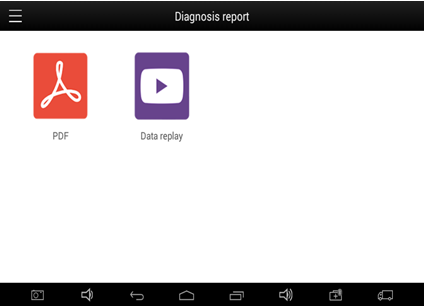

    Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 11
    XTOOL EZ500 HD Heavy Duty Diagnosis Display 12

    Extensive vehicle coverage for most US, Asian and European vehicle makes

    DIESEL:
     VOLVO, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 13

    It can also diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 14

    It can also diagnose trucks via ELECTRONIC: Cummins and more…

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 15

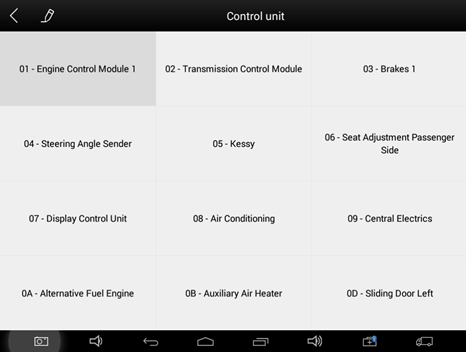

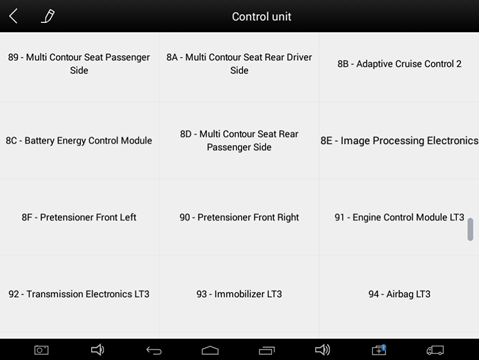

    Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 16

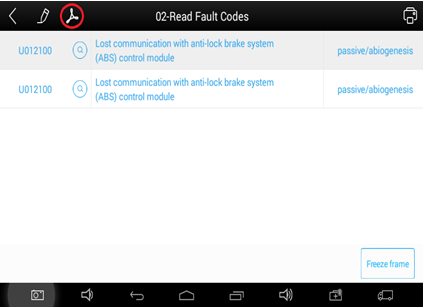

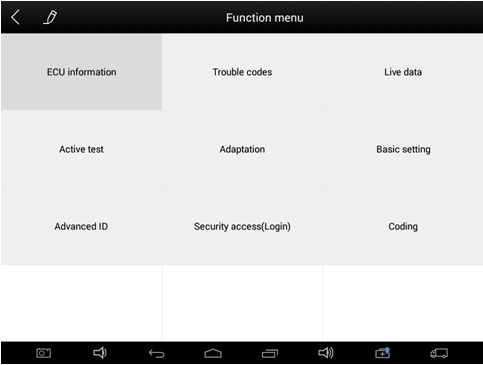

    Basic Function: read fault codes, clear fault codes, live data, actuation, active test

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 17
    XTOOL EZ500 HD Heavy Duty Diagnosis Display 18

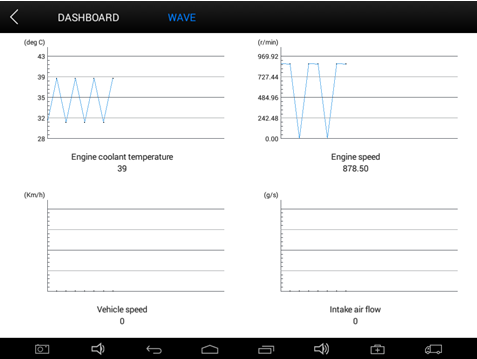

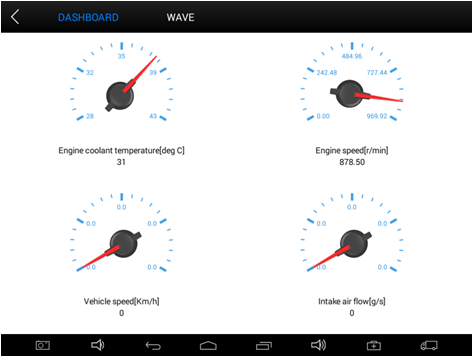

    Accurate Live Data in Both Wave and Dashboard Form

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 19
    XTOOL EZ500 HD Heavy Duty Diagnosis Display 20

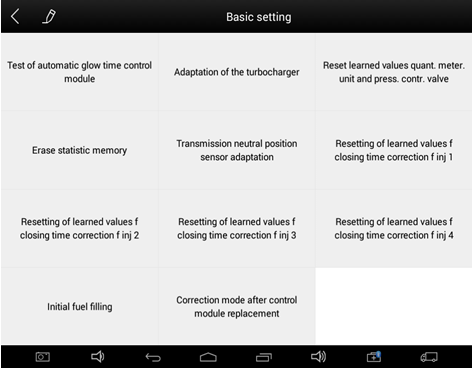

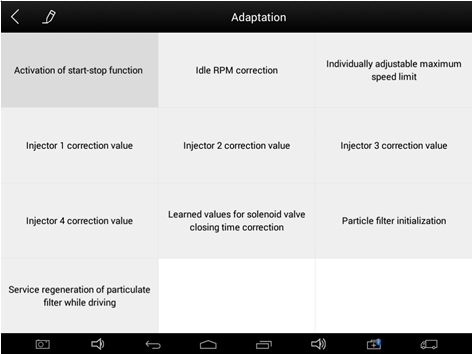

    Special Function:
    Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.
    XTOOL EZ500 HD Heavy Duty Diagnosis Display 21

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 22

    XTOOL EZ500 HD Heavy Duty Diagnosis Display 23

    Specifications:

    Operating System: Android 4.4.4
    Memory: 1GB RAM,16GB Flash
    CPU: Quad Core, 1.6GHz
    Display: 8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
    Sensors: Gravity Sensor, Light Sensor
    Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
    Battery: 4000mAh, 7.4V
    Wi-Fi: WIFI 2.4Ghz
    Power Voltage: 12V
    Power Consumption: 29.6W
    Operating Temperature: -20 to 50℃(-4 to 126℉)
    Humidity: <90%
    Dimension:  (L*W*H): 240*177*30mm

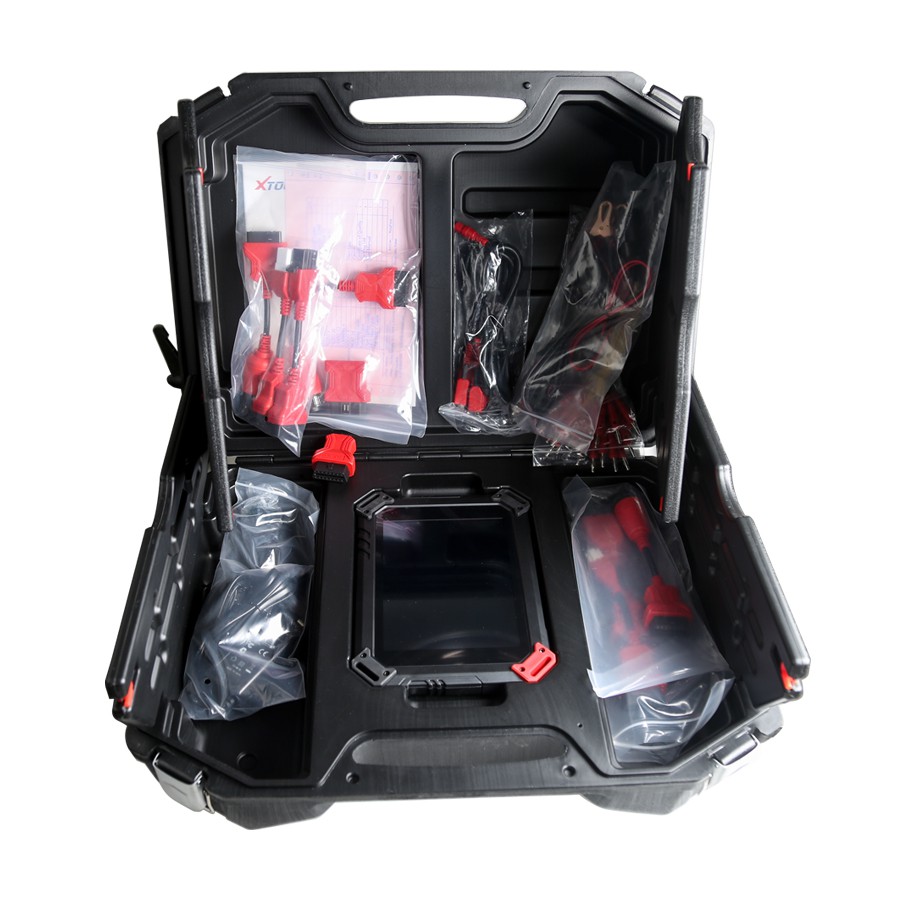

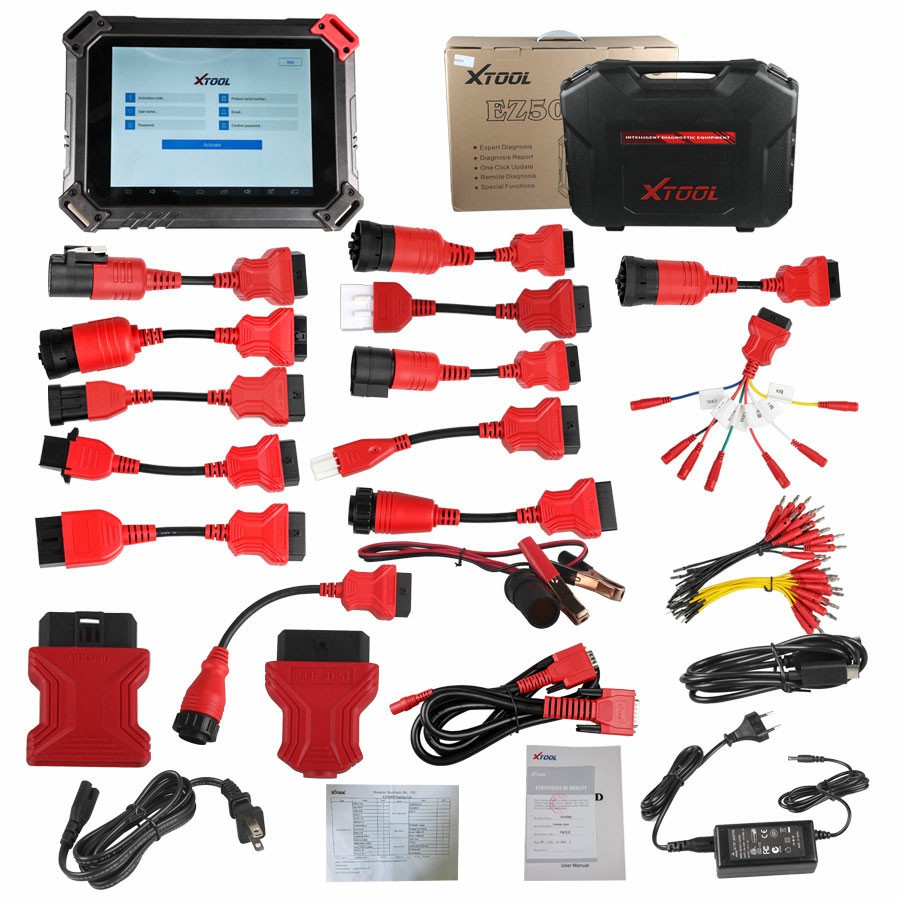

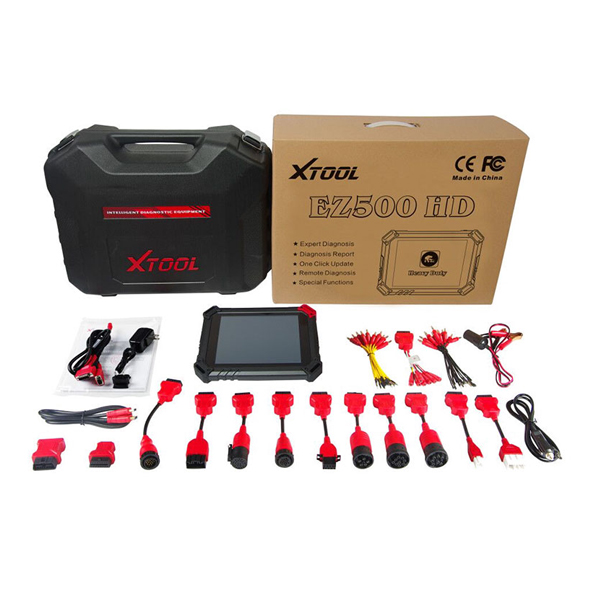

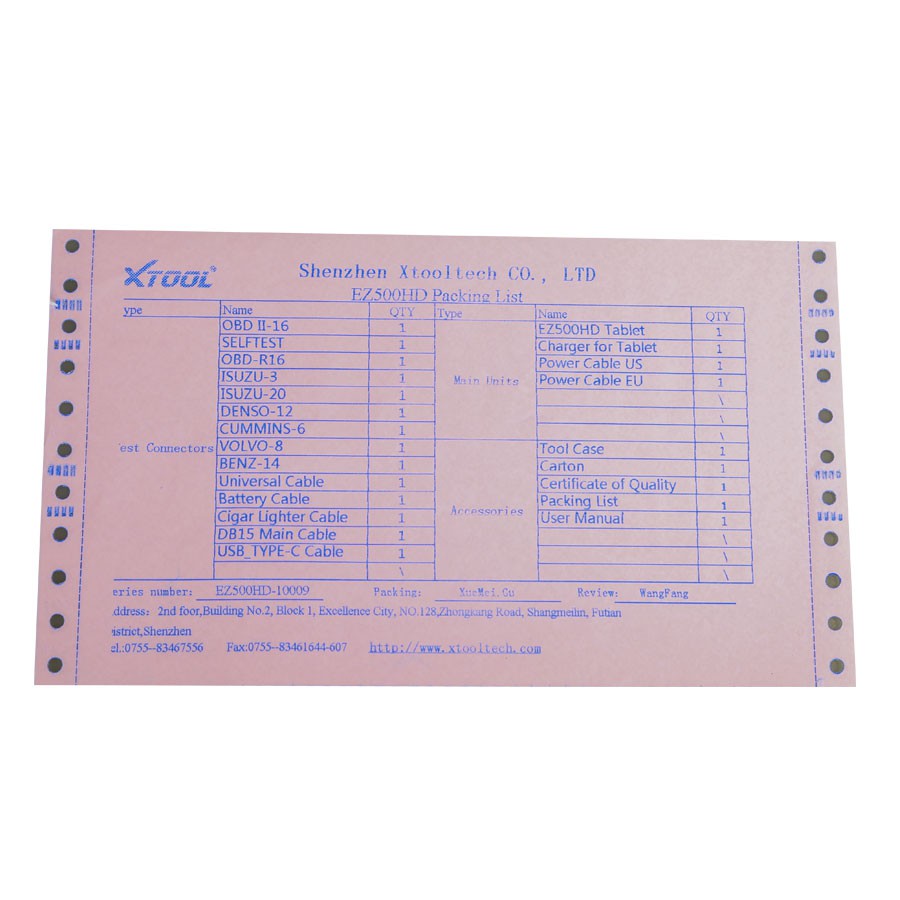

    Package including:
    1pc x EZ500 HD Tablet

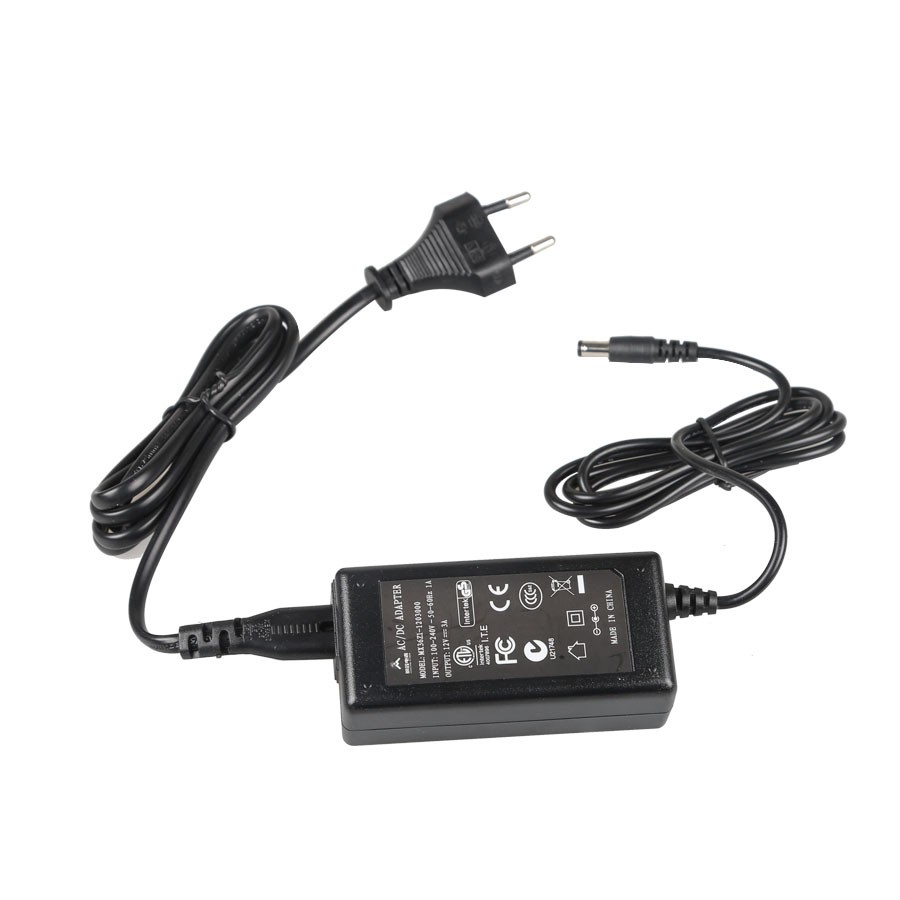

    1pc x Charger for Tablet
    1pc x Charger Cable US
    1pc x Charger Cable EU

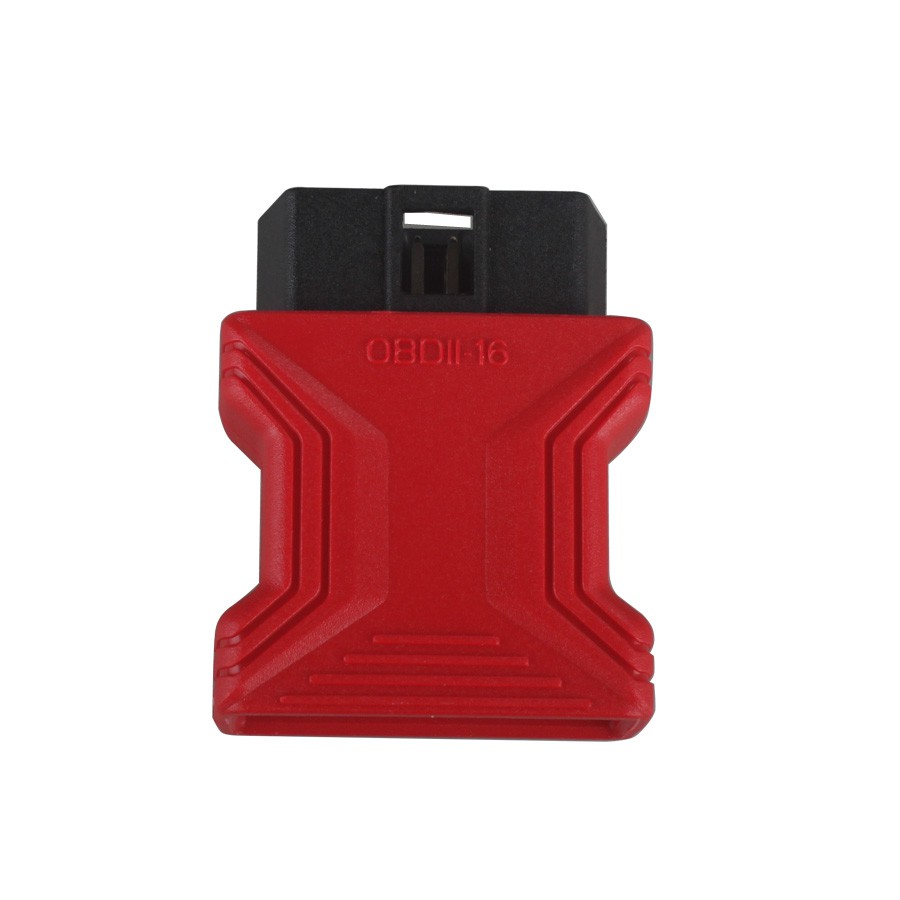

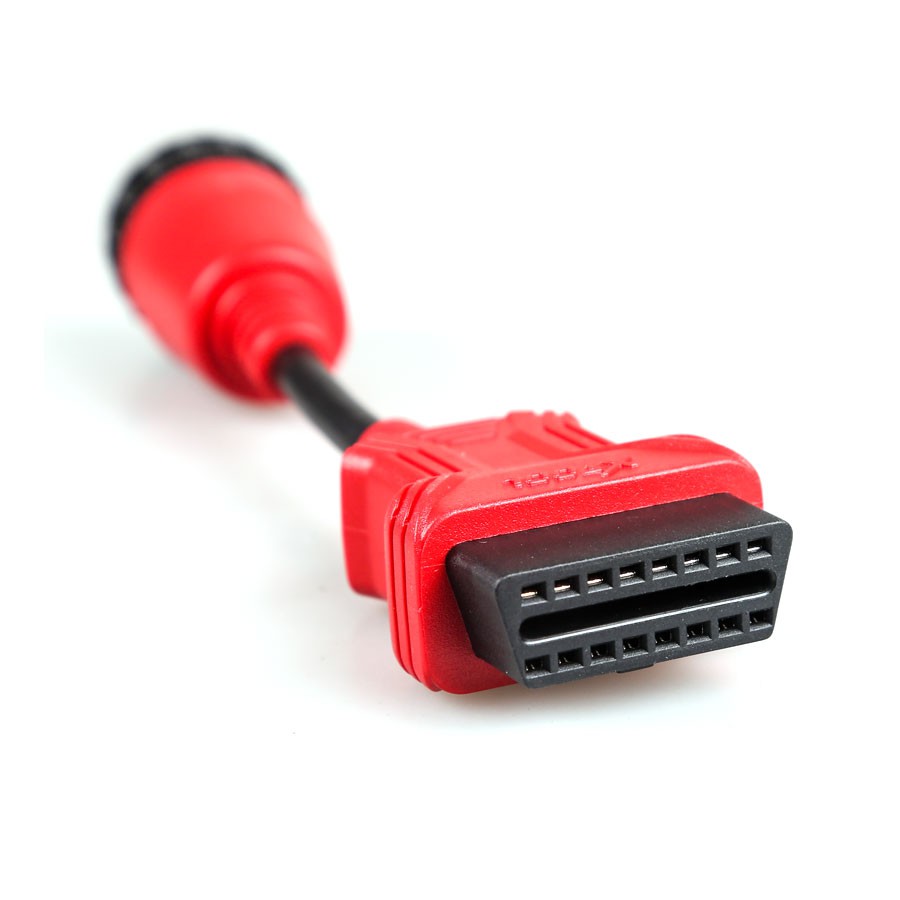

    1pc x OBD II-16

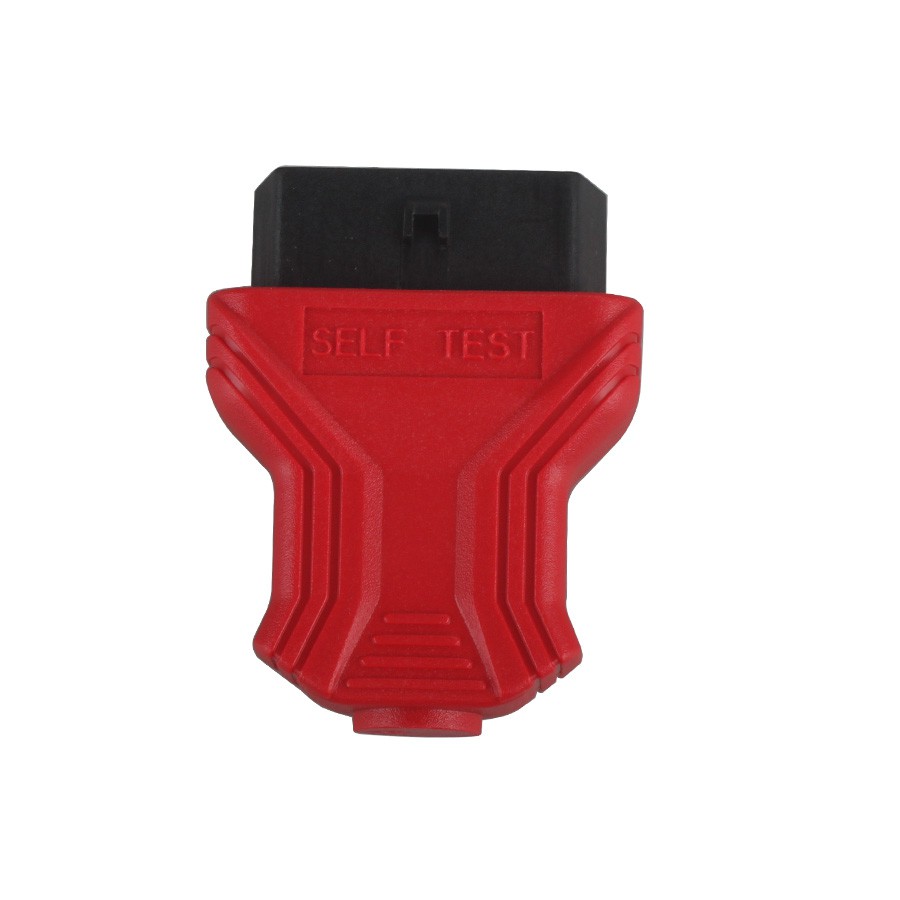

    1pc x SELFTEST
    1pc x OBD-R16
    1pc x CAT-9
    1pc x ISUZU-3
    1pc x ISUZU-20
    1pc x DENSO-12
    1pc x CUMMINS-6
    1pc x CUMMINS-9
    1pc x IVECO-30
    1pc x VOLVO-8

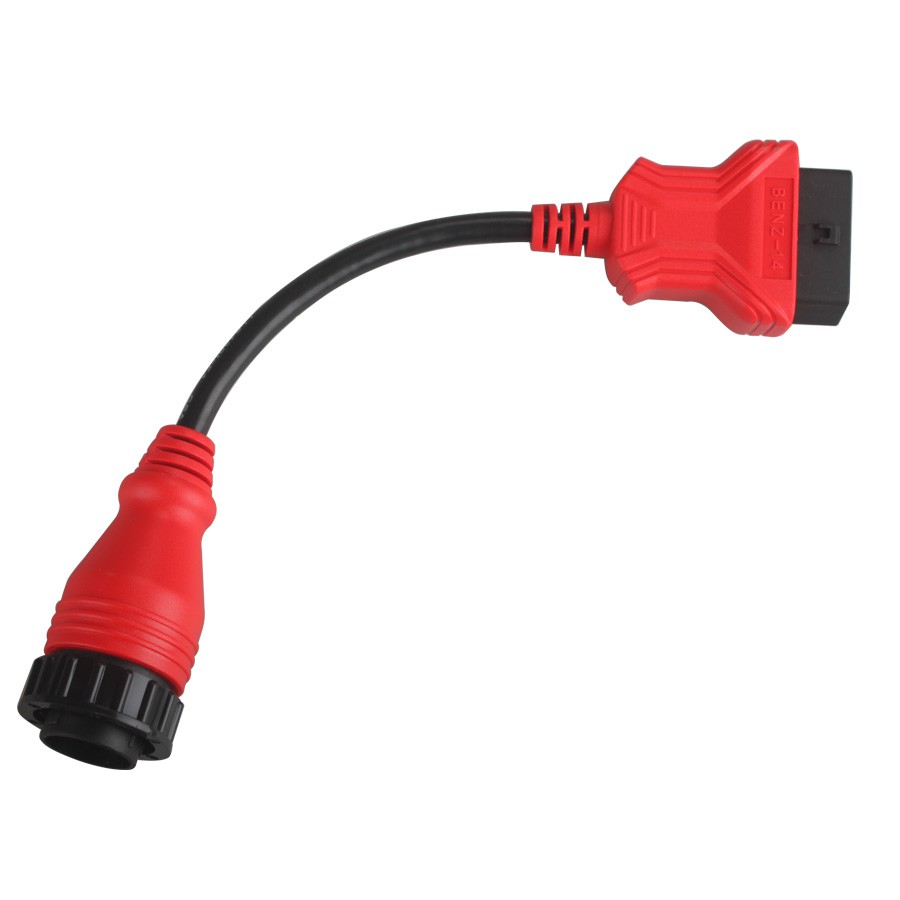

    1pc x BENZ-14

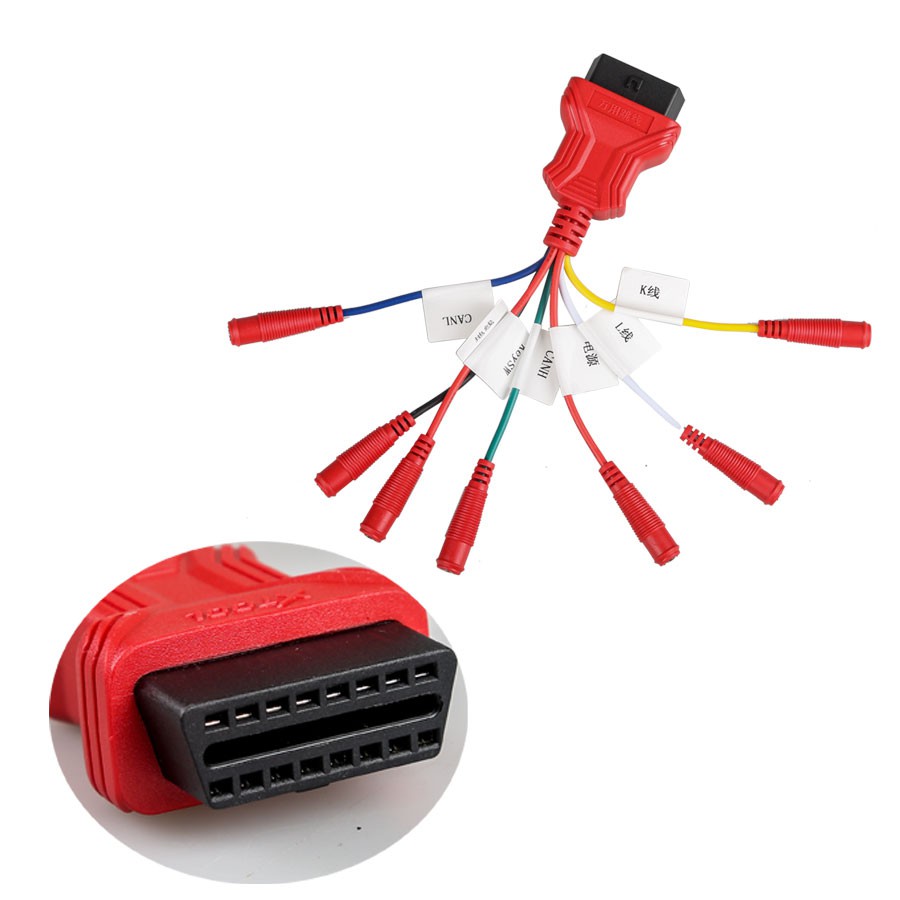

    1pc x Universal Cable
    1pc x Battery Cable
    1pc x Cigar Lighter Cable

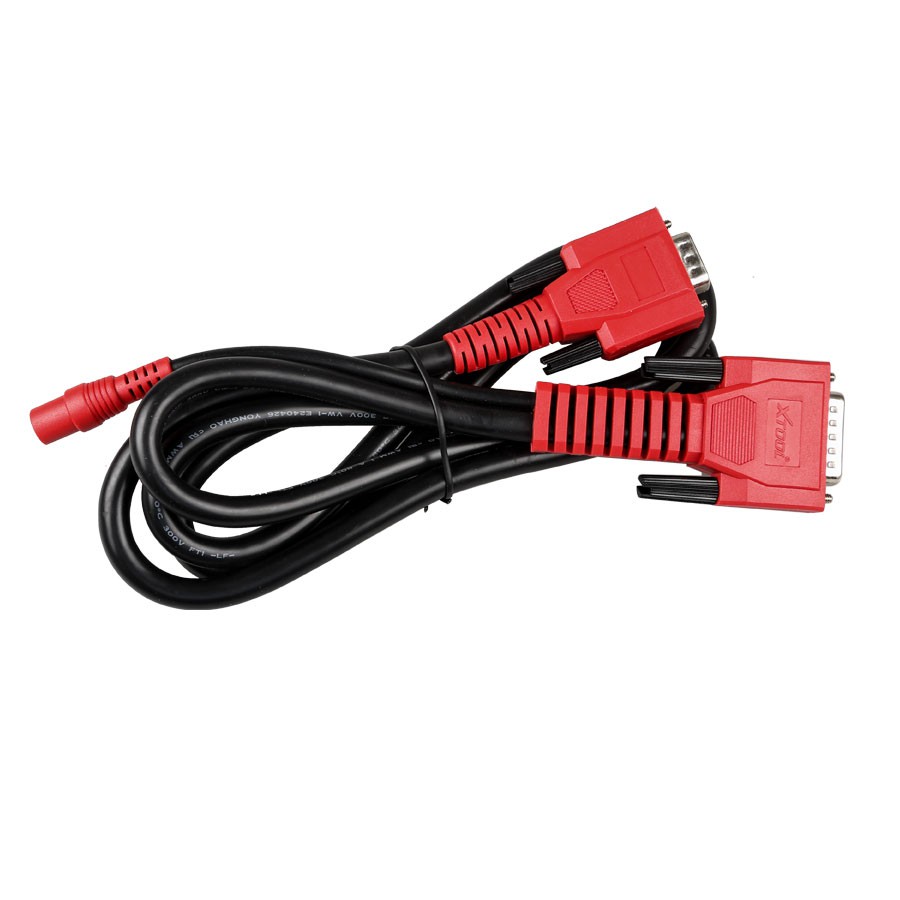

    1pc x DB15 Main Cable
    1pc x USB TYPE-C Cable

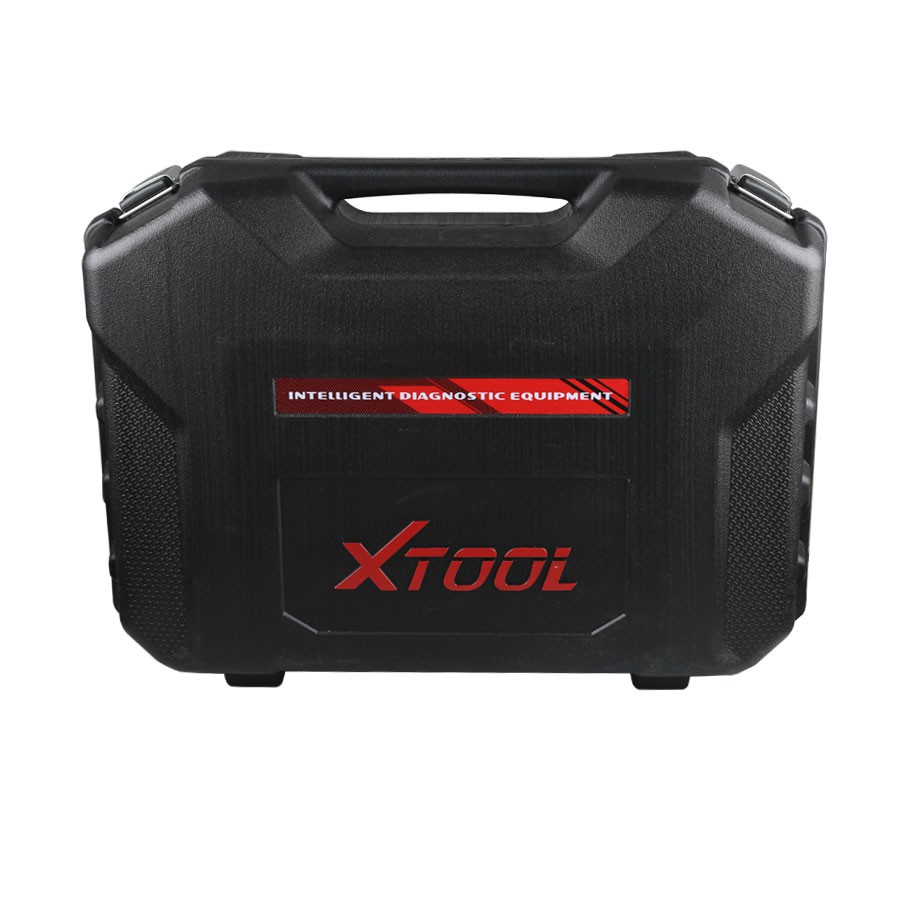

    1pc x Tool Case
    1pc x Carton
    1pc x Certificate of Quality
    1pc x Packing List
    1pc x User Manual
