    Xtuner T1 HD Heavy Duty Truck Diagnostic Tool Support Special Functions

    • Item No.  A389
    • History: 37  sold
    • Market Price: US$478.80
      Shop Price: US$399.00You save US$79.80
      Quantity
      Total
    • Quantity:  304
    • Weight:  5.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Xtuner T1 HD Heavy Duty Truck Diagnostic Tool Support Special Functions



    Language:  English Only (will add more languages in the future)


    XTUNER T1 Features:
    1.Extensive vehicle coverage for heavy-duty trucks.
    2.Complete function capability including DTC, DTC freeze Info, Live data, Actuation test and Special function.
    3.Support standard protocol J1939, J1708 and J1587.
    4.Supply USB and WIFI connection for the VCI.
    5.New software update on the internet.
    6.Supply OBDII and other 10 connector.
    7.Hardware architecture uses a new design with multiple protection, interference and stability.
    8.Built-in overvoltage protection module is applied, in order to protect VCI and vehicle against accidental damage during checking.
    9.Can work well and stably in high and low temperature environment.
    10.The genuine Windows XP/7/8/10 operating systems allows for more stable performances, better compatibility and expandability.
    11.Extremely easy-to-use with touch-screen operation and intuitive operation in the windows.

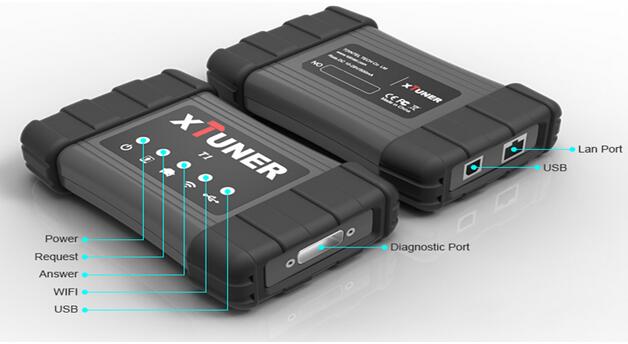

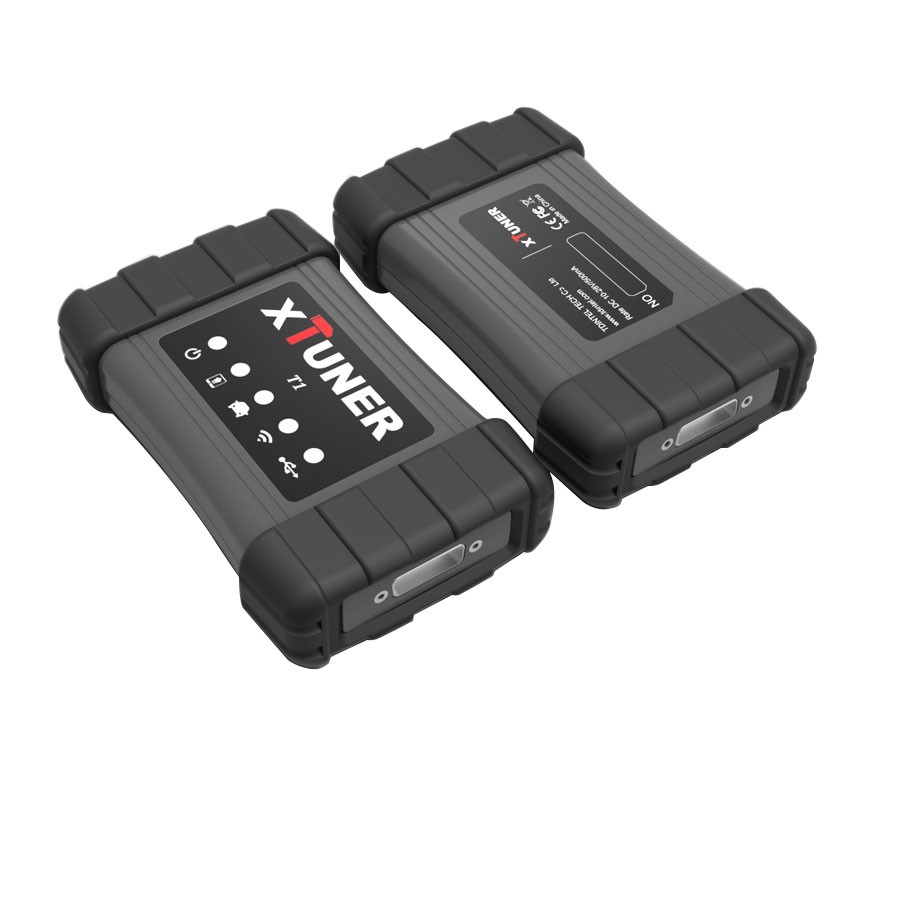

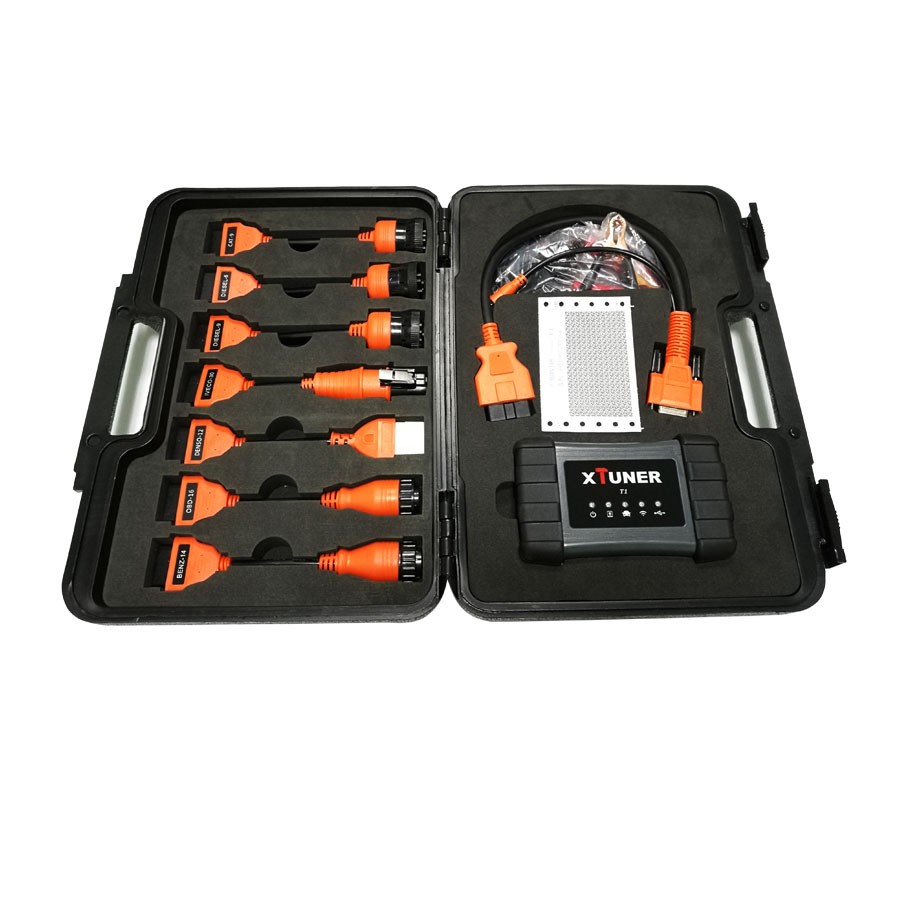

    Xtuner T1 heavy-duty truck scanner Hardware Display:




    XTUNER T1 Function List:
    Read ECU Info, Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Air bleeding, Level calibration, Oil change, Idle speed learning, Idle speed Adjustment, Camshaft timing control learning, Broken cylinder test, Dpr Manual Forced Regeneration, Injector Codes, etc.

    Special Functions:
    DPF Reset、Nozzle Or Injector、Fuel Pump、Exhaust Pressure Adjustment、EGR、ECM、Vehicle Speed CONTROL、Cylinder、VIN、Write Engine Serial Number、Turbo Control

    XTUNER System Coverage:
    ABS(anti-lock brake system), After treatment system, Airbag, Airconditioning system, ATA Anti-theft alarm system, ATA(Auxiliary heating system air-to-air), AUS(Audio system), Behr independent air-conditioning system, BMS(Brake Management System), Body control system, Bosch DENOX AdBlue System, Break control system, BWS(Preparation system), CCS(Climate control system), CLS/ATA central locking system with anti-theft alarm, Comfort/assistance/safety systems, Compressed Air Reserve system, CSS(Collision safety system), CTS(Clock and Time System), EBS(Brake System), EBS(Electronically Controlled Brake System), Electrohydraulic steering system(EHLA), EMS(Engine Management System), Engine management system, Engine System, FLA Flame starting system, GMS(Gearbox Control System), Instrumentation System, Lane departure alarm system, LAS(Lock and alarm system), LGS(Lane Guard System), MAN Marine Diagnostic System(MMDS), Meritor Wabco Brake System, MTS Modular door control system, RAS-EC1 steering system, Security System, SRS Supplemental restraint system, Suspension System, Torque converter and clutch system, TPM(Tires pressure Monitoring System), Transport Information System, Vehicle control system, Vehicle elctrical system power converter, VIS(Visibility System), VRDU Driver assistance system, WS Maintenance System, WTA(Auxiliary heating system water-to-air), ZVA Central locking system, etc.

    XTUNER T1 Vehicle Coverage:
    ALLISON, ASTRA, BENZ, BREMACH, DAF, DETROIT, ERF, FOTON, FREIGHTLINER, FUSO, HINO, HYUNDAI, INTERNATIONAL, ISUZU, IVECO, KENWORTH, KIA, MACK, MAN, MaxxForce, NAVISTAR, RENAULT, SCANIA, TOYOTA, UD, VOLVO, WABCO, ect.

    Electronic Control System: BENDIX, CUMMINS

    Standard OBD: Diesel OBD

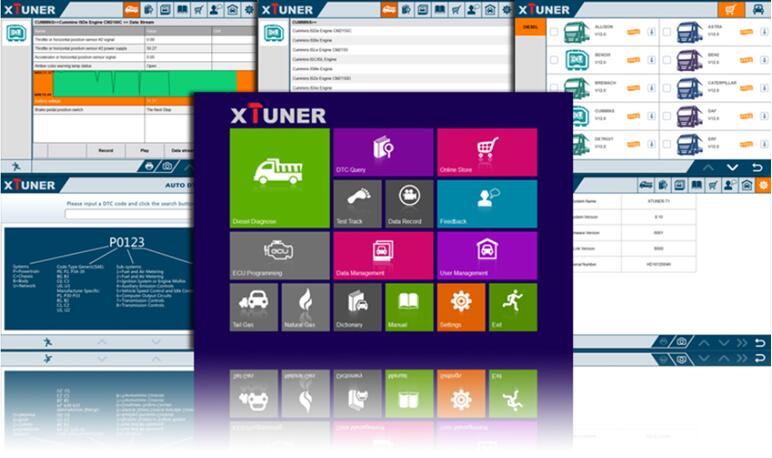

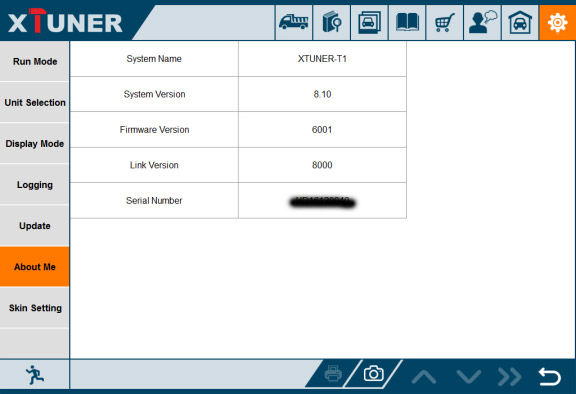

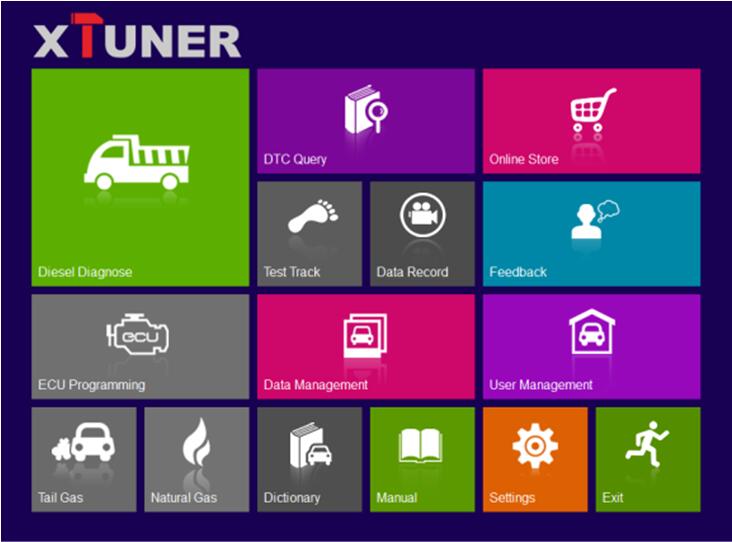

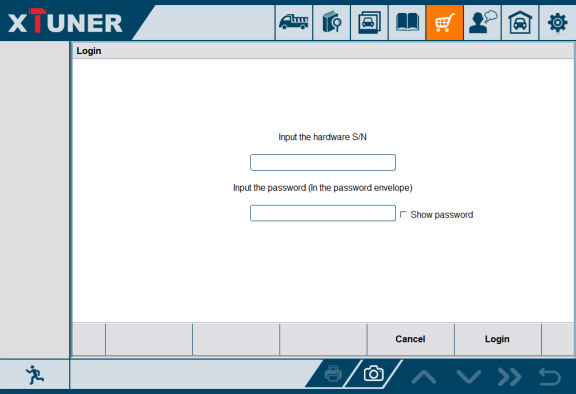

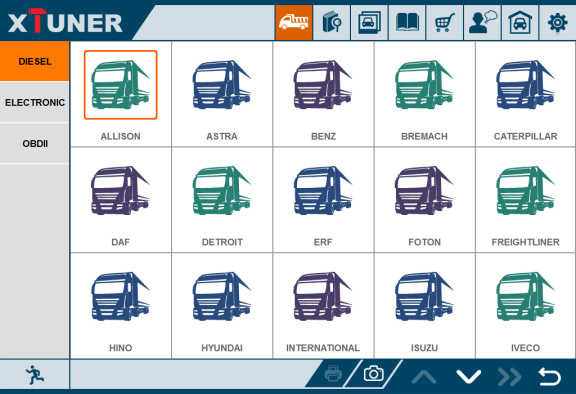

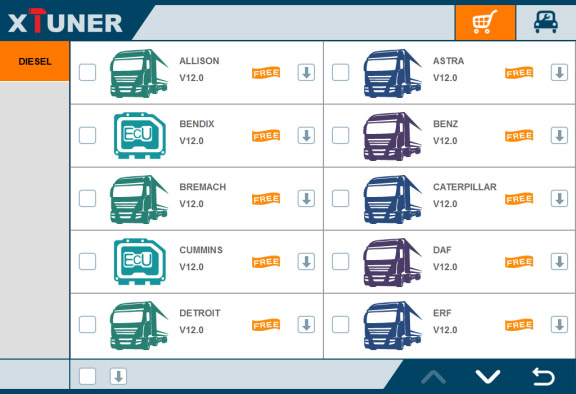

    Xtuner T1 heavy-duty truck scanner Software Display:




    Xtuner T1 heavy-duty truck scanner Specification:

    Operating System

    Windows XP/7/8/10

    Processor

    ARM 32-bit Cortex processor

    Communications

    802.11 b/g Wireless LAN

    Input Voltage

    DC 8-28V

    Operating Temperature

    -10 to 70 °C?14-158°F?,Relative Humidity:<90%

    Storage Temperature

    -30 to 120°C?-22 to 248°F?,Relative Humidity:<90%

    Communication model

    Wi-Fi or USB

    Protocols

    UDS,ISO 9141-2, K/L lines, SAE-J1850 VPW,SAE-J1850 PWM,CAN ISO 11898 ISO 15765-4?High speed, Middle speed ,low speed and Single wire CAN,SAE-J1939,SAE-J1708,SAE-J1587

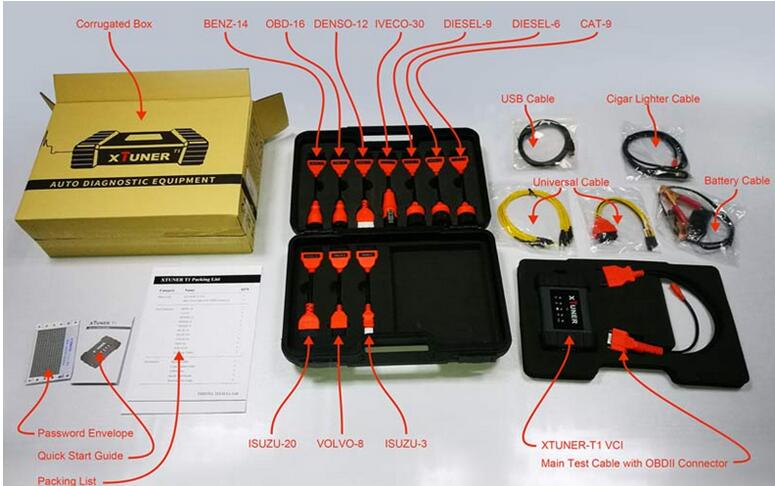

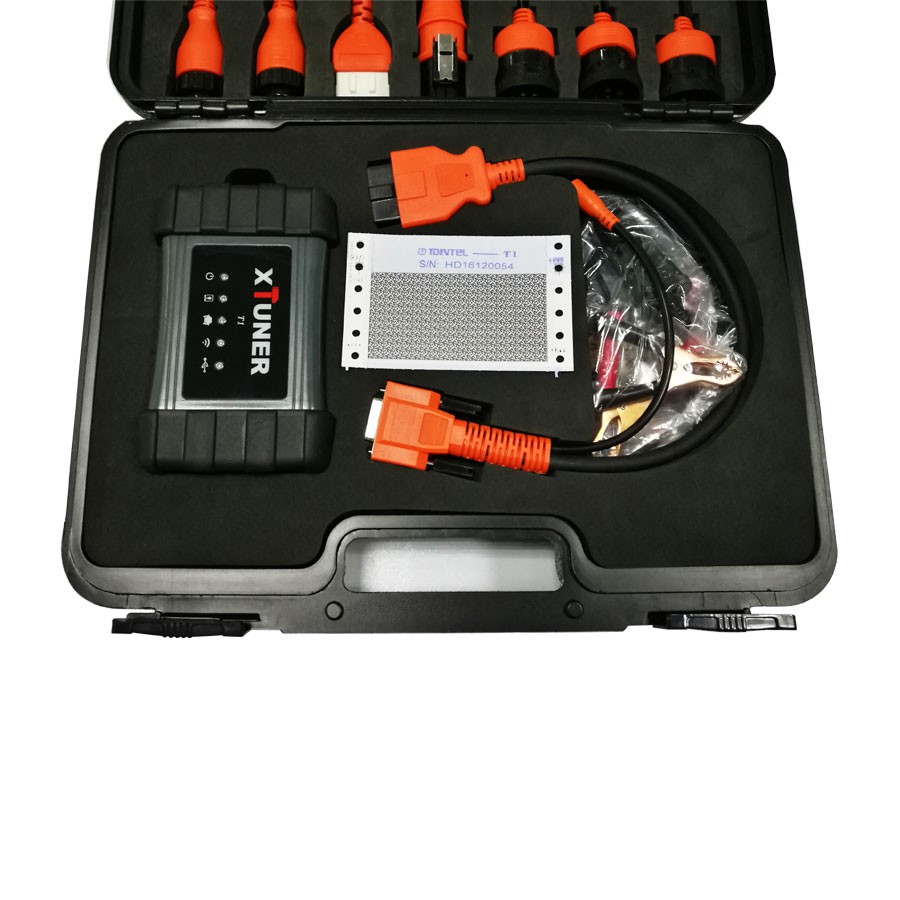

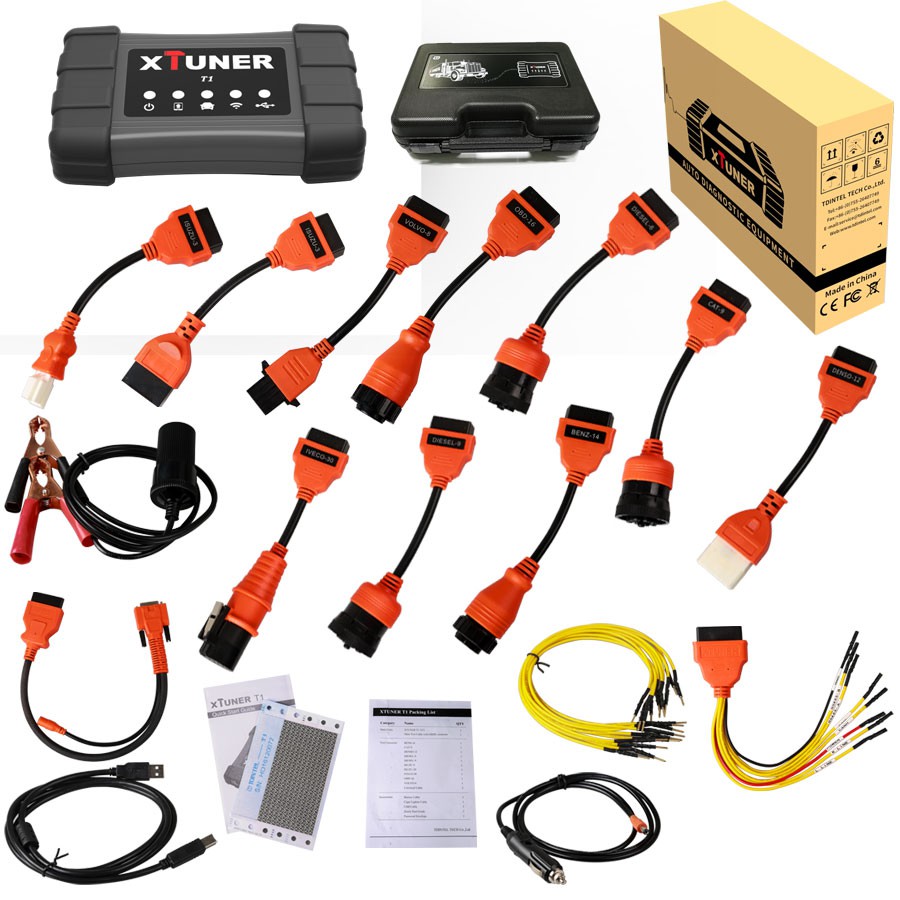

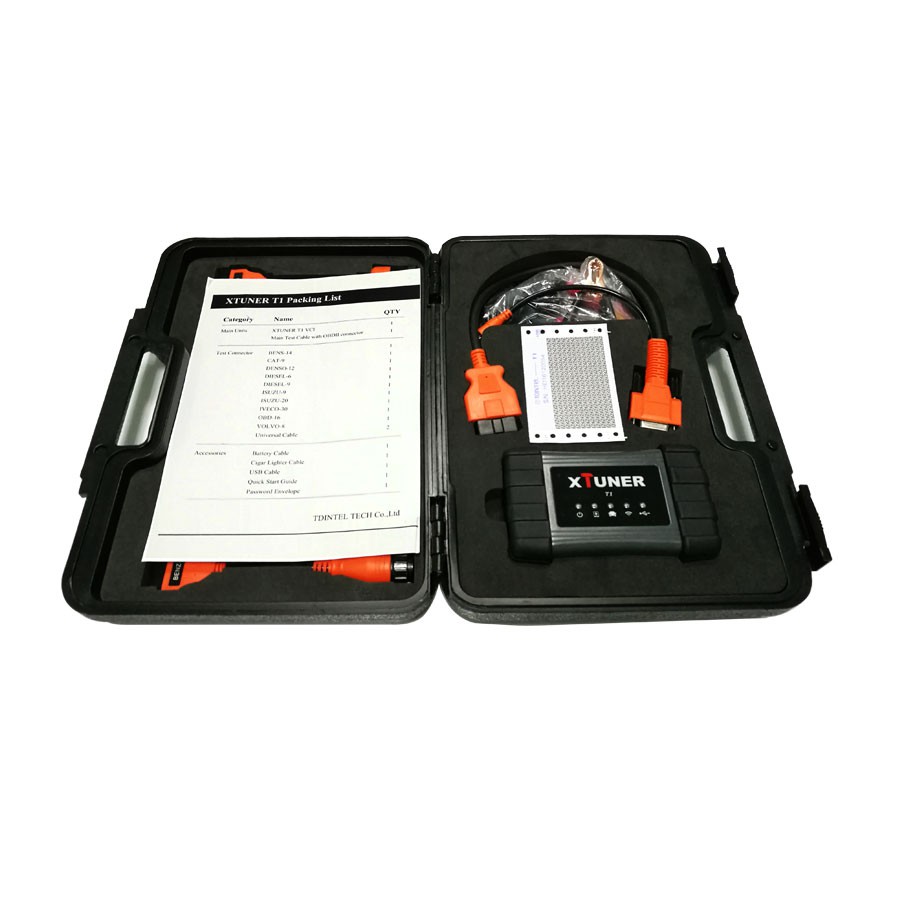

    Xtuner T1 heavy-duty truck scanner Packing List:

    CATGORY

    NAME

    QTY

    Main Units

    XTUNER T1 VCI

    1

    Main Test Cable with OBDII connector

    1

    Test Connectors

    BENZ-14

    1

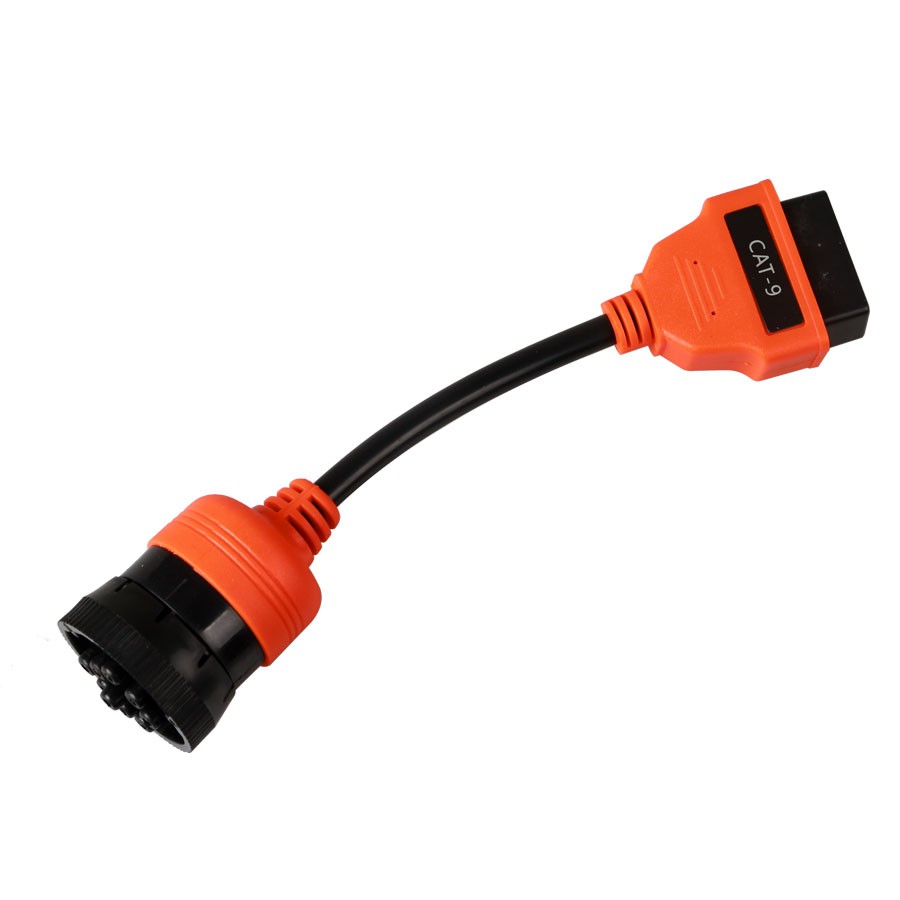

    CAT-9

    1

    DENSO-12

    1

    DIESEL-6

    1

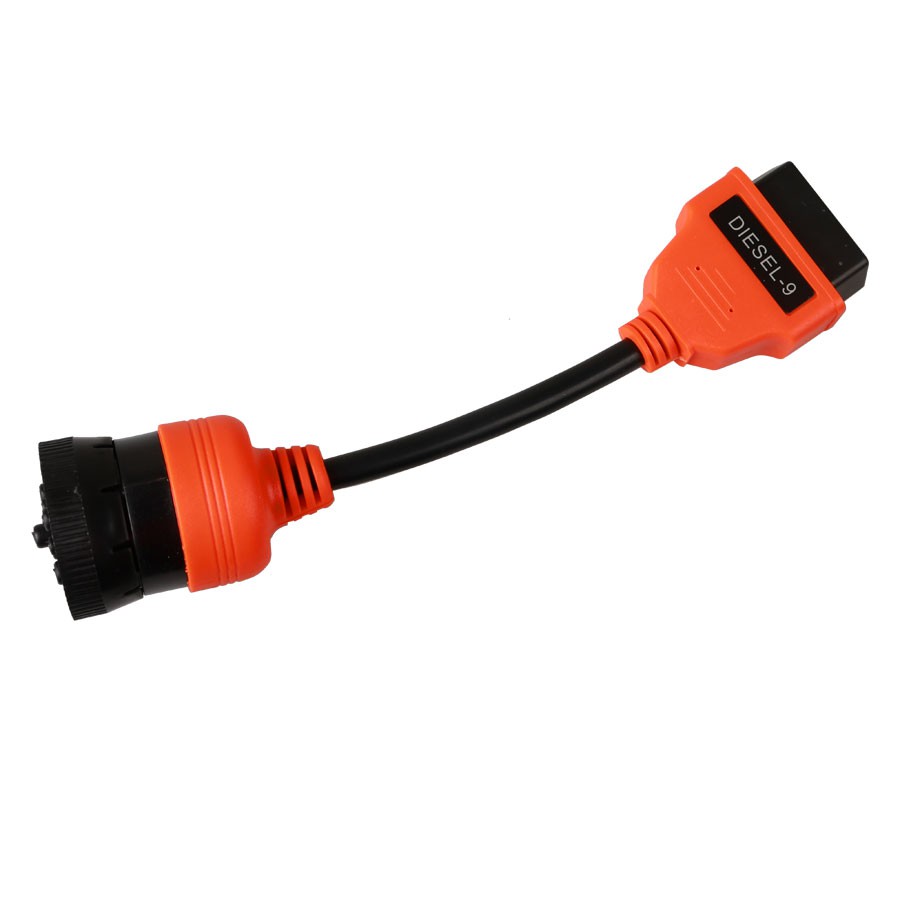

    DIESEL-9

    1

    ISUZU-20

    1

    ISUZU-3

    1

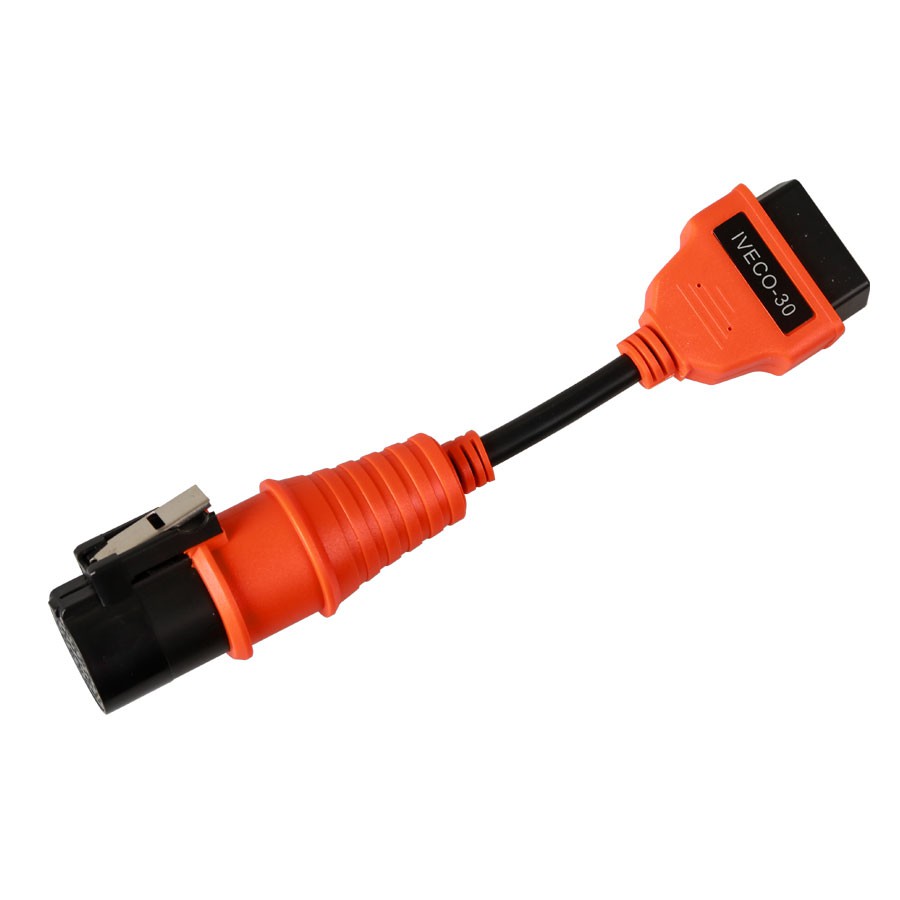

    IVECO-30

    1

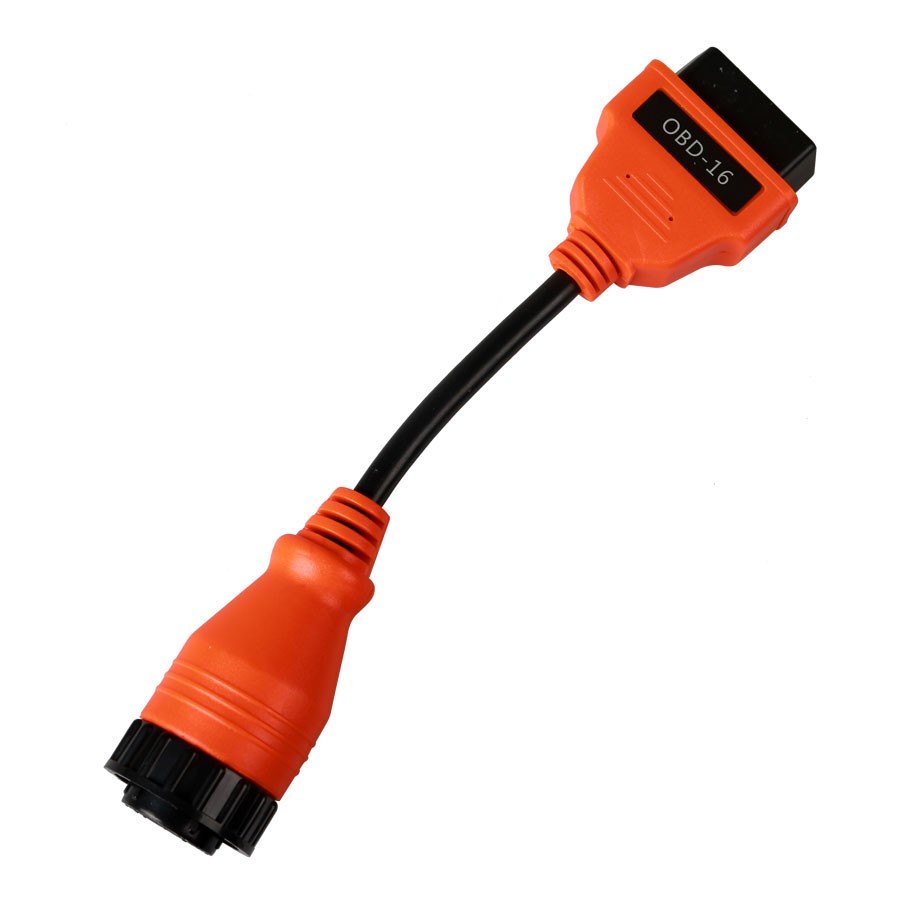

    OBD-16

    1

    VOLVO-8

    1

    Universal Cable

    1

    Accessories

    Battery Cable

    1

    Cigar Lighter Cable

    1

    USB Cable

    1

    Packing List

    1

    Quick Start Guide

    1
