    XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles with Special Function Same Function With XTool PS80

    • Item No.  A174-1
    • History: 63  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  199
    • Weight:  10.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 4 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles



    Free Update Online for 2 Years

    Language supported: English only


    XTOOL EZ500 Features:
    *Easy registration when EZ500 is connected to WIFI
    *One-click software update via WIFI
    *Remote access

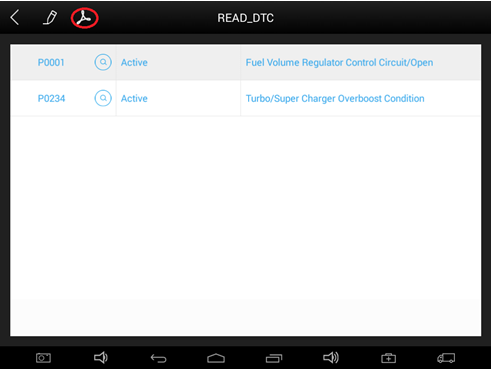

    *Diagnosis reports in PDF file
    *Record and playback live data
    *8.0 inch multi-touch screen
    *On-board battery
    *Extensive vehicle coverage for most US, Asian and European vehicle makes

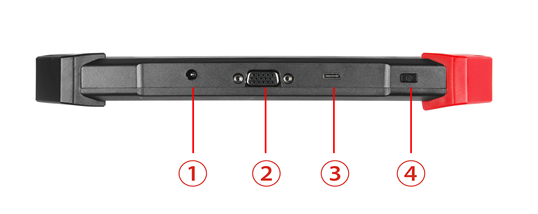

    Xtool EZ500 Layout

    XTOOL EZ500 Full-System Diagnosis Display 1
    ① DC Charging port: Battery charging
    ② DB15 Interface: Supports wired connection with car by the cable
    ③ USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
    ④ Power Button: Power on or power off

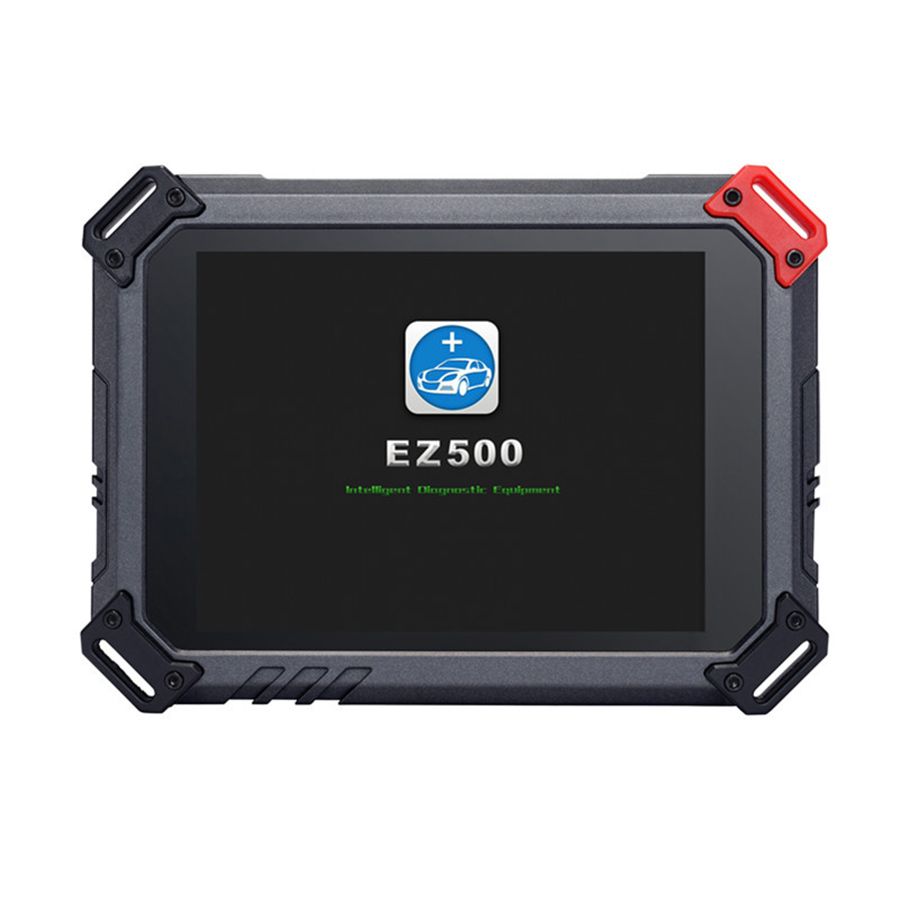

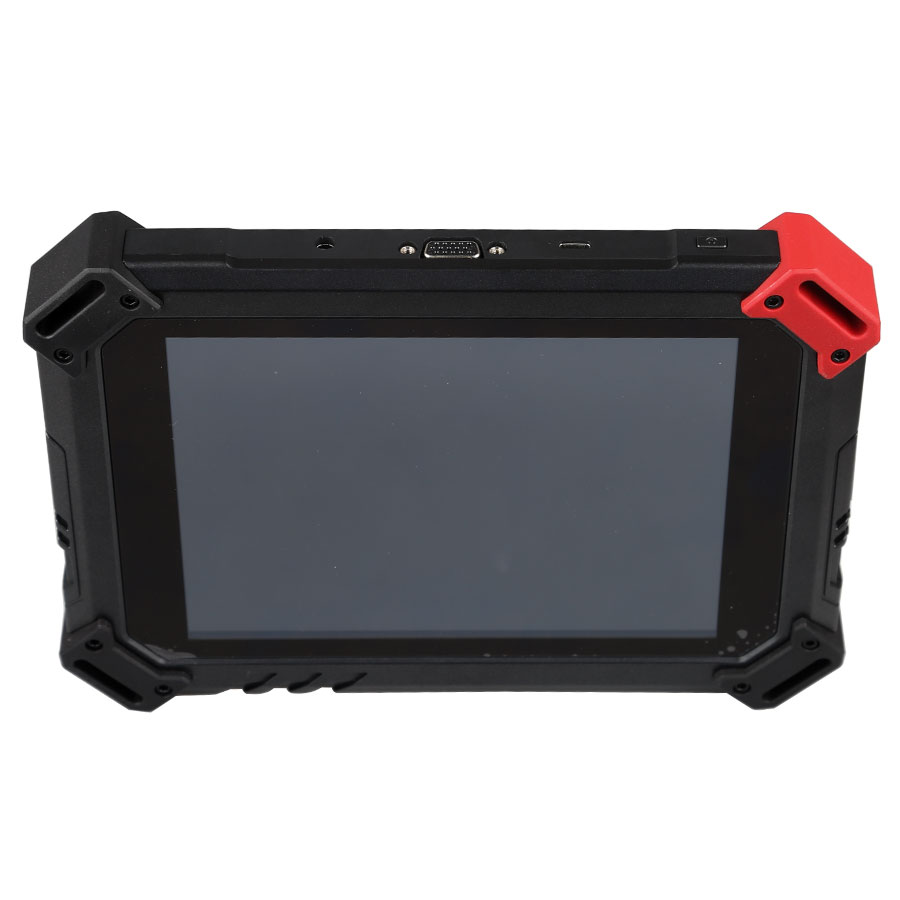

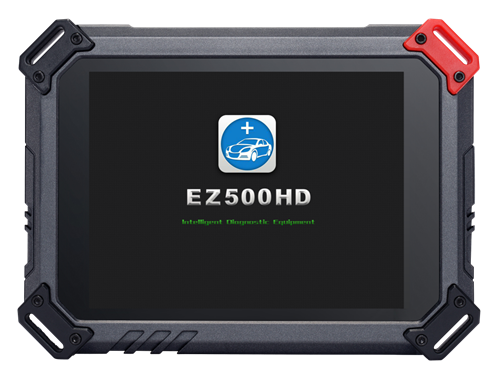

    Xtool EZ500 Tablet Front View

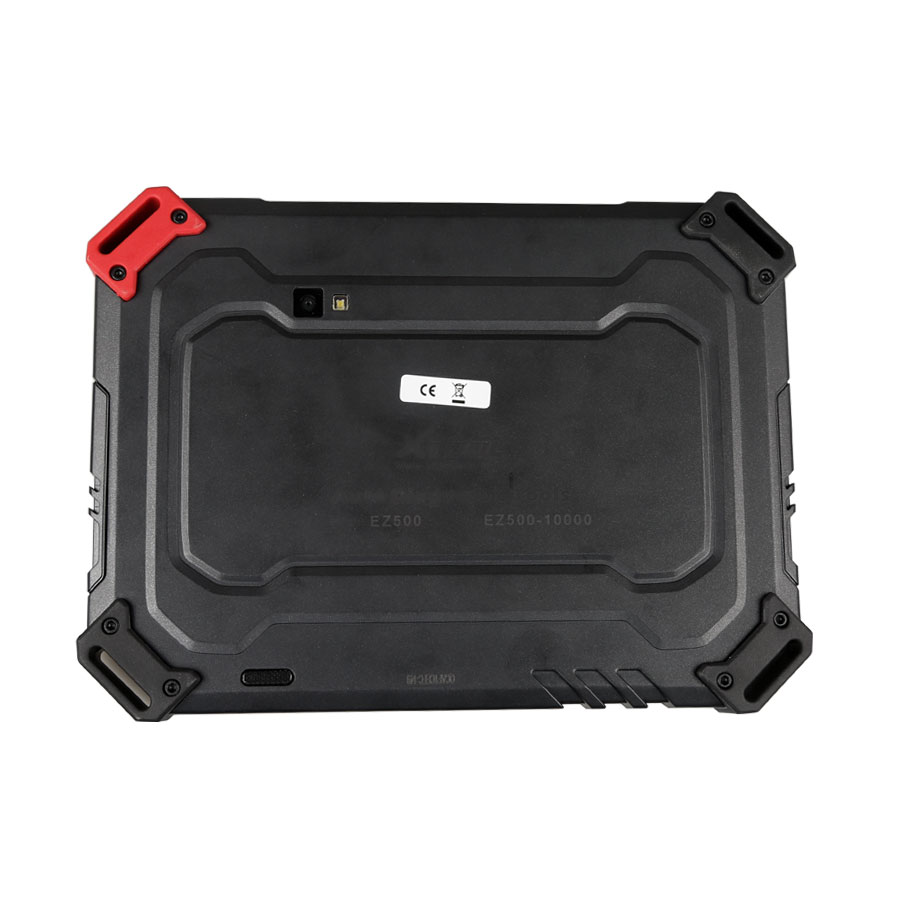

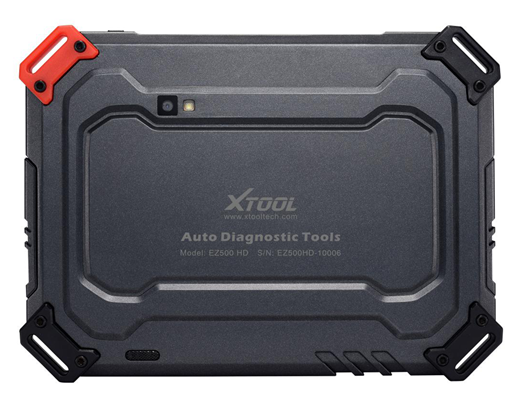

    Xtool EZ500 Tablet Back View

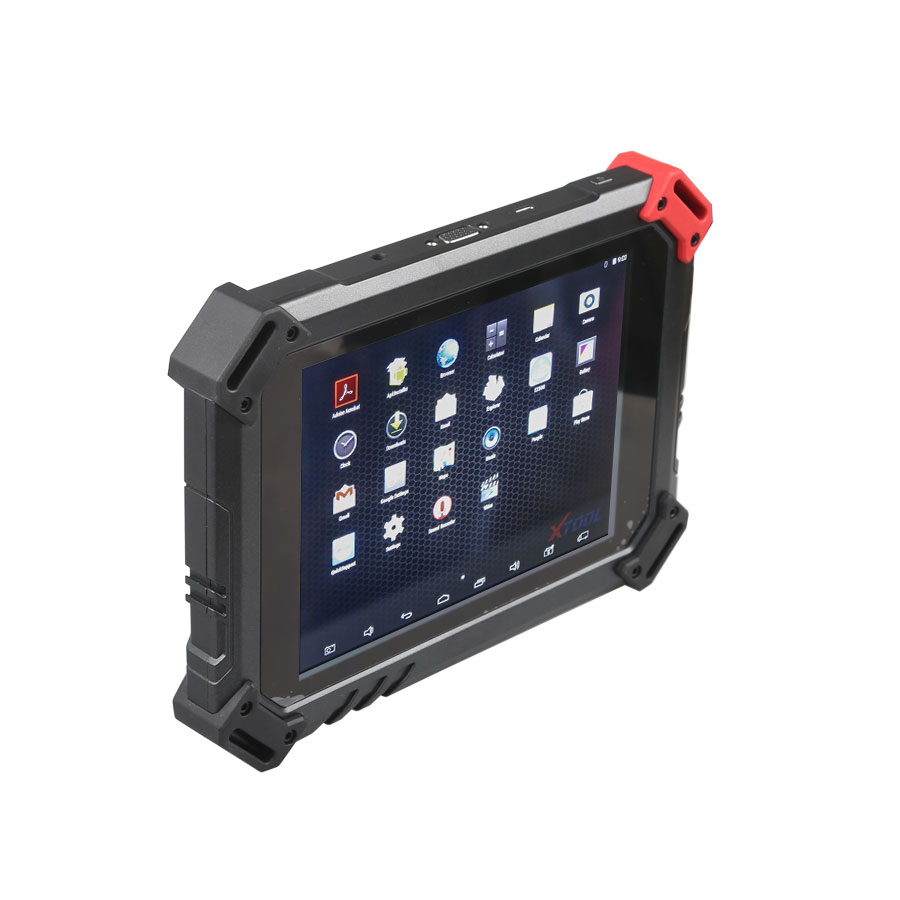

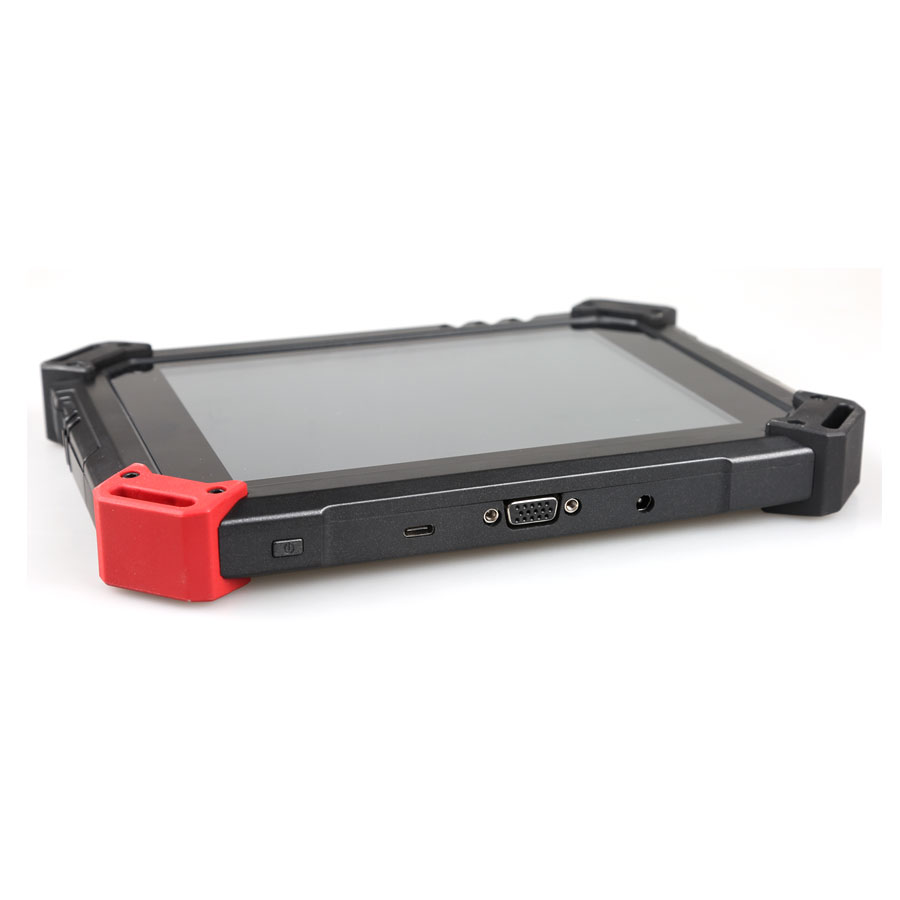

    Xtool EZ500 Tablet Side View

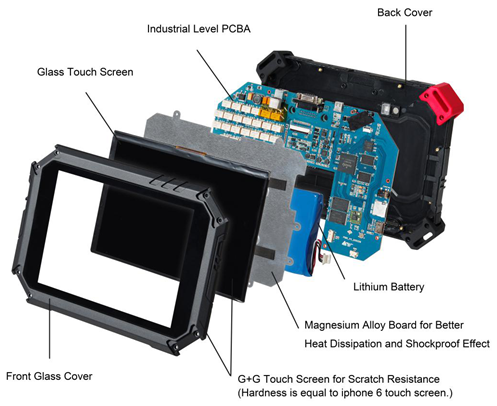

    EZ500 Exploded Diagram

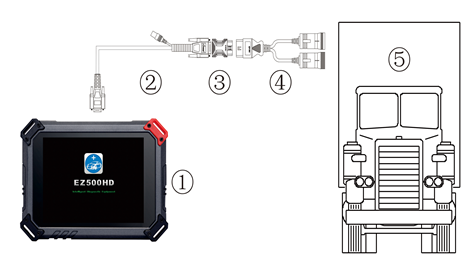

    Connect to the vehicle directly with cable

    ① EZ500 Mainframe
    ② Main Test Cable
    ③ OBD2 16pin Connector
    ④ Vehicle

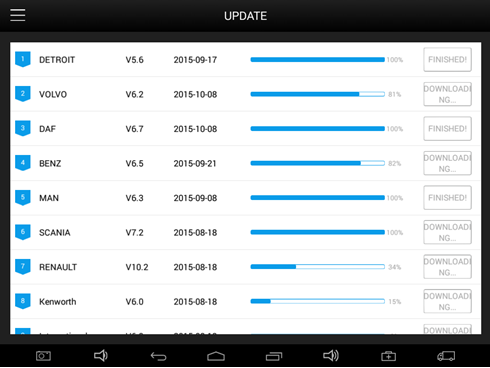

    One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

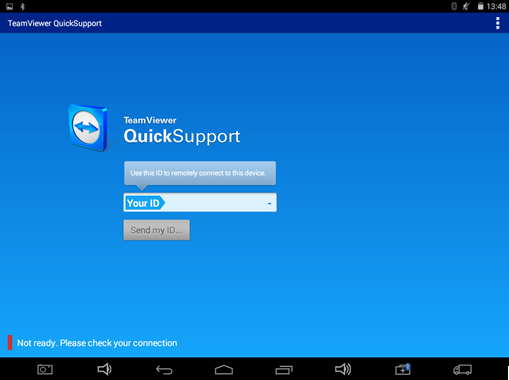

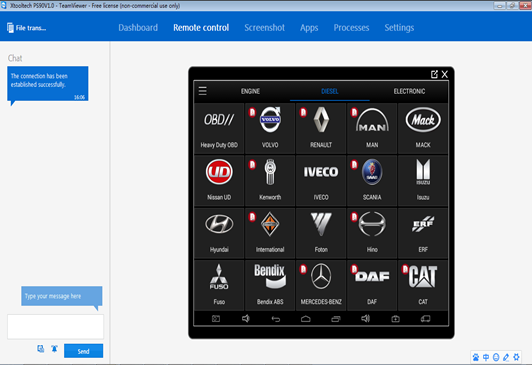

    Remote access, which is perfect for training, demonstration and even remote diagnosis.

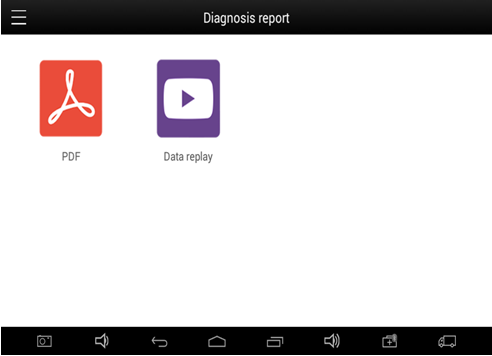

    Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.



    Extensive vehicle coverage for most US, Asian and European vehicle makes
    American:
    GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

    Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

    Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

    Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

    Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,
    Body (ECM), Chassis……

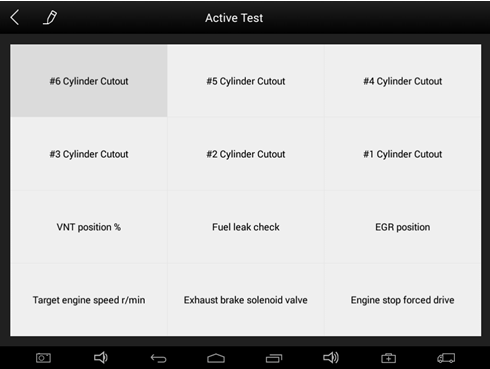

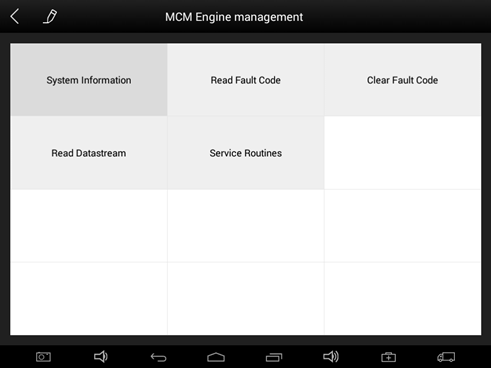

    Basic functions: read fault codes, clear fault codes, live data, actuation

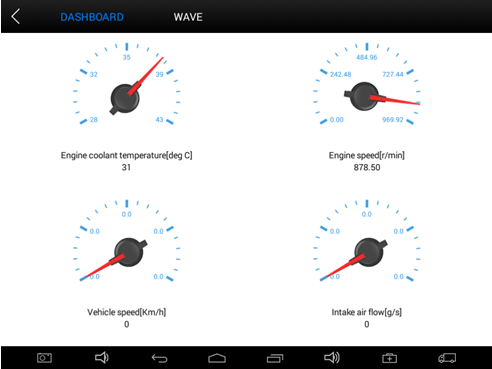

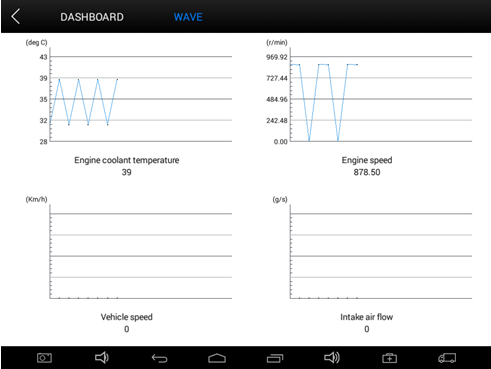

    Accurate live data in both Wave and Dashboard form

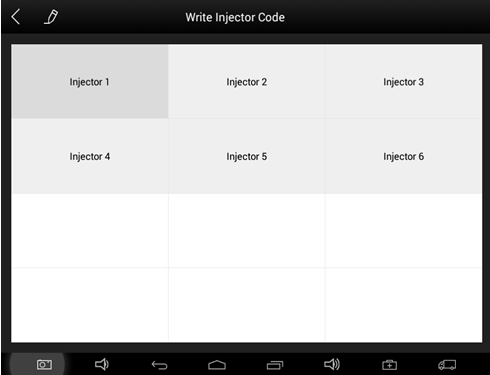

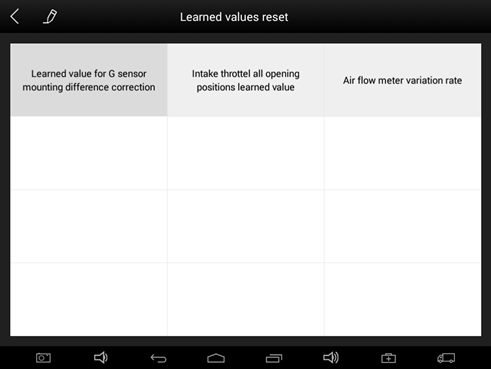

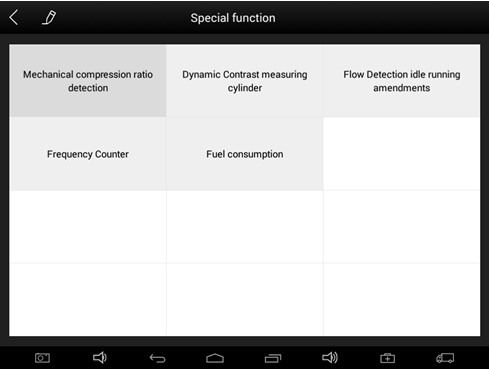

    Special functions: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..





    Specification:
    Operating System: Android 4.4.4
    Memory: 1GB RAM,16GB Flash
    CPU Quad Core, 1.6 GHz
    Display 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
    Sensors: Gravity Sensor, Light Sensor
    Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
    Battery:  4000mAh, 7.4V
    WIFI WIFI 2.4Ghz
    Bluetooth 100 Meters
    Power Voltage:  12V
    Power Consumption: 29.6W
    Operating Temperature:  -20 to 50℃(-4 to 126℉)
    Humidity: <90%
    Dimension:  (L*W*H): 240*177*30mm

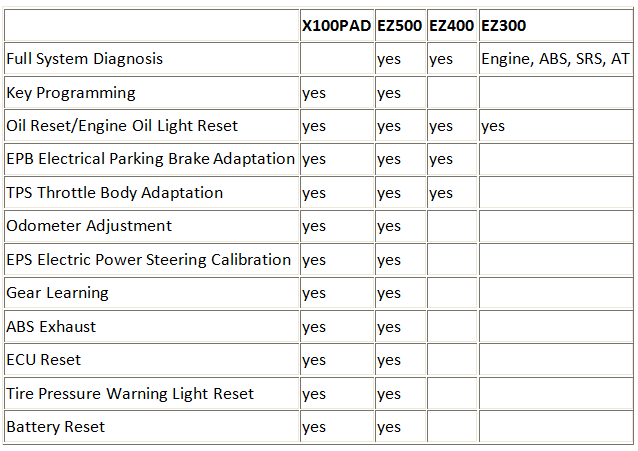

    Difference Between XTOOL Products:

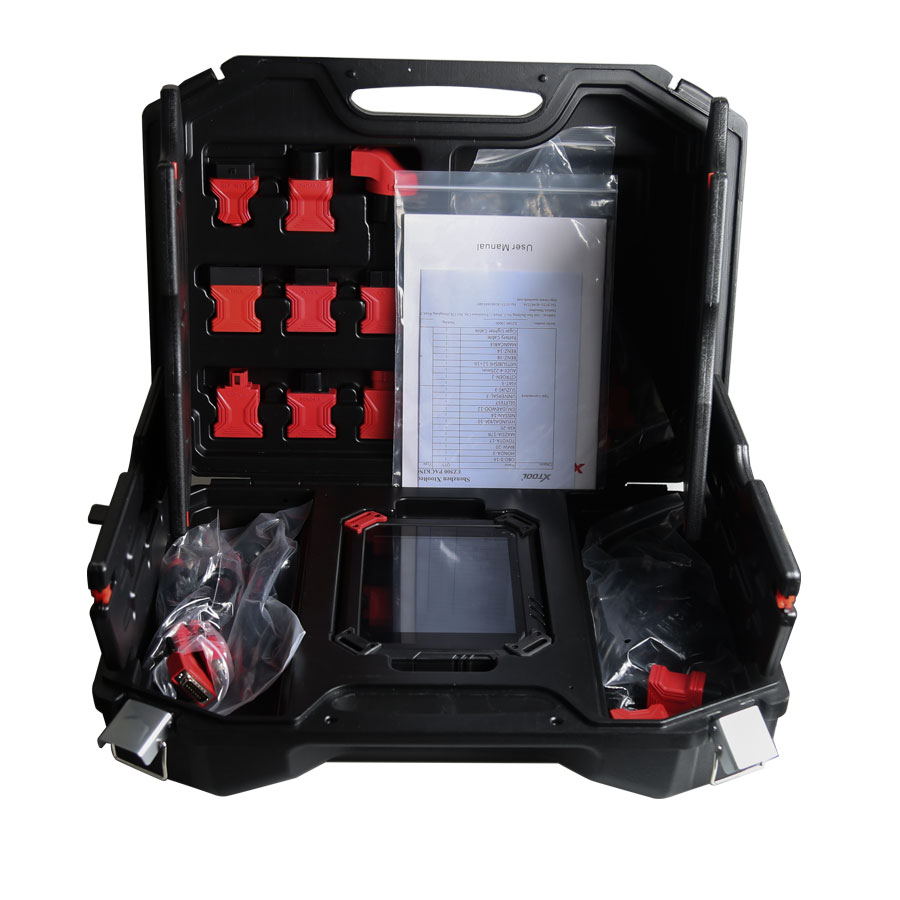

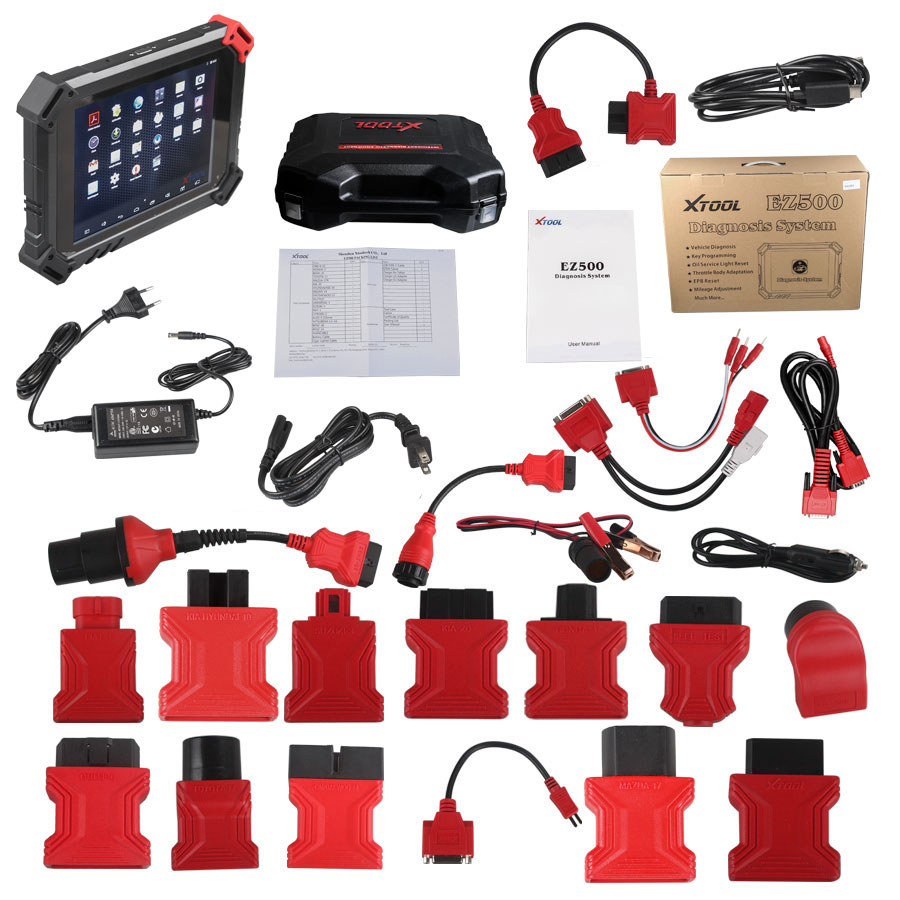

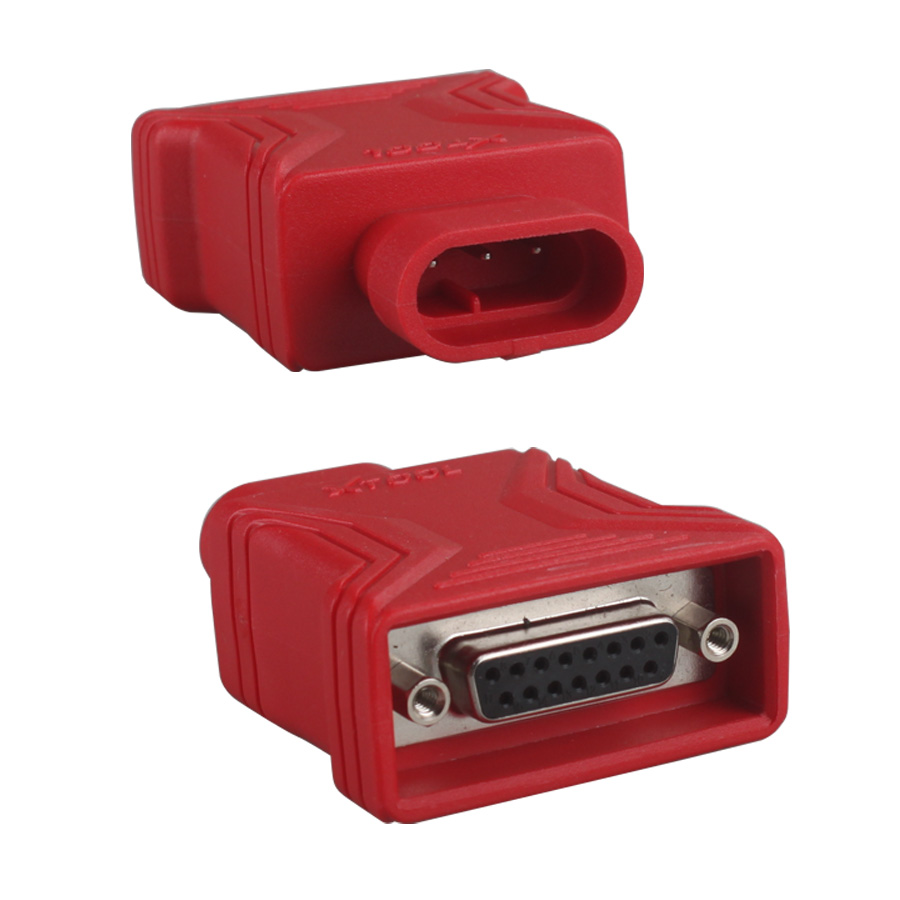

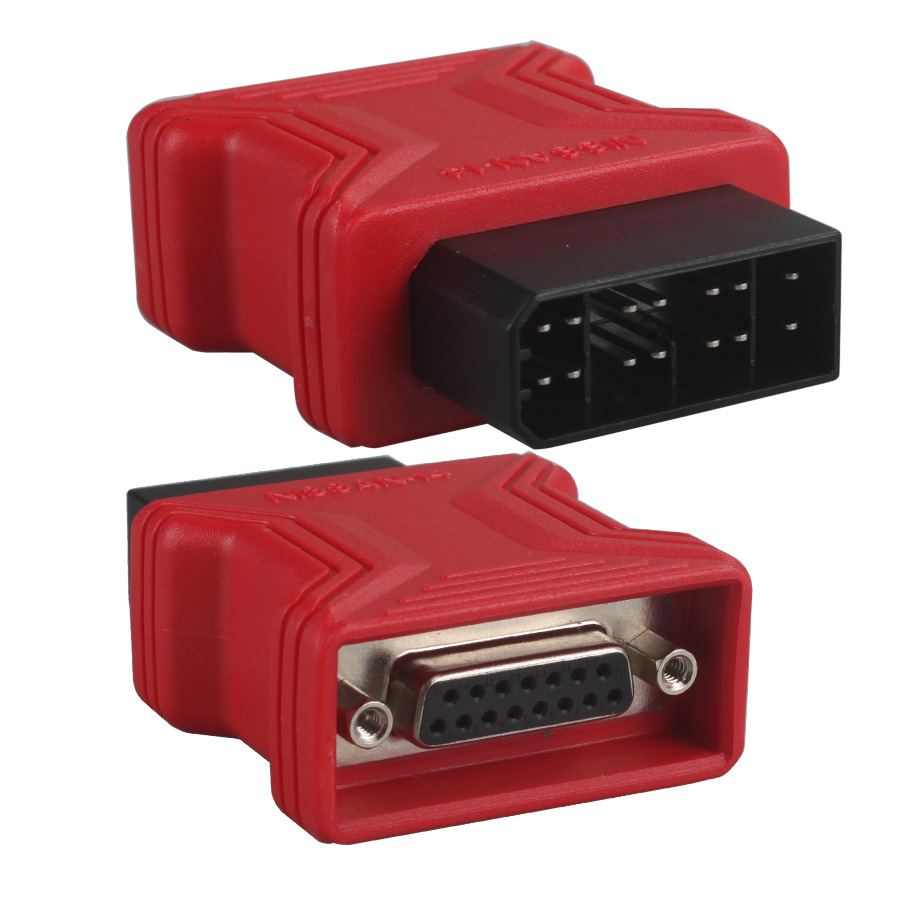

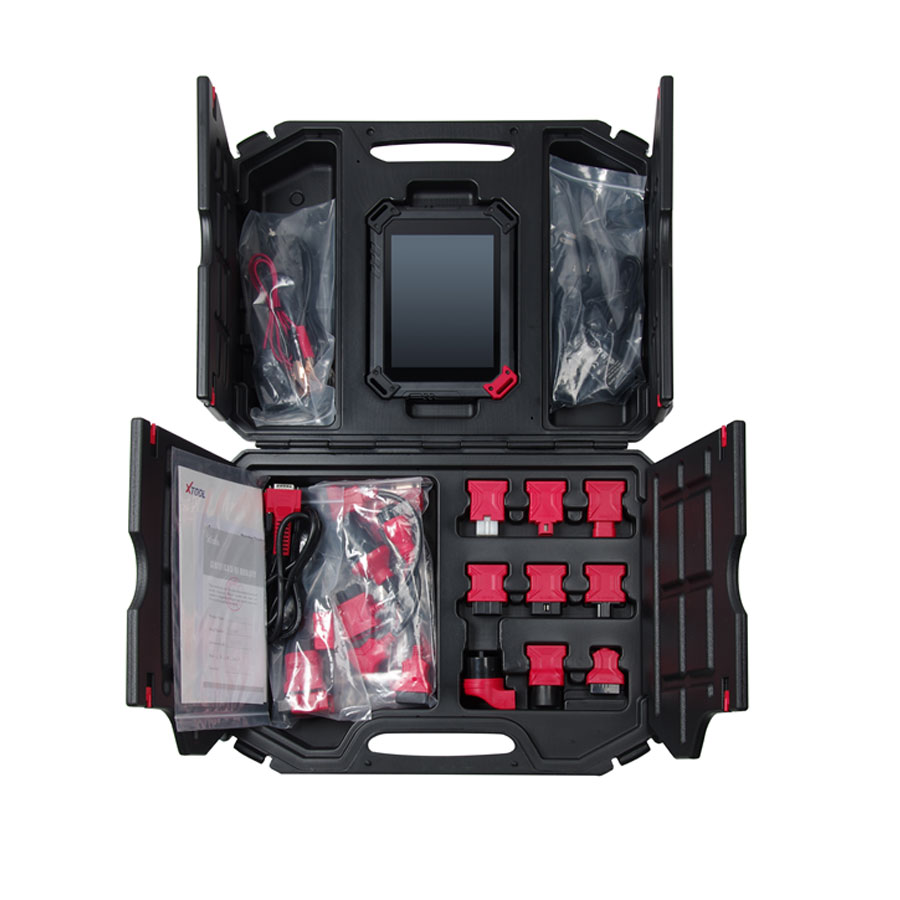

    Package including:
    1pc x EZ500 Tablet

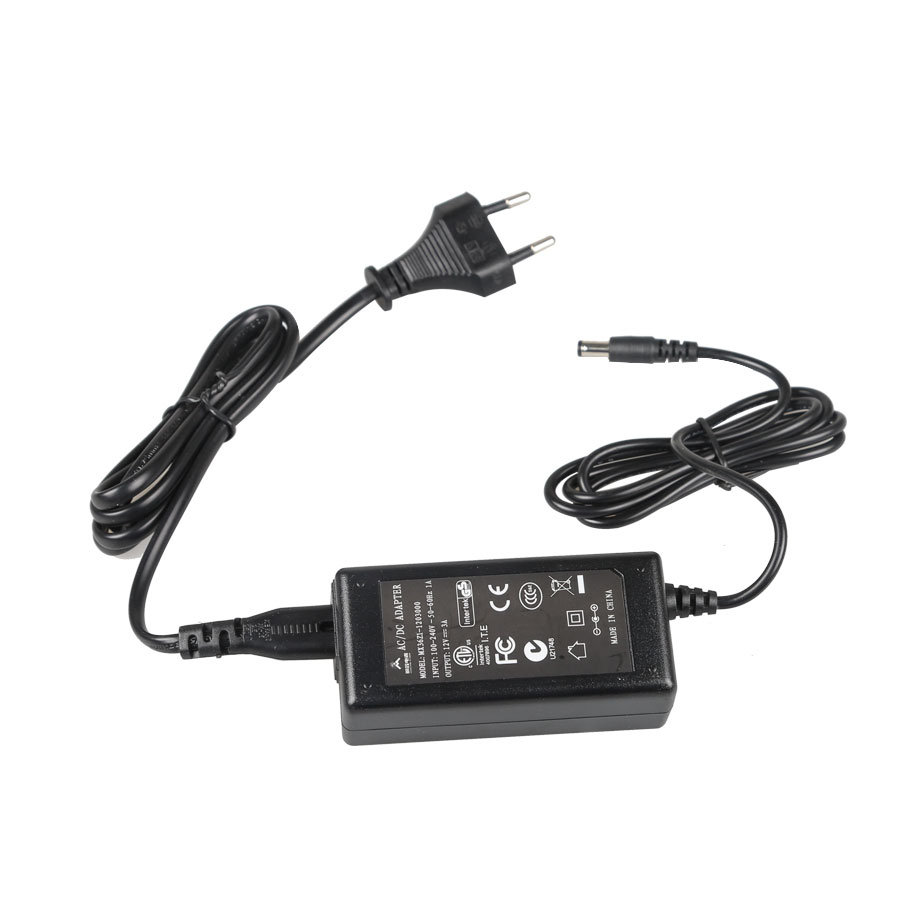

    1pc x Charger for Tablet

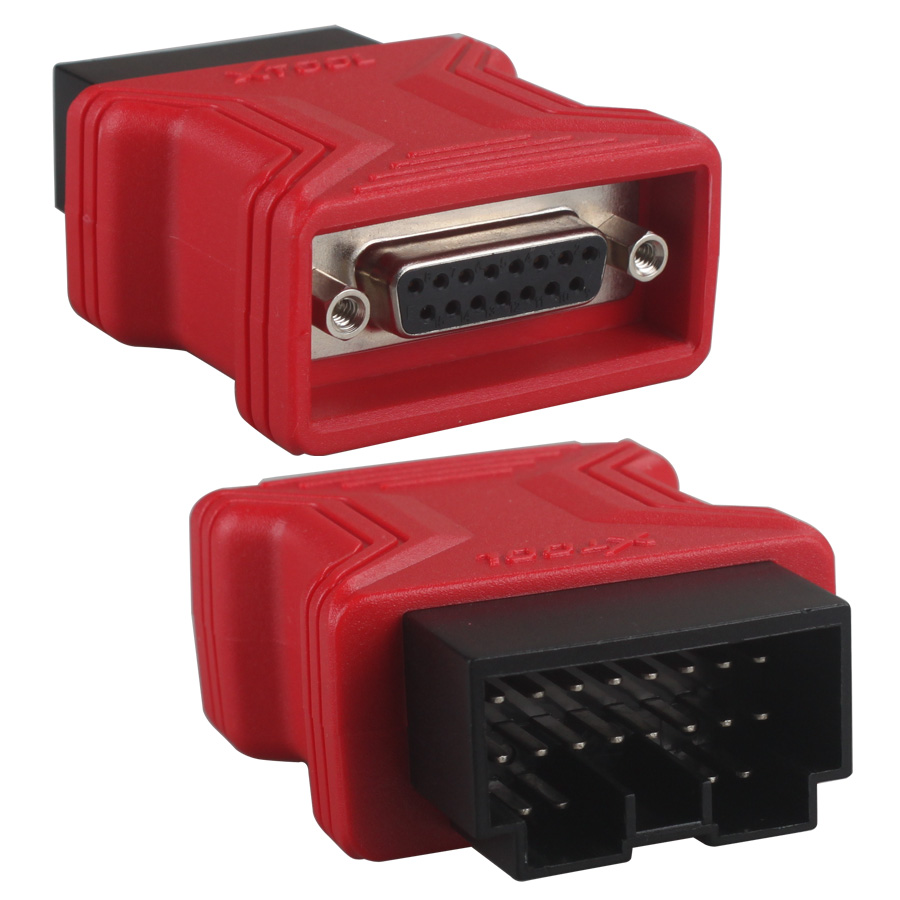

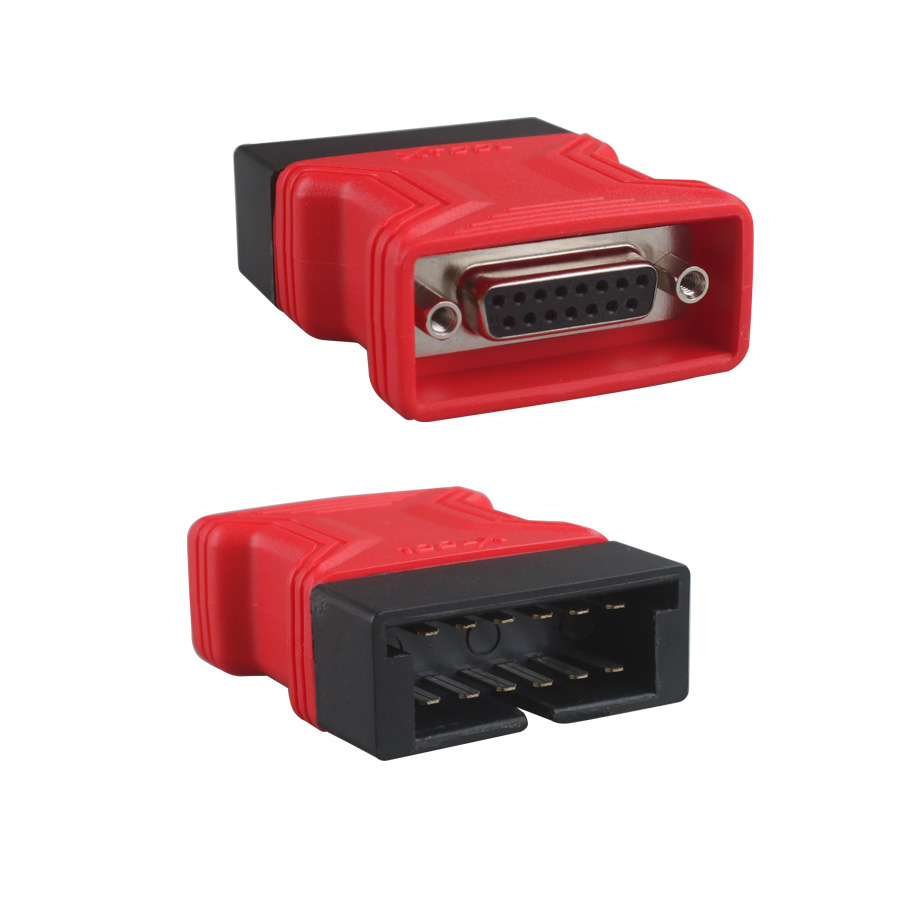

    1pc x OBD II-16
    1pc x HONDA-3
    1pc x BMW-20

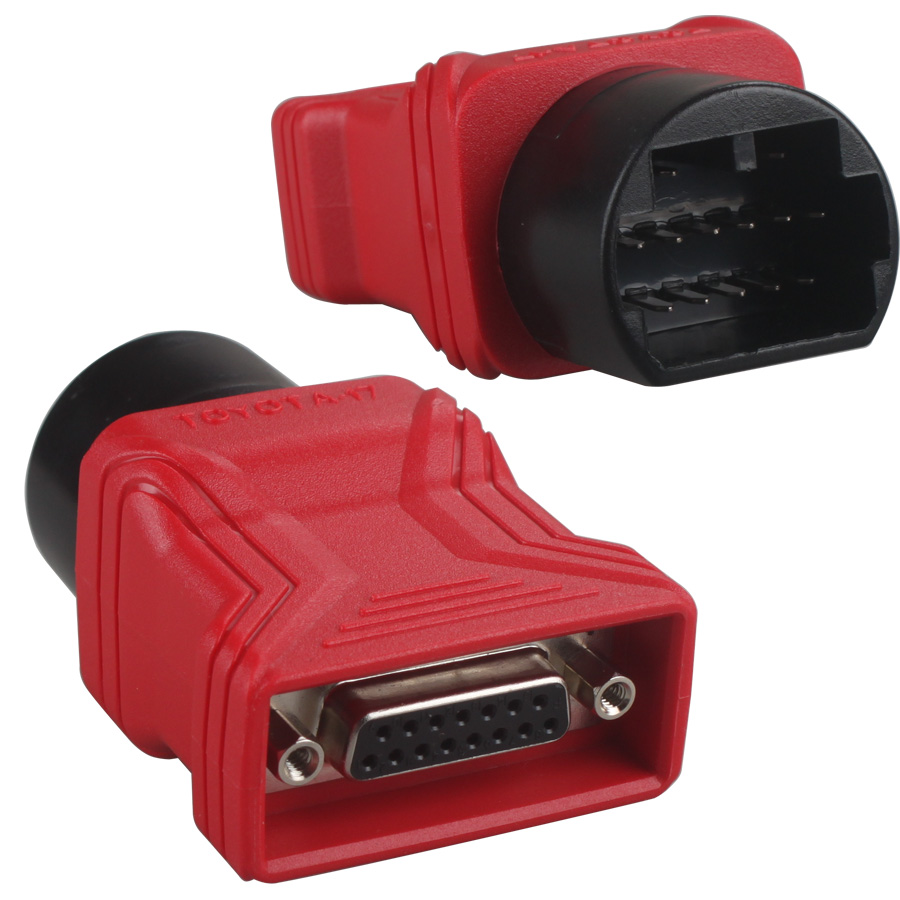

    1pc x TOYOTA-17
    1pc x MAZDA-17R
    1pc x KIA-20
    1pc x NISSAN-14
    1pc x GM/DAEWOO-12
    1pc x SELFTEST
    1pc x UNIVERSAL-3
    1pc x SUZUKI-3
    1pc x FIAT-3
    1pc x CITROEN-2
    1pc x AUDI-4

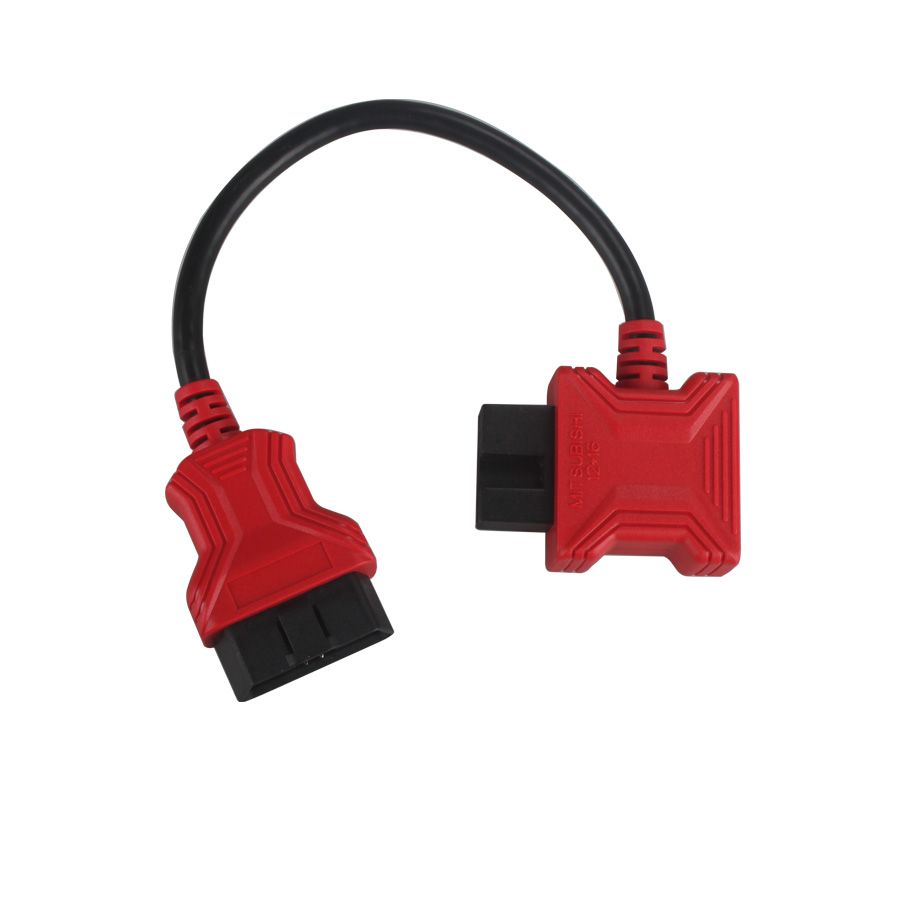

    1pc x MITSUBISHI-12+16

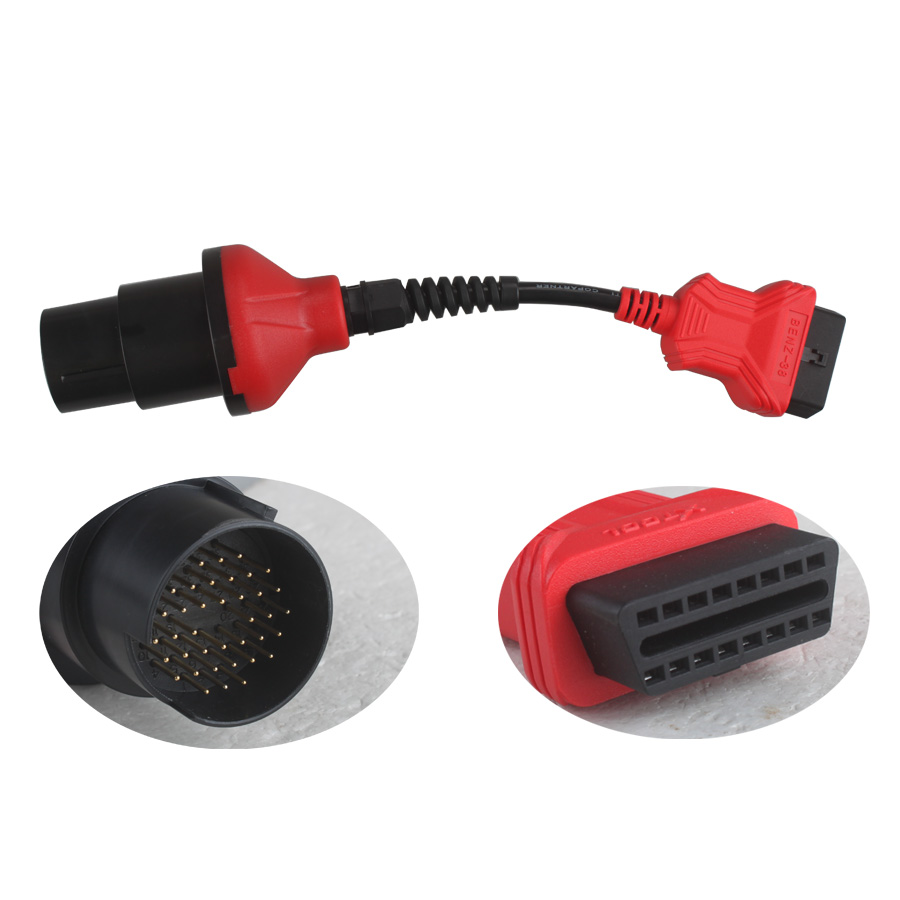

    1pc x BENZ-38
    1pc x BENZ-14

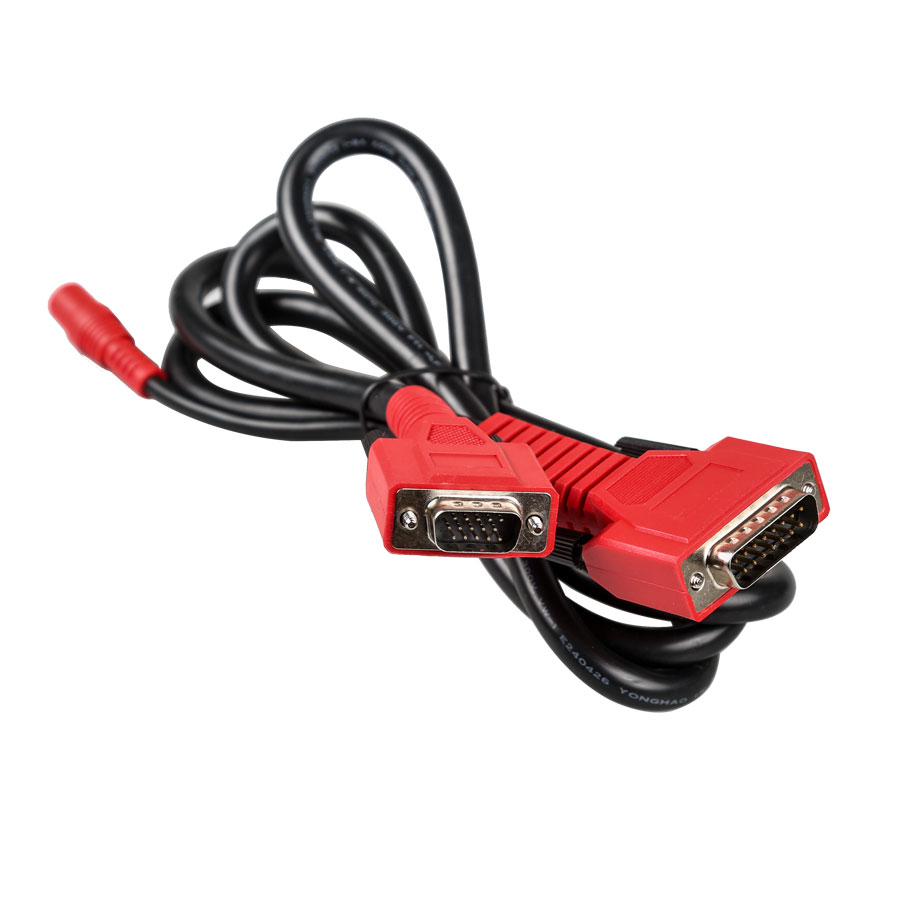

    1pc x Main Cable
    1pc x battery Cable
    1pc x Cigar Lighter Cable

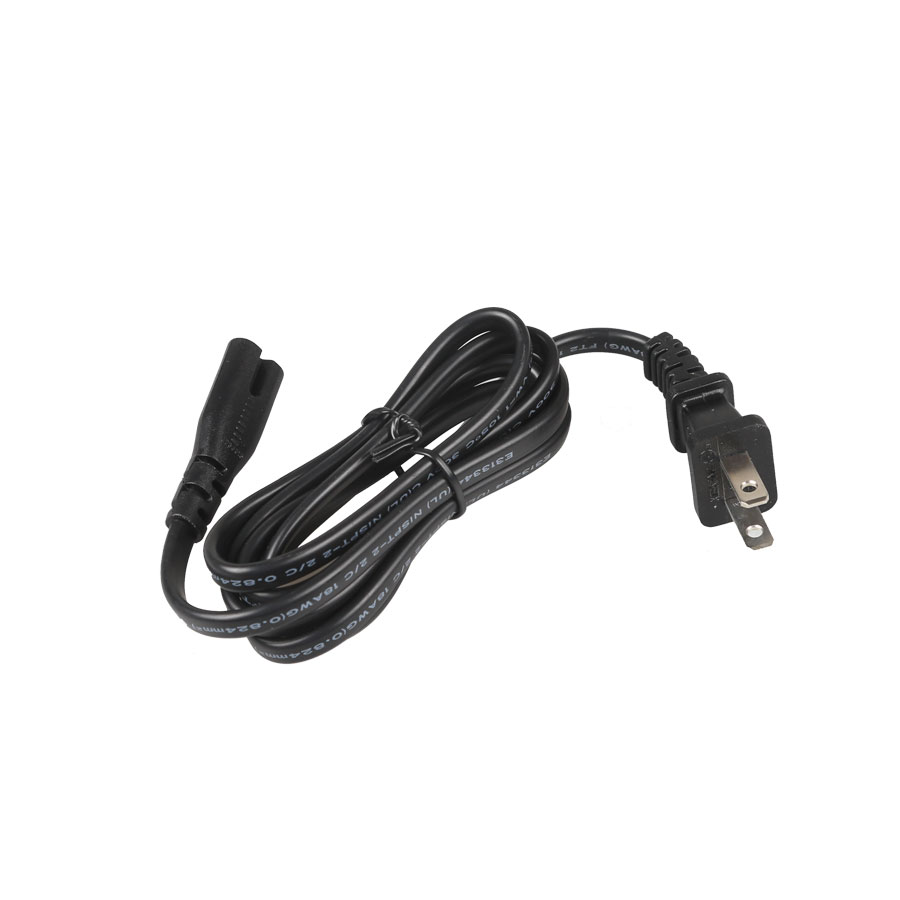

    1pc x US Power Adapter
    1pc x EU Power Adapter
    1pc x Micro USB Cable

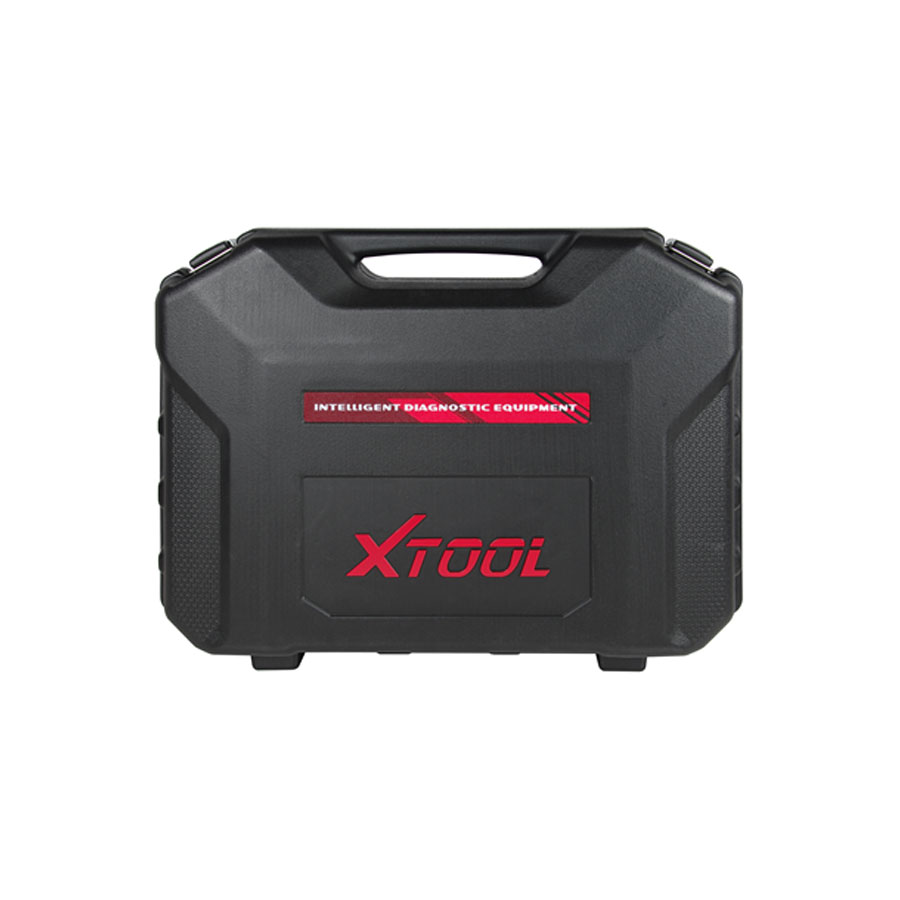

    1pc x Case
    1pc x Stand for EZ500
    1pc x Certificate of Quality
    1pc x Packing List
    1pc x User Manual
    1pc x Carton
