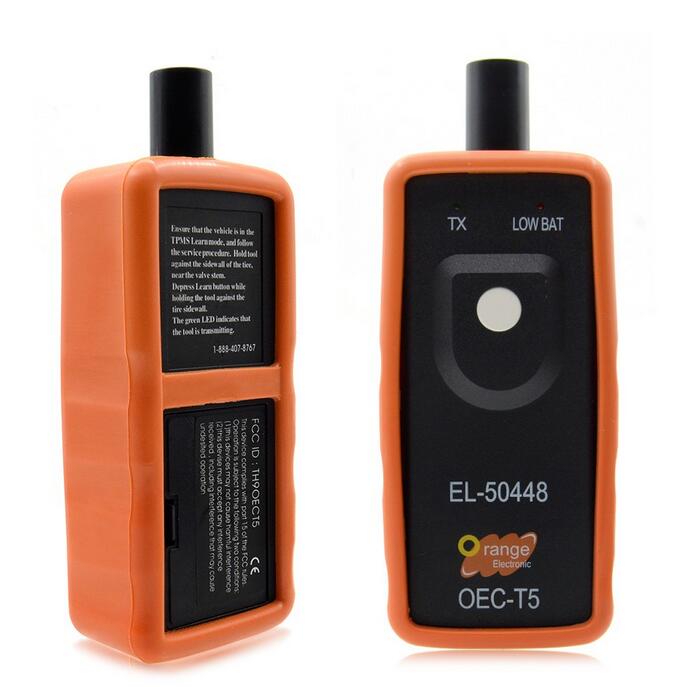

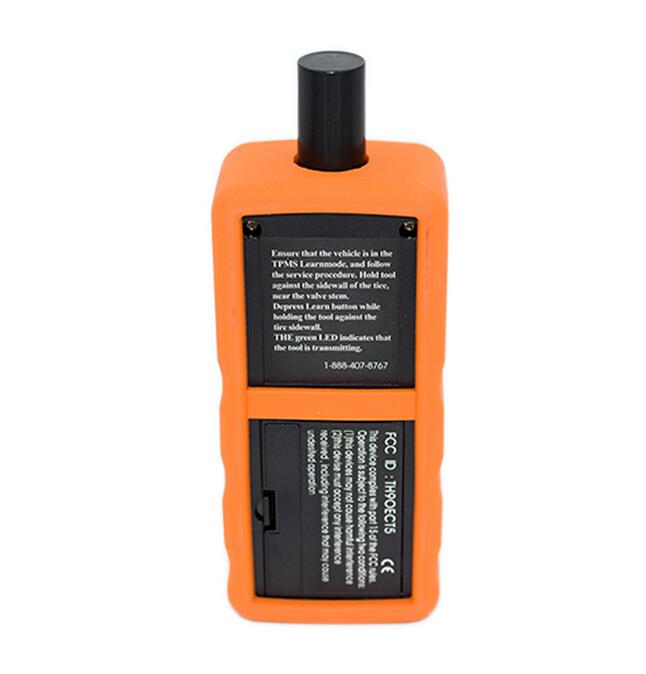

    El-50448 Auto Tire Pressure Monitor Sensor TPMS Reset Tool OEC-T5 for GM Series Vehicle

    • Item No.  Z298
    • History: 124  sold
    • Market Price: US$47.98
      Shop Price: US$39.99You save US$7.99
      Quantity
      Total
    • Quantity:  300
    • Weight:  1.0KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    El-50448 Auto Tire Pressure Monitor Sensor TPMS Reset Tool OEC-T5 for GM Series Vehicle



    Notice:The package does not include the charger and battery,if you need them,you should pay addtional 12 usd.


    The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools.
    Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor. Please refer to the specific methods as follows:

    Step 1 - Enter leaning mode
    Set the gearshift lever to "P"
    Put the ignition switch to “ON”
    Enter the interface of tire pressure display by DIC
    DIC shows "Press Set / Ctrl to re-learn"
    Press “Set / Ctrl”
    The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode

    Step 2 - Read tire pressure sensor information
    Start from the front-left wheel,
    Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
    El-50448 tire pressure tool starts by the start switch
    Successful to read the tire pressure sensor information when the horn bleeps once

    Step 3 - Same method to read other tire pressure information
    Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
    Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.

    For certain vehicles equipped with a Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool 50448

    EL-50448 Vehicle List:
    2010 9-5
    2010 Acadia, Enclave, OUTLOOK, Traverse (VIN R/V)
    2010 Allure, LaCrosse (VIN G)
    2010 Antara, Captiva, Terrain, Winstorm
    2010 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
    2010 Aveo, G3, Barina (VIN S/T)
    2010 Buick Excelle
    2010 Buick Regal (China)
    2010 Camaro (VIN F)
    2010 Canyon, Colorado (VIN S/T)
    2010 Cobalt, G5 (VIN A)
    2010 Corvette (VIN Y)
    2010 Cruze (China)
    2010 Cruze
    2010 CTS (VIN D)
    2010 Daewoo Lacetti
    2010 DTS (VIN K)
    2010 Equinox, Terrain (VIN L)
    2010 Express, Savana (VIN G/H)
    2010 G6 (VIN Z)
    2010 H3/H3T (VIN N)
    2010 HHR (VIN A)
    2010 Impala (VIN W)
    2010 Insignia
    2010 LaCrosse (China)
    2010 Lucerne (VIN H)
    2010 Malibu (VIN Z)
    2010 Opel/Vauxhall Astra
    2010 Sierra, Silverado (VIN C/K)
    2010 SKY, Solstice (VIN M)
    2010 SRX (VIN N)
    2010 STS (VIN D)
    2010 VE/WM - Sedan, Sportwagon, Ute, Lumina, Caprice, HSV
    2010 VUE (VIN Z), Captiva Sport
    2011 Acadia, Enclave, Traverse (VIN R/V)
    2011 Alpheon
    2011 Antara, Captiva
    2011 Astra
    2011 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
    2011 Aveo, Barina (VIN S/T)
    2011 Buick Excelle
    2011 Buick Regal (China)
    2011 Camaro (VIN F)
    2011 Canyon, Colorado (VIN S/T)
    2011 Caprice PPV
    2011 Captiva Sport
    2011 Corvette (VIN Y)
    2011 Cruze
    2011 CTS (VIN D)
    2011 DTS (VIN K)
    2011 Equinox, Terrain (VIN L)
    2011 Express, Savana (VIN G/H)
    2011 HHR (VIN A)
    2011 Impala (VIN W)
    2011 Insignia
    2011 LaCrosse (China)
    2011 Lucerne (VIN H)
    2011 Malibu (VIN Z)
    2011 Orlando
    2011 Regal (VIN G)
    2011 Sierra, Silverado (VIN C/K)
    2011 SRX (VIN N)
    2011 STS (VIN D)
    2011 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8
    2011 Volt
    2012 Acadia, Enclave, Traverse (VIN R/V)
    2012 Alpheon  (2706)
    2012 Ampera, Volt (VIN R) (Europe)
    2012 Antara, Captiva
    2012 Astra-J  (2857)
    2012 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
    2012 Aveo Classic, Barina Classic (VIN T)
    2012 Aveo, Sonic  (2777)
    2012 Barina  (2774)
    2012 Buick Excelle  (2861)
    2012 Camaro (VIN F)
    2012 Canyon, Colorado (VIN S/T)
    2012 Caprice PPV
    2012 Captiva Sport
    2012 Chevrolet Cobalt  (2809)
    2012 Colorado (Other IO), S10 (South America)
    2012 Corvette (VIN Y)
    2012 Cruze  (2863)
    2012 CTS (VIN D)
    2012 Equinox, Terrain (VIN L)
    2012 Express, Savana (VIN G/H)
    2012 Impala (VIN W)
    2012 Insignia  (2707)
    2012 LaCrosse (China)  (2710)
    2012 LaCrosse (VIN G)  (2709)
    2012 Malibu (VIN Z)
    2012 Opel Combo-D
    2012 Optra, Viva (VIN J)
    2012 Orlando  (2859)
    2012 Regal (China)  (2711)
    2012 Regal (VIN G)  (2708)
    2012 Sierra, Silverado (VIN C/K)
    2012 Sonic (US/Canada)  (2775)
    2012 SRX (VIN N)
    2012 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, VXR8
    2012 Verano (US/Canada)  (2816)
    2012 Volt (VIN R)
    2012 Zafira-C  (2860)
    2013 Acadia, Enclave, Traverse (VIN R/V)  (3206)
    2013 Alpheon  (3094)
    2013 Ampera, Volt (VIN R) (Europe)  (3211)
    2013 Antara, Captiva  (5376555)
    2013 Astra-J Convertible/Coupe  (5376567)
    2013 Astra-J  (5376577)
    2013 ATS (VIN A)  (3086)
    2013 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)  (3088)
    2013 Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico)  (5376711)
    2013 Aveo, Sonic (Europe)  (5376704)
    2013 Barina  (5376837)
    2013 Camaro (VIN F)  (3106)
    2013 Caprice PPV  (3105)
    2013 Captiva Sport  (3101)
    2013 Cobalt  (3107)
    2013 Colorado, Colorado 7, S10, Trailblazer  (5392270)
    2013 Combo-D
    2013 Corvette (VIN Y)  (3104)
    2013 Cruze (Global)  (5377099)
    2013 CTS (VIN D)  (3085)
    2013 Encore (China)  (5377162)
    2013 Encore, Trax (North America)  (5377181)
    2013 Equinox, Terrain (VIN L)  (3100)
    2013 Excelle  (5377155)
    2013 Express, Savana (VIN G/H)  (3103)
    2013 Impala (VIN W)  (3102)
    2013 Insignia  (3098)
    2013 LaCrosse (China)  (3095)
    2013 LaCrosse (VIN G) (North America)  (3090)
    2013 Malibu (China)  (3096)
    2013 Malibu (Europe, Other IO and South America)  (2713)
    2013 Malibu (North America)  (3093)
    2013 Mokka, Trax, Tracker (Europe)  (5377179)
    2013 Onix  (3166)
    2013 Orlando (Global)  (5377530)
    2013 Regal (China)  (3099)
    2013 Regal (VIN G) (North America)  (3089)
    2013 Sierra, Silverado (VIN C/K)  (3087)
    2013 Sonic (US/Canada)  (5377994)
    2013 Spark (US/Canada), Barina Spark (Automatic Transmission)  (5421555)
    2013 Spin
    2013 SRX (VIN N)  (3201)
    2013 Trax, Tracker (Africa, Australia, Middle East, South America)  (5377156)
    2013 VE/WM Ute, Caprice, Lumina
    2013 Verano (US/Canada)  (5377996)
    2013 Volt (VIN R) (North America, Holden)  (3210)
    2013 XTS (China)  (3092)
    2013 XTS (North America)  (3091)
    2013 Zafira-Tourer

    EL-50448  Customer Questions & Answers:
    Q:
    What vehicles will EL-50448 work on? have a chevy colorado
    A:From what I've read, this will work on 2012 and 2013 GM cars and Trucks. It may also work on other makes and models. I did several internet searches before purchasing this device, and found that this model is often mentioned specifically for 2012 and 2013 GM vehicles. You should be able to find specific information for your Colorado pretty easily. Also, I have read that there is a reset procedure for 2012 and earlier GM vehicles that does not require a reset tool, so you may not need this device at all. :-)


    Q:Which GM automobiles will EL-50448 TPMS work on?

    A: Only GM vehicles around 2003 to prsent.

    A: I don't know all the automobiles that it will work on but I know for sure that it works on late model GM pick up trucks- 2007 on. That is what I use mine for. Very easy to use. Good quality product.

    Q:Will it work on a ford expedition xlt 2006 , thanks

    A: No, This is for General Motors vehicles only.

    Q:Does it work on BMWs?
    A: It worked on my BMW motorcycle, which uses Schrader brand TPMS sensors in the tires, so I would guess the BMW auto would be the same. There are some weird tricks you will need to look up, for example, on my Suzuki automobile, you have to follow a procedure including which tire to start out at and which one you end at - so I am sure it must be similar for BMW.

    Q:Will this el-50448 tpms work on 2014 hyundai vehicles? plan on installing new snow tires and rims for the winter.
    A: No just GM"s

    EL-50448  Reviews:
    1.works on truck and car: Simple and inexpensive but works great. Much better than going to the dealer or a tire store just to get your pressure sensors reset. I used it on my truck and my wife's car and it only took a few minutes to reset all four wheels on each.
    2. with correct low battery display: I've never been able to get my TP sensors to program using the "let air out" method on my 2007 Tahoe. Before I had this tool, I would just remember which tires were which when I rotated them, but no longer. Now, I can reprogram them in just a few seconds and the dash display correctly indicates which tire is low. This tool should have come with the vehicle.
    3. Easy to use: The operation of this product is simple and straightforward. As stated it's hard to get excited about spending this amount of money just to rotate tires, but considering what dealers would charge, it would not take many trips service visits to pay for the unit. As far as working it does exactly what it says it will do with no drama. Put the vehicle in reset mode and push the button on the unit following directions outlined in the car owners manual.
    4. I could not believe I needed a special tool to rotate my tires. From what I understand 2010 (2011?) and older vehicles, you can use any big magnet to reset your Tire Pressure Sensors. 2011 (2012?) and up to at least my 2013 Silverado, you need one of these gizmos. This one works like a champ, and is the one I found referenced through a GM website.
    5. Wide GM vehicle coverage: The deflate method is verified ok only on Chevrolet Volt 2011 year, with the El-50448 TPMS relearn tool, I could get the 4 TPMS programmed in less than one minute. El-50448 could program TPMS on GM 2010-2013 year.

    EL-50448 Specification:
    Item Height:10 inch
    Item Width:15 inch
    Item Length:20 inch
    Item Weight:0.3kg
    Hardware Version:OEC-T5
    Software Version:EL-50448
    External Testing Certification:CE
    Material Type:High quality plastic & metal
    Item Type:Air Bag Scan Tools & Simulators
