VC601 TPMS Tire Pressure Monitoring Alarming System Diagnostic-tool with Bluetooth 4.0 Work on Android IOS Ipad



Bluetooth 4.0 low energy TPMS description:

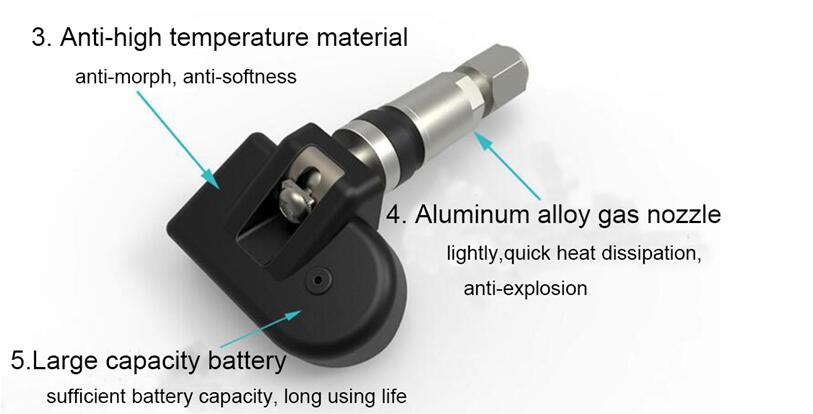

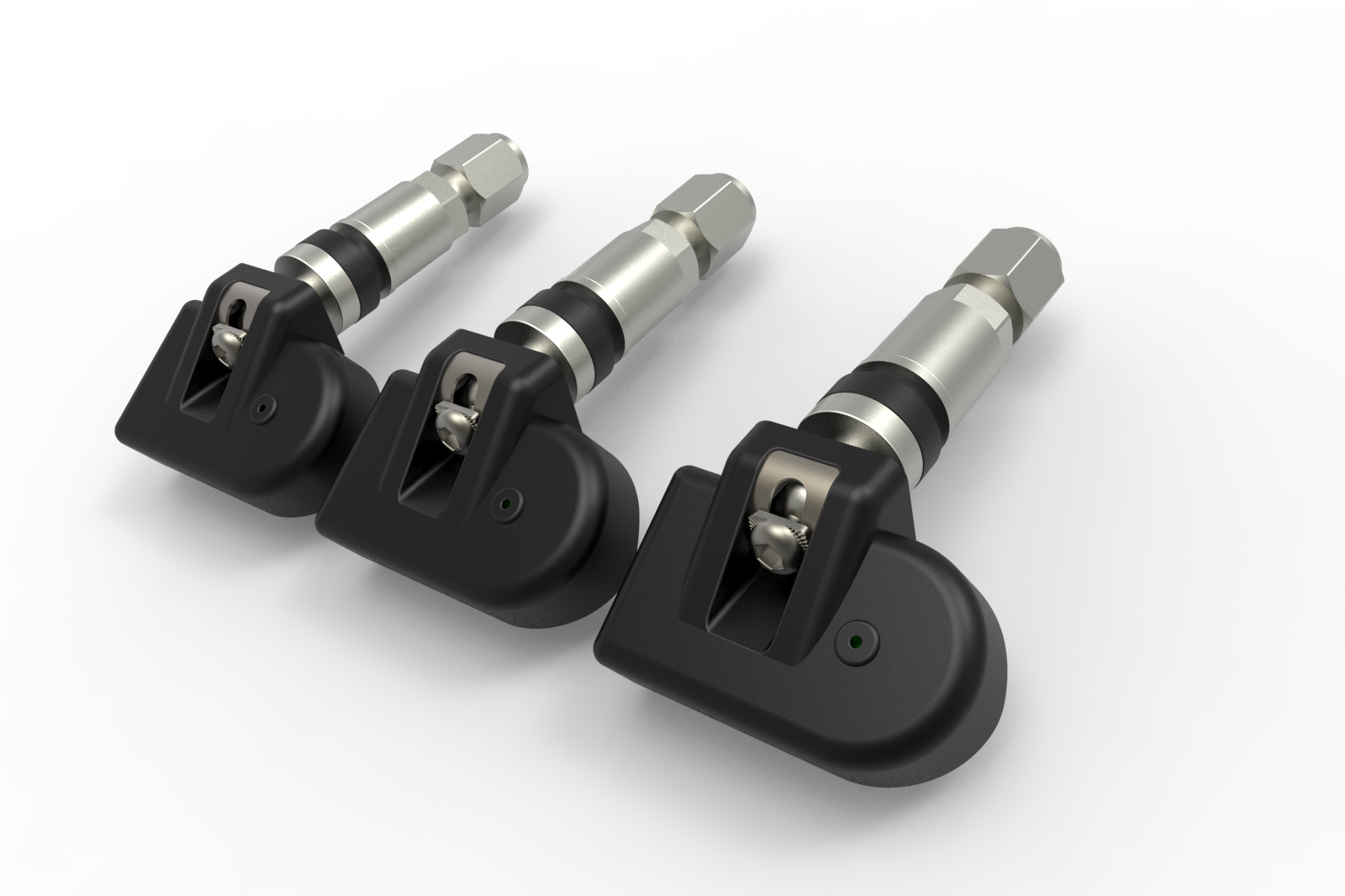

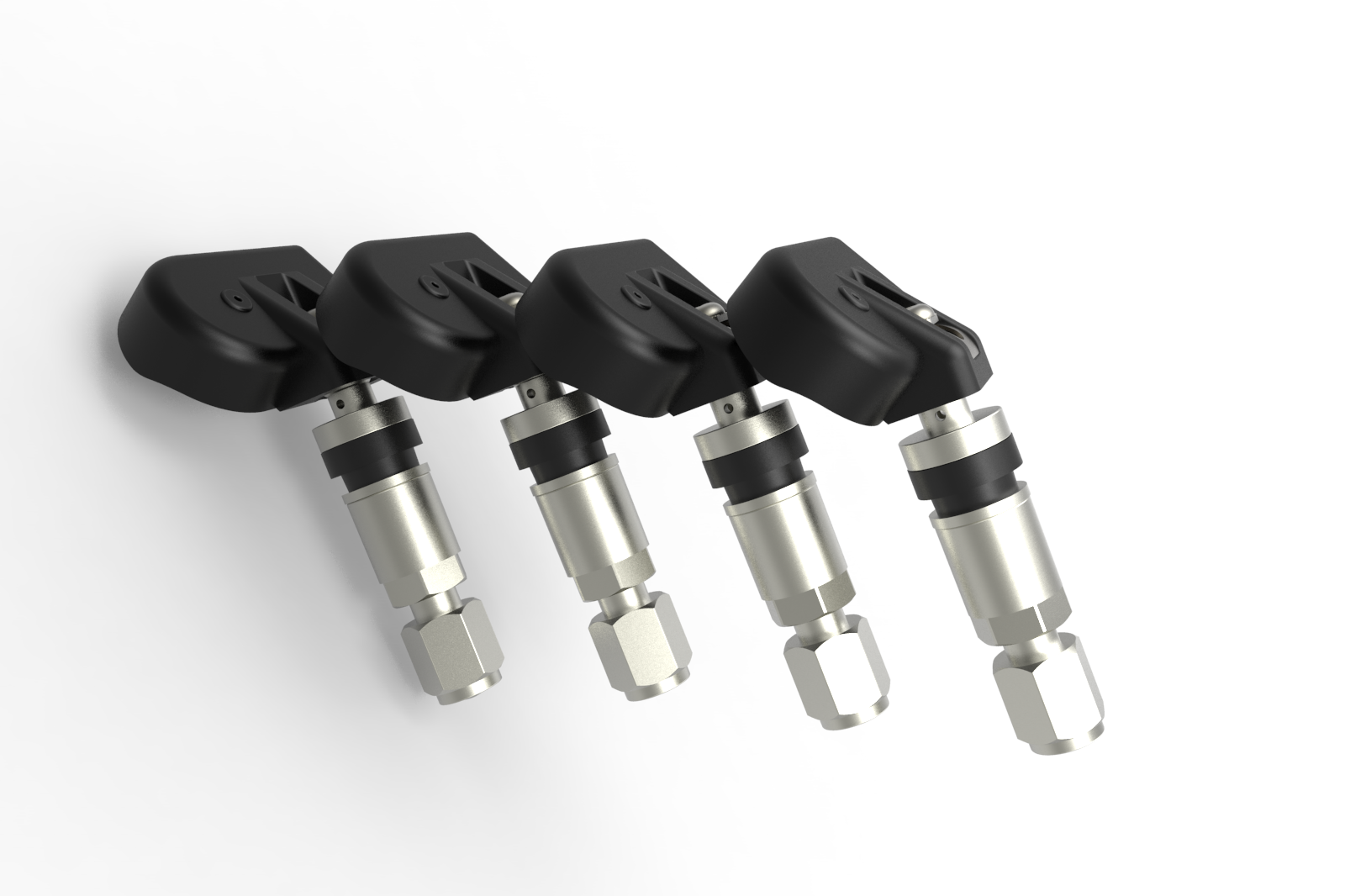

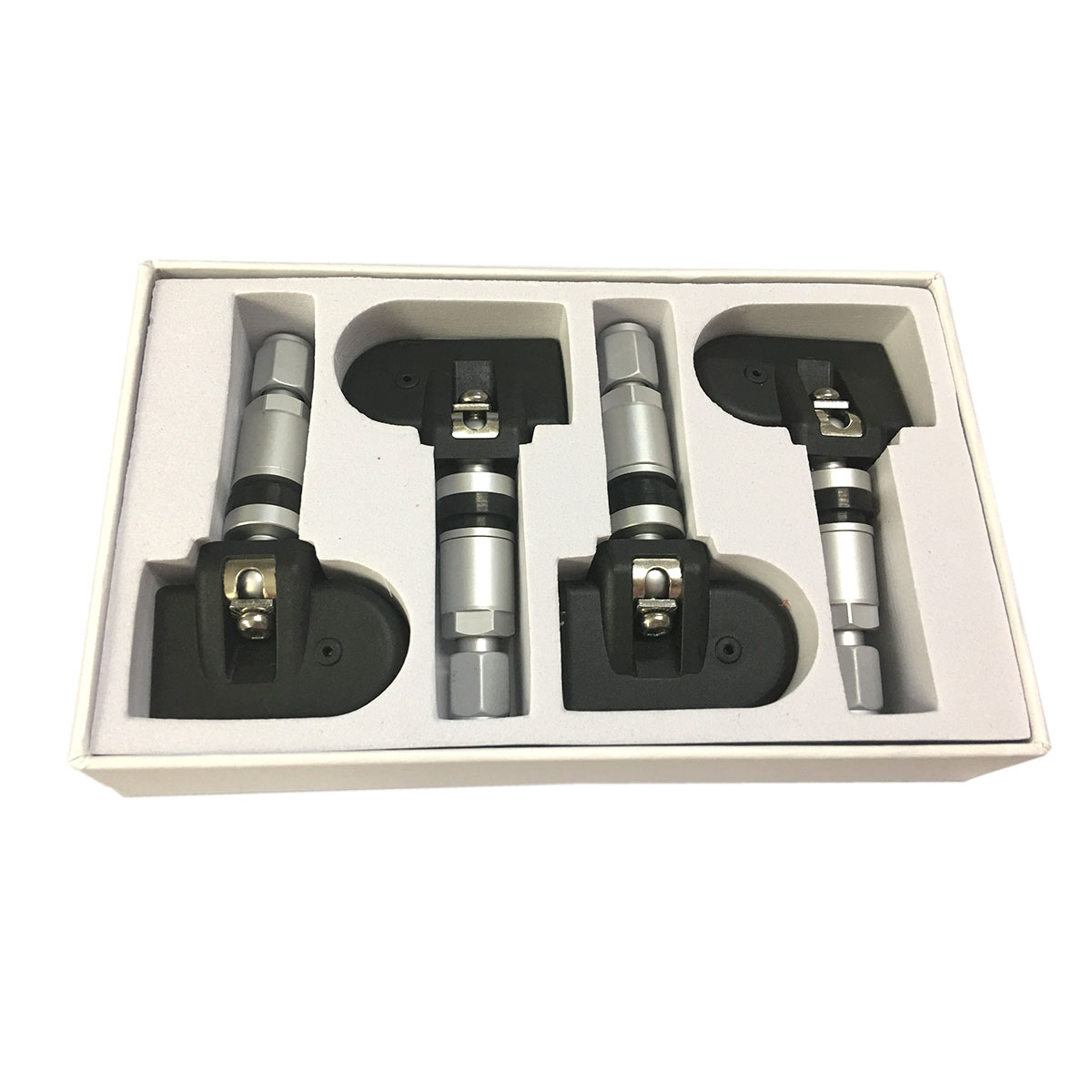

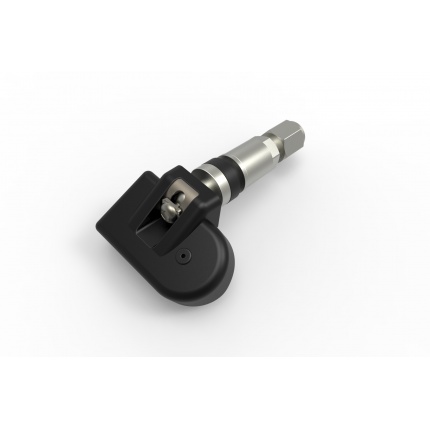

It was designed as a direct tire pressure monitoring system, namely, installing pressure and temperature sensor on the tire, then  displaying the real-time data on phone (Android , IOS, IPad) through Bluetooth connection, And it will alarm when the tire pressure and temperature is abnormal.



APP Program Feature:
1. Quick leak alarming: when pressure leaks over 5kpa within 5 seconds, it will start up quick leak alarming and appear a “leak” icon.
2. Slow leak alarming: when tire pressure is lower than the limited pressure, it will start up slow leak alarming and appear a “low pressure” icon.
3. High pressure alarming: when pressure is over the limited tire pressure, it will start up high pressure alarming
4. Low pressure alarming: when pressure is lower than the limited tire pressure, it will start up low pressure alarming
5. High temperature alarming: When tire temperature is over the limited temperature, it will start up high temperature alarming
6. No signal alarming: when cannot receive signal in a certain period of time, it will start up no signal alarming
7. Low battery power alarming: When battery is lower than the setting data, it will start up low battery power alarming

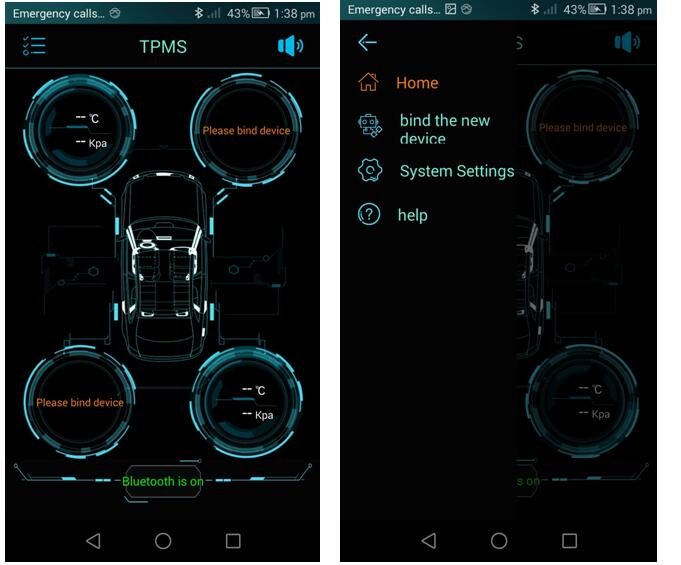

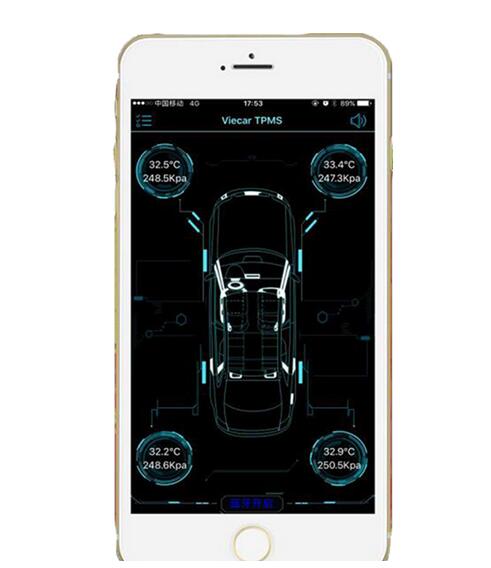

Data Displaying:

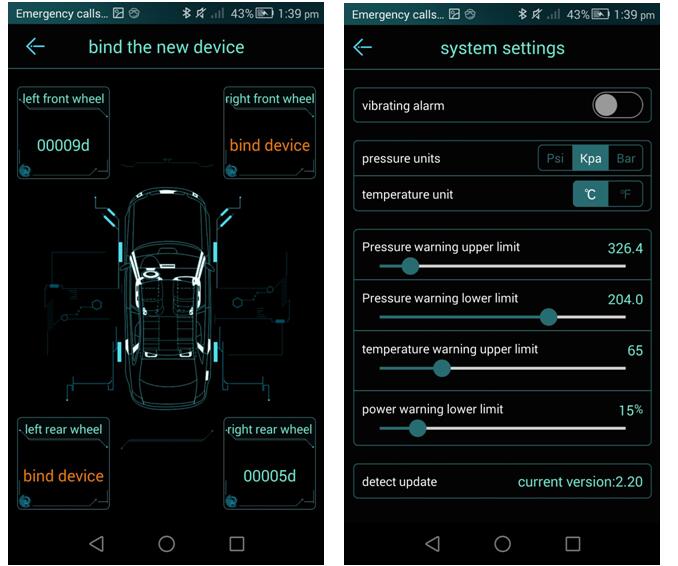

Setting:



 Specifications:

Operating voltage: 3V
Operating currant: 100μA
Static current: ≤ 2.2μA
Bluetooth transmit power: 0dBm MAX
Responding time: ≤ 5s
Display way: by APP
Waterproof level: IP67
Working humidity: 95% MAX
MAX Tire Pressure Monitor range: 100-1300kPa
Tire Pressure Monitor Accuracy: ± 10kPa
Tire Temperature Monitor Accuracy: ± 3℃

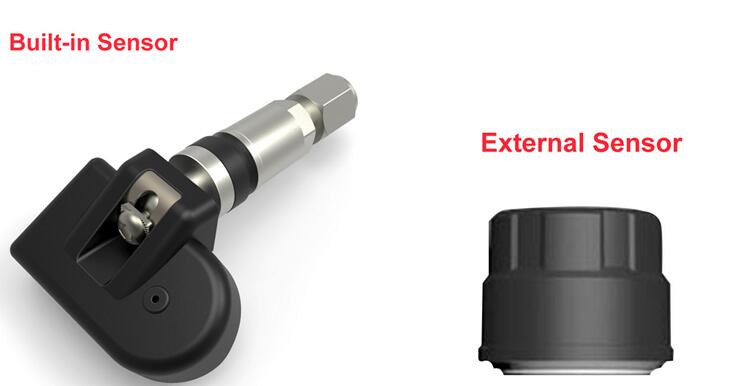

Working temperature: -30 ℃ ~ +80℃ (external sensor)
Working temperature: -40 ℃ ~ +85℃ (built-in sensor)
Storage temperature: -30 ℃ ~ +85℃ (external sensor)
Storage temperature: -45 ℃ ~ +125℃ (built-in sensor)

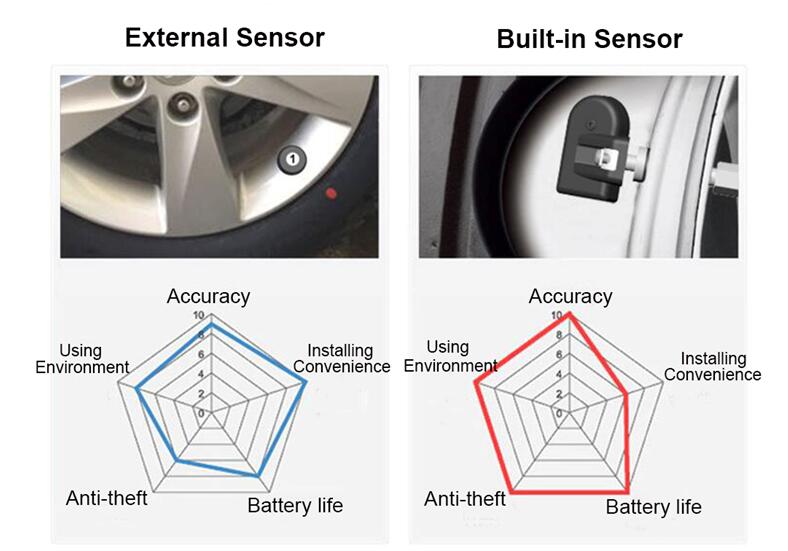

Battery capacity: 140mAh (external sensor)
Battery capacity: 330mAh (built-in sensor)
Battery life: about 400 days (external sensor, calculated by 4h driving each day)
Battery life: about 1200 days (built-in sensor)
Weight: 8g±1g (external sensor)
Weight: 30g±1g (built-in sensor)
