New Genius & Flash K-TOUCH K TOUCH Point OBDII/BOOT Protocols ECU Supprorts All Vehicle Catgeories


TOP 10 Reasons to get K-Touch ECU Tuning Tool :
1.Easy to use ,with touch screen and intuitive menu.
2.Completely independent of the PC during the phases of read/write.
3.Newest Hardware: 5.005, Newly Add More ECU Models, Like VAG DQ500 and VAG DQ250
4. World’s first Touch & Map device, allows you to read/programm the ECU in modern vehicles through OBD2
5.System updates via USB,automatically backup.
6.No tokens limitation. With Tokens reset button on the main unit. Just click this button and token will be charged.
7.Kess V2 Update Version, Supports More Vehicles, directly connect  cars and K TOUCH  to read the data. Just install the software on PC to modify the data.
8.With ECM1.61 and Winols 2.24 inside the package

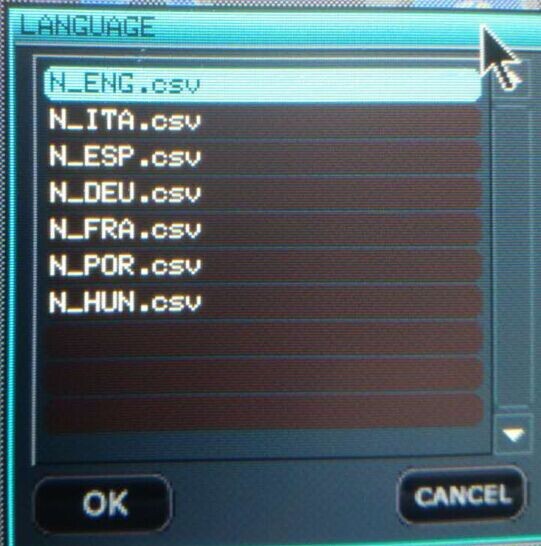

9.Supported Languages: English, Italian, German, French, Spanish, Portuguese and Hungarian

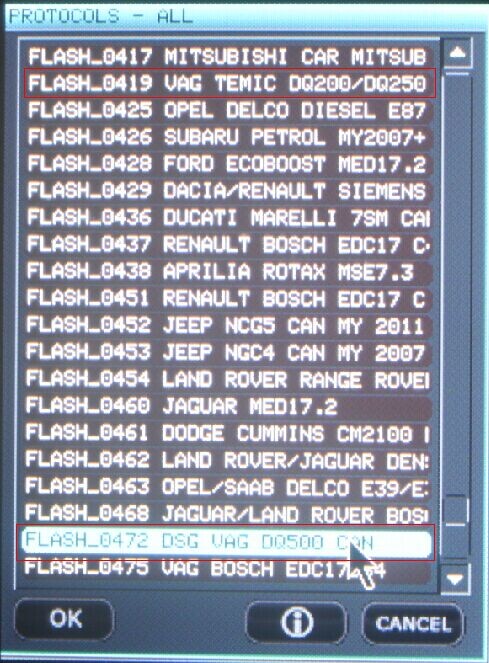

Firmware version: V5.05 (can read/write VAG DQ200&DQ250)



Note:  Never connect Network, operating system can be on WIN XP and WIN7.

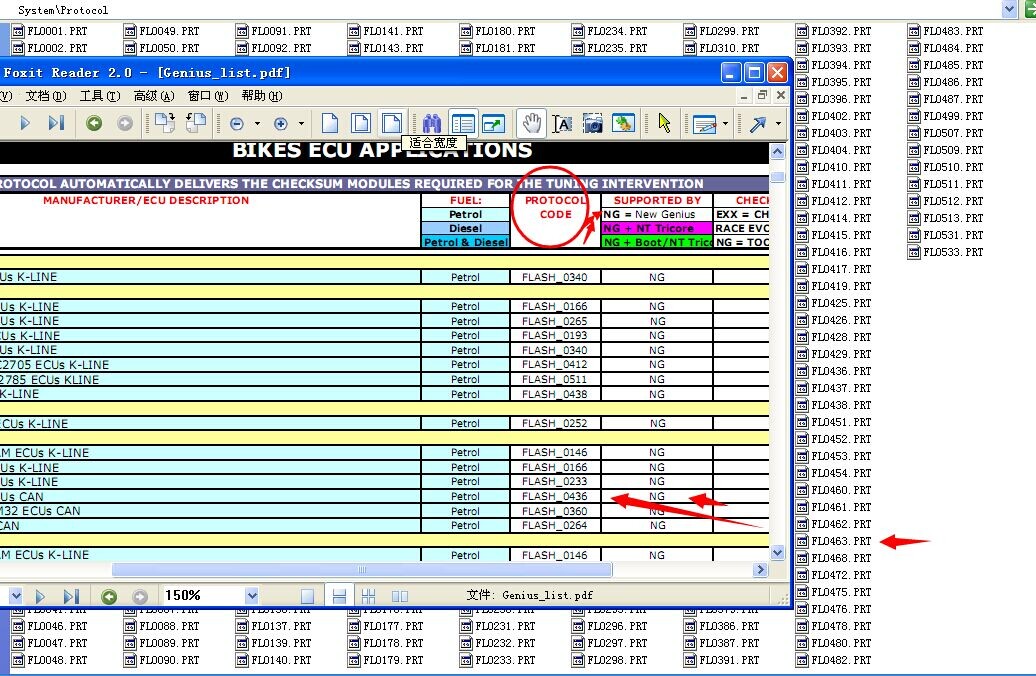

The New Genius K-touch supports CAN-BUS, KWP and J1850 protocols and has communication modules available for the following vehicles:

Cars
Bikes
LCV

Equipped with a sophisticated system for the recovery of the ECU should any problems occur during programming.

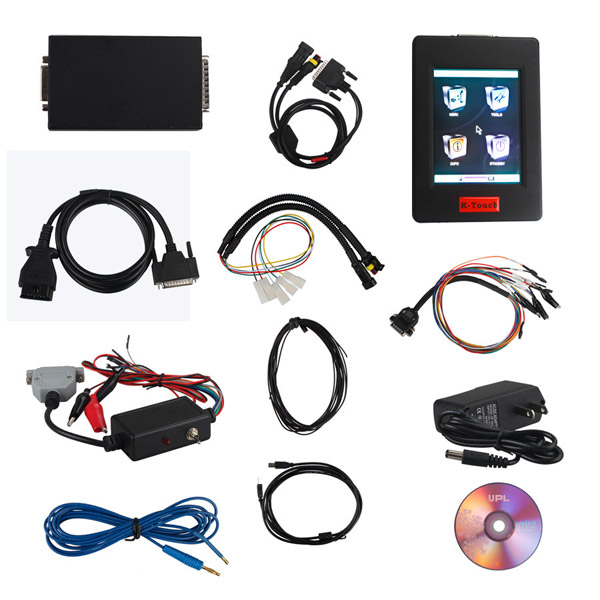

The New Genius is controlled through a system of icons from your TOUCH PANEL touchscreen, this makes it extremely easy to use. A standard 16 pin OBD cable is included and specific connectors to work on making diagnosis and special cables to do so through direct connection to the connector or plate ECU.

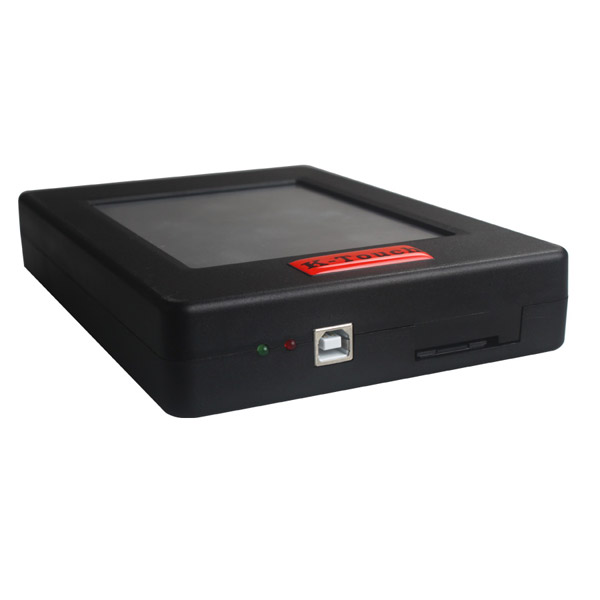

Genius ECU Programmer Technical Specifications:
ABS plastic enclosure with ergonomic grip system safe.
LCD display 320 x 240 pixels, CCFL back light with Touch Panel.
Flash memory chip 512K bytes protected.
16 MB RAM memory.
SD card of 1 GB expandable.
LED status SD.
Internal clock with memory.
Lithium 3 volts.
Rechargeable battery 600 mAh 8.4V.
Supply voltage from 12V to 30V.
Communication via K line, L line, CAN-bus 2.0 and J1850.

Available in Master version

As a consequence of the requests received from the market, a specific software has been developed for the independent management of New Genius called DS Manager. This is dedicated to skilled tuners who prefer to develop tuned files with third party editing software. DS Manager can decrypt and encrypt files received from New Genius, so allowing the possibility to export files for the modification. No editing functions are supported. Also for this specific software, a specific tool for the automatic checksum recalculation is provided.

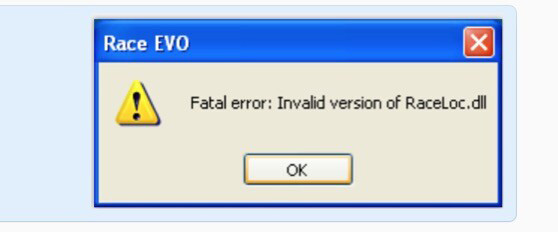

When you install PC software ,if it pops up below error,please try to download in the CD,you can also download from : https://mega.nz/#!0YQkXI6C!ubU19RfbmKmSG3SzuAiAPldQHCGsvSA-U7unpYezbvs




Genius & Flash K-TOUCH Test on cars:
Simos 18 tested ok. Don't know about simos 12
Tested on many cars Kline an Can and work 100% fine only checksum need to do manually
All simos,denso mitsu ..all ok
Tested on tricore edc17c10 all ok
EDC17C64 ID & WRITE ok (1.6TDI)
MED17.5.5 ID & READ & WRITE ok
ME7.5 ID & READ & WRITE ok
MED17.5.21 ID & WRITE ok
Sagem 3000 ID & READ & WRITE ok
Opel ME7.6.2 ID & READ & WRITE ok
Mercedes EDC16C2 ID & READ & WRITE ok
Simos 12 & 18 ID & WRITE ok
Checksum recalculated with Genuine Race Evo software for all of my tunes.

2014 Ford Fiesta Ecoboost 1.0 125hp auto
-> Read ok
-> Write ok
2013 Mitsubishi ASX/Outlander Sport 2.0 4B11 CVT
-> Read ok
-> Write ok
2014 Chevrolet Orlando 1.8 Petrol Auto
-> Read ok
-> Write ok
2015 Mitsubishi Montero Sport/Pajero Sport 2.5DiD 178hp auto
-> Read ok
-> Write ok
Can make Opel Zafira , Combo , Meriva Denso ECU
Tested psa edc17c10 read on boot and test write by obd ok
No support Toyota                  obd only write med17.5.2. and 17.5.21 (not tested)
