    TabScan S7 Automotive Intelligence Diagnostic System EUCLEIA TabScan S7 Code Scanner

    • Item No.  A403
    • History: 35  sold
    • Market Price: US$597.60
      Shop Price: US$498.00You save US$99.60
      Quantity
      Total
    • Quantity:  100
    • Weight:  2.0KG
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

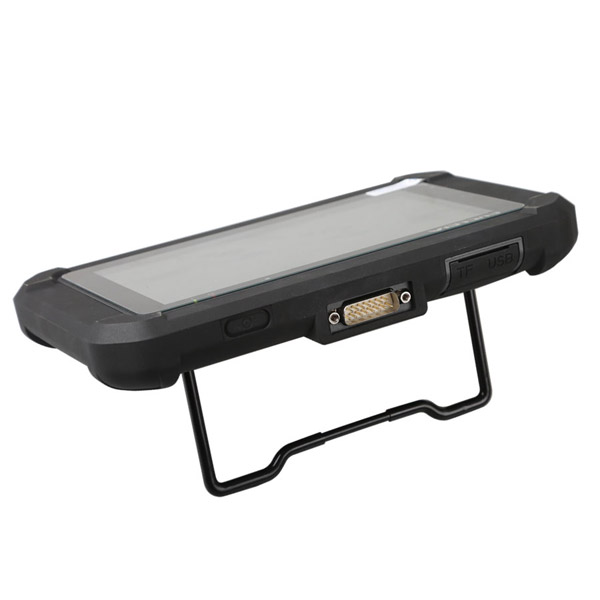

    TabScan S7 Automotive Intelligence Diagnostic System


    Top 6 Reasons to Buy TabScan S7 Automotive Intelligence Diagnostic System Features:
    1. 7-inch LCD 1024x600 IPS touch screen, viewing angle wide, showing clear, interface identifier is obvious, and easy to operate;
    2. Android operating system interface with 1.3 GHz quad-core ARM Cortex-A7 processor, it guarantees an extraordinarily short boot-up speed, highly data processing capacity
    3. Built-in Wi-Fi for accurate online case and information search; intelligent automatic OBD system-wide diagnostic detection;Supports all 5 OBD communication protocol and 10 test mode;
    4. Supports OBD fault code database query and maintenance database search; support basic diagnosis and vehicle maintenance for all electric control systems;
    5. Diagnostic report sharing feature;
    6. Supports Bluetooth and Wi-Fi printer connectivity; Single-button software updates; multi-language support.




    TabScan S7 Automotive Intelligence Diagnostic System Functions:
    Supports diagnose all electronic control units of the vehicle, read DTCs, clear DTCs, Read data stream, special function, etc. S7 configuration support Europe, the United States, Japan and South Korea with mainstream vehicle models, support basic diagnosis and vehicle maintenance for all electric control systems, such as: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery, CVT Reset, TPMS.S7 provides car owners and DIY consumers with intelligent, accurate, simple and innovation of auto intelligent diagnosis system.


    Diagnostics + Special functions + System functions

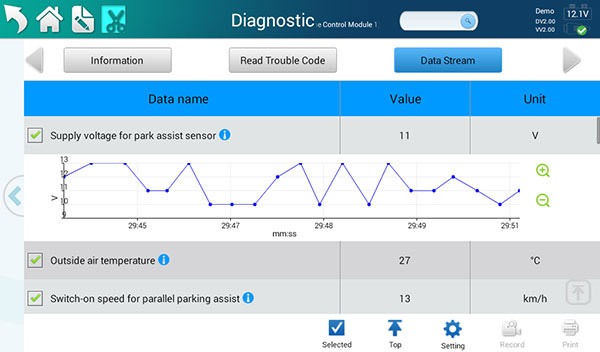

    1.Diagnostics
    Supports 12V vehicles with Europe, America, Japan and South Korea  mainstream models;
    Read DTCs, clear DTCs, read data stream;Support all electric control systems.

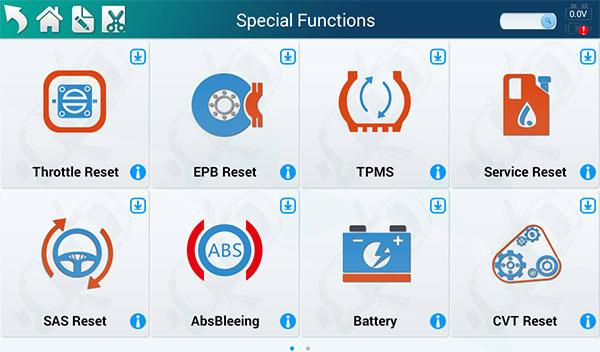

    2.Special functions
    ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery, CVT Reset, TPMS, etc
    3.System functions
    The system also includes the most recent auto-VIN technology, to identify vehicles with one touch,
    and the exclusive auto-Scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager,
    database query, repair video research, vehicle data manager, etc.




    TabScan S7 Automotive Intelligence Diagnostic System Vehicle List:

    Abarth,  Acura, Alfa, Audi, Benz, Bmw,  Chrysler,  Dodge, Eobd, Ferrari, Fiat, Ford, GM, Honda, Hyundai, Hyundai_CV, Jaguar, Jeep, Kia, Lancia, LandRover, Lexus, Mazda, Mini, Mitsubishi, Peugeot, Porsche, Renault, Scion, Seat, Skoda, Subaru, Suzuki, Toyota, Volvo, Vw, Vw_CV.


    TabScan S7 Automotive Intelligence Diagnostic System Specifications:
    Operating system Android 4.4.2
    Processor MTK6582 1.3 GHz quad-core ARM Cortex-A7
    Memory 1 GB RAM and 8 GB ROM
    Display 7-inch capacitive touch screen with 1024x600p resolution
    Connectivity Wi-Fi (802.11 b/g/n), Bluetooth 3.0, USB 2.0 (micro-USB), Micro-SD (up to 32 GB)
    Battery capacity 3000mAh lithium-polymer
    Input voltage 12V DC
    Operating temperature -20~60 degrees Celsius
    Storage temperature -30~70 degrees Celsius
    Storage humidity <80%
    Housing Rubberized external and rugged internal protection
    Dimension 225x138x32mm
    Weight 690g

    Package Includes:
    1pc x  TabScan7 Diagnostic tool
    1pc x USB cable
    1pc x TF card (16GB)
    1pc x Quick start guide
    1pc x Main line
    1pc x Tool box
    1pc x Warranty card
