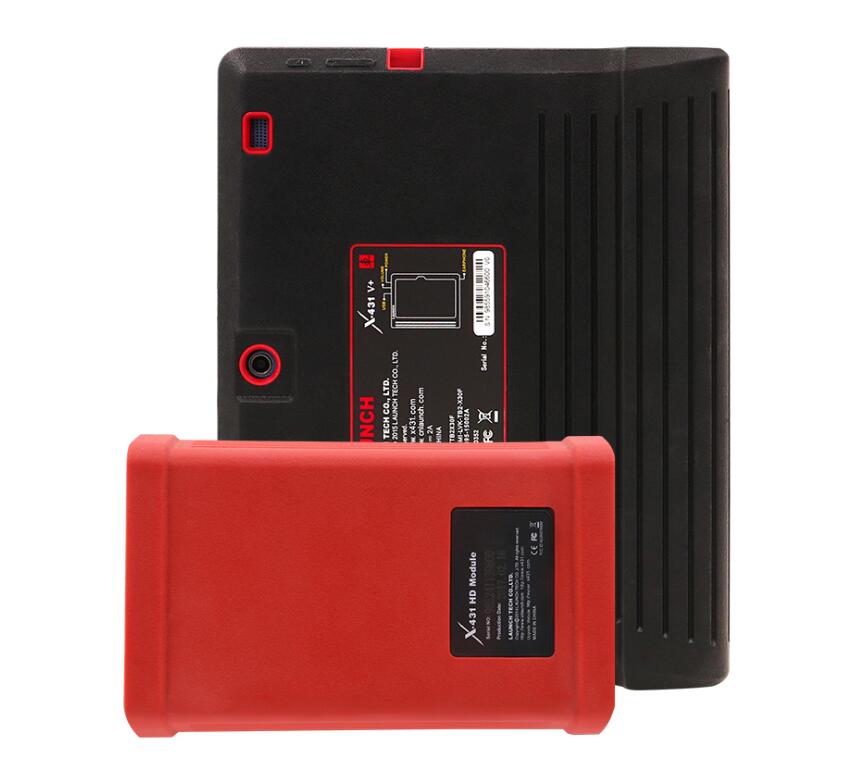

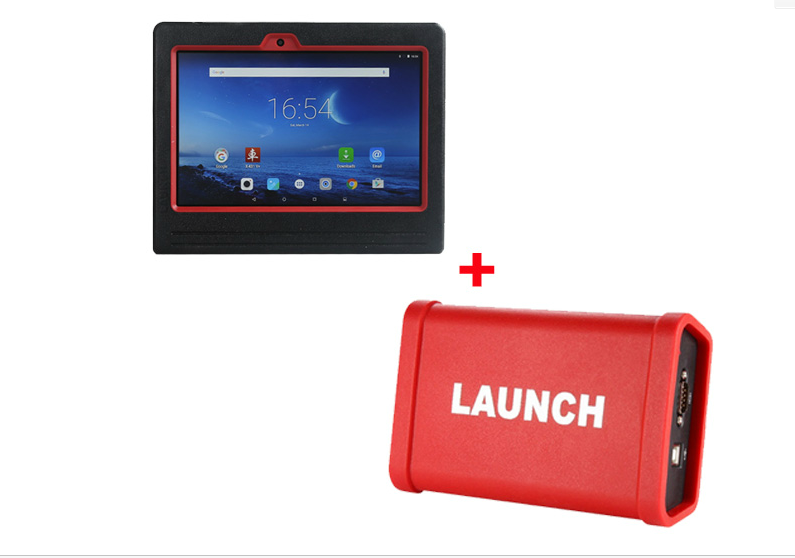

    Launch X-431 X431 V+ Wifi/Bluetooth Plus HD Heavy Duty Truck Diagnostic Module Supports 12V/24V Diesel Truck

    • Item No.  A286-9
    • History: 67  sold
    • Quantity
      Total
      Shipping:
      Free Shipping
    • Quantity:  Out of stock
    • Weight:  9.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 4 customer reviews
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    LAUNCH X431 Heavy Duty Full System Truck Diagnostic Tool for 12V/24V Diesel Truck

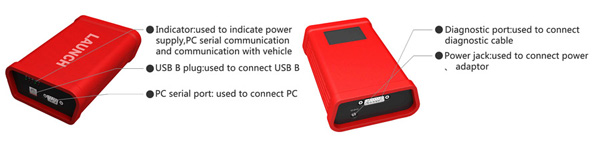

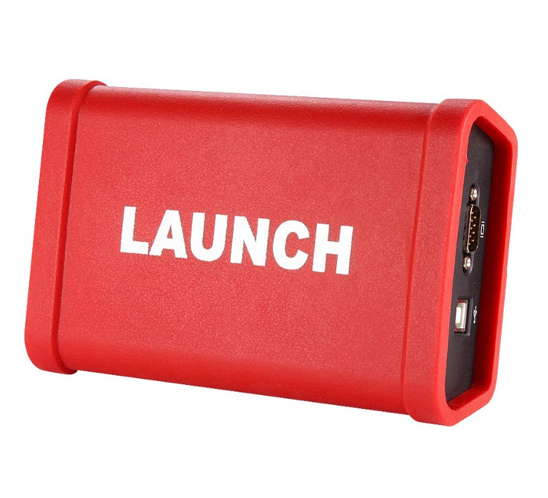

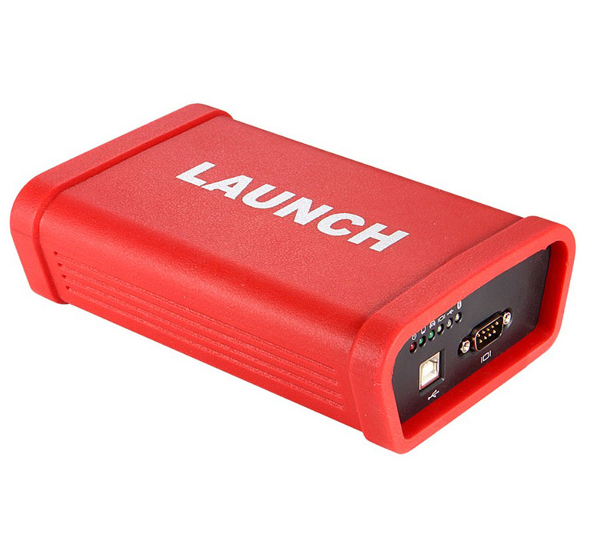

    Ports and indicator of heavy-duty truck module




    X-431 V+ X431 Heavy-duty Truck Module is a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet application on the basis of Android OS. It communicates with X-431 PRO3/X-431PAD II throuth Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions and accurate test data, etc.


    X-431 V+ heavy-duty module is specifically designed to diagnose diesel heavy-duty vehicle models of 12V & 24V voltage.


    Main Features:

    1.Unique LAUNCH cloud diagnosis technology
    2.Support wired diagnosis
    3.Support diagnosis for diesel engines that meet Euro III-Euro VI standards
    4.Industrial shockproof design, perfect for the working environment in repair shops
    5.Advanced modularization design technology, automatically switch between12V and24V power
    6.Diagnostic hardware is designed according to international standard
    7.Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc


    Launch X431 V HD Module Language: English,French,German and Italian


    Software diagnostic platform

    Read fault code
    ●Clear fault code
    ●Read data stream
    ●Actuation Test
    ●Special functions
    ●Read freeze frame
    ●ECU program


    Software of heavy-duty truck module

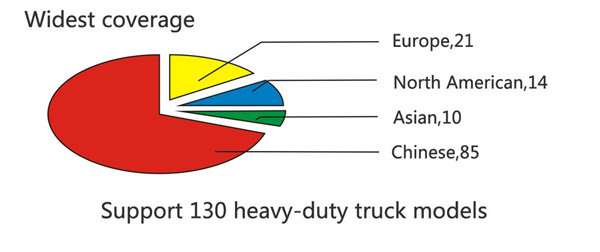

    Supported Truck Brands:
    1.Europe Trucks:
    MERCEDES-BENZ,MAN,VOLVO,SCANIA,IVECO,DAF,RENAULT
    2.USA Trucks:
    FREIGHTLINER,INTERNATIONAL,KENWORTH,PETERBILT,STERLING,WESTERN STAR,MACK,DETROIT ENGINE,CUMMINS ENGINE
    3.Asia Trucks:
    HINO,FUSO,ISUZU,UD,HYUNDAI,Chinese Heavy Duty Trucks


    Main working Parameters:

    Working temperature:-15-60°C
    Storage temperature:-20-70°C
    Relative humidity: 10%-80%
    Product size: 110mm*178mm*50mm
    Communication: USB, Bluetooth, Serial Port

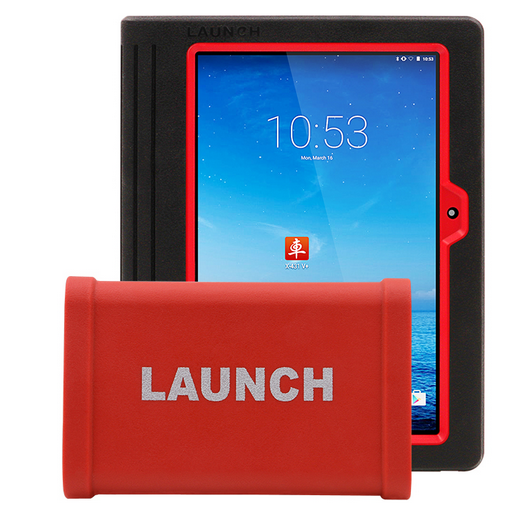

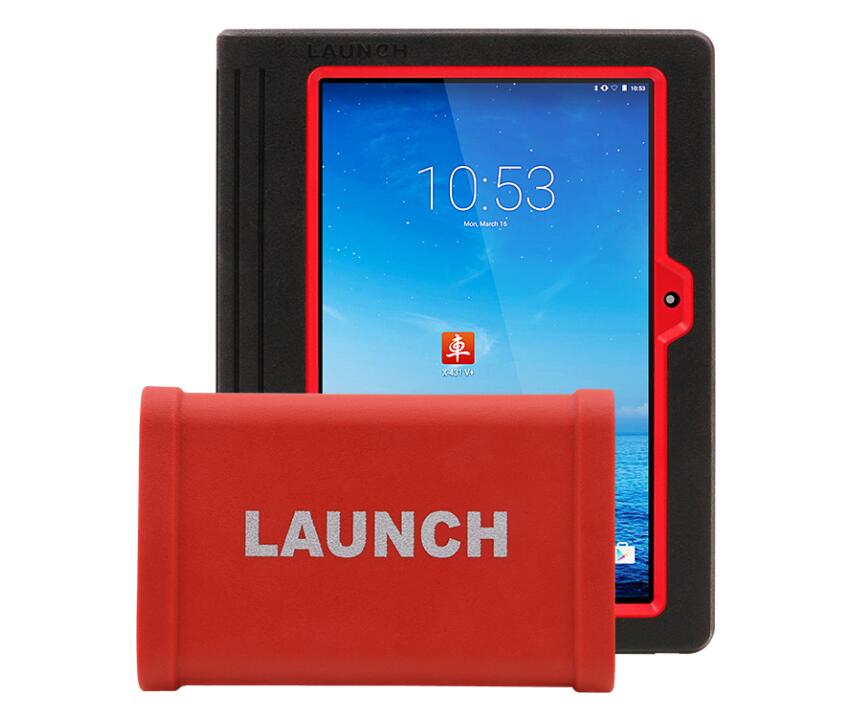

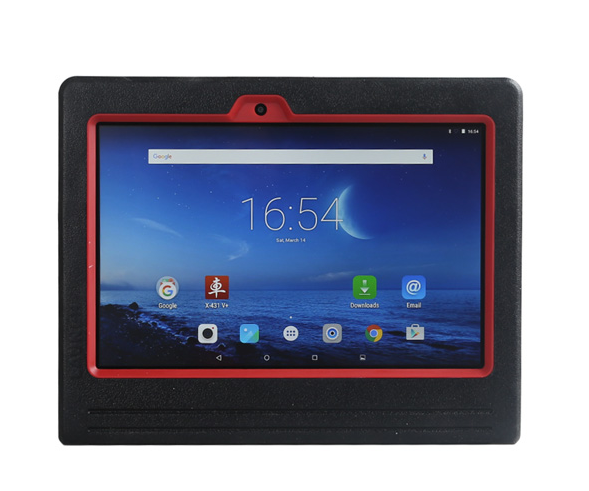

    LAUNCH X-431 V+ Scanner Details
    LAUNCH X-431 V+ is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves full car model and full system vehicle trouble diagnosis, which include Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as Repair Data and Update etc.X-431 V+ adopts a higher performance-price ratio tablet computer, which is equipped with Android 5.1 operating system, 1.3GHz quad core CPU and 10.1" HD display.


    LAUNCH X-431 V+ Features

    1. Diagnose:Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read Data Stream, Special Functions etc.Specially designed for Android platform with user-friendly interface.Via Bluetooth, it is simple for the diagnostic connector to communicate with X-431 V+.Equipped with an exclusive X-431 V+ protective sleeve to prevent it from being damaged.Multiple maintenance and repair functions are supported to boost shop revenue: Electronic throttle position reset/learn and gear learning etc.

    2. Repair Data: Provides a mass of service information for various vehicle models, which enables users to retrieve service data of some vehicle online.

    3. Update: Lets you update your diagnostic software more efficiently.

    4. Browser: Built-in Wi-Fi module makes surfing on the internet freely.

    5. Email: Allows you to send and receive emails.

    6. Settings: To configure your personalized X-431 V+ through it.

    7. Other additional functions: Alarm, Calendar and Calculator etc.

    LAUNCH X-431 V+ Technical Parameters:
    Operating system: Android 5.1
    CPU: Quad-core 1.3GHz processor
    Battery: 7000mAh rechargeable polymer lithium battery
    Memory: 1GB
    Storage capacity: 16GB
    LCD: 10.1 inch
    LCD resolution: 1280 x 800
    Touch screen: Capacitive touch screen
    Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
    Wi-Fi: Support 802.11a/b/g/h
    Bluetooth: Supported
    Working temperature: 0℃ ~ 45℃
    Storage temperature: -20℃ ~ 70℃


    DBSCar Connector Parameters:
    Working voltage: 9 ~18V
    Average working current: About 35mA
    Standby current: About 25mA
    Working temperature: -20 to 55℃
    Storage temperature: -30 to 70℃
    Storage humidity: <80%
    Working humidity: <60%


    X431 V+ Software list:

    1 WP_DIESEL
    2 HD_BOSCH
    3 DACHAI
    4 HD_ZHONGTONG
    5 AUTOSEARCH
    6 HD_ABS
    7 HD_FUSO
    8 HD_CREDO
    9 HD_RENAULT
    10 DAF
    11 HD_IVECO
    12 HD_HINO
    13 HD_IRISBUS
    14 FAWJIEFANG
    15 HD_SCR
    16 CUMMINS
    17 MACK
    18 HD_OBD
    19 HD_SUNLONG
    20 SHANGCHAI
    21 HD_HYUNDAI
    22 YUCHAI
    23 DFL
    24 HD_GOLDENDRAGON
    25 HD_HIGER
    26 HD_CHAOCHAI
    27 HD_XICHAI
    28 HD_ISUZU
    29 HD_QUANCHAITY
    30 SCANIA
    31 HD_YUFENG
    32 HD_BONLUCK
    33 HD_YANGCHAI
    34 JAC_HD
    35 HD_IRIZAR
    36 HD_SETRA
    37 SINOTRUK
    38 HD_BENZ)
    39 HD_NEOPLAN
    40 HD_MAN
    41 HD_SUNWIN
    42 UD
    43 FOTONAUMAN
    44 HD_MACHINERY
    45 HD_VOLVO
    46 HD_DEMO
    47 HD_JMC
    48 HD_ALLISON
    49 HD_DETROIT
    50 HD_INTERNATIONAL
    51 HD_WESTERN_STAR
    52 HD_FREIGHTLINER
    53 HD_ASHOK_LEYLAND
    54 HD_STERLING
    55 HD_KENWORTH
    56 HD_CATERPILLAR
    57 HD_ASTRA
    58 DS_USAFORD
    59 HD_SITCAR
    60 HD_BREMACH
    61 HD_TATA
    62 HD_ERF

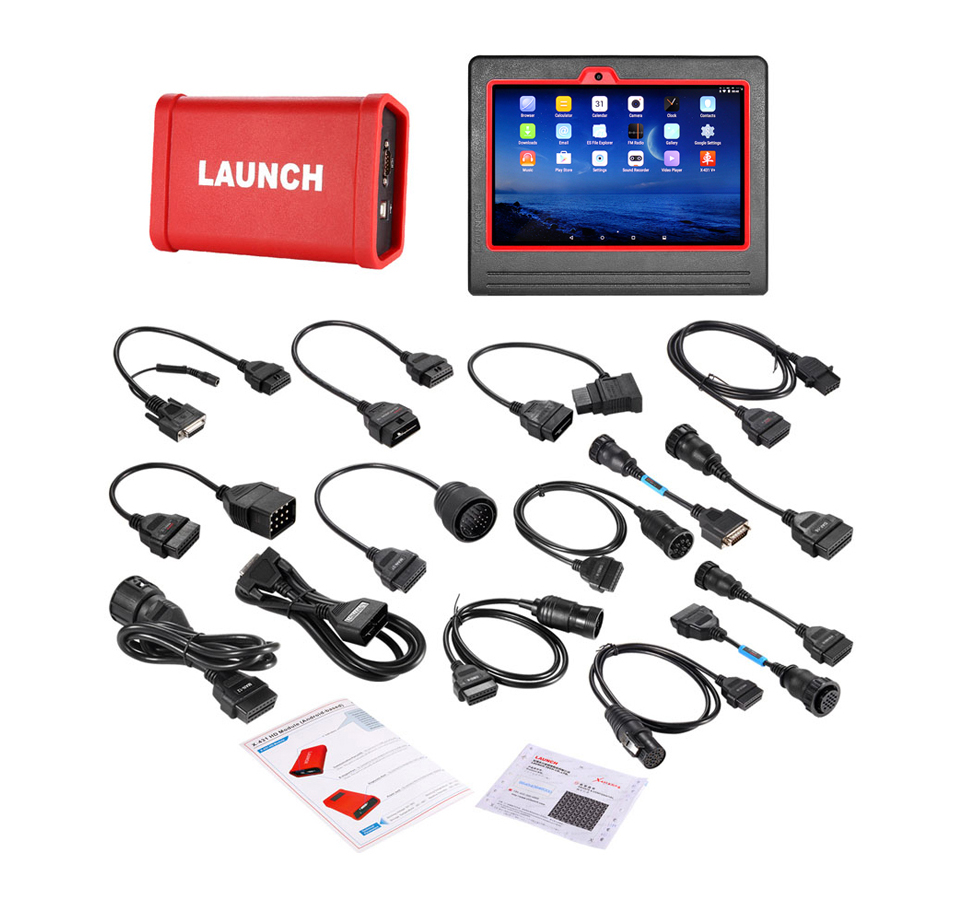

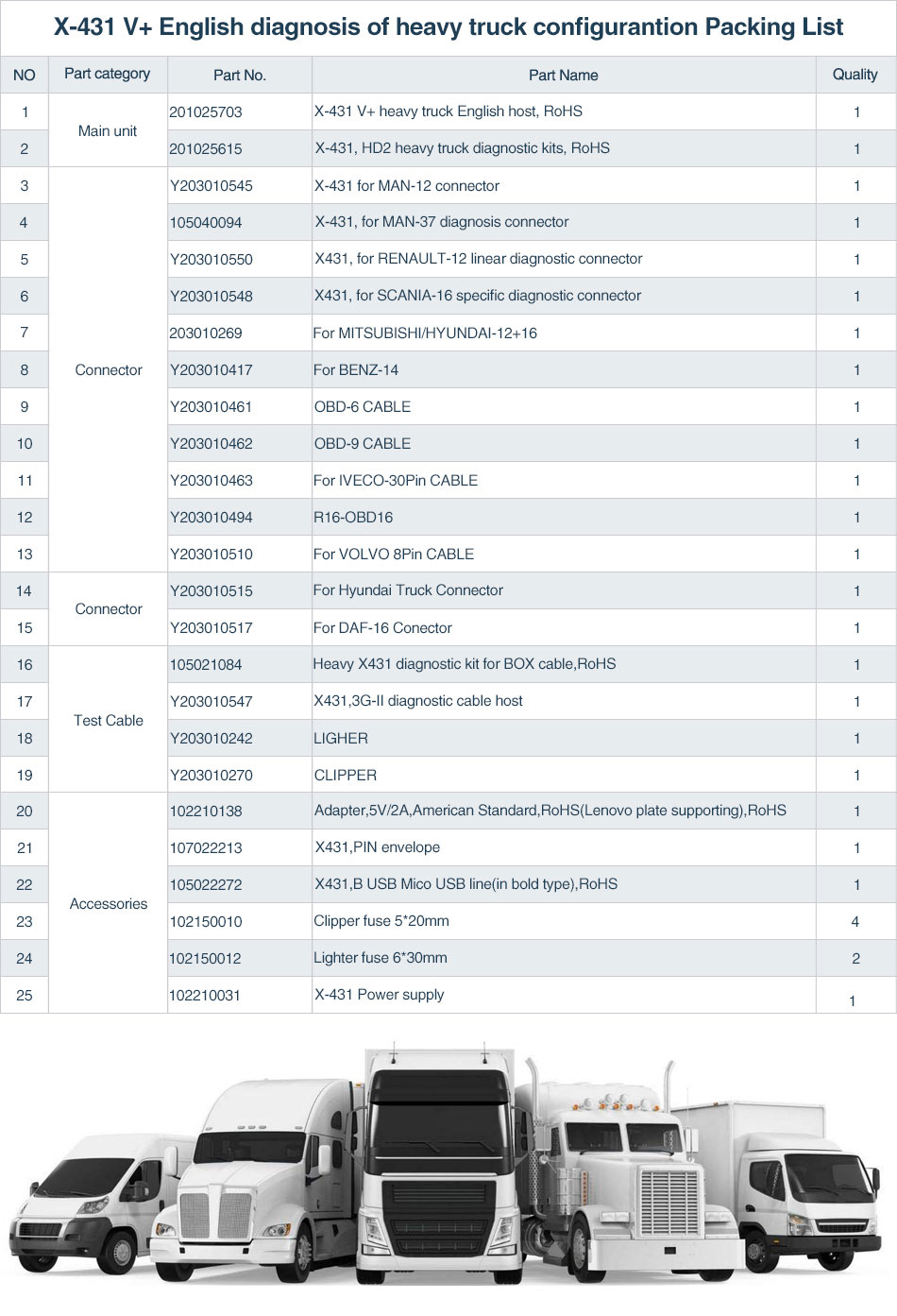

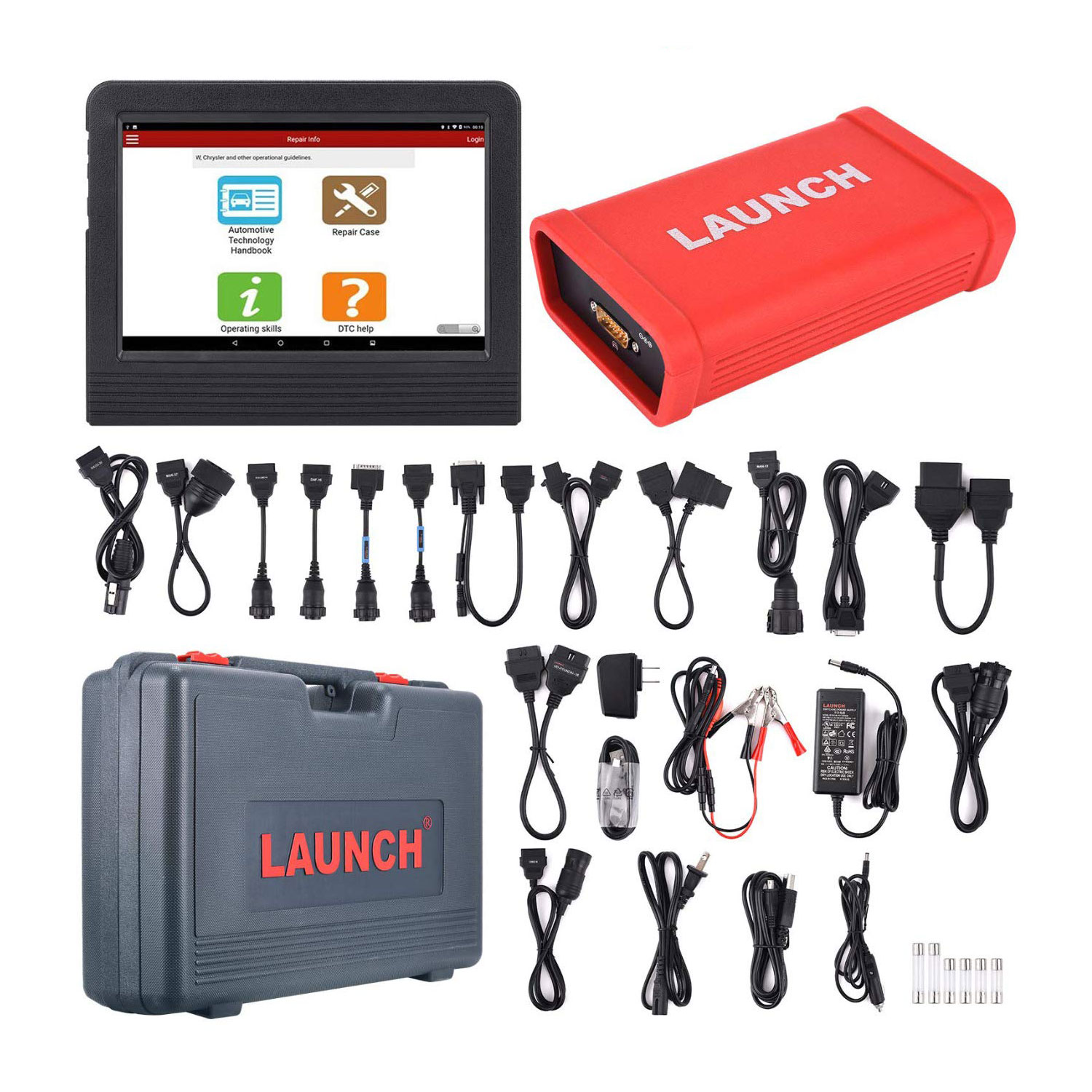

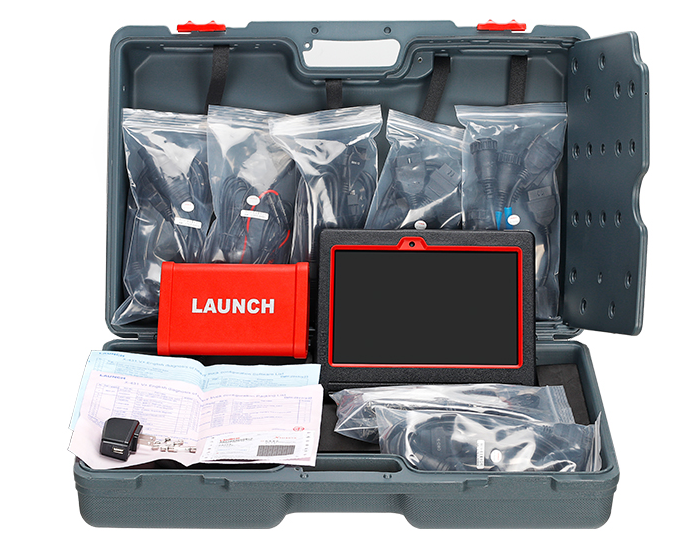

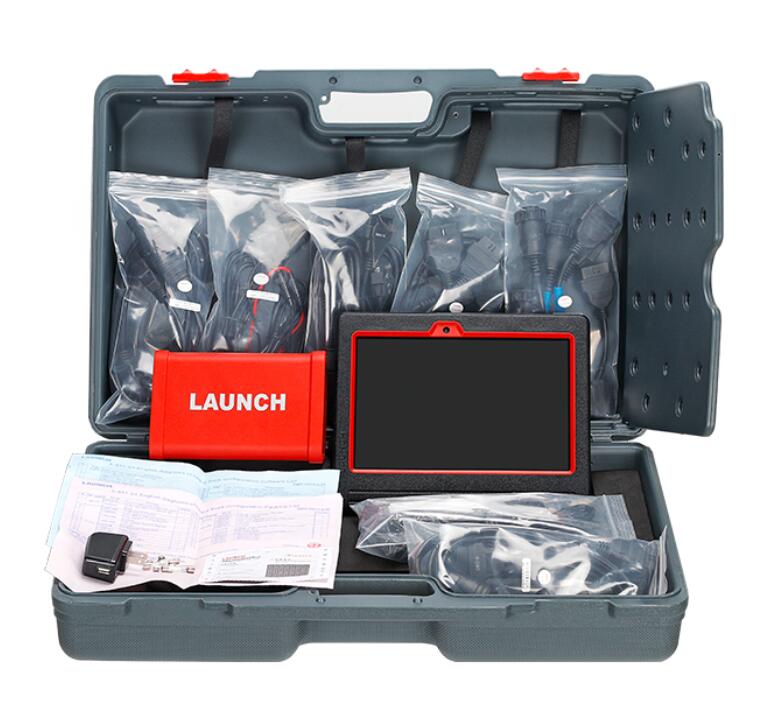

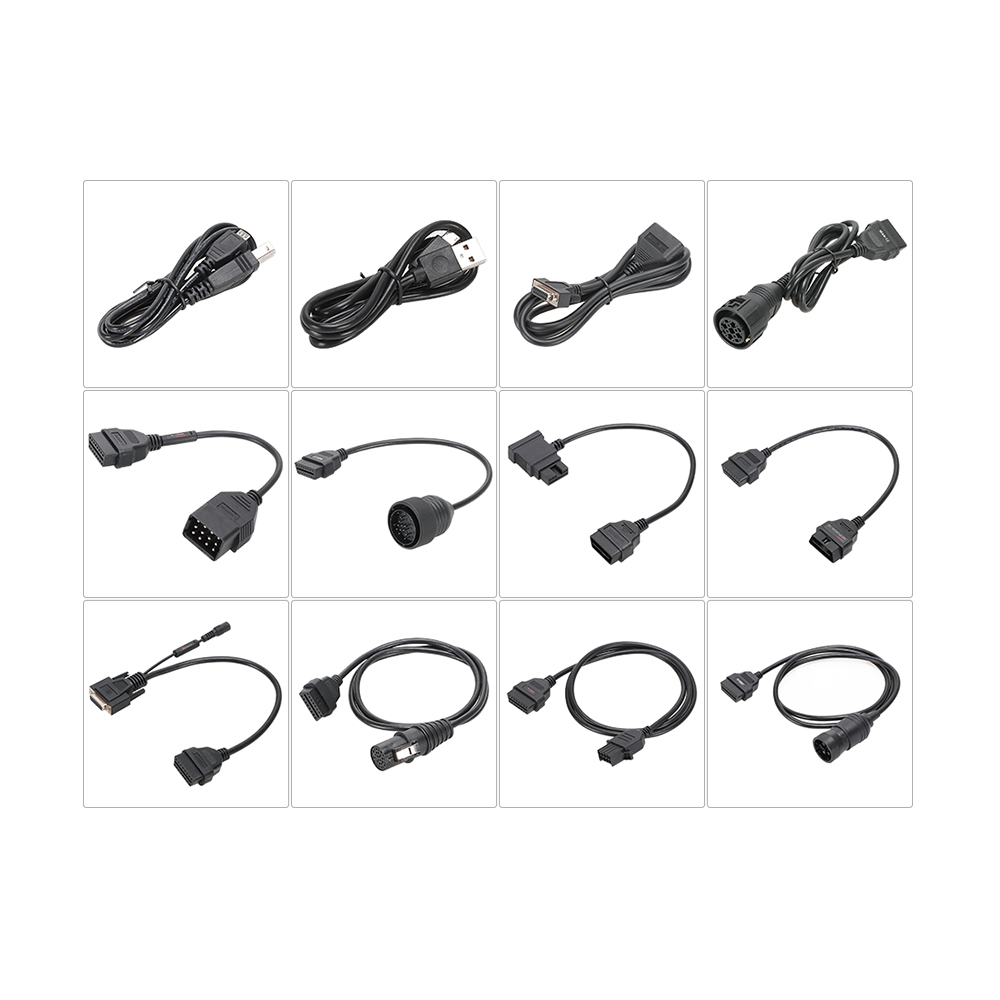

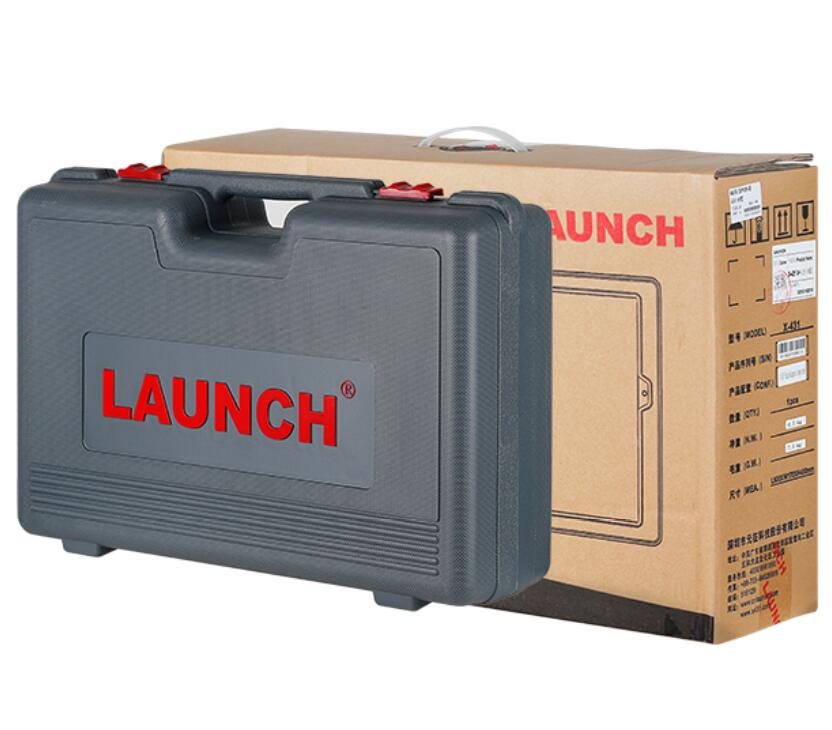

    LAUNCH X431 V+ Package List:
