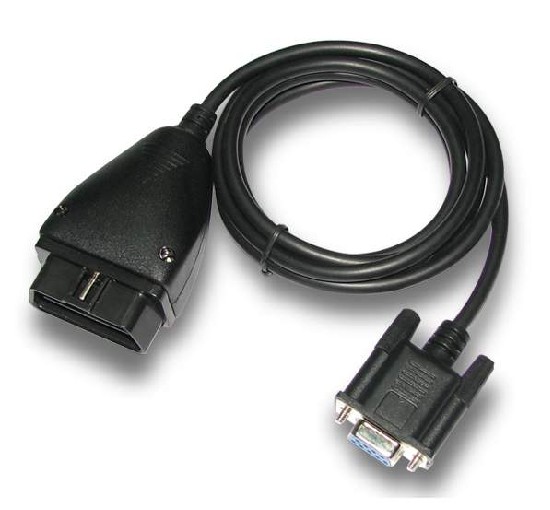

    DB9 to OBDII 16 Pin

    • Item No.  CN005
    • History: 190  sold
    • Market Price: US$5.39
      Shop Price: US$4.50You save US$0.89
      Quantity
      Total
    • Quantity:  999
    • Weight:  100.0gram
    • Rank:  comment rank 50 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video






    2+2 Adaptor For old Audi



    Cable definition:
    OBDII 16 PIN(Male)           DB9PIN Female
    - (J2850 BUS+)  2----------------1+2
    - (Chassis Ground)  4-------------2
    - (Signal Ground)  5--------------1
    - (CAN High J-2284)  6------------3
    - (ISO 9141-2 K Line)  7----------4
    - (J2850 BUS- )  10---------------6
    - (CAN Low J-2284)  14------------5
    - (ISO 9141-2 L Line)  15---------8
    - (Battery Power)  16-------------9
    Length: 1500 MM
    Diameter: 5MM
