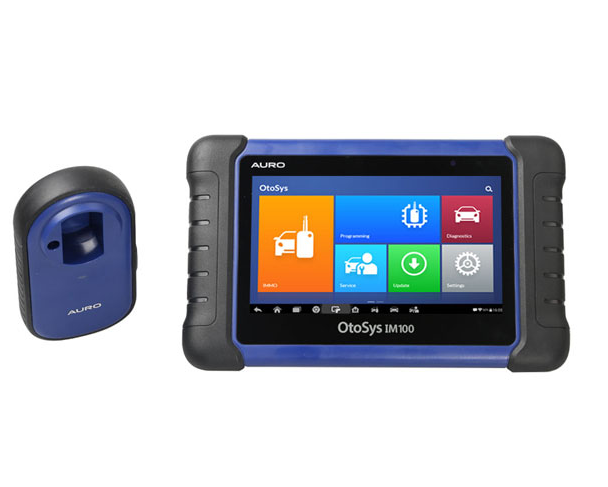

    AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool Online Update with Wifi

    • Item No.  T293
    • History: 10  sold
    • Quantity
      Total
      Shipping:
      Free Shipping
    • Quantity:  Out of stock
    • Weight:  4.0KG
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    AURO OtoSys IM100 Automotive Diagnostic and Key Programming Tool  Online Update with Wifi





    Features:

    * Support IMMO functions for different makes and models.

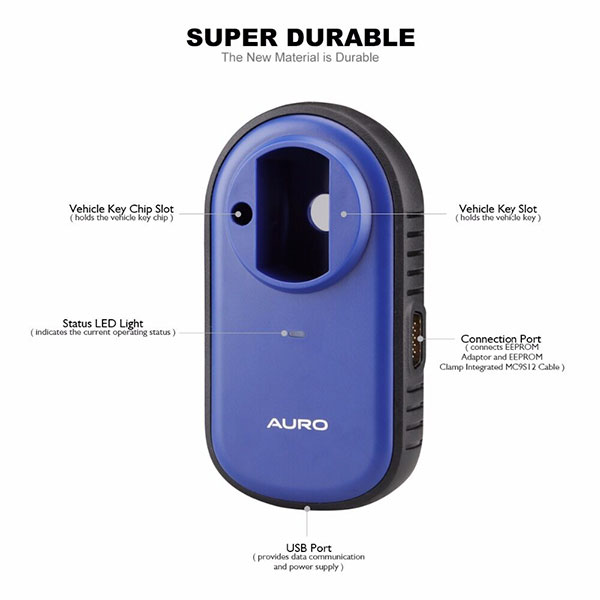

    * Equipped with UP200 to support transponder read/write/identification, ECU/EEPROM chip read/write and IMMO password read.
    * Display live data is text, graph & analog for easy data review.
    * Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
    * Support relearn parking brake pad after replacement.
    * Support forced regeneration and adjusting injectors.
    * Support Steering Angle Sensor (SAS) services.
    * Support service mileage and service intervals reset.
    * Support TPMS sensor relearn.
    * Support battery registration and reset.
    * Support online update.


    Special Declaration:

    Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release


                                                                                                                        OtoSys IM100

                              OtoSys IM600

    IMMO

    Smart Mode (Guided and Automated Key Learning Function)                  √

    Auto Detect Make/Model/Year/System                                                            √

    Read PIN/CS                                                                                                        √

    Read PIN/CS (All Keys Lost)                                                                            √

    Key Learning                                                                                                        √

    IMMO ECU Reset/Adaption                                                                               √

    IMMO ECU Refresh/Coding                                                                               √

    Remote Learning                                                                                                 √

    AUDI Q5/A4/A5 2015-2017 Read PIN/CS                                                        ×                                                   √

    BMW FEM/BDC Key Learning and Adaption                                                  √

    Mercedes Key Learning                                                                                      ×


    Programming

    EEPROM Read/Write                                                                                            √

    MCU Read/Write                                                                                                Basic                                         Advanced

    Key Programming                                                                                                    √                                               √

    IC Card Read/Write                                                                                                   ×

    Mercedes Infrared Key Read/Write                                                                         ×

    Remote Frequency Detect                                                                                        ×


    OE-Level Diagnostics

    All Systems for Over 80 Makes and Models                                                          √

    OtoFlash (J2534 ECU Reprogrammer)                                                                ×


    Advanced Service Functions

    Oil Serive Reset                                                                                                          √

    Parking Brake Pad Relearn After Replacemen                                                    √

    Steering Angle Sensor Relearn                                                                                √

    Battery Registration and Reset                                                                                √

    Diesel Particulate Filter Regeneration                                                                    √

    Tire Pressure Monitoring System                                                                            √

    ECU Coding                                                                                                                 ×

    VW/Audi Component Protection                                                                                ×

    Complete Service Functions                                                                                       ×


    Tool Features

    Built-in Rechargeable Li-ion Battery                                                                  5000 mAh                                      15000 mAh

    Internet Updatable                                                                                                       Wi-Fi                                              Wi-Fi

    Multilingual Support                                                                                                         √

    Limited One Year Warranty                                                                                             √

    Touchscreen                                                                                                                 7-inch                                         10.1-inch

    Memory                                                                                                                           32 GB                                         64 GB

    Processor                                                                                                           Quad-core processor                       Hexa-core processor

    Camera                                                                                                                              ×                                          8.0 Megapixel

    Resolution                                                                                                                 1024x600                                     1920x1200


    Specifications:

    Recommended Use Indoor
    Operating System Android™ 4.4.4, KitKat
    Processor Cortex-A9 processor (1.6 GHz)
    Memory 1GB RAM DDR3 & 32GB ROM

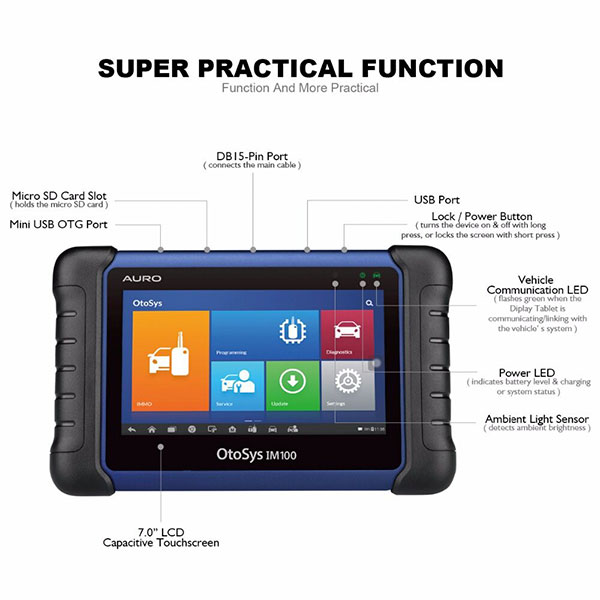

    Display 7-inch LCD capacitive touchscreen with 1024x600 resolution

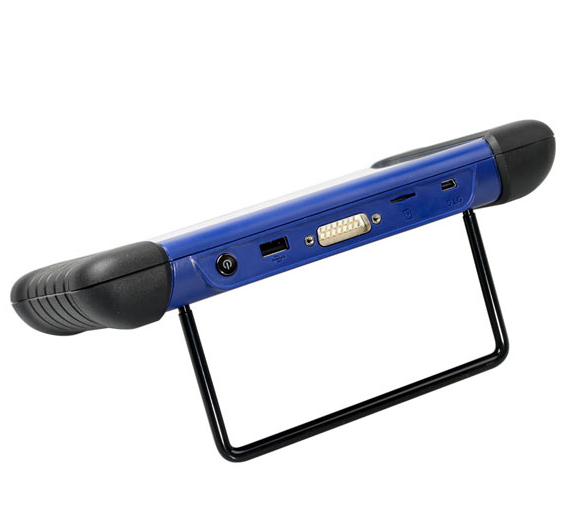

    Connectivity Mini USB 2.0;
    USB 2.0;
    Wi-Fi;
    HDMI Type A;
    Micro SD card slot (supports up to 32GB);
    Sensors Ambient light sensor for brightness auto changing
    Audio Input/Output Input: N/A;
    Output: buzzer;
    Power and Battery 3.7 V/5000 mAh lithium-polymer battery;
    Charges via 5 VDC power supply;
    Tested Battery Life Around 4.5 hours of continuous use
    Battery Charging Input 5 V/1.5 A
    Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
    Operating Temp. 0 to 55°C(32 to 131°F)
    Storage Temp. -20 to 60°C (-4 to 140°F)
    Operating Humidity 5% - 95% non-condensing
    Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
    Net Weight 788 g (2.42 lb.)
    Supported Automotive
     Protocols
    ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
    SAE-J1850 VPW, SAE-J1850PWM,
    ISO11898 (Highspeed, Middlespeed, Lowspeed and
    Singlewire CAN, fault-tolerant CAN),
    SAE J2610, GM UART,UART Echo Byte Protocol,
    Honda Diag-H Protocol, TP2.0, TP1.6

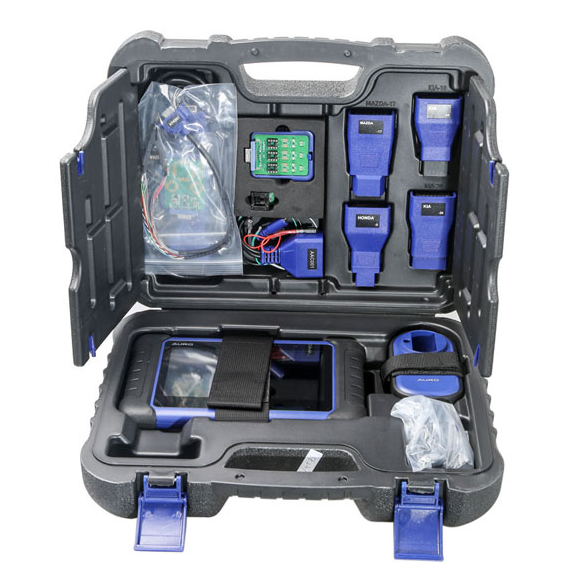

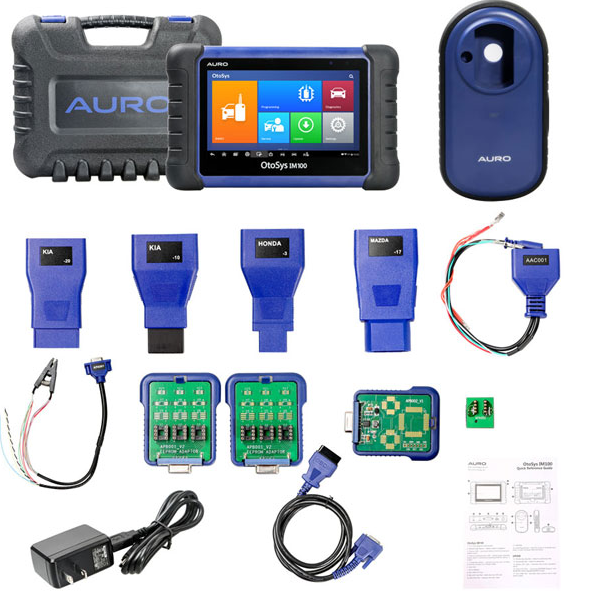

    Package includes:

    1pc x OBD II Cable
    1pc x Mini USB Cable
    1pc x USB External Power Adaptor

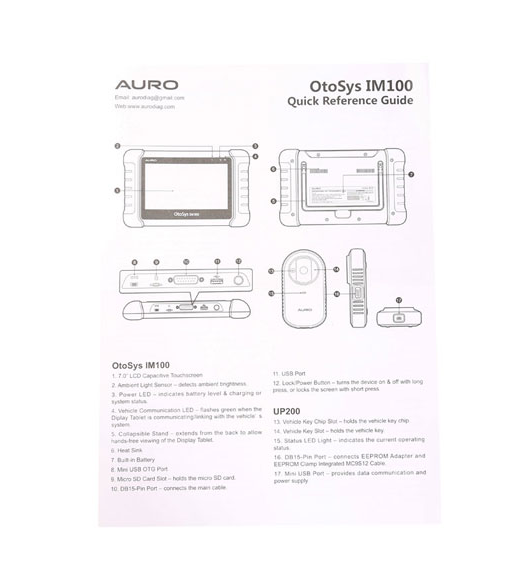

    1pc x Quick Guide

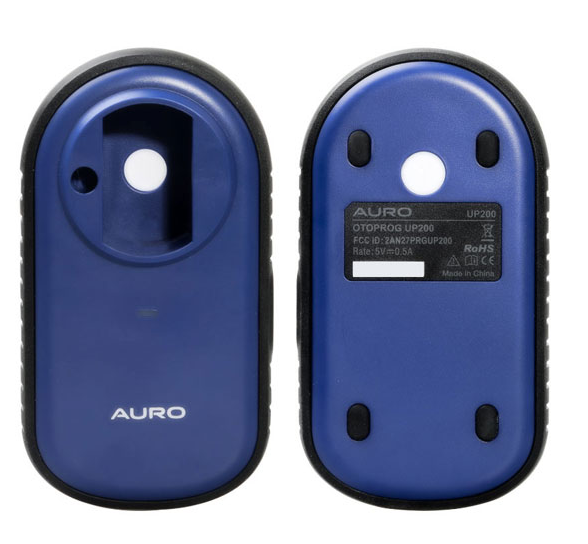

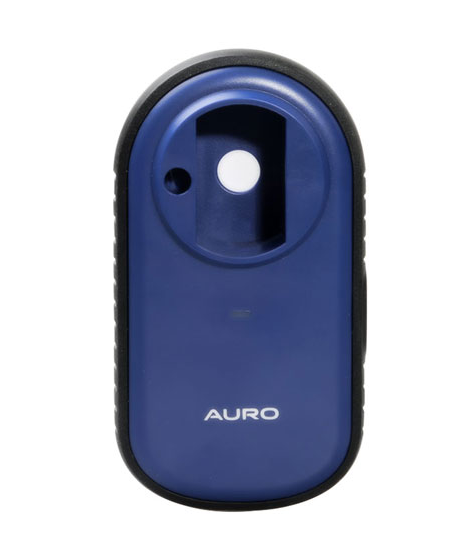

    1pc x UP200

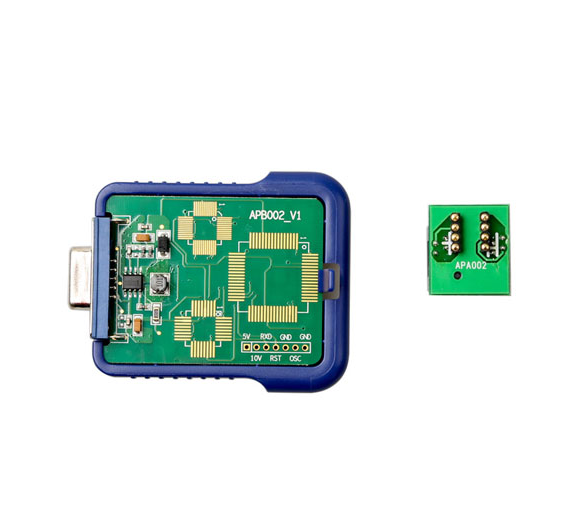

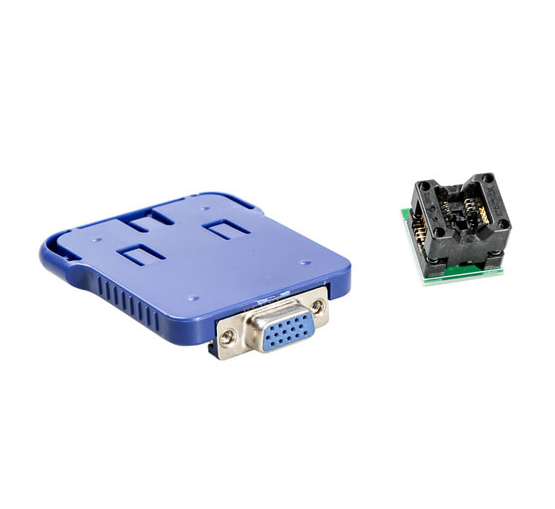

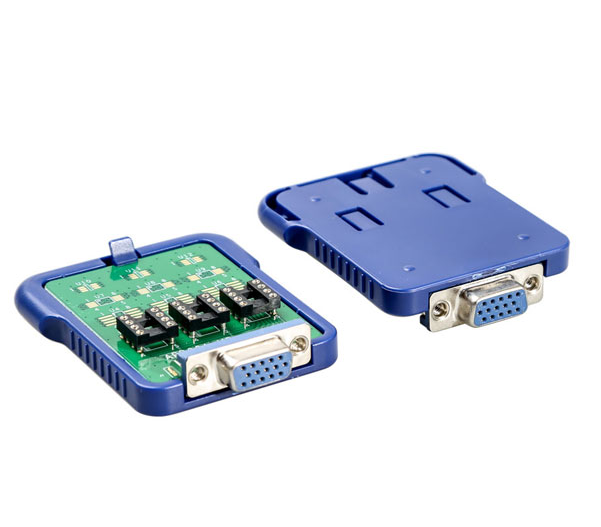

    1pc x APB001 – EEPROM Adaptor
    1pc x APB002 – 68HC908 Adaptor
    1pc x APA002 – EEPROM Socket
    1pc x APA001 – EEPROM Clamp Integrated MC9S12 Cable
