    XPROG-M V5.84 X-PROG Box ECU Programmer with USB Dongle



    XPROG-M V5.84 Highlights:

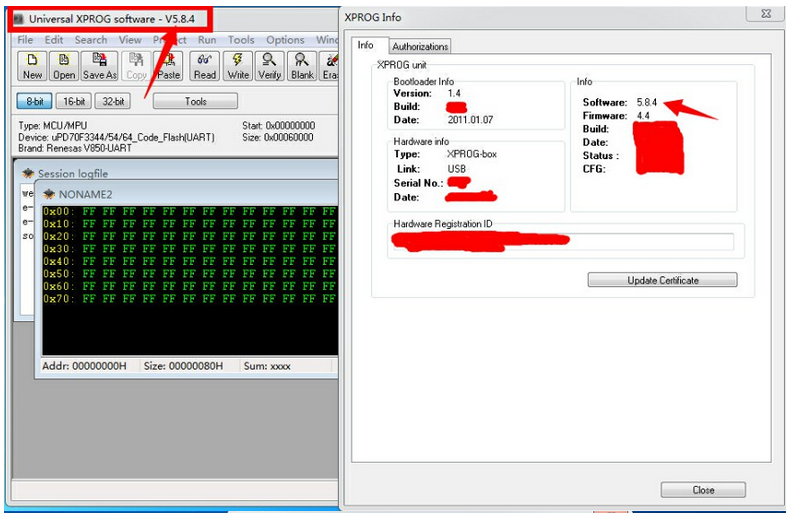

    1. Latest software version: V5.84,Firmware:V4.4
    2. With USB Dongle, No need to activate
    3. Add new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
    4. Language: English


    XPROG-M V5.84 Install manuals in words:
    1. Click the file "installation.reg", get the file information to the regedit.
    2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
    3. Plug the Xprog main interface to the computer, install the USB driver.
    4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

    XPROG-M V5.84 using tips:
    1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84
    2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
    3. Disconnect the internet. If not, the internet maybe damage the hardware.
    4. Uninstall all of the old version xprog-m or xprog box software before you install V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...
    5. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.


    Install Notice:
    XPROG-M V5.84 windows system required as below:
    1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...
    2. The windows system should be with at lest 2 partitions (except the CD ROM.)
    3. Can not be working with virtual hard disk.


    XPROG-M V5.84 Authorizations:
    AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)
    AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)
    AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)
    AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
    AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
    AUTH-0008 for BMW EWS3 authorization
    AUTH-0009 for ATMEGA family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0010 for MB ZGS001 authorization
    AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
    AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
    AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
    AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
    AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
    AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
    AUTH-0023-1 MAC7xxx
    AUTH-0023-2 XC23xx
    AUTH-0024-1 MC9S12Cxx
    AUTH-0024-2 MC9S12XE
    AUTH-0024-3 9S12XE SECURITY
    AUTH-0024-4 MC9S12HA/HY/P

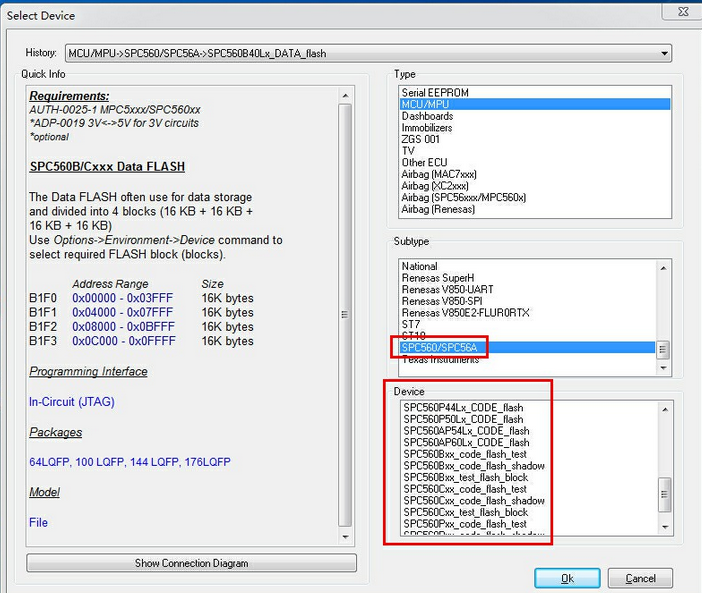

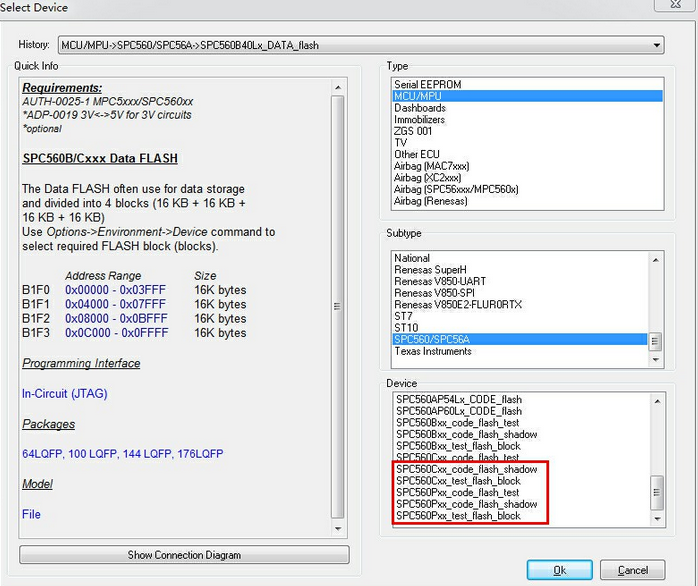

    AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

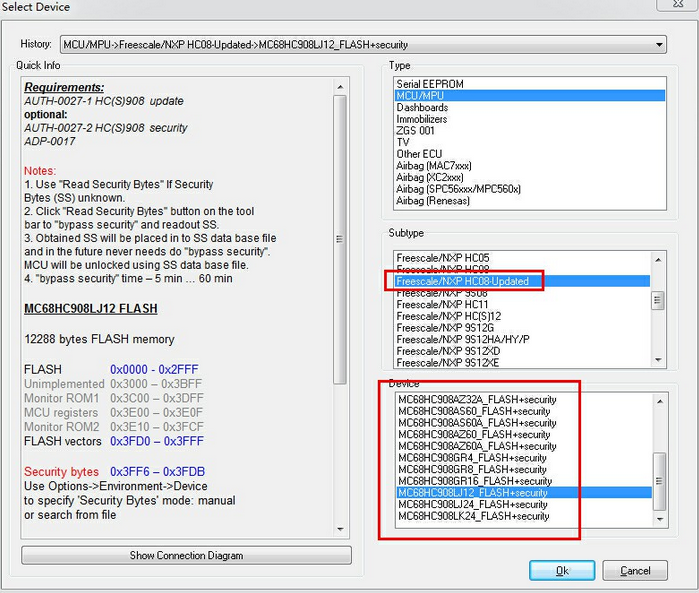

    AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
    AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

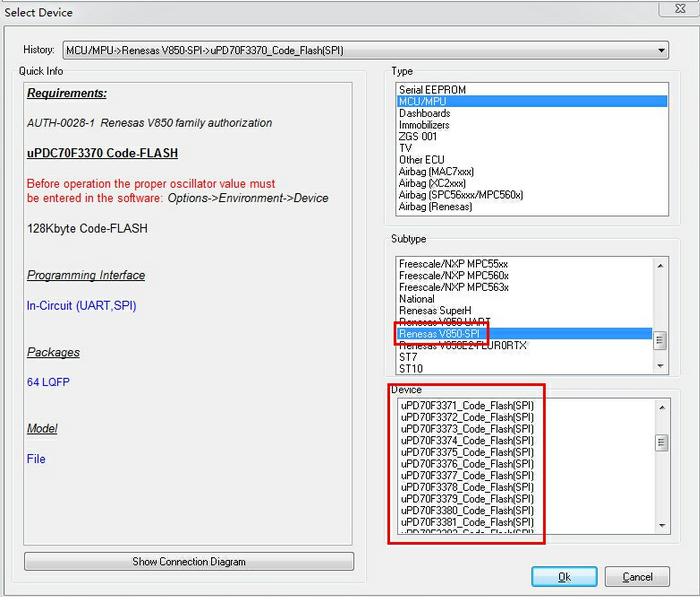

    AUTH-0028-1 for Renesas V850 Authorized 2017/10/9
    AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

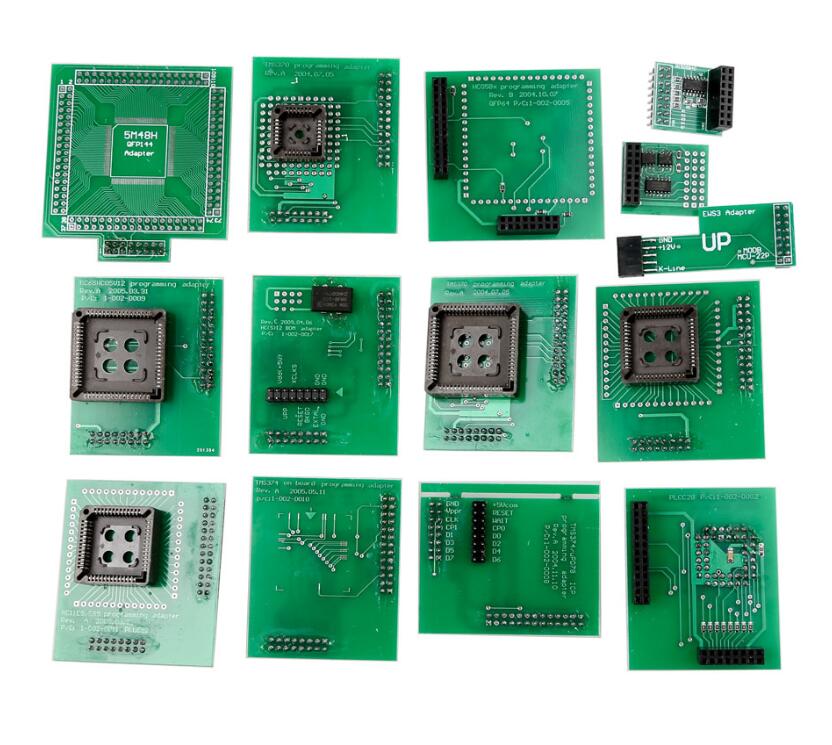

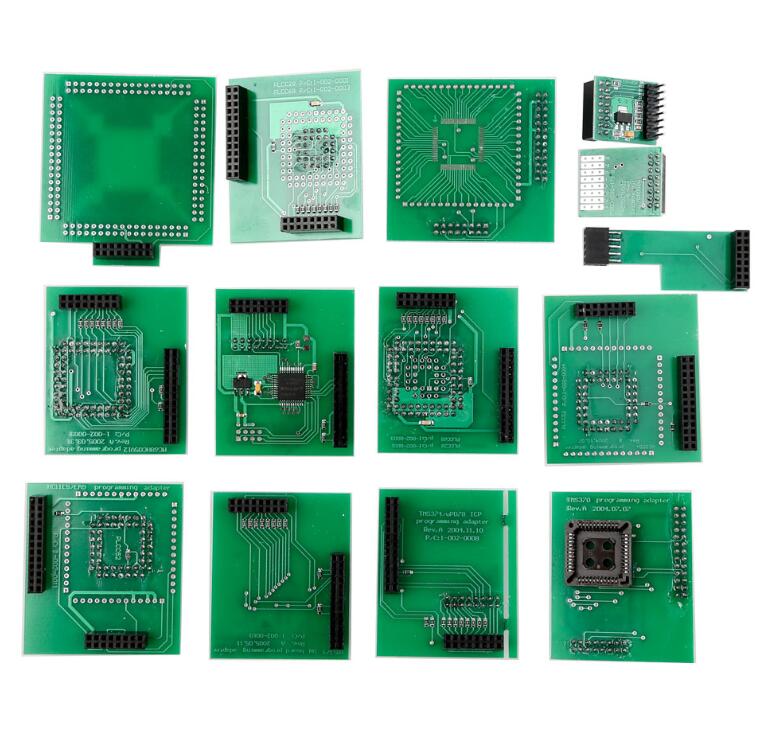

    XPROG-M V5.84 Adapters:
    ADP-0001 TMS370 PLCC28 programming adapter
    ADP-0002 TMS370 PLCC44 programming adapter
    ADP-0003 TMS370 PLCC68 programming adapter
    ADP-0004 for Motorola HC05B/X PLCC52 programming adapter
    ADP-0005 for Motorola HC05B/X QFP64 programming adapter
    ADP-0006 ST M35080 in-circuit programming adapter
    ADP-0008 TMS374 family in-circuit programming adapter
    ADP-0009 MC68HC05V12 programming adapter
    ADP-0010 TMS374 on-board programming adapter
    ADP-0011 HC11EA9/E9 programming adapter
    ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
    Additional adaptor for 5M48H P-Flash
    ADP-0019 Rev.A
    EWS3 adaptor

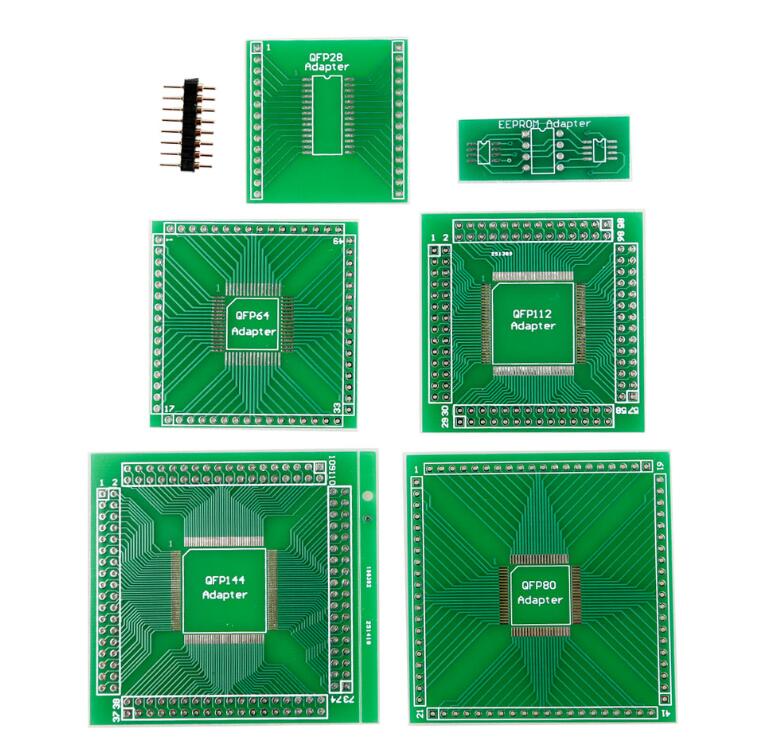

    EEPROM adaptor
    QFP28 adaptor
    QFP64 adaptor
    QFP80 adaptor
    QFP112 adaptor
    QFP144 adaptor

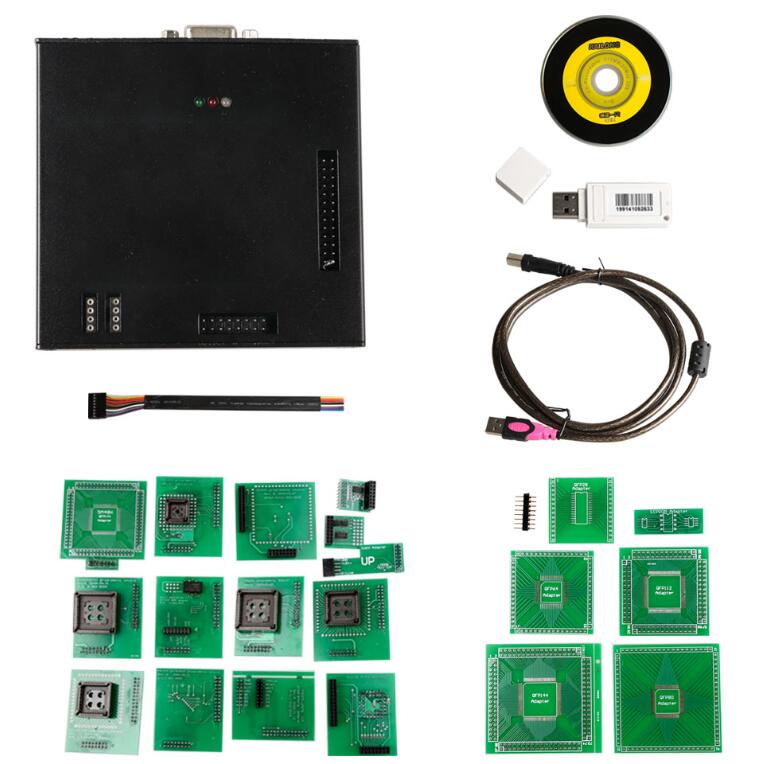

    Package Includes:

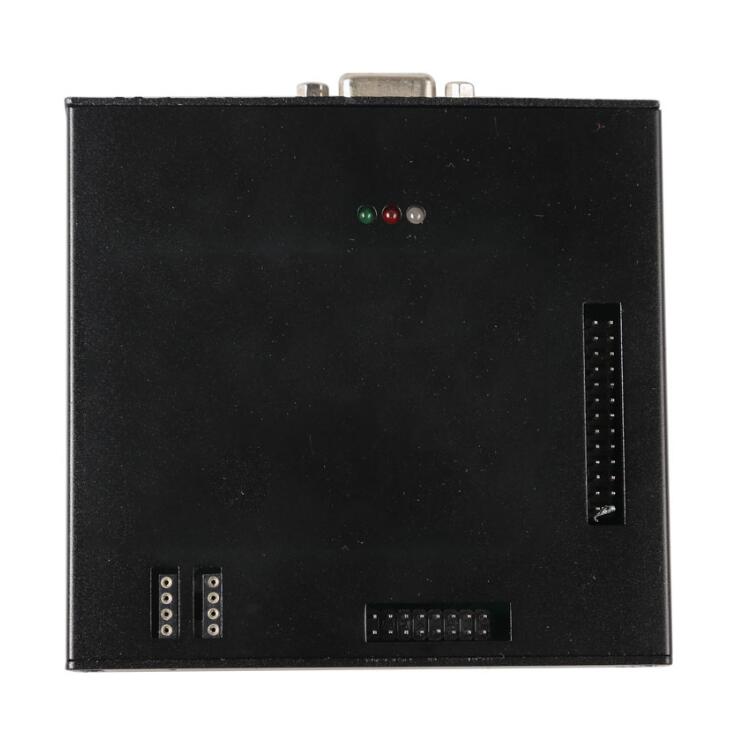

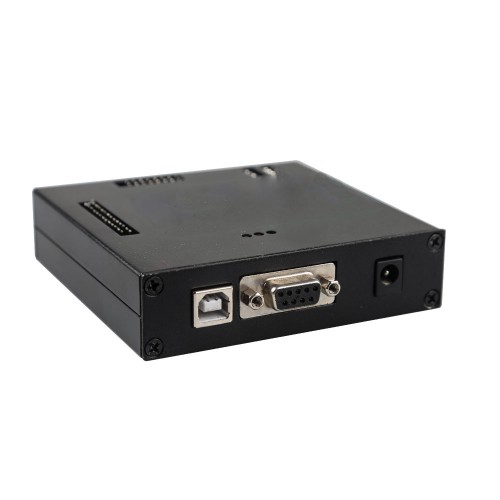

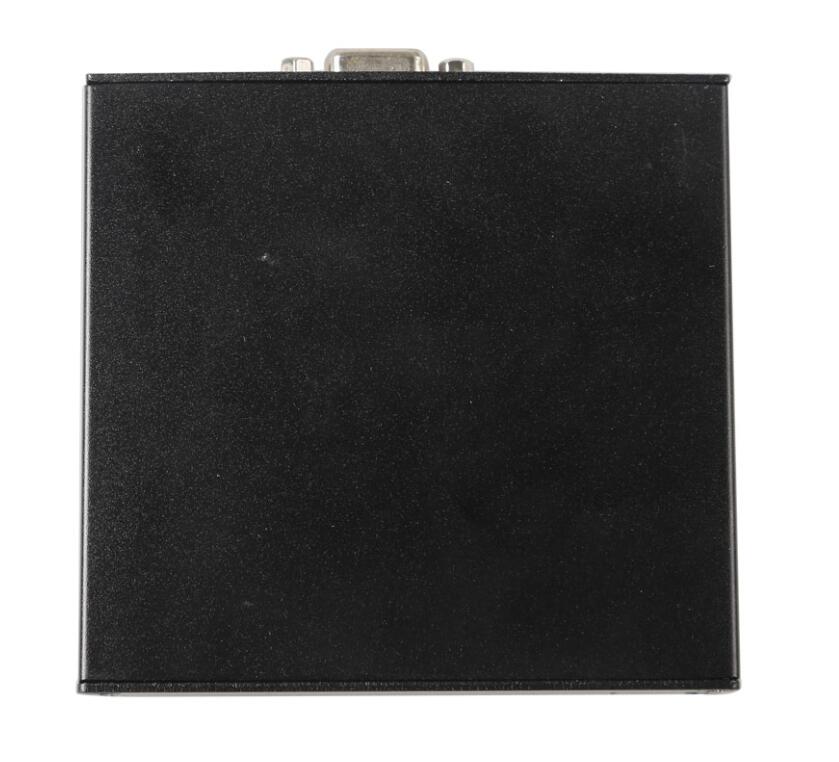

    1pc  XPROG-Box Hardware (Aluminum Enclosure) .
    20pc Adapters Set

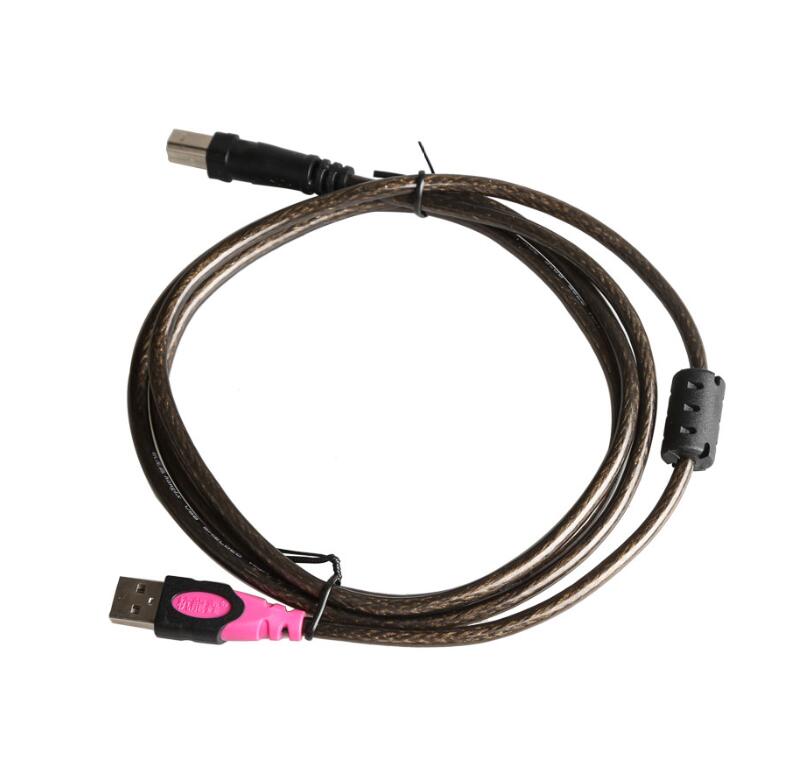

    1pc  USB Cable.
    1pc  USB Dongle
    1pc  CD with XPROG-Box Software (V5.84)
