XTOOL EZ400 Diagnosis System with WIFI Support Android System and Online Update Same As Xtool PS90

Top 6 Reasons to Choose EZ400:

1. Extensive vehicle coverage for most US, Asian and European vehicle makes

2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……

3. Support Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..

4. Support WIFI connection, PAD support Android System

5. Support online update.
6. Same Function as Xtool PS90,but can not read EEPROM.

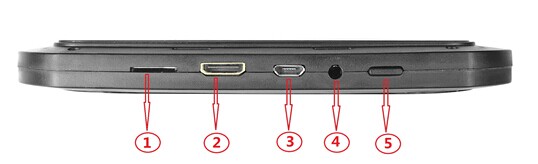

Layout of EZ400



1. SD Card Port: up to 32GB extension SD card

2. HDMI Port: Compatible with HDMI

3. Micro USB: Battery charge or data synchronization with PC.

4. Audi Port: For headphone

5. Power Button: Power on or off



Introduction of EZ400 VCI Box:



1. Power Indicator: it turns green when power is on.

2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.

3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.

4. USB Indicator: When EZ400 tablet and VCI box are connected via USB cable, it turns green.







EZ400 Features:

*Easy registration with EZ400 connected to WIFI

*Wireless diagnosis via Bluetooth

*One-click software update via WIFI

*Remote access

*Diagnosis reports in PDF file

*Record and playback live data

*7 inch multi-touch screen

*On-board battery

*Extensive vehicle coverage for most US, Asian and European vehicle makes



Easy registration with EZ400 connected to WIFI. Don’t bother to use PC for registration.





Wireless diagnosis via ultrafast Bluetooth technology



One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!





Remote access, which is perfect for training, demonstration and even remote diagnosis.





Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.





Extensive Vehicle Coverage for Most US, Asian and European Vehicle Makes



American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn





Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV





Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…







Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...





Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……





Basic Function: read fault codes, clear fault codes, live data, actuation





Accurate live data in both Wave and Dashboard form





Special Function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..





Operating System: Android 4.4.4

Memory: 1GB RAM,16GB Flash

CPU Quad Core, 1.3 GHz

Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution

Sensors: Gravity Sensor, Light Sensor

Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port

Battery: 2400mAh, 3.7V

Power Voltage: 5V

Power Consumption: 8W

Operating Temperature: -20 to 50℃(-4 to 126℉).
midity: <90%

Dimension: (L*W*H): 208*140*15.5mm

Package Including:

OBD II-16

HONDA-3

BMW-20

TOYOTA-17

MAZDA-17R

KIA-20

HYUNDAI/KIA-10

NISSAN-14

GM/DAEWOO-12

SELFTEST

UNIVERSAL-3

SUZUKI-3

FIAT-3

CITROEN-2

AUDI-4

MITSUBISHI-12+16

BENZ-38

BENZ-14

Main Cable

battery Cable

Cigar Lighter Cable

EZ400 Tablet

VCI Box

Charger for Tablet

US Power Adapter

EU Power Adapter

Micro USB Cable

Case

Stand for EZ400

Certificate of Quality

Packing List

User Manual

Carton
