XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function Warranty for 2 Years

TOP 7 Reasons to Get XTOOL EZ300:

1. Easy registration with EZ300 connected to WIFI, One-click software update via WIFI,free update for lifetime

2. Wireless diagnosis via Bluetooth, Remote access

3. Diagnosis reports in PDF file

4. Record and playback live data

5. 7 inch multi-touch screen, On-board battery

6. Extensive vehicle coverage for most US, Asian and European vehicle makes

7. Comes with 2 years warranty

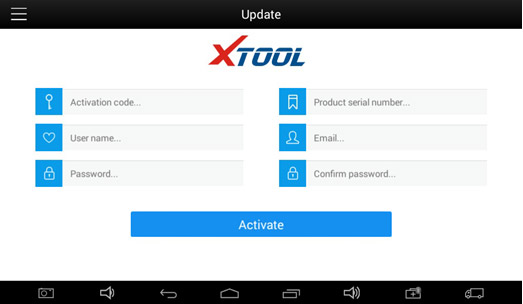

Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.

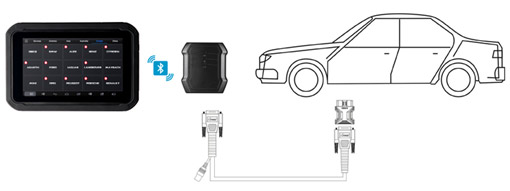

Wireless diagnosis via ultrafast Bluetooth technology

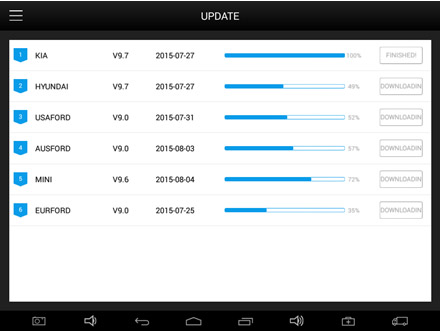

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

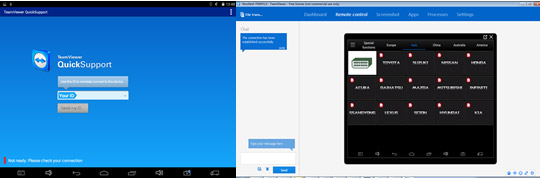

Remote access, which is perfect for training, demonstration and even remote diagnosis

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars

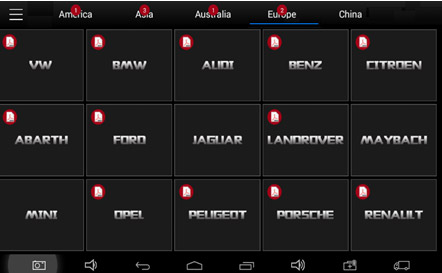

Extensive vehicle coverage for most US, Asian and European vehicle makes

American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW,

Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

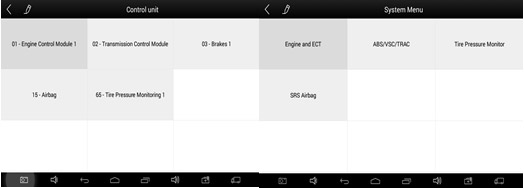

4 System Diagnosis: Engine, ABS, SRS, Transmission and TPMS

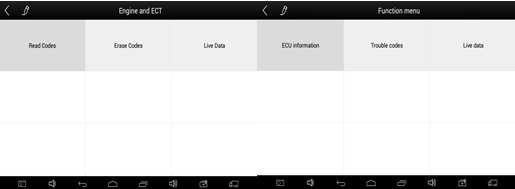

Basic function: read fault codes, clear fault codes, live data

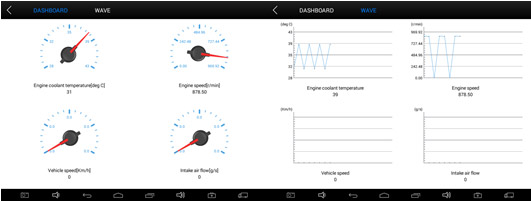

Accurate live data in both Wave and Dashboard form

Operating System:	Android 4.4.4
Memory:	1GB RAM，16GB Flash
CPU	Quad Core, 1.3 GHz
Display	7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors:	Gravity Sensor, Light Sensor
Input/Output:	Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
Battery:	2400mAh, 3.7V
WIFI	WIFI 2.4Ghz
Bluetooth	100 Meters
Power Voltage:	3.7V
Power Consumption:	4W
Operating Temperature:	-20 to 50℃(-4 to 126℉)
Humidity:	<90%
Dimension:	(L*W*H): 208*140*15.5mm

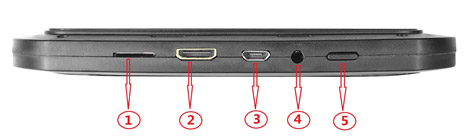

Layout of EZ300:

1.SD CardPort: up to 32GB extension SD card

2.HDMIPort: Compatible with HDMI

3.Micro USB: Battery charge or data synchronization with PC.

4.AudiPort: For headphone

5.Power Button: Power on or off

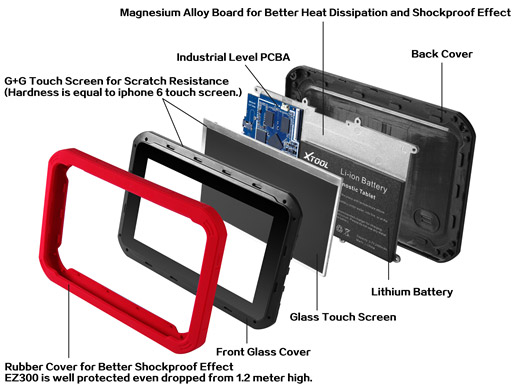

EZ300 Exploded Diagram

Layout of EZ300 VCI box

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.

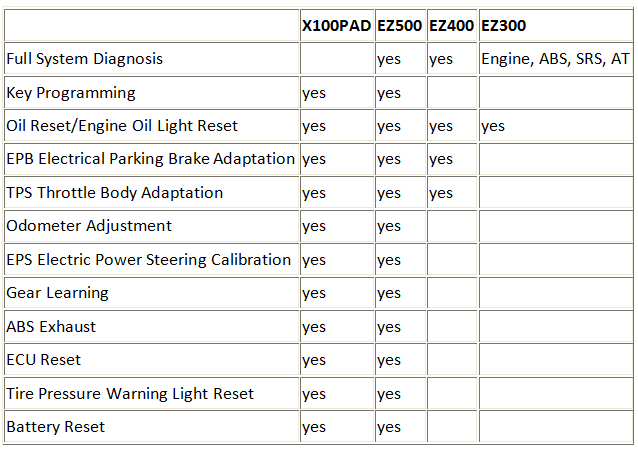

Difference Between XTOOL Products:

XTOOL EZ300 Package including:

1pc X OBD II-16

1pc X Main Cable

1pc X EZ300 Tablet

1pc X VCI Box

1pc X Charger for Tablet

1pc X US Power Adapter

1pc X EU  Power Adapter

1pc X MicroUSB Cable

1pc X Certificate of Quality

1pc X Packing List

1pc X User Manual

1pc X Carton box
