    GM MDI Scan tool

    • Item No.  A194
    • Market Price: US$405.60
      Registered Member: US$338.00
      Quantity
      Total
    • Quantity:  Out of stock
    • Weight:  3.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video



    GM MDI Scan tool Download install and active for MDI.rar

    Note: This tool is without battery and it can  programmer online ,but customer need have the program online user account and password. if not, we can provide , but need to extra pay it.  this tool can available the software you used before.


    GM MDI can test all GM car from 1990---2012 year.

    Description:
    General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
    Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

    MDI and GDS Background
    MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet) and TIS2web.
    Can be Used for SPS programming on existing and future SGM vehicles
    Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
    Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software
    Allows for GDS diagnostic

    Language:

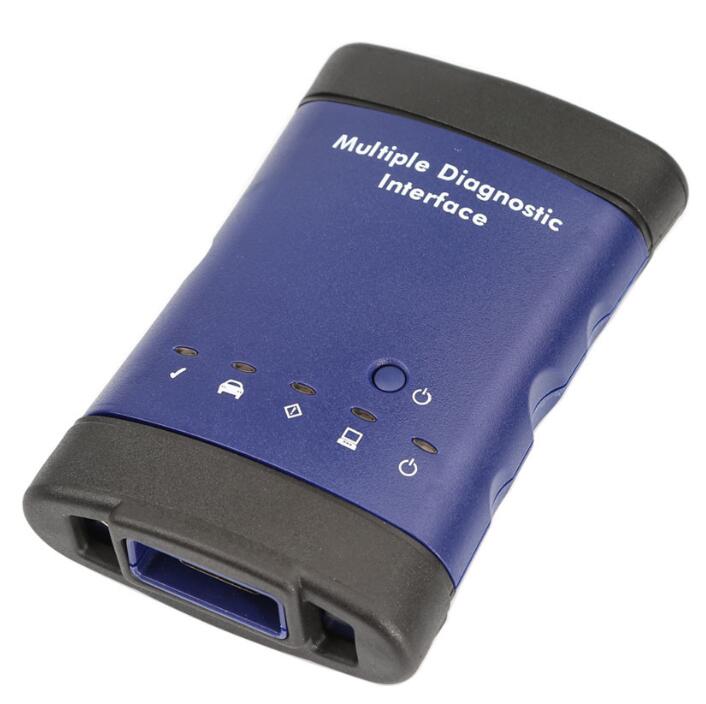

    GM Multiple Diagnostic Interface (MDI)
    All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
    Needed for Global A architechture vehicles
    Supports Service Programming System (SPS)
    Passthrough progrmming on past model and Global A vehicles
    Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
    Includes Flight Recorder Mode

    New Diagnostic Application Software required for Global A Vehicles

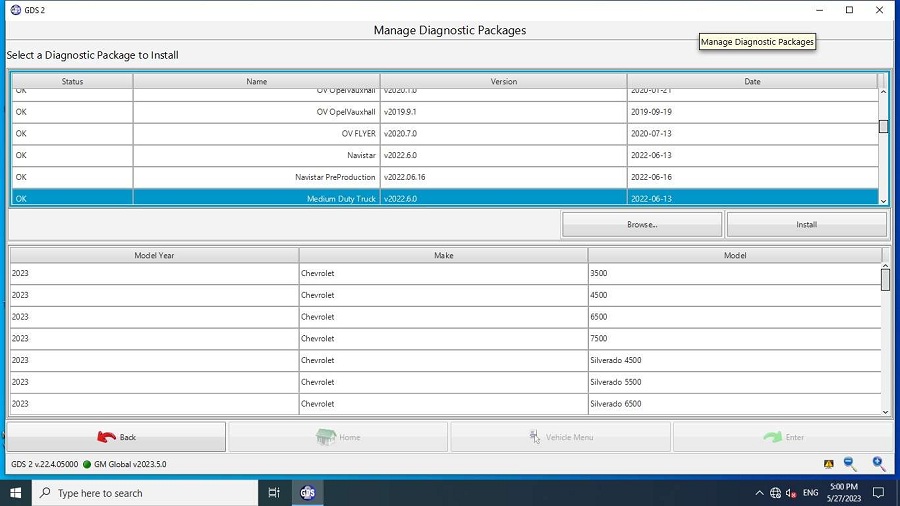

    Global Diagnostic System (GDS)
    PC-based software diagnsotics
    DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
    GDS is software which runs on a specific PC. Updates received via TIS2Web.
    Multiple display options. More space for diagnsotics. Session management for multiple us.

    The Future of the Tech 2
    The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

    HOW WILL THE GM MDI BE USED?
    The new GM MDI can be used only in the Pass-Thru method. This means you can use it as your programming tool, while your Tech 2/CANdi remains available for diagnostics and other duties.

    The GM MDI is initially being introduced with Pass-Thru programming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1996 and will support all vehicles into the future.

    The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.

    Regulations require programming procedures to be compliant with SAE Recommended Practice J2534. The GM SPS is compliant with SAE Recommended Practice J2534, and the GM MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.







    when you test after 2010 year gm car ,you can use gm gds2 software:

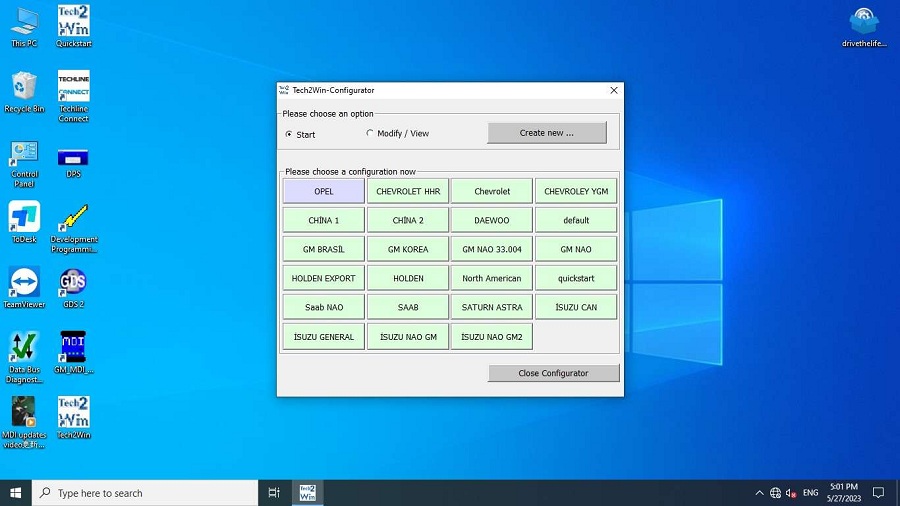

    When you want to test before 2010 year GM car, you can use the techwin software to test it,run fast and stable:










    GM MDI installation

    PC specification require: Full installation version WIN XP3, pls install all the systerm patch (picture 0)

    1: Open the software folder, double click “CD Start”pop-up installation window,and click “install” ( Picture 1)
    2: Pls install the software in order : JAV A.EXEValidat.exe;GMMDI Software.exe;Tech2Win.exe; (picture 2-6)
    3: automatic install all the files above, when have message “ Copying PCMCIA files..”,please don’t touch any keyboard or mouse, just leave it alone, the  GM MDI USB drive will automatic install. (Picture 7-10)
    4: after installation finish, there will be have a message “ press any key to continue…” and pls press any key, and software installation partly finish ( Picture 11)
    5. Pls connect the USB cable to PC ( do not need to connect to the Car OBD at this time), the first time connect USB to PC, the USB drive will be detected on the lower right corner, then choose automatic install, click next to finish.
    6. when USB drive installation finish, on your PC device manager ,you will find a “MDI USB Device(COM...” on Port place. (Picture 12) , if not then pls find the drive on MDI folder on the CD and install, if still not successful, then pls check  if the PC operation is correct or not.

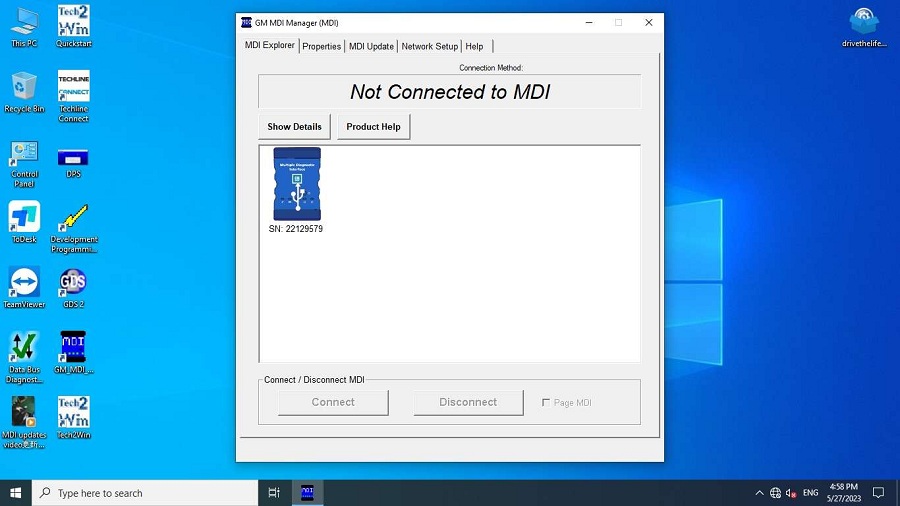

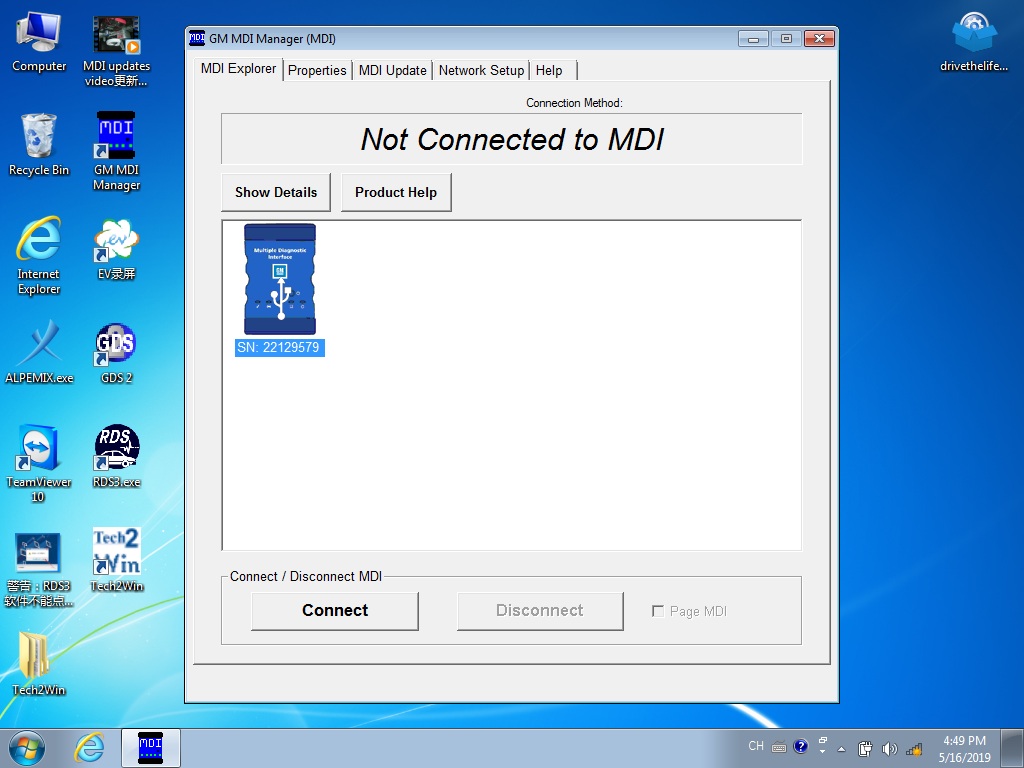

    7. open “GM MDI Menager” on the desk to do connection test (if the USB was correct installed, the red “X” on the dialogue will disappear, if the red “X” still on, then pls repeat steap 6
    8: finish the installation above, pls connect your PC with internet. ( do not connect to the car OBD ) open this website and activate lease.
    http://tis2web.eicp.net:9080/tis2web/after you open this web. Write any user’s name and click ok. All choose OK /continue ( picture 15-17)

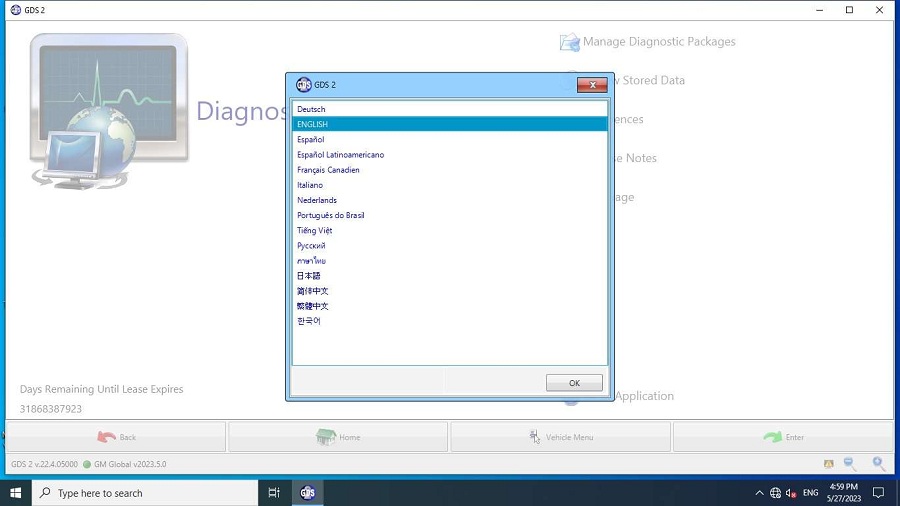

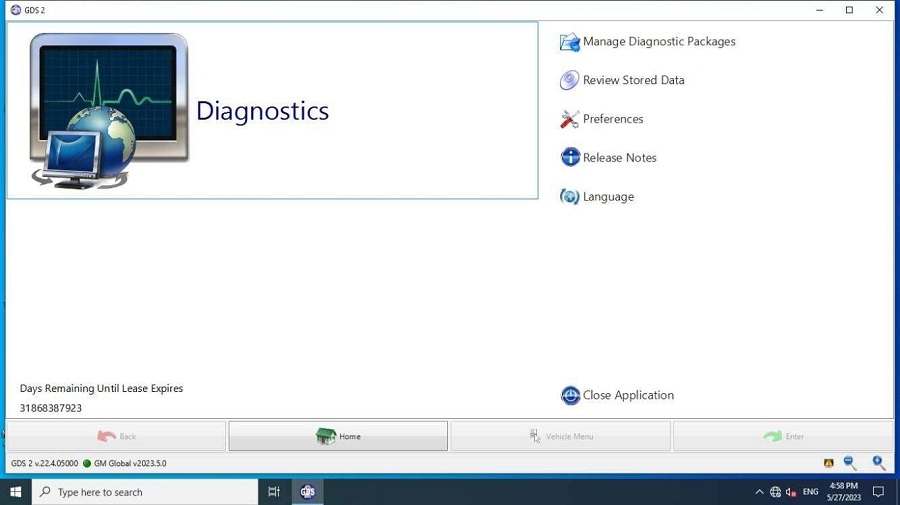

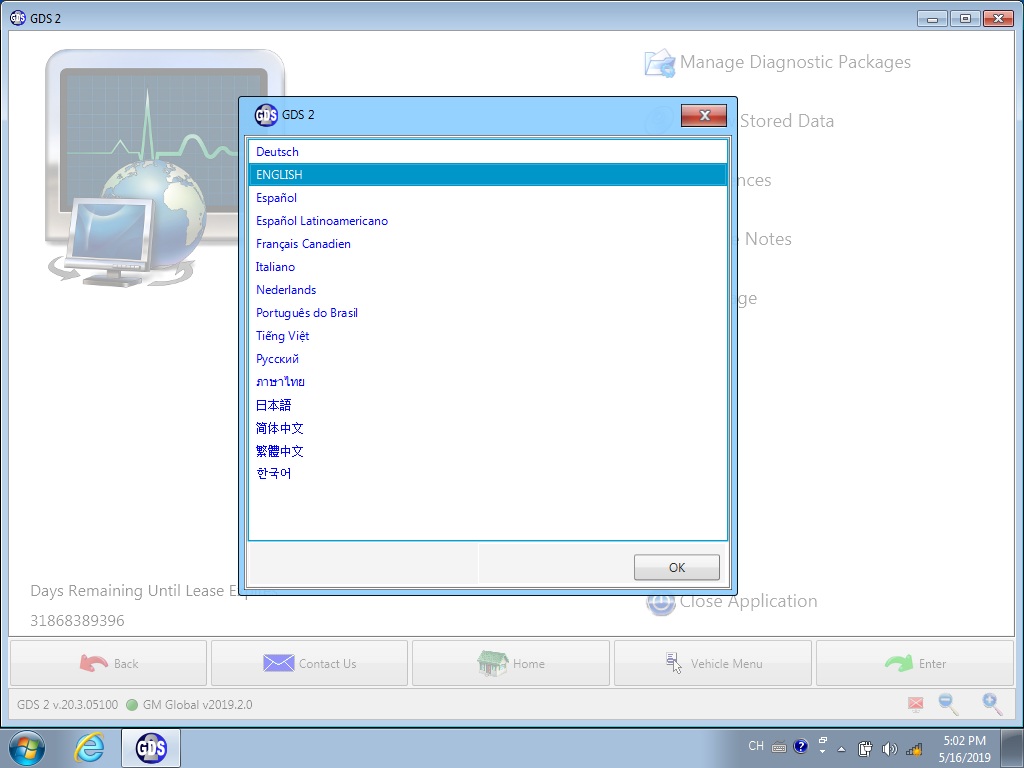

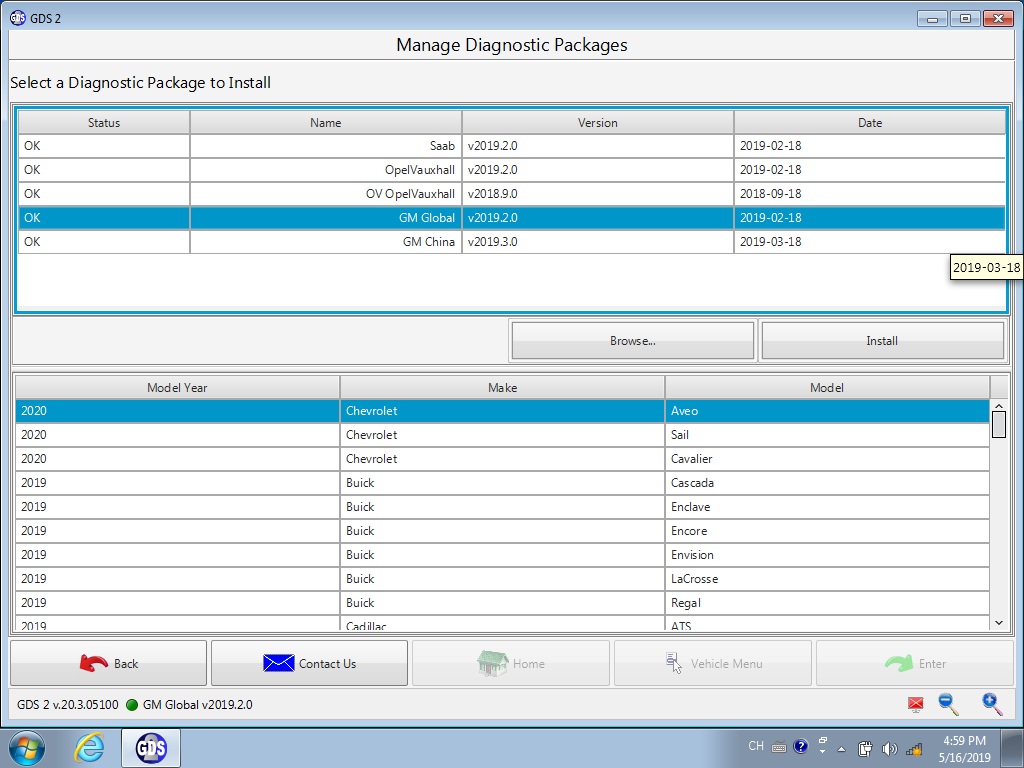

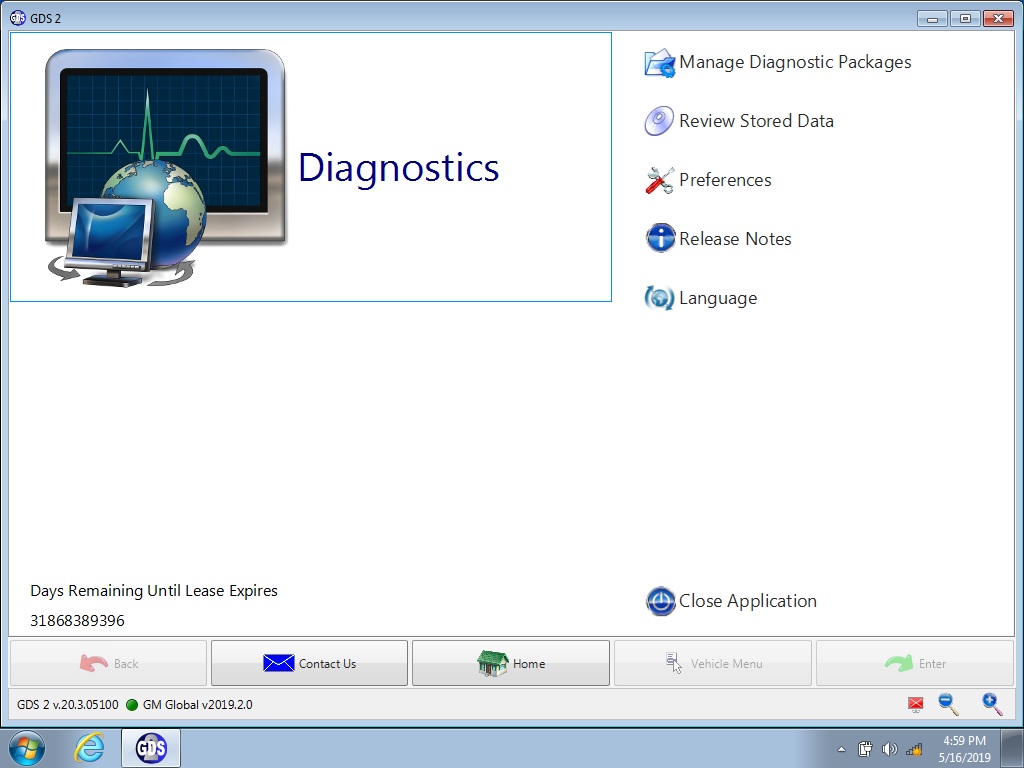

    9: in the main interface, please click “Global Diagnostic System2(GDS 2)” icon, and click GDS2 to run, at that time, software will update lease automatic .after update finish, software GDS2 (Launch GDS2 on the desk) will open automatically , choose the language and back to the main interface.
    Bottom left will have a lease expire time. Be attention, it need only your PC systerm time, don’t change. Afterward we don’t need internet to update lease, so if there have any remind indicate new update available,please do not click update (picture 18-21

    Test steps:

    1: finish update lease step, connect with Car OBD, click diagnostic icon on the interface. Choose brand and click “input” on lower right corner, car information will be read automatically, or you can choose manual input VIN
    2:choose test what you want, like module diagnostic—engine control modual—identifying information ( picture22-27)

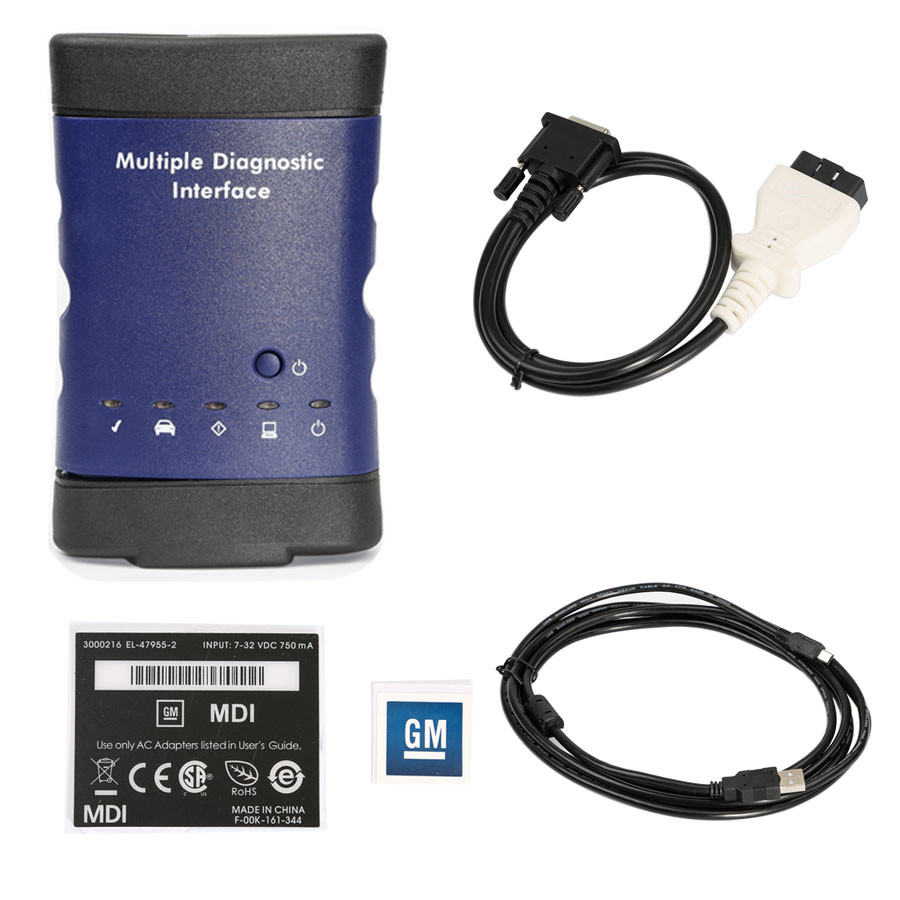

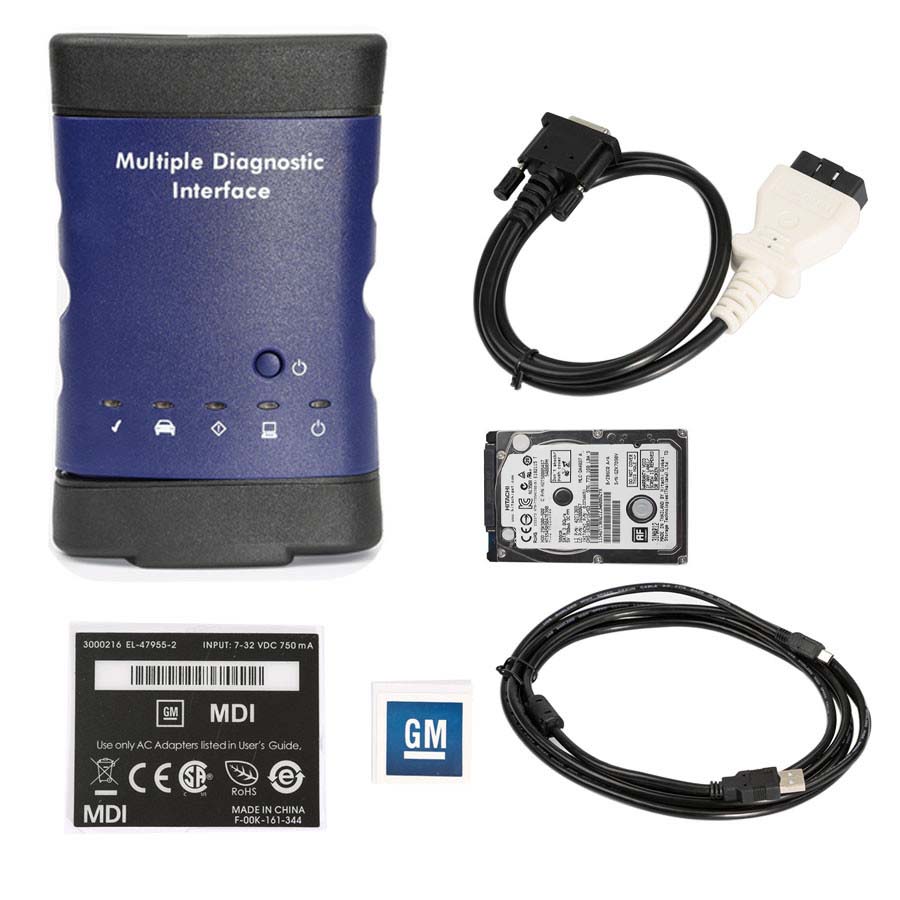

    GM MDI Package List:

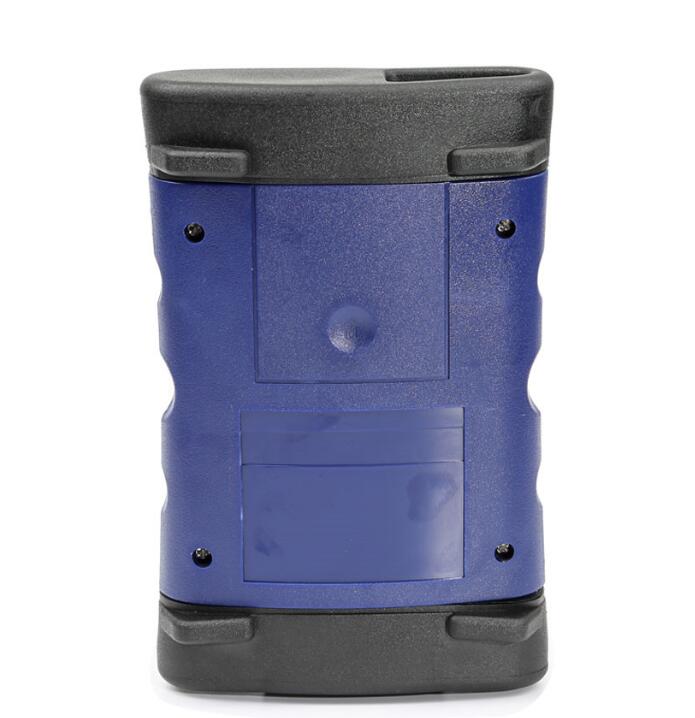

    1.GM MDI main unit

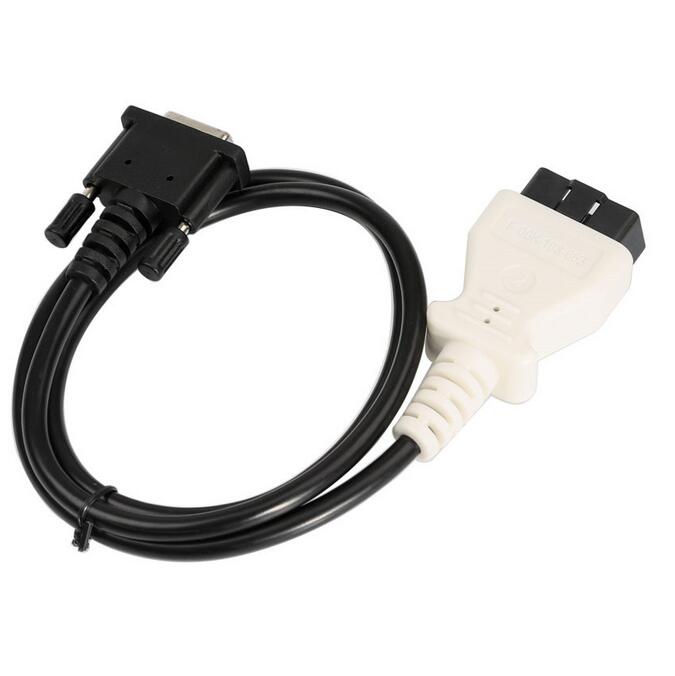

    2.GM MDI DLC cable

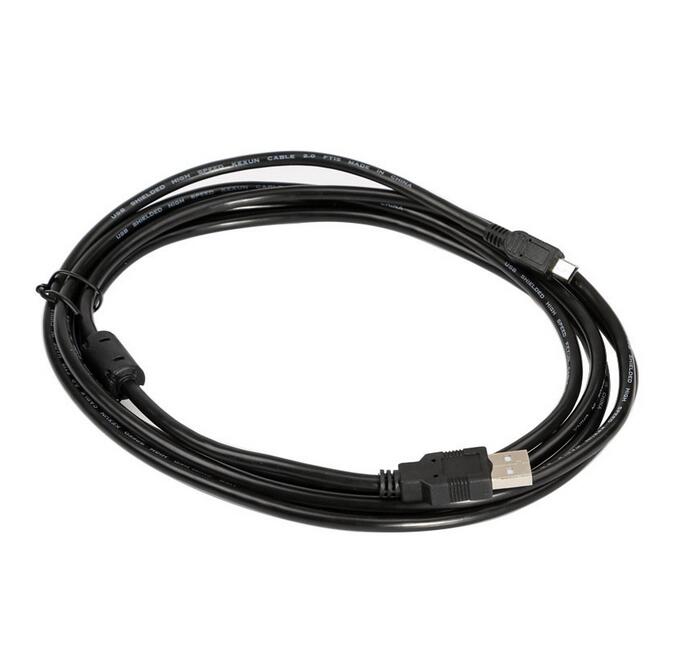

    3.GM MDI USB cable

    4.GM MDI DVD software


    What protocols does the GM MDI support?
    For immediate use — At present, vehicles have two buses on the 16 pin connector
    (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
    - UART
    - Class 2
    - KWP2000
    - GMLAN (CAN)
    Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicles.)



    User Comment(Total 1 User Comment Num)

    • Compras ( Dec 03,2012 )

      Hi! I need to know the weight and dimensions of this product in the box ready for shipping. I live in miami but I'm planning on sending it outside the country and the courier is asking me for this information. Thanks for your help!

      Administrator
      Hello,

      This tool is about 1.5kg,it will come with paper skin 30cm * 15cm * 8cm .

      If suit for your need,welcome you to place an order.
