    GM MDI Scan tool Plus EVG7 Tablet PC V2016.12 Software

    • Item No.  A194-1
    • History: 30  sold
    • Please select :


    • Market Price: US$909.60
      Shop Price: US$758.00You save US$151.60
      Quantity
      Total
    • Quantity:  369
    • Weight:  7.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video


    GM MDI Scan tool Plus EVG7 Tablet PC V2016.12 Software


    Highlights of MDI:
    1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose
    2.Can do cars from 1990-2016.12 Year
    3.
     We already installed all GM MDI software in to EVG7 tablet pc,  after open the EVG7 tablet pc, you can use it immediately

    4.Support 2010-2016 year new cars

    5.Support WIFIoption)


    Notice:

    If you need programming online,  you must have a account.


    EVG7 DL46 Specification:

    Mark : EVG7

    Model : DL46

    Processor : Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)

    DDR : The biggest support memory : 2GB

    HDD : 500 GB SATA HDD. (Can support more than 1 TB capacity )

    LCD : 10.4 Inch The resolution of the 1024x768

    Graphics : touchscreen widescreen LED backlight, the core graphics Intel HD Graphics

    Speakers : Built-in Speakers

    Wireless : 802.11b/g/n

    LAN : The built-in 10-100M card

    Bluetooth : BT2.0 , 4.0

    USB : USB3.0 / Mini USB / 2 x USB2.0

    Card Reader : TF Card Reader

    Other Interface :
    VGA Voice Input / The Sound Output /

    DC Power Jack / Parallel LPT Port I/O

    VGA Output

    Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh

    Power Adapter : 110V-240V The adaptive communication power supply

    Battery Life : The specific time depending on the use environment

    Certificates : CE / FCC /  RoHS


    Newest features for MDI:
    1. With opel Global tis global diagnostic system
    2. With GDS2 diagnostic system
    3. Tech2win diagnostic software support adding latest software
    4. support programming online
    5. support cable communication
    6. support original factory latest software
    7. With European Chevetl Global tis, Supports European Chevet


    Description:
    General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
    Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

    MDI and GDS Background
    MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
    Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
    Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
    Allows for GDS diagnostic



    Language:


    GM Multiple Diagnostic Interface (MDI)
    All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
    Needed for Global A architechture vehicles
    Supports Service Programming System (SPS)
    Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
    Includes Flight Recorder Mode
    New Diagnostic Application Software required for Global A Vehicles
    Global Diagnostic System (GDS)
    PC-based software diagnsotics
    DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
    GDS is software which runs on a specific PC. Updates received via TIS2Web.
    Multiple display options. More space for diagnsotics. Session management for multiple us.

    What protocols does the MDI support?
    For immediate use — At present, vehicles have two buses on the 16 pin connector
    (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
    - UART
    - Class 2
    - KWP2000
    - GMLAN (CAN)

    The Future of the Tech 2
    The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

    HOW WILL THE GM MDI BE USED?
    The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008 -language:AR'>— At present, vehicles have two buses on the 16 pin connector
    (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
    - UART
    - Class 2
    - KWP2000
    - GMLAN (CAN)

    The Future of the Tech 2
    The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

    HOW WILL THE GM MDI BE USED?
    The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008


    when you test after 2010 year gm car ,you can use gm gds2 software:







    When you want to test before 2010 year GM car, you can use the techwin software to test it,run fast and stable:










    Test steps:
    1: finish update lease step, connect with Car OBD, click diagnostic icon on the interface. Choose brand and click “input” on lower right corner, car information will be read automatically, or you can choose manual input VIN
    2:choose test what you want, like module diagnostic—engine control modual—identifying information ( picture22-27)

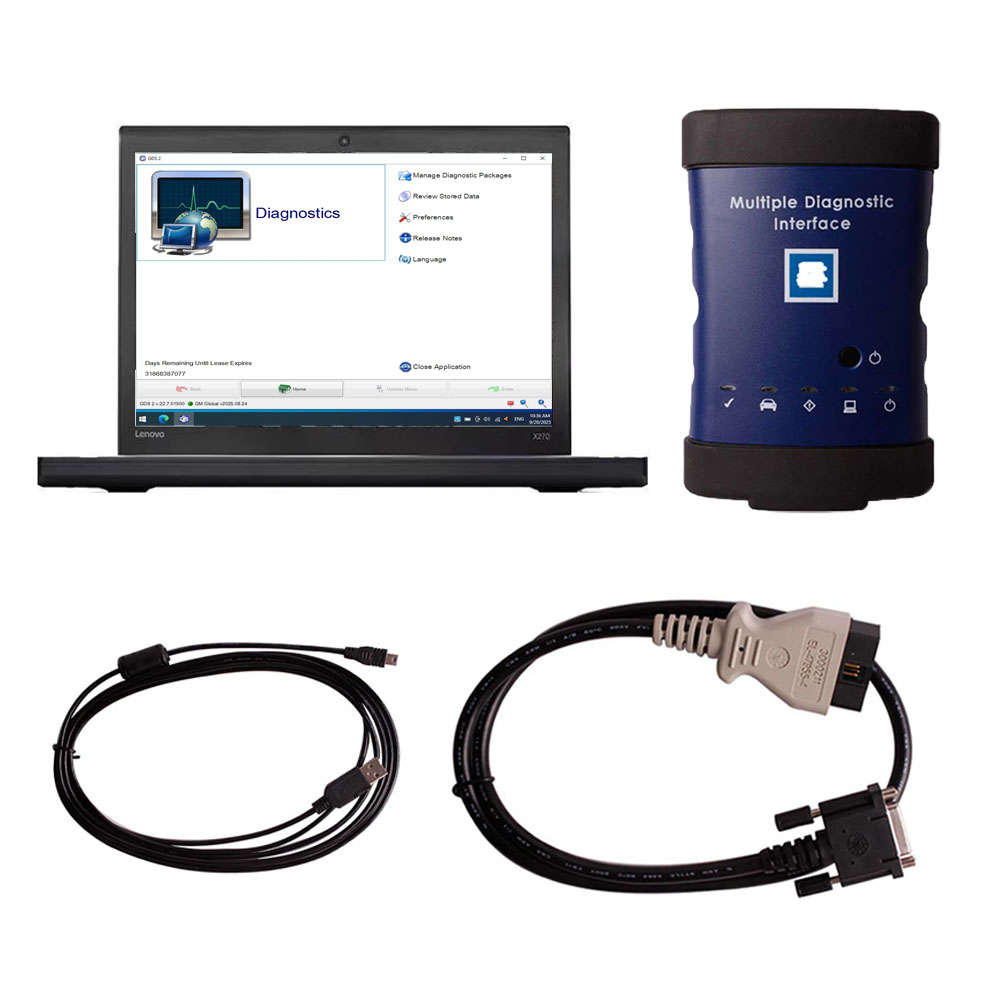

    MDI Scan Tool Package List:
    1pc x MDI Main unit

    1pc x OBD2 Cable
    1pc x USB Cable
    1pc x AC Adapter
    1pc x EVG7 Tablet PC
