    Free shipping CARFANS C800 Heavy Duty Truck Diagnostic Scanner with Special Function

    • Item No.  A407-1
    • History: 24  sold
    • Quantity
      Total
      Shipping:
      Free Shipping
    • Quantity:  Out of stock
    • Weight:  9.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 10 customer reviews
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    CARFANS C800 Heavy Duty Truck Diagnostic Scan Tool with Special Function better than Launch and Autel Heavy Duty Diagnostic Tool



    CAR FANS C800 is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years, and are superior to other similar diagnostic products in the industry. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function (special function, matching settings, functional test, diesel calibration) and so on.


    CAR FANS C800  Feature:

    1.Wide Vehicle Coverage: CAR FANS C800 support 35 Heavy duty brand, 21 BUS Brand, 16 Passenger car Brand, 32 Machinary vehicle brand and 46 ECU System, almost cover all brand heavy duty vehicles in market

    2.Powerful function of software: C800 is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function

    3.Fashionable design of hardware: 7 inch 800 x 480 touch screen, super light main unit, is easy to hold and operate. ARM9 CPU with 4GB memory, the software operation is faster than similar tools

    4.Advance Functions: Adjustment/Settings, Function Test, Special function, calibration.

    5.Online Updating: Log in the official website (www.carfans.net.cn) download and install the C800 intelligent diagnostic device upgrade client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.

    6.ECU Programming & Coding for 5 Brands
    7.2 Years Free Update Online
    8.Support 24 Languages:English,Japanese,Korean,French,Spanish,Portuguese,Italian,Russian, German,Polish,Romanian ,Finnish, Hungarian,Swedish.

    C800 Heavy Duty Scanner Vehicle List:

    Commercial Vehicle: FAW,DONGFENG,Mercedes-Benz,CNHTC, FOTON, SANY, JAC, SFH, CAMC, UD, VOLVO, Mitsubishi, IVECO, MAN, SCANIA, JMC, HINO, ISUZU, SHACMAN, C&C, Hyundai, XCMG, BEIBEN, KIA, KING LONG, YUTONG, HIGER, GOLDEN DRAGON, YOUNGMAN, BYD, ANKAI, DAEWOO, SUNWIN, ZHONGTONG, HUANGHAI, WZL, SUNLONG, TOYOTA, ASIASTAR



    Passenger Vehicle: Mercedes-Benz, Hyundai, VW, Zhonghua, JMC, GreatWall, ZZNISSAN, JAC, ZXAUTO, DONGFENG, LIEBAO, CHERY, FUDI, GONOW, HUATAI, SSANGY, MAXUS, JX-ISUZU


    Machinery: CAT, KOMATSU, VOLVO, SANY, LOVOL, JOHN DEERE, HITACHI, KOBELCO, HYUNDAI, ZOOMLION, CASE, LISHIDE, DOOSAN, SUMITOMO, YUTONG, Bobcat, SHANTUI, LiuGong, IHISCE, XCMG, KUBOTA, Takeuchi, XGMA, Atlas, TEREX, YUCHAI, LONKING, SUNWARD, SEM, Jonyang, PENGPU, YTO, JAC, XINYUAN, DXZG, HENGTE, SANYUAN, HUANGHE, SHUNTONG, STRONG



    Engine &ECU: Bosch, Denso, Delphi, Perkins, Deutz, Weichai, Yuchai, Fawde, Cummins, Yunnei, Changchai, SDEC, DCD, Yangchai, Quanchai, EUP, JX-Isuzu, XCE, Kernel, SIDA



    C800 Truck Diagnostic Tool Function:
    Identification
    Read Fault code
    Erase Fault code
    Actual Values
    Actuators

    Advance Functions:
    Adjustment/Settings、Function Test、Special function, calibration etc.

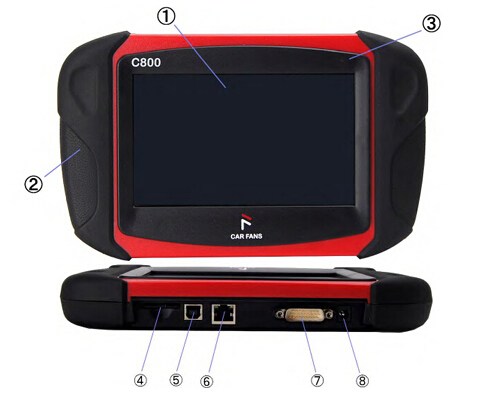

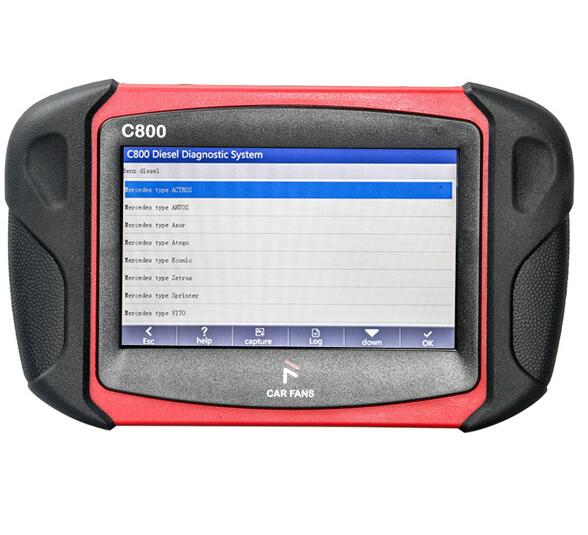

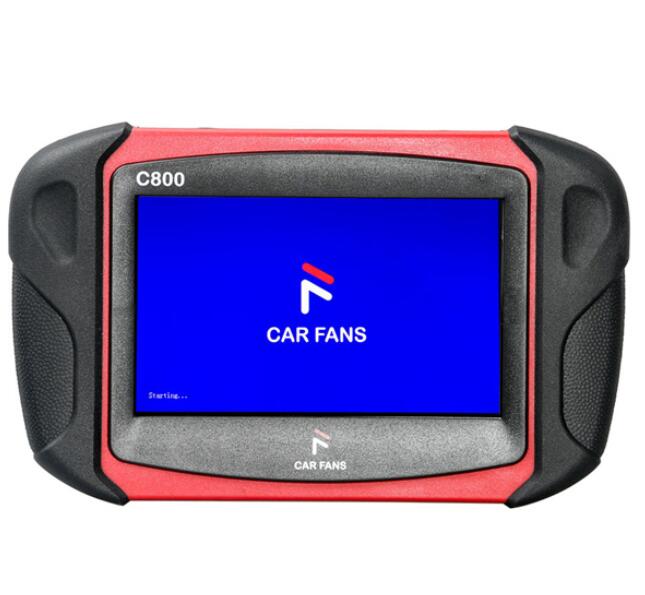

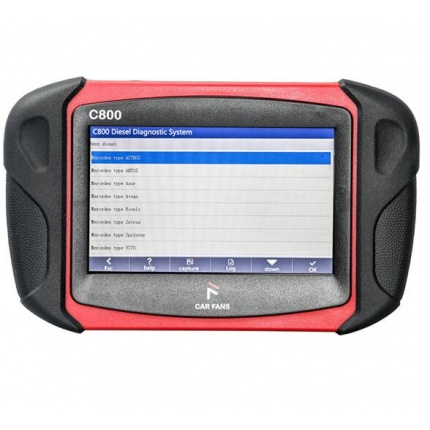

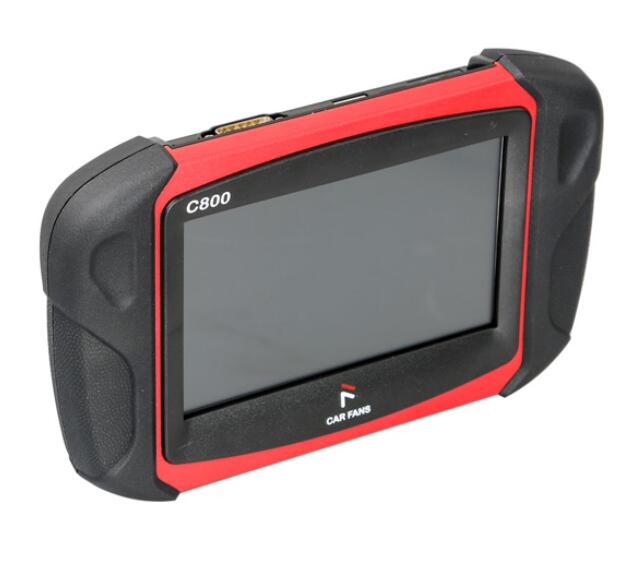

    CAR FANS C800 Main Unit:




    ① Touch Screen:Display the operation buttons, test results and help information.
    ② Rubber sleeve: easy to hand, protect the product, to prevent loosening and wear.
    ③ Power Indicator
    ④SD card port
    ⑤USB port:Used to connect the printer for printing. diagnostic connectors to connect the car.
    ⑥ Network connection port: Reserved.
    ⑦Diagnostic port: provides power, uses diagnostic lines and
    ⑧Power socket: power supply, connection with the car or the vehicle diagnostic port without power supply.


    Diagnosis:
    Euro 5: Cummins,For Weichai,For Yuchai,For Shangchai,For Xichai,For Yunnei,For Foton,For FAW,For JMC,For Qingling, For IVECO,etc.(Read Code, Clear Code,Data Stream, Actuation Test)
    Gas:For WeiChai WoodardNatural Gas system, For WeiChai BOSCH Natural Gas system,For YuChaiNatural Gas system, For FAWDENatural Gas system, For SDEC Natural Gas system, For CNHTC Natural Gas system,For Nanchong Natural Gas system, For Cummins Natural Gas system, etc.
    Machinery:Engine and Hydraulic diagnosis on Caterpillar, For KOMATSU, For VOLVO, For SANY,For HITACHI,For Hyundai, etc.
    Post-processing:Urea pump drive/injection test:For BOSCH,For Kailong,For ACT BLUE,For Tenneco,For Henghe,For Bjcats,For CNHTC,For SHACMAN, etc.
    ABS:For WABCO,For Kormee,For BOSCH,For WanAn,For HongDing,For Cnhtc,For YaTai,For FAW,For Qinqi,For FAW,For DELPHI,For JingxiHeavy,For Knorr,For DongFeng ,etc.

    ECU Reprogram:
    1.support all Euro 3 Bosch EDC 7 across the bottom of the brand reprogram;
    2.support all Euro 4 Bosch EDC17 bottom cross-version reprogram;
    3.support EDC16UC40 bottom reprogram (Dongfeng, Xichai, Yuchai, Cha Cha, cloud, etc.);
    4.support the country 4 Bosch EDC17 ECU read reprogram write data, the country 3 Bosch EDC7 / EDC16 read and write;(Weichai, Xichai, Yuchai, Chaichai,   Dachai   , Dongfeng, cloud, on the red, heavy truck, Valin, Fukuda, JAC, the whole firewood, Chai Chai, Yang Chai, etc.)
    5.support the Hino Denso, on the diesel and other equipment,
    6.support Weichai country 5, the country 6 ECU reprogram write, Yuchai 5 ECU reprogram to write;
    7. support CBCU reprogram: China National Heavy Duty Truck, Fukuda Auman, etc.
    8.support DCU reprogram to write: Tenneco, Hino, Weichai autonomy;

    Calibration:
    For Weichai,For  Xichai, For Yuchai,For  Cha Chai,For  Dafa,For  Dongfeng, For cloud, For heavy truck, For Valin,For  Fukuda, For JAC, the whole firewood, on the firewood, For Yang Chai and other engine calibration function (Euro III IV Bosch EOL) :(Idle speed adjustment, clutch switch, main and auxiliary brake switch, the maximum speed adjustment, preheat control, exhaust brake, fuel oil alarm, starter control, air conditioning control, cruise control, Car start and stop switch, oil pressure sensor, oil in the water sensor, fuel oil alarm, engine alarm light, PTO speed, K value, intake preheat, bridge speed ratio, etc.)
    the exclusive starting Bosch  4, the Euro 5 post-processing history fault removal function
    the exclusive starting the highest speed adjustment calibration function, support Bosch / Cummins 4, the Euro 5 and CBCU (heavy truck, Dongfeng,liberation, on the red)
    the Euro 4, the Euro 5 urea injection temperature setting function, used to reduce the consumption of urea (support For  Weichai,For  FAW,For  Xichai,For  heavy truck,For Yuchai,For  Chai and other DNOX 2.2 / 6.5)
    the new For  Weichai,For  Yuchai, For Dongfeng,For  Cummins and other nitrogen sensor test calibration function (test nitrogen and oxygen sensor is good or bad)
    China National Heavy Duty Truck CBCU, CBCU3 system calibration,For  Weichai Euro five engine calibration; Cummins Euro five all the calibration function


    CAN FANS C800 Software Update:

    C800 use PC software to upgrade, log in the official website (www.carfans.net.cn) download and install the C800 intelligent diagnostic device upgrade client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.Detailed upgrade steps, please log in the official website (www.carfans.net.cn) view the product upgrade process.


    CAN FANS C800 Heavy Duty Diagnostic Tool Technical Parameters:
    CPU: ARM9
    SD Card: 4G Maximum Support 32GB
    Communication port: OBD,USB
    Input voltage: 7-32V
    Power: <10W
    Screen: 7 inch 800x480 touch screen
    Operating temperature: -10~45°C
    Storage temperature: -15~50°C
    Operation method: Touch


    CARFANS C800 Heavy Duty Scanner Menu & Function Display:

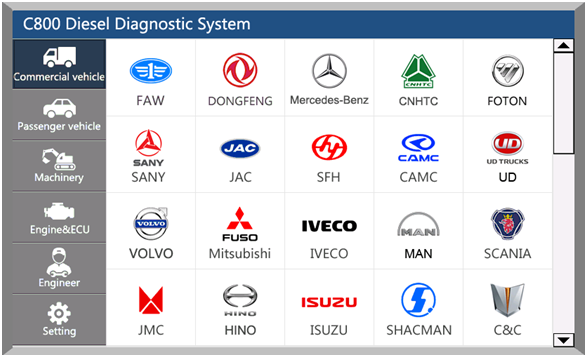

    Commercial vehicle

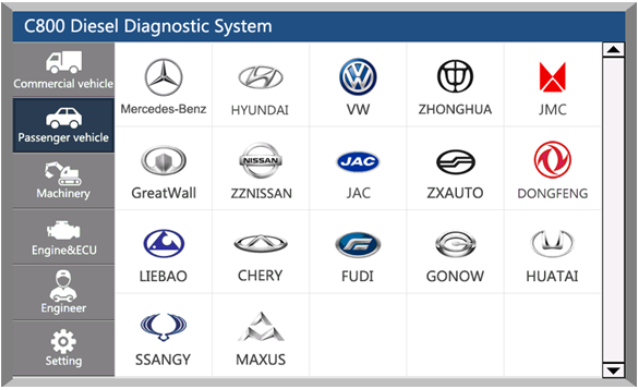

    Passenger vehicle

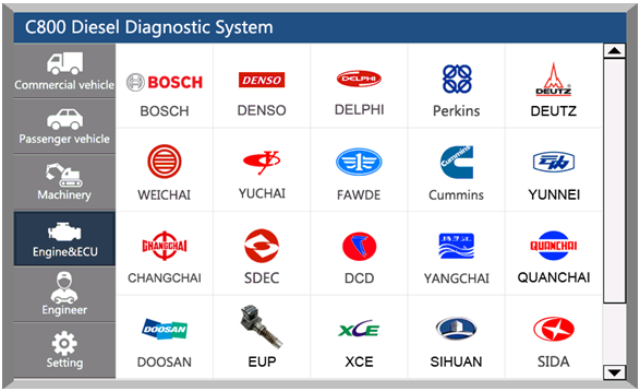

    Engine &ECU

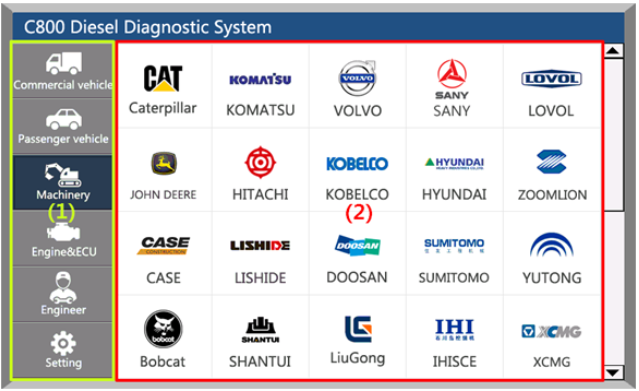

    Home interface

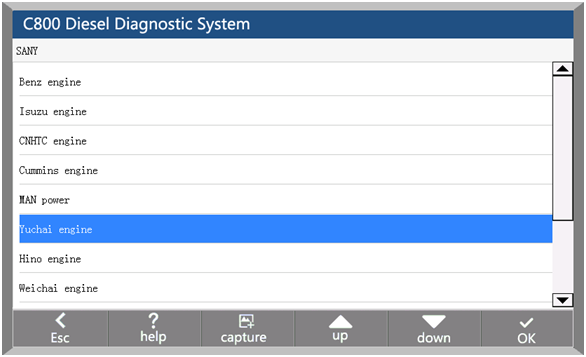

    System selection interface

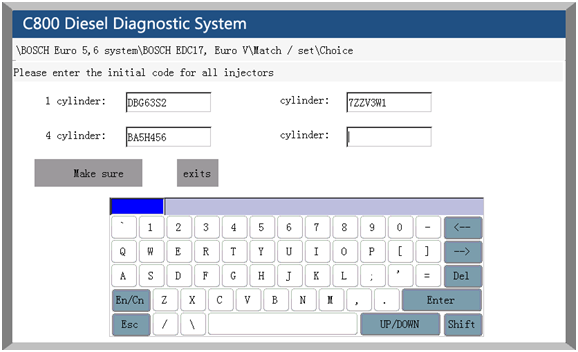

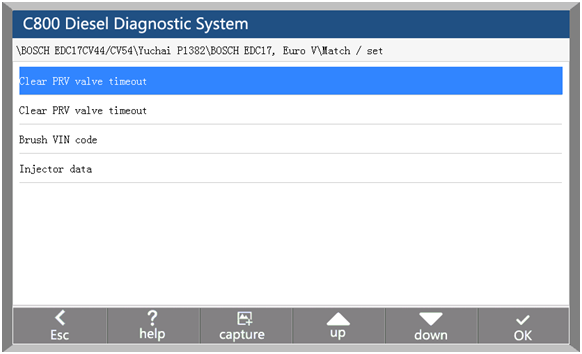

    Advanced Function- Adjustment/Setting


    Special Function-Coding interface

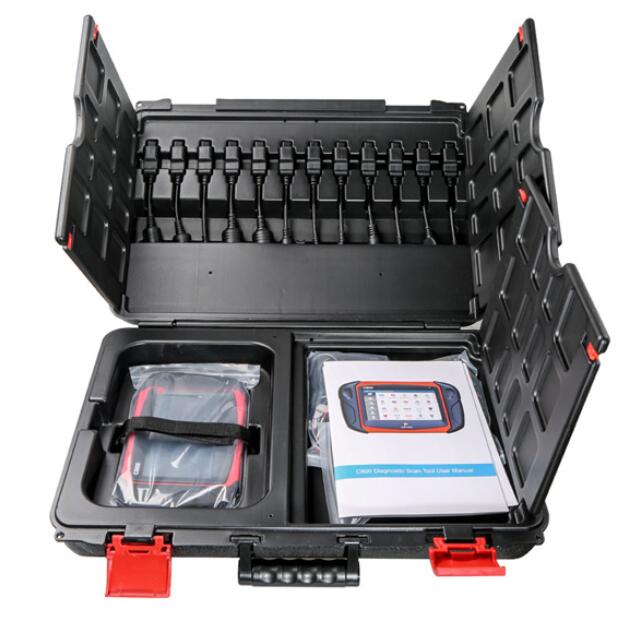

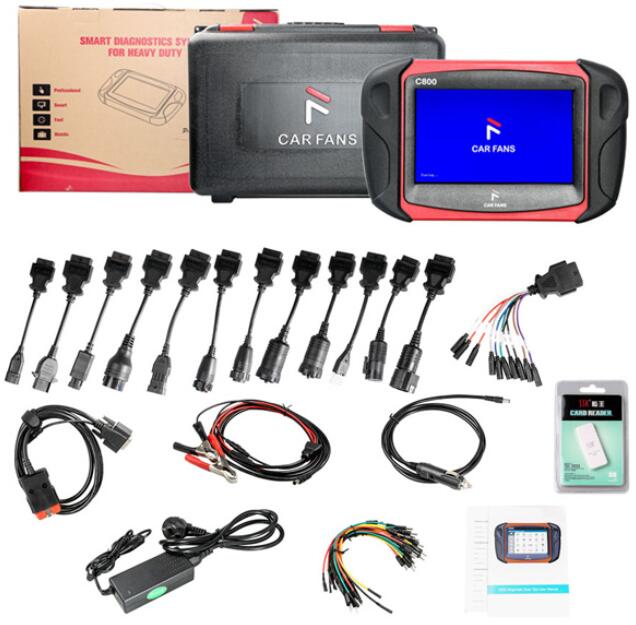

    CAN FANS C800 Package list:

    Material name

    Volume

    Power extension cord

    1

    Battery clip supply line

    1

    Cigarette lighter supply line

    1

    SD card

    1

    SD card reader

    1

    Test extension cord

    1

    Power adapter kit

    1

    C800 device

    1

    C800 carry case

    1

    OBD16PIN Circular adaptor

    1

    CUMMINS-9

    1

    IVECO-38

    1

    BENZ-14

    1

    KOMATSU-12

    1

    VOLVO-14

    1

    VOLVO-8

    1

    CAT-9

    1

    Multi-function jumper adaptor

    1

    C800 user manual

    1

    CUMMINS-6

    1

    MITSUBSHI-12+16

    1

    DENSO-12

    1

    WIT-3

    1

    ISUZU-20

    1

    HITACHI-6

    1

    HITACHI-4

    1

    MAN-37

    1

    MAN-12

    1

    RENAULT-12

    1
