    OBDSTAR P001 Programmer RFID Adapter & PCF79XX Renew Key & EEPROM 3 in 1 Work with OBDSTAR X300 DP Master IMMO for VW/AUDI



    P001 Programmer Support Vehicle List:
    IMMO for VW AUDI SKODA SEAT 4 & 5 GEN (Same function as the RFID Adapter)
    The 4th and 5th generation for the programming of VW/AUDI/SKODA/SEAT are added as follows:
    1. CDC+24C32 Types
    2. NEC+24C32 Types
    3. 2013 Johnson Types;
    4. Motorola 9S12XHZ512 Types;
    5. NEC+24C64 Color Screen- Type 1
    6. NEC+24C64 Color Screen- Type 2
    7. NEC+24C64 White Screen Type
    8. NEC+24C64(VDO -12)Type
    9. NEC+95320 Type
    10. NEC+35XX Type
    11. Magotan/ CC Type
    12. Q7/A6L(C6)9S12DT(G)128 Type
    13. Q7/A6L(C6)9S12DT(G)256 Type
    14. Lifan Marvell models are added, which includes Add/Clear Keys, Program/Delete ESCL functions.
    15. Jiangling MU-X models are added as key programming and key clearing.

    Renew Used Key to be Blank One for Programming New Key. ( Same Function as the PCF79XX Renew Key adapter)
    Audi
    5th generation immo

    Board 233.453.111-02
    315MHZ 8T0959754A
    315MHZ 8T0959754C
    315MHZ 8T0959754J

    Board 233.453.111-05/06
    315MHZ 4G0959754G
    315MHZ 4G0959754J
    315MHZ 4H0959754G
    315MHZ 4H0959754J
    315MHZ 8T0959754A
    315MHZ 8T0959754C
    315MHZ 8T0959754G
    315MHZ 8T0959754J
    433MHZ 8T0959754
    868MHZ 4G0959754K
    868MHZ 4H0959754K
    868MHZ 8T0959754D

    Board 233.453.211-01/02
    315MHZ 4G0959754J
    315MHZ 8H0959754DB
    315MHZ 8K0959754
    315MHZ 8K0959754C
    315MHZ 8K0959754G

    BMW
    E chassis
    ono-original key_OEM_KEY
    original key_315MHZ
    original key_868MHZ

    F chassis
    315MHZ
    IN-Circuit-5WK49663
    IN-Circuit-HUF5662
    434MHZ
    IN-Circuit-5WK49662
    IN-Circuit-HUF5663
    IN-Circuit-HUF5767
    868MHZ
    IN-Circuit-5WK49661
    IN-Circuit-HUF5661

    Porshe
    315MHZ
    7PP959753BM
    7PP959753BQ
    433MHZ
    7PP959753BN
    7PP959753BS
    7PP959753AJ
    Peugeot
    21676652
    E25CI009
    E28CI01B
    E33CI002

    VW
    Touareg
    433MHZ 7P6959754AO
    868MHZ 7P6959754L
    868MHZ 7P6959754AT

    Volvo
    smart card
    900MHZ
    5WK49266

    Chrysler
    1YZ-C01C-ChipMarking
    567_738_031
    Keylessgo 567_373_061
    IN-Circuit-0HT692427AA
    IN-Circuit-0HT692713AA
    IN-Circuit-K0B0T04A
    IN-Circuit-M3N5WY72XX
    IN-Circuit-M3N5WY783X

    Renault
    double button   433MHZ ChipMarking 2244706
    remote control 433MHZ ChipMarking F7945MC2200
    smart card 433MHZ ChipMarking F7953MC2200
    smart card 433MHZ ChipMarking 049621C03

    Landrover
    315MHZ YWX000061
    315MHZ YWX000071
    smart key 434MHZ 5E0U40247

    Opel
    double button  433MHZ 13500235
    triple button 433MHZ 13500234
    Corsa double button 433MHZ 13188281
    Corsa triple button 433MHZ 13188284
    Astra/Zafira double button 433MHZ 13149645
    Astra/Zafira double button 433MHZ 13149658

    Kia
    Keylessgo_ChipMarking 049620C03
    7952CMFCH02
    CMFEU03
    HMFEU04
    HMFKR04
    HMFNA04

    Mitsubishi
    434MHZ G8D_644M_KEY_434MHZ_F7952A

    GM
    Buick smart key 315MHZ
    Keylessgo_13500224_13584825_5keys
    Keylessgo_13500225_13584825_4keys

    Cadillac smart key 315MHZ
    Keylessgo_NBG009768T

    GM samrt key
    433MHZ Keylessgo_3keys
    433MHZ Keylessgo_4keys
    433MHZ Keylessgo_5keys

    Chevrolet
    double button 433MHZ 13500218
    four button 315MHZ 13500222
    five button 315MHZ 13500221
    smart card 315MHZ
    Keylessgo_13500318_13584828_4keys
    Keylessgo_13500319_13584829_5keys

    Hyundai
    Keylessgo_ChipMarking 049620C03
    7952CMFCH02
    CMFEU03
    HMFEU04
    HMFKR04
    HMFNA04

    Citroen
    21676652
    E25CI009
    E28CI01B
    E33CI002

    EEPROM Function Supported Models List (Same as the EEPROM Adapter)
    Add 24C01/02/04/08/16/32 chip read/write/save/recovery data function;
    Add 93C46/56/66/76/86 chip read/write/save/recovery data function;
    Add 25010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
    Add 95010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
    Add Audi security code read function;
    Add Baic E150, E130 security code read function;
    Add Buick security code read function;
    Add Cadillac SLS, SRX security code read function;
    Add Changan CM8, Yue xiang, Zhi xiang,benben security code read function;
    Add Changhe security code read function;
    Add Chery STEC immobiliser and DIAS immobiliser security code read function;
    Add Chevrolet Cruze, Trax security code read function;
    Add Chrysler security code read function;
    Add Citroen Elysee security code read function;
    Add Dflz and security code read function;
    Add Dfpv S3 security password read function;
    Add Geely Emgrand security code read function;
    Add Great Wall security code read function;
    Add Hafei security code read function;
    Add Hnmazda security code read function;
    Add Hawtai security code read function;
    Add Huapu security code read function;
    Add MG3 security code read function;
    Add Jiangling security code read function;
    Add Liebao security code read function;
    Add Skoda security code read function;
    Add VW security code read function;
    Add Zznissan security code read function;
    Add Zotye to security code read function;
    Note: Need to remove the EEPROM chip read password

    P001 Programmer uses dual coils with stronger signal, supporting a wider range of RFID. It is also required in recent model upgrades, as follow:
    Ferrari 458/F12/F149;
    Maserati mechanical key;
    Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
    Iveco;
    Alfa Romeo;
    Volkswagen MQB;
    Toyota  simulated cards;
    BMW;
    Porsche

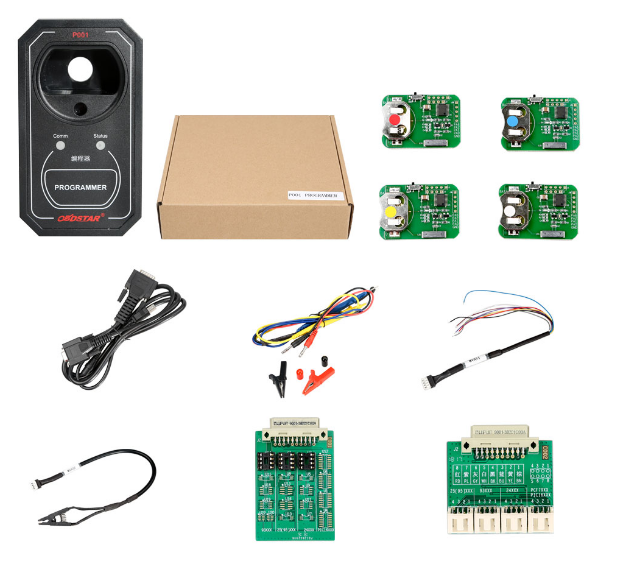

    Package list:

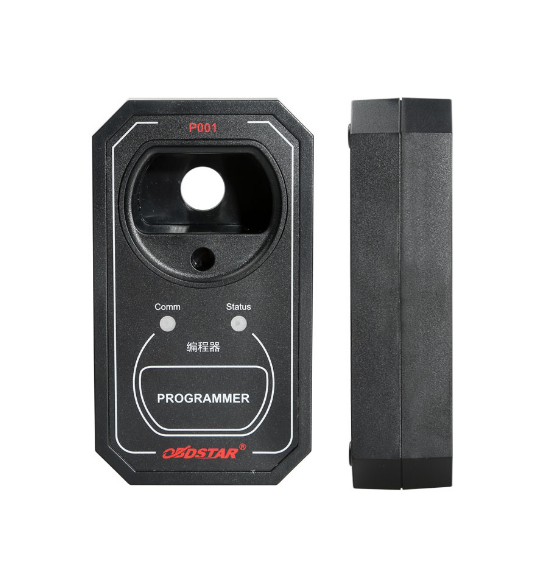

    P001 Programmer Unit

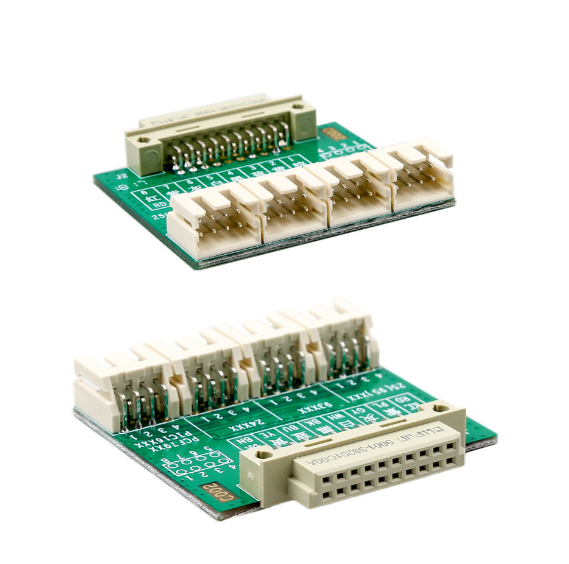

    C001 circuit board
    C002 circuit board
    W001 data cable
    W002 data cable
    W003 data cable
    Toyota simulated smart keys (free)
    Remark: Customer purchasing P001 programmer can obtain a set of Toyota simulated smart keys for free.


    FAQ:
    1. Why use a Toyota simulated smart key?
    For the Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be replaced. The cost is very high!
    This Toyota simulated smart key can generate a Toyota key with P001 programmer in the case of all keys lost, so the ignition switch can be turned on, and then a new smart key can be added and programmed with P001 Programmer.

    2. What are the advantages of the Toyota simulated smart key?
    Save costs
    Reusable.

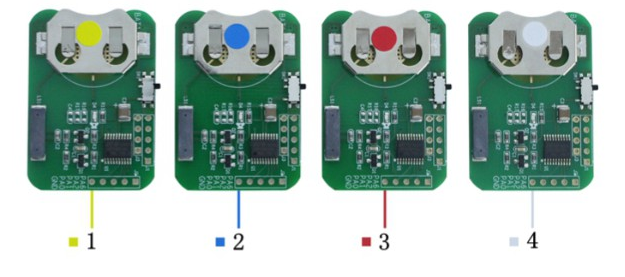

    3. How many types of Toyota simulated smart keys in total?
    There are 4 types at present, and the 5th one is in development.

    4. Which type of smart keys can be simulated?
    Simulated key 1 applies to the vehicle with 94/D4 type of smart key;
    Simulated key 2 applies to the vehicle with 98 type of smart key;
    Simulated key 3 applies to the vehicle with 88/A8 type of smart key;
    Simulated key 4 applies to the vehicle with A9 type of smart key;
