    OBDSTAR X300 DP PLUS PAD2 A/B/C Configuration Immobilizer+Special Function +Mileage Correction

    • Item No.  T235-16
    • History: 34  sold
    • A/B/C Configuration Package:



    • Market Price: US$1,627.20
      Shop Price: US$1,356.00You save US$271.20
      Quantity
      Total
      Shipping:
      Free Shipping
      continue
    • Quantity:  235
    • Weight:  4.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 6 customer reviews
    • This goods is Free shipping!

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    OBDSTAR X300 DP PLUS PAD2 A/B/C Configuration Immobilizer+Special Function +Mileage Correction Supports ECU Programming & Toyota Smart Key

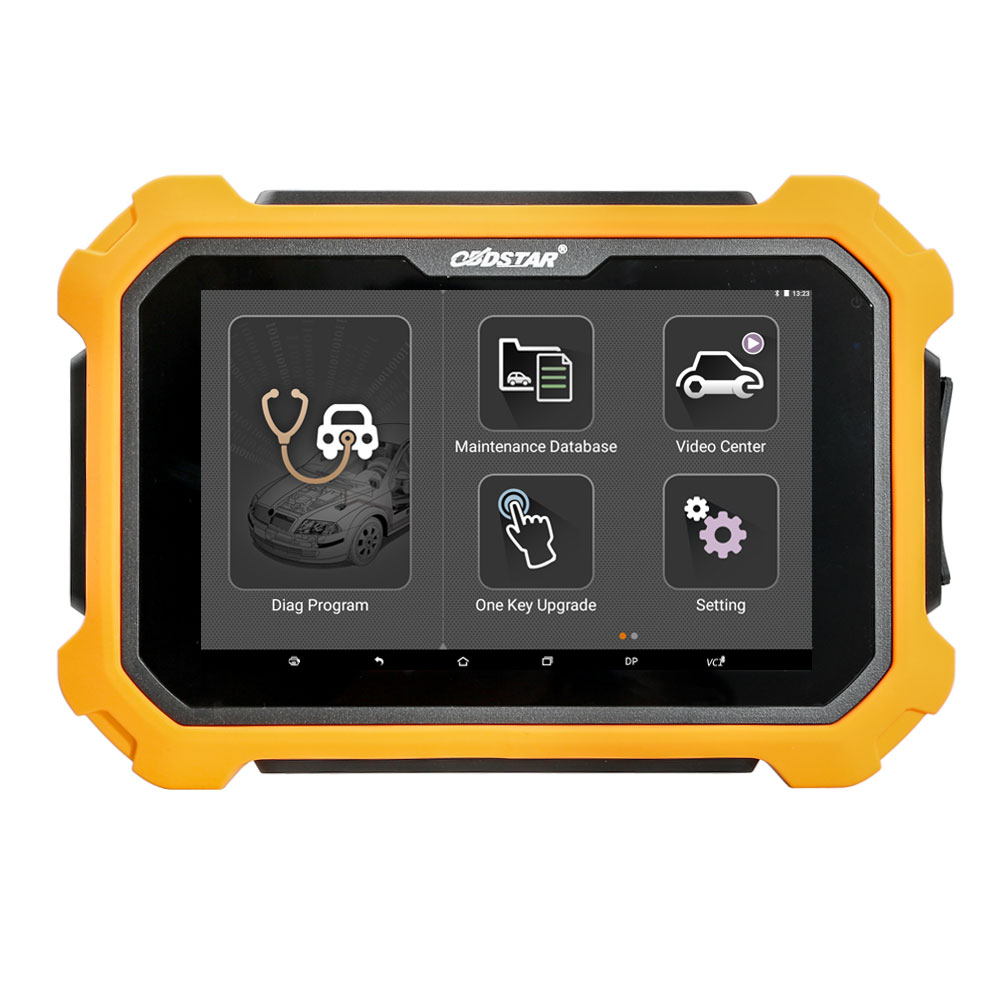

    This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.


    Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.



    OBDSTAR X300 DP Plus CONFIGURATION C Fucntion Coveage:

    1.Immobilizer key programming

    2.Pin code BSI Service

    3.Mileage correction

    4.OBD2/EOBD Basic engine Diagnosis

    5.Oil Service reset

    6.ABS Bleeding Service

    7.Battery matching

    8.ECU programming

    9.EPB Service

    10.Throttle programming

    11.Airbag rest

    12.TPMS

    13.SAS Steering angle rest

    14.DPF Service Reset

    15.Injector coding

    16.Supension matching

    17.Gear learning

    18.CVT learning

    19.EEPROM

    20.Key renewing

    21.ECU cloning

    22.Adapter P001 programmer

    23.C001/C002  circuit board

    24.W001/W002/W003 data cable

    25. for Toyota smarkt key emulator

    26.Ignition coil test

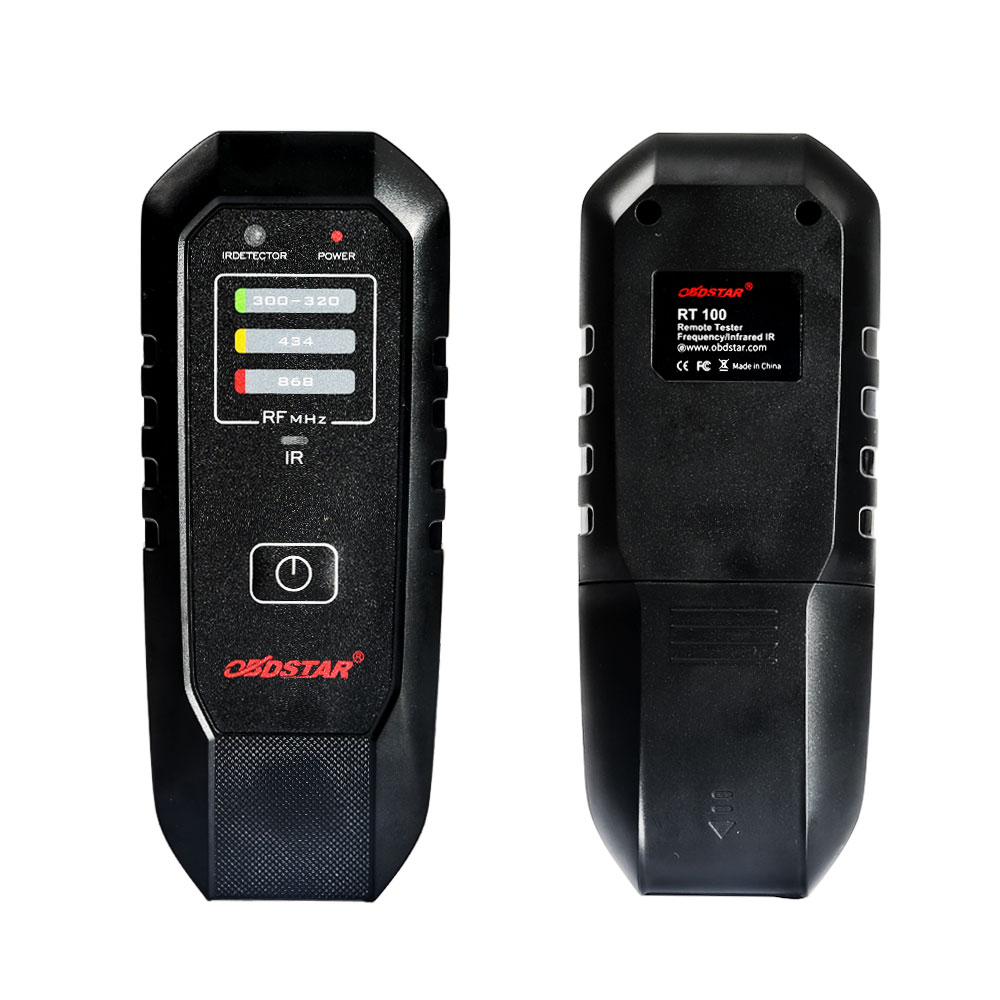

    27.Remote key test

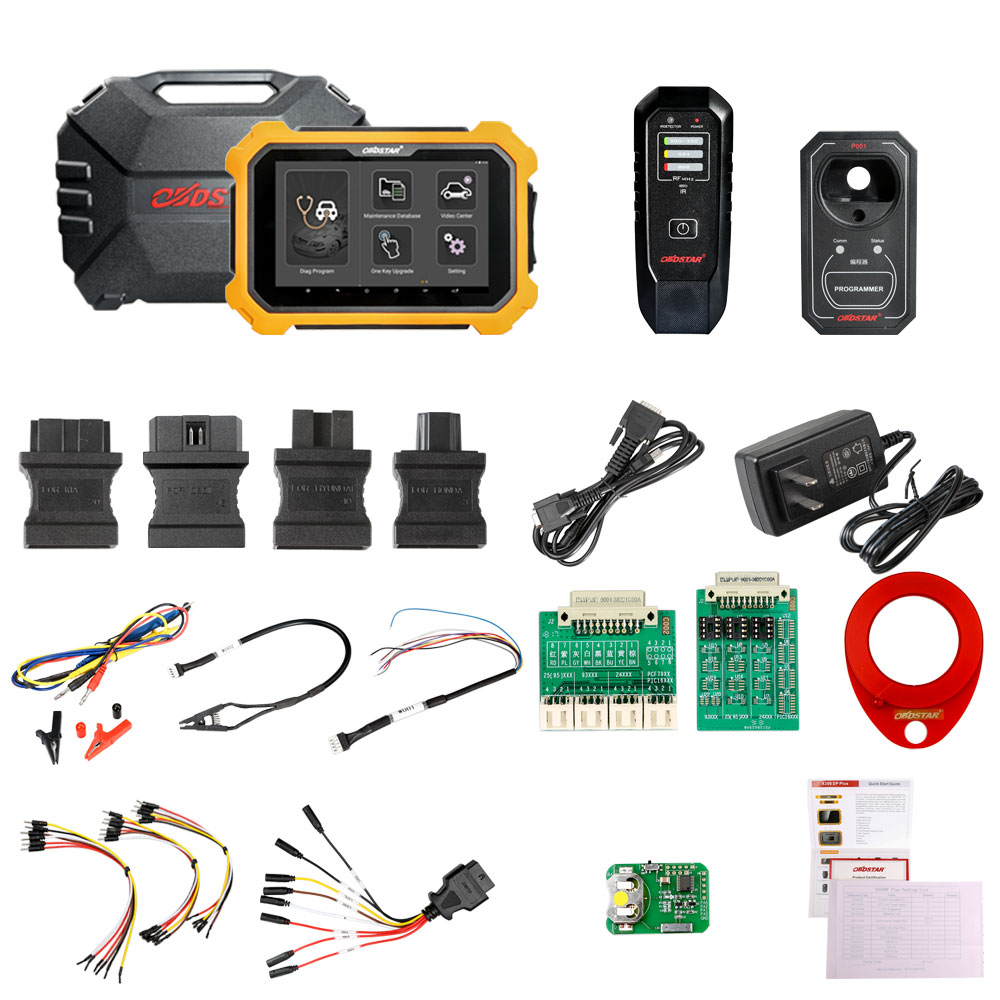

    OBDSTAR X300 DP Plus X300 PAD2 A Package:

    Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

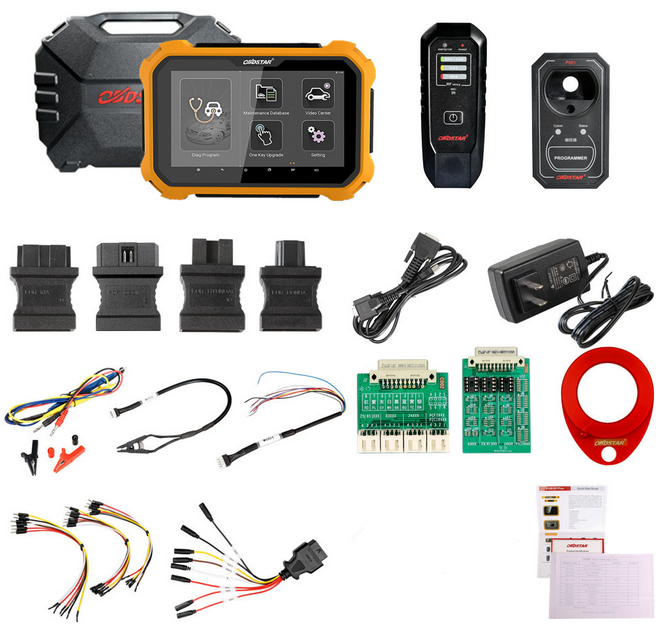

    OBDSTAR X300 DP Plus X300 PAD B Package:

    Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

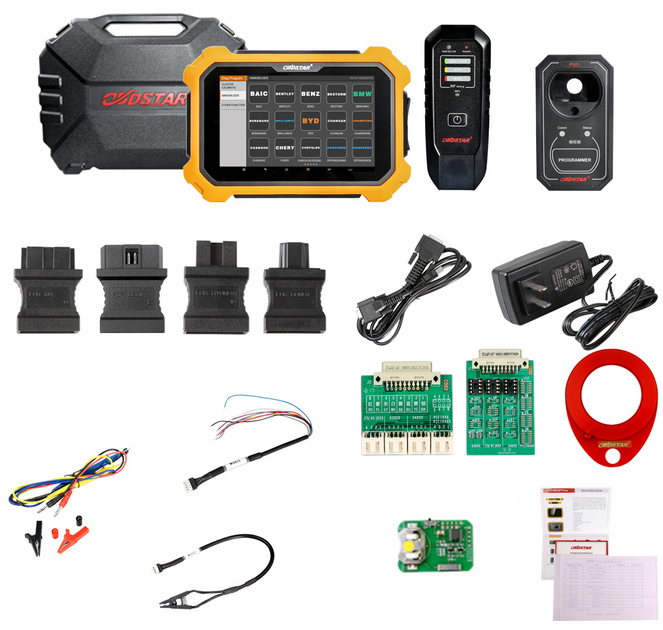

    OBDSTAR X300DP X300 DP Plus C Full Package

    Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

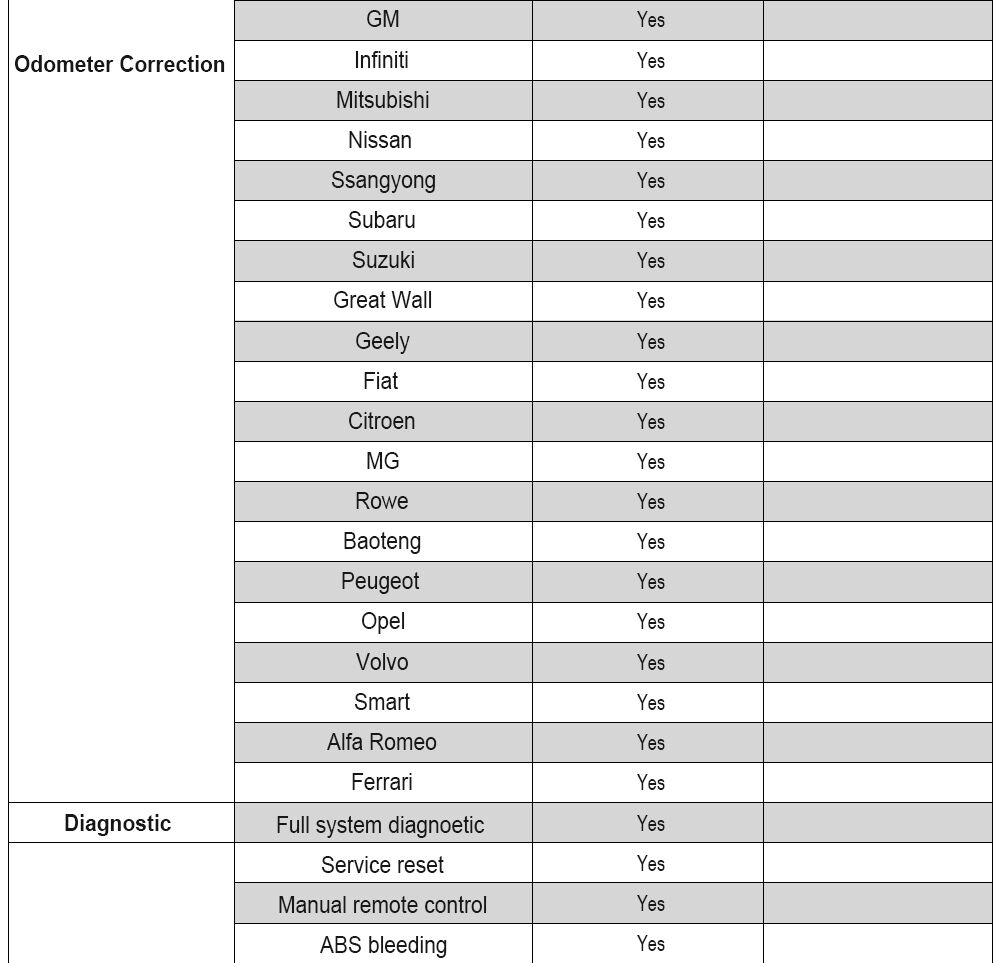

    CAR List:
    Different product  configuration leads to the different testable vehicles.
    If you have any question about the testable list, please do feel free to contact us.
    http://en.obdstar.com/car.html


    OBDSTAR X300 DP Plus Features:
    1. Clone ECU
    Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
    When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
    ECU clone Pros :
    No need to go to 4S shop, convenient, fast and save money.
    Simplify the operating steps, even the amateur can also operate.
    No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

    2. Switch activation function
    Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
    However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.



    3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
    Testable car models: The user can read the testable car models and year.
    Update notice: The user can read all of the update content.
    Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
    Help instruction: Built-in the guide and instruction for each car model or function.

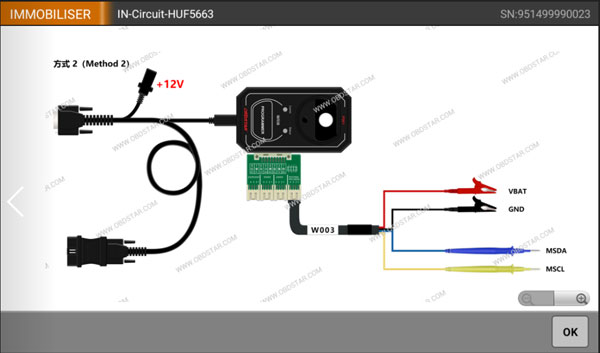

    Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.


    4. Maintenance database: equipped with powerful database.
    5. Video center: large amount of videos help users to operate device easily.
    6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
    7. System setting: set VCI formation, language, unit, data logging, user information etc.
    8. Remote assistance: achieve remote assistance by this function.
    9. Report center: record maintenance data logging and create reports during operation.
    10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.

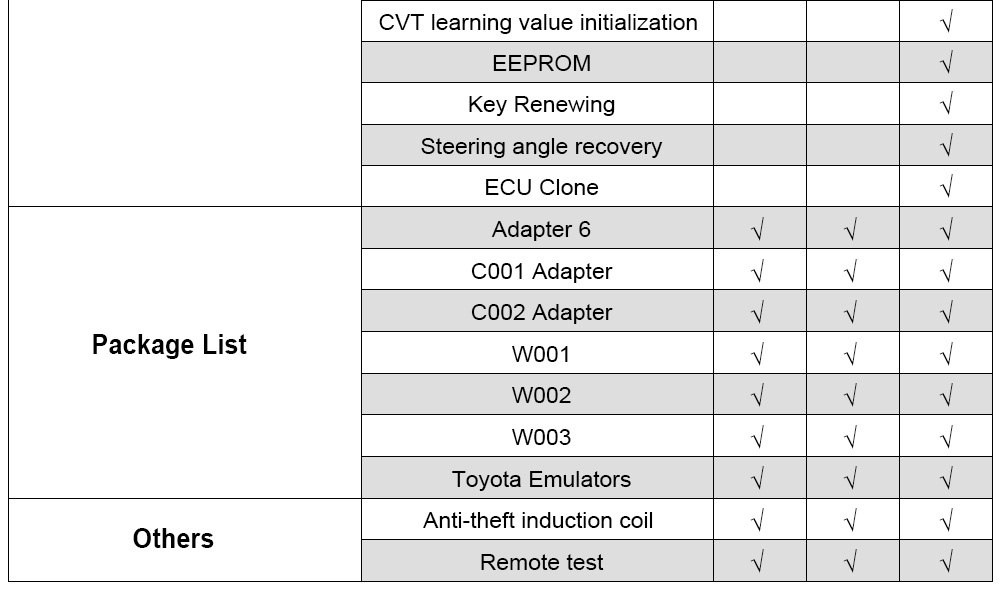

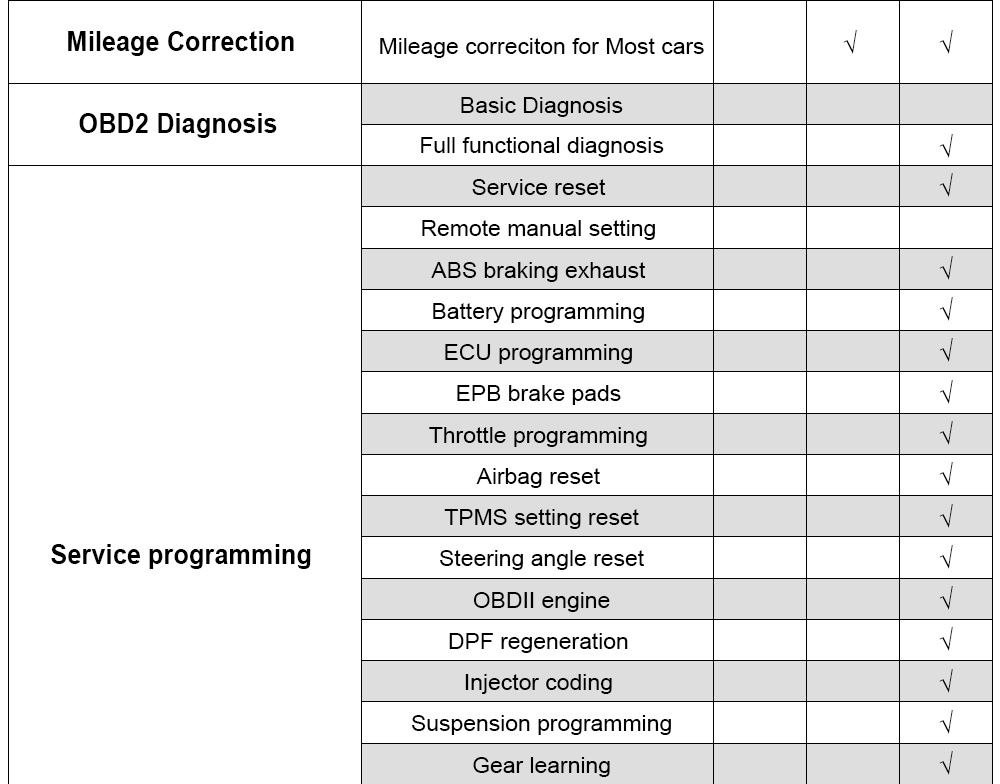

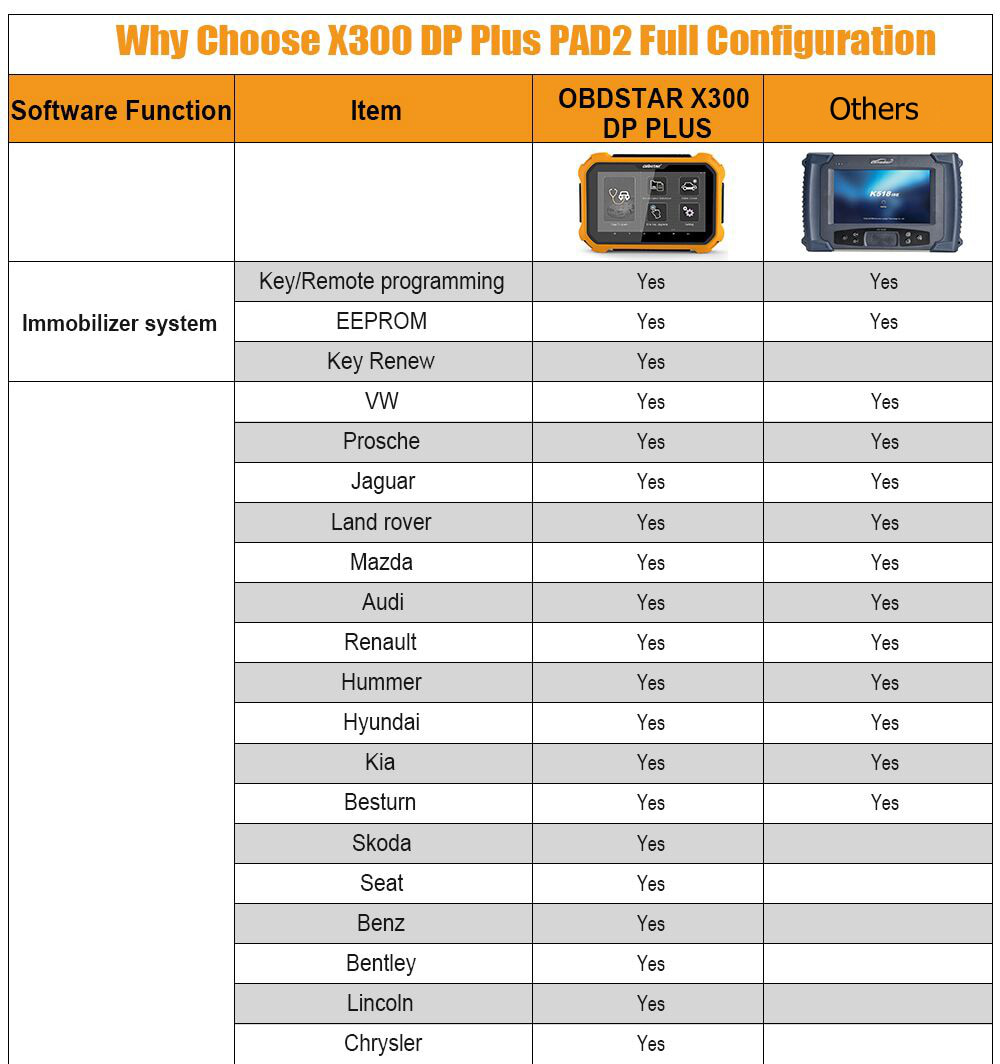

    Difference between OBDSTAR X300 DP Plus A Package and B Package,C Package (Full Version):

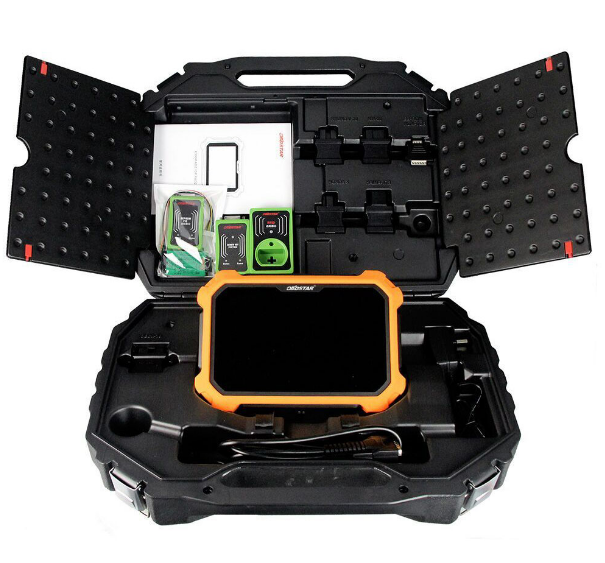

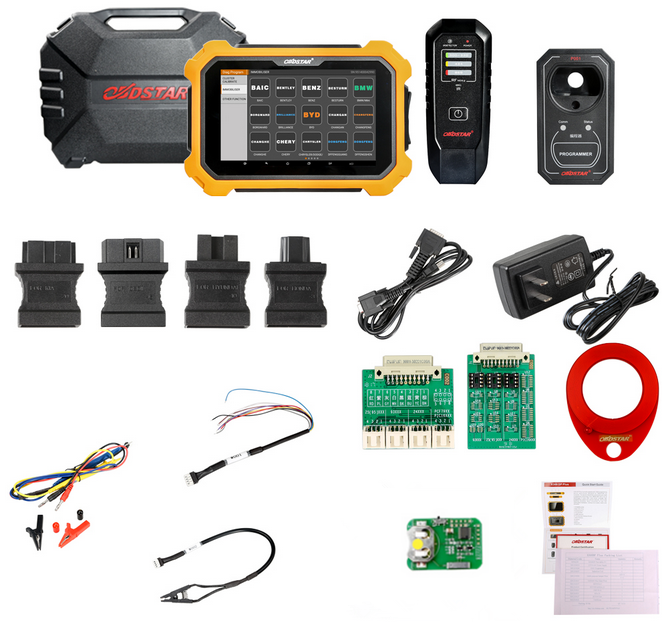

    Hardware Advantages:
    1. Built-in VCI box
    2. 8-inch touchscreen
    3. Charge directly via OBD interface

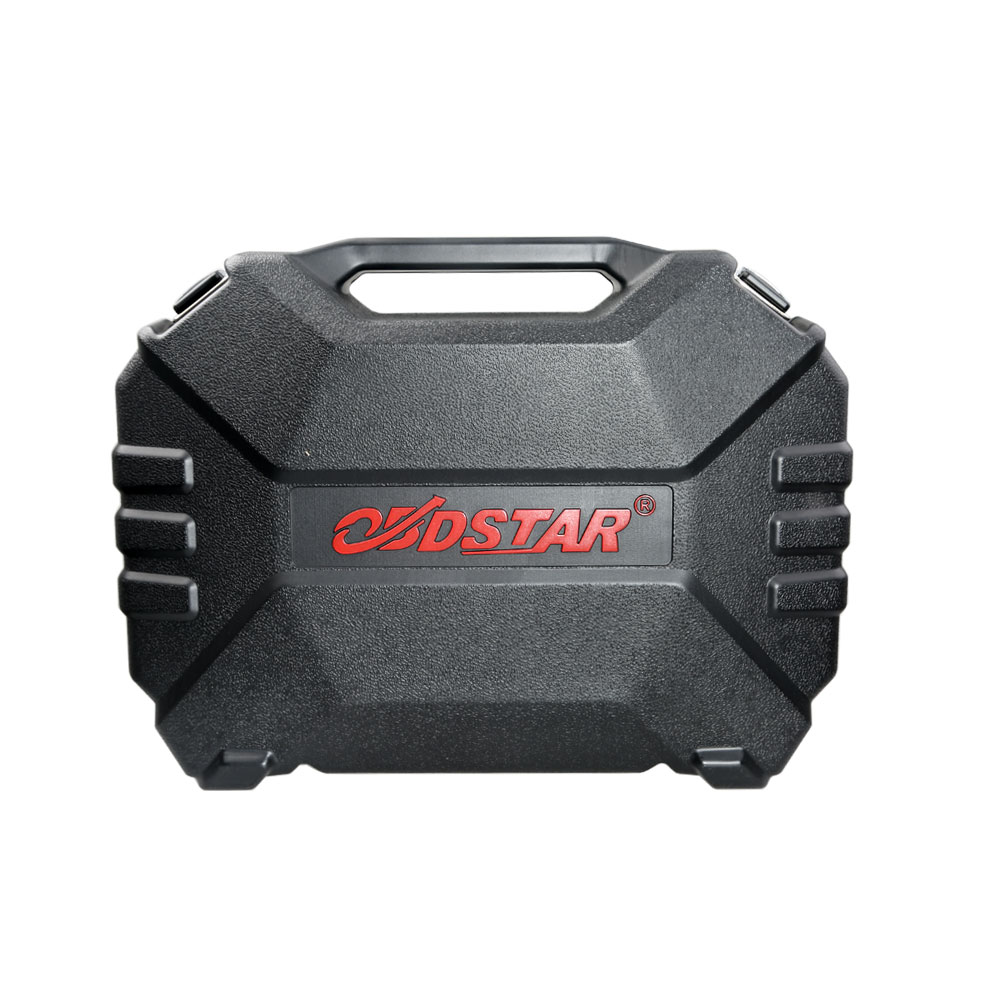

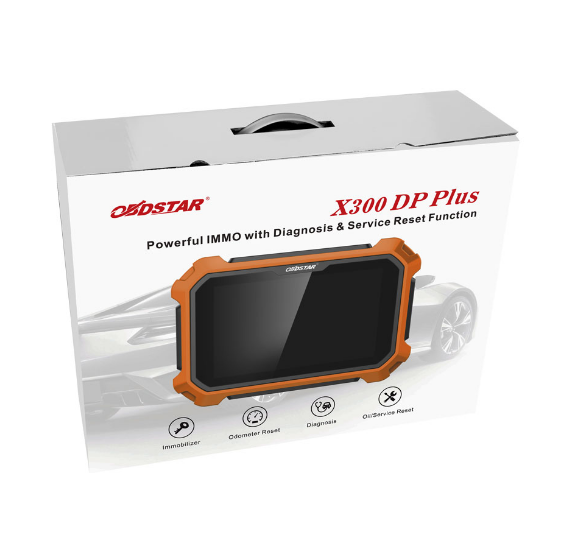

    4. Practical and high-end gift box
    5. Industrial design with silicone case

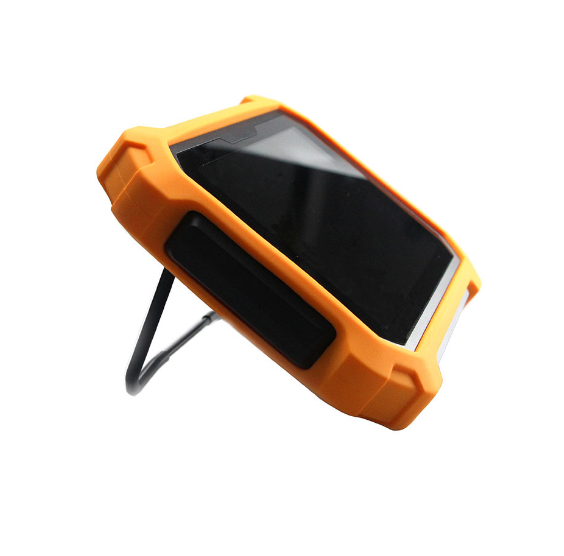

    6. Back bracket design:prop on the steering wheel or stand on the table
    7. With 4 Toyota simulation keys (the fifth is coming soon)

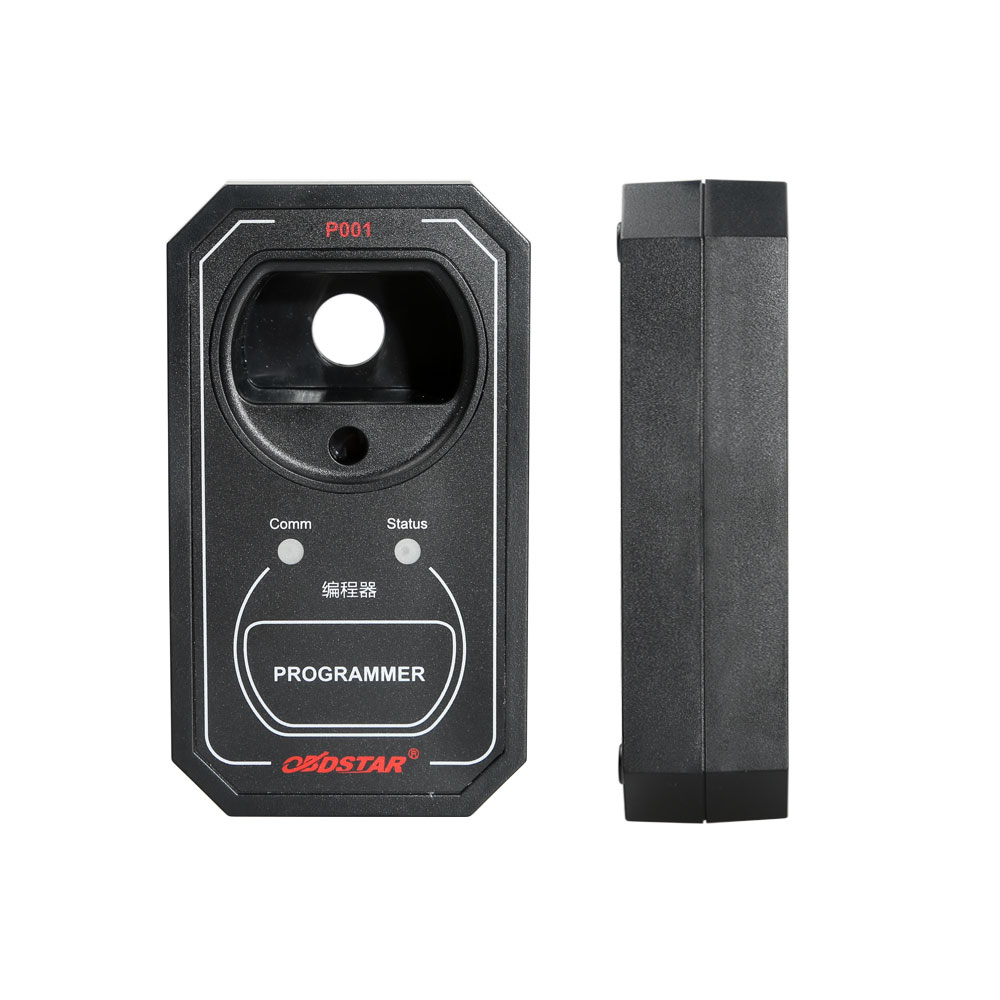

    8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
    9. Add the clip of reading SOP 8PIN EEPROM
    10. C001/C002 circuit board to read and write chip data with welding
    11. IMMO induction coil to detect the key induction coil failure of the vehicle.

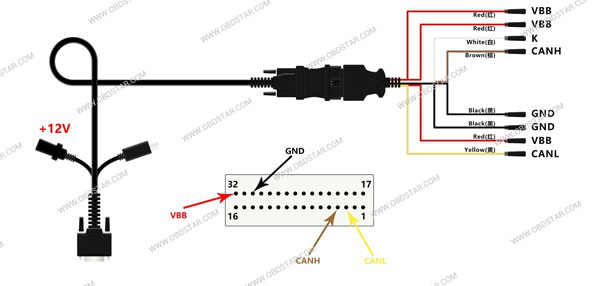

    12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)


    Software Advantages:
    IMMO:
    1. EEPROM
    2. Renew Key
    3. Key programming
    4. Remote programming

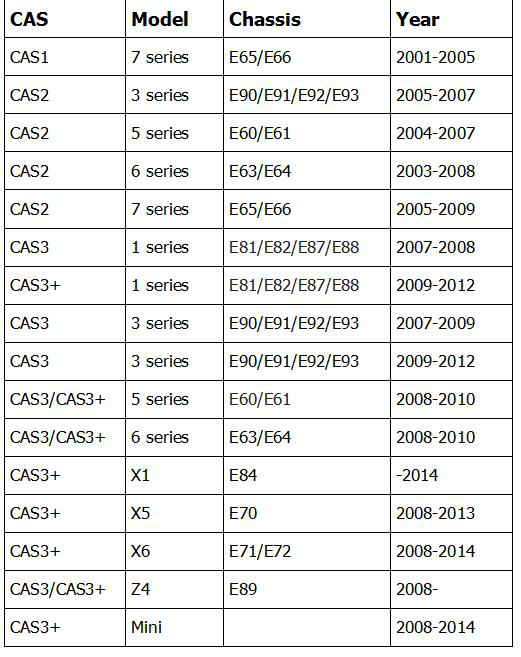

    IMMO Support Car List (No all models can work, please ask seller before order)

    for Audi, for Baic, for Bentley, for Benz, for Besturn, for BMW, for Borgwarg, for Brilliance, for BYD, for Chery, for Chrysler, for Fiat, for Ford, for Lincoln, for Foton, for Geely, for GM, for Honda, for Hyundai, for Isuzu, for Jaguar, for Kia, for Lamborghini, for Land Rover, for Maserati, for Mazda, for Mitsubishi, for Nissan, for Opel, for Citroen, for Porsche, for Renault, for Skoda, for Smart, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Volvo, for VW


    Cluster Calibrate: wild vehicle coverage


    Diagnosis: realize all vehicle systems diagnosis

    Special Functions
    TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset

    ECU Clone
    1. ECU Clone, means ECU duplication.
    The device copies all the data from the original vehicle ECU, and then writes all
    data copied into ECU with the same hardware to realize the same ECU function with the
    original vehicle.

    2. Clone directly when replacing a new or a used ECU!
    Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

    3. Three features for ECU Clone:
    A. Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry
    B. Simplified operation procedures: realize foolproof operation
    C. Non-dismantling with zero risks: read and write data without dismantling ECU


    OBDSTAR X300 DP Plus Technical Parameter:
     ● Operation system: Android 5.1.1
     ● CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz
     ● Battery: 3700mA, rechargeable polymer lithium battery
     ● Extension memory card: 32G Micro SD (TF) card supported
     ● Memory capacity:1GB
     ● Storage capacity: 32GB
     ● LCD: 8.0 inch
     ● LCD resolution: 1280*800
     ● Touch screen: Capacitive touch screen
     ●  Camera: 5 mega rear view camera
     ● Wi-Fi: supported
     ● Working temperature: -10℃  ~  55℃(14℉  ~  131℉ )
     ● Storage temperature: -20℃  ~  70℃(-4℉  ~ 158℉ )
     ● Weight: about 1.0 Kg
     ● Dimension: 254mm*174*mm*35mm

    OBDSTAR X300 DP Plus Software Update Instruction:

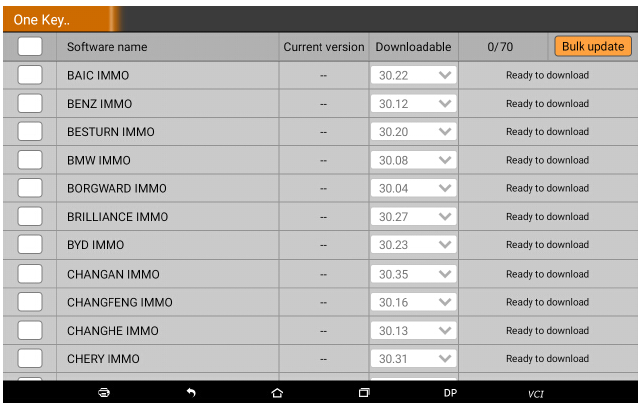

    Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:

    Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:
