    EUCLEIA TabScan S7D Auto Intelligent Dual-mode Diagnostic System auto scanner

    • Item No.  A411-1
    • History: 0  sold
    • Quantity
      Free Shipping
    • Quantity:  Out of stock
    • Weight:  5.0KG
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    EUCLEIA TabScan S7D Auto Intelligent Dual-mode Diagnostic System auto scanner

    New Upgrade : More inside storages, New UI design, Support phone App.

    Free Update: 18 month Update Free Online
    Warranty: 1 Year

    TabScan S7D Major Functions:
    Mode One: Universal Diagnosis
    Diagnostic function: Read and clear DTC, live data, active test, ECU information, freeze frame etc.
    Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset,  SAS   Reset, Battery Reset, CVT Reset, TPMS, etc.
    Coding function: Brush hiding functions (VW, Audi, Skoda and constantly adding)
    System functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.

    Mode Two: Original Manufacturer Diagnosis
    Numerous brands, accurate diagnosis, coding ,on-line programming, date searching etc.

    TabScan S7D Features And Advantages:
    • Innovative dual-mode diagnostic system ,Original manufacturer diagnosis and universal diagnosis,perfect solution for workshops.
    • Intelligent searching patent, tenfold faster than normal diagnosis.
    • Humanity button,real-time voltage and connection display, one-click reading VIN code.
    •Provide DTC searching, remote assistance, workshop management and other convenient  service.
    • Feedbacks automatically send to server which makes service more easier.

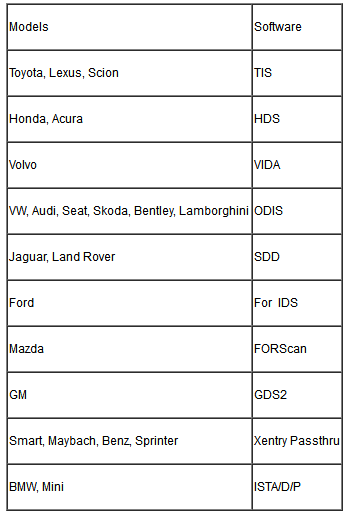

    TabScan S7D Models Support:

    TabScan S7D Scanner Main Parameters:


    TabScan S7W


    1.3 GHz quad-core



    External Storage

    Maxium 32GB

    Screen Size

    7-inch display screen

    Upgrade Method


    Charging method

    USB cable

    Operation System

    Android 4.4.2+EUUI2.12

    Battery capacity

    7500mAh lithium-polymer




    Micro USB2.0


    1024x600 pixels



    Diagnostic method

    wiScan wireless

    Diagnostic connectors

    Gold Cup/Cherry/Changan 3 ,Nissan-14,KIA-20,Honda-3,Toyota-17,Mazda-17


    ARM 32bit Cortex M3





    Adaptable OS

    Windows Xpwin7win8win10

    Communication port

    DB15Double row joint


    USB Type-B,USB 2.0, FS



    Connection Method

    Main cable with car, USB with PC, Bluetooth with tablet


    * Compatible with SAE-J2534-1 and SAE-J2534-2
    *On-line ECU diagnosis, support OEM software
    * Compatible with J2534


    SAE-J2534-1 and SAE-J2534-2
    ISO-9141 K-Line
    ISO-14230 K-Line
    ISO-15765 K-Line
    ISO-11898 DWCAN
    SAE-J1850-VPWGM Class2
    SAE-J2411 Single Wire CANGMLAN
    SAE-J2610 SCIChrysler
    SAE-J2740 GM ALDL
    SAE-J2809 (HONDA DIAG-H)
    VAG TP16 CAN
    VAG TP20 CANSAE J2819
    VAG KW81SAE J2818
    BMW DS2

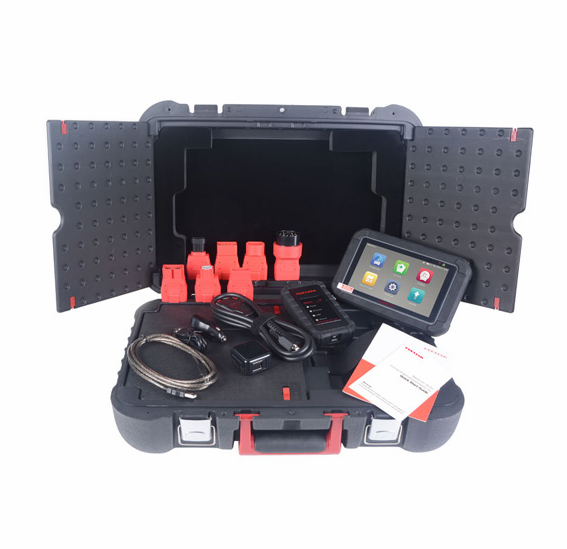

    Package includes:
    1pc x TabScan s7d
    1pc x wiScan T6
    1pc x Main Cable
    1pc x God Cup Chery changan Fiat3
    1pc x Nissan14
    1pc x KIA20
    1pc x Honda3
    1pc x Toyota17
    1pc x BMW20
    1pc x Mazda17
    1pc x USB connector cable
    1pc x Dual USB charger
    1pc x AC/DC adapter
    1pc x Warranty card
    1pc x User manual
    1pc x fitting box
