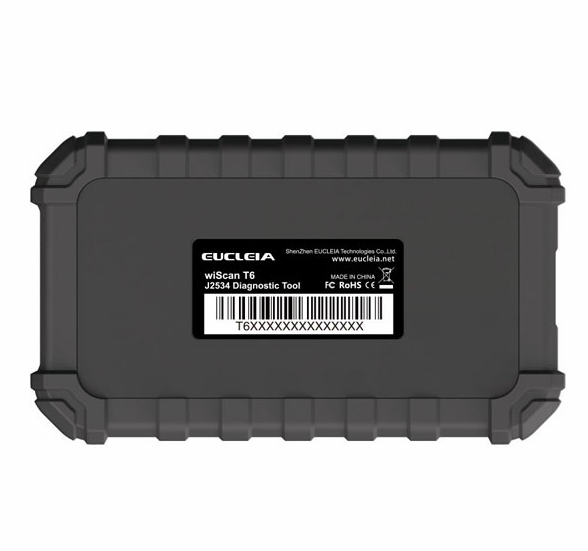

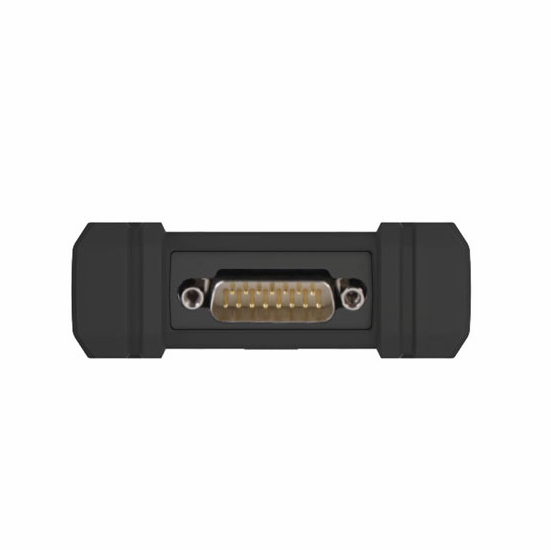

EUCLEIA wiScan T6 J2534 Diagnostic Tool Wireless VCI for TabScan S7W/ TabScan S8

Operating system: Windows Xp,  Win7,  Win8, Win10 and follow-up version of the 32 bit or 64 bit

wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.SAE J2534 is a standard devised of two independent parts: subscription software and a J2534 compliant Pass Thru vehicle interface. The subscription software comes directly from
the automaker, runs on your shop PC or laptop, and can either be web-based or CD-based.The subscription fees are charged differently for each automaker.

wiScan T6 Features
Compatible with J2534 standard interfaces
T6 Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover,
Volvo, Honda, Toyota, Ford, Mazda, GM, etc.
Equipped with high performance processor and perfectly compatible with the original
diagnosis function
Network upgrades support
Rugged design can be used in a variety of harsh environments

wiScan T6 Function
Supports OEM diagnostic software and diagnostic function

Car model and software support

Brand	Models	Software
Toyota	Toyota, Lexus, Scion	Techstream
Honda	Honda,Acura	HDS
Volvo	Volvo	VIDA
VW	Volkswagen, Audi, Seat, Skoda,Bentley, Lamborghini	ODIS
GM	GM	GDS2
Mazda	Mazda	Mazda IDS
Mazda IDS	Ford	Ford IDS
JLR	Jaguar, Land Rover	SDD

Note: 24V model is not supported.

wiScan T6 Specifications

Working environment
Input voltage: 7~18V DC
Working current:  <300mA@DC 12V
Working temperature: -20~70 degrees Celsius
Storage humidity: <80%
Storage temperature:  -40 to 80°C (-4 to 158 °F)
Housing: Rubberized external and rugged internal protection

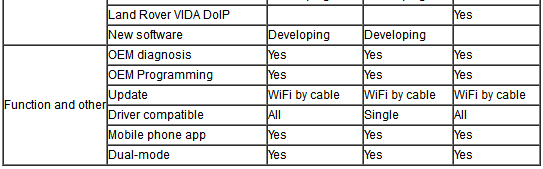

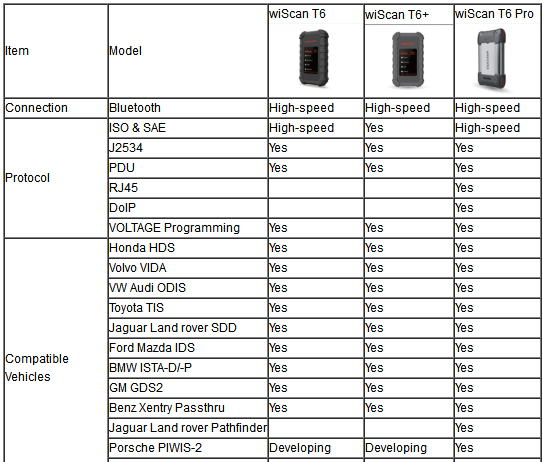

Tabscan VCI wiScan T6 vs. T6+ vs. T6 Pro

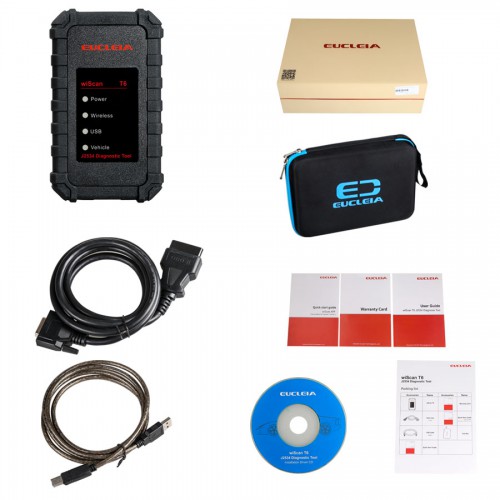

Package Includes:
1pc x  wiScan T6
1pc x USB cable
1pc x CD driver
1pc x Quick start guide
1pc x Main line
1pc x Tool box
1pc x Warranty card
