Genuine Scanmatik 2 PRO J2534 PassThru Multi-diagnostic & SAE J2534,RP1210 Programming Device

Description

The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

Multi-Language: English, Russian

Connection: USB/Bluetooth

Operating systems: Windows XP, Windows 7 and Android

System updates: Available

Internet connections: Available

Warranty: 12 months

ADVANTAGES OF SCANMATIC 2 PRO:

1. The implementation of the standard RP1210C – without any restrictions;

2. SCANMATIC 2 PRO completely replaces the DPA5 / Nexiq / Inline-6 devices with support for all protocols and a much more nimble and convenient connection via Bluetooth;

3. Full support for J2534 standard boot loaders such as Chrysler Flash Application, Combiloader, Chiploader, ECU Flasher, PCMFlash, Ford Module Programming Tool, Forscan, GM GDS-2 / SPS, Hino Diagnostic Explorer 150, HONDA HDS, MMC Flasher, Cummins INSITE, Cummins Calterm III, as well as many others.

4. Supports: 13 x ISO-9141 / ISO-14230 (K-LINE), 1 x J1850VPW, 1 x J1850PWM, 4 x CAN, 1 x Single Wire CAN.

Programming modules:

VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.

New Features of Scanmatik 2 PRO:

Galvanic isolation of the USB port (with power);

Redesigned protection of K-lines and CAN buses on a new element base;

Increased speed of work via Bluetooth by about 20%;

Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);

Load-Dump power surge protection (when the generator is switched off on a running engine).

The widest support of J2534-1/2 standards:

Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13,14;

AUX programming voltage output (via an additional cable).

For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:

An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.

SM2-PRO Adapter Specifications:

Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;

Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);

Current consumption, not more than 350mA;

Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);

Load-Dump power surge protection (when the generator is switched off on a running engine).

Supported data buses:

13 x ISO-9141/ISO-14230 (K-LINE);

1 x J1850VPW;

1 x J1850PWM;

4 x CAN;

1 x Single Wire CAN.

Built-in multiplexer for switching diagnostic lines;

The widest support of J2534-1/2 standards;

Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;

AUX programming voltage output (via an additional cable);

Bluetooth range, not less than: 10m (Class 2);

Adapter dimensions (L x W x H), not more than: 970×750×220mm;

Weight of the device in the basic configuration, not more than: 1 kg.

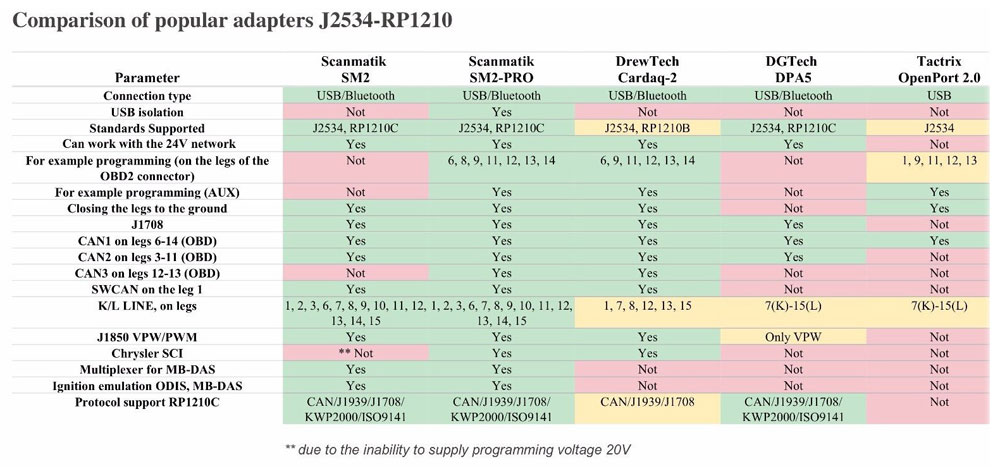

Comparison of Popular Adapters J2534-RP1210 ：

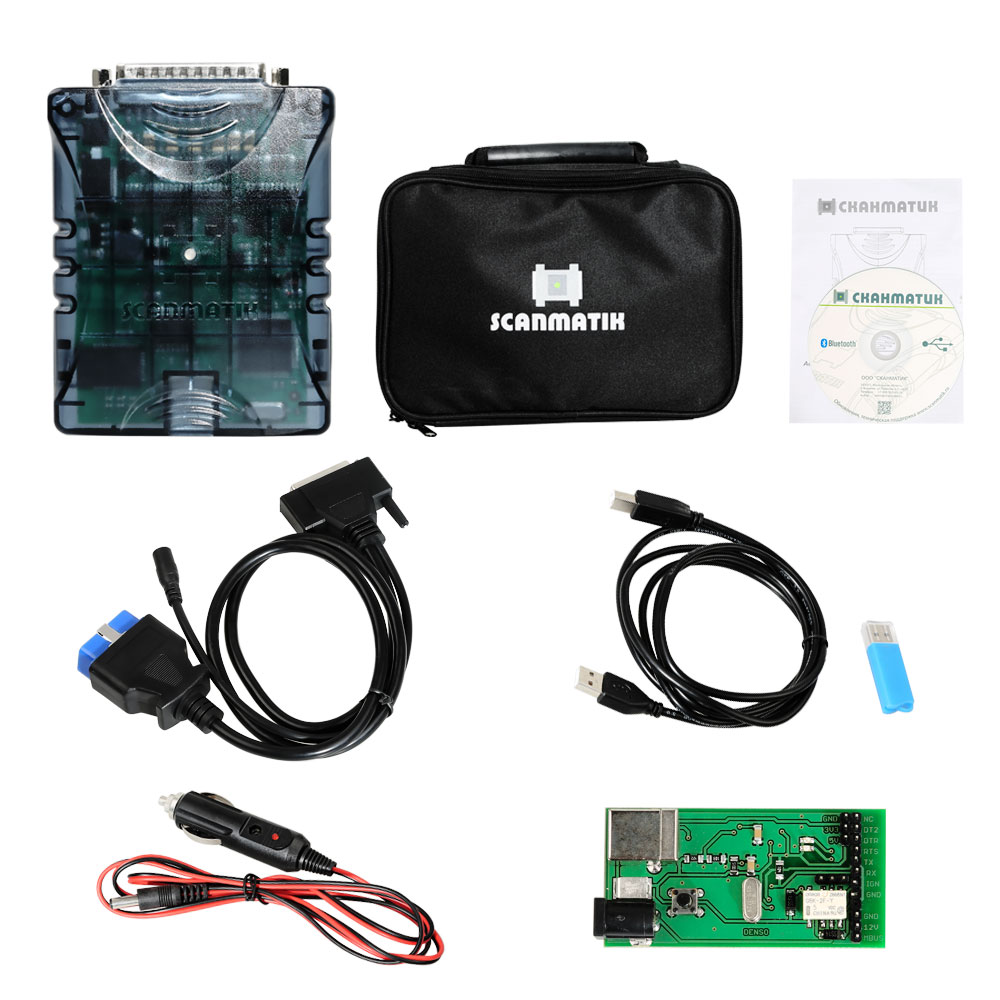

Package List:

1pc x Scanmatik SM2-PRO adapter

1pc x Power supply cable from the cigarette lighter

1pc x Main OBD cable (1.8 m)

1pc x CD containing software and instructions

1pc x USB cable (1.8 m)

1pc x Case
