    Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator

    • Item No.  Z239
    • History: 25  sold
    • Market Price: US$106.80
      Shop Price: US$89.00You save US$17.80
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      continue
    • Quantity:  200
    • Weight:  1.5KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 1 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator



    Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator:
    1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
    2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
    3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

    1) Oscilloscope
    8 channels oscilloscope, 2.4MSa/s real time sampling rate
    12 bits vertical resolution, spectrum analysis function

    2) Programmable Generator
    8 channels programmable generator
    Can analog signals of crankshaft, camshaft etc.

    3) Others
    USB 2.0 interface plug and play, and no need extra power supply;
    More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
    Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.

    Hantek 1008B Oscilloscope Functions List:
    Set Oscilloscope
    Set Vertical System
    Set Horizontal System
    Set Trigger System
    Save/Load
    Utility Function
    Measure Signal
    Display System
    Waveform Generator
    Zoom In/Out Waveforms
    Acquisition
    Print
    Generate Square Waveform


    Model

    Hantek1008

    Oscilloscope Mode

    Vertical System

    Analog Channel

    8

    Input Impedance

    Resistance: 1MΩ

    Input Sensitivity

    10mV/div to 5V/div

    Input Coupling

    DC

    Resolution

    12 bits

    Horizontal System

    Memory Depth

    4K

    Max. Input

    400V (DC+AC Peak)

    Real-Time Sampling Rate

    2.4MSa/s

    Time BaseRange

    1ns/div to 20000s/div(1-2-5sequences)

    Time Base Precision

    ±50ppm

    Trigger System

    Time Base Range

    1ns/div to 20000s/div(1-2-5sequences)

    Time Base Precision

    ±50ppm

    Trigger Source

    CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

    Trigger Mode

    Edge

    X-Y Mode

    X-Axis Input

    CH1

    Y-Axis Input

    CH2

    Cursors and Measurement

    Voltage Measurement

    Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

    Time Measurement

    Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

    Cursors Measurement

    Horizontal ,Vertical, Track, Auto Measure Modes

    Waveform Signal Process

    +,- , x,÷, FFT, Invert

    Voltage Range

    10mV to 5V/div @ x 1 probe
    100mV to 50V/div @ x 10 probe
    10V to 5000V/div @ x 1000 probe
    100V to 50000V/div @ x 10000 probe
    200mV to 100V/div @ 20:1

    Current Range

    100mA to50.0A/div @ CC65(20A)
    1000mA to500.0A/div @ CC65(65A)
    1A to100.0A/div @ CC650(60A)
    1A to200.0A/div @CC1100(100A)
    10A to2000.0A/div @CC1100(1100A)

    FFT

    Rectangular, Hanning, Hamming, Blackman Window

    Math

    Addition, subtraction, multiplication, division

    Programmable Generator

    Channel

    8

    Output Level

    LVTTL

    Frequency Range

    0-250kHz

    Interface

    USB  2.0

    Power

    No need extra power supply

    Size & Weight

    185 x 150 x 27 (mm); 0.35kg

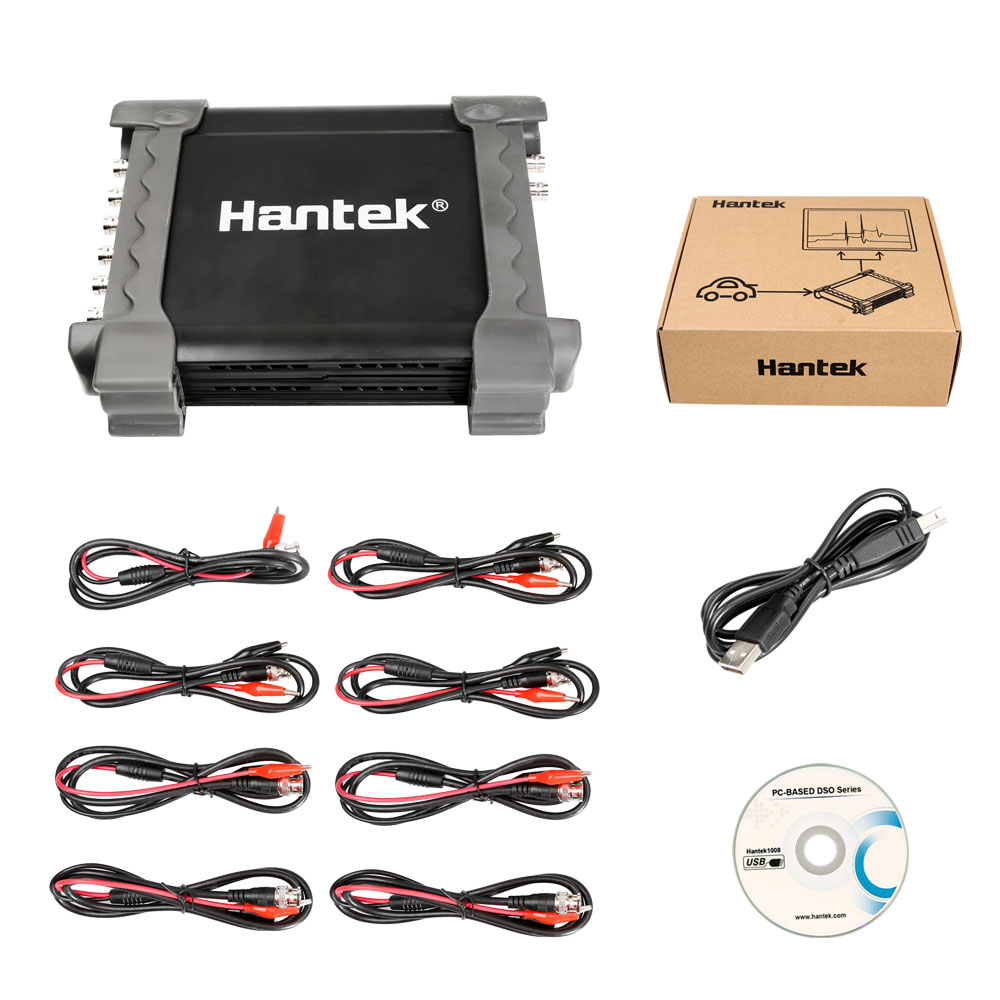

    Package including:
    1 x 1008B oscilloscope

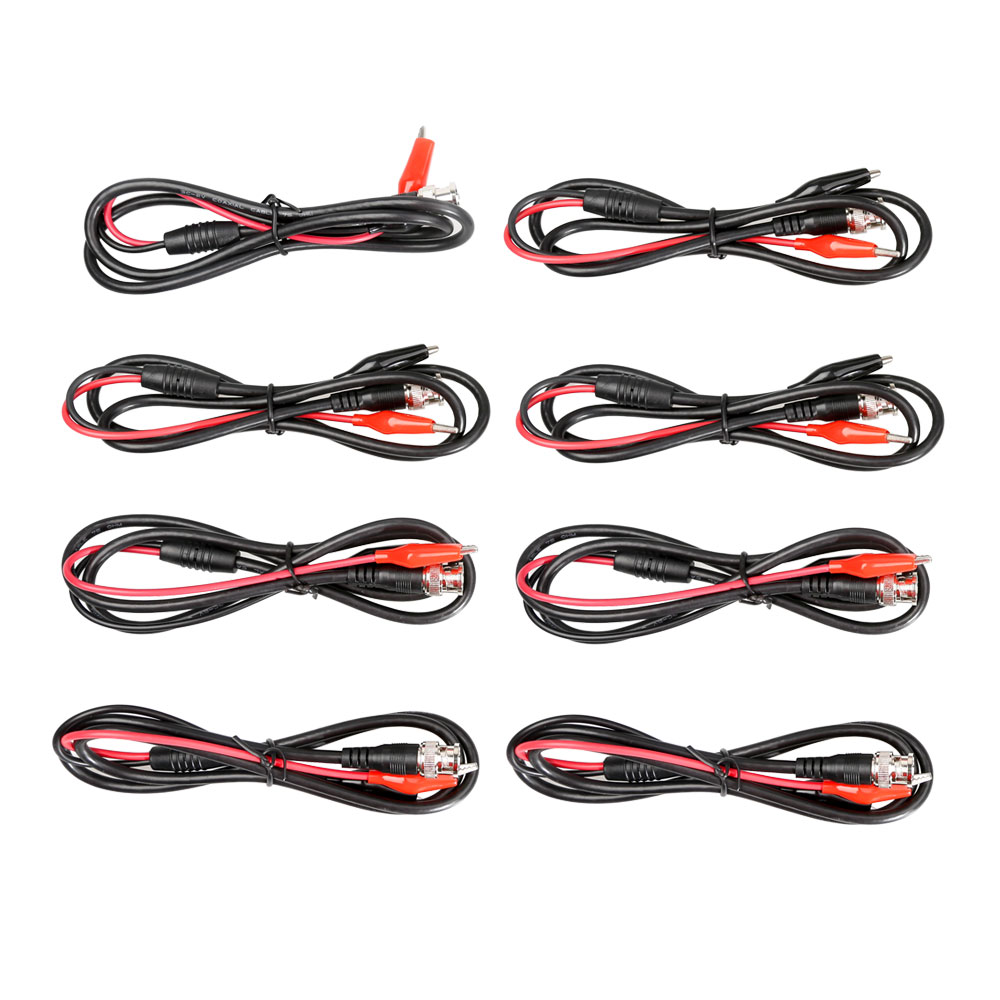

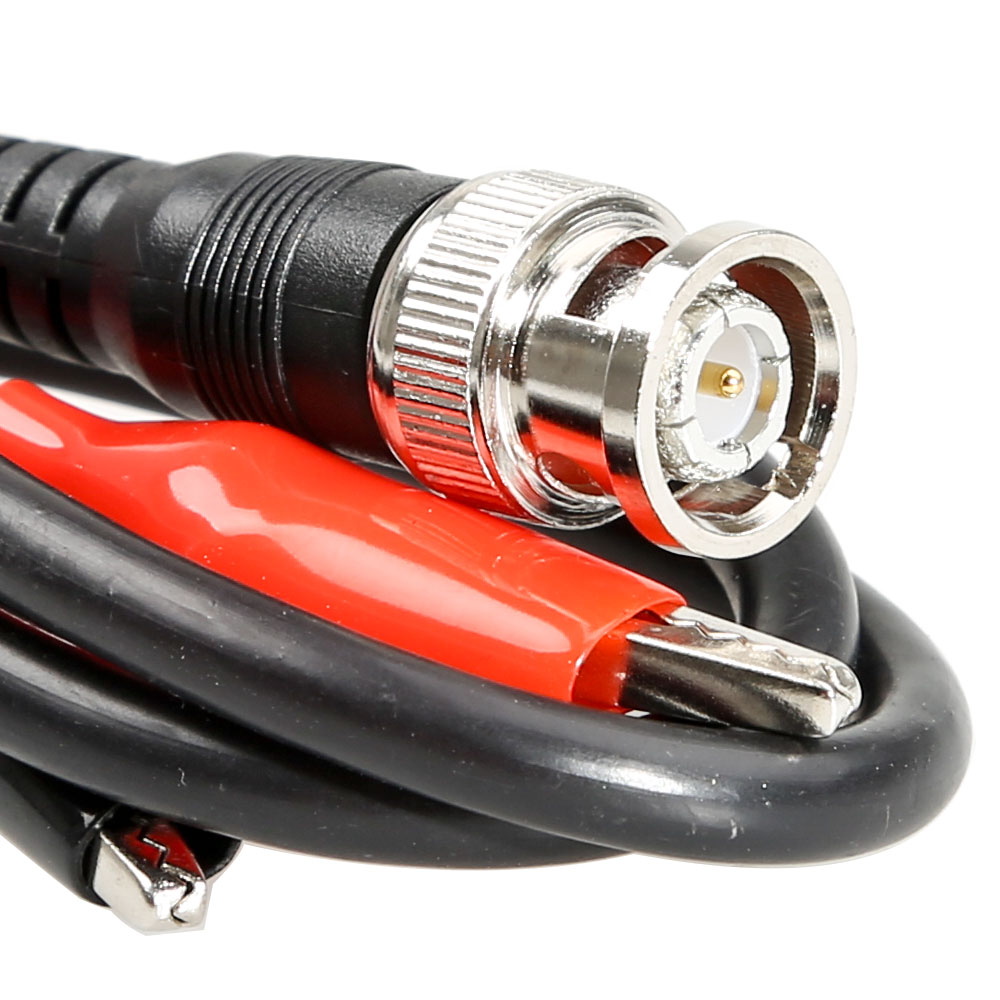

    1x Crocodile probes/cable

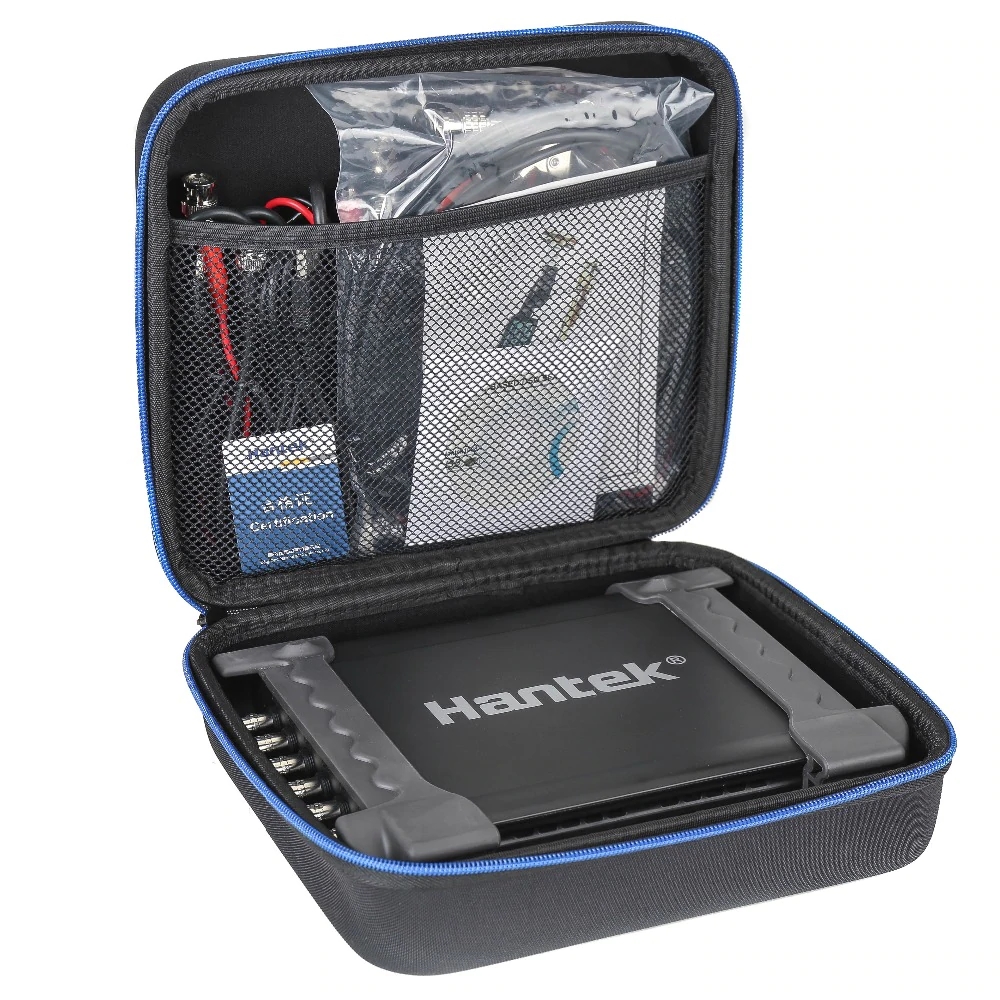

    1 x Carring Bag

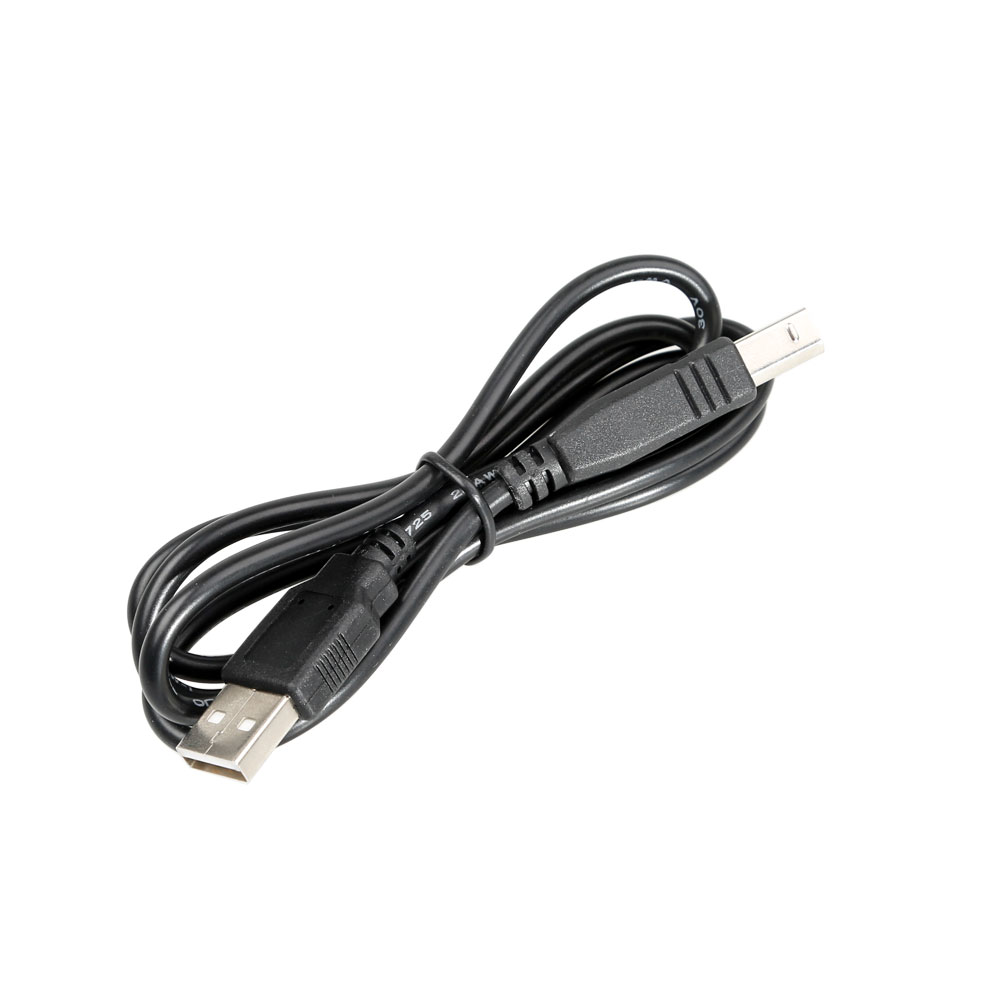

    1 x USB Cable
    1 x CD (driver etc.)
