Multi Function Automotive Circuit Tester Lead Kit Contains 150 Pieces of Essential Test Aids & Test Lead & Electrical Testers Wire Connectors Adapter Cables

Functions:
1. When checking the parts, it could connect the back of terminal directly, would not to damage the circuit, reduce the circuit rust and avoid to adding impedance.

2. Apply to any Automotive Multimeter, the extended line of probe for oscilloscope. More convenient connection and checking rapidly.
3. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires.
4. Variable Resister can simulate the pretend signal of coolant temperature sensor, throttle valve sensor and send the pretend signal to computer. It would avoid risk to change the new parts again.
5. SRS Connector can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.
6. Various wires in this box, it is suitable for the Europe, America and Japan terminal. High common use and convenience

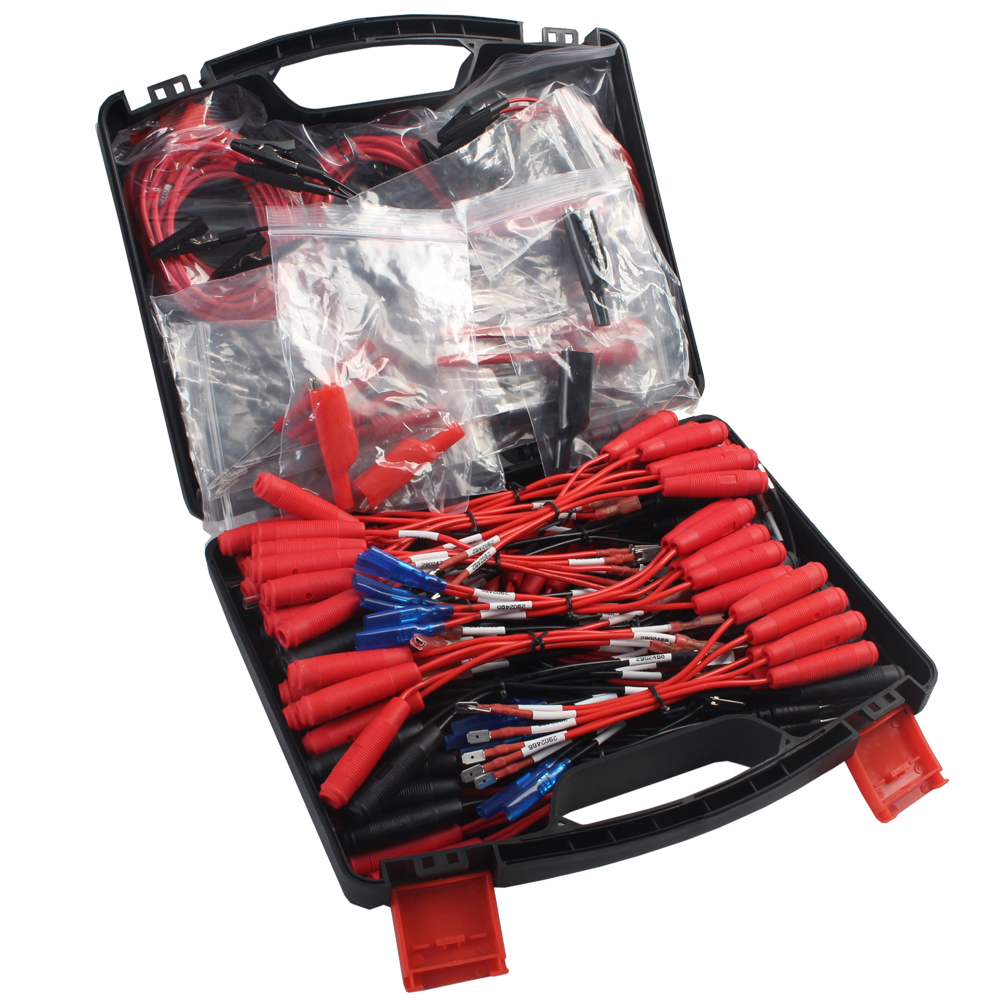

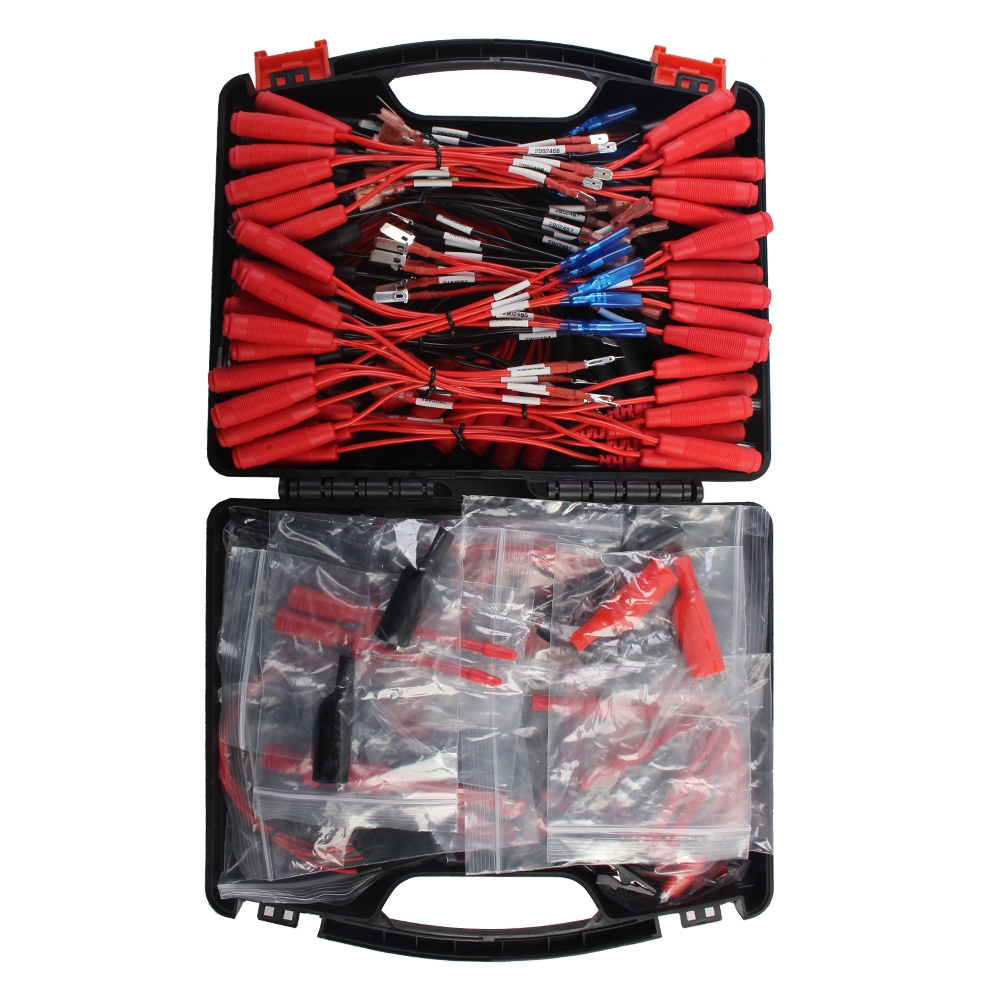

Packing:

Q'TY	Colour	Sort	Specification

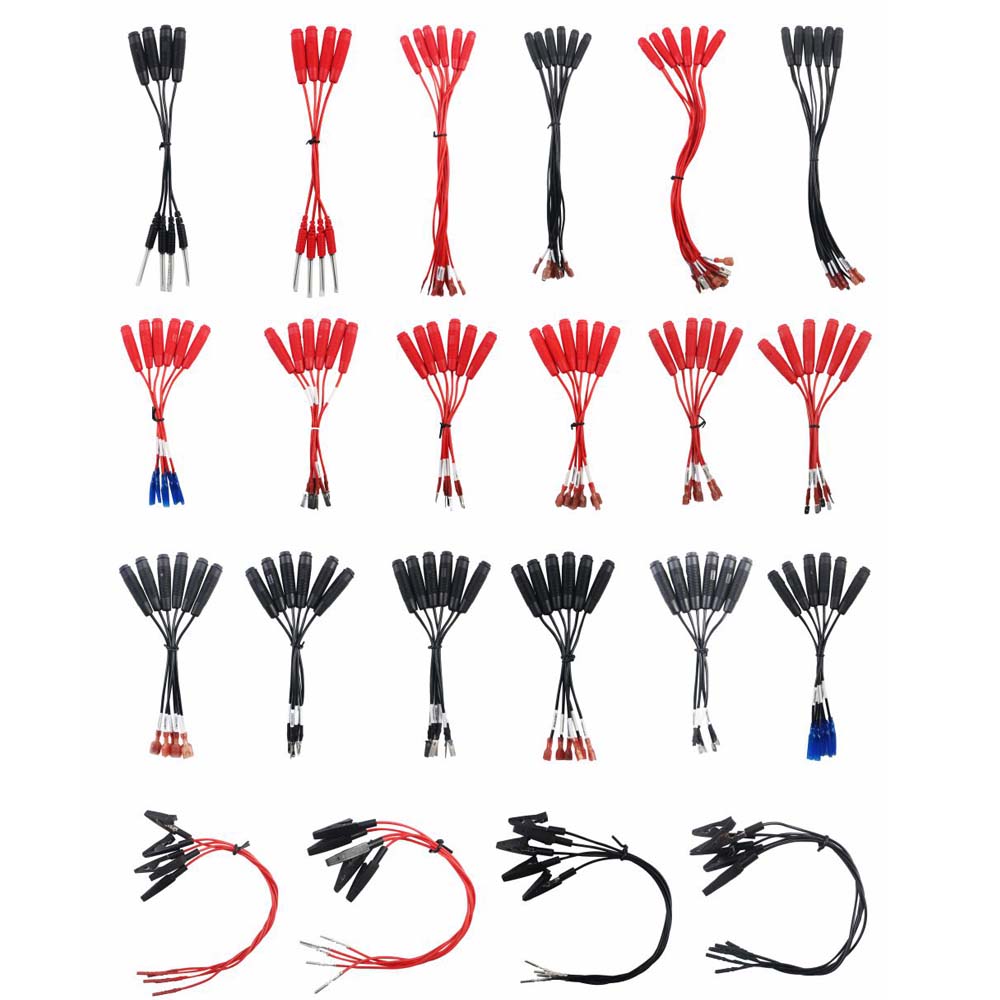

6	Black	Cable	∅4.0 banana head female to 2.8 insert spring (black)
6	Black	Cable	∅4.0 banana head female to 2.8 inserts (black)
6	Red	Cable	∅4.0 banana head female to 2.8 insert spring (red)
6	Red	Cable	∅4.0 banana head female to 2.8 inserts (red)
6	Black	Cable	∅4.0 banana head female to 4.8 insert spring (black)
6	Black	Cable	∅4.0 banana head female to 4.8 inserts (black)
6	Red	Cable	∅4.0 banana head female to 4.8 insert spring (red)
6	Red	Cable	∅4.0 banana head female to 4.8 inserts (red)
6	Black	Cable	∅4.0 banana head female to 6.2 insert spring (black)
6	Black	Cable	∅4.0 banana head female to 6.2 inserts (black)
6	Red	Cable	∅4.0 banana head female to 6.2 insert spring (red)
6	Red	Cable	∅4.0 banana head female to 6.2 inserts (red)
6	Black	Cable	∅4.0 banana head female to 6.2 plug spring insert (black)
6	Red	Cable	∅4.0 banana head female to 6.2 plug spring insert (red)
6	Black	Cable	∅4.0 banana head female to 2.8 insert spring/W1.6*T0.8 pin (black)
6	Red	Cable	∅4.0 banana head female to 2.8 insert spring/W1.6*T0.8 pin (red)
4	Black	Cable	∅4.0 banana head female copper tube to ∅0.7 pin (black)
4	Red	Cable	∅4.0 banana head female copper tube to ∅0.7 pin (red)

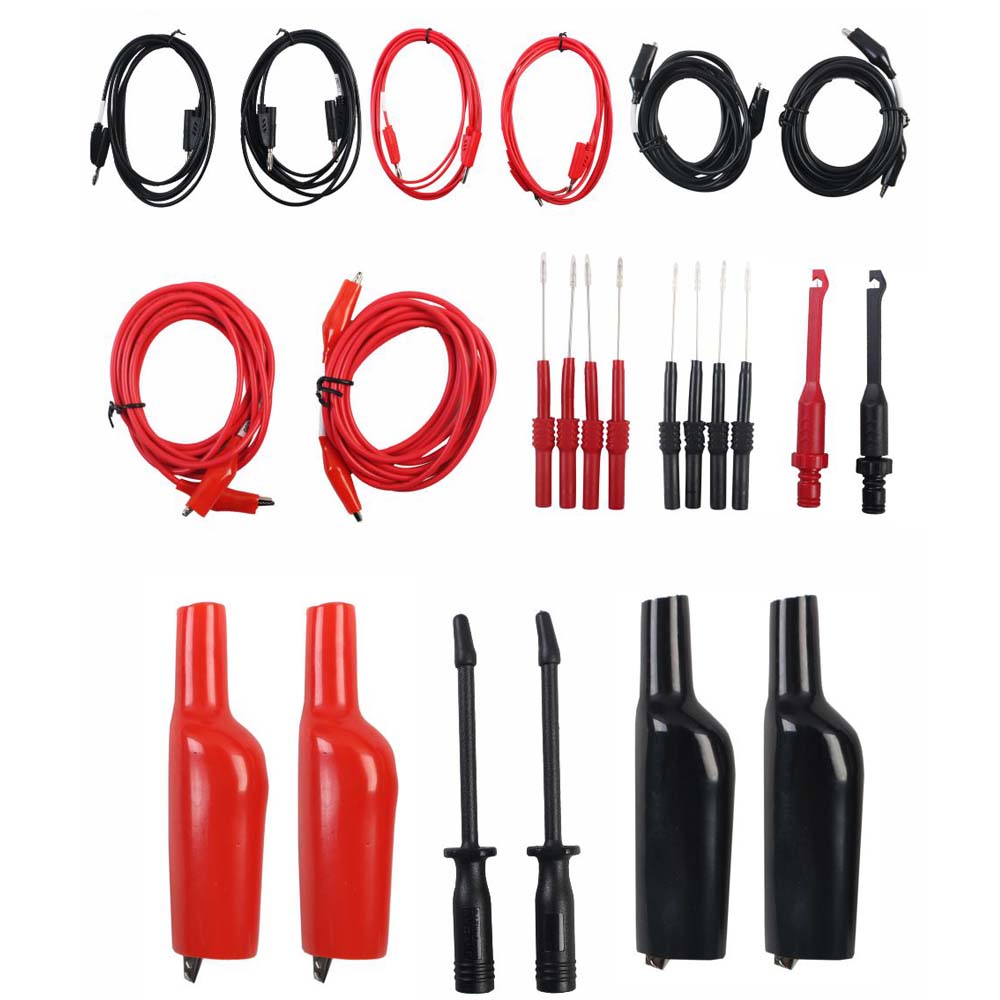

2	Black	Cable	∅4.0 male/female integrated banana splitter extension cable; L=2M (black)
2	Red(	Cable	∅4.0 male/female integrated banana splitter extension cable; L=2M (red)
2	Black	Cable	Sheath Clip Extension Cable;L=2M(Black)
2	Red	Cable	Sheath Clip Extension Cable;L=2M(Red)
5	Red	Cable	Terminal pair all-inclusive alligator clip;L=220mm(Red)
5	Black	Cable	Terminal pair all-inclusive alligator clip;L=220mm(Black)
5	Red	Cable	Heat Shrink Tubing Terminal to Alligator Clamp;L=220mm(Red)
5	Black	Cable	Heat Shrink Tubing Terminal to Alligator Clamp;L=220mm(Black)
2	Red	Clip	Red Sheath Clip
2	Black	Clip	Black Sheath Clip
2	Red	Probe	Red all-inclusive ∅2.0 test probe
2	Black	Probe	Black all-inclusive ∅2.0 test probe
4	Red	Probe	Red ∅ 1.0 test probes
4	Black	Probe	Black ∅ 1.0 test probes
1	Red	Clip	Red Piercing Clip
1	Black	Clip	Black Piercing Clip
