New Holland Electronic Service Tools（CNH EST 9.4）Engineering Level Diagnostic Software With 1 Time Free Activation

Note:

After receiving the software, please contact us, we will help you installed ans activated the software by remote tool.

Type of catalogue: Diagnostic Software

Make: Case, New Holland

Region: WorldWide

languages: English, Italian, Russian, Polish, Spanish, French, Portuguese, German, Dutch, Danish.

Amount of disks:   27.7 Gb

OS: Windows 8/8.1 64 bit, Windows 10 64 bit

The brand new version of New Holland CNH EST works with OS Windows 8 64 bit / 8.1 64 bit / 10 64 bit, except Home editions). If you have windows 7, we can offer you a previous version of CNH EST, as the 9.4 versions no longer support Windows 7 and in some cases won't even loading.



New minimum PC specifications

All computers must use a 64-bit version of their operating system. The older 32bit options are limited to 4 gigabytes of RAM, and cannot provide enough performance to run these programs.



Minimum Specifications

Processor: Intel Core i5 Processor or higher;

RAM Memory: 8 GB or greater;

Operating System: Windows OS: 64-bit (Mandatory)

Windows 7

Windows 8.x

Windows 10 (Recommended)

Hard Drive: 250 GB or greater;

Ports: One 9 pin Serial port (preferred) OR USB to RS-232

Converter - FTDI Chipset)

Two USB ports

10/100 Ethernet

WiFi 802.11b / g

Bluetooth

Mobile Wireless (recommended)

The following brands of the CNH group are covered:

New Holland (Agriculture and Construction)

New Holland FK (Fiat-Kobelco)

New Holland O&K (Orenstein & Koppel)

CASE (Agriculture and Construction)

STEYR

KOBELCO

Iveco (Astra) (articulated dump trucks only)

Flexi-Coil

Sumitomo (S.H.I.)

Link-Belt



New Holland Electronic Service Tool allows you to:

 • Check the status of parameters;

 • Retrieve faults;

 • Run diagnostic tests;

 • Make ECU and parameter programming;

 • Monitor active and logged diagnostics;

 • View and change ECU configuration;

 • View diagnostic procedures and schematics.

 • Troubleshoot problems;

 • Run scope diagnostics;


E.A.S.y - additional engine diagnostic and download tool for connection directly to ECU to perform diagnostic, programming and ECU reload by K-Line protocol.





CNH Engine Download Tool operates from within the EST program to perform the following engine download operations:

 • Provide Engine Control Unit (ECU) programing update capability;

 • Provide blank ECU initialization and programming capability;

 • Provide ECU programming reassignment for blank and other ECUs;

 • Provide ECU download crash recovery.

NOTE:
This DPA5 can  perform diagnostic, programming and ECU reload by K-Line protocol with E.A.S.y software for Iveco engines.



CNH DPA5 Interfaces OEM 380002884. This interface is  Working 2 CAN and K line ( for diagnostic CASE and New Holland with IVECO Engine with EASY under EST

Package :

CNH est USB flash disk for 1 PC activation (we will remote help you installation by teamviewer )

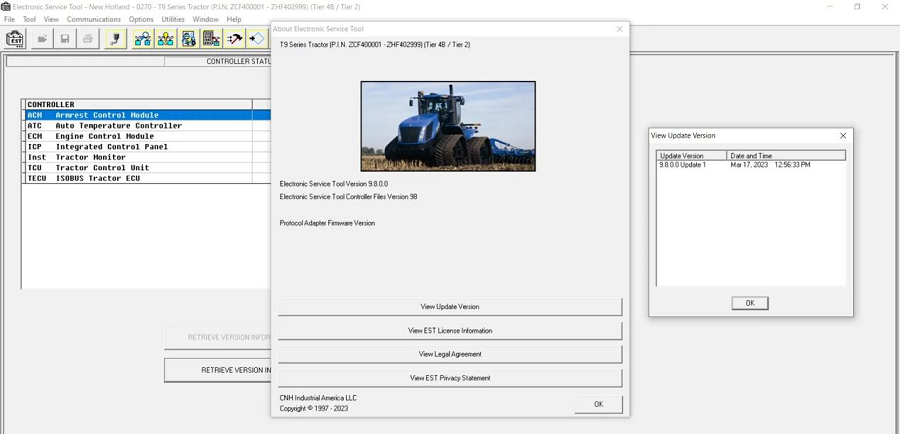

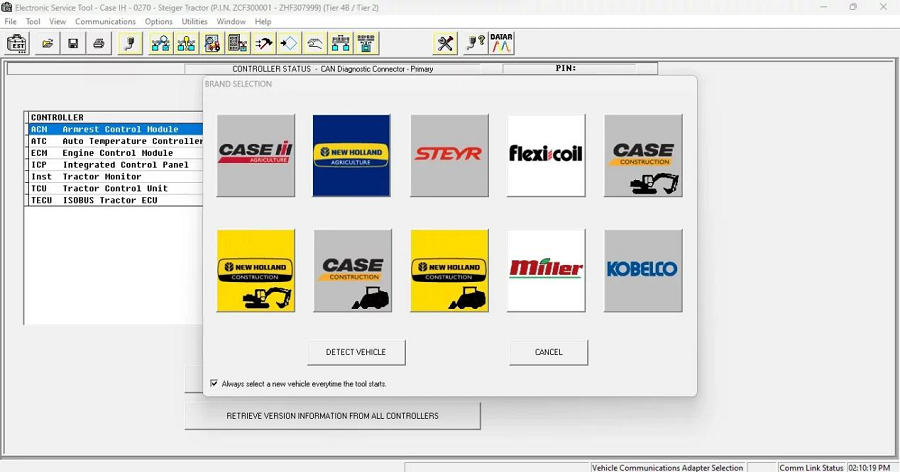

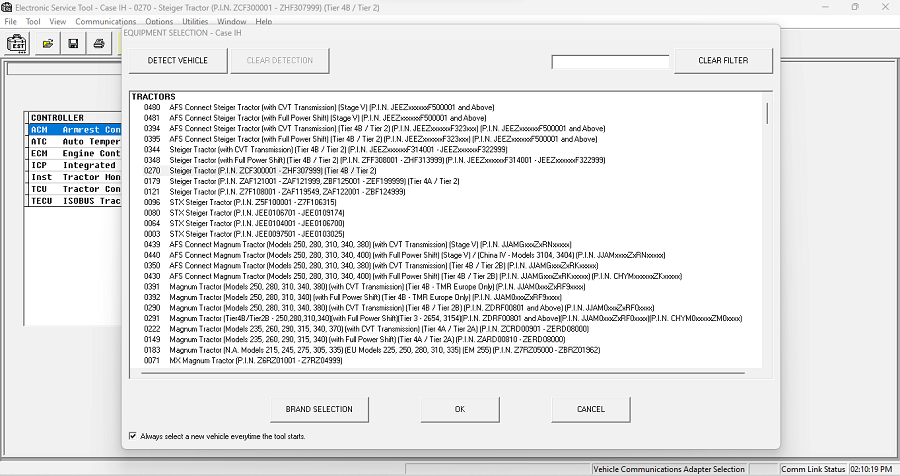

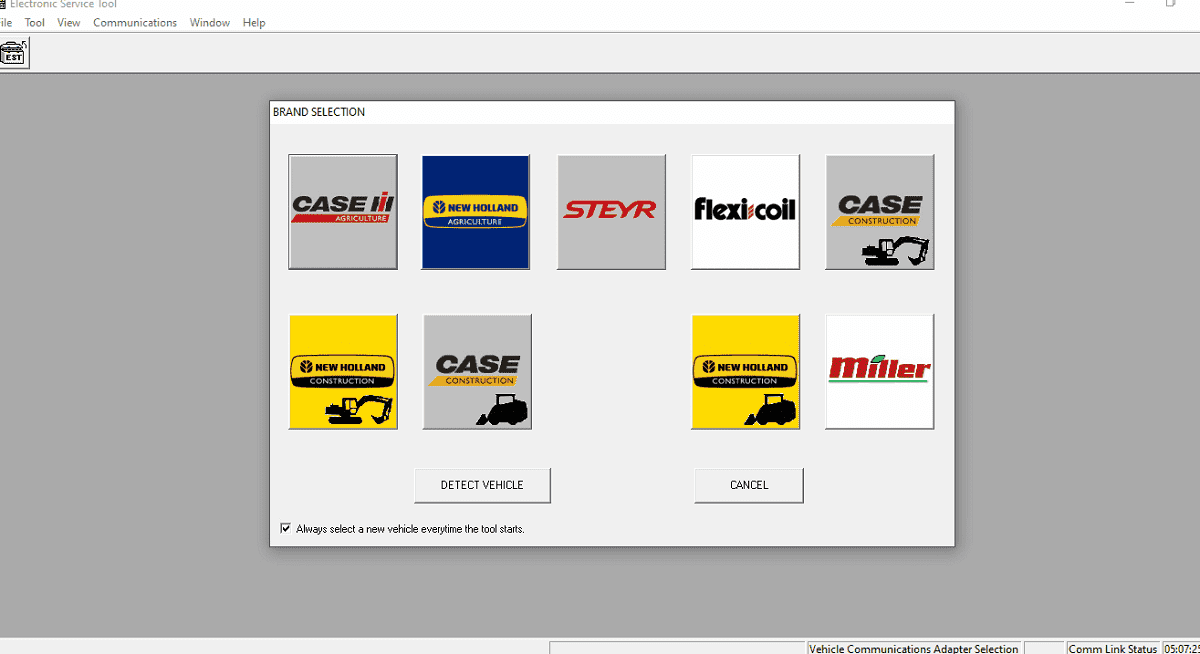

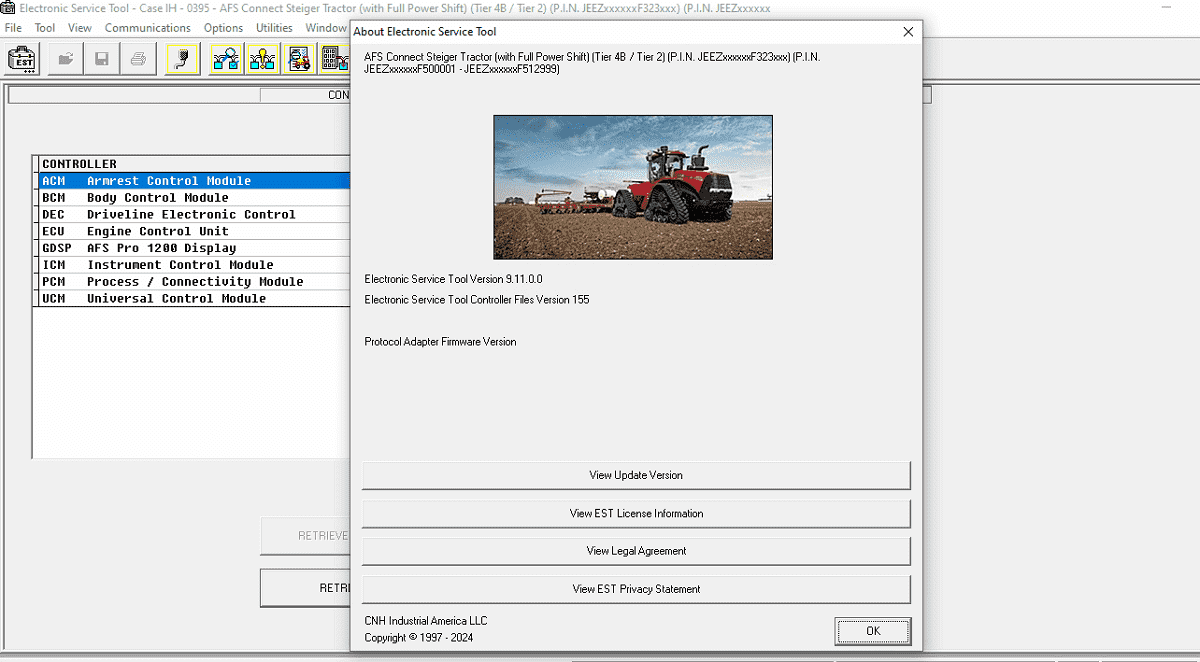

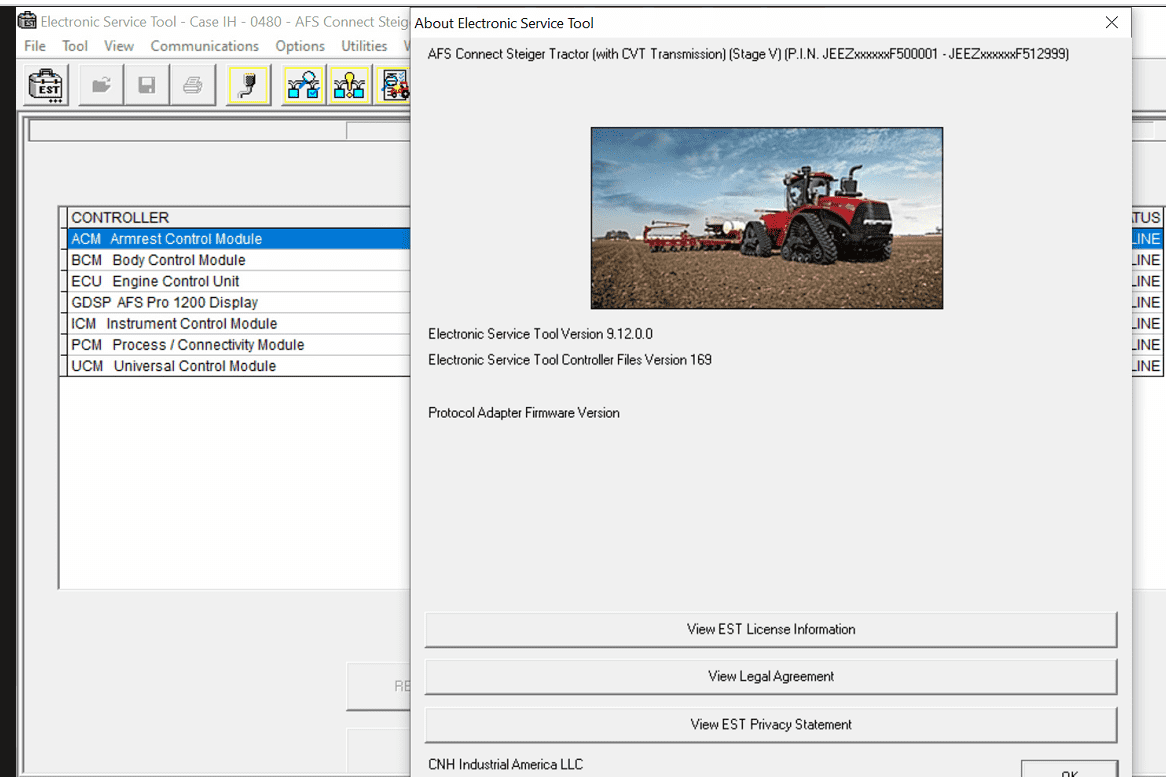

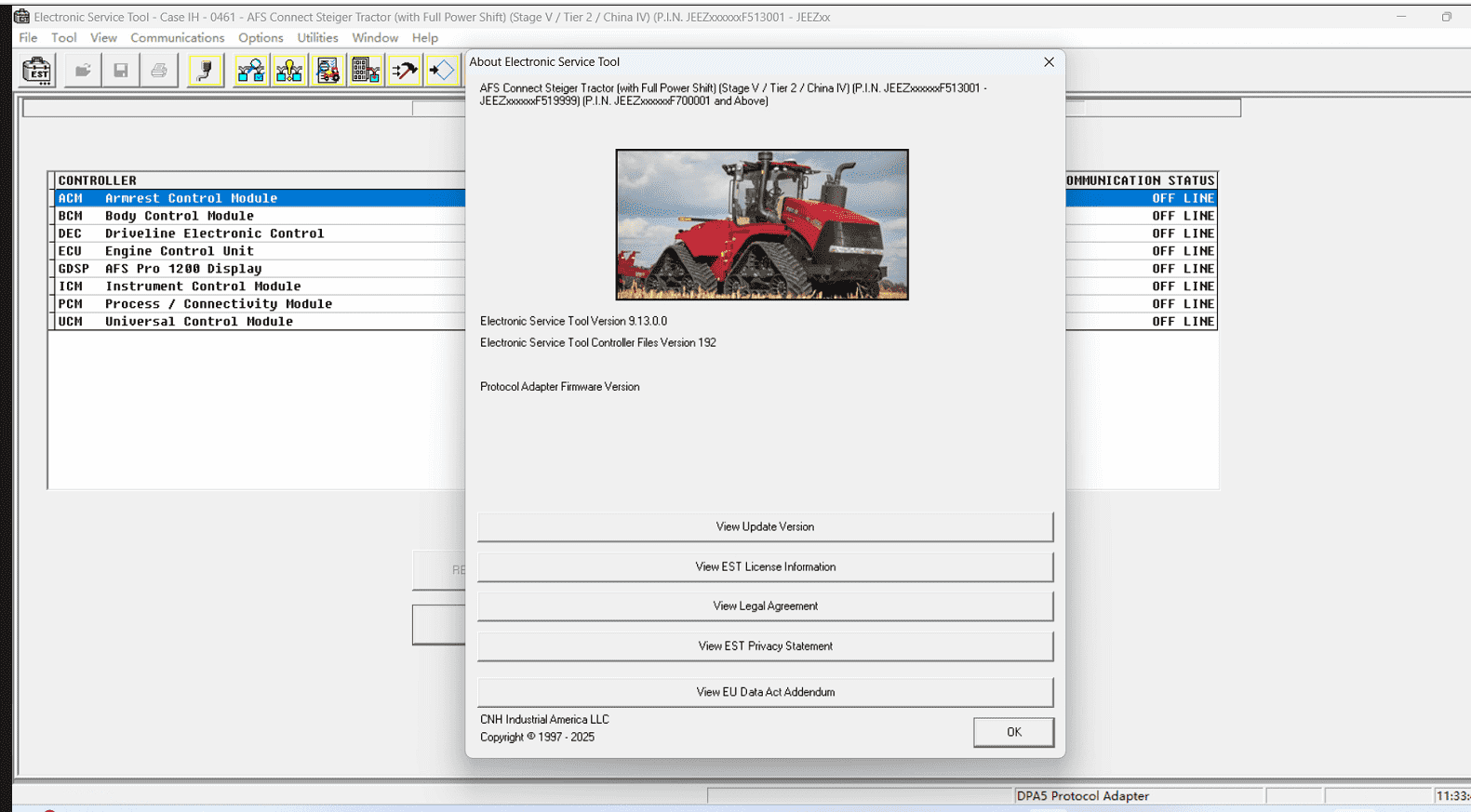

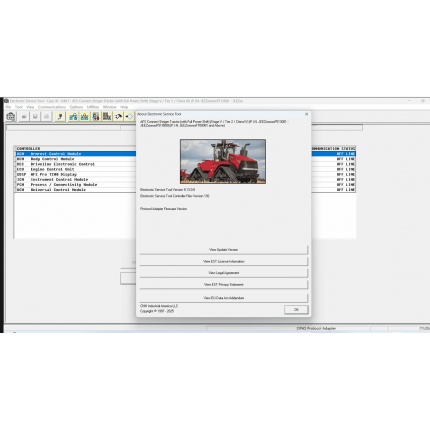

Software display:
