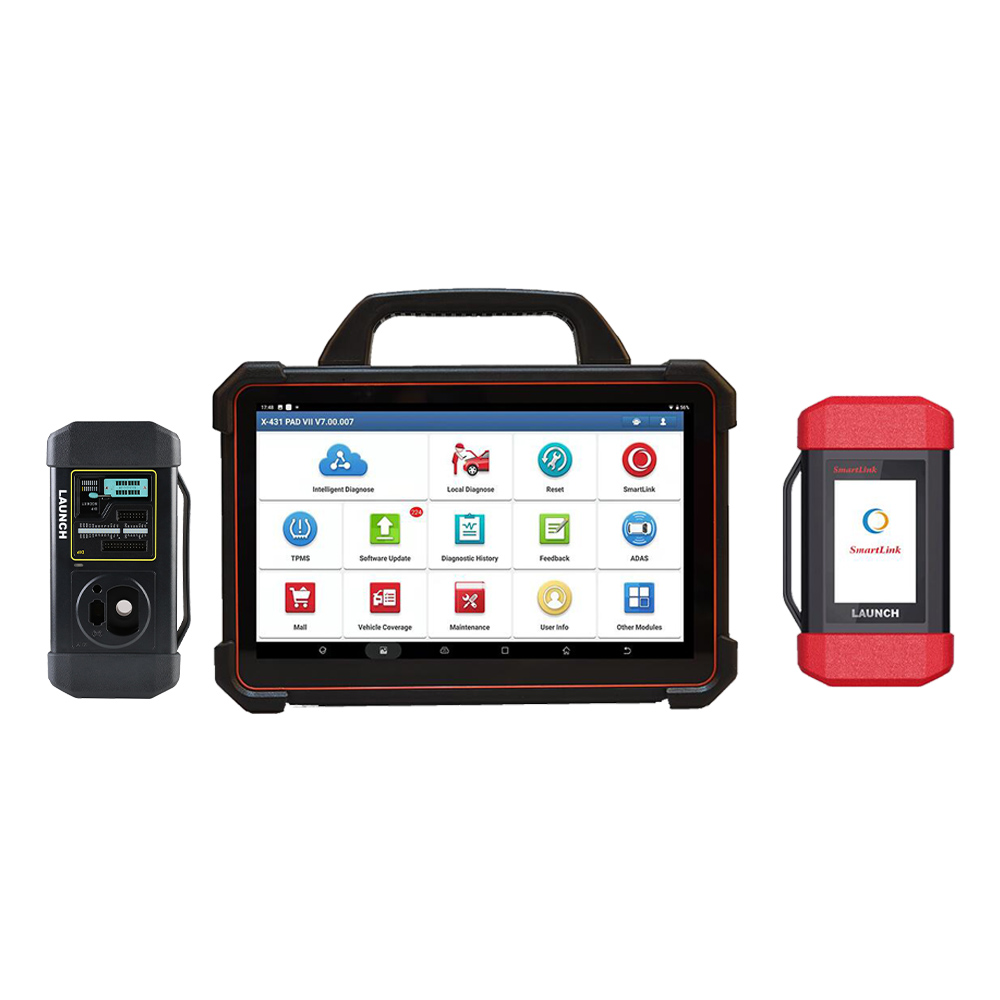

Launch X-431 PAD VII PAD 7 Elite Plus GIII X-Prog 3 Full System Diagnostic Tool Support Key Programming/ Online Coding Programming and ADAS Calibration



Highlights:
1. With 2 Years Free Update Online (Register after Oct 1st, 2022)
2. This is Global Version Without IP Limitation
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S., Asian and European markets over 110 brands, which is continually updated
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. With the help of GIII X-Prog3, it enables read/write keys, Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.
9. Support Online Coding and Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.

Warm Notice:
1. For United States, Canada and Mexico, Launch PAD7 Elite can support online coding and programming for Mercedes and BMW only.
2. For Spain and Portugal, Launch PAD7 Elite can't perform any online programming. Other countries no limitation.
3. Launch X-431 PAD VII Elite can't support remote diagnosis



Description:

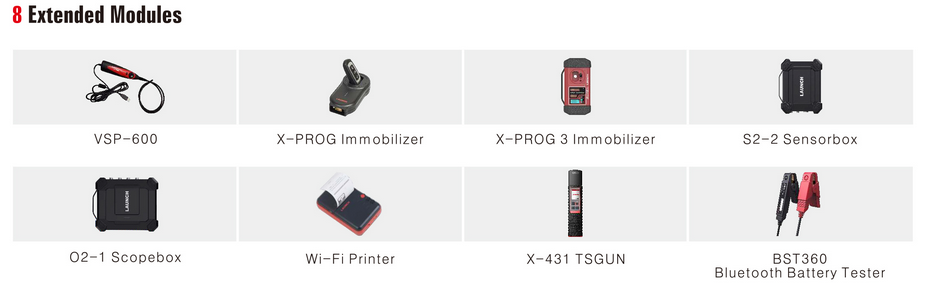

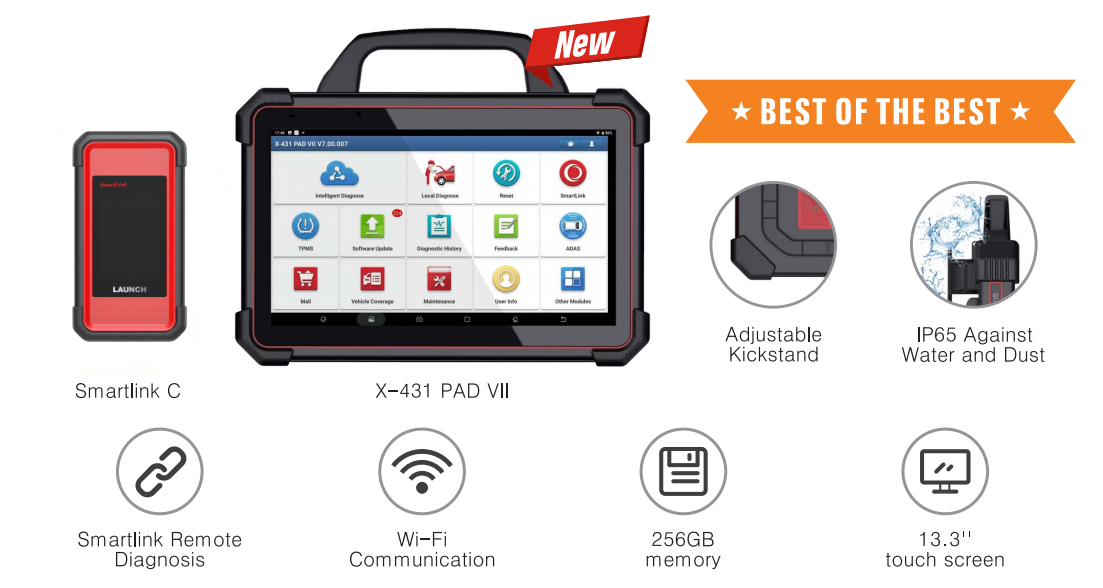

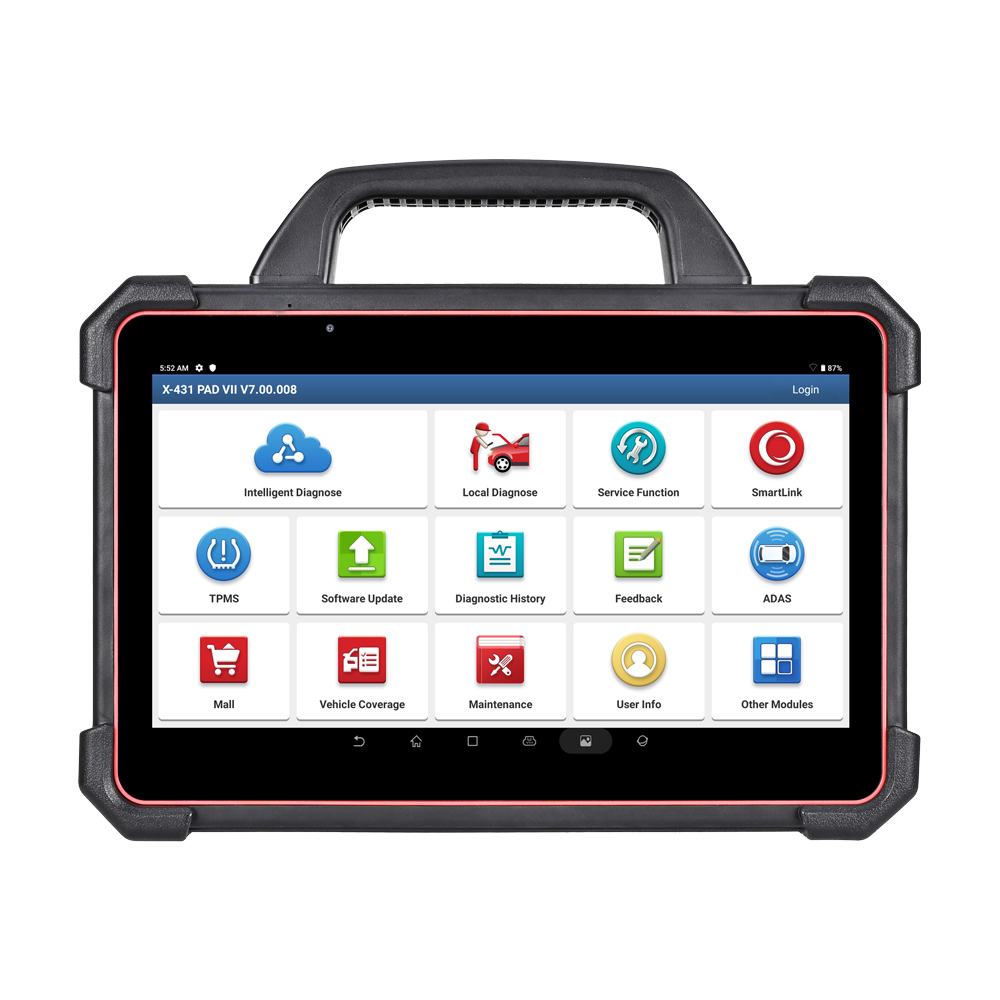

Launch Tech X-431 PAD VII Elite Diagnostic Tool features a 13.3"  touchscreen, 32 service functions, and Smartlink diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII Elite uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII Elite supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.

X-431 PAD VII Elite is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of pad v products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink diagnosis.

Superior Hardware Make Diagnosis Faster Than Ever
X-431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII Elite uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into "Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.



Launch X-431 PAD VII Elite Features:
1. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis

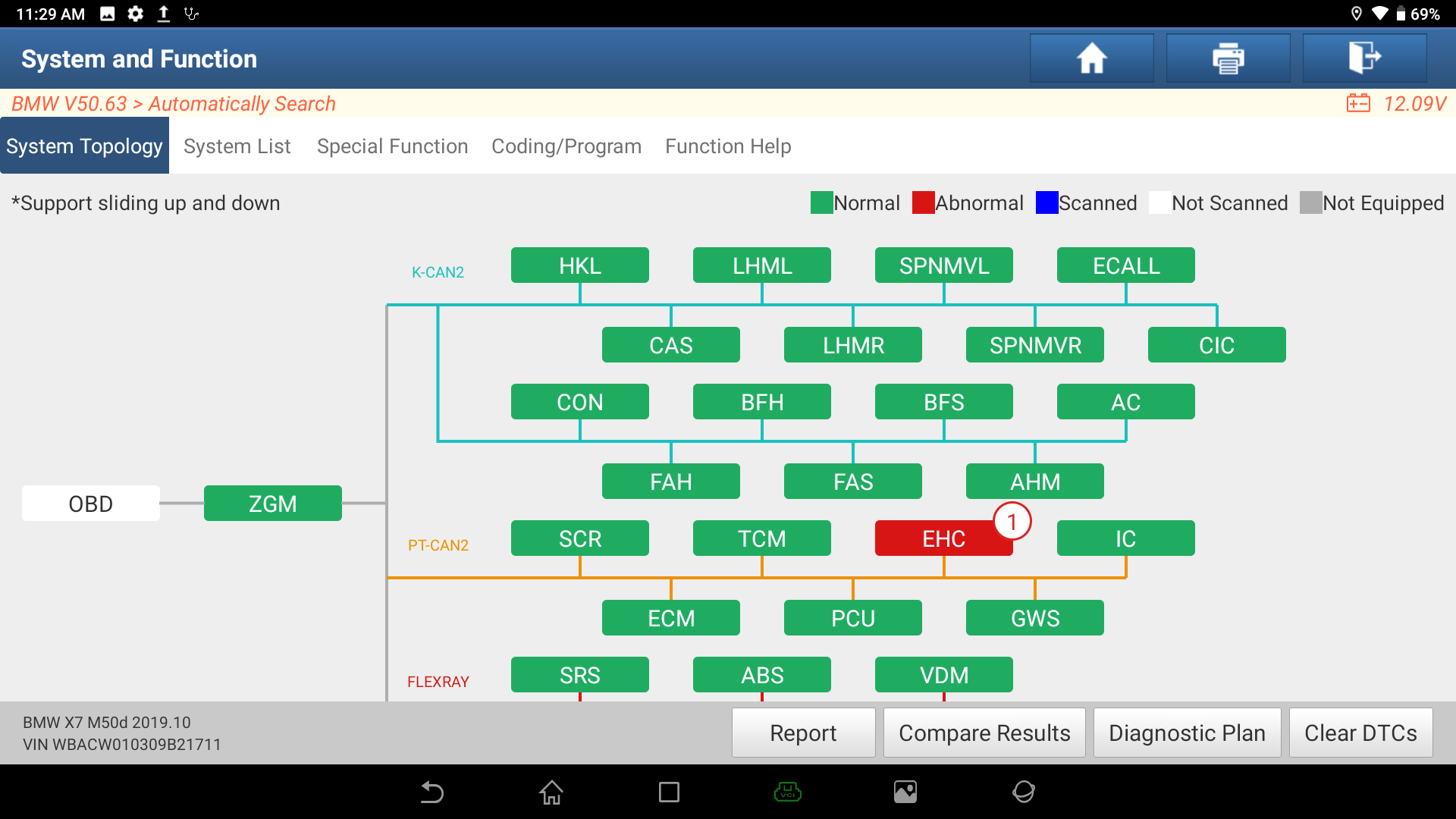

2. Topology mapping gives a visual checking on DTCs and all systems communication status
3. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
4. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
5. Intelligent diagnostic enable identify VIN automatically and access system quickly
6. Guided function for VW and AUDI
7. Optional ADAS calibration function increases more revenue
8. Advanced coding and programming function
9. An extended solutio to support TPMS service
10. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
11. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
12. The basic functions include read & clear DTC,Bi-directional control, live data graph, wireless software update etc.
13. Build-in repair information and training video modules help to track and fix issue fast.


Accurate ADAS Calibration functions
Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)



Functions:
1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis,read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

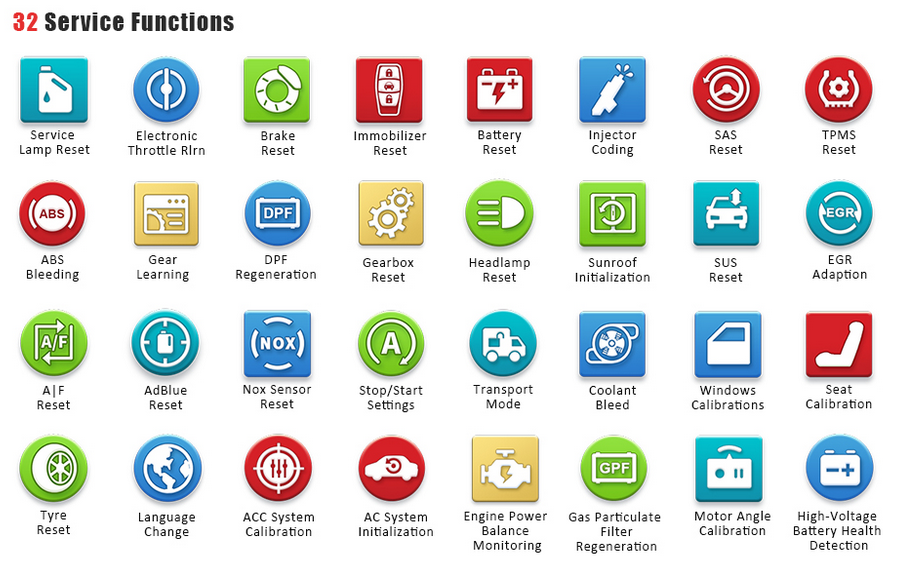

32 Service Functions:
Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change



Vehicle Coverage:

Passenger Vehicles:
1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Smartlink C VCI
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols.
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

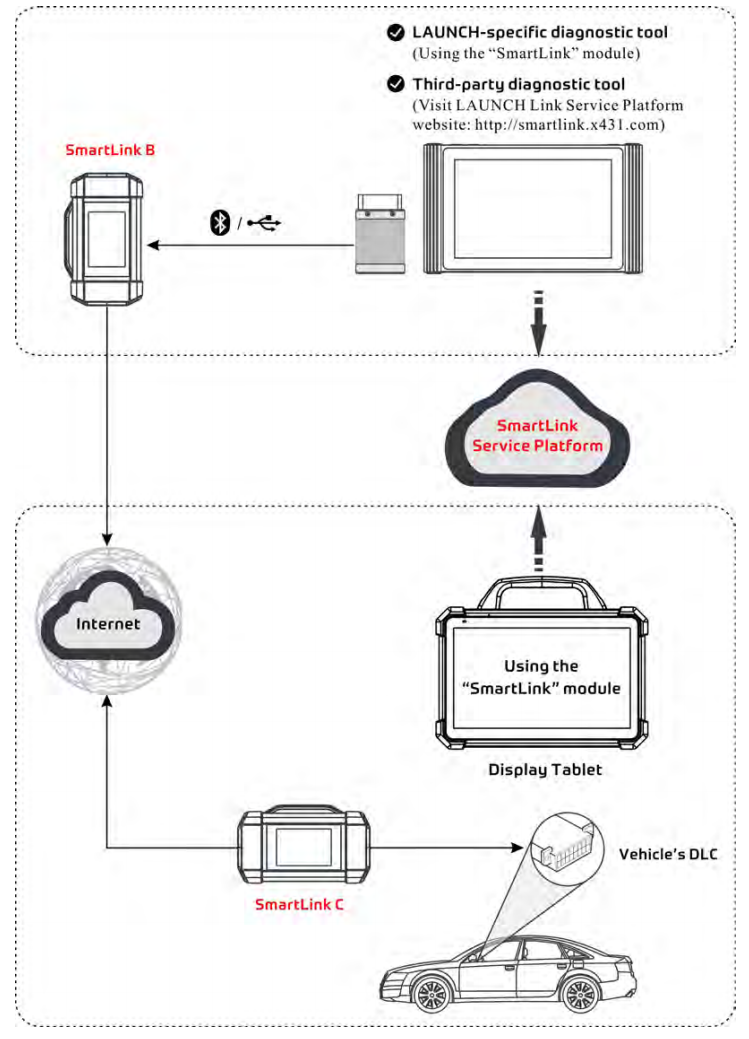

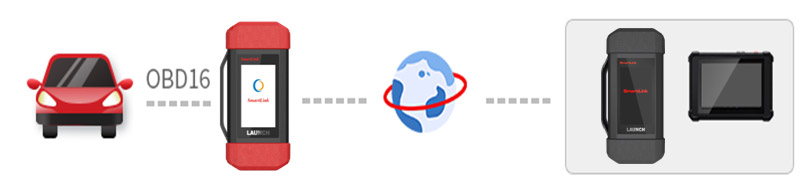

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:



Launch X-431 PAD VII Elite Specification:

	X-431 PAD VII Elite	Smartlink
Operation System	Andorid 9.0	N/A
CPU	2.0GHz Octa-core	N/A
Display	13.3' touch screen 1920*1080	3.5' touch screen  320*480
Memory	8GB	256M
Storage	256GB	8GB
Camera	Rear 13MP, Front 8MP	N/A
WiFi	Dual Band 2.4 & 5GHz	Dual Band 2.4 & 5GHz
Diagnostic Communication	WiFi	WiFi & BT & USB
Working Temperature	0℃~50℃	0℃~50℃
Dimension	353*236*71 mm	204*110*45 mm

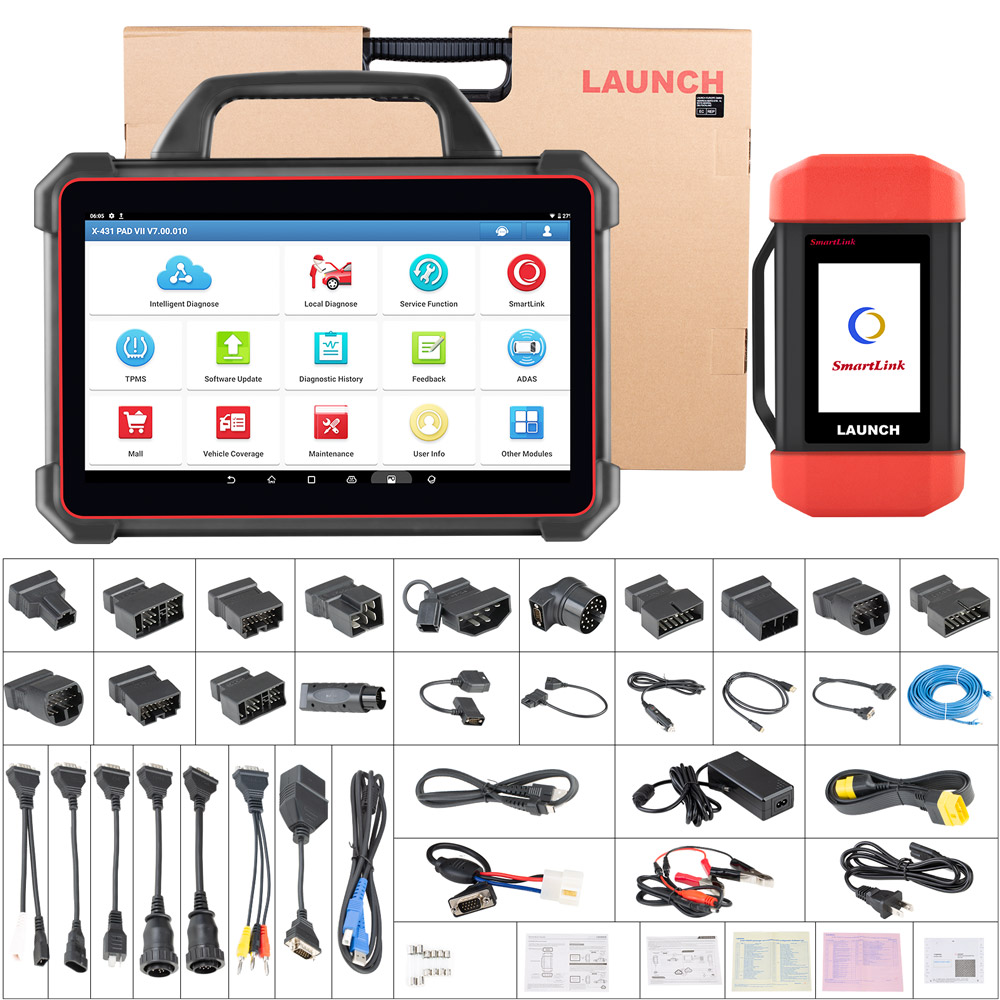

Package List:
1set x  Launch X-431 PAD VII PAD 7 Elite

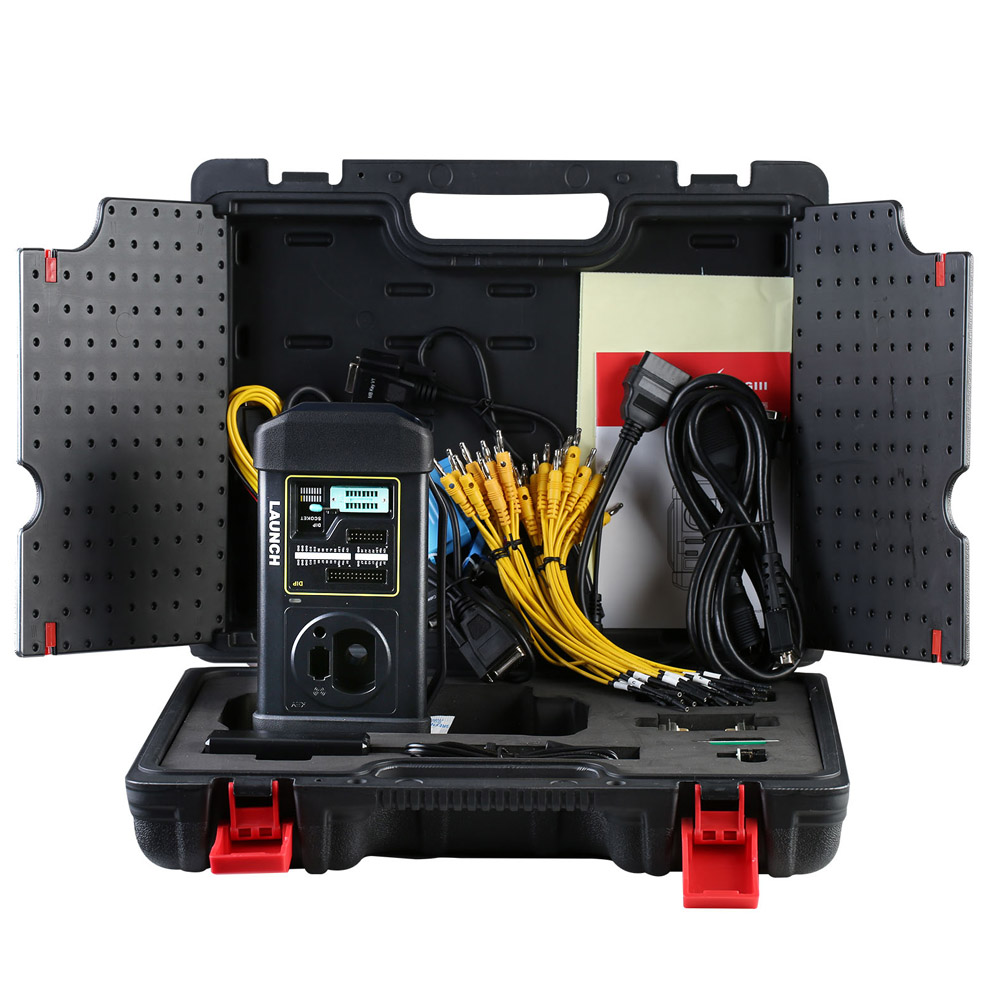

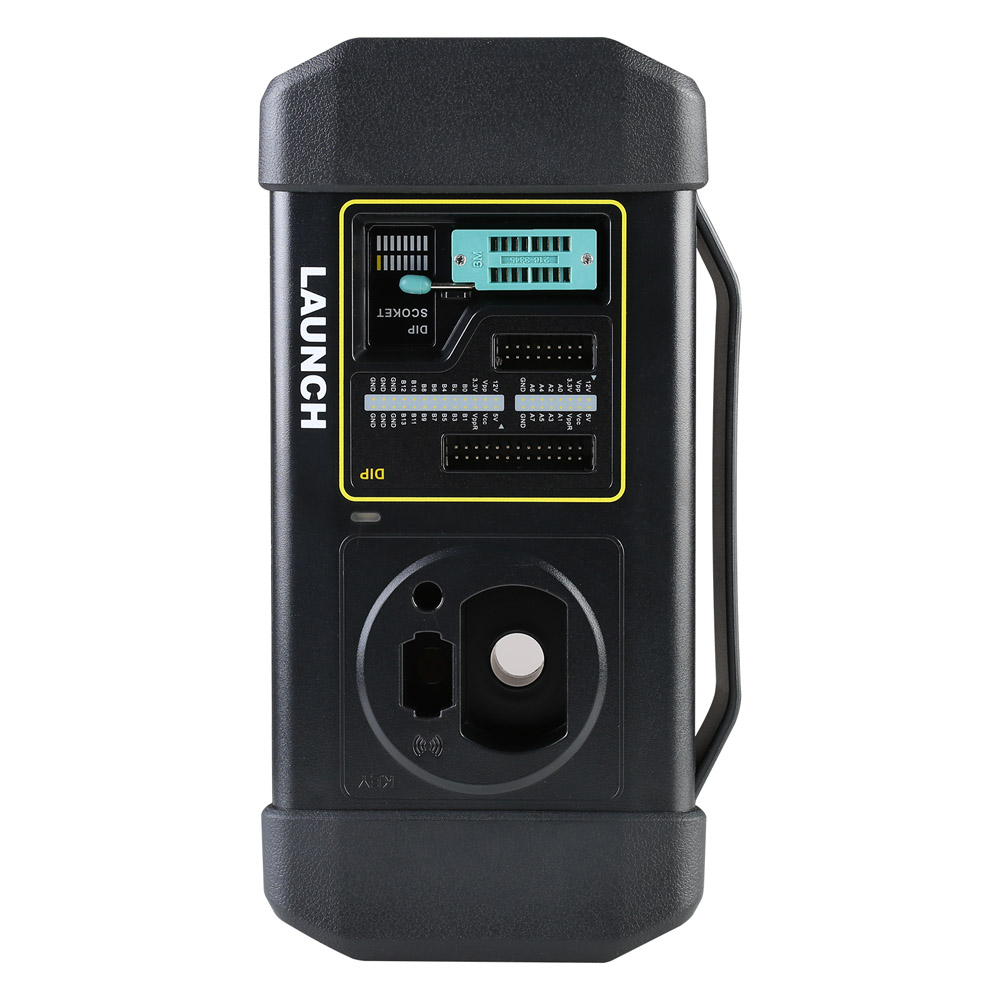

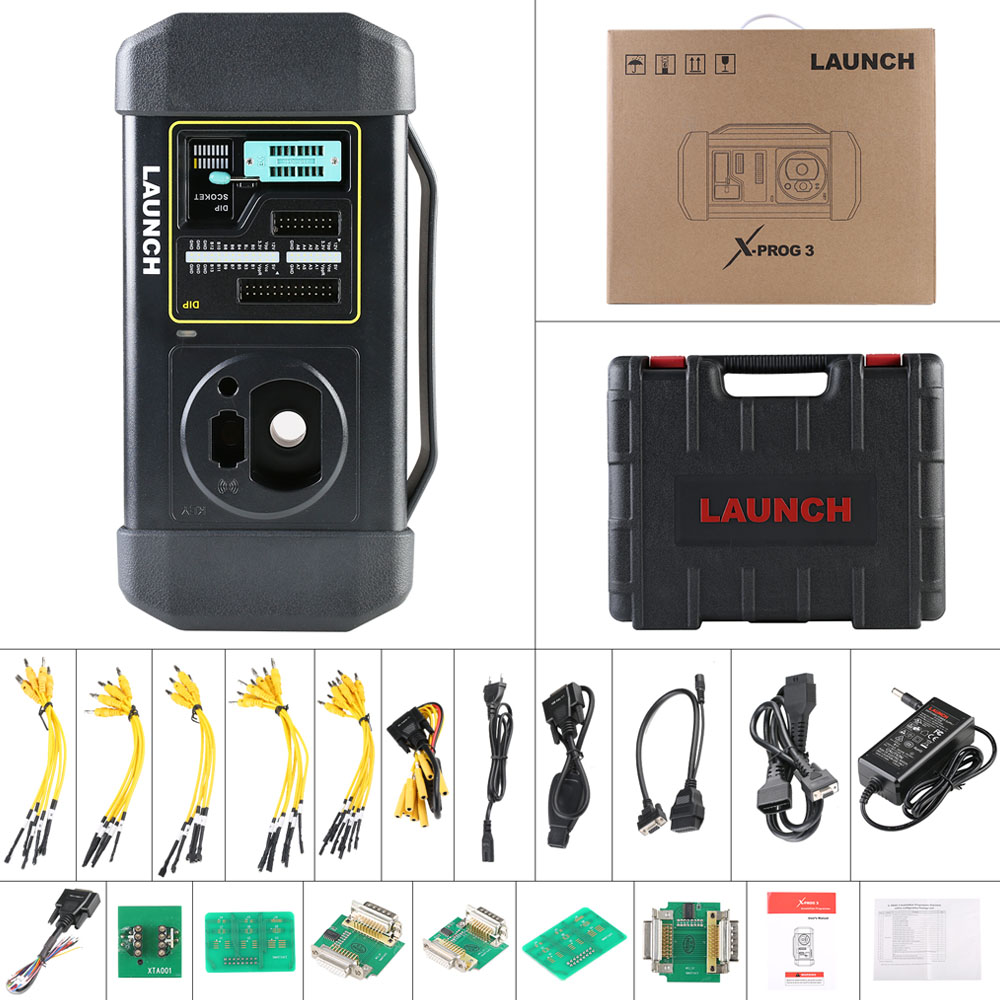

1set x LAUNCH X-431 GIII Advanced Immobilizer & Key Programmer
