Autel MaxiIM KM100 Auto Key IMMO Universal Key Generator Kit Supports PLC V200 Lifetime Free Update Online

Product Description

1.Key Renew, AutoVin
2.Transponder Reading/Writing/Cloning
3.Frequency Detection & ignition Coil Detection

Burst Point
1. Supports PLC V200
2. 60-Second Key Generation (Autel Universal Only)
3. Transponder Reading/ Writing/ Cloning
4. Frequency Detection and ignition Coil Detection
5. Compatible With Autel Blank Universal Smart Keys
6. Key Renewal: Supporting 36 Vehicle Makes, check list here
7. Transponder Editing: Supporting 20 Categories
8. Supports Wi-Fi and Bluetooth
9. Supporting Certification Requirements of Various Regions
10. Dual-Band, High-Frequency Transmitter 315 m/ 434 m or 868 m/ 915 m
11. Multi-language: English, Chinese, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, Turkish, Hebrew, Arabic, Thai, Vietnamese

Other Features:
-Android-based touch screen device

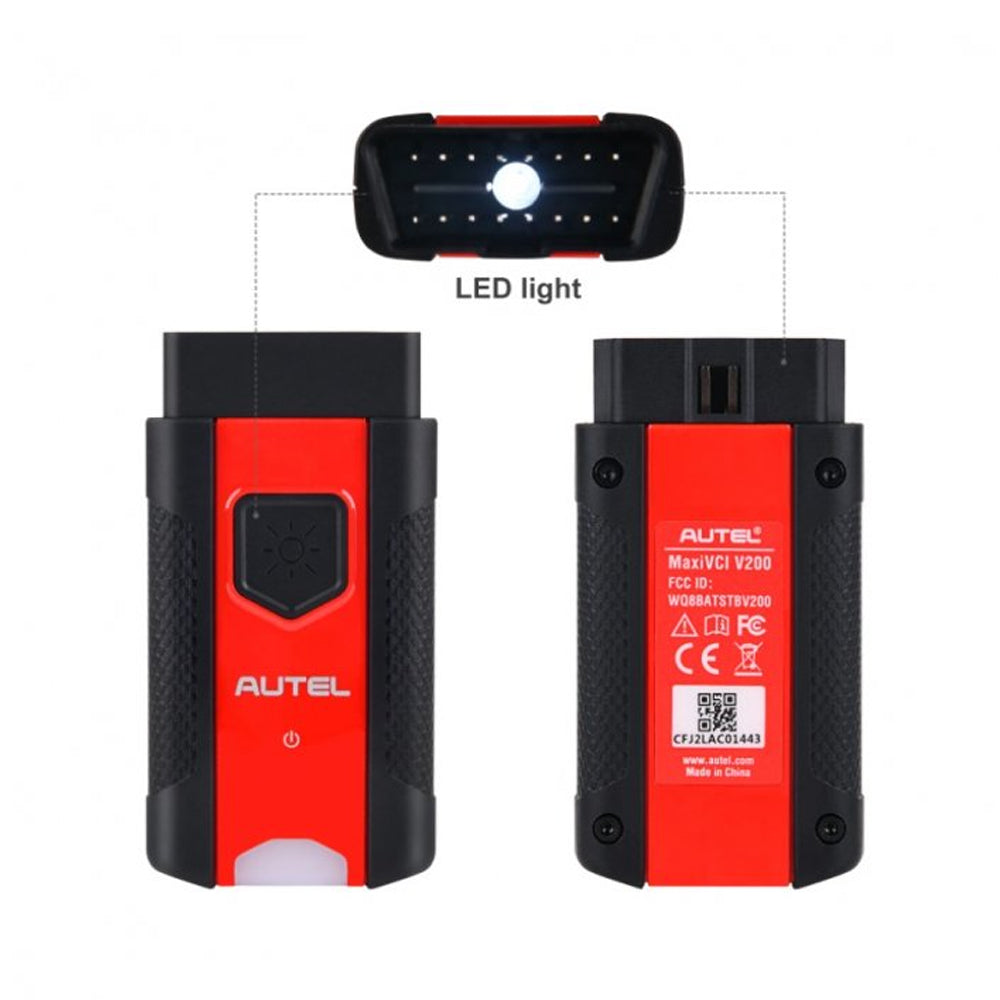

-Contains MaxiVCI VCI200 so you can perform key simulation and key learning after generating a key
-Use the USB cable to transfer data from another device, such as IM608, to a laptop and from the laptop to the key tool.
-The key tool comes with 2 blank keys for you to use at your convenience. One has the Autel logo on the back and the other does not.

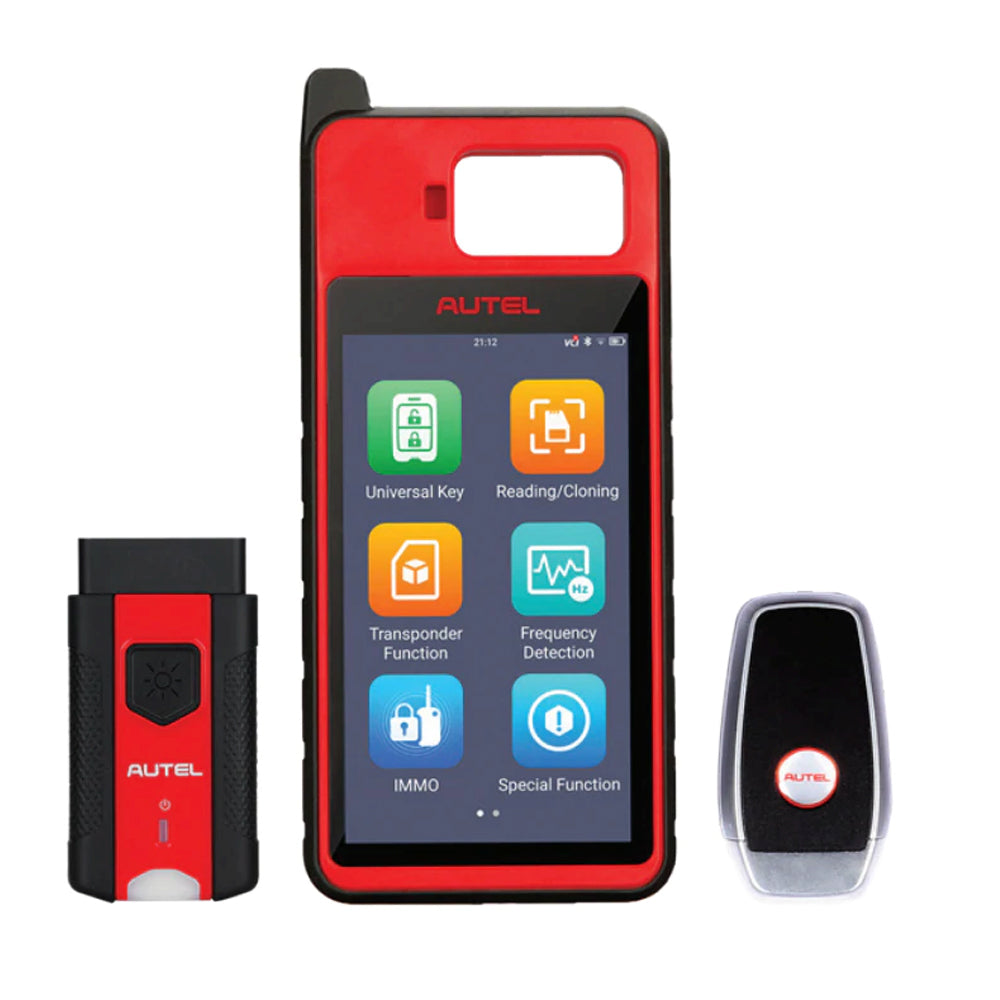

Package Included
1pc X OBD Adapter
2pcs X Universal Keys
1pc X KM-100 Key Generator

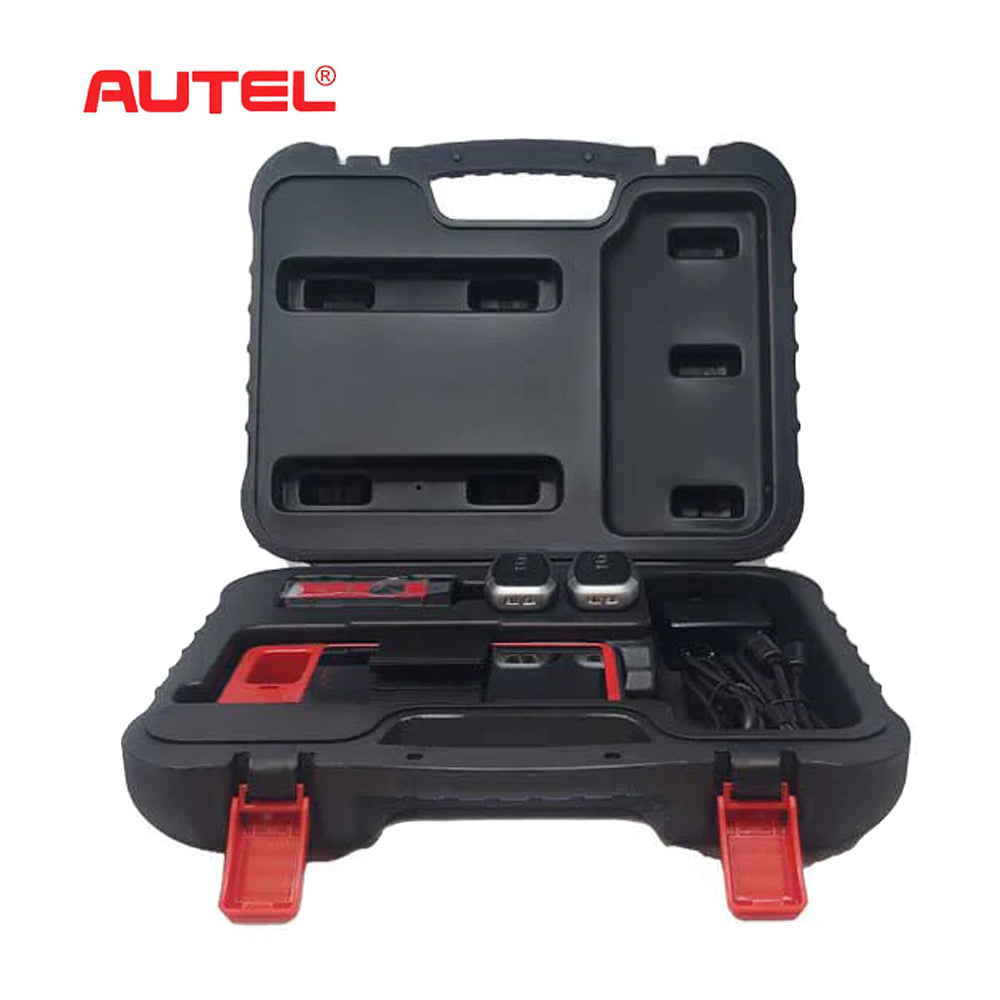

1pc X Hard Shell Carrying Case

Technical specifications
- OE-Level Quality
- Screen: Size: 5.5 Inch; Resolution: 1,280 x 720p
- 64G Memory, 2G RAM
- 8MP Camera
- Wi-Fi and Bluetooth
- Battery: 4,950 mAh

Vehicle Compatibility

- Supports 8 Key series and 37 models.

 -Supports AutoVIN - Simple operation, guided user instructions easy to use.
- Industry-Leading Coverage of IMMO learning via OBD for more than 90% of models.

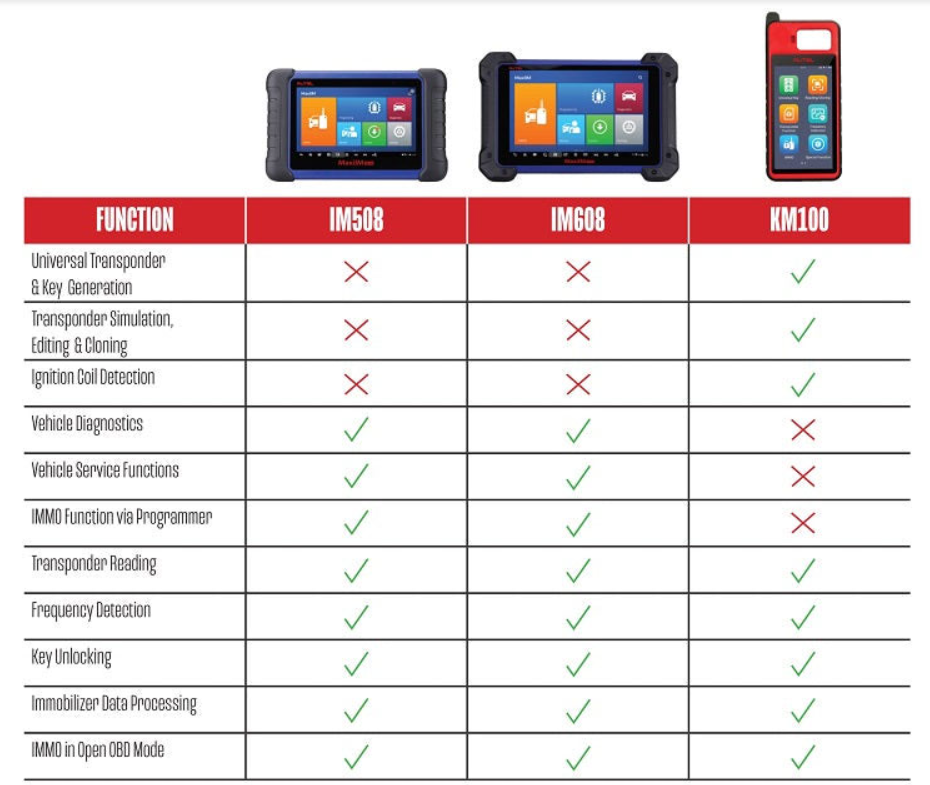

Autel IM508 vs IM608 vs KM100



Autel MaxiIM KM100 Supported List

Make	mode	year	Immo type	FCCID	Frequency(MHz)	Remarks	Note
Ford	Mondeo	2007-2021	ID49	M3NA2C31243300	903.42
Ford	Mondeo	2007-2021	ID49	CMIIT ID:2018DJ2196	434.25
Ford	B-MAX	2012-2018	ID4D	KR55WK48801	434.25
Ford	B-MAX	2012-2018	ID4D	KR5876268	434.25
Ford	C-MAX	2010-2019	ID4D	KR5876268	434.25
Ford	Mondeo	2007-2021	ID49	CMIIT ID:2014DJ2178	868.50
Ford	Mondeo	2007-2021	ID49	M3NA2C931423	315.00
Peugeot	508	2011-2017	ID4A	OEM:98105588ZD	433.92
Peugeot	4008	2019-2021	ID4A	OEM:98105588ZD	433.92
Peugeot	5008	2019-2021	ID4A	iy1dey1	433.92
Peugeot	Traveller	2019-2021	ID4A	OEM:98105588ZD	433.92
Peugeot	Expert	2019-2021	ID4A	OEM:98105588ZD	433.92
Peugeot	508L	2014-2021	ID4A	OEM:98105588ZD	433.92
Peugeot	508	2011-2017	ID46	CMIIT:2010DJ5052/2013DP8279	433.914
Peugeot	308	2016-2019	ID46	CMIIT:2010DJ5052/2013DP8279	433.914
Peugeot	4008	2019-2021	ID46	CMIIT:2010DJ5052/2013DP8279	433.914
Kia	SORENTO	2019-2020	ID47	FCCID:TQ8-FOB-4F06 OEM:95440C6100	433.92		All Keys needed for the test
Kia	SPORTAGE	2019	ID47	FCCID:TQ8-FOB-4F08 OEM:95440C5600	433.92		All Keys needed for the test
Kia	SPORTAGE	2021-2022	ID47	FCCID:TQ8-FOB-4F23 OEM:95440F1300	433.92		All Keys needed for the test
Kia	SPORTAGE	2021-2022	ID47	FCCID:TQ8-FOB-4F24 OEM:95440F1200	433.92		All Keys needed for the test
Kia	SPORTAGE	2020+	ID47	FCCID:TQ8-FOB-4F08 OEM:95440D9100	433.92		All Keys needed for the test
Kia	SPORTAGE	2019	ID47	FCCID:TQ8-FOB-4F24 OEM:95440D9600	433.92		All Keys needed for the test
Kia	SPORTAGE	2019	ID47	FCCID:TQ8-FOB-4F23 OEM:95440D9610	433.92		All Keys needed for the test
Kia	SPORTAGE	2019	ID47	FCCID:TQ8-FOB-4F08 OEM:95440D9500	433.92		All Keys needed for the test
Kia	SPORTAGE	2019	ID47	FCCID:TQ8-FOB-4F08 OEM:95440D9510	433.92		All Keys needed for the test
Kia	NIRO	2018-2020	ID47	FCCID:TQ8-FOB-4F08 OEM:95440G5000	433.92		All Keys needed for the test
Kia	NIRO	2018-2020	ID47	FCCID:TQ8-FOB-4F08 OEM:95440G5100	433.92		All Keys needed for the test
Kia	NIRO	2018-2020	ID47	FCCID:TQ8-FOB-4F24 OEM:95440G5010	433.92		All Keys needed for the test
Hyundai	IONIQ	2017-	ID47	FCCID:TQ8-FOB-4F11 OEM:95440G2000	433.92		All Keys needed for the test
Hyundai	IONIQ	2017-	ID47	FCCID:TQ8-FOB-4F11 OEM:95440G2500	433.92		All Keys needed for the test
Hyundai	IONIQ	2018-2020	ID47	FCCID:TQ8-FOB-4F11 OEM:95440G2010	433.92		All Keys needed for the test
Hyundai	IONIQ	2019-2021	ID47	FCCID:TQ8-FOB-4F11 OEM:95440G2110	433.92		All Keys needed for the test
Hyundai	TUCSON	2016-	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3100	433.92		All Keys needed for the test
Hyundai	TUCSON	2019-2020	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3510	433.92		All Keys needed for the test
Hyundai	TUCSON	2015+	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3000	433.92		All Keys needed for the test
Hyundai	TUCSON	2019	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3520	433.92		All Keys needed for the test
Hyundai	TUCSON	2018	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3110	433.92		All Keys needed for the test
Hyundai	TUCSON	2018	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3010	433.92		All Keys needed for the test
Hyundai	TUCSON	2019	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D3500	433.92		All Keys needed for the test
Hyundai	TUCSON	2019	ID47	FCCID:TQ8-FOB-4F11 OEM:95440D7000	433.92		All Keys needed for the test
Hyundai	KONA	2018-	ID47	FCCID:TQ8-FOB-4F18 OEM:95440J9000	433.92		All Keys needed for the test
Hyundai	KONA	2019-2020	ID47	FCCID:TQ8-FOB-4F19 OEM:95440J9101	433.92		All Keys needed for the test
Hyundai	SANTAFE	2019-	ID47	FCCID:TQ8-FOB-4F19 OEM:95440S1100	433.92		All Keys needed for the test
Hyundai	SANTAFE	2019-2021	ID47	FCCID:TQ8-FOB-4F19 OEM:95440S1000	433.92		All Keys needed for the test
Hyundai	SANTAFE	2018-2020	ID47	FCCID:TQ8-FOB-4F19 OEM:95440S2000	433.92		All Keys needed for the test
Hyundai	SANTAFE	2019-2021	ID47	FCCID:TQ8-FOB-4F29 OEM:95440S1050	433.92		All Keys needed for the test
Hyundai	SANTAFE	2020	ID47	FCCID:TQ8-FOB-4F31 OEM:95440S2200	433.92		All Keys needed for the test
Hyundai	i10	2010-2020	ID46	FCCID:TQ8-FOB-4F04 OEM:95440B9500	433.92		All Keys needed for the test
Hyundai	i20	2019	ID46	FCCID:TQ8-FOB-4F04 OEM:95440B4500	433.92		All Keys needed for the test
Hyundai	i20	2015-2019	ID46	FCCID:TQ8-FOB-4F04 OEM:95440C7000	433.92		All Keys needed for the test
Hyundai	i20	2018	ID46	FCCID:TQ8-FOB-4F04 OEM:95440C7100	433.92		All Keys needed for the test
Hyundai	i20	2011-2017	ID46	FCCID:TQ8-FOB-4F04 OEM:95440C8000	433.92		All Keys needed for the test
Hyundai	Tucson	2011-2020	ID46	FCCID:TQ8-FOB-4F03 OEM:954402S610	433.92		All Keys needed for the test
Kia	Ceed	2010-2020	ID46	FCCID:TQ8-FOB-4F02 OEM:95440A2100	433.92		All Keys needed for the test
Kia	Ceed	2010-2020	ID46	FCCID:TQ8-FOB-4F02 OEM:95440A2200	433.92		All Keys needed for the test
Hyundai	i10	2020+	ID4A	FCCID:SVI-BR2FGE03	433.92		All Keys needed for the test
Kia	Sorento		ID4A	FCCID:SY5MQ4FGE07	433.92		All Keys needed for the test
Kia	Sorento	2021	ID4A	FCCID:SY5MQ4FGE04	433.92		All Keys needed for the test
Hyundai	ix20	2011-2014	ID46	FCCID:SVIMDFEU04	433.96		All Keys needed for the test
Hyundai	i30	2010-2016	ID46	FCCID:SVIMDFEU04	433.96		All Keys needed for the test
Kia	Sportage	2010-2020	ID46	FCCID:SVIMDFEU04	433.96		All Keys needed for the test
Mitsubishi	RVR (ASX/Outlander Sport)	2011-2017	ID46		433.92
Mitsubishi	Outlander	2018	ID46		315.01
Renault	Koleos	2018	ID4A		433.92
