    2.21.21 SM2 Pro J2534 VCI ECU Programmer Read Write ECU Tool Support Checksum and Pinout Diagram 67IN1 of Flash Bench OB

    • Item No.  H151
    • History: 1  sold
    • Please choose the Configuration you need:


    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  1000
    • Weight:  1.0KG
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    2.21.21 SM2 Pro J2534 VCI ECU Programmer Read Write ECU Tool Support Checksum and Pinout Diagram 67IN1 of Flash Bench OBD


    SM2 PRO J2534 VCI Functions:
    1. Read and write ECU data
    2. ECU clone
    3. ECU parameter adjustment
    4. ECU maintenance engineering
    5. Chip turing
    6. Read ECU maps
    7. Checksum correction
    8. Stage1-3, gearbox tuning , LC, sportdisplay , immo off, adblue off, dpf off, dtc off ,vmax ,swirl off
    9. Read flash and ep files
    10. Powertrain adjustment
    11. Support online update
    12. VR files supply
    13. Pinout comewith
    14. Helpdesk and tuner account
    15. OBD2 reading
    16. Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
    17. Cover-opening data reading, boot mode

    200 Newly-added Bosch MED/EDC17 Read/Write Protocols Without Opening the Cover.
    VAG Simos 12.1, 12.2
    VAG Simos PCR2.1
    FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
    Hyundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
    Ford/LR SID208 Flash read
    Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
    PSA SID208
    MB SID307, SID310
    Renault SID307, SID309, SID310
    Porsche SDI21.x
    Mitsubishi E6T83XXX, E6T32xxx
    Isuzu Transtron SH72544R
    Isuzu Transtron L4.3
    Hino EDC7UC31
    Hyundai, Greatwall DCM6.2AP

    Coming Soon:
    VAG Simos 18.1, 18.2
    VAG Simos 18.10
    FCA Marelli 8GMK/8GML, MJ9DF, 10GF
    FAL Marelli MJ8DF/8F2, 8GMB/8GMC/8GMF/8GMW/8GSF/8GSW
    BMW MSD80, MSV80, MSD81, MSD85.0/MSD85.4, MSD85.1/MSD85.3, MSD87.1/MSD87.2, MSV90

    Important update:
    1.Our oranginal SM2 PRO already update to version 2.21.21,November 25, 2022 hardware!
    2.Our bench cable already update to 3 led bench cable

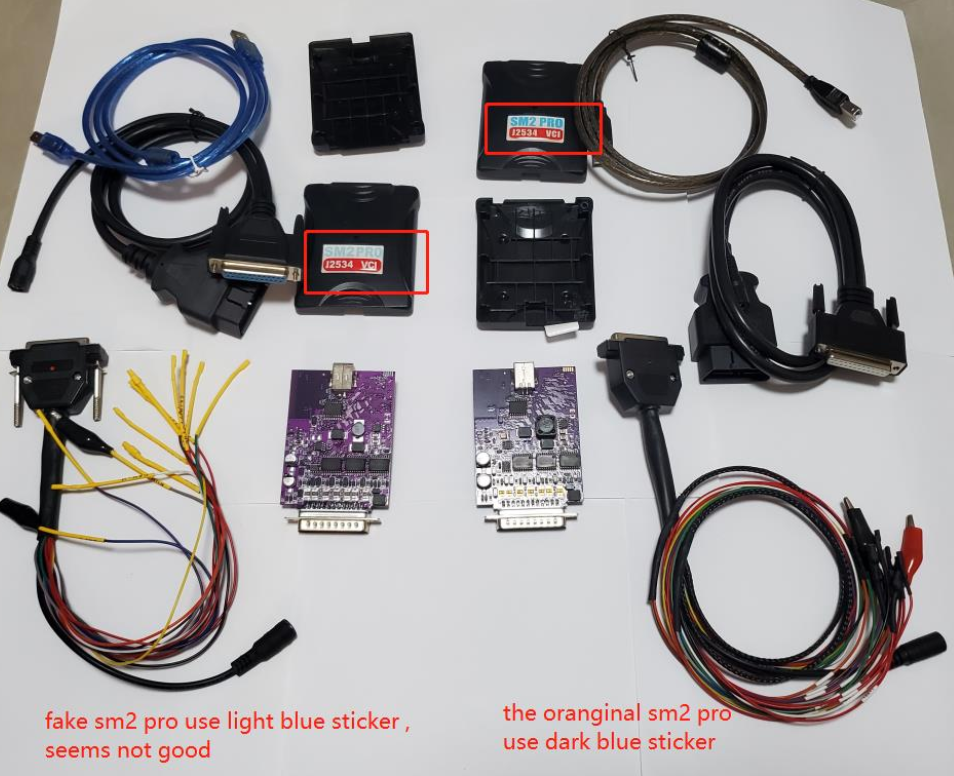

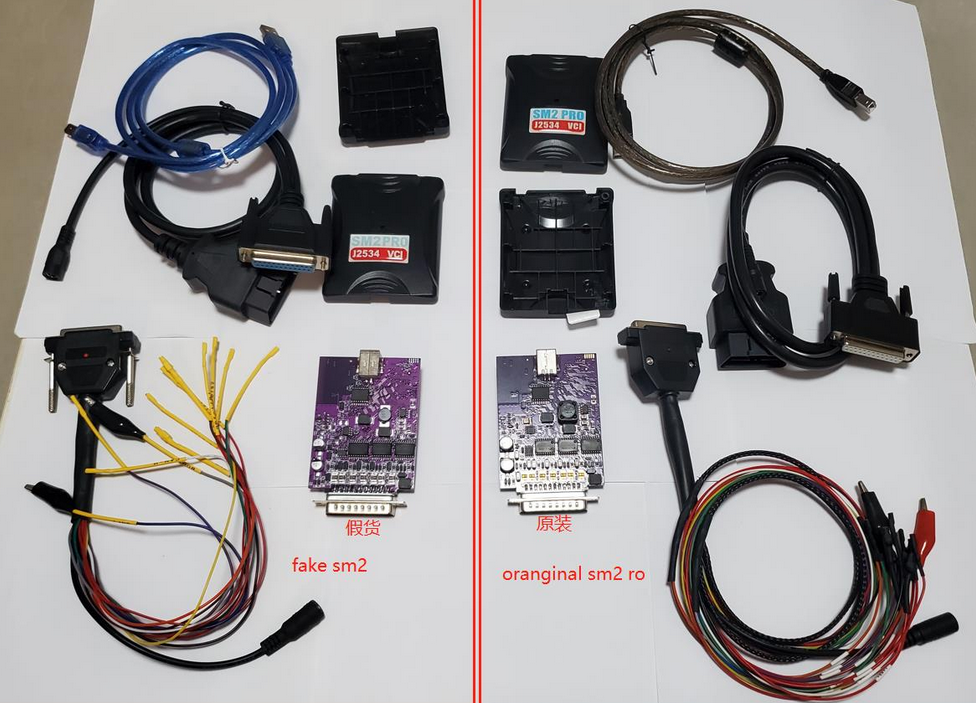

    What's the difference between the original SM2 PRO and the Fake SM2?
    1. The best important ,fake sm2 pro is 2.21.17 firmware ,oranginal sm2 pro is 2.21.21

    2. The fake SM2 use light blue sticker ,looks not clearly. the original SM2 used dark blue sticker,looks very nice.

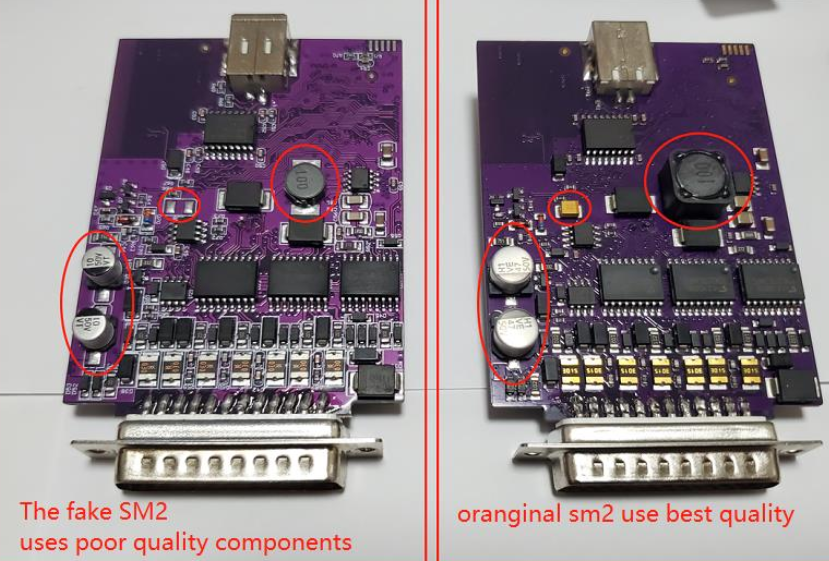

    3. The fake SM2 used poor quality components, the original SM2 used the best quality components.



    What is difference between SM2 PRO J2534 VCI And BENCH , FLASH ,OBD?
    1. different SN number BENCH ,FLASH,OBD.
     All SN number isA55259. Actually they are the same hardware, just a different case,you also can check the PCB board of them.
    SM2 PRO J2534 VCI SN:A78370. it is different as others in the market.

    2. different hardware version
    BENCH ,FLASH,OBD hardware version is 2.21.2 . from 03.2019 year. it is very old ! SM2 PRO J2534 VCI hardware version is 2.21.21 from August 4, 2022 . it is very new version . It's already updated 16 versions vs others hardware. and it was added many new functions and more stable .

    For more differences and new functions please contact us get mega link!

    What are our Advantages:
    1.  Our hardware support all J2534 protocol software
    2.  dont need register and active device.  you can work it directly .  and more pay attention to protecting personal privacy .
    3.  when you update your device by mistake.  it will not be locked.  you just come back to correct driver version to work.
    4.  support newest cars and do online programming (with online account) .for example GDS software work with 2021 year GM Buick ENVISION, 2021 year CADILLAC XT5 .we have tested online programming and working perfect!!!

    Note:
    there are two versions:

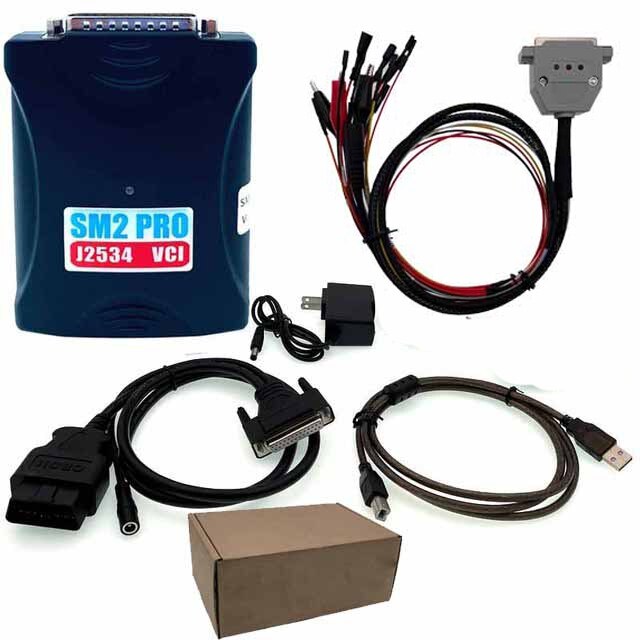

    1. without dongle means no any software ,just hardware.

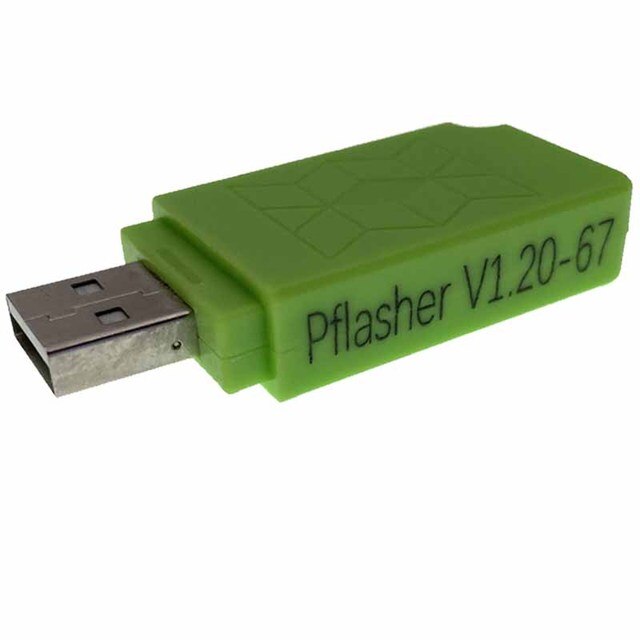

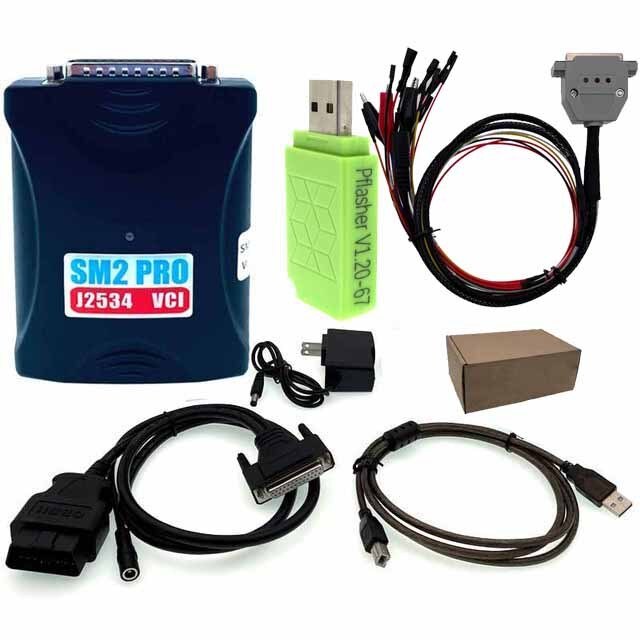

    2. withdongle menas ,come with hardware and 67 in 1 software.

    67 in 1 Active Licenses:
    1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 38 40 42 43 45 46 47 48 50 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74

    SM2 PRO J2534 VCI (Software Version: 1.20) Support 67 Modules:
    Module 1
    Ford Focus 3

    Ford Focus 3: 1.6L Sigma Ti-VCT 85/105/125PS (EMS2204)
    Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)
    Virtual reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

    Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150/170PS (MED17)
    Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)
    Reading, writing, checksum correction.

    Module 2
    Ford Kuga 2, Ford Explorer 2011+

    Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)
    Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
    Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)
    Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
    Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
    Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS
    Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS
    Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS
    Reading, writing, checksum correction

    Module 3
    Diese*l engines 2.0L, DCM3.5/DCM6.1/SID206

    Ford Focus 3: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
    Ford Kuga 1: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
    Ford Kuga 2: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
    Ford Mondeo 4: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
    Virtual reading, writing, checksum correction.

    Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206)
    Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150/180PS (DCM6.1)
    Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
    Reading, writing, checksum correction.

    Module 4
    Petrol engines 1.25-1.6L, Ford Fiesta 2008+, Ford Mondeo 4

    Ford Fiesta: 1.25L, 1.4L Sigma Ti-VCT (EMS2102)
    Ford Fiesta: 1.6L Sigma Ti-VCT (EMS2101)
    Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)
    Reading, writing, checksum correction.

    Ford Fiesta: 1.6L Sigma Ti-VCT USA [AE81] (EMS2205)
    Writing, checksum correction.

    Module 5
    Petrol engines 1.6L, 2.0L, Ecoboost T-PROT7

    Ford Focus 3: 1.6L Ecoboost GTDI 150/180PS (MED17)
    Ford Mondeo 4: 2.0L Ecoboost GTDI 200/240PS (MED17)
    Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

    Module 6
    Petrol Engines 1.0, 1.6L, Ecoboost T-PROT12

    Ford Focus 3: 1.0L Ecoboost GTDI 100/125PS (MED17)
    Ford Kuga 2: 1.6L Ecoboost GTDI FWD 150PS (MED17)
    Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS (MED17)
    Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

    Module 7
    Ford Transit/Tourneo/Ranger, LandRover Defender

    Ford Transit 2007: 2.2L, 2.4L Diese*l 85/100/115/140PS (DCU101-108, DCU201-208)
    Reading, writing, checksum correction.

    Ford Transit 2012: 2.2L Diese*l 100/125/140/155PS (SID208)
    LandRover Defender 2012: 2.2L TD4 (SID208))
    Ford Ranger: 3.2L Diese*l (SID209)
    Writing after unlocking in BSL,checksum correction.

    Ford Transit 2012: 2.2L Diese*l 100/125/140/155PS (SID208/BSL)
    Ford Ranger: 3.2L Diese*l (SID209/BSL)
    Reading.

    Ford Transit: 2.2L Diese*l (SID211) [Unlocked]
    Writing after unlocking in BSL with Module 53, checksum correction.

    Ford Ranger: 2.5L Duratec (EMS2207)
    Writing, checksum correction.

    Module 8
    Mazda 1st generation (2004–2008/10)

    Mazda: 1.6L Z6 AT (Mazda3 2004+)
    Mazda: 1.6L Z6 MT (Mazda3 2004+)
    Mazda: 1.3L ZJ (Mazda Demio 2003+)
    Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda3/6/CX7 2003+)
    Mazda: 1.3L N3 (Mazda RX8 2003+)
    Mazda: 1.3L N3 (Mazda RX8 -2008)
    Mazda: 1.3L N3 (Mazda RX8 2009–2012)
    Mazda: 2.0L LF USA (Mazda3 -2009/1MB

    Reading, writing, checksum correction.

    Module 9
    Mazda 2nd generation (2008/10-2012/13)

    1.3L, 1.5L ZJ/ZY (Mazda2 2011+)
    1.5L ZY (Mazda2 US 2011+)
    1.6L Z6 (Mazda3 2010+)
    1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+)
    2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+)
    2.0L LF (Mazda Biante 2013+/2MB)
    Reading, writing, checksum correction.

    Module 10
    Mazda 3rd generation (2012+)

    Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Mitsubish*i)
    Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Denso)
    Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 SkyActiv Mitsubish*i)
    Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 SkyActiv Denso)
    Mazda: 1.6L Z6 (Denso)
    Reading, writing, checksum correction.

    Module 11
    Mazda 3rd generation (2012+) crypto

    Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Denso Crypted)
    Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso Crypted 2MB)
    Mazda: 1.5L, 2.2L SKYACTIV-D S5/SH (Mazda2/3/CX5/6 Denso Crypted 3.75MB)
    Mazda: 1.6L Z6 (Denso Crypted)
    Reading, writing, checksum correction.

    Module 12
    Honda/Acura CAN-bus

    Honda: Honda PGM-FI Generic Read-Only
    Honda: Honda AT/CVT/DCT Generic Read-Only

    PGM-FI (Keihin SH7058/1MB)
    PGM-FI (Keihin SH72543/2MB)
    PGM-FI (Keihin SH72546/3.75MB)
    PGM-FI (Keihin MPC5566/3MB)
    PGM-FI (Keihin TC1782/2.5MB)
    AT/CVT/DCT (Keihin 512KB)
    AT/CVT/DCT (Keihin 1MB)

    PGM-FI (Matsushita SH7058/1MB)
    PGM-FI (Matsushita SH72543/2MB)
    PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
    PGM-FI (Panasonic TC179X/4MB)
    AT/CVT/DCT (Matsushita 512KB) (Test)

    Honda: PGM-FI (Continental MPC5554/2MB)

    PGM-FI (Hitachi SH7058/1MB) (Test)
    PGM-FI (Hitachi SH7059/1.5MB) (Test)
    PGM-FI (Hitachi SH72543/2MB)
    PGM-FI (Hitachi MPC5554/2MB) (Test)
    AT/CVT/DCT (Hitachi SH72531/1280KB)
    AT/CVT/DCT (Hitachi SH725x3/2048KB)
    Reading, writing, checksum correction.
    UDCT (Continental TC1782/2.5MB)
    Writing, checksum correction.

    Module 13
    Honda/Acura K-Line

    Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)
    Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)
    Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
    Honda: Accord/CR-V/Elemen*t/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
    Honda: Elemen*t/Inspire (Keihin SH7055/512KB)
    Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)
    Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)
    Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)
    Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)
    Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)
    Only writing, checksum correction. Stock files database included!

    Module 14
    Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Ford Mondeo 4

    Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)
    Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006)
    Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)
    Reading, writing, checksum correction.

    Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
    Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

    Module 15
    Nissan/Infinity K-Line

    EFI SH705415N (Hitachi SH7054/384KB)
    EFI SH705507N (UJ/Hitachi SH7055/512KB)
    EFI SH705513N (Hitachi SH7055/512KB)
    EFI SH705520N (Hitachi SH7055/512KB)
    EFI SH705821N (Hitachi SH7058/1MB)
    EFI SH705823N (Hitachi SH7058/1MB)
    EFI SH705524N Almera Classic (Hitachi SH7055/512KB)
    EFI SH705529N Almera Classic (Hitachi SH7055/512KB)
    EFI SH705826N (Hitachi SH7058/1MB)
    Reading, writing, checksum correction.

    Module 16
    Subaru Hitachi

    Forester, Impreza, Legac*y 2000-2002 K-Line (UJ WA12212920/128KB)
    Forester, Impreza, Legac*y 2000-2002 K-Line (UJ WA12212930/256KB)
    Forester, Impreza, Legac*y 2002-2005 K-Line (UJ/Hitachi WA12212940/384KB)
    Forester, Impreza, Legac*y 2002-2005 K-Line (UJ/Hitachi WA12212970/512KB)
    Reading, writing.

    Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970WWW/512KB)
    Forester 2007-2008, Impreza 2008+, Legac*y 2006+ CAN (Hitachi WA12212970WWW/512KB)
    Forester 2009-2011/Legac*y 2010-2011 CAN (Hitachi SH7058/1MB)
    Forester 2013+ CAN (Hitachi SH7059/1.5MB)
    Forester 2013+ CAN (Hitachi SH7254/2MB)
    Reading, writing, checksum correction.

    Module 17
    Volkswagen K-Line

    1.6L CFNA/CFNB/CLRA 7GV K-Line (Marelli 7GV/832KB)
    1.4L CGGB K-Line (Marelli 7GVE/832KB)
    1.6L BFQ K-Line (Simos 3.3A/512KB)
    1.4L BUD/BXW/CGGA/CGGB K-Line (Marelli 4HV/832KB)
    1.6L BSA/BSE/BSF Calibration K-Line (Simos 7.1/512KB)
    1.6L BSA/BSE/BSF Calibration K-Line (Simos 7PP/1MB)
    1.2L BME/BZG/CGPA Calibration K-Line (Simos 9.1/512KB)
    Reading, writing, checksum correction.

    Module 18
    Nissan/Infinity CAN-bus

    EFI Generic Read-Only (Hitachi)
    EFI SH705519N (Hitachi SH7055/512KB)
    EFI SH705822N, SH705828N (Hitachi SH7058/1MB)
    EFI SH705927N (Hitachi SH7059/1.5MB)
    EFI SH725331N (Hitachi SH72531/1.25MB)
    EFI S7253332N (Hitachi SH72533/2MB)
    Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB)
    Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB)
    Reading, writing, checksum correction.

    Module 19
    Kia/Hyundai

    Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)
    Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)
    Only writing, checksum correction.

    Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
    Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
    Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)
    Reading, writing, checksum correction.

    Module 20
    Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)
    Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
    Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)
    Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
    Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
    Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
    Reading, writing, checksum correction.

    Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
    Writing, checksum correction.

    Module 21
    Ford USA (automatic transfer for VID area)

    Mazda6 3.0L AJ 2003-2005
    Escape, Explorer, Mazda CX9 -2009 (PCM150F)
    Explorer, Mazda CX9 2010-2011/2012 (M799G)
    Focus 2008-2011 (GreenOak/PCM190)
    Escape, Mariner, Tribute 2009-2011 (9L8A)
    Ford F350 6.0L (BlackOak/PCM122/448KB)
    Expedition, Navigator 5.4L (Bosch ME9.8/2048KB)
    F-150 5.4L (Bosch MEG9.8.1/2536KB)
    Reading, writing, checksum correction

    Mustang 2005-2009 (PCM170F)
    Reading, writing.

    Module 22
    Renault

    Valeo V40/V42 (SH7058/1024KB)
    Sagem 3000 (SH7055/512KB)
    EMS3110 (TC1766/1504KB)
    Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB)
    Duster, X-Ray EMS3125 (TC1782/2560KB)
    Clio 4 1.6T EMS3150 (TC1767/2048KB)
    Nissan: Juke 1.2T EMS3155 (TC1782/2560KB)
    Reading, writing, checksum correction.

    Module 23
    Subaru Denso

    2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055/512KB)
    2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S/512KB)
    2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058/1MB)
    2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S/1MB)
    2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531/1.25MB)
    1.6L, 2.0L DI Denso 2018+ CAN-bus (1N83M/1.5MB)
    2.0L Denso Diese*l Euro 4 CAN-bus (SH7058S/1MB)
    2.0L Denso Diese*l Euro 5 CAN-bus (SH7059/1.5MB)
    2.0L Denso Diese*l Euro 6 CAN-bus (SH72543/2MB)
    Reading, writing, checksum correction.

    Module 24
    Mitsubish*i CAN-bus

    MH Generic Read-Only
    Colt MT (MH8304F/512KB)
    Colt AT (MH8304F/768KB)
    Colt RallyArt 1.5T (MH8104F/512KB)
    Pajero AT (2007-) (MH8304F/768KB)
    Pajero Sport (2010-) (MH8106F/1MB)
    L200 2.4L MT (2008-) (MH8302F/512KB)
    Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB)
    ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB)
    ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB)
    Galant 9 2.4L (2005-) (MH8304F/768KB)
    Pajero MT (2007-) (MH8302F/512KB)
    Eclipse Cross (2018-) (MH8601/4MB) (MH8115F/1.25MB)
    Expander (2018-) (MH8611/2MB)
    Reading, writing, checksum correction.

    Module 25
    Renault/Nissan 1.5dCi

    1.5L dCi Delphi DCM 1.2 (ST10/512KB)
    1.5L dCi Delphi DCM 3.4 (SH7059/1536KB)
    1.5L dCi SID 301/303/304 (MPC562/2MB)
    1.5L dCi SID 305/306 (TC1766/1504KB)
    1.5L dCi SID 307 (TC1767/2MB)
    2.3L dCi SID 309 (TC1767/2MB)
    Nissan Juke 1.5L dCi SID 310 (TC1767/2MB)
    Reading, writing, checksum correction.

    Module 26
    Mitsubish*i Diese*l CAN-bus

    Denso Diese*l (SH7058/SH7058S/1MB SH7059/1.5MB SH72543/2MB)
    Reading, writing, checksum correction.

    Module 27
    Nissan CAN-bus 2nd generation

    EFI SH72533 Gen 2 (2014+) Calibration (Hitachi SH72533/2MB)
    Renault Samsun*g 1.6T (Hitachi SH72533/2MB)
    Reading, writing, checksum correction.

    Module 29
    Ford PWM (Ford VCM2 or Scanmatik is required)

    Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)
    EEC-V 216K (EEC-V)
    3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150)
    Reading, writing, checksum correction

    1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon)
    1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)
    Reading, writing

    Module 30
    Kia/Hyundai SIM2K

    2.0L, 2.4L (SIM2K-140)
    2.0L, 2.5L (SIM2K-D160)
    2.0L, 2.4L (SIM2K-141/142/341)
    2.0L (SIM2K-C201)
    2.0L, 2.0T (SIM2K-240/241/242/245)
    Reading, writing, checksum correction.

    Module 31
    Mitsubish*i K-Line

    K-Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF/MH8115)
    Reading, writing, checksum correction.

    Module 32
    Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017

    Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
    Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
    Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
    Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
    Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
    Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
    Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)
    Reading, writing, checksum correction.

    Module 33
    Ford EcoSport/Fiesta 2015+

    2.0L Duratec HE 140PS (IAW 7GFR.HR)
    Reading, writing, checksum correction.

    1.6L Sigma Ti-VCT 85/105/110/122PS (EMS2211)
    1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)
    Writing, checksum correction.

    Module 34
    Kia/Hyundai EDC15/EDC16

    2.0L, 2.5L CRDI K-Line (EDC15C7)
    2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)
    3.0L CRDI K-Line Calibration (EDC16CP34)
    Reading, writing, checksum correction.

    2.0L, 2.2L, 2.5L CRDI (EDC16C39)
    3.0L CRDI (EDC16CP34)
    Writing, checksum correction.

    Module 35
    Toyota/Lexus/Scion/Hino

    76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-bus
    76F0038/39/40/50/70/85, 70F4019 GearBox CAN-bus
    76F0038/39/40/50/70/85 HV Control CAN-bus
    76F0004/23/38/39/40/70/85, MPC565 K-Line
    Writing, checksum correction.

    Module 36
    Kia/Hyundai EDC17

    1.6L, 2.0L CRDI (EDC17C08/TPROT3)
    2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
    2.0L, 2.2L CRDI (EDC17CP14/TPROT11)
    1.6L, 2.0L CRDI (EDC17C53)
    2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)
    Reading, writing, checksum correction.

    Module 38
    Renault K-Line

    Duster 1.6L 2WD EMS3130 (ST10/512KB)
    EMS3132 MT (C167/256KB)
    EMS3134 AT (C167/512KB)
    Sagem 3000 (SH7055/512KB)
    Sirius 35 (C167/512KB)
    Reading, writing, checksum correction.

    Module 40
    Kia/Hyundai SIMK

    2.0L, 2.7L K-Line (SIMK-41/43)
    2.0L, 2.4L CAN (SIMK-43/SIM2K-47)
    Reading, writing, checksum correction.

    Module 42
    Denso SH705X Bootloader

    SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)
    Reading, writing, checksum correction.

    Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56)
    Mitsubish*i/Nissan/Subaru Diese*l SH7058(S)/SH7059 EEPROM (86)
    Subaru Metal-Case SH7055/SH7058 EEPROM (56)
    Subaru Plastic-Case SH7058 EEPROM (86)
    Subaru Plastic-Case SH7058S EEPROM (56)
    Subaru Plastic-Case SH7058S EEPROM (86)
    Suzuki Liana/Jimny SH7055 EEPROM (56)
    Suzuki SH7055/SH7058 EEPROM (56)
    Suzuki SH7058S EEPROM (56)
    Volvo SH7058 EEPROM (56)
    Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)
    Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128)
    Reading, writing.

    Module 43
    LandRover EDC17СP42/MED17

    Freelander 2/Evoque/Discovery Sport 2.2L I4 Diese*l (EDC17CP42)
    Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42)
    Freelander 2 2.2L I4 Diese*l (EDC16CP39)
    Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17)
    Jagua*r XF (X250) 2.0L Ecoboost GTDI (MED17.9.7)
    Reading, writing, checksum correction.

    Module 45
    MB Sprinter 906/909 EDC16CP31

    Sprinter (906) 2.2L CDI (EDC16CP31-6)
    Sprinter (909) 2.2L CDI (EDC16CP31-8)
    Dodge Sprinter (906) 3.0L CDI (EDC16CP31-6)
    Reading, writing, checksum correction.

    Module 46
    Toyota/Lexus/Scion/Hino 2 Generarion

    76F0196/198/199/219 CAN-bus
    Writing, checksum correction.

    76F0196/198/199/219 P5-CAN-bus
    76F0199 GearBox P5-CAN-bus
    Reading, writing, checksum correction.

    Module 47
    Mitsubish*i Gearbox CAN-bus

    CVT Lancer X/ASX 1.8/2.0L, Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB)
    AT Pajero Sport (2010-), Lancer X 1.5/1.6L (MH8102F/512KB)
    AT Outlander XL 3.0L (MH8104F/512KB)
    Reading, writing.

    TC-SST Getrag 6DCT470
    Getrag 6DCT470 Boot (MICRO)
    Getrag 6DCT470 Boot (EEPROM
    Reading, writing, checksum correction.

    CVT ASX/Outlander 3/Eclipse Cross 1.5T/2.0L/2.4L (MH8115F/1.25MB)
    Reading, writing, checksum correction.

    Module 48
    VAG ME(D)17 UDS

    1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)
    1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27)
    1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)
    1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62)
    1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)
    5.2L FSI Master/Salve (MED17.1.1)
    Virtual reading, writing, checksum correction.

    Module 50
    VAG EDC17CP44, EDC17C46, EDC17C64

    2.0L, 3.0L TDI (EDC17CP04/EDC17CP14/EDC17CP20/EDC17CP24)
    3.0L TDI (EDC17CP44)
    4.2L TDI (EDC17CP24/EDC17CP44)
    2.0L TDI (EDC17C46)
    2.0L TDI (EDC17C54)
    1.6L, 2.0L TDI (EDC17C64)
    2.0L TDI (EDC17C74)
    3.0L TDI (EDC17CP54)
    Virtual reading, writing, checksum correction.

    Module 52
    Kia/Hyundai Delphi MT38/86

    2.7L, 3.3L, 3.8L (MT38/CAN)
    Writing, checksum correction.

    2.7L, 3.3L (MT38/K-Line)
    2.7L, 3.3L, 3.8L (MT38/BSL)
    3.3L, 3.8L, 5.0L (MT86)
    Reading, writing, checksum correction.

    Module 53
    Infineon Tricore BSL

    TC1762/TC1766 MICRO (1504KB)
    TC1762/TC1766 EEPROM (32KB)
    TC1792/TC1796 MICRO (2048KB)
    TC1796 MICRO+EXT (4096KB/6144KB)
    TC1796 EXT (2048KB/4096KB)
    TC1792 EEPROM (64KB)
    TC1796 EEPROM (128KB)
    TC1738/TC1767 MICRO (2048KB)
    TC1738/TC1767 EEPROM (64KB)
    TC1797 MICRO (4096KB)
    TC1797 EEPROM (64KB)
    TC1797 MICRO+EXT (6144KB/8192KB)
    TC1797 EXT (2048KB/4096KB)
    TC1724/TC1728 MICRO (1536KB)
    TC1724/TC1728 EEPROM (64KB)
    TC1782/TC1784 MICRO (2560KB)
    TC1782/TC1784 EEPROM (128KB)
    TC1791/TC1793 MICRO (4096KB)
    TC1791/TC1793 EEPROM (192KB)
    TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
    TC1791/TC1793 EXT (2048KB/4096KB)
    Delphi MT86 EEPROM (16KB)
    Delphi CRD3.1 EEPROM (32KB)

    Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

    Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

    Module 54
    Delphi DCM3.7/AP (SH72513/72543/72544)

    Kia/Hyundai 2.5L CRDI (DCM3.7AP)
    Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7)
    SsangYong 2.0L XDI (DCM3.7AP)
    VAG 1.2L TDI (DCM3.7)
    Great Wall/Haval 2.0L TD (DCM3.7)
    Reading, writing, checksum correction.

    Module 55
    Kia/Hyundai Kefico/Denso

    Kia/Hyundai 2.5L CRDI (SH72546)
    Hyundai Euro 5 (Denso SH7058S)
    Hyundai Euro 6 (Denso SH72543)
    Reading, writing, checksum correction.

    Module 56
    Ford SID807EVO/EDC17C10/EDC17C70

    Ford Focus 3: 1.6L DV6C (SID807EVO)
    Ford Mondeo 4: 1.6L DV6C (SID807EVO)
    Writing after unlocking,checksum correction.

    Ford 1.6L DV6C (SID807EVO/BSL) Reading.

    Ford Focus 3: 1.6L ECOnetic 105PS 2012+ (EDC17C10)
    Ford Fiesta: 1.4L, 1.6L DV4/DV6 75/95PS 2010-2011 (EDC17C10)
    Ford Fiesta: 1.5L, 1.6L DV5/DV6 70/75/95PS 2012+ (EDC17C10)
    Ford Focus 3: 1.5L DV5F 90/105/120PS (EDC17C70)
    Ford Fiesta: 1.5L DV5F 90/105/120PS (EDC17C70)
    Reading, writing, checksum correction.

    Module 57
    SIMOS 8/10/11/12/PCR2.1

    2.8L V6 FSI (SIMOS8.1)
    3.2L V6 FSI (SIMOS8.2)
    Reading, writing, checksum correction.

    3.0L V6 TFSI (SIMOS8.3)
    3.0L V6 TFSI (SIMOS8.4)
    3.0L V6 TFSI (SIMOS8.5)
    Virtual reading, writing, checksum correction.

    2.8L V6 FSI (SIMOS8.6)
    Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

    SIMOS8.6 (EEPROM/UNLOCK/BSL)
    Reading, writing (EEPROM reading/writing, ECU unlocking)

    1.2L TSI (SIMOS10)
    1.2L MPI (SIMOS11)
    1.8L TSI (SIMOS12.1/SIMOS12.2)
    2.0L TSI (SIMOS12.1/SIMOS12.2) й
    Virtual reading, reading, writing, checksum correction.

    1.6L TDI (PCR2.1)
    Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

    PCR2.1 (EEPROM/UNLOCK/BSL)
    Reading, writing (EEPROM reading/writing, ECU unlocking).

    Module 58
    VAG DSG/CVT

    DQ200MQB/G2 (0CW)
    DQ250MQB (0D9)
    Reading, writing, checksum correction

    VL381/DL382 (0AW/0CK)
    DL501/G2 (0B5)
    DQ200 (0AM)
    DQ250E/F (02E)
    VL300/V30 (01J/0AN)
    Writing, checksum correction

    DQ200/MQB/G2 Boot (EEPROM)
    DQ250E/F/MQB Boot (EEPROM)
    DL501/G2 Boot (EEPROM)
    VL381 Boot (EEPROM)
    DL382 Boot (EEPROM)
    Honda UDCT Boot (Continental TC1782/EEPROM)
    Reading, writing

    DQ200/MQB/G2 Boot (MICRO)
    DQ250E/F/MQB Boot (MICRO)
    VL381 Boot (MICRO)
    DL501/G2 Boot (MICRO)
    DQ500 (0BH/0BT)
    VL300/V30 BSL (FLASH)
    VL300/V30 BSL (EEPROM)
    DQ250C (02E)
    DL382 Boot (MICRO)
    Honda UDCT Boot (Continental TC1782/MICRO)
    Reading, writing, checksum correction.

    Module 59
    Renault/Nissan UDS

    1.2T EMS3155 UDS (TC1782/2.5MB)
    1.5L dCi SID309 UDS (TC1767/2MB)
    1.5L, 2.3L dCi SID310 UDS (TC1791/3MB)
    1.6L dCi EDC17C84 UDS (TC1782/2.5MB)
    1.8T, 2.0T Hitachi UDS (RH850/4MB)
    Reading, writing, checksum correction.

    1.6L dCi EDC17C84 UDS (Injectors)
    Reading, writing.

    Module 60
    Citroen/Peugeot (PSA) SID208

    Citroen/Peugeot 2.2L HDi (SID208)
    Reading, writing, checksum correction (reading/writing after unlocking in BSL!)

    Citroen/Peugeot 2.2L HDi (SID208/BSL)
    Reading, unlock.

    Module 61
    Kia/Hyundai CPGDSH/CPEGD

    1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
    Reading, writing, checksum correction.

    1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS) - requires direct connection to the ECU
    1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)
    Reading, writing, checksum correction, unlocking

    Module 62
    Ford/Getrag 6DCT450

    PowerShift TCM (6DCT450)
    PowerShift 6DCT450 Boot (MICRO)
    PowerShift 6DCT450 Boot (EEPROM)
    PowerShift 6DCT451 TCM GGDS
    PowerShift 6DCT451 [XPS6 Gen3] Boot (MICRO)
    PowerShift 6DCT451 [XPS6 Gen3] Boot (EEPROM)
    Reading, writing.

    Module 63
    Renault DC4

    EDC DC4 Gearbox (TC1766/1506KB)
    Reading, writing, checksum correction.

    Module 64
    Mitsubish*i Fuso Canter

    Fuso Canter (EDC7C4-6/EDC16C31)
    Fuso Canter Euro 5 CAN-bus (EDC17CP15)
    Fuso Canter Euro 5 CAN-bus (EDC17CP52)
    Reading, writing, checksum correction.

    Module 65
    VAG MED17/EDC17 CAN TP2.0/K-Line

    EDC17U01/U05/CP04/CP14 K-Line
    ME17/MED17/EDC17 CAN TP2.0
    EDC17CP20 VW Crafte*r 2.5L TDI
    Virtual reading, writing, checksum correction.

    Module 66
    Honda Bosch

    PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
    Writing, checksum correction.

    PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]
    PGM-FI (Bosch EDC17C58/4MB) [Unlocked]
    PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]
    PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]
    PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]
    Writing after unlocking with Module 53 or 71, checksum correction.

    Module 67
    Nissan Bosch

    EFI ME7.9.20 Calibration (Bosch ST10F275 EXT/512KB)
    Writing, checksum correction.

    Module 68
    JLR Denso

    Freelander 2 (L359) 3.2L V6 233PS (Denso)
    Jagua*r XF/XJ/XK (X250/X350/X351/X150) 3.0L V6, 3.5L V8, 4.2L V8/SC (Denso)
    Range Rover/Sport/Discovery 3 4.0L V6, 4.4L V8, 4.2L V8/SC (Denso)
    Range Rover (L320/L322/L319), Jagua*r (X150/X250/X351) 5.0L V8/SC (Denso)

    Reading, writing, checksum correction.

    Module 69
    Mercedes-Benz MED17/EDC17

    MED17.7.1/17.7.2/17.7.3/17.7.3.1/17.7.5
    Virtual reading, writing, checksum correction.

    MED17.7.1/17.7.2/17.7.3/17.7.3.1
    Writing, checksum correction.

    EDC17CP01/CP10 (only ECUs with extrenal FLASH memory)
    EDC17CP46/CP57/CP60/C66
    Reading, writing, checksum correction.

    M156/M272/M273 (ME9.7)
    Calibration reading, writing, checksum correction.

    Module 70
    Jeep EDC17

    2.8L CRDI (EDC17CP27) [Test]
    3.0L CRDI (EDC17C49/C79) reading may require direct connection to the ECU
    Reading, writing, checksum correction.

    Module 71
    Bosch MEDC17 Bootloader
    (direct connection to the ECU connector, Scanmatik 2 Pro, a connection cable and a power supply are required)

    MEDC17 (TC1762/1766/1792/1796) FLASH
    MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH
    MEDC17 (TC1791/1793) FLASH
    Reading, writing, checksum correction.

    MEDC17 (TC1762/1766/1792/1796) EEPROM
    MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM
    MEDC17 (TC1791/1793) EEPROM
    Reading, writing.

    MEDC17 BSL PASSWORD
    Reading.

    Module 72
    Mazda Gen 4

    1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Mitsubish*i) [PYFA]
    1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Denso) [PYFB]
    Reading, writing, checksum correction.

    Module 73
    Ford MG1

    Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]
    Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]
    Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]
    Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]
    Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]
    Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA]
    Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A]
    Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]
    Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A]
    Reading, writing, checksum correction

    Module 74
    Toyota/Lexus Gen 3

    R7F701202/R7F701216 P5-UDS
    Reading, writing, checksum correction

    User Comment(Total 0 User Comment Num)

    • No comment
    Total 0 records, divided into1 pages. First Prev Next Last
    Rank:
    Your first & Lat Name:
    Your E-mail Address:
    Review detail:
    Verification code: captcha
    Please feel free to contact us ,If you have any question:
    Email: Sales@obd2tool.com
    Whatsapp: +8618437976115
    skype:chryssan2006



    Shipping Terms:
    a) Items will be sent to all the countries over the world. This package will be sent by DHL, Post, Fedex, EMS or UPS .
    b) Items will be checked carefully before sent out.
    c) We will use air bubbles to wrap the items carefully.

    Shipping Time:
    a) Ships within 48 hours on working days after received the payment.
    b) The shipping time is about 5-7 days via DHL, UPS, 5-10 days Via Fedex, 7-10 days via EMS, 7-30 days via Post to Worldwide
    Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding.

    Return Policies:
    Returns will be allowed only with prior authorization, and must be made within 30 days after package delivery.
    Item conditions that allow returns Brand new Item, returns must include all accessories, Items must include original packaging
    Other cases are as follows:
    (1) When the item is defective, the item was sent in error, damaged in transit, or otherwise defective,It can not work once you receive it. In this case we allow returns. We bear the shipping cost.
    (2) When you buy the wrong item, the item doesn't fit, or you don't want the item, the item you return need to be brand new. you need bear shipping costs.

    Contact Us:
    Our Email sales@obd2tool.com 24 hours 7 days
    And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.

    Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!)

    Email Subscribe


    Join our community Contact us
    Email us: sales@obd2tool.com
    Phone: +86 18437976115
    +86 18003909206
    Skype: chryssan2006
    Location:
    Building B016, Haihao Huating, Xixiang Avenue, Xixiang Street, Baoan District,Shenzhen, 518000 China
