    VXDIAG VCX FD OBD2 Diagnostic Tool for Ford Mazda Supports CAN FD Protocol

    • Item No.  A475
    • History: 12  sold
    • Please choose the configuration you need:

    • Quantity
      Free Shipping
    • Quantity:  200
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy




    Technical Support


    VXDIAG VCX FD OBD2 Diagnostic Tool for Ford Mazda Supports CAN FD Protocol

    If you seleccted option 1:
    You need to download the software and install it on your laptop to use it.
    If you selected option 2:
    We will install all the software to the Lenovo T450 Laptop, it is ready to use after you receive it.

    Supports CAN FD and DoIP protocol

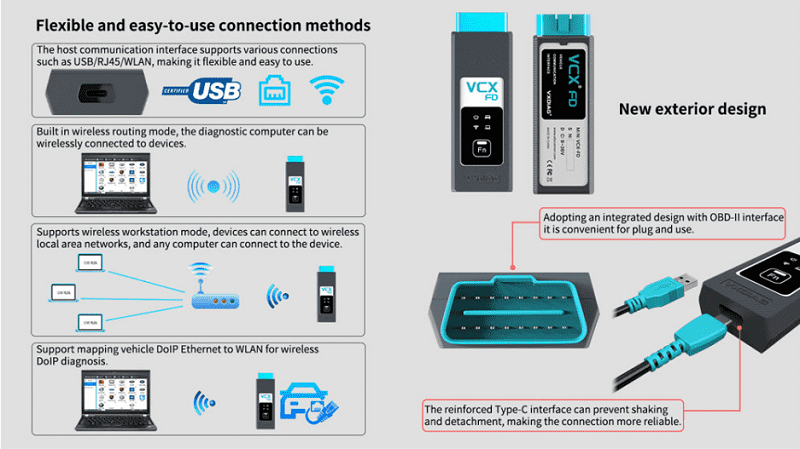

    Supports USB Type C, WiFi and WLAN Connection
    J2534 passthru for online programming

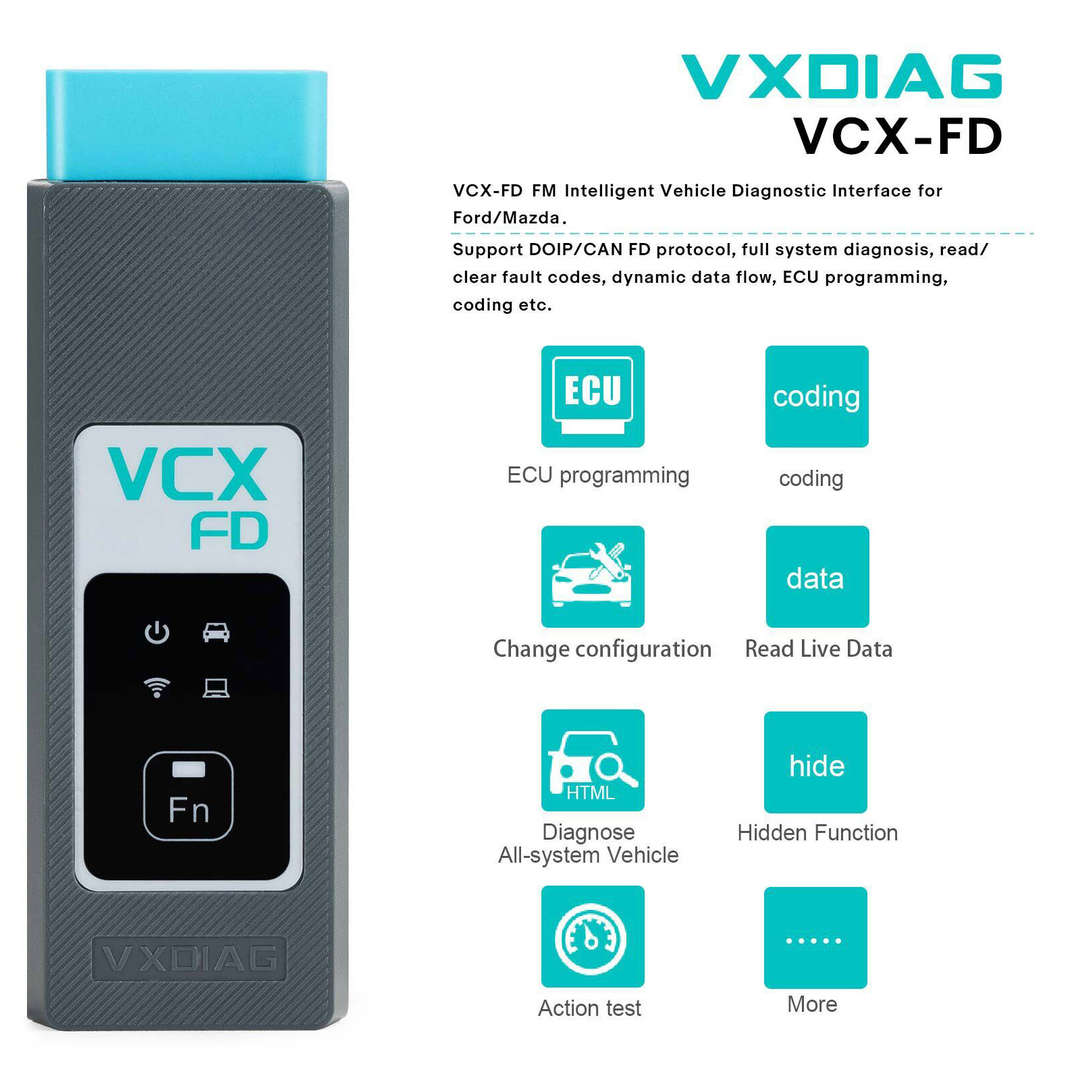

    VXDIAG VCX FD for Ford/Mazda Features:
    1. Ford IDS Version: V130, Mazda IDS Version: V131
    2. Perfect replacement for Ford VCM2
    3. Support multi-languages: English, German, French, Italian, Dutch, Spanish, Swedish, Finnish, Danish, Norwegian, Portuguese (European), Portuguese (Brazil)
    4. Update Software link with unlocked firmware
    5. Support both new and old vehicles from year 2005 to 2024, Ford F series after 2010.
    6. Compatible with IDS, ForScan, FJDS, FDRS and MDARS. New Models after 2020 need to use FDRS or MDARS.

    VXDIAG VCX FD Free Download IDS software:
    FORD IDS V130
    MAZDA IDS V131

    VXDIAG VCX FD Connection:

    VXDIAG VCX FD Installation Instructions:
    Requirements on PCs:
    OS: WINDOWS 10/11 PRO 64BITS
    RAM: At least 8GB
    Make sure there is no other Software installed on the computer, Ford IDS and Mazda IDS need to install on 2 separate clean windows systems.

    VXDIAG VCX FD Ford IDS Installation:
    1. Install Ford IDS-130
    2. Wait for the installation of Ford IDS – 130, and restart the computer
    3. Install the Ford original VCI software_
    4. Install VX manager and IDS driver on VX manager "Diagnostic" Menu
    5. Wait for VX manager and IDS driver installation to complete
    6. Connect VCX device and install idspatch
    7. Use idspatch to open IDs and start diagnosis.

    VXDIAG VCX FD Mazda IDS Installation:
    1. Install mazdaids-131
    2. Wait for mazdaids – 131 installation to complete and restart the computer
    3. Install VX manager and IDS driver on VX manager "Diagnostic" Menu
    4. Wait for VX manager and IDS driver installation to complete
    5. Connect VCX device and install idspatch
    6. Use idspatch to open IDs and start diagnosis.

    VXDiag VCX Ford Scanner Function: (Programming & Special Service functions require original online account):
    1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
    2. Live Data-stream with Recording & Playback Functions for Main ECUs
    3. Read & Clear Diagnostic Trouble Codes (DTCs)
    4. Set, Adjust or Remove Speed Governors
    5. Automatic vehicle recognition
    6. New Software Re-flash for Existing ECUs
    7. All Other Dealer Functions
    8. Steering Angle Resets
    9. Guided Fault Finding
    10. Program New Keys
    11. DPF Regeneration
    12. Brake Bleeding
    13. Injector Coding

    How to Set Up & Use VXDIAG VCX-FD?

    Let’s start the software installation on WINDOWS system:
    1. First download and install software (we don't provide the link)
    2. Install the latest VX MANAGER version via www.vxdiag.net
    4. Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car’s OBD2 Port.
    Install Passthru driver. Check your device license.
    5. Turn on the car ignition. You can start to diagnose the car.
    Installation Tips: Please turn off anti-virus software before install.

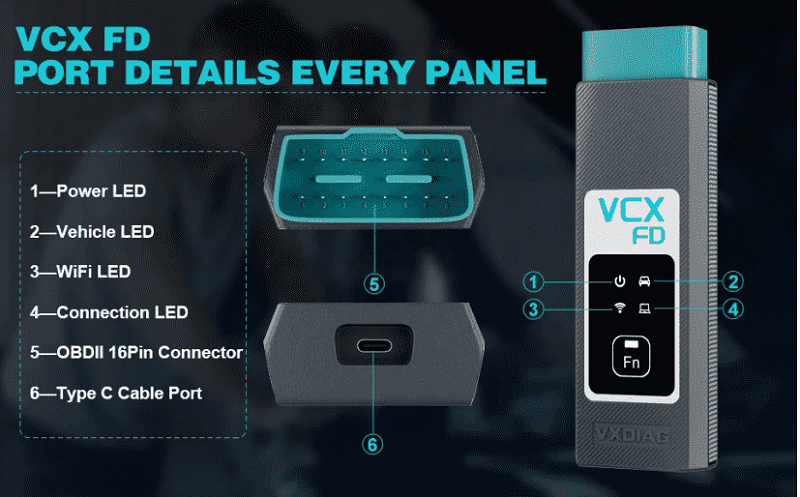

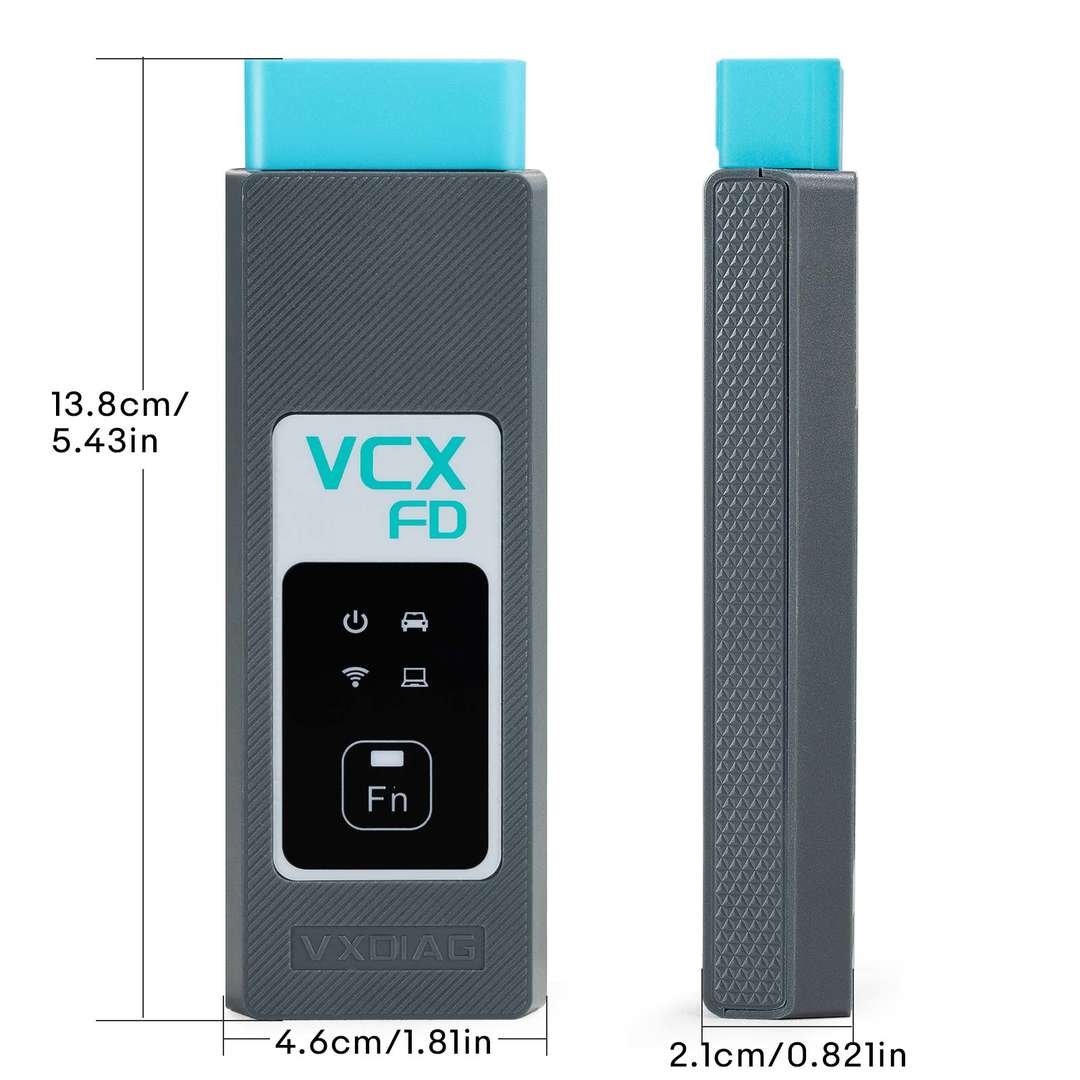

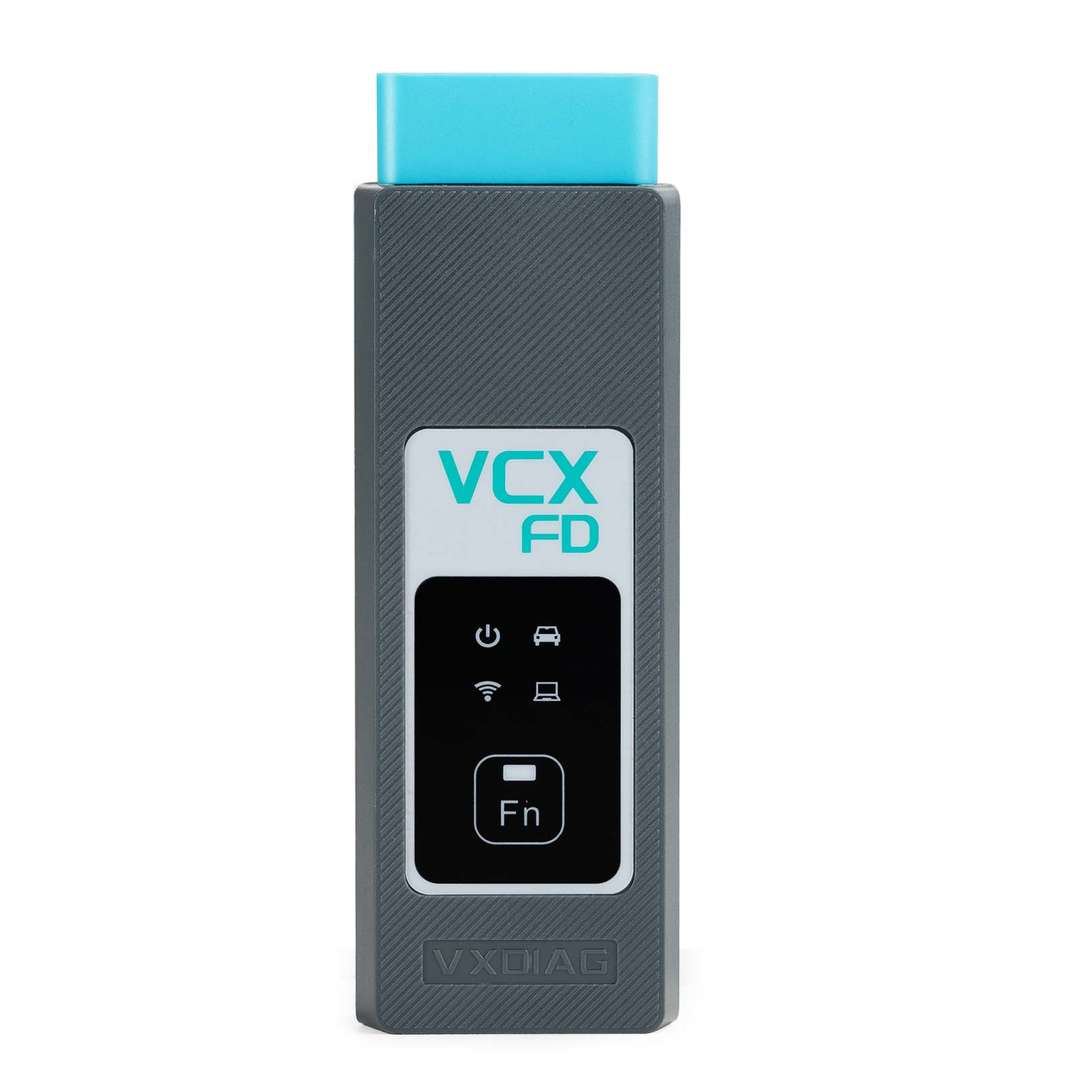

    VXDIAG VCX FD for Ford/Mazda Parameters:

    1-Power LED: Equipment Working Status: RED
    Breathing flash when starting normally
    Flash rapidly during hardware failure

    2-Vehilcle LED: Vehicle communication Status:TWO-COLOR
    Flash blue during traditional protocol
    Flash green during DoIP protocol

    3-WiFi LED: Wireless Network Status: BLUE
    Flash quickly during wireless communication
    Flash slowly during wireless distribution

    4-Conection LED: Host Communication Status: TWO-COLOR
    Flash BLUE during USB communication
    Flash GREEN during LAN communication

    Fn Button: Remote Diagnostic Status: GREEN
    Flash slowly after remote connection
    Flash quickly during remote diagnosis

    5-OBDII 16Pin Connector: Connect to vehicle's OBD2 port

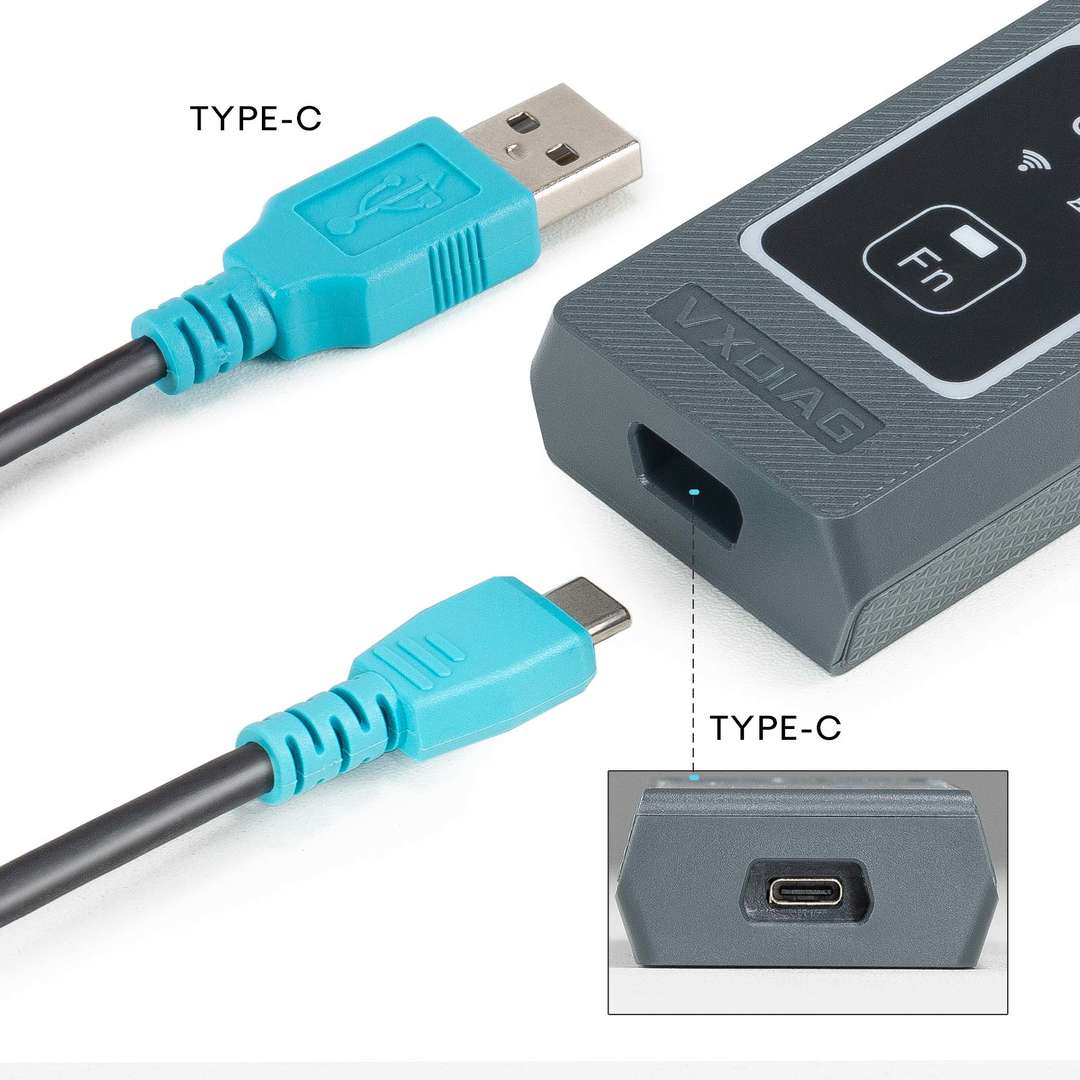

    6-Type C Cable Port: Connect to PC via cable

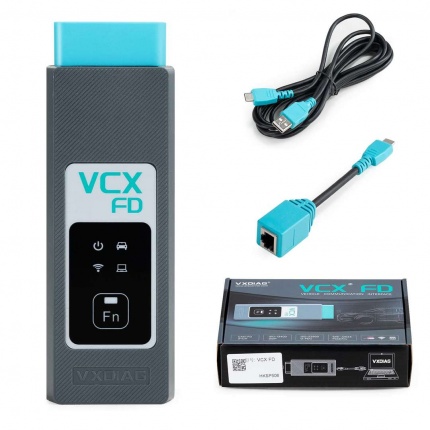

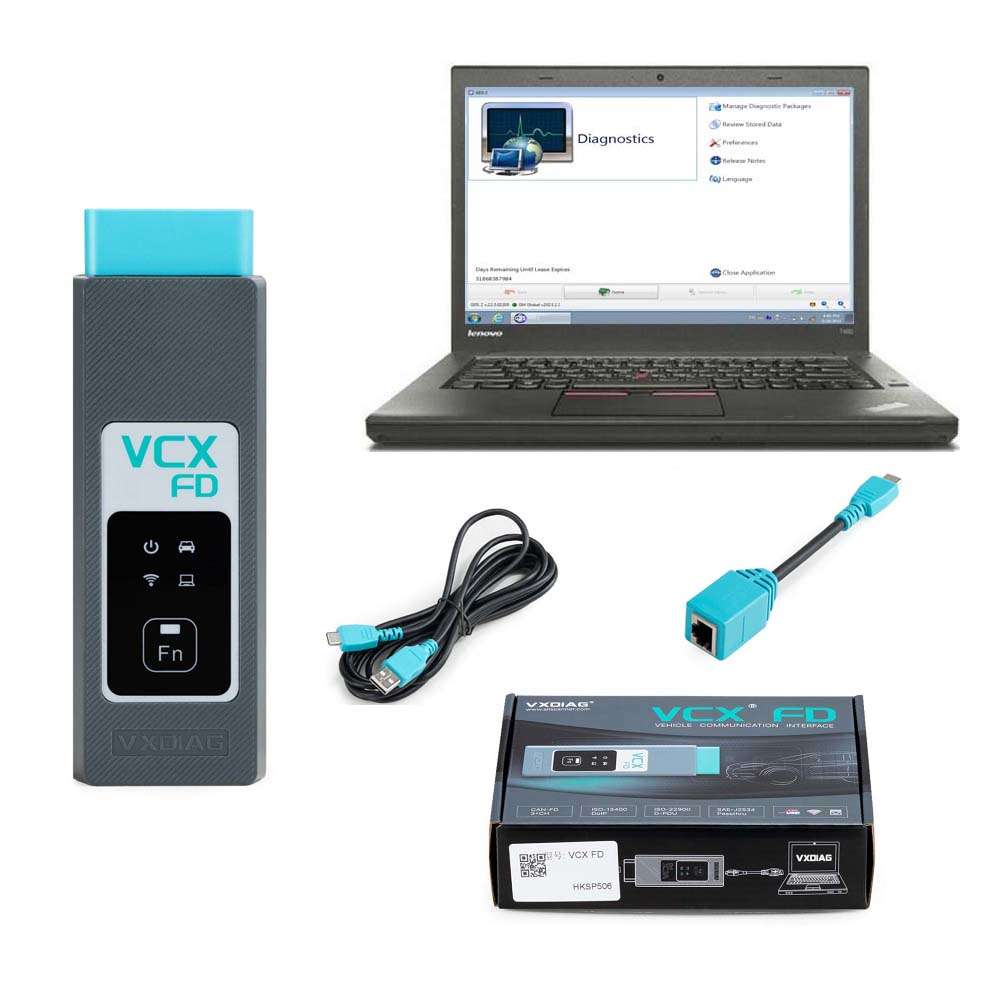

    VXDIAG VCX FD for Ford/Mazda Packing list:
    1pc x VCX-FD Interface
    1pc x Type-C USB Cable
    1pc x RJ45 Lan Converter
    1pc x Paper Case
    1pc x Lenovo T450 I5 8G Laptop (Option)

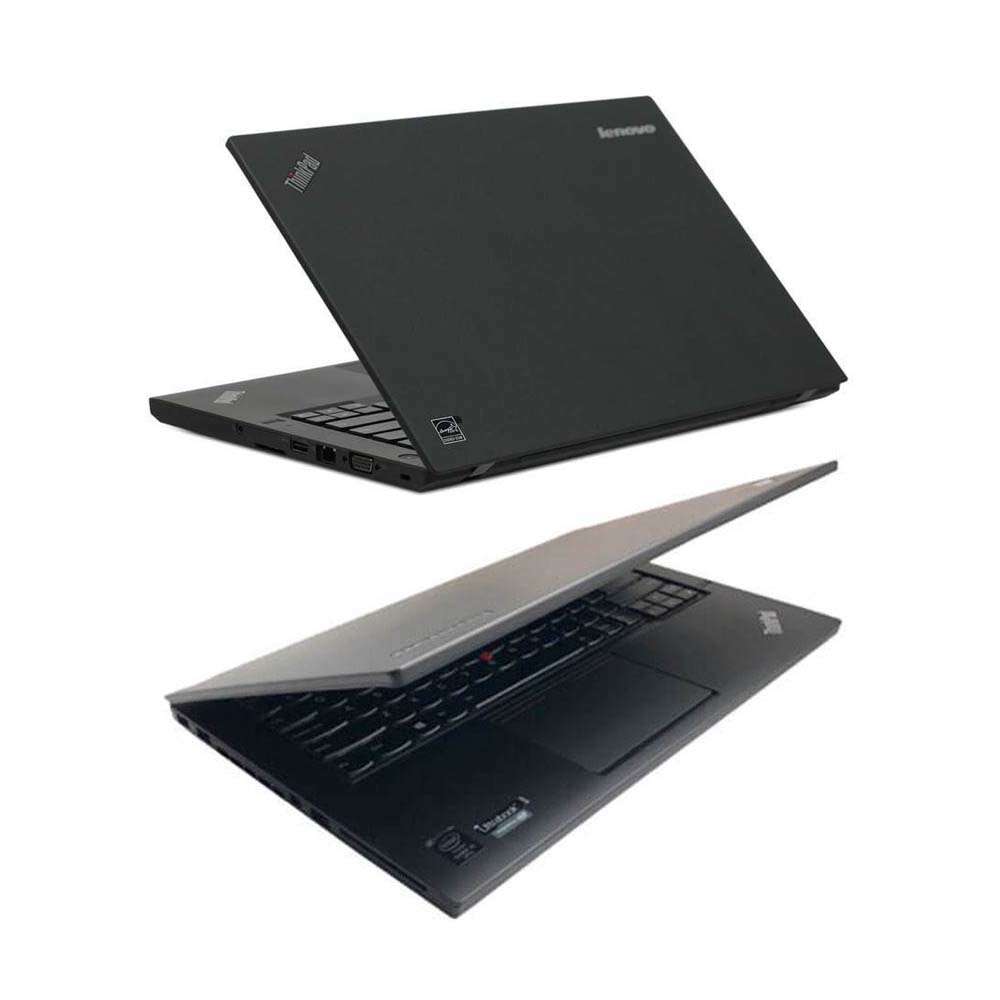

    Second Hand Laptop Lenovo T450 Laptop with latest software:
    Brand: Lenovo
    Condition: Used
    Type: Laptop/Notebook
    Screen Size: 14
    Processor Type: Intel (R) Core(TM) I5-5200U CPU
    Memory: 8GB
