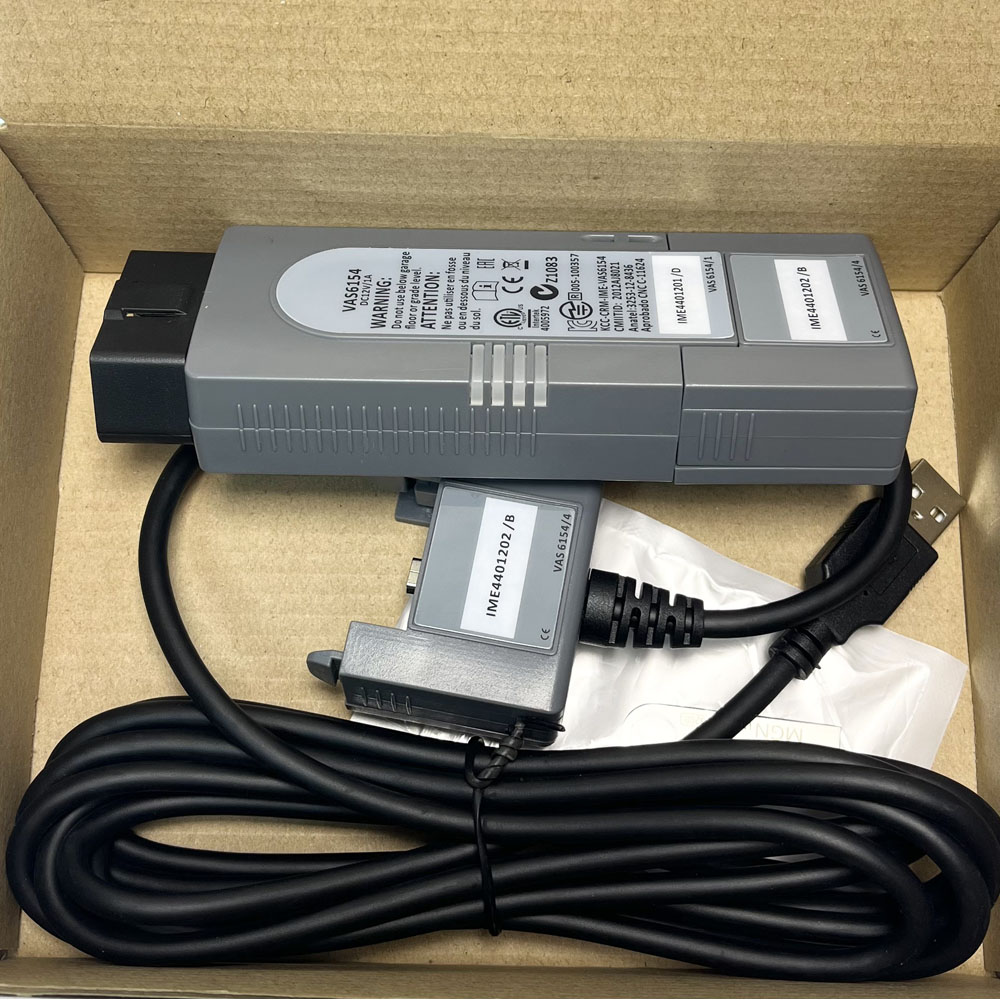

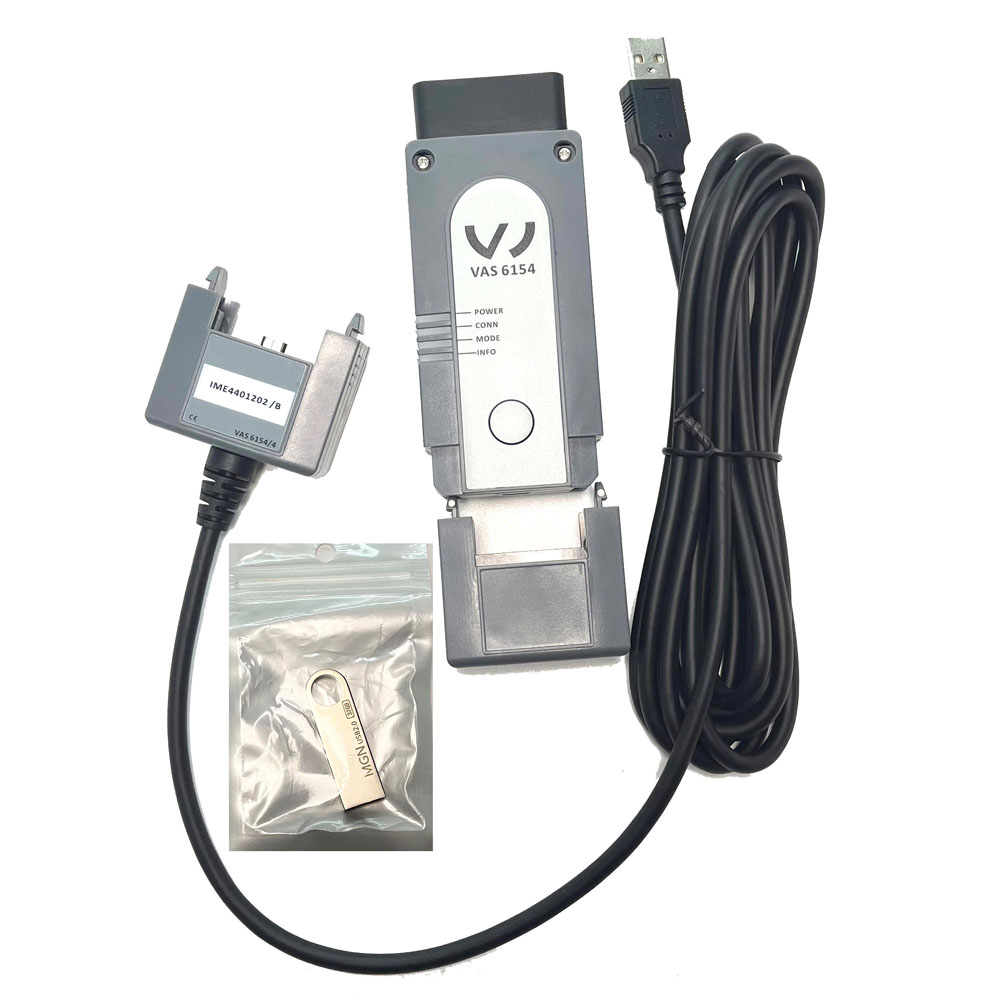

VAS6154A VAG Diagnostic Tool for VW Audi Skoda Seat With ODIS V25.03 and Engineering V19 Software

ODIS V25.03 and Engineering V19.0 Software Language: English

VAS 6154A is the latest for full system diagnostic and programming interface, which can read and clear code, dynamic data flow, programming, coding, and personalized settings, including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc.  It can support WIFI and USB Connection, and also can work with 6150 and 6160A.  6154 works perfectly with partial win10 models, but not for all.

Note:
1. If you choose the Option1: VAS6154A With ODIS V23 and Engineering V17 Software(U Stick)
The software is too large, the available capacity of the computer C drive should be at least more than 30G. Please install on WIN10.
2. If you choose the Option2: VAS6154A With ODIS V25.03 and Engineering V19 Software
We will offer remote installation service using TeamViewer. (Only for installing on one laptop)

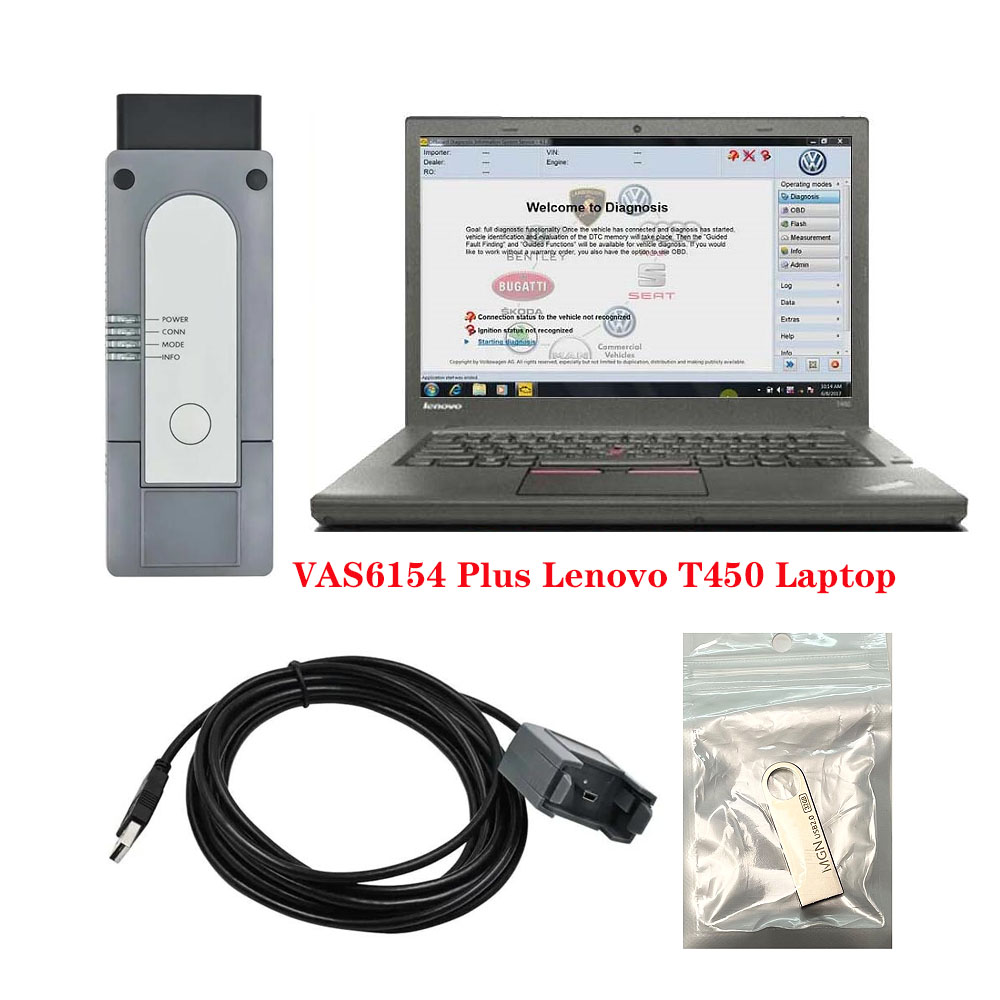

3. If you choose the Option3: VAS6154A Plus Lenovo T450 Laptop With ODIS V25.03 and Engineering V19.0 Software
The newest software has installed on the Lenovo T450 Laptop, ready to use.

VAS6154A can supports DOIP diagnosis.
VAS6154A supports online function, but you need to get online account by yourself!

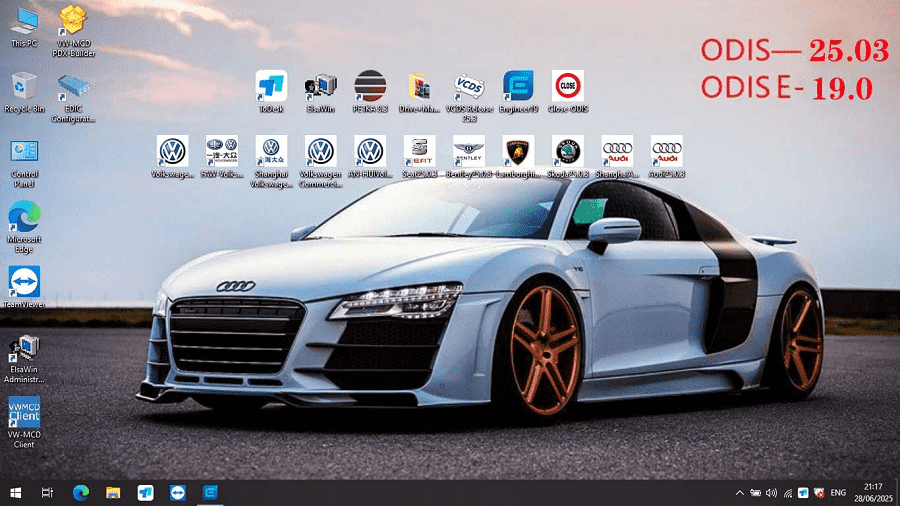

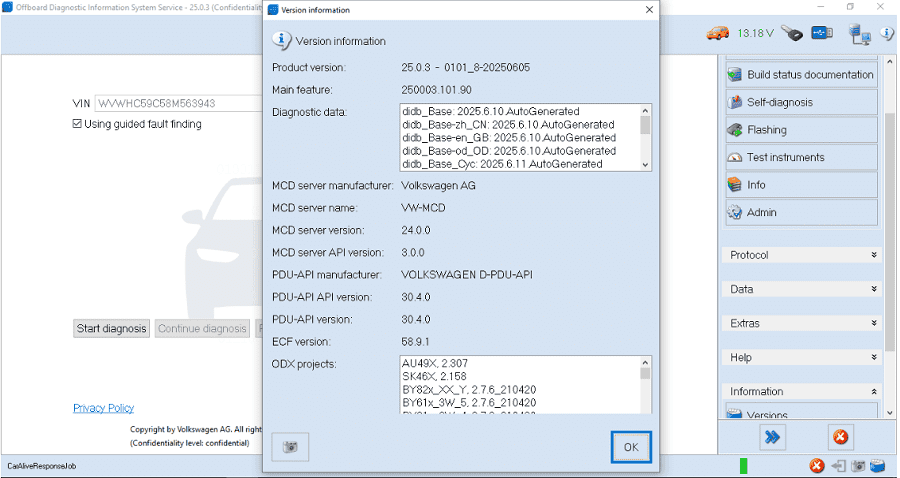

-ODIS V25.03

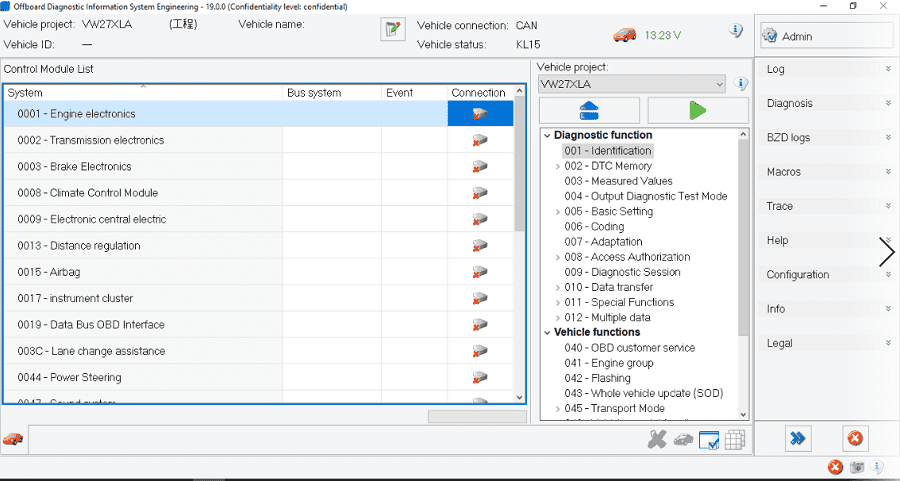

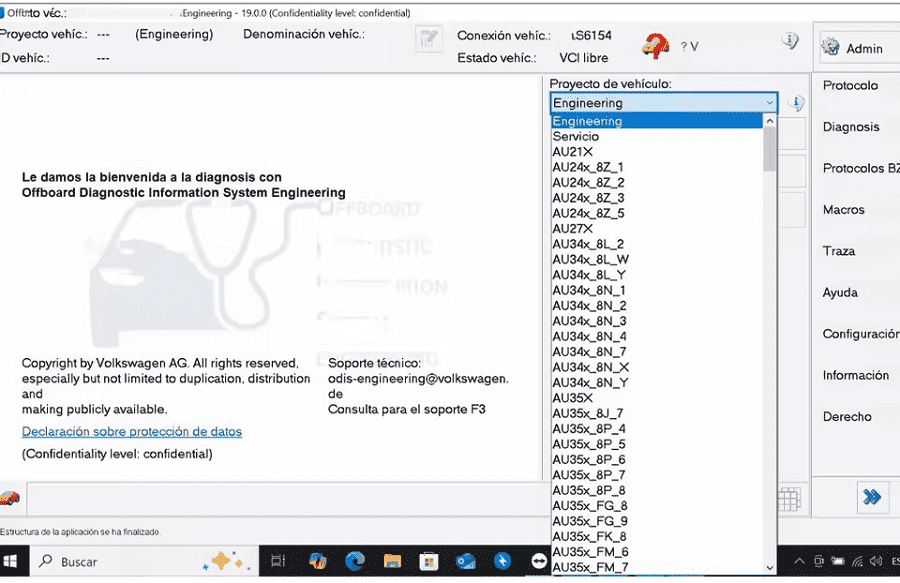

-Engineering V19.0

Latest ODIS V25.03 and ODIS Engineering V19.0 Software Multi languages available: English, Turkish, Korean, Spanish, Chinese, French, German, Portugues, Russian, Czech, Danish, Greece, Finnish, Italian, Polish, Roman, Japanese, Dutch, Slovak, Hungarian...
(Attention : English language in default, if you want install other language software , you have to tell us before installation ）

Covered model:
For vw: 1995Y-2025MY+
For Audi: 1995MY-2025MY+
For Seat: 1995MY-2025MY+
For Skoda: 1995Y-2025MY+
For Bentley: 1995MY-2025MY+
For Lamborghini: 1995MY-2025MY+
For MAN: 1995MY-2025MY+

Function:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– Service Software update has been stabilized.

The Following Vehicle Bus Systems are Supported
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE)

Packing List:
1.1pcs VAS6154 With ODIS V23 and Engineering V17 Software(U Stick)
2.1pcs VAS6154 With ODIS V25.03 and Engineering V19 Software(Optional)
3.1pcs The Second hand Lenovo T450 Laptop With Latest Software (Optional)

Second Hand Laptop Lenovo T450 Laptop with latest software:
Brand: Lenovo
Condition: Used
Type: Laptop/Notebook
Screen Size: 14 inch
Processor Type: Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB

Latest ODIS V25.03 Software:



Latest ODIS V19 Engineering Software:
