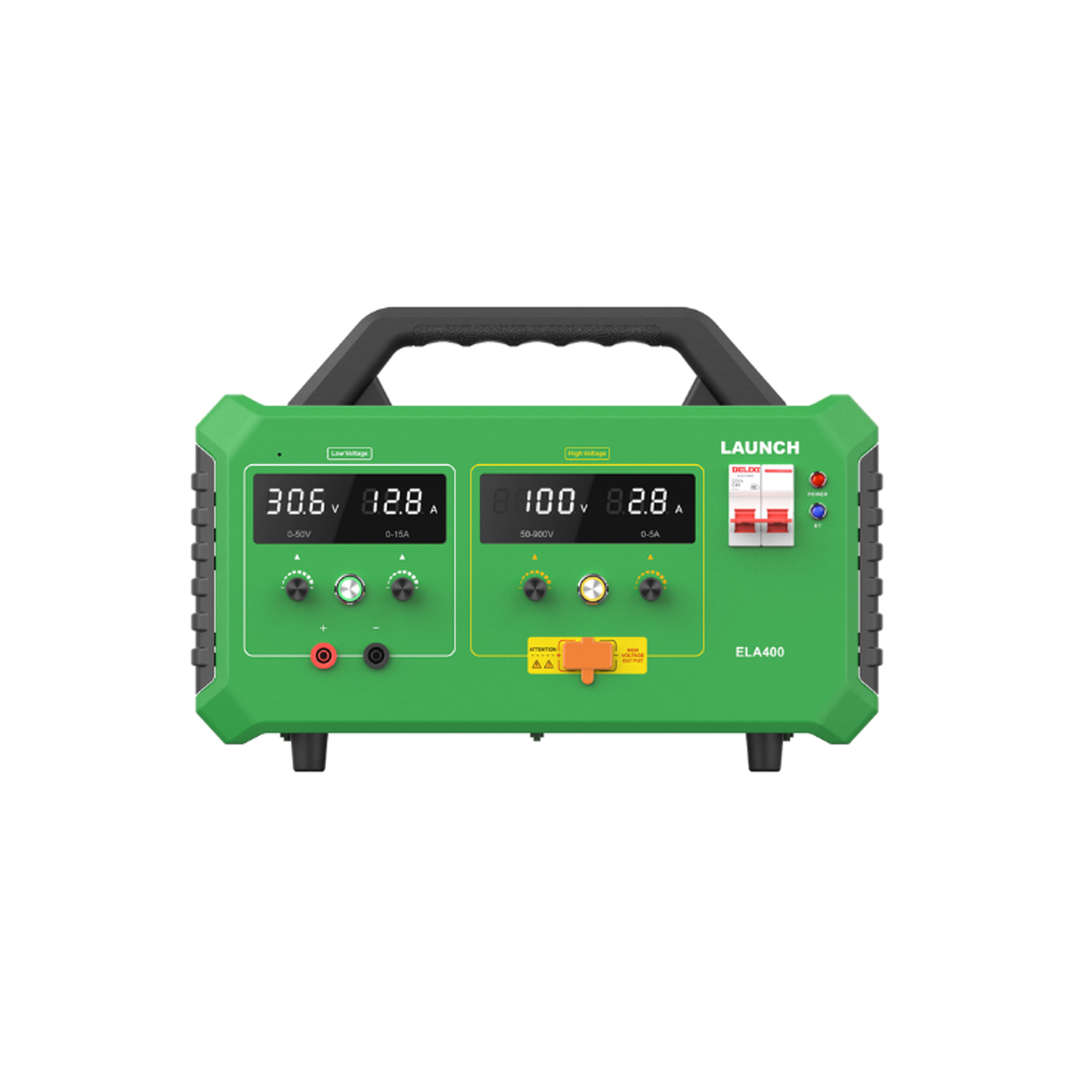

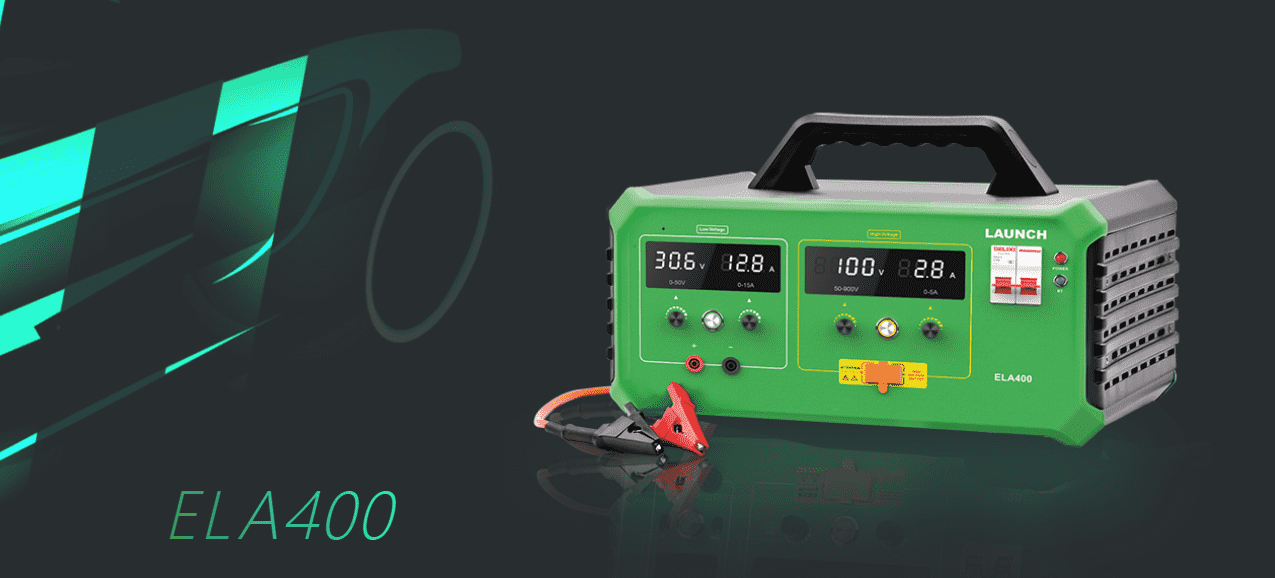

LAUNCH ELA400 Intelligent Digital Power Supply

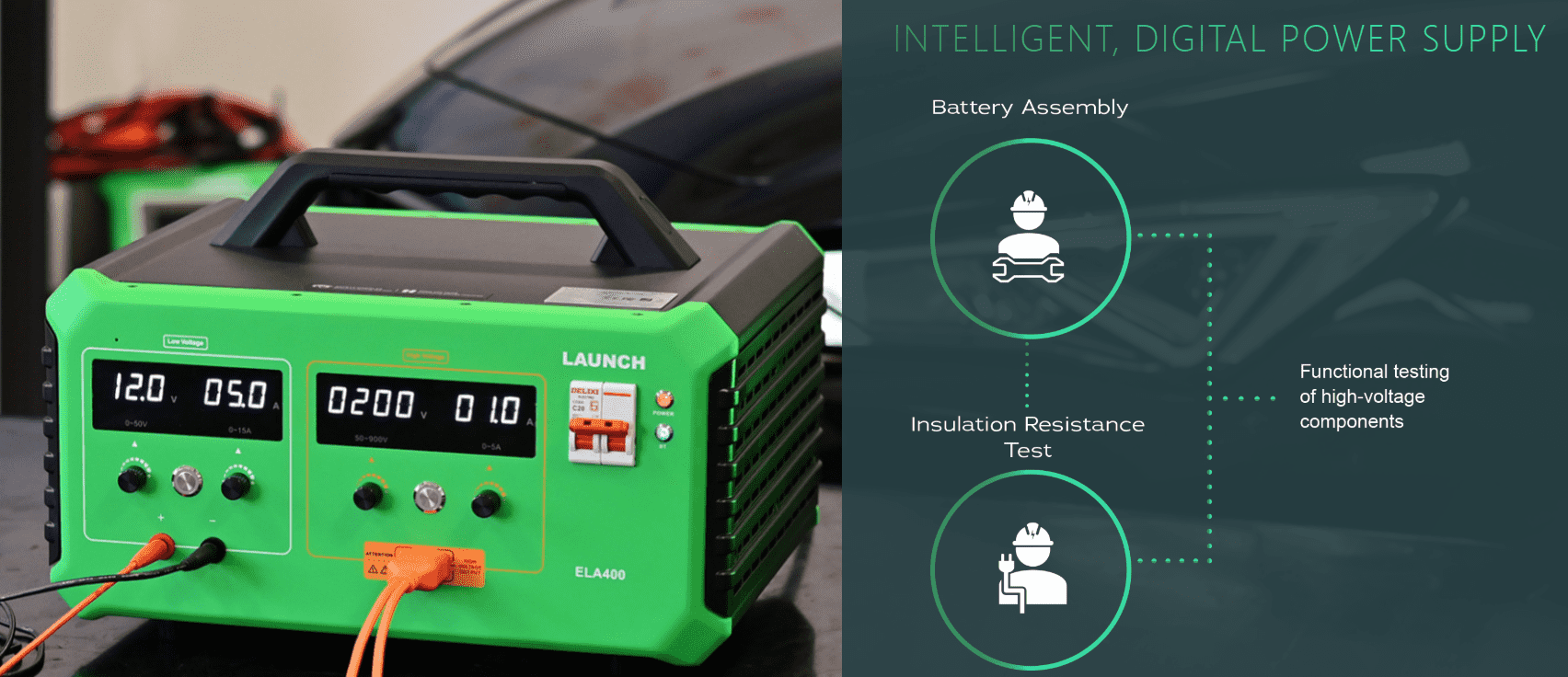

The ELA400 is an intelligent digital power supply suitable for both EV vehicles and fuel-powered vehicles maintenance. With a high voltage output range of 50V-900V, the ELA400 is designed to support a wider range of high-voltage electrical offline driving and maintenance testing scenarios.


Product Features:
1.Applicable to all new energy and fuel vehicle maintenance scenarios.
2.The high-voltage module and the low-voltage module are independent of each other, with each module providing separate protection during power output without affecting each other.
3.Low Voltage Output supports 0V-50V, 0A-15A DC output, adjusting via a knob.
4.The input circuit, high-voltage output circuit, and low-voltage output circuit all have independent protection mechanisms, capable of detecting undervoltage, overvoltage, overcurrent, and short circuit faults, and implementing corresponding protective measures.
5.High Voltage Output includes current limiting and short circuit protection and supports 50V-900V, 0A-5A DC output, adjusting via a knob.


Product Specifications:

Power Input	AC100~240V@20A
High Voltage Output	Voltage: 50~900V
Current	0~5A
Low Voltage Output	Voltage: 0~50V
Current	0~15A
High Voltage	Voltage adjustment knob, Current adjustment knob, High voltage switch button
Low Voltage	Current adjustment knob, Voltage adjustment knob, Low voltage start/stop button
Communication	Bluetooth
Display Mode	LED Digital Tube
Protection	Current limiting, short circuit protection, undervoltage protection, overvoltage protection, overtemperature protection, etc
Working Temperature	-10~65°C
Dimensions	395*315*265 (mm)
Weight	11Kg

Package includes:
1pc x main unit
1pc x AC Power Cord
1pc x HV Extension Cable
1pc x HV Wire(alligator clip-fits)
1pc x HV Jumper Cable(4mm Banana plug)
1pc x Black LV wire(alligator clip-fits)
1pc x Red LV wire(alligator clip-fits)
1pc x User Manual
1pc x Packing list
