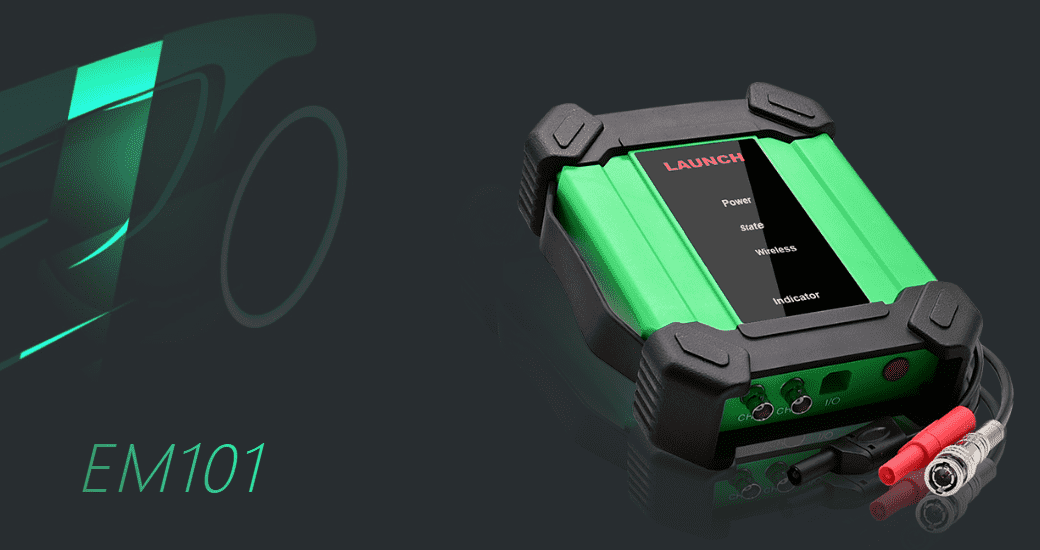

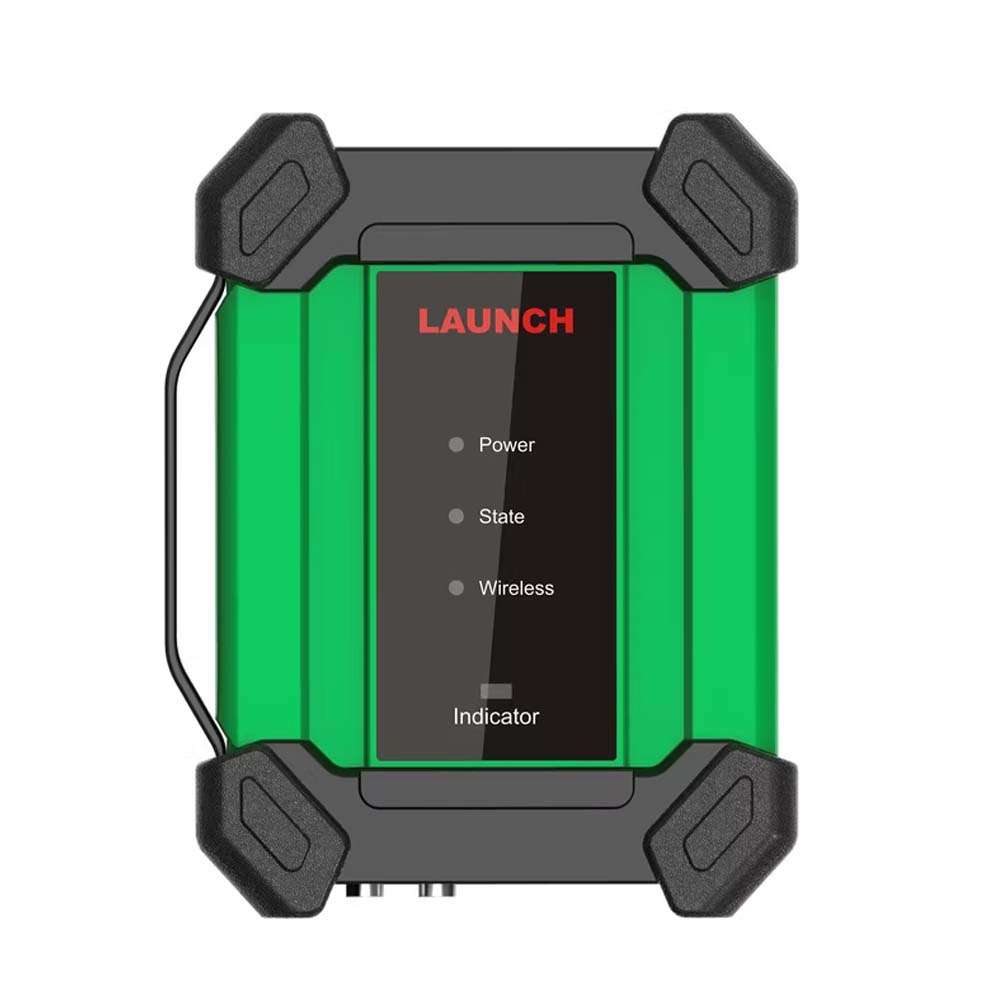

LAUNCH EM101N EV Oscilloscope & Multimeter 2-Channel Scopebox

The new energy EM 101N oscilloscope multimeter integrates the functions of a multimeter and a dual-channel osciloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient. It supports the function of saving and opening waveforms locally.


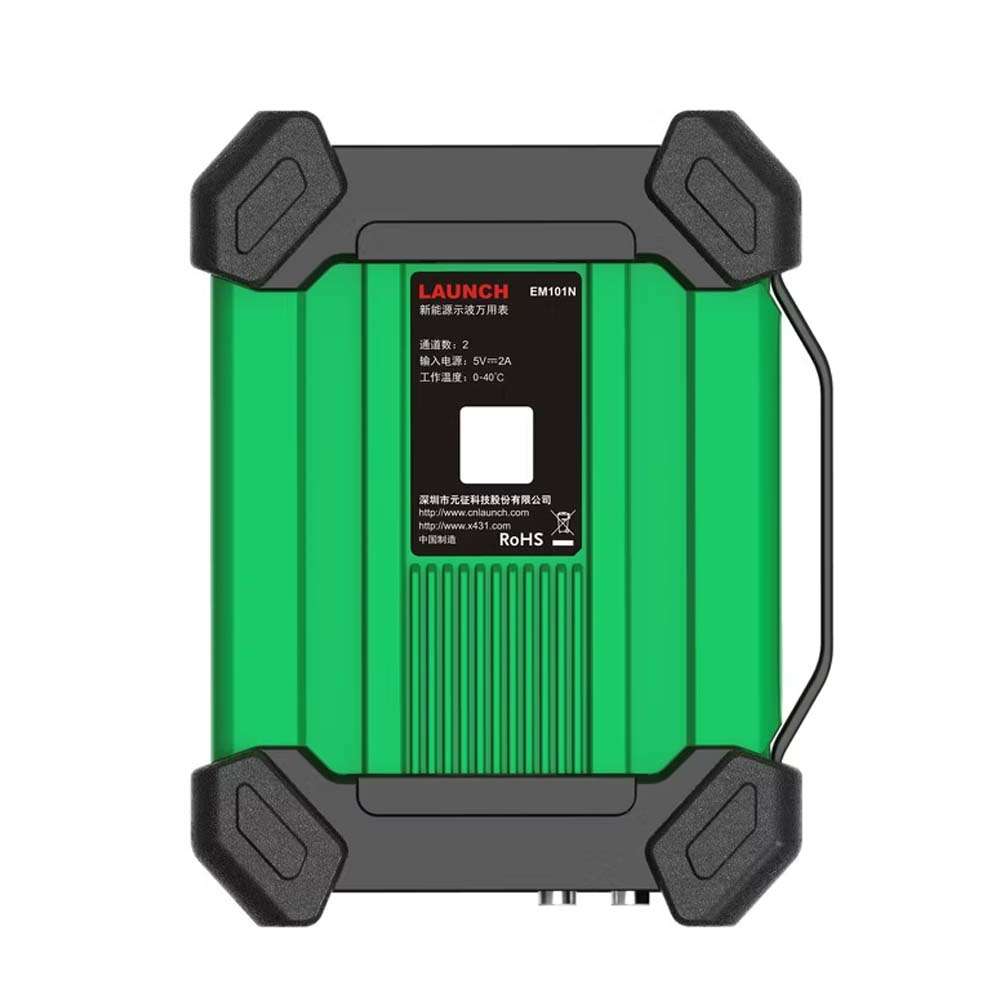

This EM101N is composed of hardware and software.Hardware includes EM101N module and connection wire. The Oscilloscope and Multimeter APP are installed on diagnostic tool.

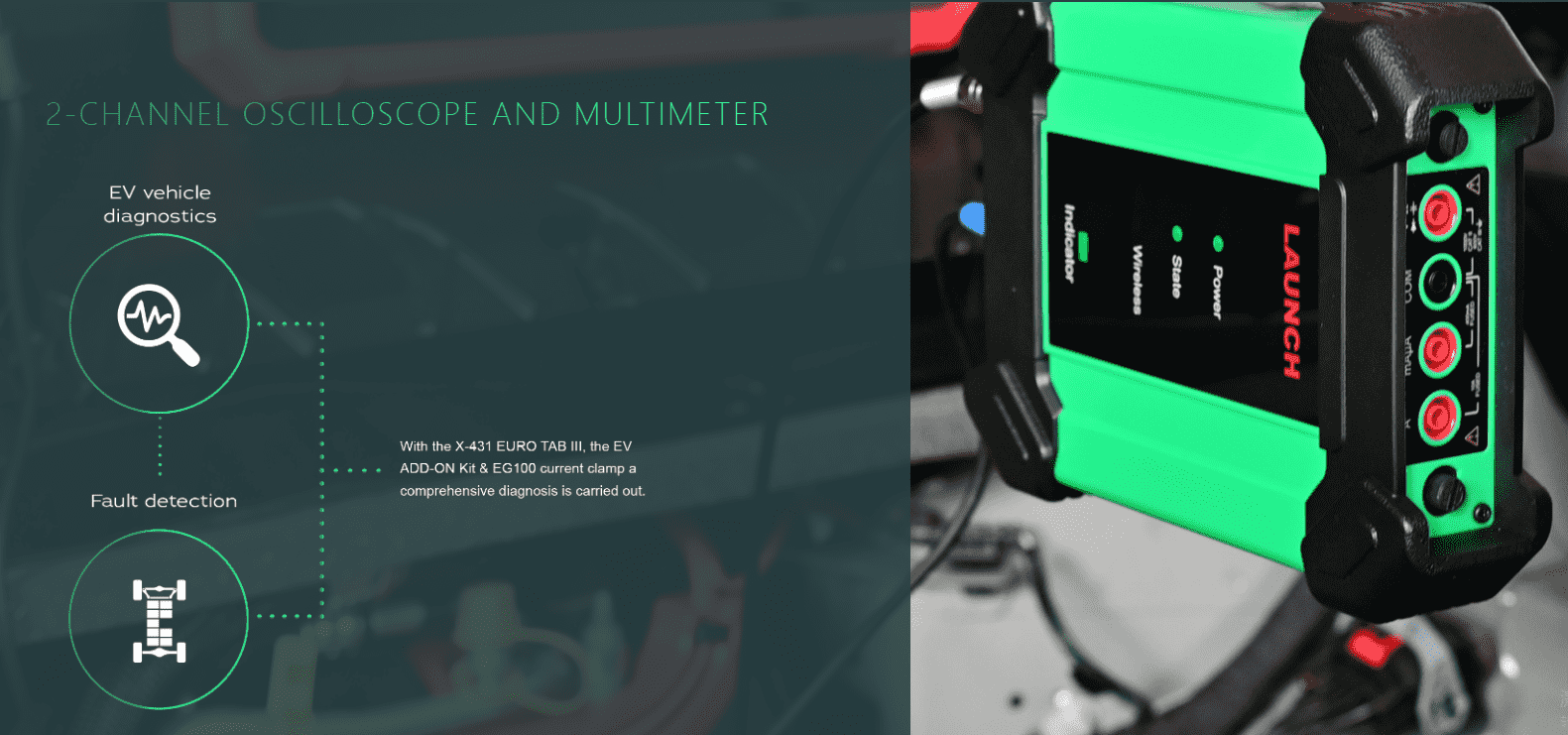

Automotive oscilloscopes assist the auto repair technician with the ability to quickly identify faults on automotive electronic equipment and wiring.The oscilloscope sweep speed is far greater than the signal frequency of such vehicles, usually 5-10 times of the measured signal and quickly acquire the circuit signal while slowly displaying the waveform for observation and analysis.
The built-in multimeter provides simple measurements to test voltage, current and resistance to help determine faults.

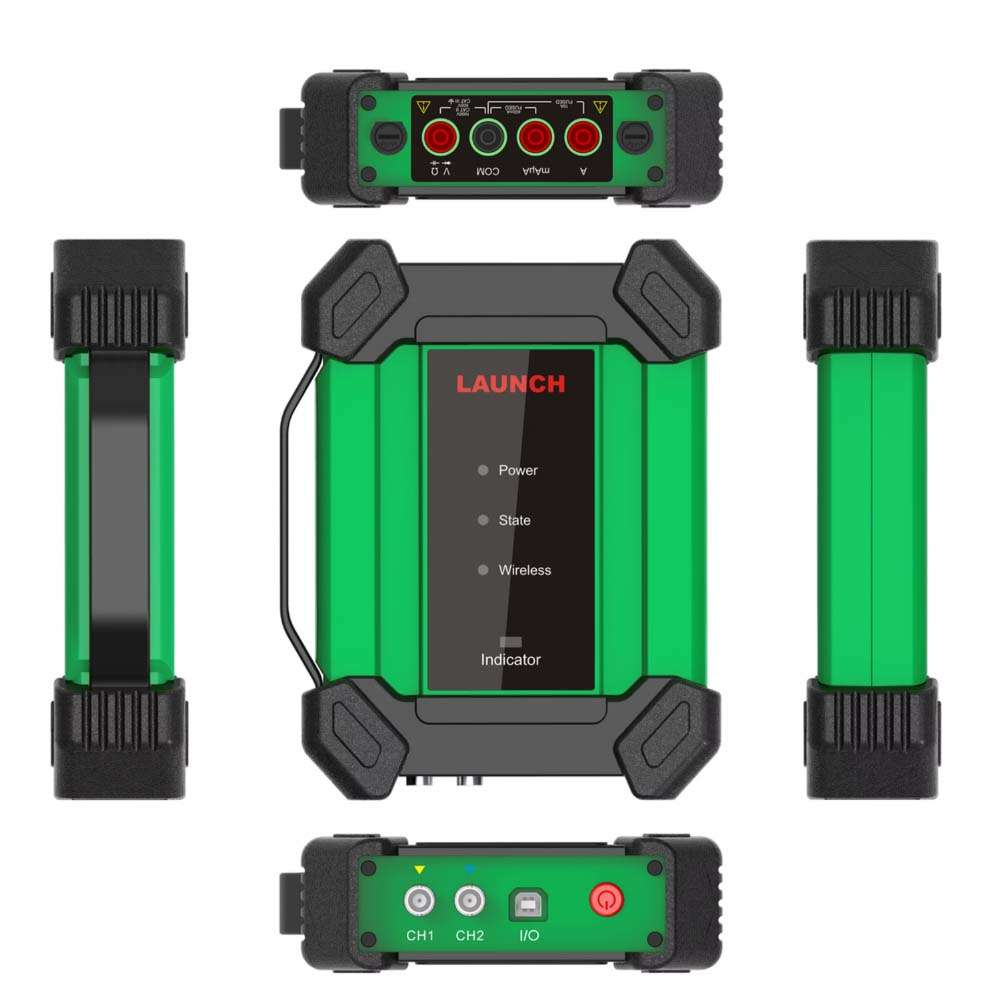

Product Features:
1.Combined with the characteristics of dual-channel oscilloscope and multimeter.
2.The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.
3.With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.
4.With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.
5.Needle sets, multimeter pens, alligator clips, oscilloscope channel test leads, etc. are all available.


Product Specifications:
DC Voltage: Automatic range, test range: ±600V
AC Voltage: Automatic range, test range: ±600V
DC Current: Automatic range, test range: ±10A
(It is necessary to connect an external sensor for large range current.)
AC Current: Automatic range, test range: ±10A.    Average value measurement
(It is necessary to connect an external sensor for large range current.)
Resistance: Automatic range, test range: 0~6MΩ
On and off: Tweet when less than 30Ω
Diode: 0.5V—2.0V
Battery Capacity: 3100mAh
Bandwidth: 10MHz
Channel: Two analog channels
Real-time Sampling Rate (Max): 50MHz/s
Time Base Range: 1us/div～10s/div, step by 1～2～5 times
Sampling Mode: Normal sampling, peak detection, average
Buffer Memory: 1M
Input Coupling: DC, AC, grounded
Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF
Vertical Sensitivity: 2mV/div～5V/div
Vertical Resolution: 8bits
Maximum Input Voltage: 40V  peak value（DC + AC peak value）
Probe Attenuation Factor: 1X, 10X, 100X（probe support required)
Trigger Type: Edge trigger, pulse width trigger
Trigger Mode: Auto, Normal, Single
Automatic Measurement: Peak-to-peak value, Average value, Maximum value, Minimum value, Top value, Bottom value, Frequency, Period

Package includes:
1pc x EM101N main unit
1pc x BNC to 4mm test leads
1pc x Multimeter test pen(black+red)
1pc x Multimeter probes(black+red)
1pc x Crocodile clips
1pc x Black probe pins suite(5probes+20pins+2caps)
1pc x Type A-Type B USB cable
1pc x Power adapter
1pc x User manual
