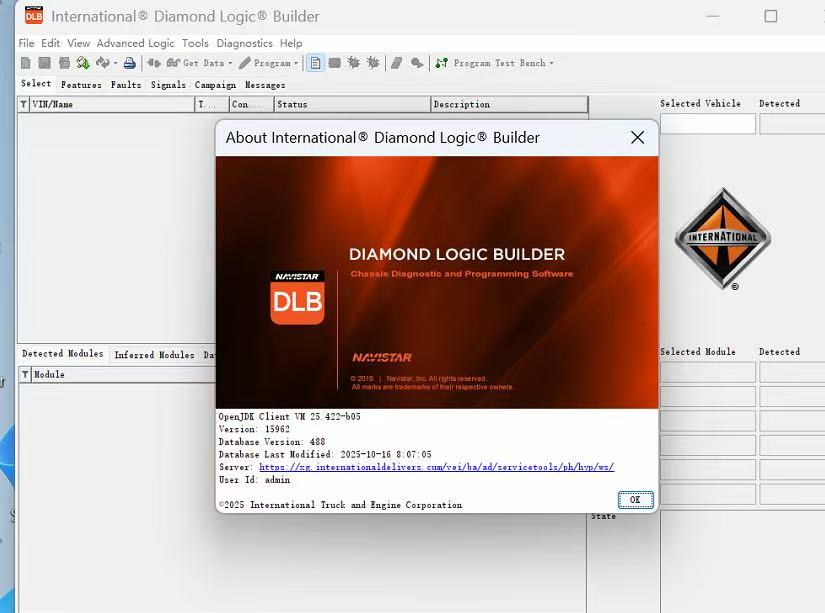

International Diamond Logic Builder (DLB)10.2025 Diagnostic Software by Navistar

Notice:
After payment, we will remotely install and activate the software for you (just install on one computer).

Database Update: 10.2025
Size: 500 Mb
Region: All regions
Type of catalogue:    Diagnostic Software
Language: English
SO: Win 11, Win 10, Win 7

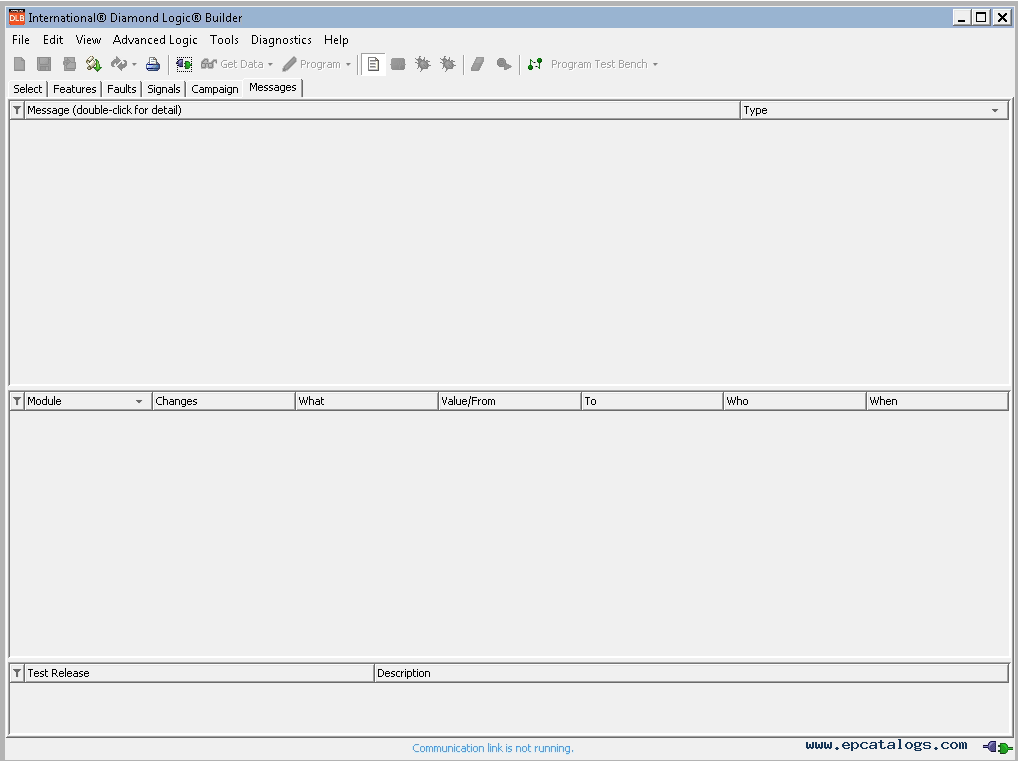

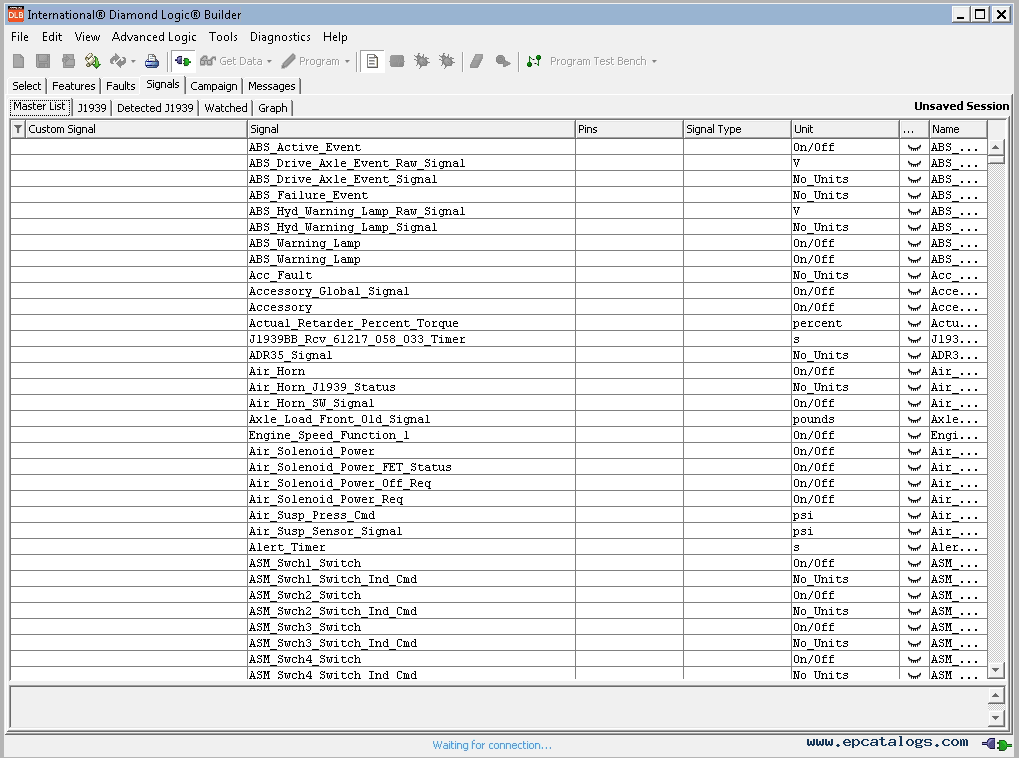

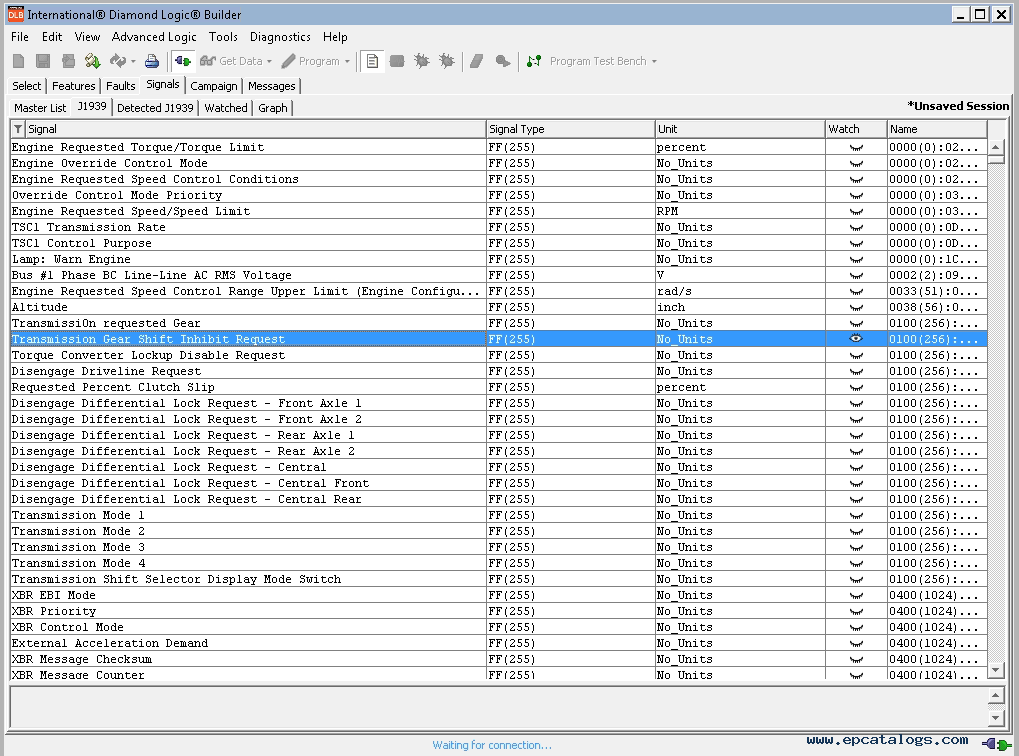

Diamond Logic Builder 2025 (DLB) provides high performance diagnostics for electrical systems in international trucks and high performance IC buses. DLB Fleet displays vehicle signals in graphic and text format.This software also reads and displays the vehicle’s diagnostic trouble codes, as well as the vehicle’s characteristics and parameters.

The International Diamond Logic electrical system further simplifies and integrates your application by allowing the engine, transmission, cab, and body to communicate with each other.

The Diamond Logic electrical system is fully flexible and expandable, with features and functionality that can be added, modified, or removed at any time to suit specific application needs.

International Diamond Logic Builder (DLB) [2025] Level 3 All options are open, all parameters are editable

Recommended adapters:
NEXIQ ™ Technologies – USB-Link2
Dearborn Group Technologies – DPA 5
Noregon® Systems, Inc. – DLA +, DLA + Wireless

Communication link controllers:
DLB uses RP1210A standard controllers for communication.The controllers are specific to the communications device and are not installed with DLB.

User permits:
Diamond Logic Builder has different levels of permissions in levels that allow a more advanced use of the software.
Level 1 (Diagnosis): L1 is included with the active product key.
Level 2 (Diagnosis and programming of parameters): access to L2 requires the completion of web-based training for each user.
Level 3 (Diagnosis, Parameter Programming and Advanced Logic): Access to L3 requires that the Led Instructor training be completed for each user.

You do not need a CYY or DYY account; We have taken care of it and yours is just to enjoy the software.

All options are open, all parameters are editable.

Navistar® Engine Diagnostics is a diagnostic and programming service tool for Navistar® Engines. Navistar Engine Diagnostics, a full-featured PC application, is designed to meet the wide range of service diagnostic challenges of a mixed truck fleet. Coverage includes all J1939 international electronic engine systems.       It allows you to monitor the control system, recover diagnostic trouble codes (DTCs), change parameters, view and plot engine data, and perform specialized service compartment tests on all after-treatment systems and engines. The application also has regular updates, which guarantee the most up-to-date coverage.

Software features:
Control of the control system
Watch
Record
Save
Play instant recordings
Problem diagnosis codes
Retrieve, View, Delete
HD-OBD Freeze Frame Data
HD-OBD monitors
Monitor the results
Preparation for diagnosis
Monitor the performance ratio
View, save print
Service Bay Tests
key on, engine off
Actuator tests
Intermittent fault sensor
Cold start test
Engine running
Air management test
Cylinder cutting test
Engine fan test (if equipped)
High pressure pump test
Post-treatment system tests
Procedures
Calibration of the sensor
Replacements of parts
Programmable parameters
Motor characteristics settings
See Programming
Change Programming
Restoration of the service interval

Needs: One or more communication devices compatible with RP1210A with SAE J1708 and / or SAE J1939.
