EngineDance X5 Heavy Duty Scanner Diagnosis Tool ECU Tuning,ECU Programming for Truck and Commercial Vehicles

The EngineDance X5 is a comprehensive, one-step diagnostic and programming solution engineered for the global heavy-duty vehicle market. It supports an extensive range of diesel, natural gas, and new energy vehicles across Chinese, Japanese, and international brands, offering unparalleled coverage for light/heavy trucks, buses, agricultural machinery, and construction equipment.


Why do you choose EngineDance X5？
Extensive ECU & Engine Support:
1.Supported ECU Systems : Bosch, Denso, Cummins, Delphi, Continental, TRW, Ectek, and more.
2.Supported Models : Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.

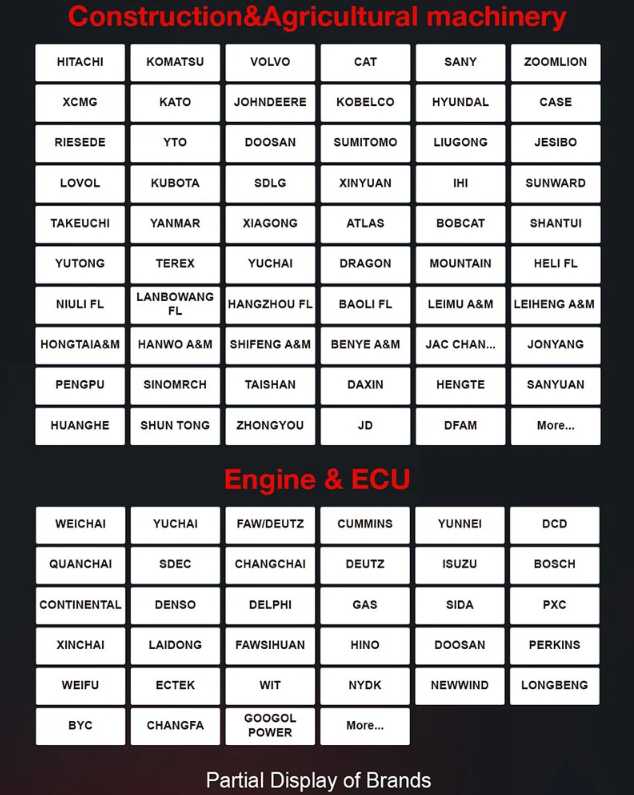

3.Supported Engines : Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai .

Comprehensive Vehicle Coverage : Supports over 98% of domestic vehicle models and a wide array of international brands.

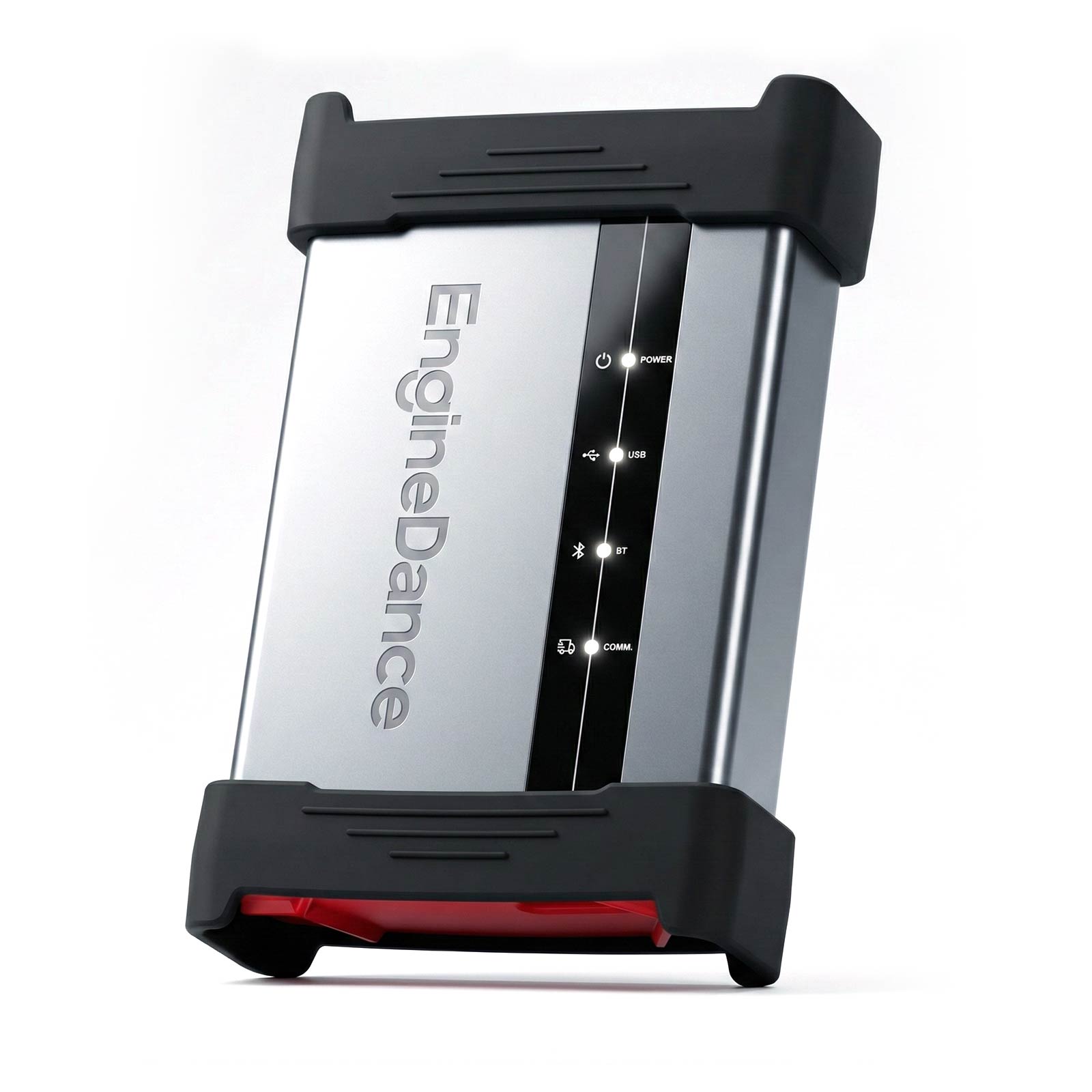

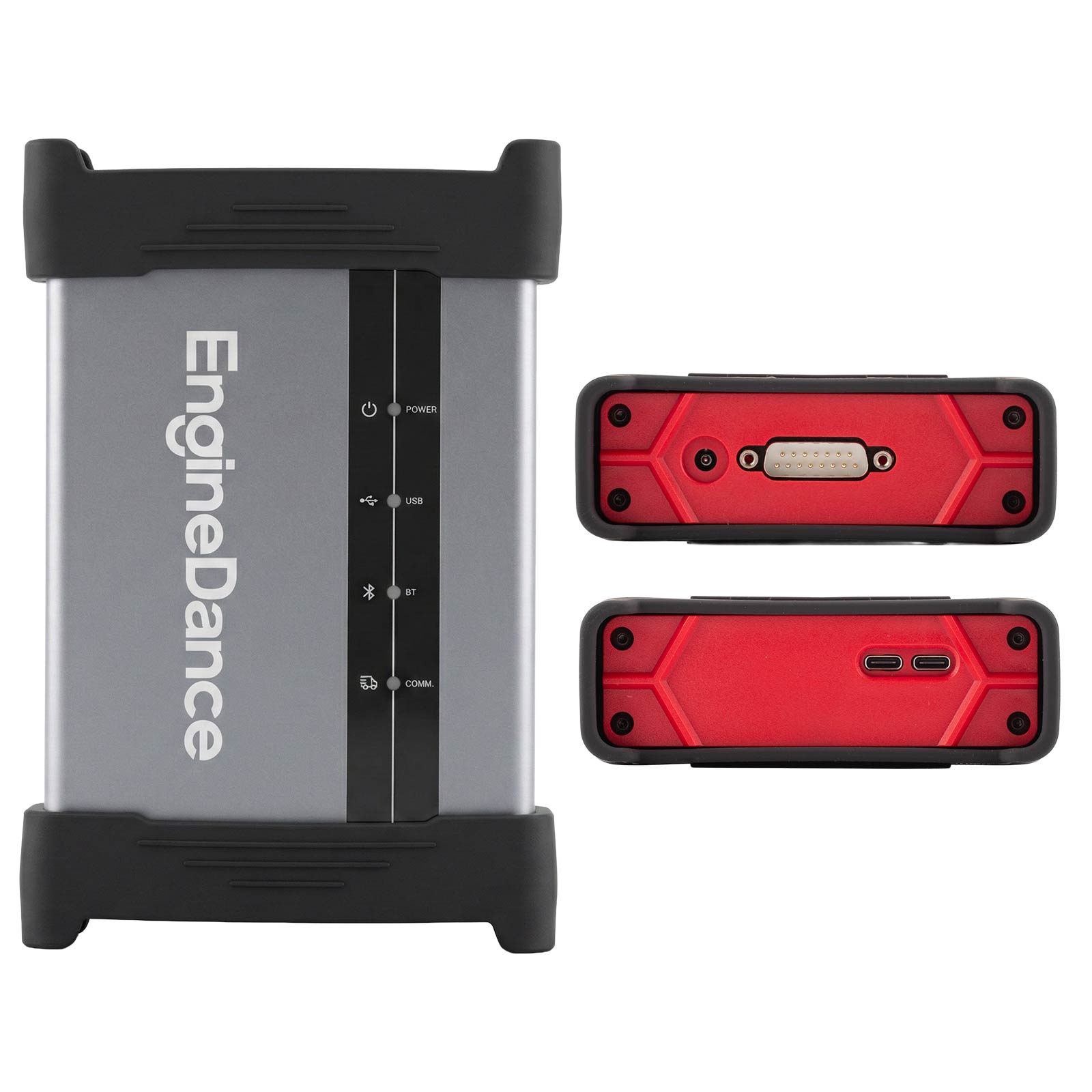

Dual-Mode Connectivity : Features both wireless Bluetooth and high-speed USB Type-C communication for optimal convenience and data transfer efficiency.

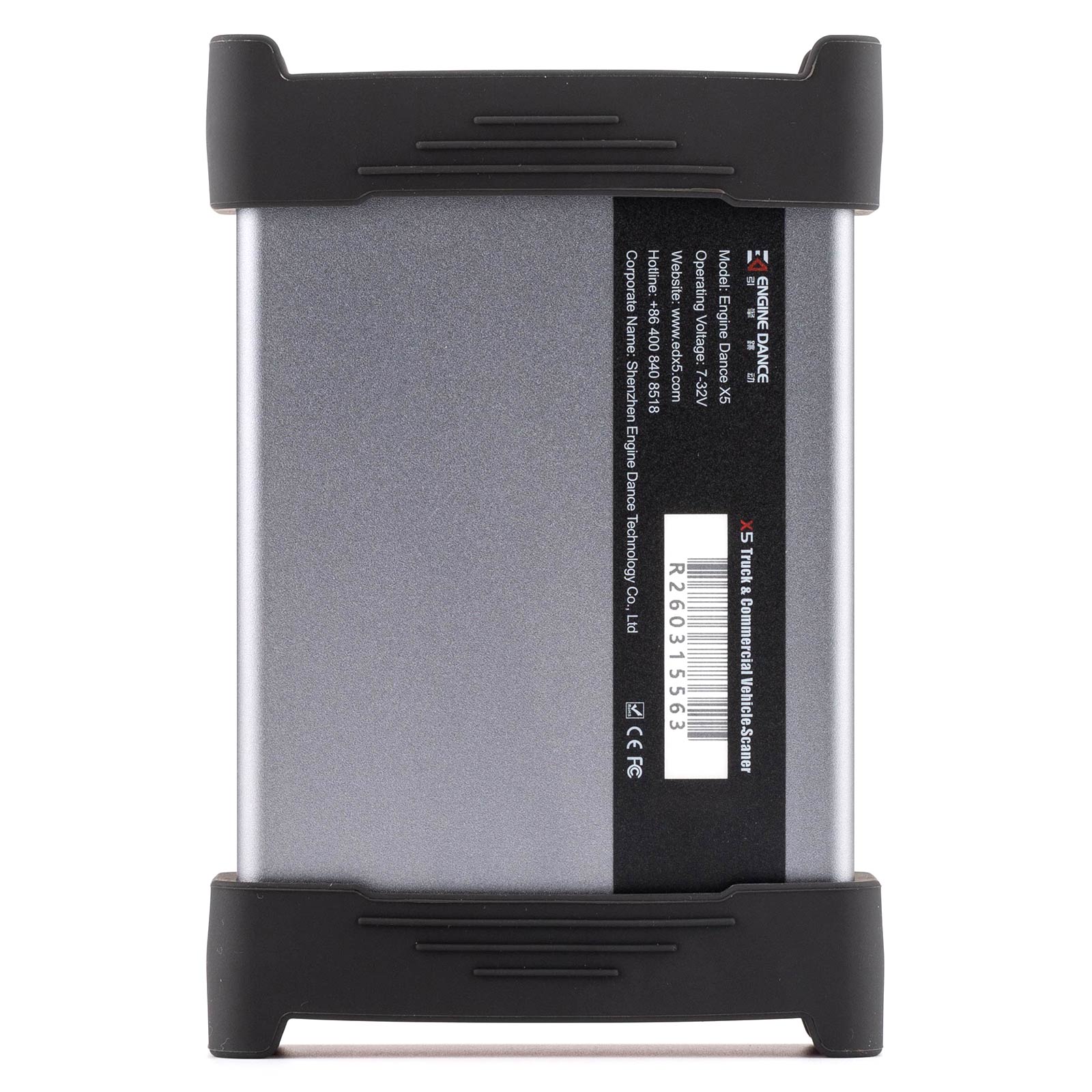

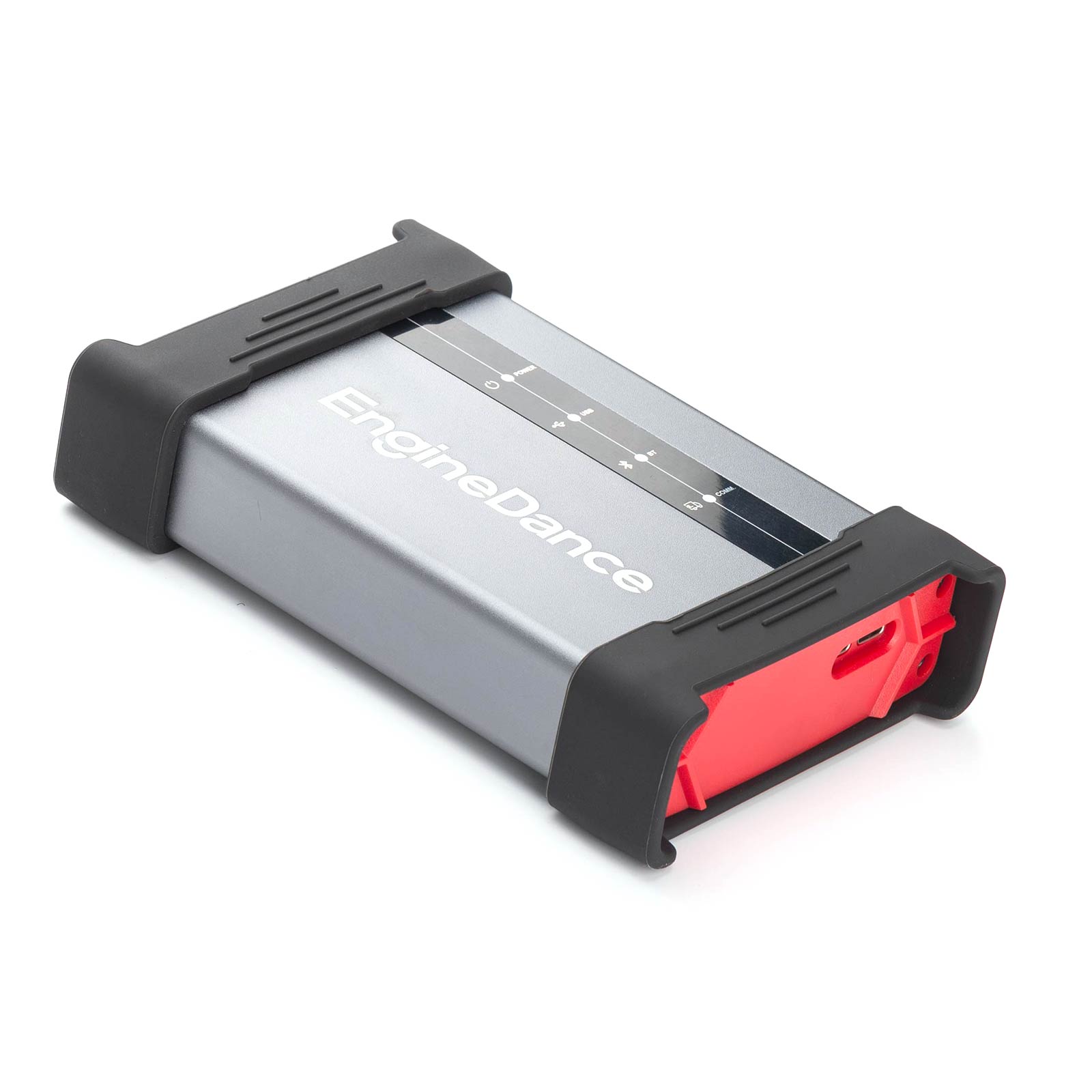

Robust Hardware : Constructed with aerospace-grade alloy using laser engraving technology. The housing is drop-proof and crush-resistant, designed to withstand harsh workshop environments.

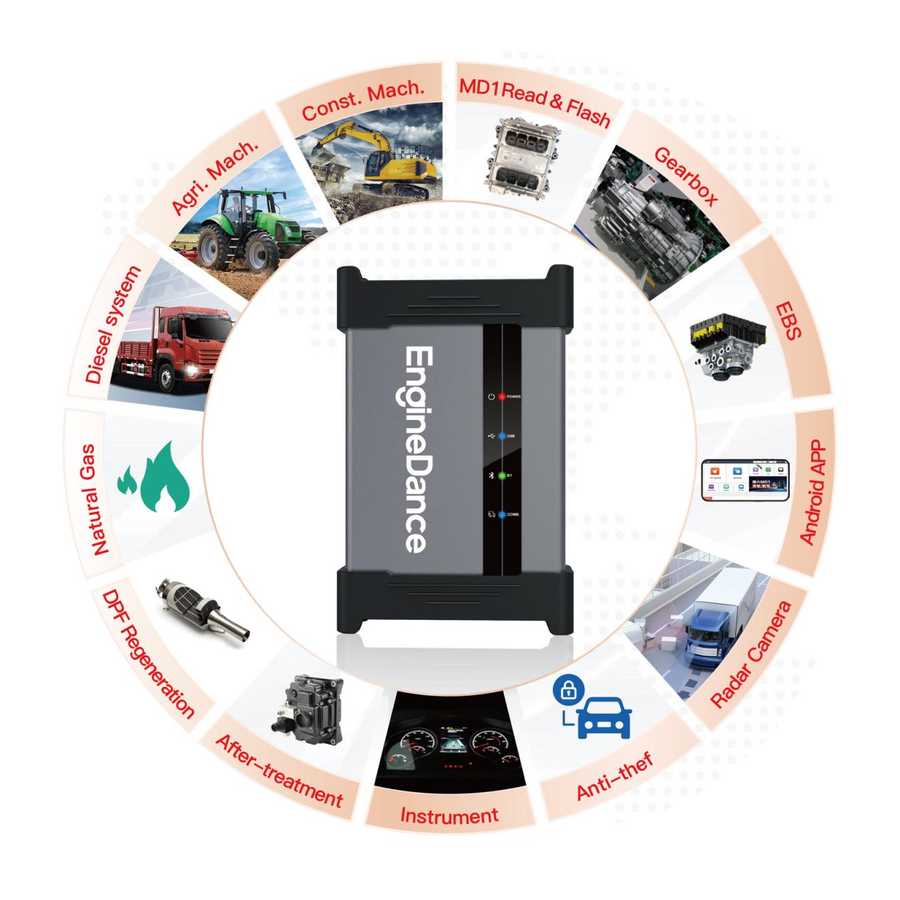

What can EngineDance X5 do for you
Advanced ECU Programming & Flashing :
1.Bosch MD1 Read & Flash (including some encrypted units).
2.EDC17 Encrypted Series Read/Flash.
3.International Vehicle Diagnostics/Flash.
4.Gas System Flash (Woodward OH6, OH2.0, Bosch EGC4).
5.Aftertreatment DCU Flash, Transmission Module Flash, Retarder Flash.
6.Flash process is stable and user-friendly, utilizing dual verification technology 7.for high success rates and low probability of bricking.
8.VCU/CBCU/BCM/Instrument Cluster Writing (FAW, Sinotruk, Dongfeng, Foton).

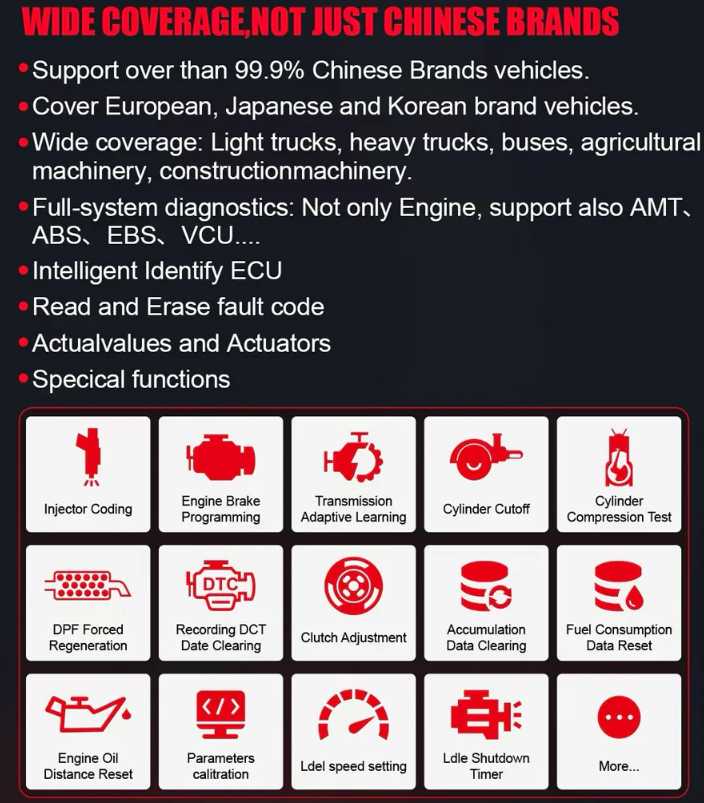

Powerful Diagnostic Functions :
1.Transmission Diagnostics/Learning/Flash.
2.BCM/Instrument Cluster Diagnostics/Calibration/Flash.
3.Construction & Agricultural Machinery Diagnostics/Calibration/Flash.
4.Supports deep-level DTC clearing and fault light reset.
5.DPF Regeneration, SCR System Testing, NOx Sensor Testing.
6.Calibration Functions: VECU max speed adjustment, urea injection temperature 7.setting, CAN bus instrument drive.
8.Reads OBD pin voltage.

Remote Services & Unlock (Additional Cost) :
1.Remote Assistance: One-click remote support connects you directly with an engineer for flash diagnostics and calibration.
2.ECU Unlock Service: EngineDance X5 can remotely unlock specific encrypted MD1 ECUs (service priced at $100 per ECU; not all units are supported).

Supported list：

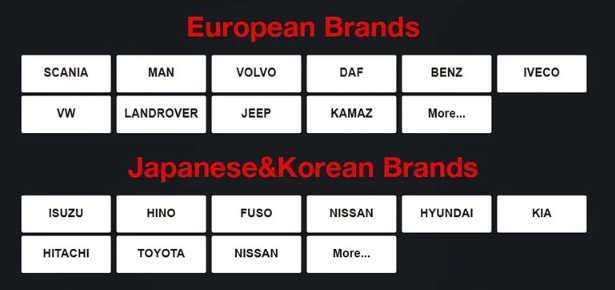

International Vehicle Brand Support (Diagnostics & Reprogramming)
The X5 provides diagnostic and reflashing capabilities for a wide range of international brands, including:
1.Volvo Trucks: Read, Write, Checksum, and Correction for EMS2.0 (OBD), EMS2.2/2.3/2.4 (Bench).
2.Scania: Read, Write, Checksum, and Correction for EMS/EDC S6 & S8 series (OBD/Bench).
3.MAN: Read, Write, Checksum, and Correction for Bosch EDC7C32 (OBD/Bench), EDC17CV42 (Bench), MD1CE100 (Bench).
4.Ford / Land Rover: Read, Write, Checksum, and Correction for Transit/Ranger/Defender SID208, SID209, SID604 (OBD/Bench/Bam/Open).
5.Denso: Bench Read, Write, Checksum, and Correction for SH725xx/1N83M/SH705x series MCUs (Flash & EEPROM).
6.Toyota/Lexus: Read, Write, Checksum, and Correction for 2nd Gen (7x F019x series via CAN) and 3rd Gen (R7F70120x/16x series via UDS) engines and transmissions across models like LC300, Hilux, Camry, RAV4, etc.
7.Delphi Systems:Read, Write, Checksum, and Correction for various DCM versions (3.2, 6.2AP, 7.1AP, etc.) across Yuchai, Dongfeng, Great Wall, Hyundai/Kia, Doosan, GM, and others.
Delphi ETC3 ECU read/write via CANbus (OBD/Bench) for DAF, Kenworth, Peterbilt, and Hyundai trucks.

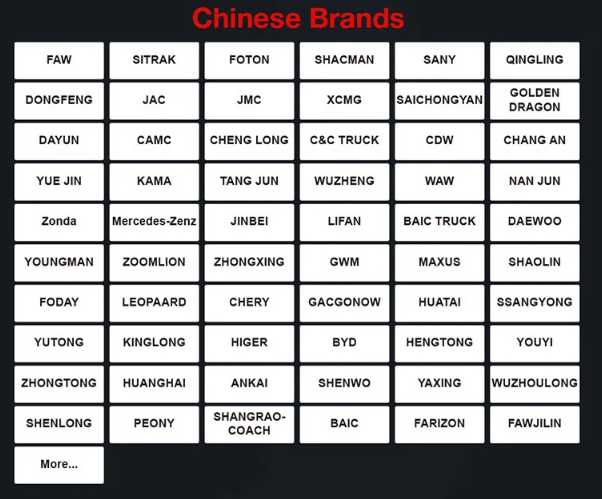

Chinese Vehicle Brand Support (Diagnostics & Reprogramming)
1.Powerful and stable ECU reprogramming for most mainstream Chinese OEMs (FAW, Sinotruk, Sinotruk Howo, Sitrak, Dongfeng, Foton, Zhongqi, Shacman, SFH, JMC, JAC, XCMG, Sany, Chenglong, etc.).
2.Supports read/write for over 300 Chinese commercial vehicle ECU models.
3.Covers nearly all electronic control systems for Chinese commercial vehicles.

Software & Service
1.One-Click Software Update: Simple, automatic updates to the latest version with a single click.
2.Warranty & Support: Includes a 2-year extended warranty for worry-free operation. After 2 years, software update service is available at an annual cost of $295.

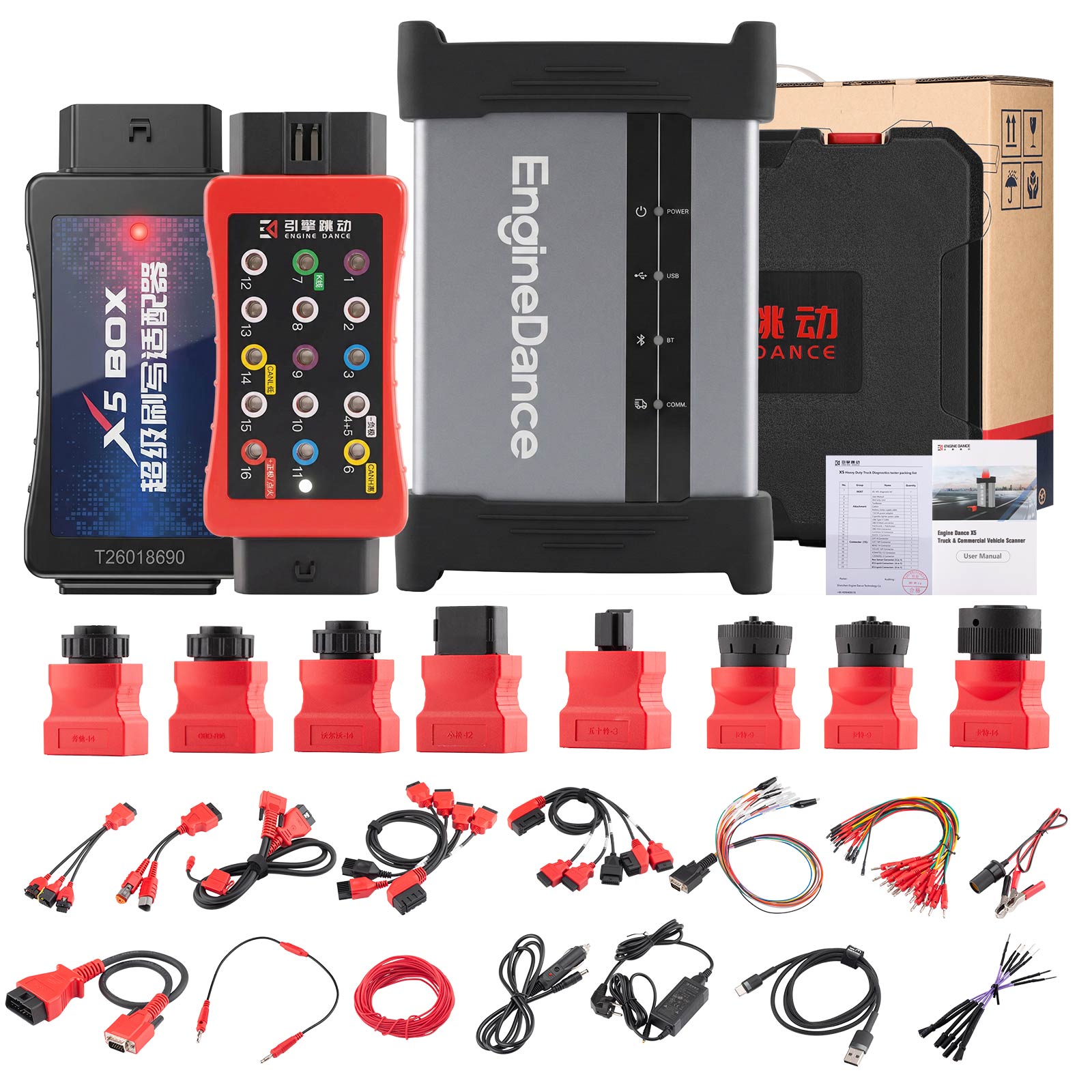

Package list
Option 1:
1pc x EngineDance X5 Diag Truck Diagnostic Scanner


Option 2:

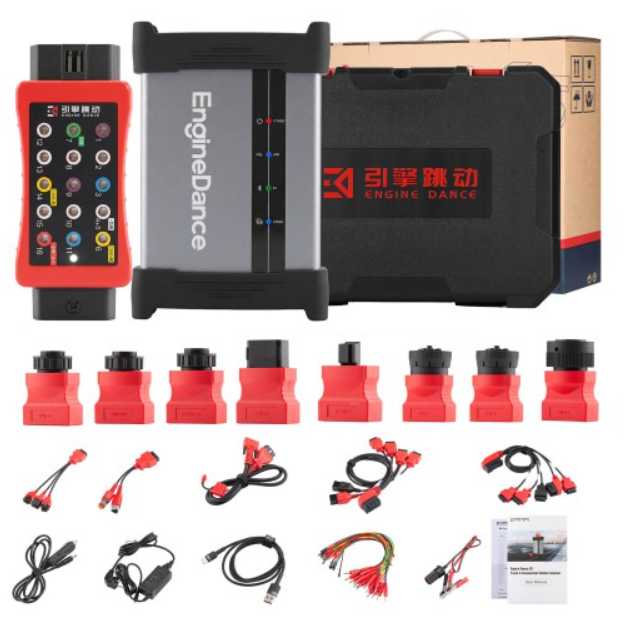

1set x Two-In-One Diagnostic And Programming Version


Option 3:

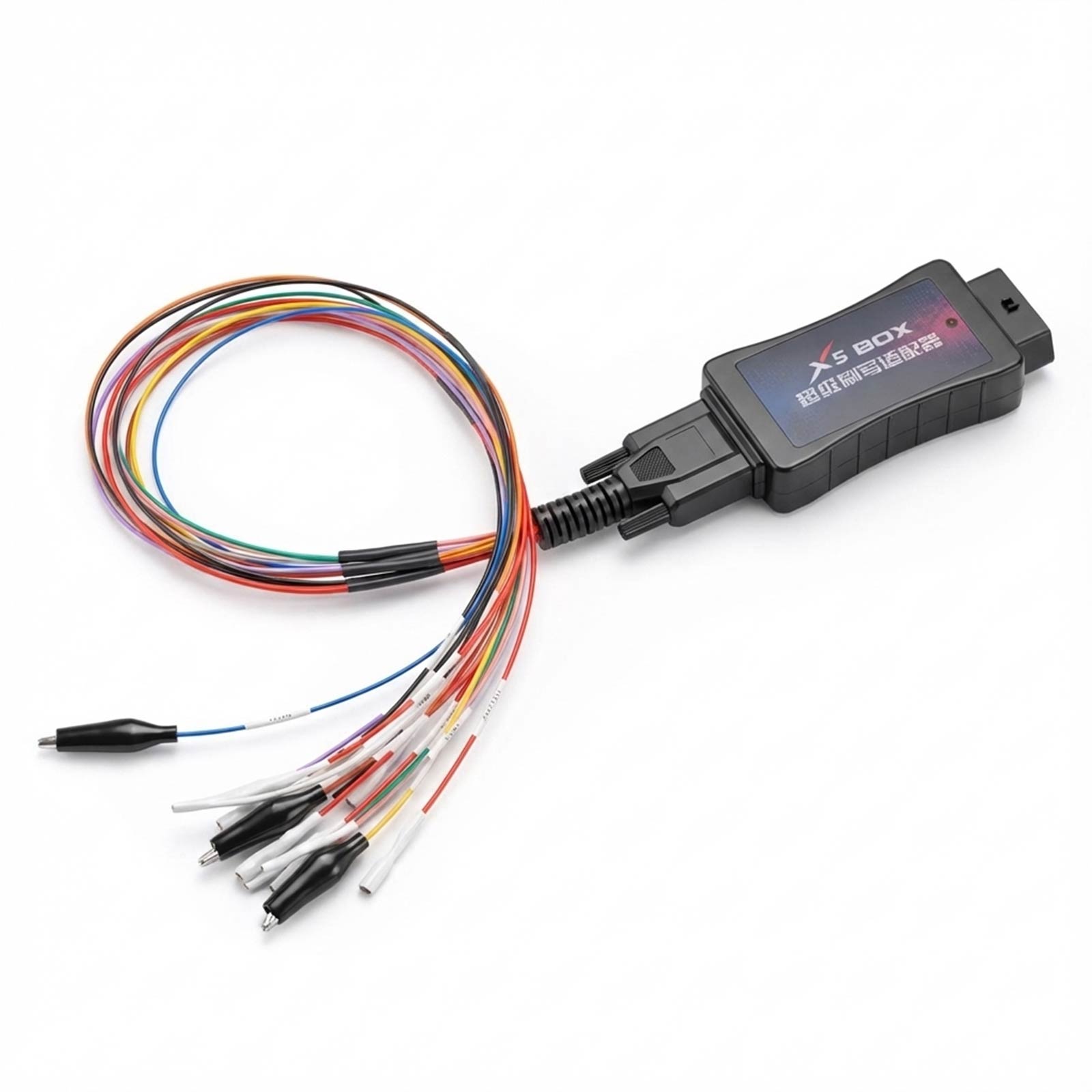

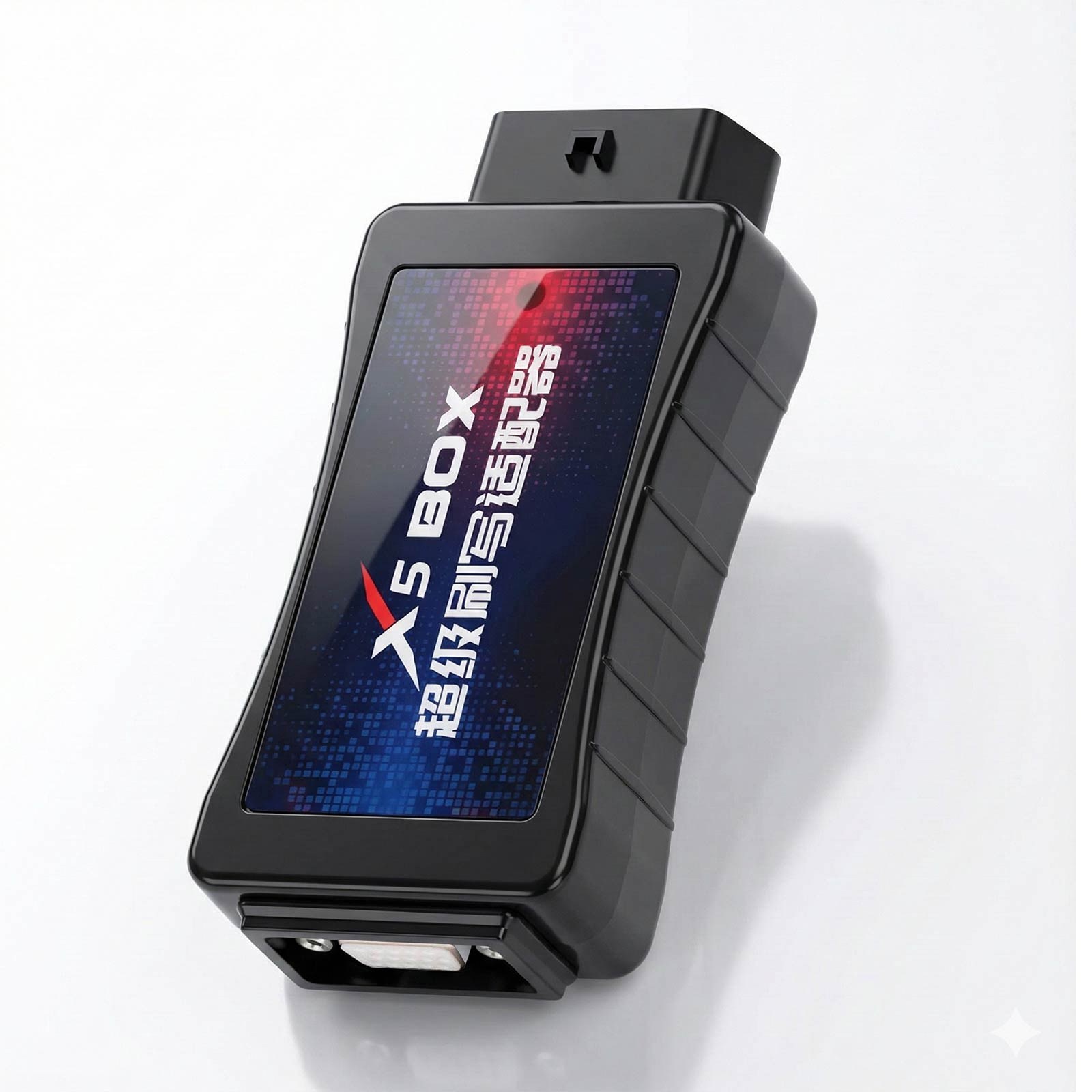

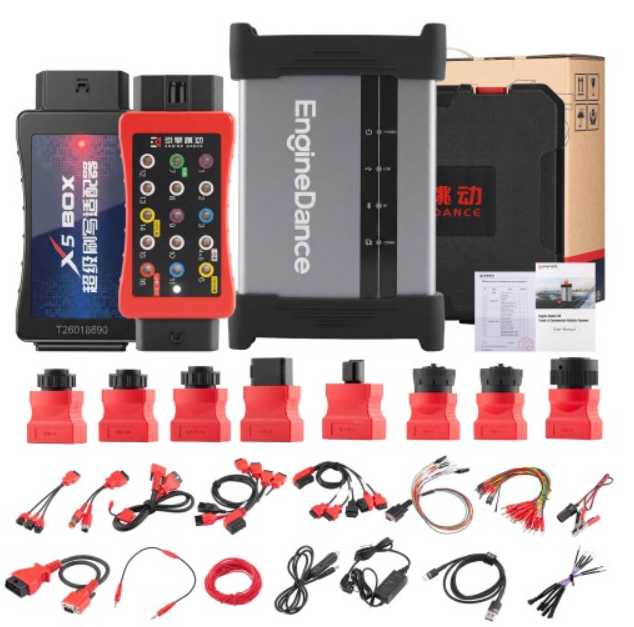

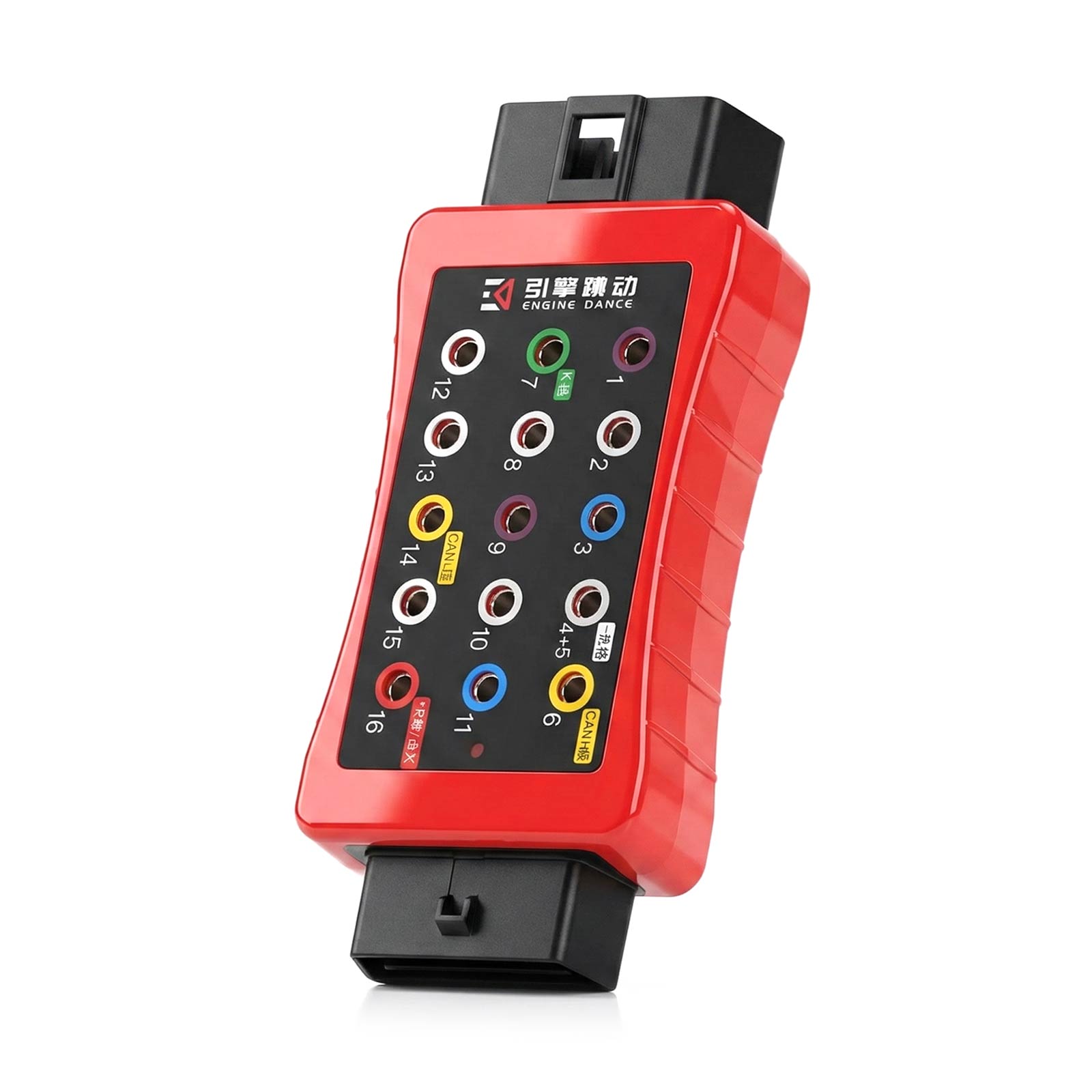

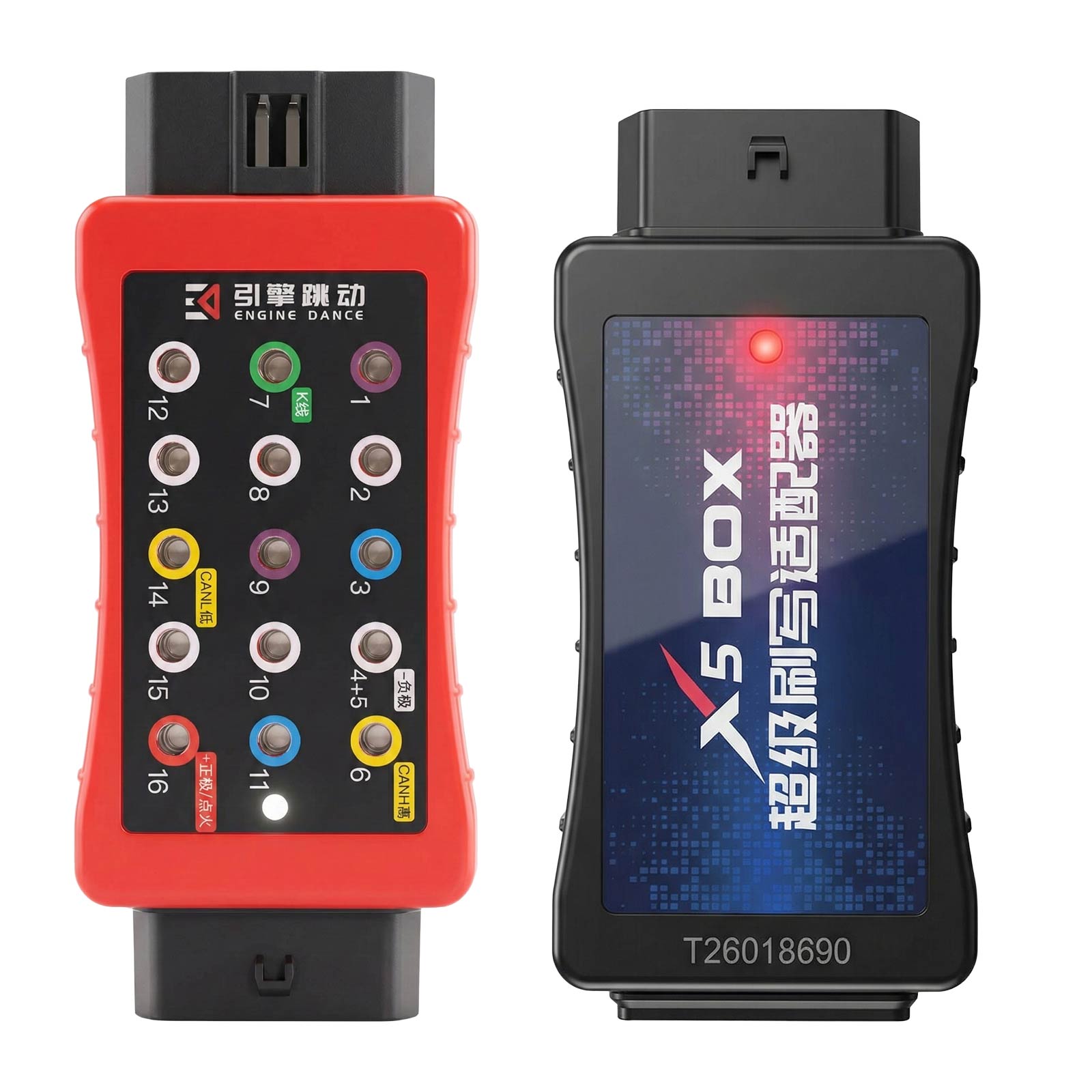

1pc x EngineDance X5 2-in-1 ECU Programming &Truck Diagnostics with X5 BOX Full Configuration
