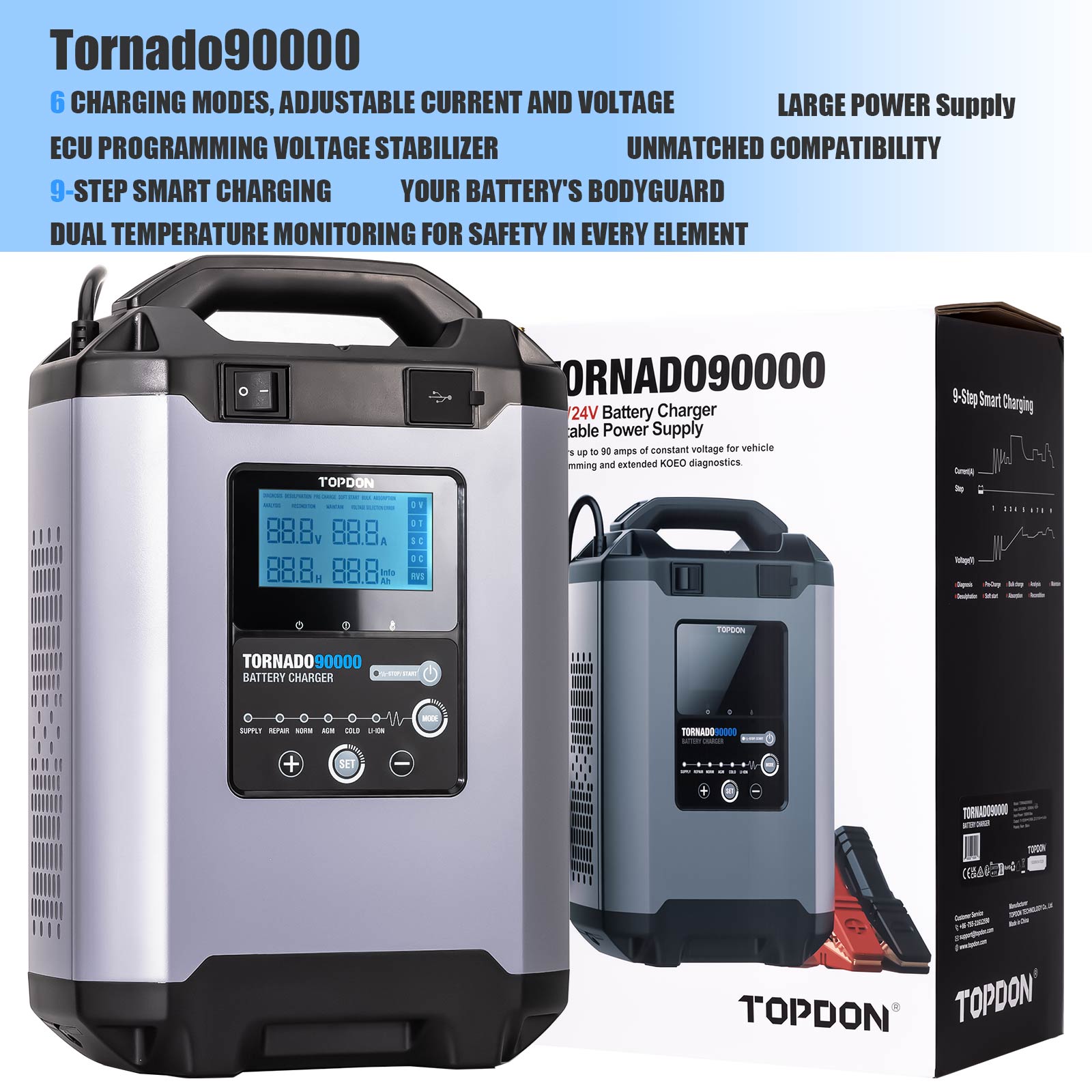

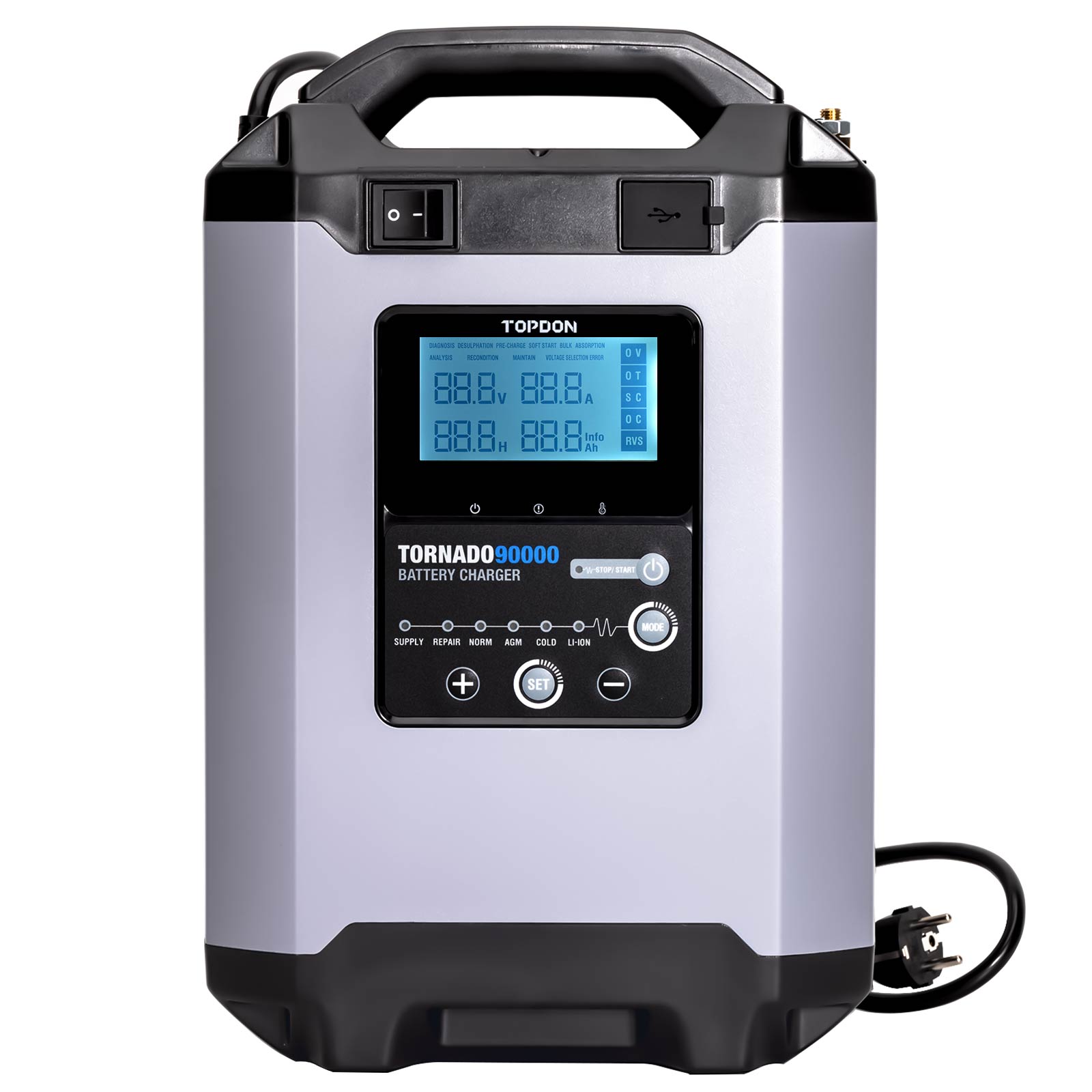

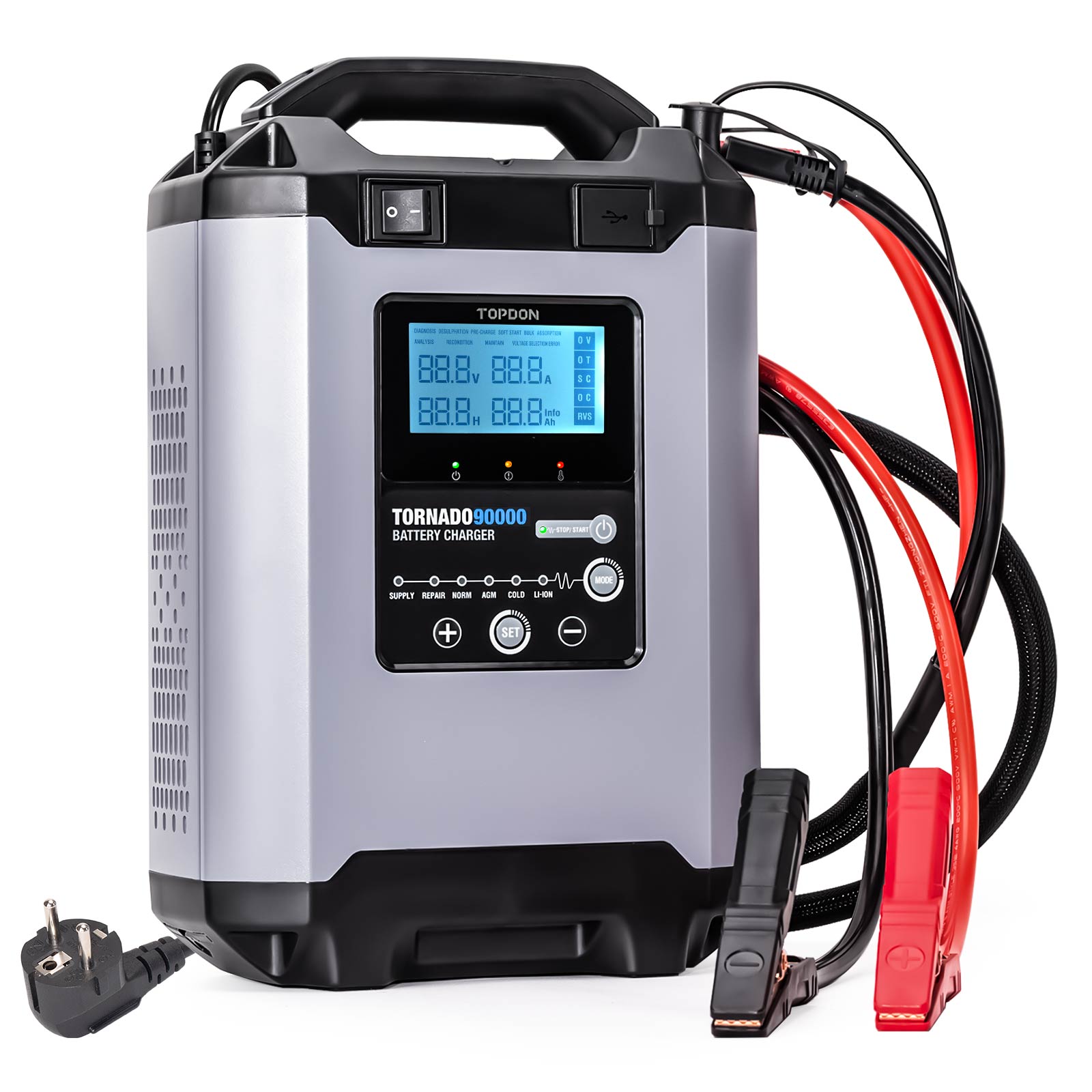

TOPDON Tornado 90000 90A Stable Power Supply & Smart Charger 12V/24V for Vehicles and trucks

Tornado 90000 serves as a smart battery charger for all types of 12V/24V lead-acid batteries, including Wet, Gel, MF, Cal, EFB, and AGM from 20Ah to 2800Ah(150 CCA and Up). It can not only start ordinary cars and SUVs, but also large vehicles that require high starting current, such as trucks, tractors, construction machinery, and even diesel vehicles and ships.

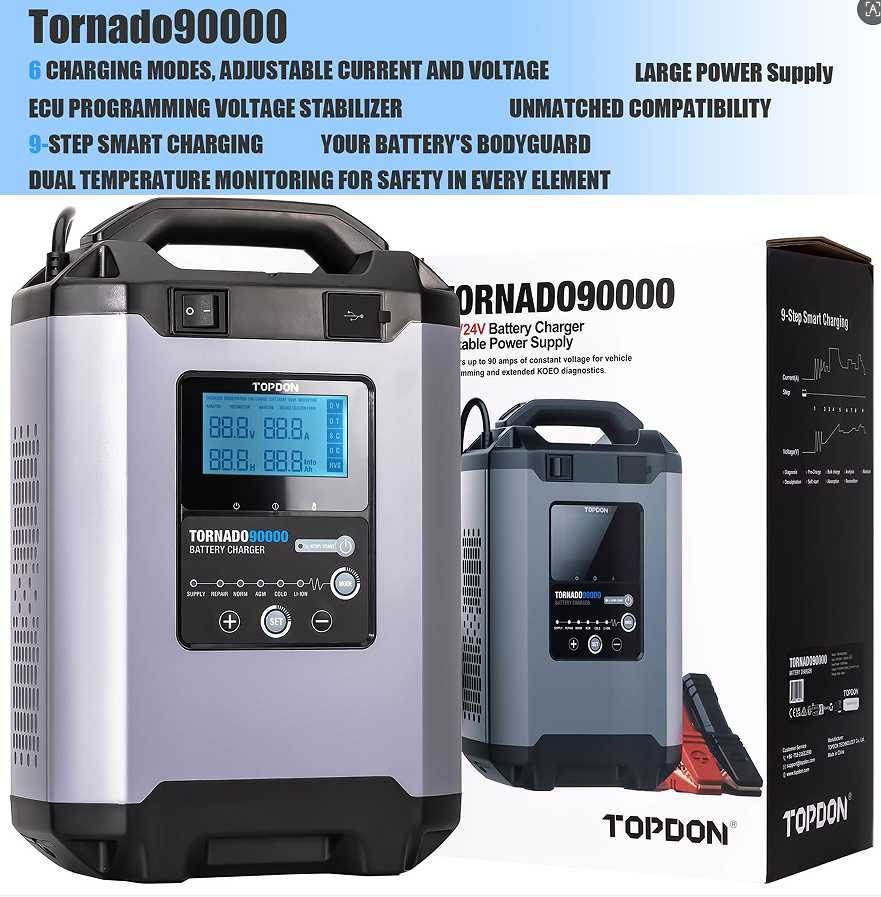

Key Features & Benefits
1.Multi-Functional Design: Combines a powerful 90A battery charger, a stable DC power supply, and a voltage stabilizer for ECU programming in a single unit.
2.Advanced Programmable Control: Features 6 programmable charging modes (Supply, Normal, Cold, Boost, Repair, etc.) with adjustable voltage and current for tailored charging.
3.Intelligent & Safe Charging: Proprietary 9-Step Smart Charging algorithm ensures optimal battery health by automatically managing the charge cycle and eliminating overcharge risks.
4.Wide Compatibility: Supports a broad range of 12V and 24V battery types (AGM, WET, GEL, MF, CAL, EFB, VRLA, Lithium) with a capacity from 20Ah to 2800Ah.
5.Robust Safety & Protection: Comprehensive safeguards include protection against reverse polarity, reverse charge, short circuit, over-voltage, and overheating.
6.Dual-Temperature Monitoring: Ensures operational safety with both a built-in internal sensor and an external temperature probe for real-time thermal monitoring.
7.High-Power Bank Utility: Serves as a stable power source for high-current automotive appliances like tire inflators, car fridges, and other 12V/24V equipment.



Technical Specifications

Category	Specification Details
Input	AC 100-120V, 50-60Hz
Output	DC 12V / 24V Auto-Sensing
Max. Power / Efficiency	1500W / ~85%
Charging Current	12V: 10A - 90A 24V: 10A - 45A
Voltage Adjustment Range	12V: 11.0V - 15.8V 24V: 22.0V - 31.6V
Battery Compatibility	Types: WET, GEL, AGM, MF, EFB, CAL, VRLA, Lithium Capacity: 20Ah - 2800Ah
Protection Features	Reverse Polarity, Reverse Charge, Short Circuit, Overheating, Over-Voltage
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Housing Protection	IP20
Dimensions & Weight	419.2 x 274.6 x 140 mm; ~3 kg
Warranty	3 Years

Primary Applications
1.Professional Automotive Workshops: For charging, maintaining, and reconditioning vehicle batteries.
2.Commercial Fleet Management: Ensures battery health for trucks, buses, and equipment.
3.ECU Programming & Diagnostics: Provides clean, stable voltage required for safe vehicle electronics programming.
4.Mobile Technicians: Portable power solution for on-site repairs and services.
5.Auxiliary Power Source: Reliable power for high-demand 12V/24V tools and appliances.

The Topdon Tornado90000 delivers professional-grade power, intelligent control, and comprehensive safety, making it an essential tool for demanding technical environments.

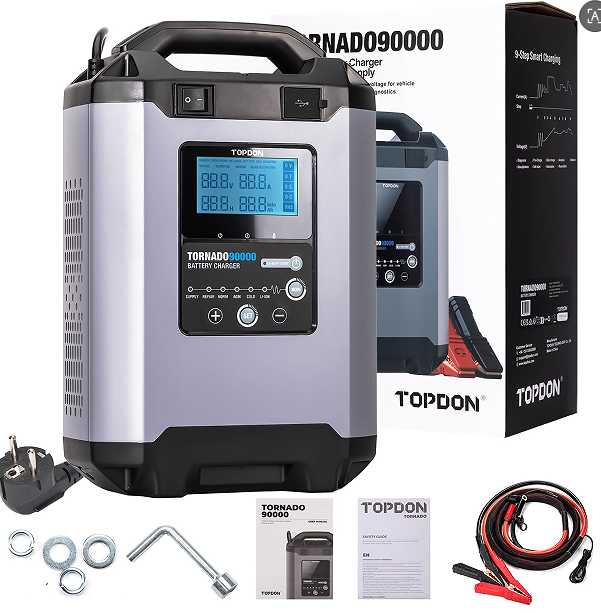

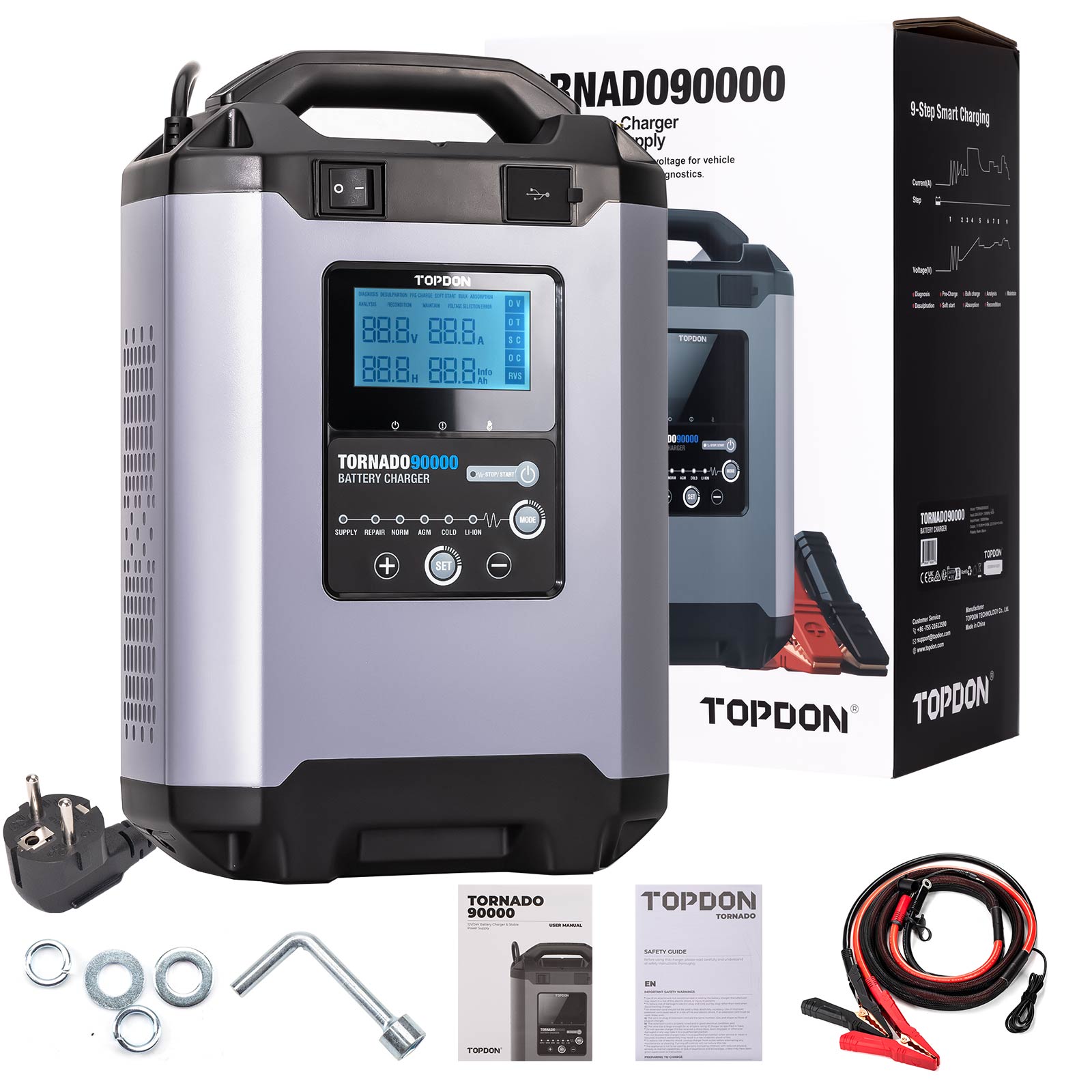

Package includes:
1pc x TOPDON Tornado90000 host
1pc x clip cable
1pc x L-type wrench
4pcs x screw washer
