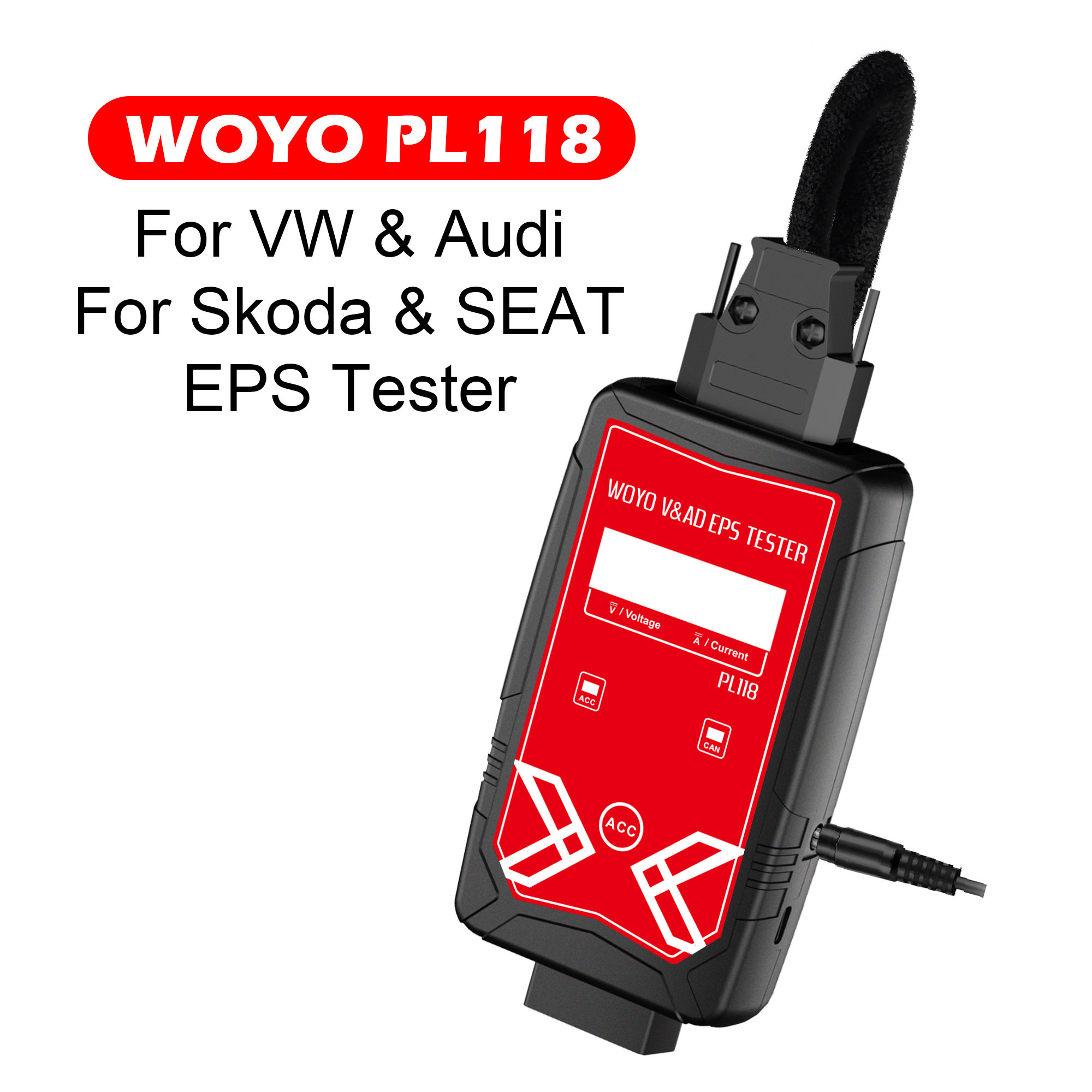

WOYO PL118 VW & Audi EPS Tester on Bench for Volkswagen / Golf Electrical Steering Wheel Motor Detector


WOYO PL118 For V-W & A-UDI EPS Tester on Bench, Electrical Steering Wheel Motor Detector Off-line.After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.



Operation:
ACC: Device ON/OFF

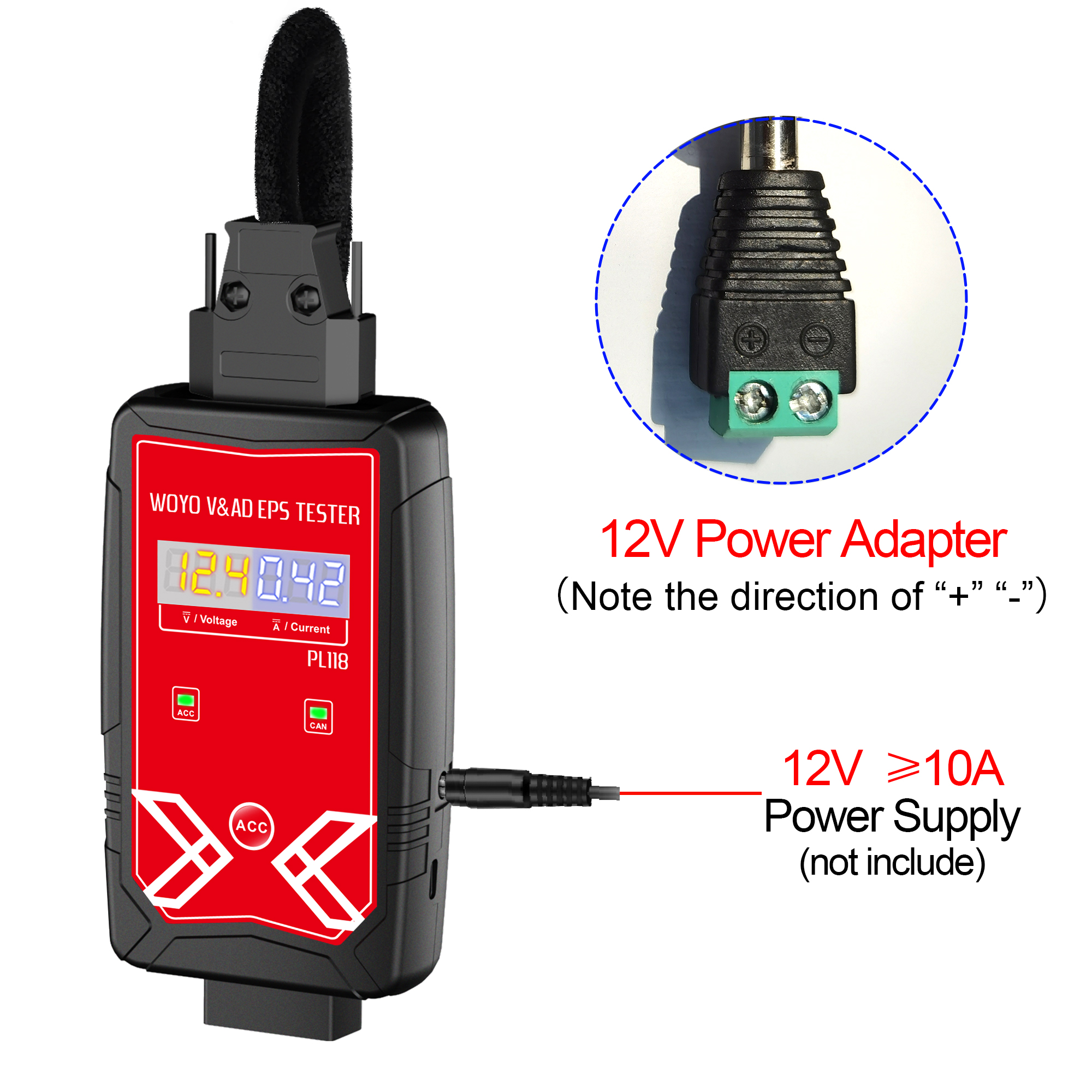

Power supply:12V 10A, we don't send with this cable.
Screen:Show work voltage or current of the tester.
Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

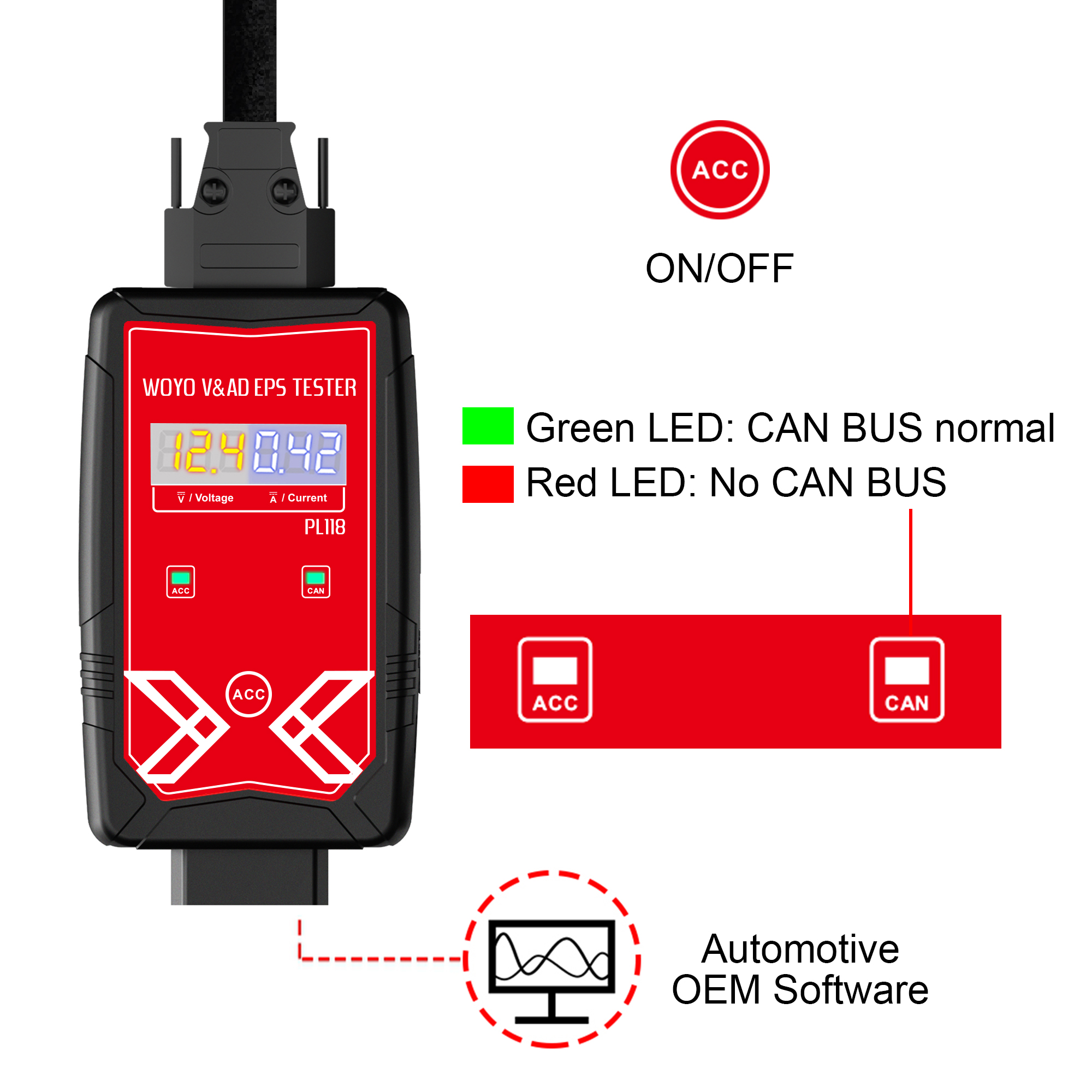

CAN Indicator LED:
Green LED: EPS provide CAN BUS.
Red LED: No CAN BUS from EPS.+

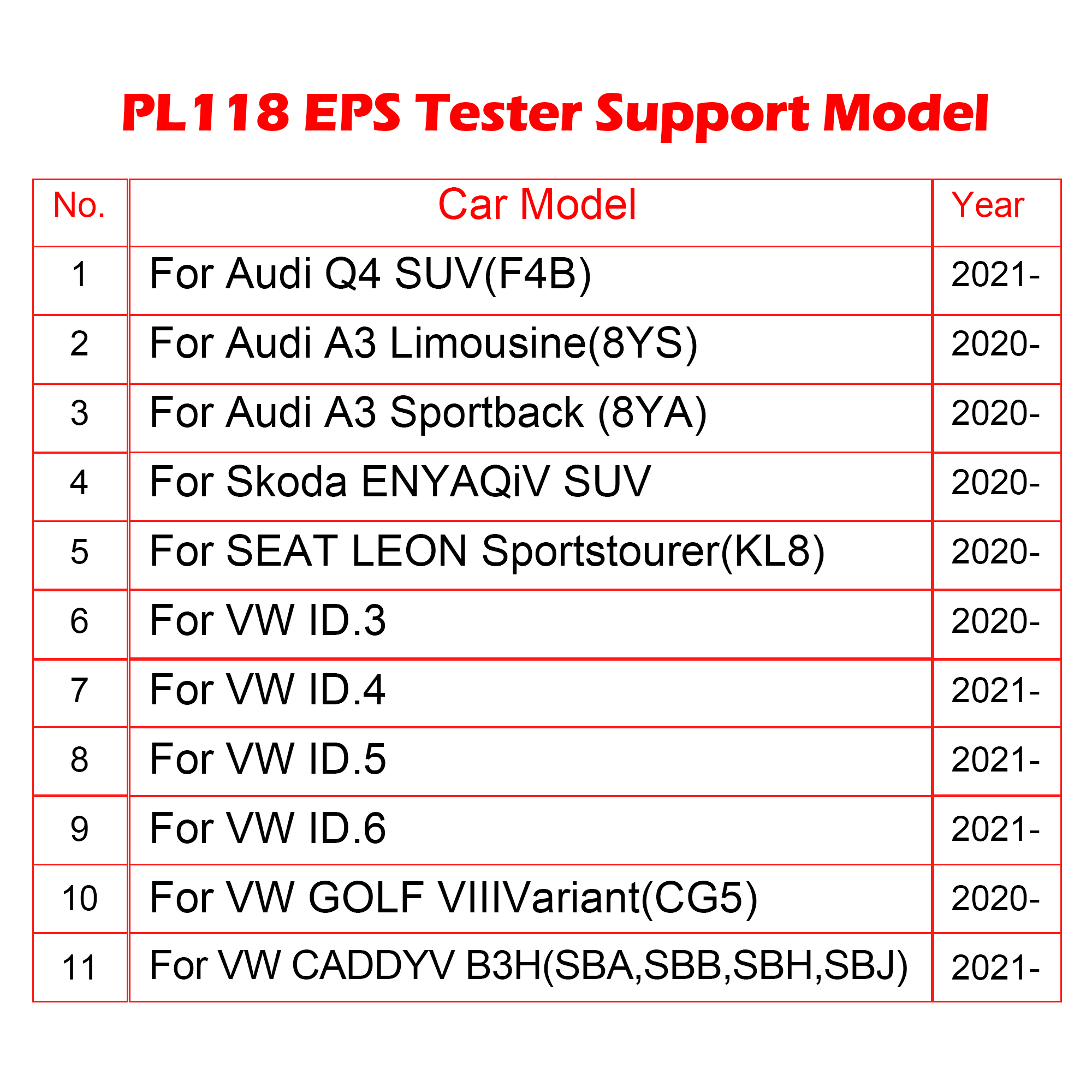

PL118 EPS Model Support:

For AUDI	Q4 SUV(F4B)	2021-2025
For AUDI	A3 Limousine(8YS)	2020-2025
For AUDI	A3 Sportback (8YA)	2020-2025
For SKODA	ENYAQiV SUV	2020-2025
For SEAT	LEON Sportstourer(KL8)	2020-2025
For VW	ID.3	2020-2025
For VW	ID.4	2021-2025
For VW	ID.5	2021-2025
For VW	ID.6	2021-2025
For VW	GOLF VIIIVariant(CG5)	2020-2025
For VW	CADDYV B5H	2021-2025

Note:
1.Need to use with torque sensor, if your EPS without torque sensor, you need to buy one.
2.Additionally, during the steering testing process, it's advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.
