EngineDance X5 Diag Truck Diagnostics for Light Trucks, Heavy Trucks, Buses, Agricultural Machinery, Construction Machinery

EngineDance X5 Diag Truck Diagnostics for Light Trucks, Heavy Trucks, Buses, Agricultural Machinery, Construction Machinery

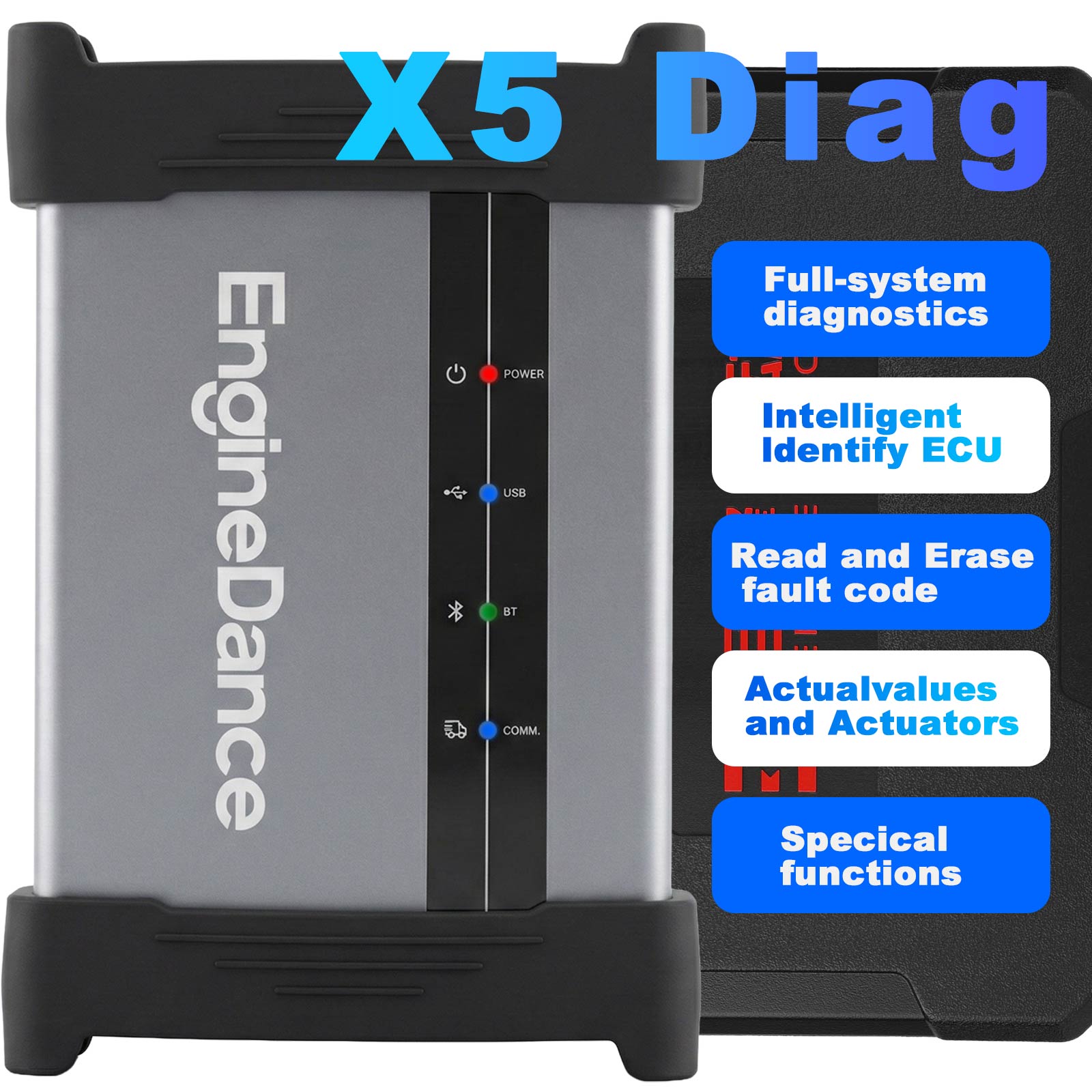

Product Features:
1.Support more than 99.9% Chinese Brands vehicles.
2.Cover European, Japanese and Korean brand vehicles.
3.Wide coverage: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery.
4.Full-system diagnostics: Not only Engine, support also AMT, ABS, EBS, VCU...
5.Intelligently ldentify ECU
6.Read and Erase fault code
7.Actual values and Actuators

Specical Functions:
Injector coding
Engine brake programming
Transmission adapter learning
Cylinder cutoff
Cylinder compression test
DPF forced regeneration
Recording DCT date clearing
Clutch adjustment
Accumulation data clearing
Fuel consumption data reset
Engine oil distance reset
Parameters calibration
Idle speed setting
Idle shutdown timer

Supported Vehicle Brands:
Chinese Vehicle Brands:
For FAW,for SITRAK,for FOTON,for SHACMAN, for SANY,for QINGLING,for DONGFENG, for JAC, for JMC, for XCMG,for SAICHONGYAN, for GOLDEN, for DAYUN, for CAMC, for CHENG LONG, for C&C TRUCK, for CDW,for CHANG AN, for YUE JIN, for KAMA, for TANGJUN, for WUZHENG, for WAW, for NAN JUN, for Zonda，for Mercedes-Zenz, for JINBEI, for LIFAN, for BAIC Truck, for DAEWOO, for YOUNGMAN....

European Vehicle Brands:
For Scania, for MAN, for VOLVO, for DAF, for BENZ, for IVECO, for VW, for LANROVER, for JEEP, for KAMAZ....

Japanese & Korean Brands:
For ISUZU, for HINO, for FUSO, for NISSAN, for HYUNDAI, for KIA, for HITACHI, for TOYOTA....

Construction & Agriculture Machinery:
For HITACHI, for KOMATSU, for VOLVO, for CAT, for SANY, for ZOOMLION, for XCMG, for KATO, for JOHNDEERE, for KOBELCO, for HYUNDAI, for CASE, for RIESEDE, for YTO, for DOOSAN....

Engine & ECU:
For WEICHAI, for YUCHAI, for FAW/ DEUTZ, for CUMMINS, for YUNNEI, for DCD, for QUANCHAI, for SDEC, for CHANGCHAI, for DEUTZ, for ISUZU, for BOSCH, for CONTINENTAL, for DENSO, for DELPHI, for GAS, for SIDA, for PXC....

EngineDance X5 Exclusive technology Remote Unlock Encrypted MD1 ECU
(Notice: Paid feature: $100 for one remote unlock,one time.)

X5 ECU Programming List
Scania
Scania EMS/ EDC S6 250Kbps (MPC555/ 556)
Scania EMS S6 500Kbps (MPC555/ 556)
Scania EMS S8 250Kbps (MPC5566)
Scania EMS S8/ EMD1 500Kbps (MPC5566)
Scania EMS S8/ EMD1 250Kbps (MPC5566) –Bam
Scania EMS S8/ EMD1 500Kbps (MPC5566) –Bam
Reading, writing, checksum correction.

Volvo Truck
Volvo/ Renault/ Construction Machinery EMS2.0(MPC56X)-OBD
Volvo/ Renault/ UD/ MACK truck EMS2.2(MPC5554)-Bam
Volvo/ Renault/ UD/ MACK truck EMS2.2(MPC5554)- Bench
Volvo/ Renault/ UD/ MACK truck EMS2.3(MPC5674F)- Bench
Volvo/ Renault/ UD/ MACK truck EMS2.4(MPC5777C)- Bench
Reading, writing, checksum correction.

MAN
MAN Bosch EDC7C32 [0281020067]-OBD/ Bench
MAN Bosch EDC17CV42 [0281020273, TC1797]- Bench
MAN Bosch MD1CE100 TC299- Bench
Reading, writing, checksum correction.

Ford Transit / Ranger, Land Rover Defender
Land Rover Defender SID208- Bench/  Bam
Ford Ranger SID209-OPEN
Ford Transit SID208 OBD/ Bench /  Bam
Ford Transit SID209 OBD/ Open
SID604 OBD writing, checksum
Reading, writing, checksum correction.

Denso SH725XX/ 1N83M/  SH705X Bench
1N83M FLASH Reading, writing, checksum correction
1N83M EEPROM Reading, writing
SH72543 FLASH Reading, writing, checksum correction
SH72543 EEPROM Reading, writing
SH7055 FLASH Reading, writing, checksum correction
SH7055 EEPROM Reading, writing
SH7058 FLASH Reading, writing, checksum correction
SH7058 EEPROM Reading, writing
SH7059 FLASH Reading, writing, checksum correction
SH7059 EEPROM Reading, writing

Toyota/ Lexus/ Scion/ Hino Gen 2
76F0196/ 198/ 199/ 219 P5-CAN-bus
76F0199 GearBox P5-CAN-bus
Reading, writing, checksum correction.

Toyota/ Lexus Gen 3
R7F701202/ R7F701216 P5-UDS
LC300/ LX500d 3.3TD P5-UDS (F33A-FTV/ R7F701216)
LC300/ LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/ R7F701216)
LC150/ Hiace/ Hilux/ Revo/ Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/ 2GD-FTV/ R7F701216)
LC150/ Hiace/ Hilux/ Revo/ Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/ R7F701201)
Camry/ ES/ Rav4/ UX 2.0L, 2.5L P5-UDS (M20A-FKS/ A25A-FKS/ R7F701202)
Camry/ ES/ Rav4 2.5L 8AT Gearbox P5-UDS (UB80/ R7F701201)
Camry/ ES/ Rav4 2.5L HV P5-UDS (A25A-FXS/ R7F701202) [Test]
Corolla 2.0L P5-UDS (M20A-FKS/ R7F701202) [Test]
Highlander/ Siena 2.5L HV P5-UDS (A25A-FXS/ R7F701216) [Test]
Yaris GR 1.6T P5-UDS (G16E-GTS/ R7F701216) [Test] [RD/ WR/ CK]
Reading, writing, checksum correction

DELPHI
Yuchai DCM3.2/ DCM6.2AP/ DCM6.24
Yuchai DCM7.1AP/  DCM7.24
Dongfeng M9T DCM7.1AP
Great Wall/ Haval DCM6.2AP
HYCET Great Wall/ ZhongXin/ Changan Kaicene DCM7.1AP
Great Wall/ Haval DCM3.7AP
Kia/ Hyundai DCM3.7AP(SH725xx)
DOOSAN/ Bobcat/ Kioti/ McCormick DCM3.7AP
SsangYong 2.0L XDI DCM3.7AP
DOOSAN/ Bobcat/ Kioti/ McCormick (DCM3.7AP)
GM/ Opel/ Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)
JAC DCM6.2AP
Qingling/ Isuzu DCM6.2AP
Qingling/ Isuzu DCM7.1AP
Yunnei DCM6.24
Yunnei DCM7.24
Changan DCM7.1AP
OBD Reading, writing, checksum correction.
DCM7.1AP/  DCM7.24 BENCH Reading, writing, checksum
DCM 6.2AP open model SPC56X

Trucks Delphi ETC3
Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used in
DAF, Kenworth, Peterbilt, Hyundai trucks.
DAF/ Industrial Delphi ETC3
Delphi ETC3 REV A/ B/ C ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.
Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
REV 0 and REV H ECUs are not supported.
Hyundai Delphi ETC3
Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.
Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.

Trucks Delphi DMCI CAN
Module for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks.
ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.
Allows to read and write calibration area through CAN-bus with checksumm correction on writing.
DAF/ Kenwroth Delphi DMCI
Hyundai Delphi DMCI

IVECO Light truck
IVECO EDC17C69 Bench
IVECO EDC17C49 Bench
IVECO MD1CS069[Support Bench lock Ecu]
IVECO MD1CS089 Bench
IVECO DCU17PC42/ PC43 Bench

Isuzu/ Transtron
ISUZU 4HK1/ 6HK1/ 4JJ1:SH7058
ISUZU 6HK1XDIAG/ 4JJ1XDIAG M4S/ L4S:SH72533
ISUZU 6HK1/ 6WG1 M5.3/ M5.2:SH72544/ SH72546
ISUZU-4HK1/ 6HK1/ 4JJ1 L5.2/ L5.3/ L5.4:SH72544/ SH72546

Kia/ Hyundai
Modern/ Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)
D6CF Delphi ETC3 Series MPC5566-OBD
Kia/ Hyundai Kefico/ Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD
Kia/ Hyundai Euro 6 (Denso SH72543)-Bench
Kia/ Hyundai DCM3.7AP
Reading, writing, checksum correction.

BOSCH EDC
DCU17CV51 TC1724 Bench (SAIC/ JBC)
DCU17HD01/ DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)
VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)
DCU17PC42/ PC43 Bench (IVECO, FOTON, HYUNDAI)
EDC17CV44/ 54 OBD/ Bench/ Open
EDC17C81 OBD/ Bench/ Open[Support Bench lock Ecu]
EDC17C53 OBD/ Bench/ Open[Support Bench lock Ecu]
EDC17C55/ C63/ C04 OBD/ Bench/ Open[Support Bench lock Ecu]
EDC17CV41 OBD/ Bench/ Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)
EDC17CV42 Bench MAN
EDC7UC31 MPC561/ 562 OBD/ Bench
EDC7C1(lveco, Doosan, etc,series chip:MPC555)
EDC7C4, EDC17CP15/ CP52 Chip:MPC555 OBD
EDC16UC40 MPC561/ 562 OBD/ Bench
EDC16C39 MPC561/ 562 OBD/ Bench
EDC17CP52 TC1797 Bench(Ivevo,Fuso)
EDC17C69 TC1793 Bench IVECO
EDC17C49 TC1797 Bench IVECO
EGC4 TC1797 BGA Bench
EDC17C83 TC1793 Bench ISUZU
MEG17.9.1X, Chip:TC176211766/ 179211796 (Bench Mode)
MEG17.9.2X, Chip:TC17241172817671178211784/ 1797 (Bench Mode)

BOSCH MD1 Bootloader
MD1CE100 AURIX SAK-TC299TP
MD1CE108 ST-SPC5898
MD1CS089 SAK-TC299TP
MD1CS069 SAK-TC299TP
MD1CC878/ 868 ST-SPC58XX
Reading, writing, checksum corrections

CUMMINS
Cummins 2880
Cummins 2220
Cummins 2250
Cummins 2150
Cummins 2150E
Cummins 876
Cummins 2350
Cummins 2350A
Cummins 2620
Cummins 2670
Cummins 2380（Natural Gas）
Cummins X12N MD1
Cummins 850

Others
Continental FAW 52E/ 91E SPC563X OBD/ Open/ checksum
Continental Weichai WISE15/ 15C SPC564X OBD/ Open/ checksum
Continental FAW 32F/ 36F OBD / checksum
Econtrols LNG/ CNG 3G/ 4G OBD Model
Woodward LNG/ CNG OBD Model/ Recover
ZF Transmission OBD writing/ checksum
ZF Retarder OBD writing
WABCO ECAS Reading, writing
WABCO ABS/ EBS Reading, writing
Knorr ECAS Reading, writing
Knorr ABS/ EBS Reading, writing
VCU/ CBCU/ BCM/ Instrument writing (FAW, CNHTC, DF, Foton,)
Covering most ECU Flash
(FAW/ CNHTC/ SINOTRUK/ SITRAK/ DongFeng/ Foton/ CAMC/ SHACMAN/ SFH/ JMC/ JAC/ XCMG/ SANY/ CHENGLONG)

Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles, covering almost all electronic control systems of commercial vehicles in China, not listed one by one.

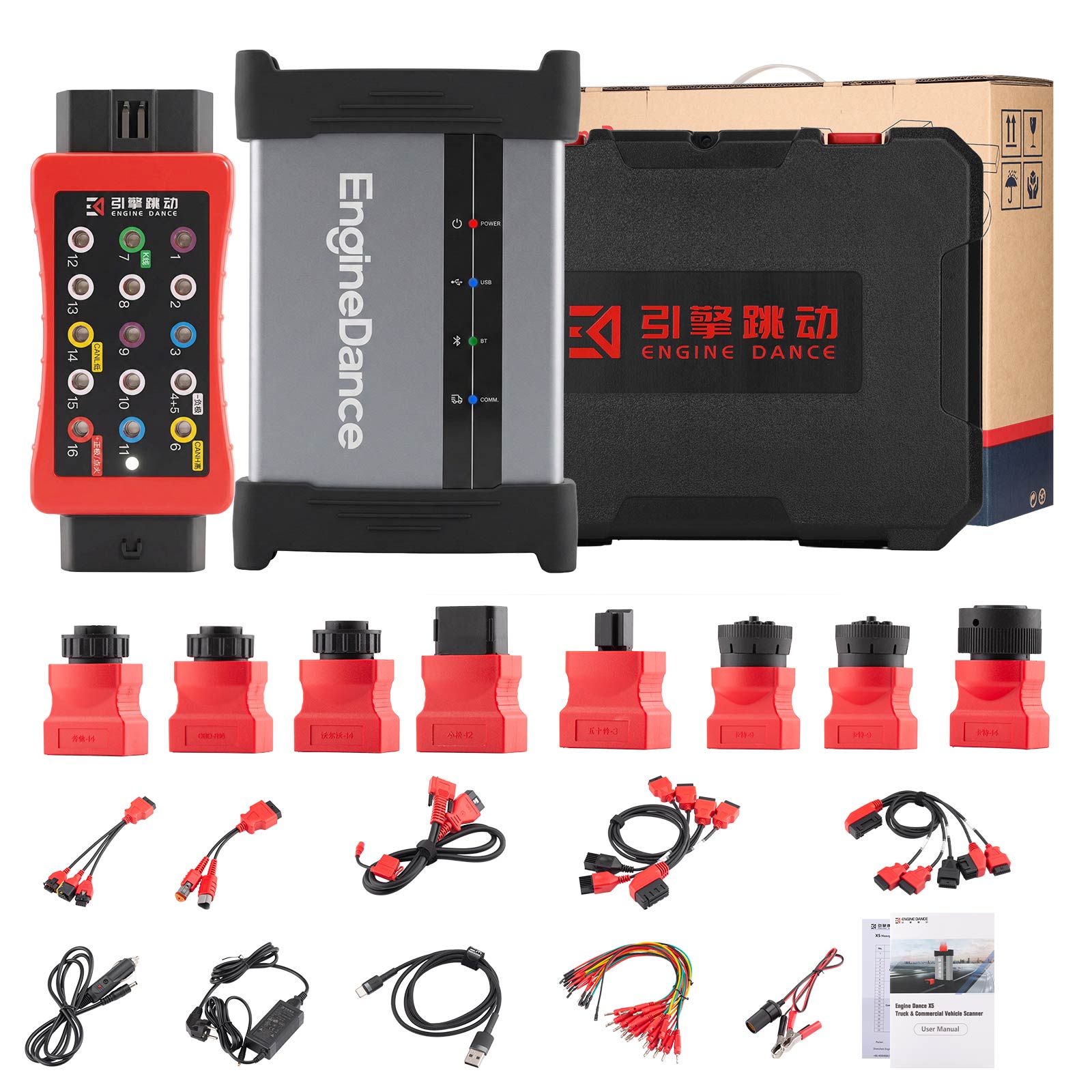

Package includes:
1pc x EngineDance X5 Diag Truck Diagnostics
