Toyota BT Forklift Diagnosis Tool TruckCom Forklift truck scanner Can Bus Line TruckCom Canbox CPC USB/ARM7 USB Cable

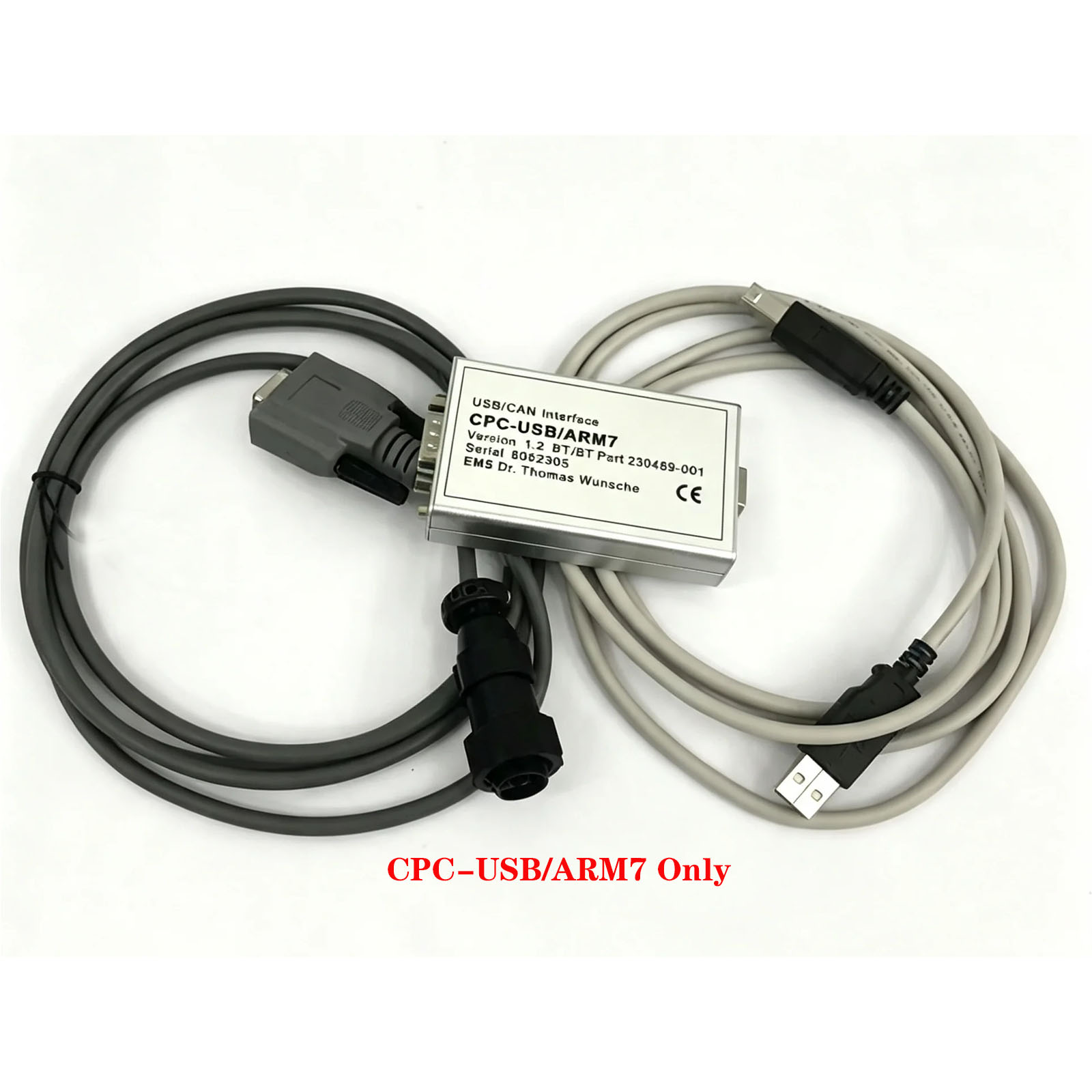

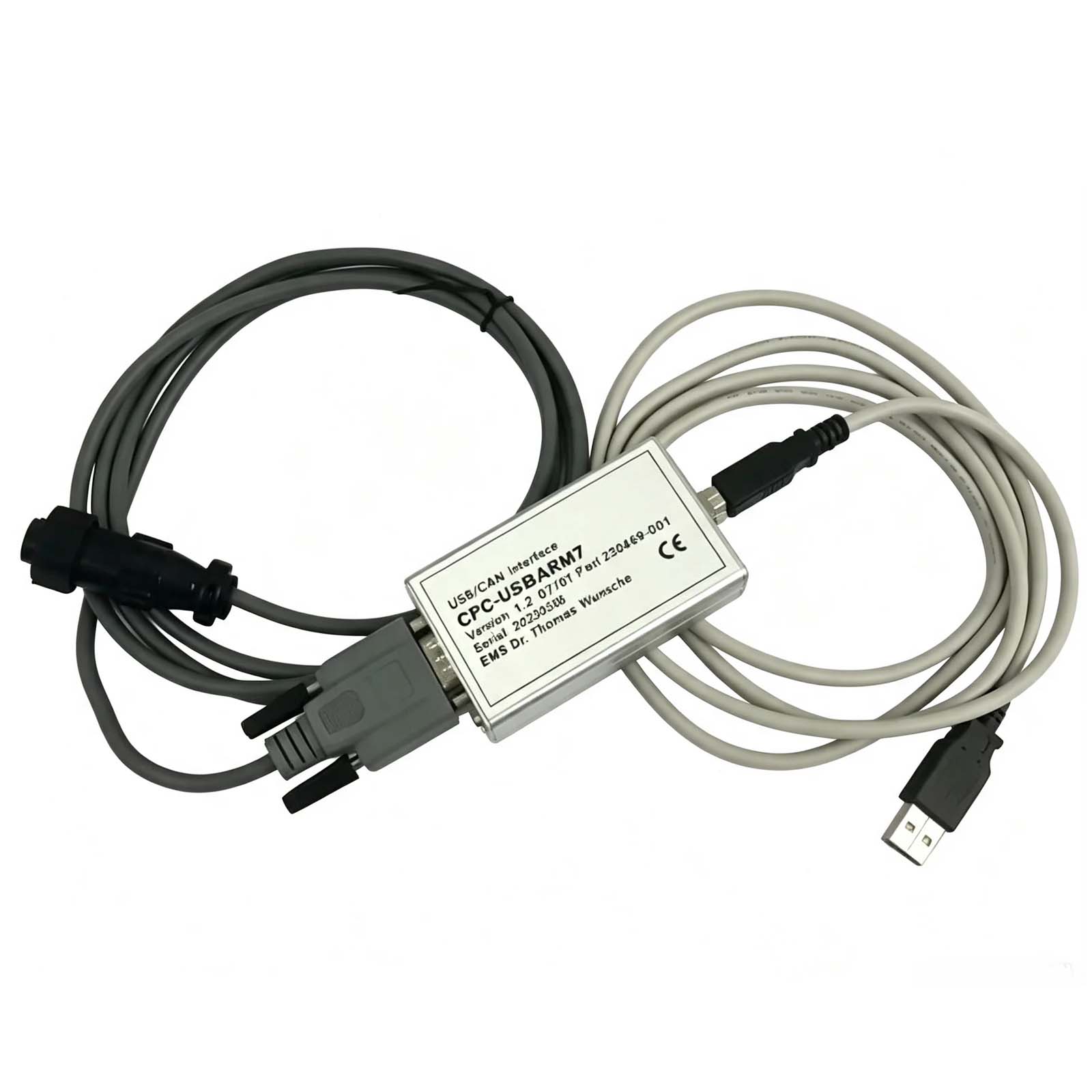

TruckCom CAN Interface is a specialized diagnostic hardware and software kit (often using a CPC USB-to-CAN ARM7 box) designed for Toyota BT Forklifts. It connects a Windows PC to the truck's internal CAN bus network to read error codes, adjust service parameters, and test electronic control units (ECUs).

TruckCom Toyota - BT Diagnostic tool
Hardware Version: v2.12.9 R3 [2019]
Software Size:228 MB (WinRAR Files)
Type of software:Diagnostic software for Toyota - BT
Type of vehicle:Forklift
Region:All regions
Interface Language:English, Spanish, Russian, French, German, Czech, Danish, Dutch, Finnish, Greek, Hungarian,Norwegian, Polish, Swedish, Chinese.
Database Language:English
OS:Window 7, Window 8, Window 10 32 & 64bit

Why choose ARM7 USB Cable?
1.Professional‑grade service tool for forklift mechanics & BT forklift owners. It supports parameter adjustment and full diagnostic access for BT forklifts, covering core maintenance requirements.

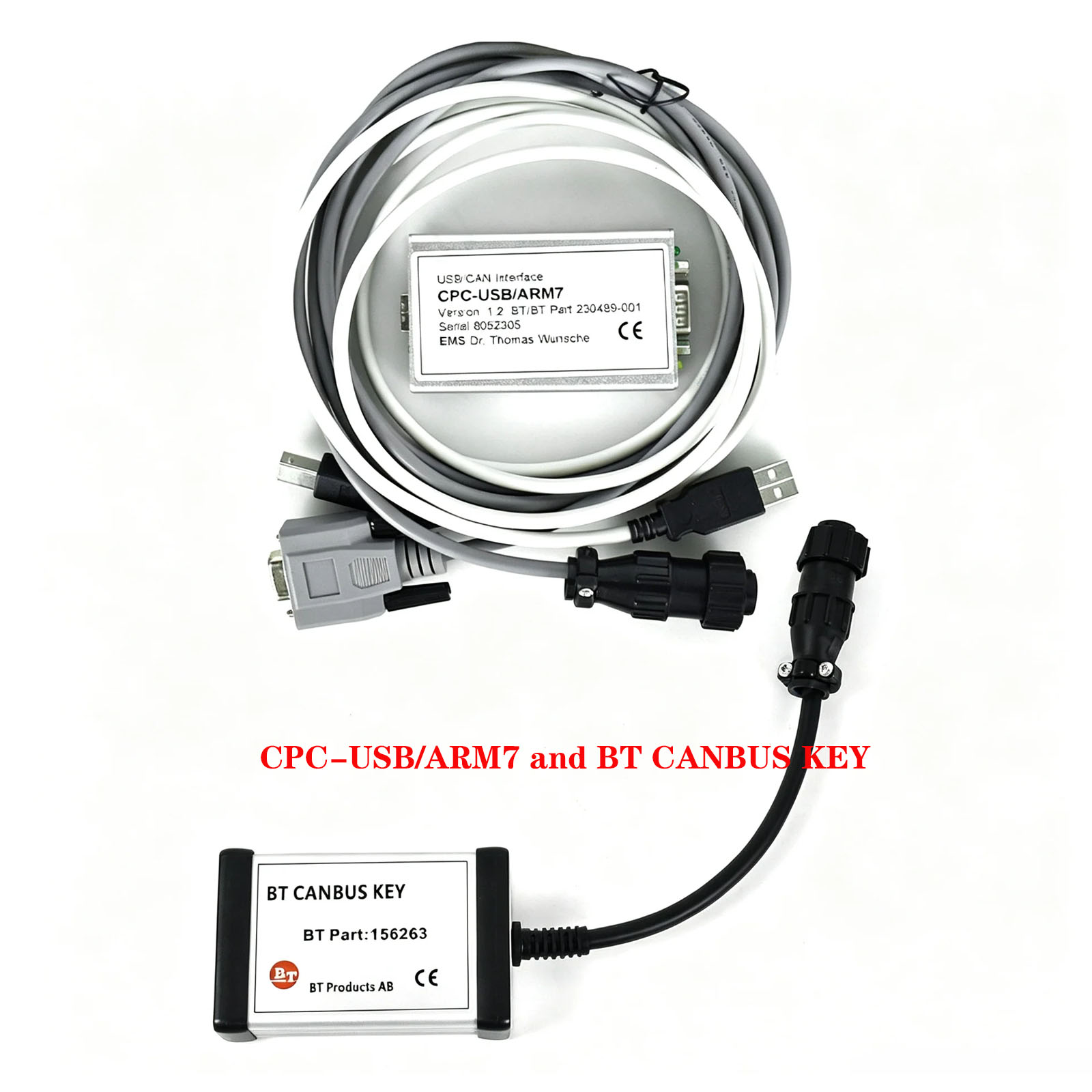

2.Equivalent or better performance than OEM parts with cost‑effective pricing. Aftermarket replacement part (Part No.156263). It matches or outperforms original OEM components, yet comes at a more affordable price to cut your tool investment cost.
3.Simple plug‑and‑play operation: Just plug into the forklift diagnostic socket; no complicated modification required.
4.Unlock hidden service & diagnostic functions; access BT keypad system. Enables full hidden service / diagnostic features and grants entry to the BT forklift keypad for deep‑level troubleshooting.
5.Reasonable parameter‑editing restriction on newer BT machines: Only operator & service‑level parameters can be modified on new‑generation BT forklifts. Factory‑level parameters are locked to prevent accidental changes to original factory configurations.

Important Warning for RRE Reflex reach trucks:
1.Do not go into ANY of the hidden service menus or submenus without FIRST looking in the manual to see what that function, when activated, will do to the truck!
2.There are some functions that could cause serious damage to property or personal injury if you happen to activate a service function at the wrong time with the truck in the wrong configuration for that function.

Applied Toyota - BT Truck Model:
Reach truck:
7FBRE12/14 (Inverter Generation 3)
7FBRE12/14/16N (Inverter Generation 5, Machine no. - 6020966)
7FBRE12/14/16N (Inverter Generation 5, Machine no. 6020967 -)
7FBRE12/14/16N (Inverter Generation 5, Machine no. 6104106 -)
7FBRE16/20/25 (Inverter Generation 5)
7FBRE16/20/25
8FBRE14-25 (Feat MCU2, Machine no. - 6229951)
8FBRE14-25 (Feat MCU2B, Machine no. 6229952 -)
8FBRE12-16S (Feat MCU2B, Machine no. 6308581 -)
Order Picking (Low Level and Tow Truck):
7LOP12、7LOP25/P、7LOP10、7LOP10CW、7LOP10CF
8LOP12、8LOP25/P、8LOP10、8LOP10CW、8LOP10CF
Pedestrian Powerd Stacker:
7SLL12.5
7SLL13.5S
7SLL16
7SLL20
7SLL12.5F
7SLL16F
7SLL20F
7SM08F
7SM10
7SM12
7SM12I
7SM12F
7SM16D
7SM12S
8SM10
8SM12/12F/12S
8SM14/14F
8SM20D
8SM08F
8SM10
8SM12/12F/12S
8SM14/14F
8SM20D
8SM08F
(Machine no. 6384362 -)
8SLL12/12F
8SLL14/14F/14S
8SLL16/16F
8SLL20/20F/20D/20DN
8SM14S
8SM14.5/14.5F
8SM16/16F
8SM20/20F
8SLL12XR
8SM12XR
SP10/S
Powered Pallet:
7PML20-6    BT - HB20/6
7PML20-8    BT - HB20/8
7PML24-M    BT - HB24
7PML24-s
7PM18    BT - HBW18
7PM20    BT - HBW20
8PM14
8PM16    BT - 2HBW15
8PM18    BT - 2HBW18
8PM20    BT - 2HBW20
8PM25    BT - 2HBW25
8PM14
8PM16    BT - 2HBW15
8PM18    BT - 2HBW18
8PM20    BT - 2HBW20
8PM25    BT - 2HBW25
(Machine no. 6384368 -)
8PLL20    BT - 2HB20
8PLL22
8PLL25    BT - 2HB25
PP13

Car Fitment	Model	Year
toyota car	Avalon	2005-2011
Toyota Van	Sienna	2012-2013
TOYOTA (FAW)(GR)	COROLLA CROSS (TFTM)	2022-2023
TOYOTA (FAW)(GR)	ALPHARD/VELLFIRE	2023-
Toyota LCV - Europe Truck	Hi-Lux	2005-2008
Toyota (FAW)	AVALON (_XA5_, _XH5_)	2019-
TOYOTA (FAW)(EU)	Coaster	2000-2016
TOYOTA (FAW)(EU)	YARIS CROSS/HYBRID	2021-
TOYOTA(EU)	4Runner	2000-2021
Toyota	SOLARA Coupe (_V3_)	2001-2008
Toyota	RAV 4 V (_A5_, _H5_)	2020-
Toyota	SUPRA (DB_), SUPRA / GR SUPRA (DB_)	2019-

Toyota BT Package list:
1set x toyota bt interface
1set x cables
1set x cd

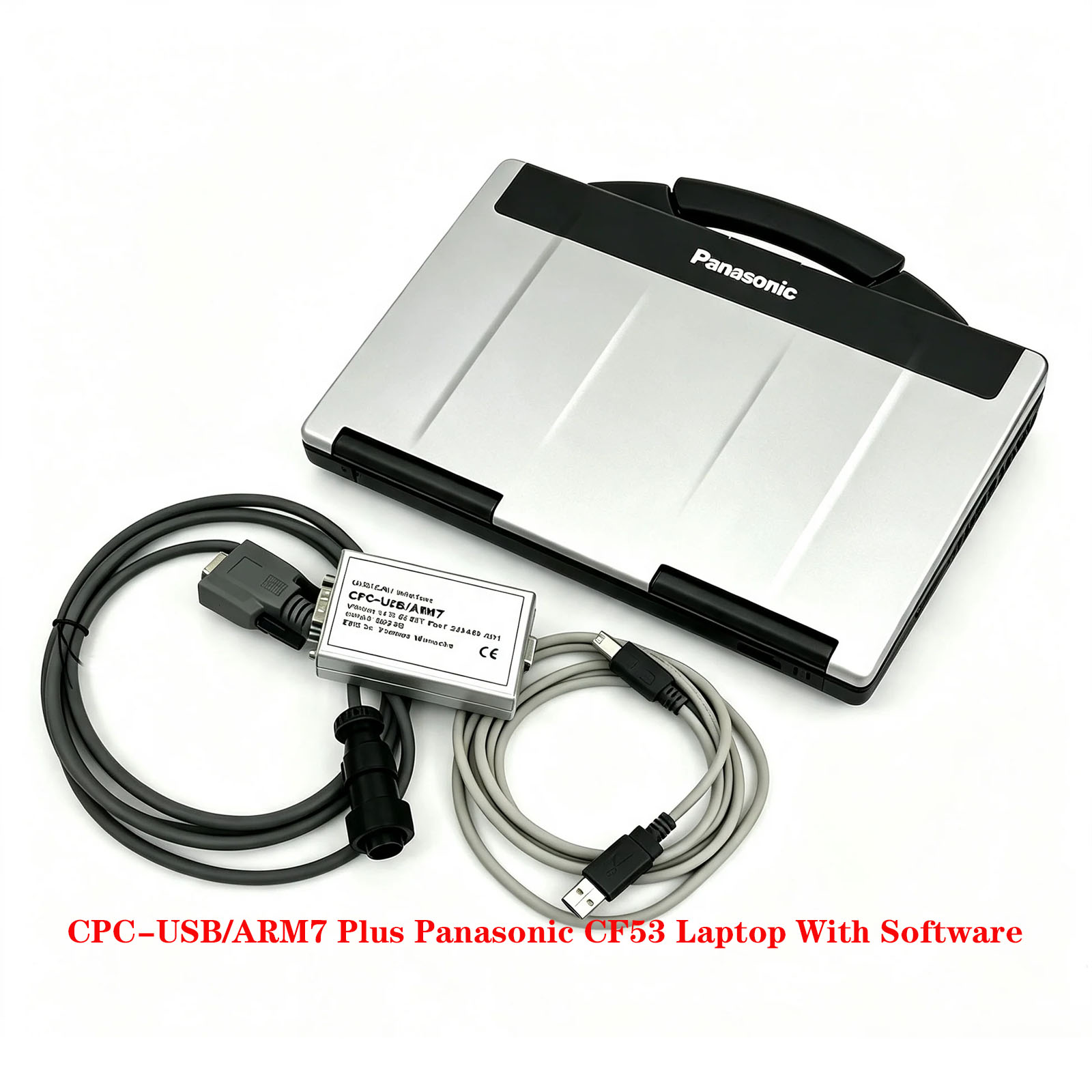

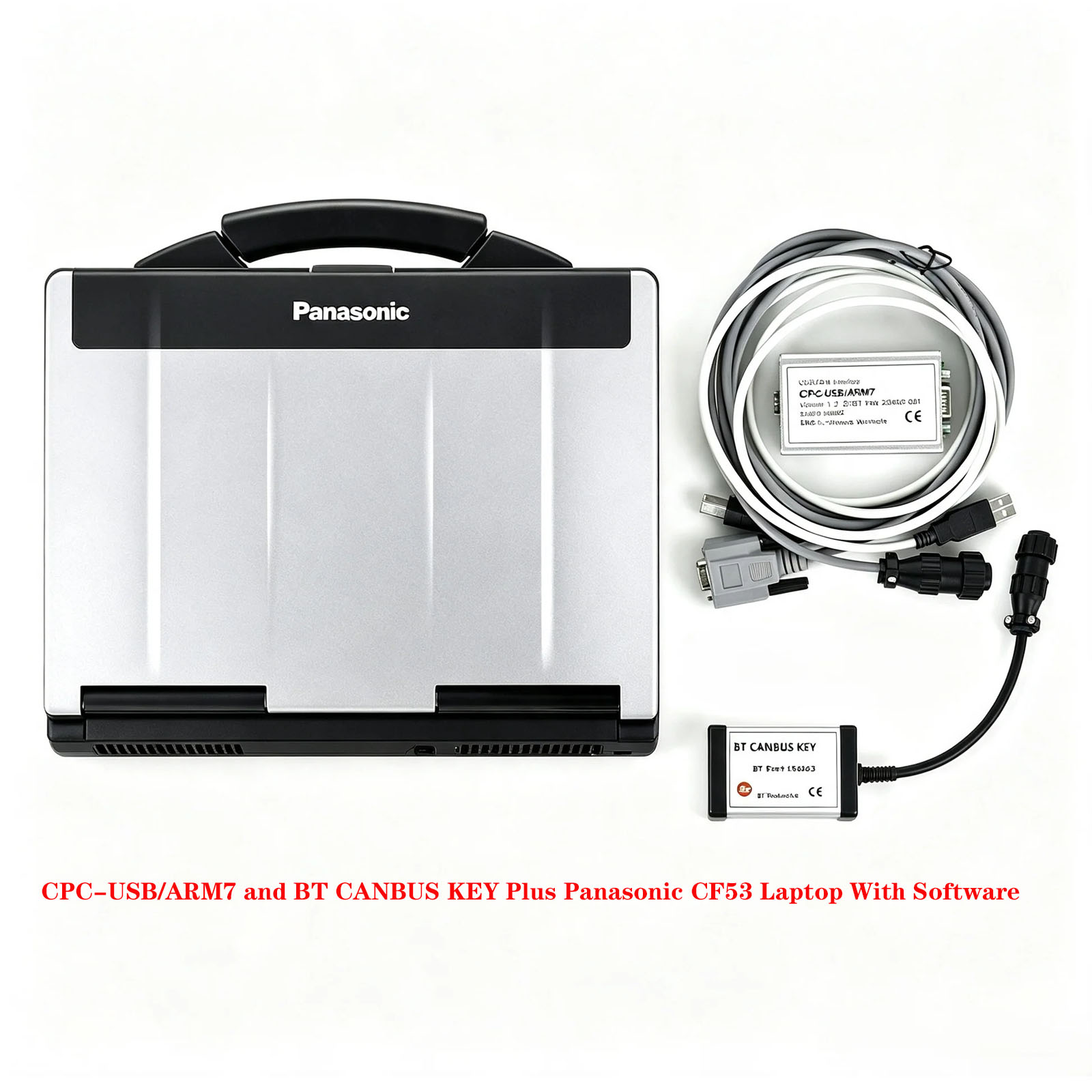

1set x Second Hand Laptop Panasonic CF53 (optional)

Panasonic CF53 Second Hand Laptop
Processor:Intel Core i5 3320U
Memory:8GB
Screen size:14.0 inches
Resolution:1366 × 768
Hard Disk:256G SSD
