 GM Tech2 GM Diagnostic Scanner

GM Tech2 Software Version:

For GM
GM-English         33.004 1991-2014
GM-Spanish         33.002 1991-2014
GM-Germany      32.007 1991-2013
GM-Japanese   32.006   1991-2013
GM-French   32.007   1991-2013
GM-Italiana   32.007   1991-2013
GM-Portuguese  32.002   1991-2013
GM-Korean   32.002    1991-2013

For SAAB
SAAB-English  148.000

For OPEL
OPEL-English      Newly Update to V180  1997-2014
OPEL-Italian      Newly Update to V180   1997-2014
OPEL- Polski      Newly Update to V180   1997-2014
OPEL- German         Newly Update to V180   1997-2014
OPEL- Turkish        Newly Update to V180   1997-2014
GM Tech2 Card Opel Software Update to V180 Support Cars from the Year 1997 to 2014

For Holden
HOLDEN-English　 V149 1999-2013
Austiralian Holden     147.000  1999-2012

For SUZUKI
SUZUKI-English   01.210.020

For ISUZU
ISUZU-English   CAN-BUS V180 2006-2015  (CAN-BUS support car models after 2010)
ISUZU-English   K-Line  11.680  1996-2014 (K-line support car models from 1996 to 2014)

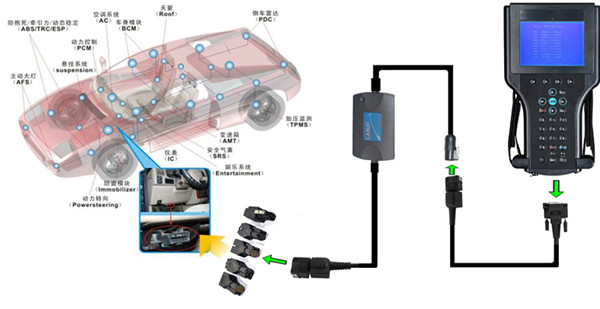

GM Tech2 Connection with Candi interface Picture

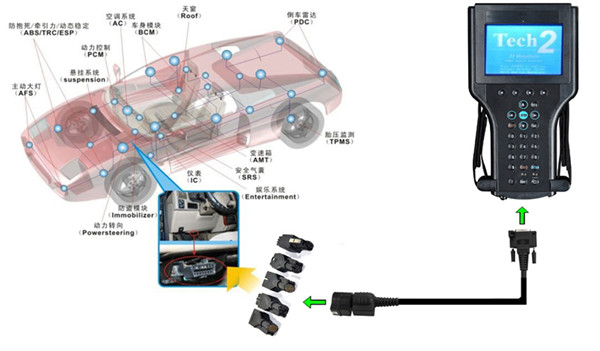

GM Tech 2 Connection without Candi interface picture

GM Tech2 Description:

The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2011.

Car model supported: GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN

GM Tech2 Specification:

1) Dimensions: 12

2) Microprocessor: 32 bit,16 MHz

3) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.

4) Communications: Integral RS232 communication port.

5) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

GM Tech2 Features

1) Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.

2) Support for on-board diagnostics on all GM systems 1992 thru 2011.

3) Removable hardware modules provide insurance against scan tool obsolescence.

4) Large, easy-to-read backlit screen.

5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.

6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.

7) Ability to view the status of vehicle diagnostic tests as they run.

8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

The Following GM Vehicles Utilize The CAN Interface

05 Buick Allure (3.6L)

05 Buick LaCrosse (3.6L)

05 Buick Rainier (5.3L)

04-05 Buick Rendezvous (3.6L)

04-05 Cadillac CTS (3.6L)

04-05 Cadillac SRX (3.6L / 4.6L)

04-05 Cadillac XLR (4.6L)

05 Cadillac STS (3.6L / 4.6L)

05 Chevrolet Cobalt (2.2L)

05 Chevrolet Corvette (6.0L)

05 Chevrolet Equinox (3.4L)

05 Chevrolet TrailBlazer (5.3L)

05 Chevrolet SSR (6.0L)

04 Chevrolet Malibu (Body/Chassis only)

05 Chevrolet Malibu (3.5L)

05 GMC Envoy (5.3L)

05 Pontiac G6 (3.5L)

05 Pontiac GTO (6.0L)

05 Pontiac Pursuit (2.2L)

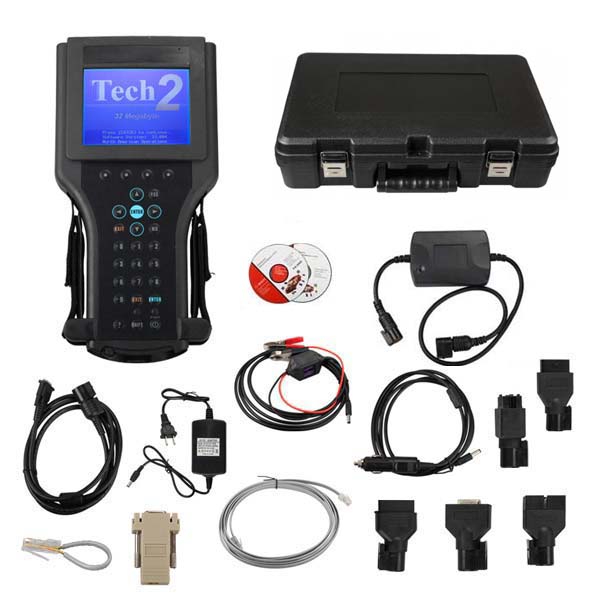

GM Tech2 Package List:

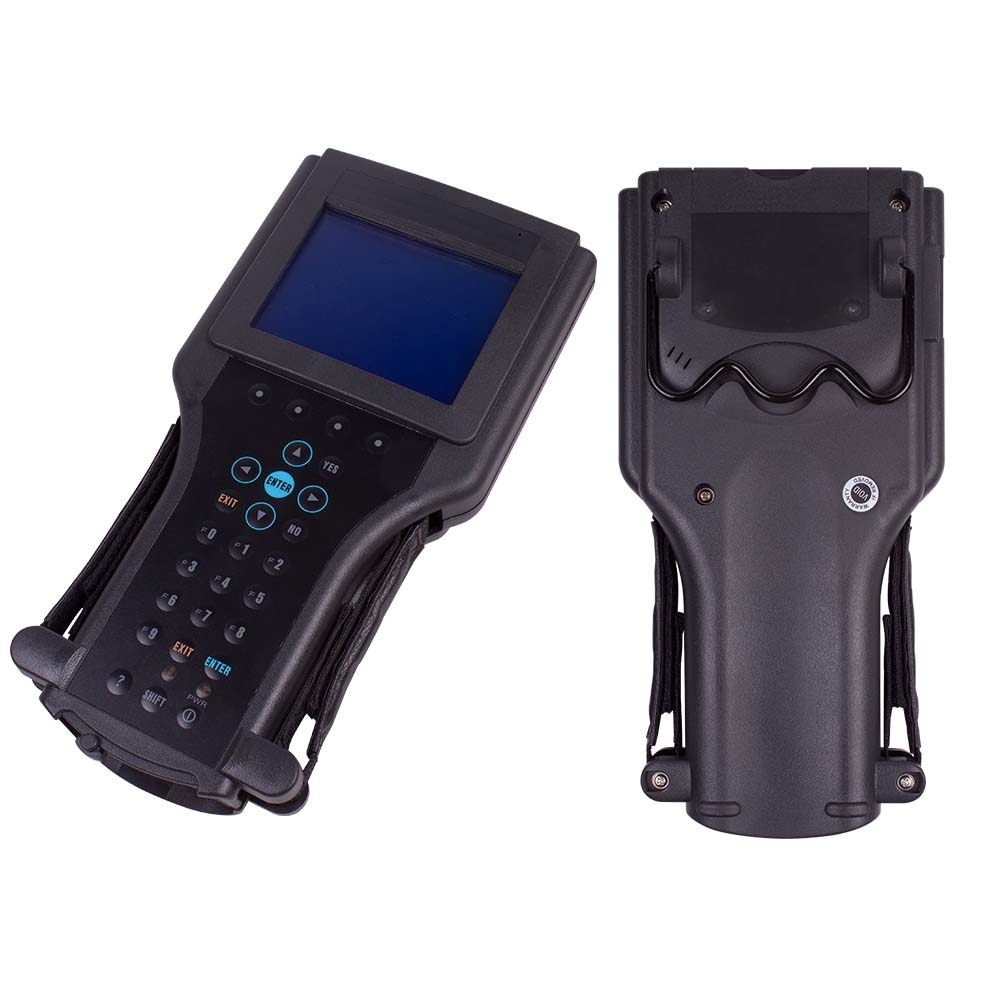

Tech-2 Flash Tester

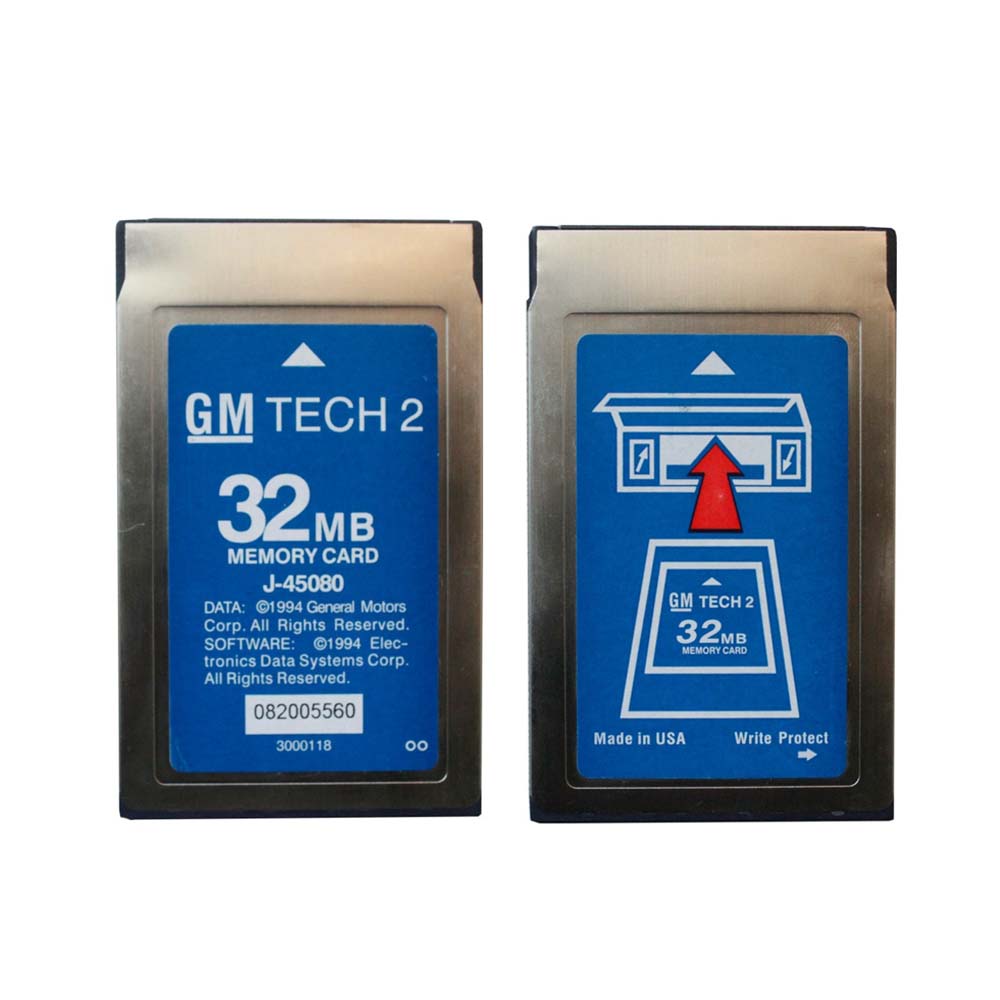

32 MB PCMCIA Card with GM OE Applications

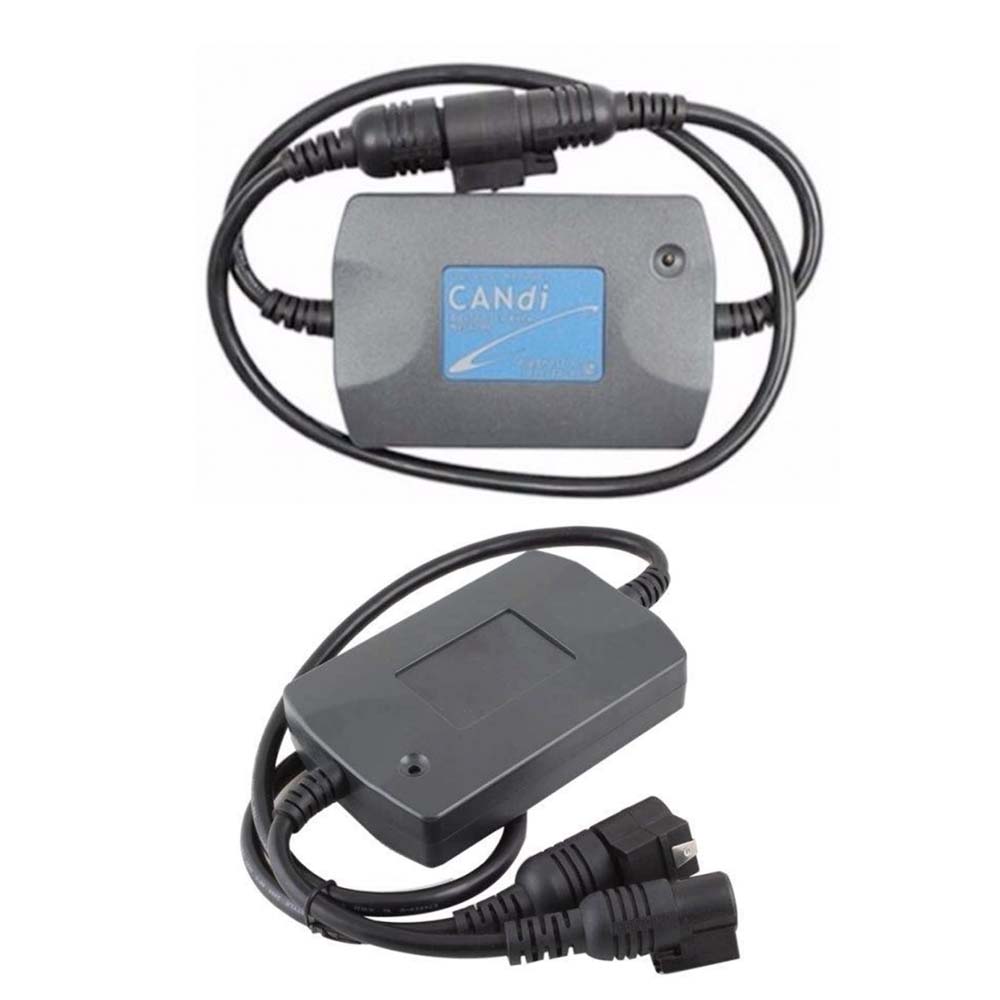

CAN diagnostic interface module(CANdi) and instruction sheet download (199.2 kb)

RS232 cable and user manual

RS232-DB9 adapter

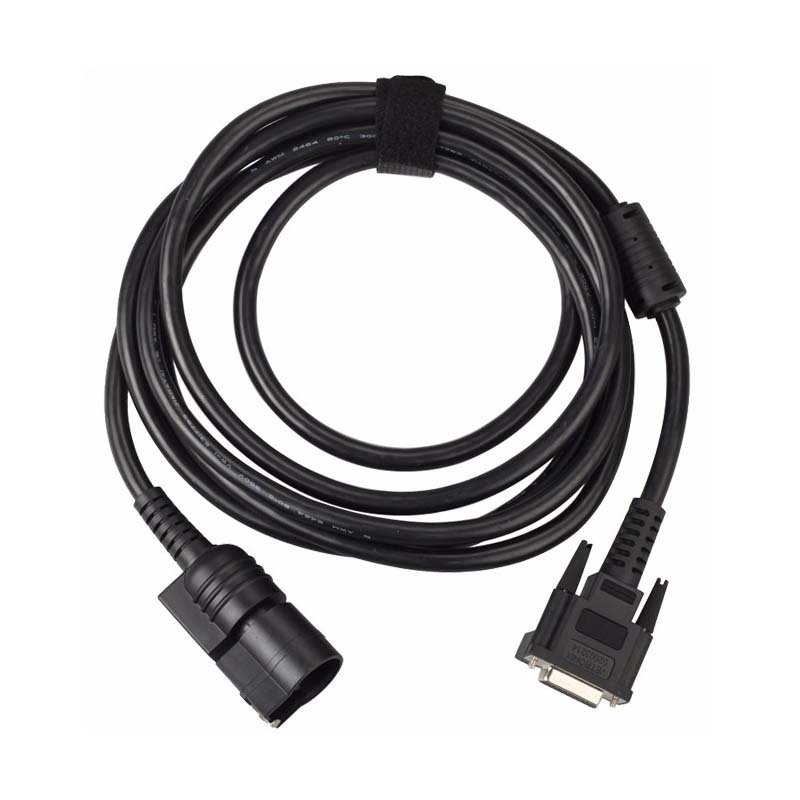

DLC Cable, DLC Loopback Adapter

12V Cigarette Lighter Power Cable

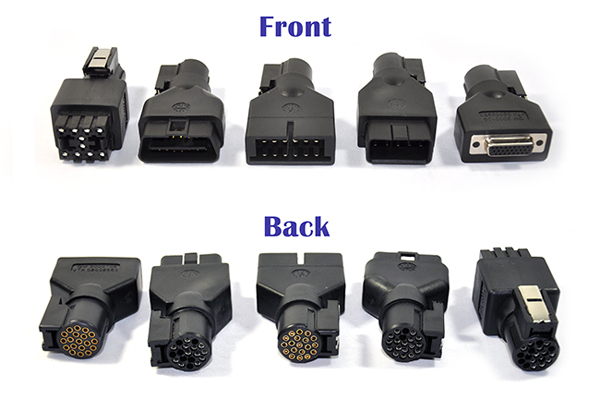

SAE 16/19 Adapter

NAO 12/19 Adapter

Battery Power Cable

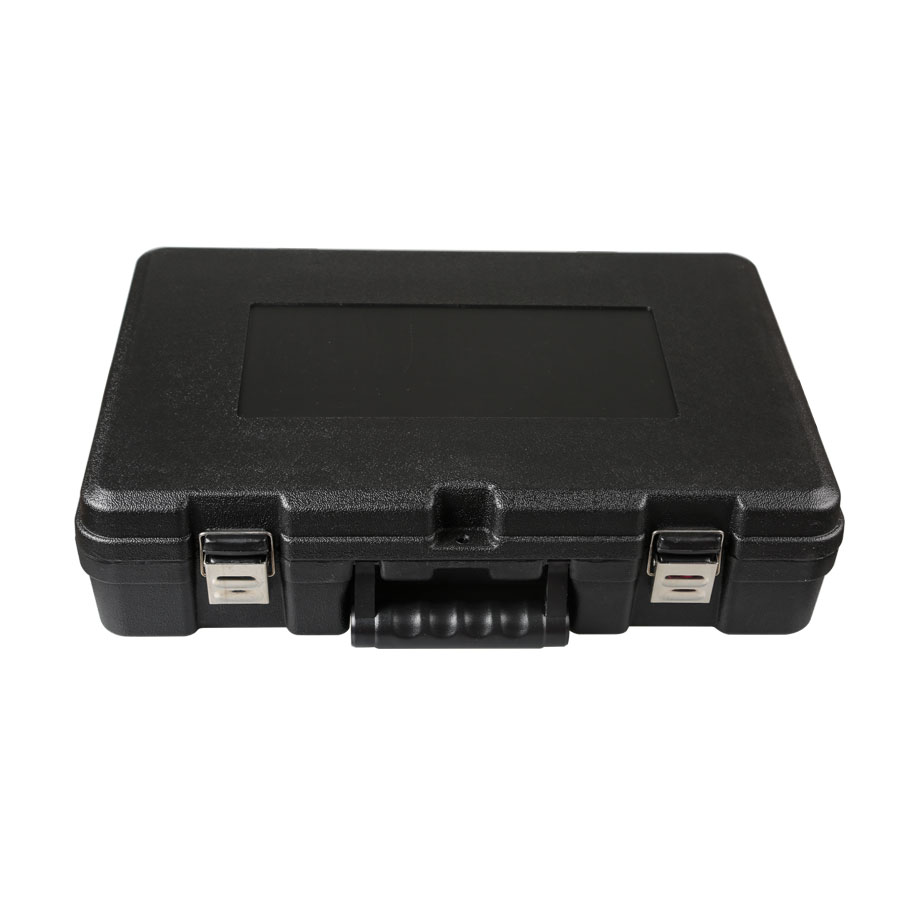

Storage Case

TIS 2000 CD

GM Tech2 FAQ:

Q1: Does GM tech2 Support Coding?

A1: Yes, it does, but you need to buy an additional TIS2000, TIS2000 support cars programming until 2007 year.



Q2: Can TECH2 support key coding and electronic control unit programming for all OPEL and Isuzu?

A2: GM tech2 diagnostic scanner can't support key programming; as for electronic control unit programming, you need to additionally buy a GM TECH2 and a TIS2000, but TIS2000 only support GM and Opel, not support Isuzu.



Q3: GM TECH2 contains Saturn software?

A3: yes, Saturn software is included in the GM software English and support from 1991 to 2010 year.



Q4: Is GM TECH2 available on my Cadillac year 1996?

A4: Yes, GM TECH2 diagnostic tool works with Cadillac.



Q5: Does GM Tech 2 work with Australian Holden 1998?

A5: GM tech2 diagnostic scanner is only compatible with North American Holden, and our software for Holden only work with Holden from 1999-2012.



User Comment(Total 16 User Comment Num)

• by faisal kaddo,Jul 07,2022


  Can it work for Chevrolet c4500? It is pickup truck.

  Reply #1 by Nancy Jul 08,2022
  Yes, it can work for Chevrolet c4500, but only support the car before 2013.

  Nancy

  ---

• by Gary Chew,Jul 02,2022


  I have a 2006 SAAB 9-3 2.0T, it has some questions, can it diagnostic?

  Reply #1 by Nancy Jul 03,2022
  Yes, it can diagnose the 2006 SAAB 9-3 2.0T.

  Nancy

  ---

• by Jace Kern,Jun 26,2022


  After I received the package, seller is patient to help me, thanks.

  Reply #1 by Nancy Jun 27,2022
  Hello, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by carl haynes,Jun 14,2022


  Can you offer the keygen of TIS2000?

  Reply #1 by Nancy Jun 15,2022
  Yes, we can offer to you.

  Nancy

  ---

• by Gabriel Rodriguez,Jun 02,2022


  If I choose the SAAB card, can you set the language to Spanish?

  Reply #1 by Nancy Jun 03,2022
  Sorry dear, SAAB card language only can set to English.

  Nancy

  ---

• by Rupert Rodrigues,Apr 10,2021


  I am curious to know what all I need to purchase this for a 2010 gmc sierra.

  Reply #1 by Susie Apr 10,2021
  Hello,
  Tech 2 can work for 2010 gmc sierra.

  Susie

  ---

• by Trent Clark,Mar 31,2021


  There is one scanner listed as A108-1 and A108-2, where A108-1 is listed as“better scanner.” What is the difference between the two?

  Reply #1 by Susie Mar 31,2021
  Both of them have the same function.the difference form the quality of chip.A108-1 is better.

  Susie

  ---

• by Sauger Sebastien,Jul 02,2020


  Reply #1 by Vivian Jul 02,2020
  Thanks for your feedback.

  Vivian

  ---

• by Naohiko Otsuka,Aug 31,2017


  Came the whole set, in appearance everything should be ok. the work has not yet tried.

  Reply #1 by OBD2TOOL Aug 31,2017
  Thank you for your feedback

  OBD2TOOL

  ---

• by Justin Davidson,Apr 12,2017


  good scanner, works fine with isuzu trooper 4jx1 engine and aw30-40ls at

  Reply #1 by OBD2TOOL Apr 12,2017
  Thank you for your feedback

  OBD2TOOL

  ---
